  1. Project: IEEE P802.15 Working Group for Wireless Personal Area Networks (WPANs) Submission Title: [Applications and requirements for mm wave WPANs] Date Submitted: [21 September 2005] Source: [Alireza Seyedi] Company [Philips] Address [345 Scarborough Rd., Briarcliff Manor, NY, 10510, USA] Voice:[+1-914-945-6318], FAX: [+1-914-945-6330], E-Mail:[Alireza.Seyedi@Philips.com] Re: [] Abstract: [This document describes three application domains for 60GHz WPANs] Purpose: [Contribution to 802.15.3c task group] Notice: This document has been prepared to assist the IEEE P802.15. It is offered as a basis for discussion and is not binding on the contributing individual(s) or organization(s). The material in this document is subject to change in form and content after further study. The contributor(s) reserve(s) the right to add, amend or withdraw material contained herein. Release: The contributor acknowledges and accepts that this contribution becomes the property of IEEE and may be made publicly available by P802.15. Alireza Seyedi, Philips

  2. Introduction • Wide range of applications are necessary for success of the standard • Differentiation from other technologies or solutions is necessary • UWB bands may soon open in Japan and Europe • Considered applications and goals must be synchronized with the standard and product timeline • Some applications and requirements domains for millimeter wave WPANs have been overlooked … Alireza Seyedi, Philips

  3. Application domain A:Fast Download Application: Fast download of content from devices such as Wireless Digital Cameras, PDAs and Portable Audio Players Requirements: Rate: 2-3 Gbps (Fast (1-2min) download of large memory size (20 GB)) Range: <3m Antenna: Cannot be aimed accurately Manual aiming (hand held): Wide-angle antenna Automatic aiming:Adaptive array or sector selection Size: Small antennas Alireza Seyedi, Philips

  4. Application domain B:Streaming Application: Streaming uncompressed video: Wireless HDMI Requirements: Rate: 2-3 Gbps Range: 3-10m Antenna: Manual setup Size: Small receive antenna Alireza Seyedi, Philips

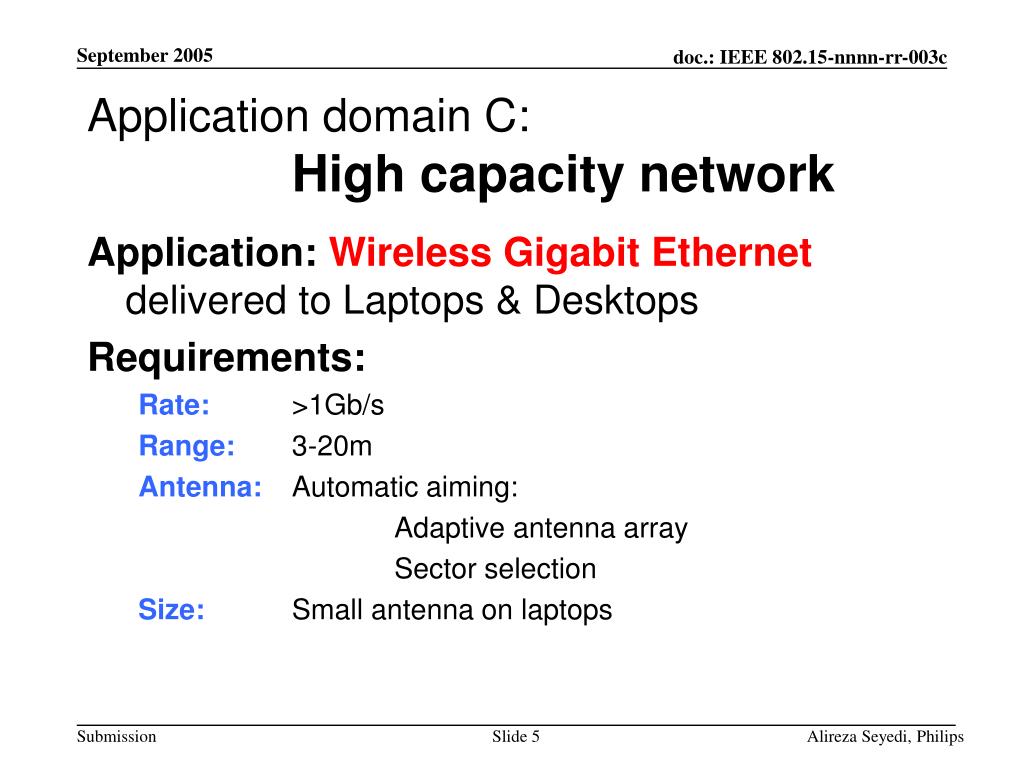

  5. Application domain C:High capacity network Application:Wireless Gigabit Ethernet delivered to Laptops & Desktops Requirements: Rate: >1Gb/s Range: 3-20m Antenna: Automatic aiming: Adaptive antenna array Sector selection Size:Small antenna on laptops Alireza Seyedi, Philips

  6. Summary of Requirements Rate: 2-3 Gbps Range: <20m, depending on application Antenna: System must be flexible to use different antennas (from omni to highly directional) Size: System must allow asymmetrical use of antenna gain (omni on one side, highly directional on the other side) Alireza Seyedi, Philips
