HYPERBOLAS

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

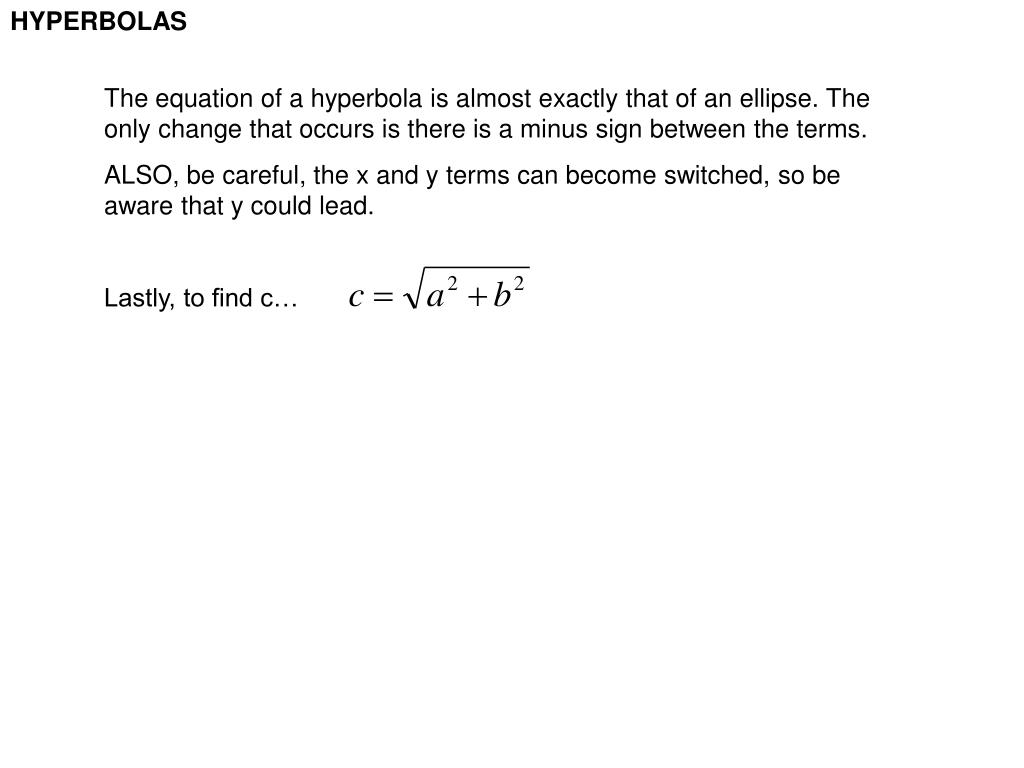

  1. HYPERBOLAS The equation of a hyperbola is almost exactly that of an ellipse. The only change that occurs is there is a minus sign between the terms. ALSO, be careful, the x and y terms can become switched, so be aware that y could lead. Lastly, to find c…

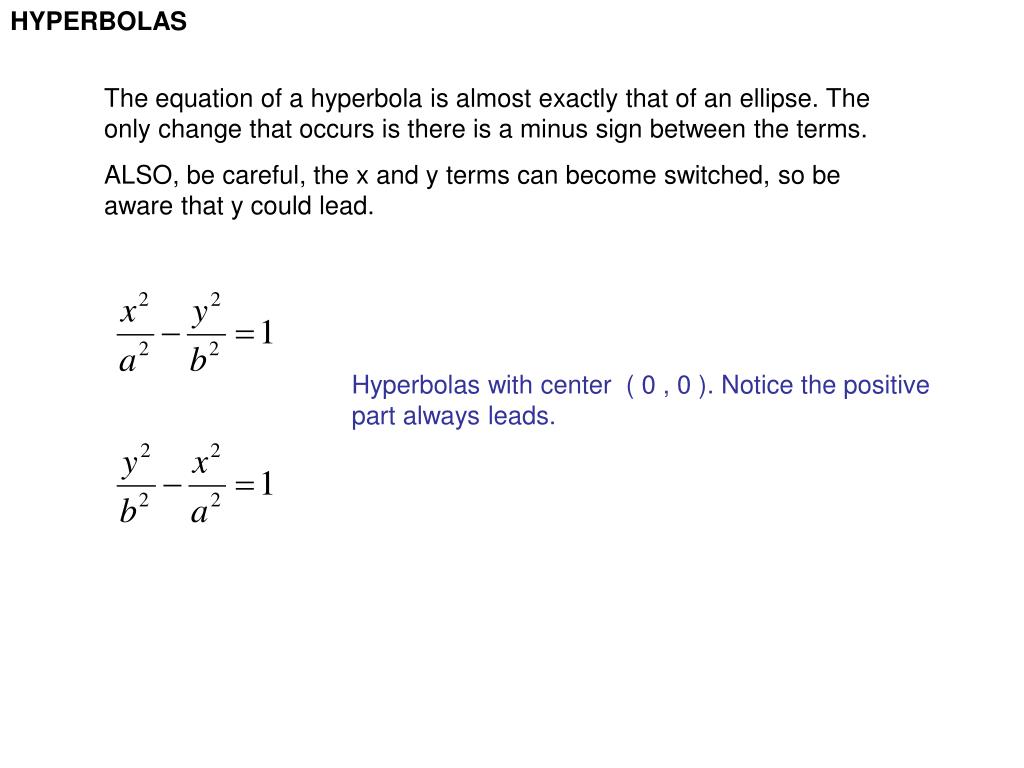

  2. HYPERBOLAS The equation of a hyperbola is almost exactly that of an ellipse. The only change that occurs is there is a minus sign between the terms. ALSO, be careful, the x and y terms can become switched, so be aware that y could lead. Hyperbolas with center ( 0 , 0 ). Notice the positive part always leads.

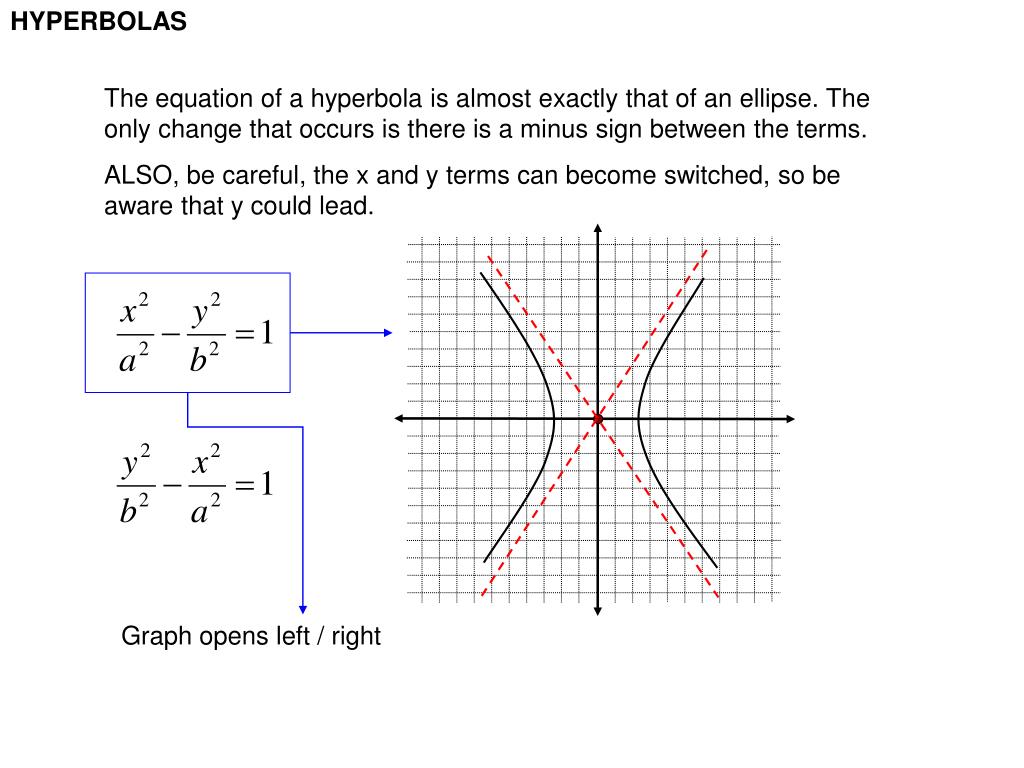

  3. HYPERBOLAS The equation of a hyperbola is almost exactly that of an ellipse. The only change that occurs is there is a minus sign between the terms. ALSO, be careful, the x and y terms can become switched, so be aware that y could lead. Graph opens left / right

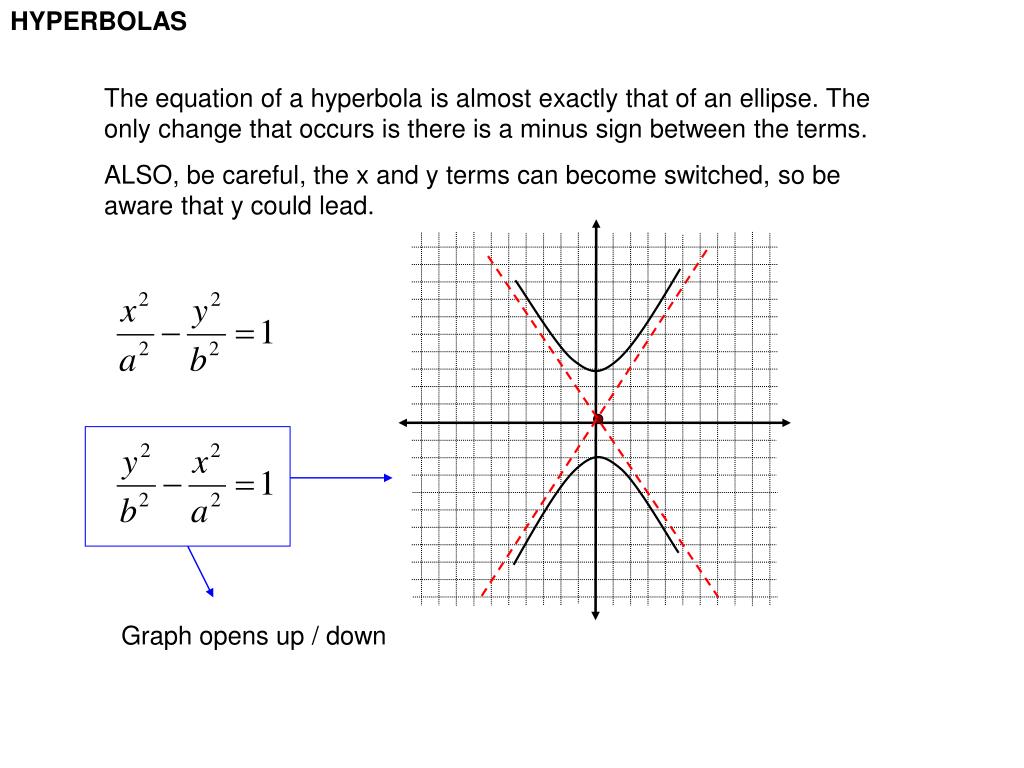

  4. HYPERBOLAS The equation of a hyperbola is almost exactly that of an ellipse. The only change that occurs is there is a minus sign between the terms. ALSO, be careful, the x and y terms can become switched, so be aware that y could lead. Graph opens up / down

  5. HYPERBOLAS The equation of a hyperbola is almost exactly that of an ellipse. The only change that occurs is there is a minus sign between the terms. ALSO, be careful, the x and y terms can become switched, so be aware that y could lead. Standard form for each type…

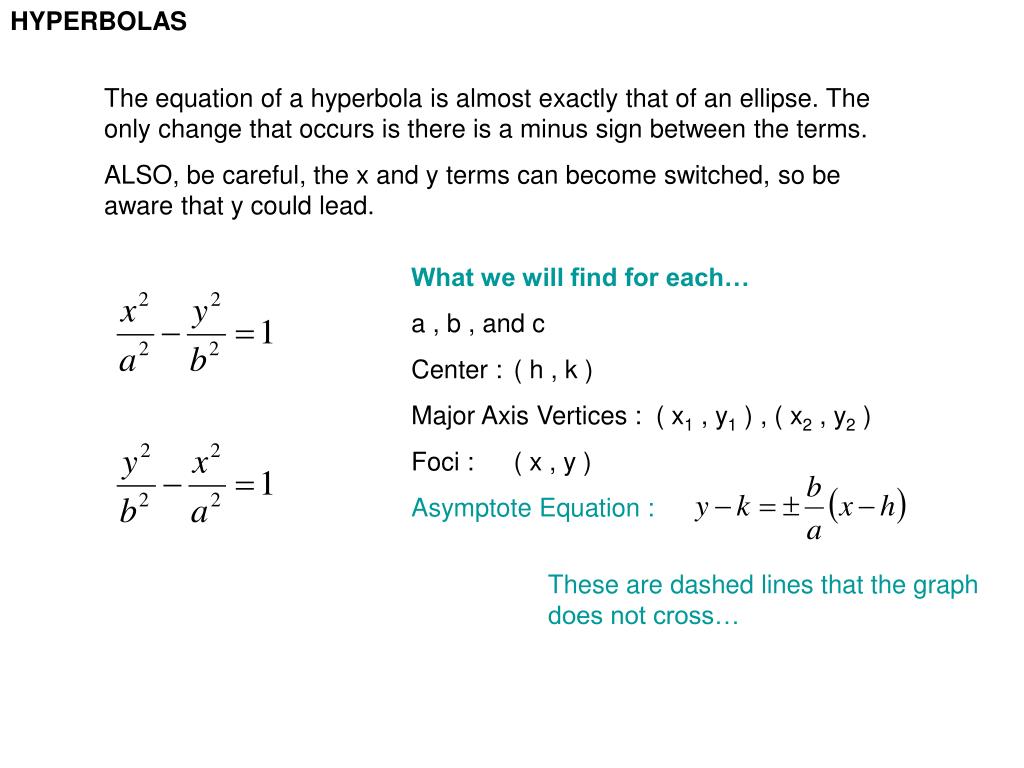

  6. HYPERBOLAS The equation of a hyperbola is almost exactly that of an ellipse. The only change that occurs is there is a minus sign between the terms. ALSO, be careful, the x and y terms can become switched, so be aware that y could lead. What we will find for each… a , b , and c Center : ( h , k ) Major Axis Vertices : ( x1 , y1 ) , ( x2 , y2 ) Foci : ( x , y ) Asymptote Equation : These are dashed lines that the graph does not cross…

  7. HYPERBOLAS Lets jump right in… EXAMPLE : Find the center, major axis vertices, foci, and asymptote equation for

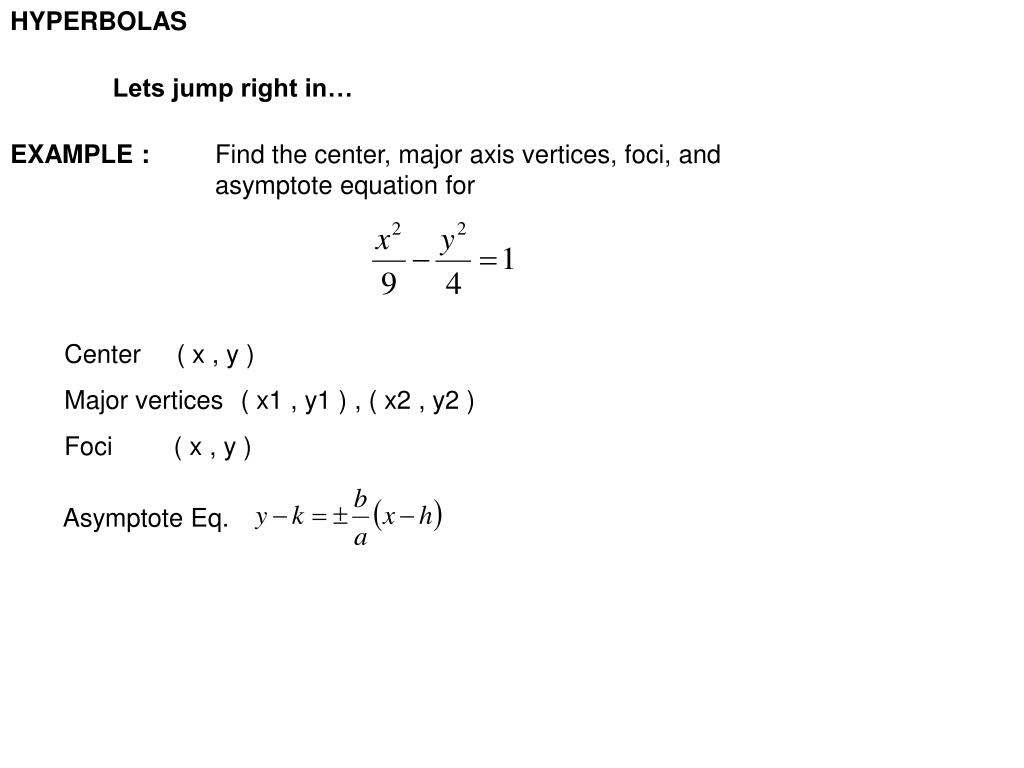

  8. HYPERBOLAS Lets jump right in… EXAMPLE : Find the center, major axis vertices, foci, and asymptote equation for Center ( x , y ) Major vertices ( x1 , y1 ) , ( x2 , y2 ) Foci ( x , y ) Asymptote Eq.

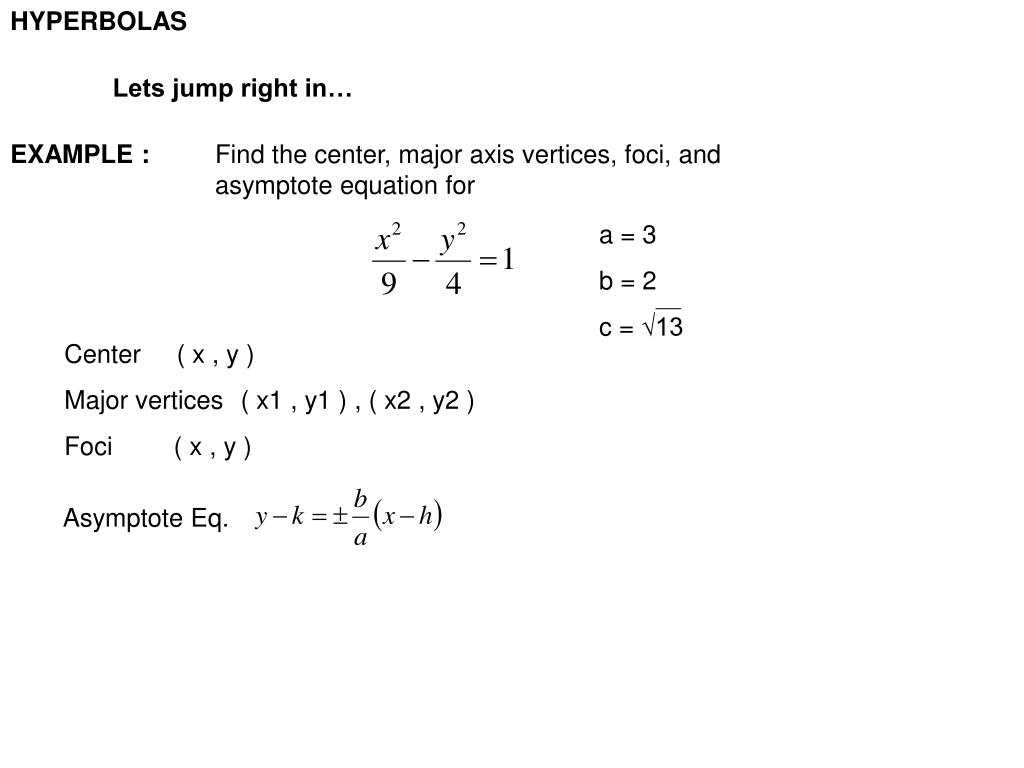

  9. HYPERBOLAS Lets jump right in… EXAMPLE : Find the center, major axis vertices, foci, and asymptote equation for a = 3 b = 2 c = √13 Center ( x , y ) Major vertices ( x1 , y1 ) , ( x2 , y2 ) Foci ( x , y ) Asymptote Eq.

  10. HYPERBOLAS Lets jump right in… EXAMPLE : Find the center, major axis vertices, foci, and asymptote equation for a = 3 b = 2 c = √13 Center ( 0 , 0 ) Major vertices ( x1 , y1 ) , ( x2 , y2 ) Foci ( x , y ) Asymptote Eq.

  11. HYPERBOLAS Lets jump right in… EXAMPLE : Find the center, major axis vertices, foci, and asymptote equation for a = 3 b = 2 c = √13 ±3 Center ( 0 , 0 ) ( x )Major vertices ( 3 , 0 ) , ( - 3 , 0 ) Foci ( x , y ) Asymptote Eq. x leads so x is Major axis… adjust h by ± a

  12. HYPERBOLAS Lets jump right in… EXAMPLE : Find the center, major axis vertices, foci, and asymptote equation for a = 3 b = 2 c = √13 ±3 Center ( 0 , 0 ) ( x ) Major vertices ( 3 , 0 ) , ( - 3 , 0 ) Foci ( x , y ) Asymptote Eq. Foci is on major ( x )… Adjust x by ± c

  13. HYPERBOLAS Lets jump right in… EXAMPLE : Find the center, major axis vertices, foci, and asymptote equation for a = 3 b = 2 c = √13 ±3 Center ( 0 , 0 ) ( x ) Major vertices ( 3 , 0 ) , ( - 3 , 0 ) Foci ( 0 ± √13 , 0 ) Asymptote Eq. Foci is on major ( x )… Adjust x by ± c

  14. HYPERBOLAS Lets jump right in… EXAMPLE : Find the center, major axis vertices, foci, and asymptote equation for a = 3 b = 2 c = √13 ±3 Center ( 0 , 0 ) ( x ) Major vertices ( 3 , 0 ) , ( - 3 , 0 ) Foci ( 0 ± √13 , 0 ) Asymptote Eq.

  15. HYPERBOLAS EXAMPLE # 2 :Find the center, major axis vertices, foci, and asymptote equation for

  16. HYPERBOLAS EXAMPLE # 2 :Find the center, major axis vertices, foci, and asymptote equation for A = 4 B = 1 C = √1 + 16 = √17

  17. HYPERBOLAS EXAMPLE # 2 :Find the center, major axis vertices, foci, and asymptote equation for A = 4 B = 1 C = √1 + 16 = √17 Center ( - 4 , 2 ) Notice that y leads, so be careful in your order

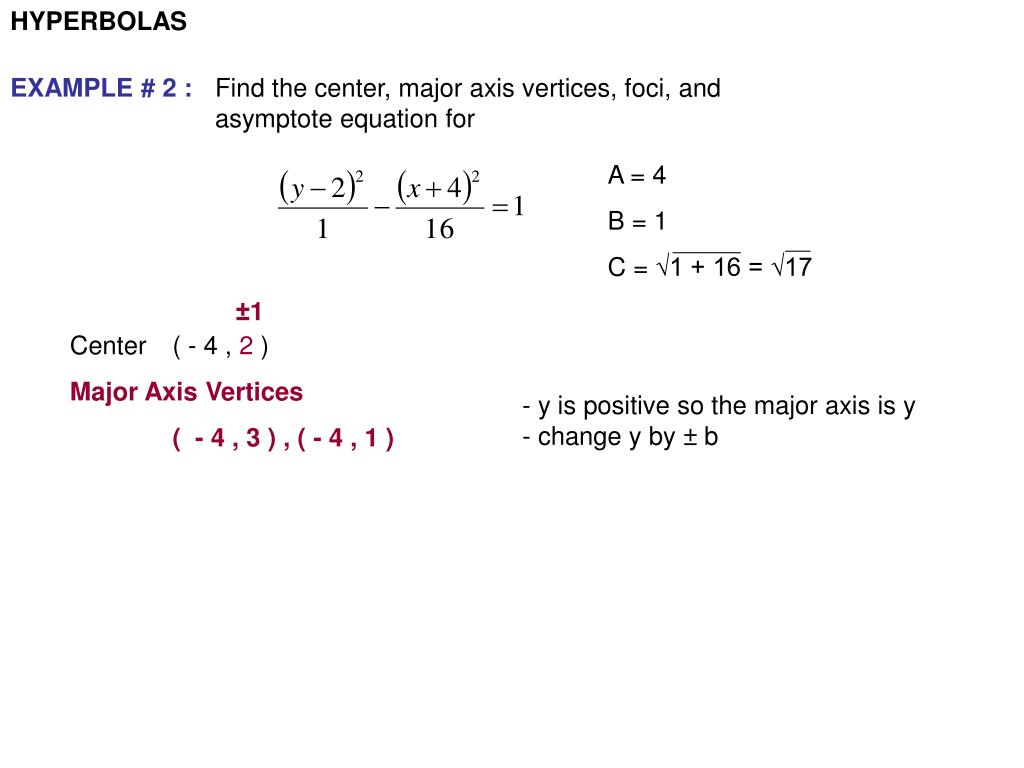

  18. HYPERBOLAS EXAMPLE # 2 :Find the center, major axis vertices, foci, and asymptote equation for A = 4 B = 1 C = √1 + 16 = √17 ±1 Center ( - 4 , 2 ) Major Axis Vertices ( - 4 , 3 ) , ( - 4 , 1 ) - y is positive so the major axis is y - change y by ± b

  19. HYPERBOLAS EXAMPLE # 2 :Find the center, major axis vertices, foci, and asymptote equation for A = 4 B = 1 C = √1 + 16 = √17 ±√17 Center ( - 4 , 2 ) Major Axis Vertices ( - 4 , 3 ) , ( - 4 , 1 ) Foci ( -4 , 2 ±√17) • Foci lies on major axis • change y by ± c

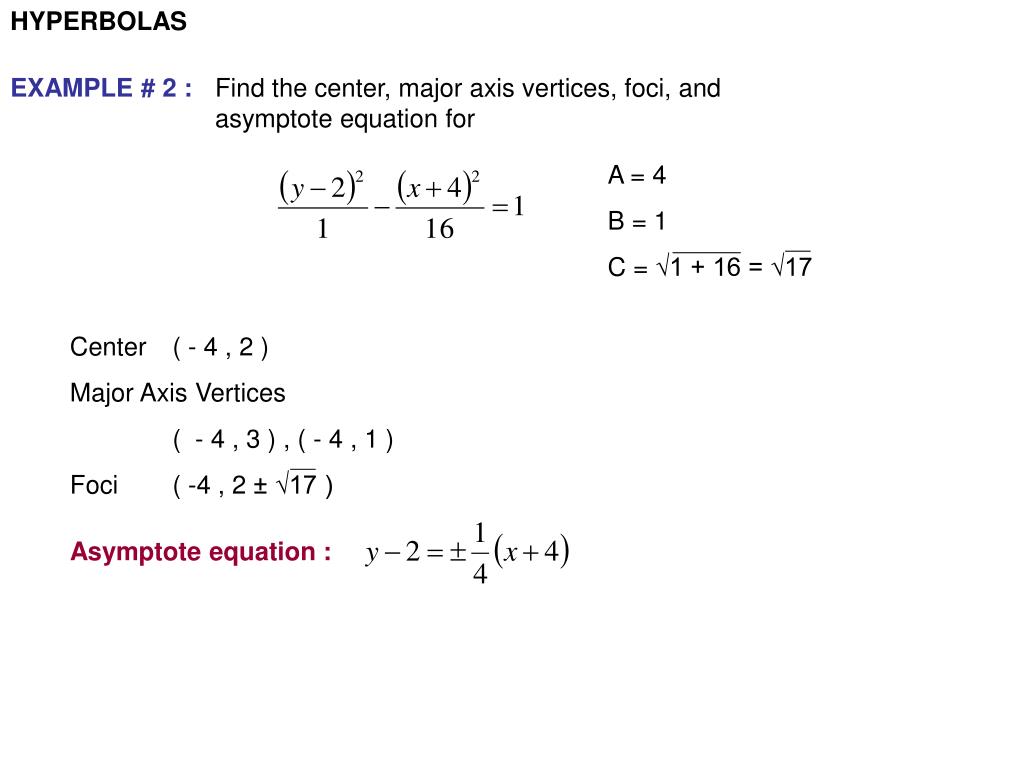

  20. HYPERBOLAS EXAMPLE # 2 :Find the center, major axis vertices, foci, and asymptote equation for A = 4 B = 1 C = √1 + 16 = √17 Center ( - 4 , 2 ) Major Axis Vertices ( - 4 , 3 ) , ( - 4 , 1 ) Foci ( -4 , 2 ± √17 ) Asymptote equation :

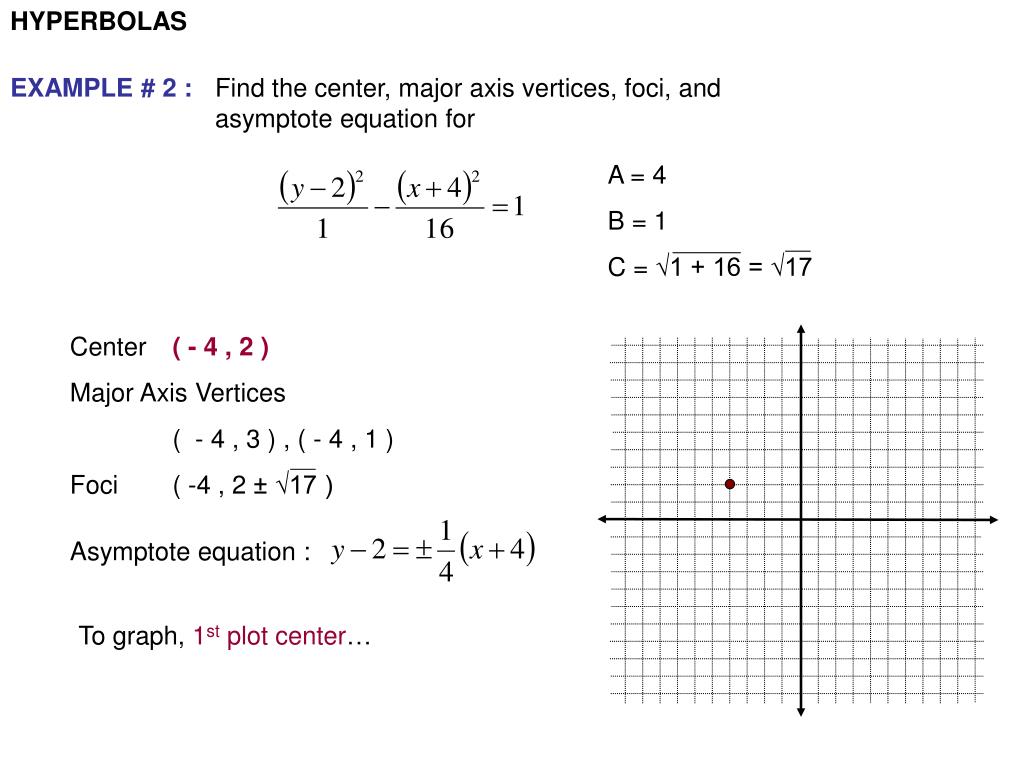

  21. HYPERBOLAS EXAMPLE # 2 :Find the center, major axis vertices, foci, and asymptote equation for A = 4 B = 1 C = √1 + 16 = √17 Center ( - 4 , 2 ) Major Axis Vertices ( - 4 , 3 ) , ( - 4 , 1 ) Foci ( -4 , 2 ± √17 ) Asymptote equation : To graph, 1st plot center…

  22. HYPERBOLAS EXAMPLE # 2 :Find the center, major axis vertices, foci, and asymptote equation for A = 4 B = 1 C = √1 + 16 = √17 Center ( - 4 , 2 ) Major Axis Vertices ( - 4 , 3 ) , ( - 4 , 1 ) Foci ( -4 , 2 ± √17 ) Asymptote equation : Next, plot the major vertices…

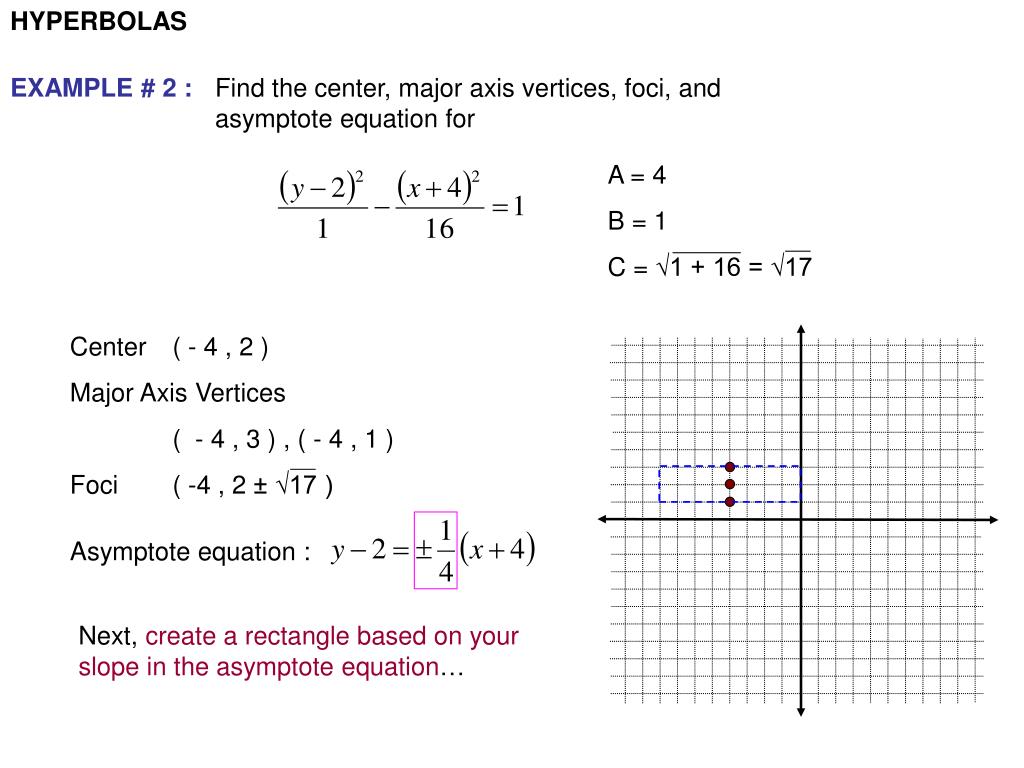

  23. HYPERBOLAS EXAMPLE # 2 :Find the center, major axis vertices, foci, and asymptote equation for A = 4 B = 1 C = √1 + 16 = √17 Center ( - 4 , 2 ) Major Axis Vertices ( - 4 , 3 ) , ( - 4 , 1 ) Foci ( -4 , 2 ± √17 ) Asymptote equation : Next, create a rectangle based on your slope in the asymptote equation…

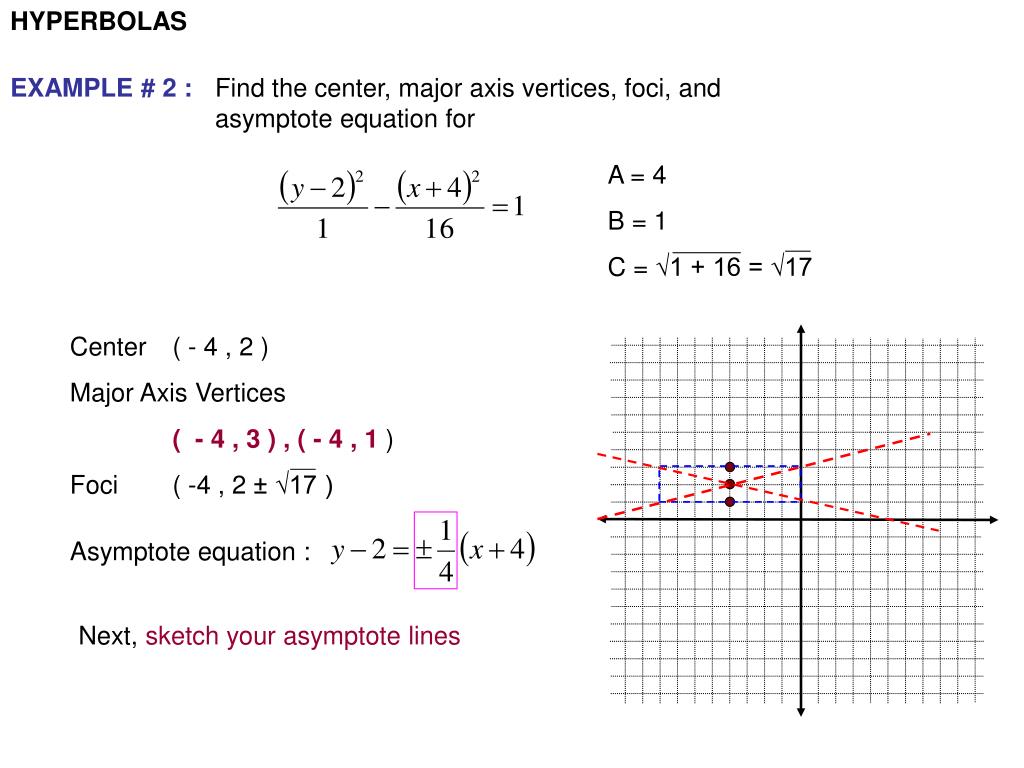

  24. HYPERBOLAS EXAMPLE # 2 :Find the center, major axis vertices, foci, and asymptote equation for A = 4 B = 1 C = √1 + 16 = √17 Center ( - 4 , 2 ) Major Axis Vertices ( - 4 , 3 ) , ( - 4 , 1 ) Foci ( -4 , 2 ± √17 ) Asymptote equation : Next, sketch your asymptote lines

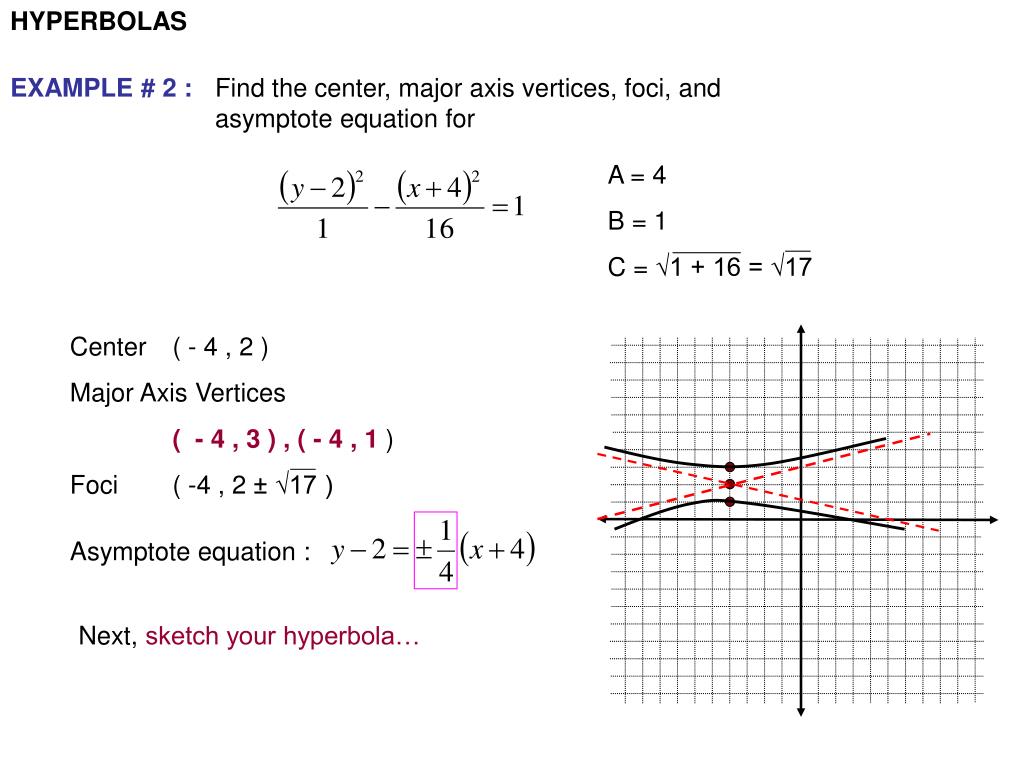

  25. HYPERBOLAS EXAMPLE # 2 :Find the center, major axis vertices, foci, and asymptote equation for A = 4 B = 1 C = √1 + 16 = √17 Center ( - 4 , 2 ) Major Axis Vertices ( - 4 , 3 ) , ( - 4 , 1 ) Foci ( -4 , 2 ± √17 ) Asymptote equation : Next, sketch your hyperbola…
