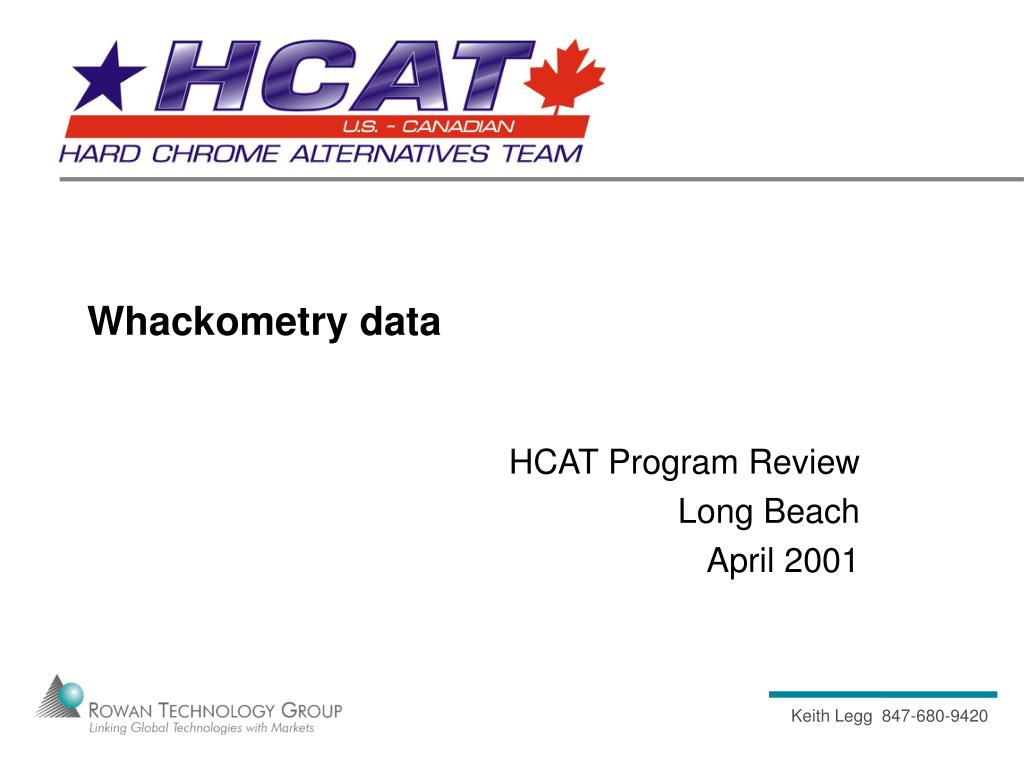

  1. Whackometry data HCAT Program Review Long Beach April 2001

  2. Whackometer • Simulate FOD (hammers, rocks, F-8’s, etc.) • 1 lb (1 7/8” dia) 52100 ball • Drop down tube • Flattens rod surface about 0.003” • Cracks around periphery of flattened area • 100x optical examination 2 - 8’ FOD for thought

  3. Impact crater - 5’ drop onto WC-CoCr 0.010”

  4. Work done so far • Drop tests done on 0.005” and 0.010” EHC, WC-Co, WC-CoCr • Heights 24 - 103” • Damage small - need microscopy • Some multiple-drops, but confusing and no obvious additional damage • This is not same as done by Don Parker • dropped coating on 3lb fixture onto 1” ball • did drops near edge of coating • could not get visible failure otherwise (cf ice cracking) • counted drops to visible failure

  5. EHC - 0.010”, 102” drop Circumferential cracks Longitudinal cracks away from flat Longitudinal cracks away from flat

  6. WC-Co, 0.010”, 102” drop Circumferential cracks

  7. WC-CoCr, 0.010”, 102” drop Circumferential cracks

  8. Conclusions • Damage not greatly different • chrome shows both circumferential and longitudinal cracks (along rod), while HVOF only shows circumferential cracks • more cracks visible for EHC than for HVOF (but also depends on contrast, surface reflectivity, roughness, etc.) • Damage at lower drop height still to be analyzed • So far HVOF is better than or equal to chrome • This is same conclusion as for Gravelometry
