Designing and Evaluating Two Adaptive Spoken Dialogue Systems

1. Designing and Evaluating Two Adaptive Spoken Dialogue Systems Diane J. Litman* University of Pittsburgh Dept. of Computer Science & LRDC litman@cs.pitt.edu Collaborators: S. Singh, M. Kearns, M. Walker, S. Pan *this work was done at AT&T Labs – Research, Florham Park, NJ

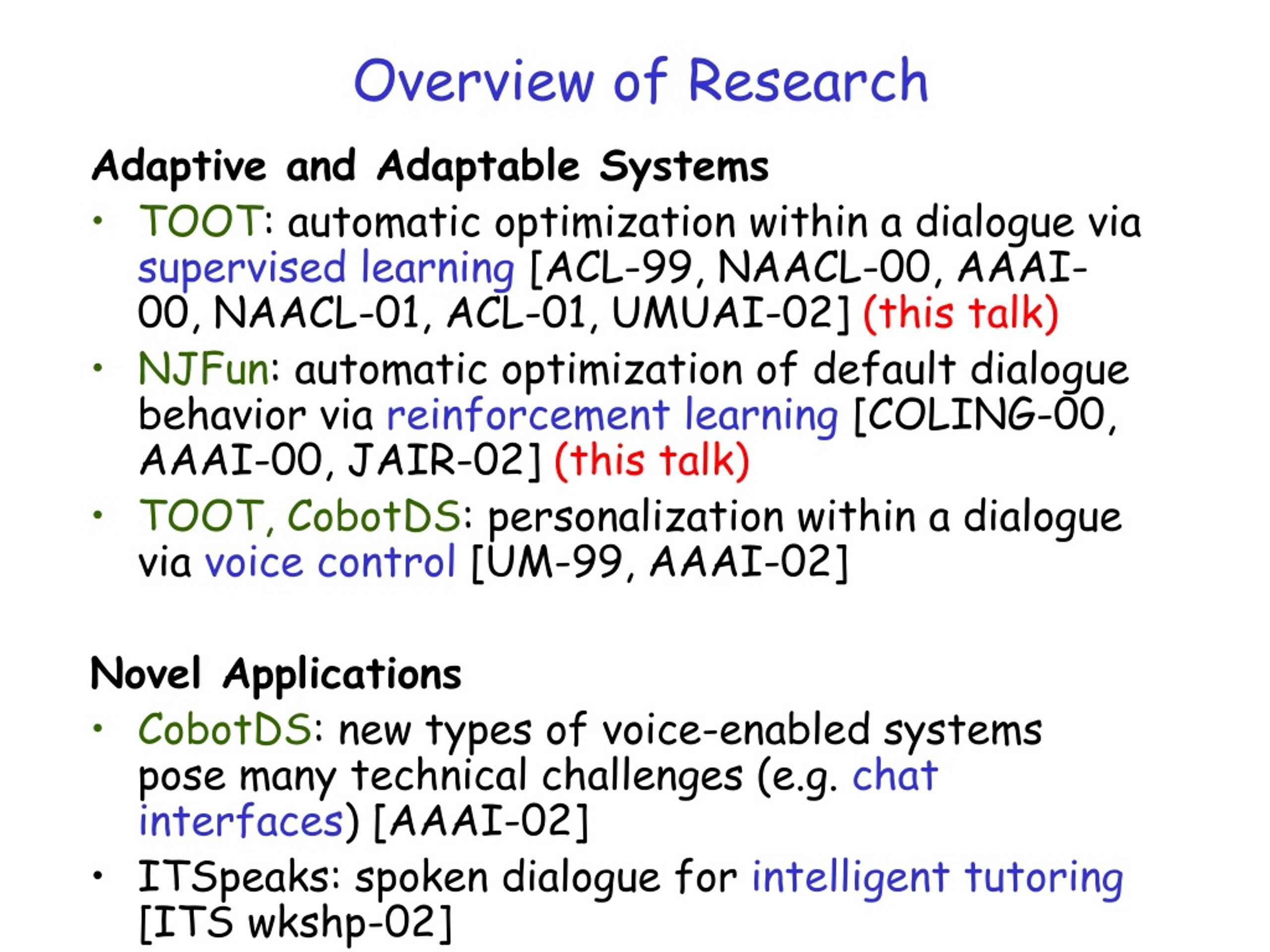

2. Overview of Research Adaptive and Adaptable Systems • TOOT: automatic optimization within a dialogue via supervised learning [ACL-99, NAACL-00, AAAI-00, NAACL-01, ACL-01, UMUAI-02] (this talk) • NJFun: automatic optimizationof default dialogue behavior via reinforcement learning [COLING-00, AAAI-00, JAIR-02] (this talk) • TOOT, CobotDS: personalization within a dialogue via voice control [UM-99, AAAI-02] Novel Applications • CobotDS: new types of voice-enabled systems pose many technical challenges (e.g. chat interfaces) [AAAI-02] • ITSpeaks: spoken dialogue for intelligent tutoring [ITS wkshp-02]

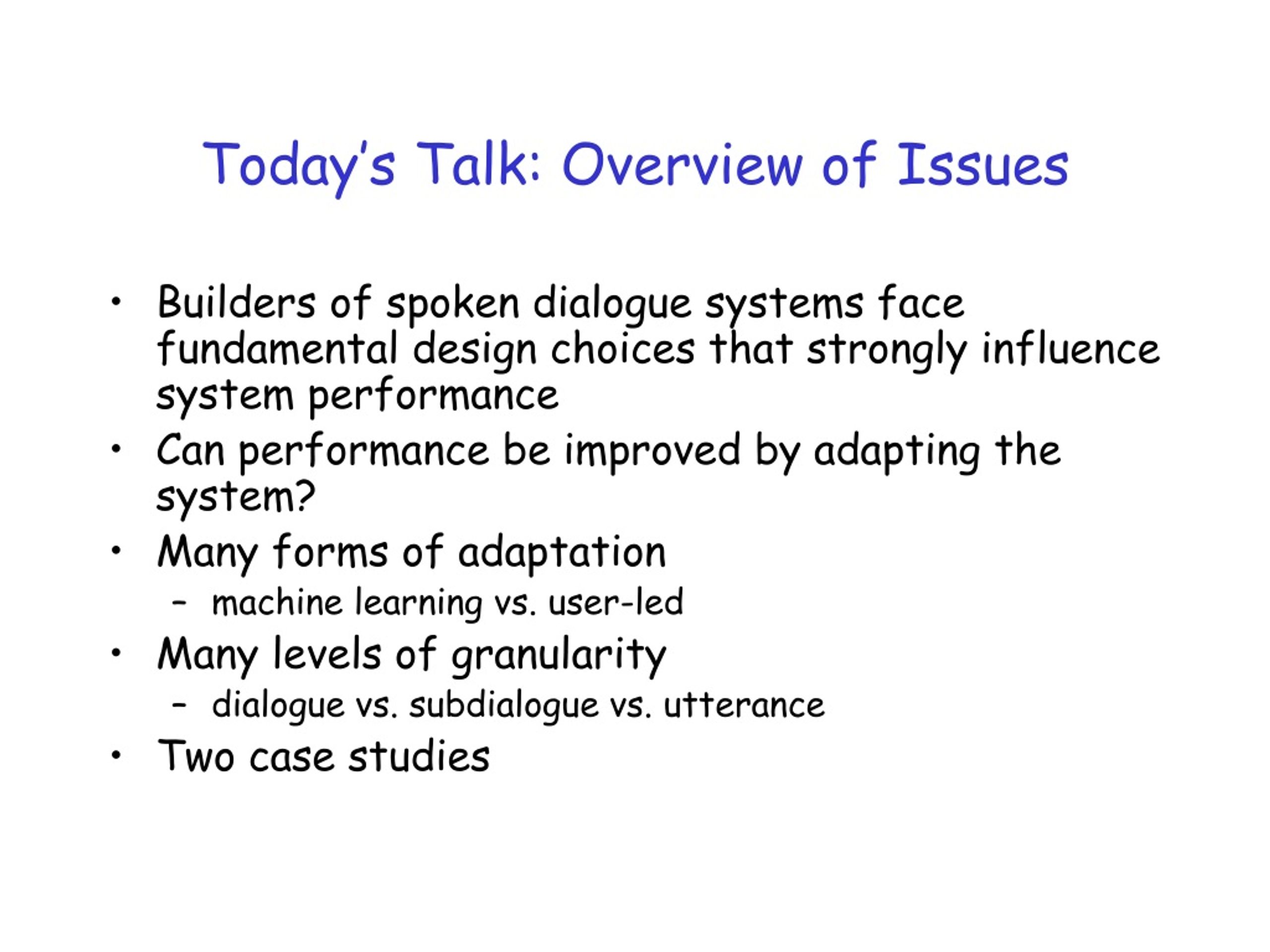

3. Today’s Talk: Overview of Issues • Builders of spoken dialogue systems face fundamental design choices that strongly influence system performance • Can performance be improved by adapting the system? • Many forms of adaptation • machine learning vs. user-led • Many levels of granularity • dialogue vs. subdialogue vs. utterance • Two case studies

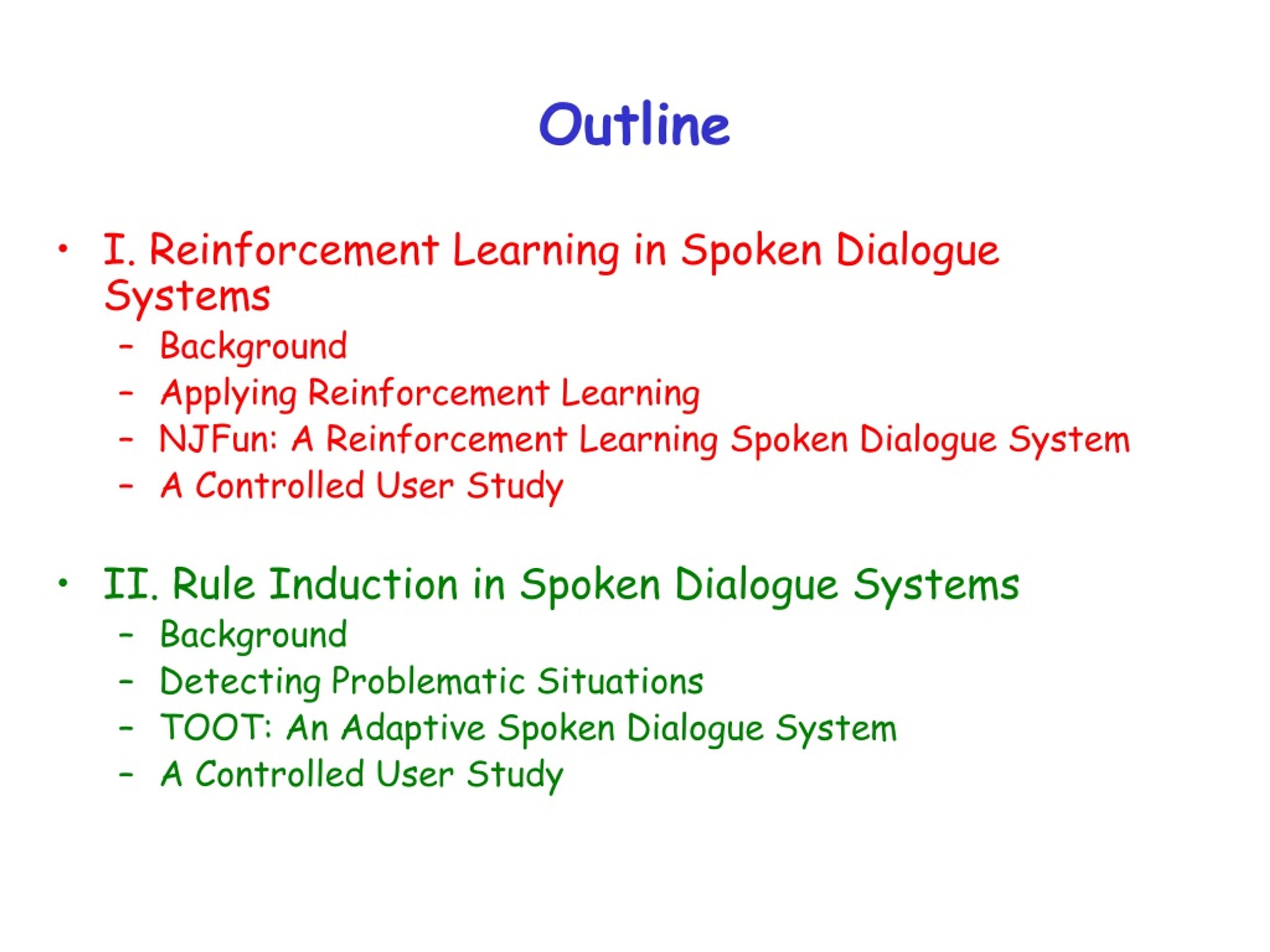

4. Outline • I. Reinforcement Learning in Spoken Dialogue Systems • Background • Applying Reinforcement Learning • NJFun: A Reinforcement Learning Spoken Dialogue System • A Controlled User Study • II. Rule Induction in Spoken Dialogue Systems • Background • Detecting Problematic Situations • TOOT: An Adaptive Spoken Dialogue System • A Controlled User Study

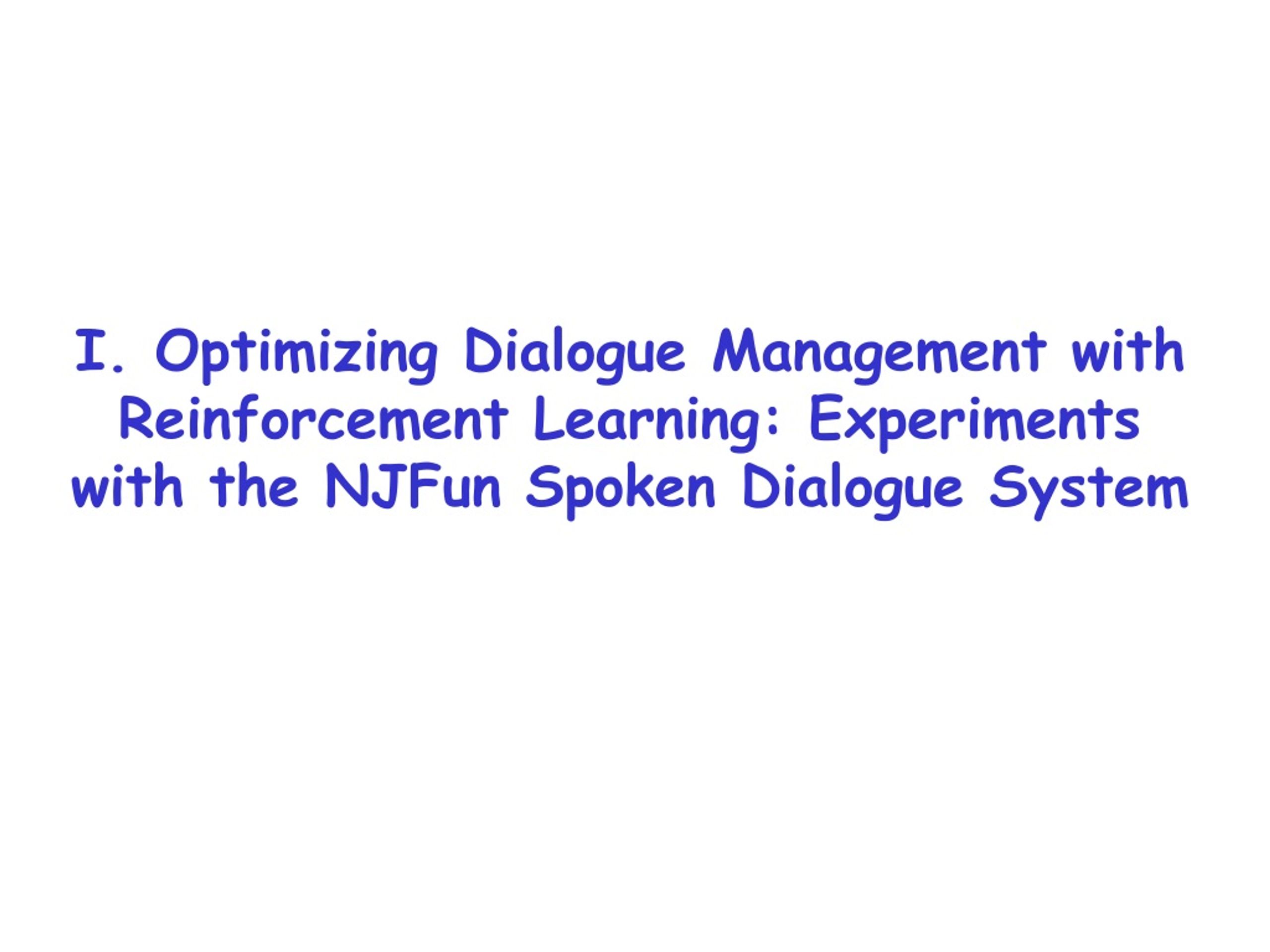

5. I. Optimizing Dialogue Management with Reinforcement Learning: Experiments with the NJFun Spoken Dialogue System

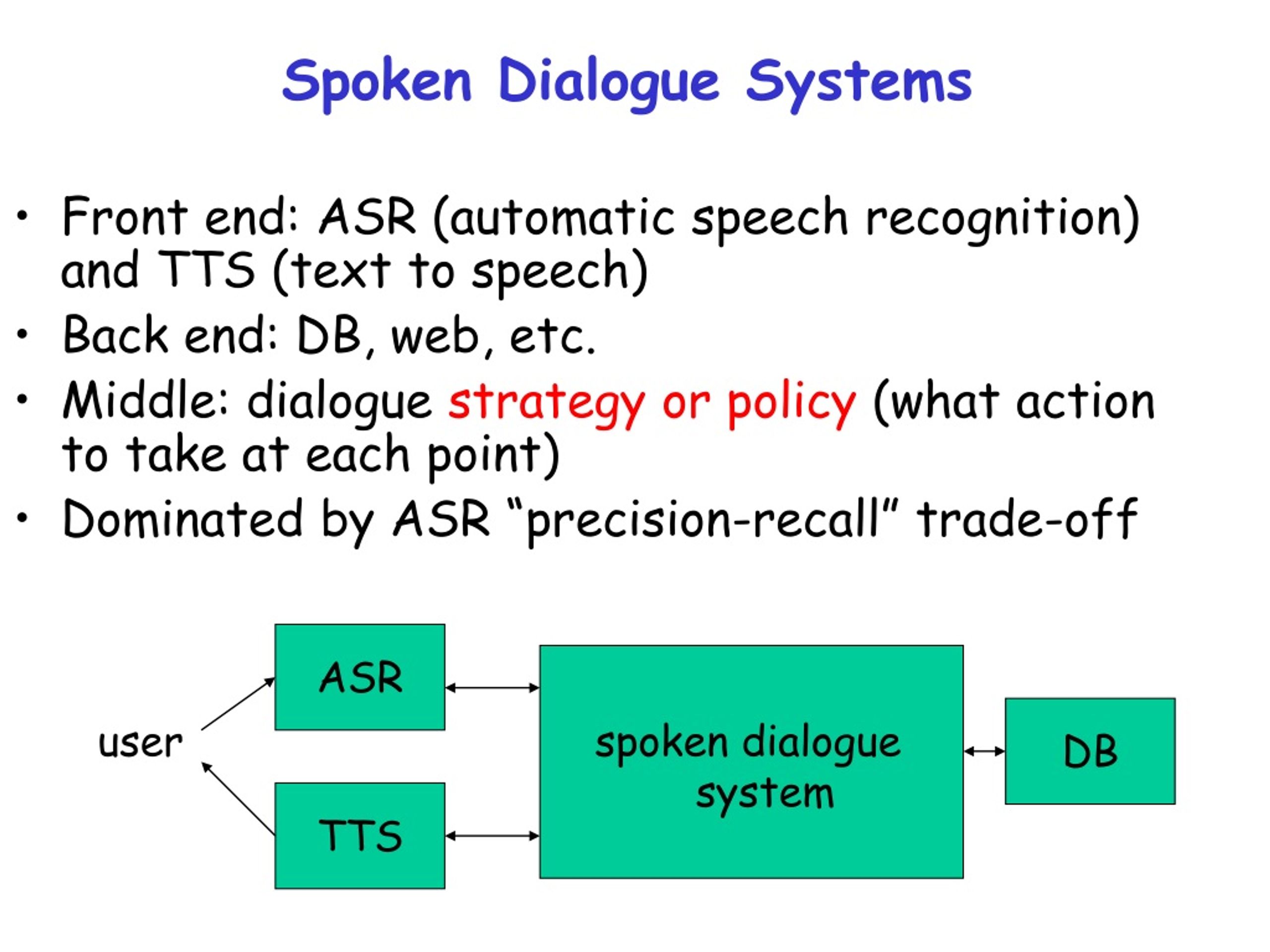

6. Spoken Dialogue Systems • Front end: ASR (automatic speech recognition) and TTS (text to speech) • Back end: DB, web, etc. • Middle: dialogue strategy or policy (what action to take at each point) • Dominated by ASR “precision-recall” trade-off ASR DB user spoken dialogue system TTS

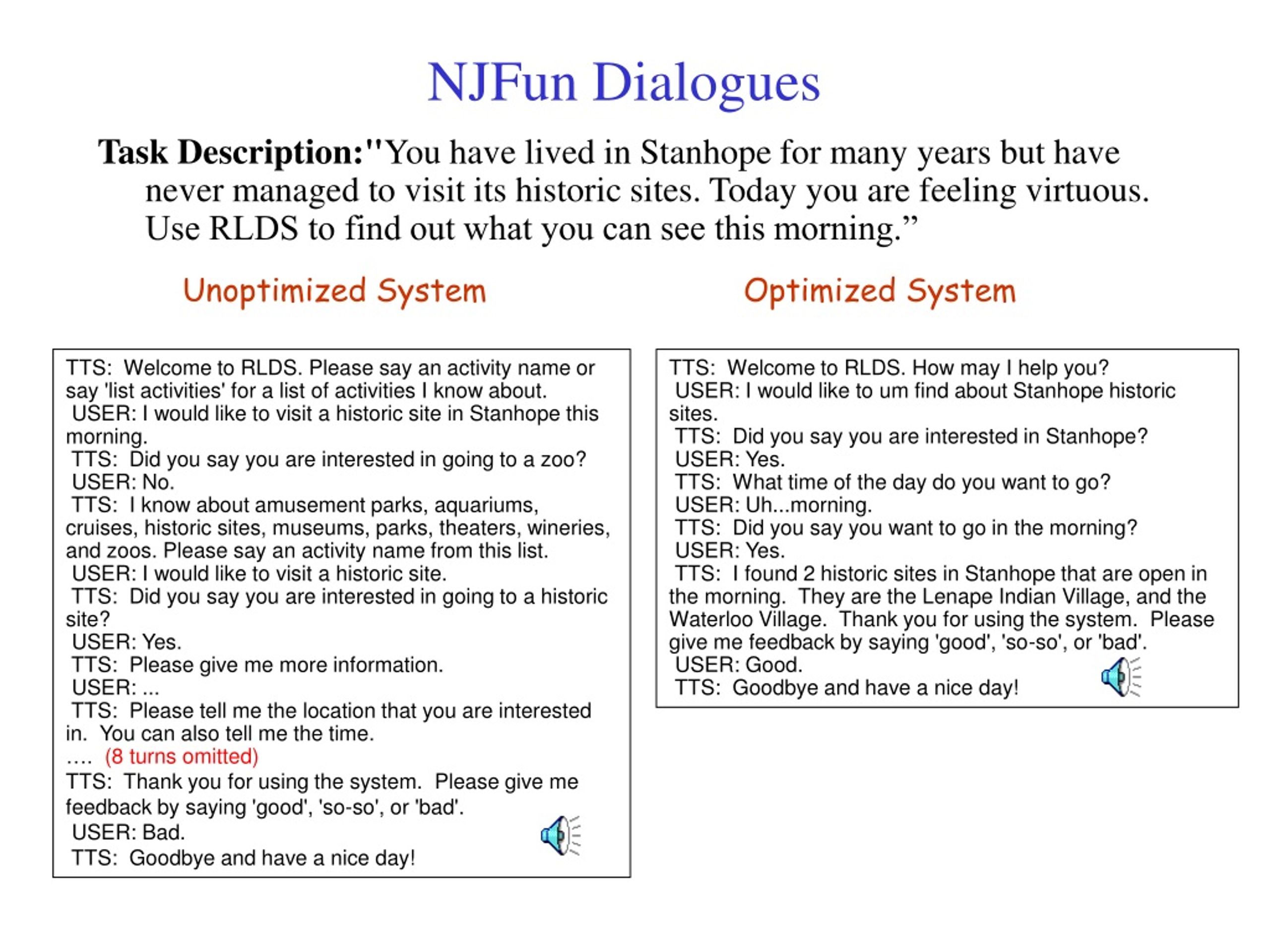

7. NJFun Dialogues Unoptimized System Optimized System Task Description:"You have lived in Stanhope for many years but have never managed to visit its historic sites. Today you are feeling virtuous. Use RLDS to find out what you can see this morning.” TTS: Welcome to RLDS. Please say an activity name or say 'list activities' for a list of activities I know about. USER: I would like to visit a historic site in Stanhope this morning. TTS: Did you say you are interested in going to a zoo? USER: No. TTS: I know about amusement parks, aquariums, cruises, historic sites, museums, parks, theaters, wineries, and zoos. Please say an activity name from this list. USER: I would like to visit a historic site. TTS: Did you say you are interested in going to a historic site? USER: Yes. TTS: Please give me more information. USER: ... TTS: Please tell me the location that you are interested in. You can also tell me the time. …. (8 turns omitted) TTS: Thank you for using the system. Please give me feedback by saying 'good', 'so-so', or 'bad'. USER: Bad. TTS: Goodbye and have a nice day! TTS: Welcome to RLDS. How may I help you? USER: I would like to um find about Stanhope historic sites. TTS: Did you say you are interested in Stanhope? USER: Yes. TTS: What time of the day do you want to go? USER: Uh...morning. TTS: Did you say you want to go in the morning? USER: Yes. TTS: I found 2 historic sites in Stanhope that are open in the morning. They are the Lenape Indian Village, and the Waterloo Village. Thank you for using the system. Please give me feedback by saying 'good', 'so-so', or 'bad'. USER: Good. TTS: Goodbye and have a nice day!

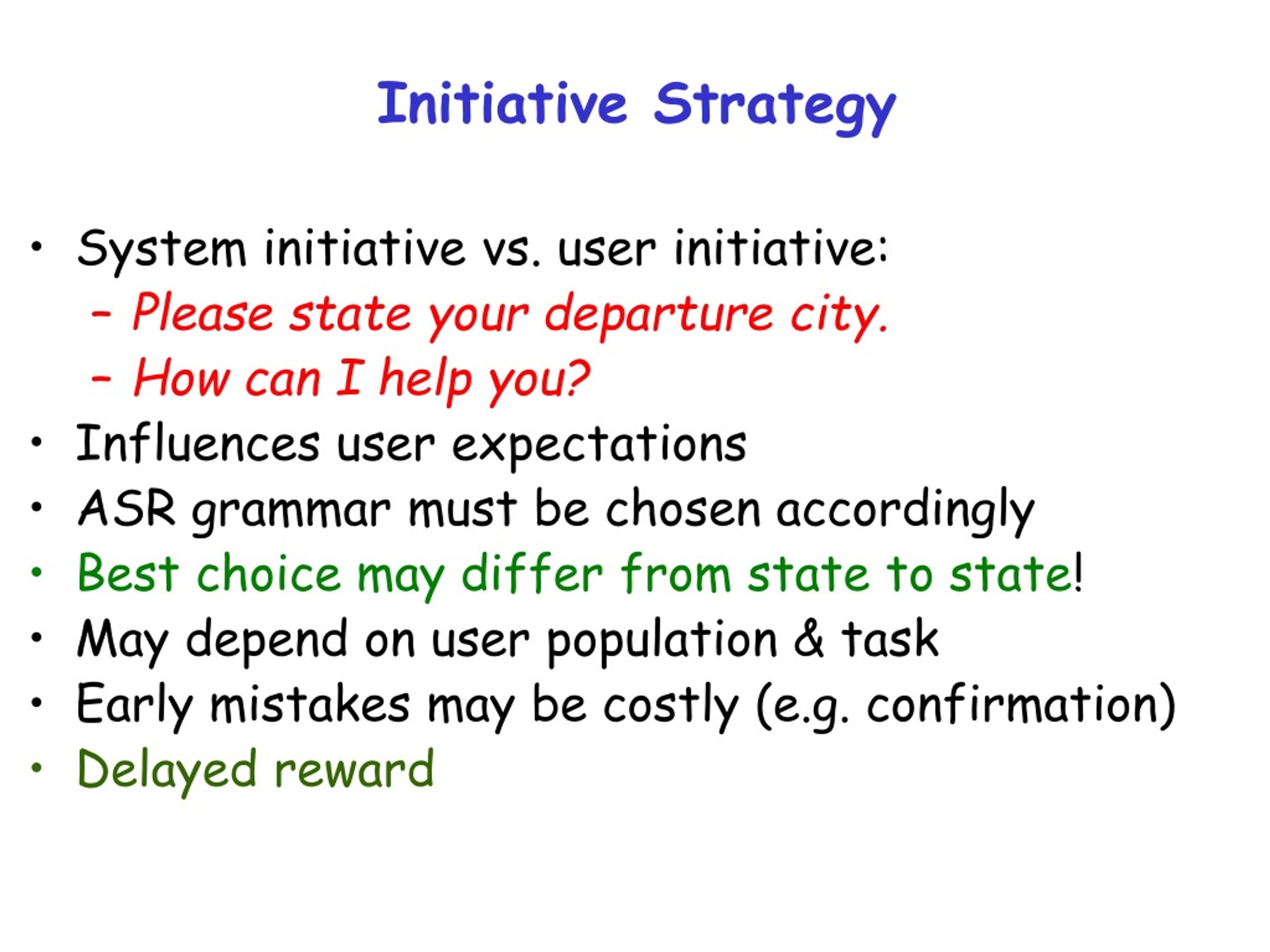

8. Initiative Strategy • System initiative vs. user initiative: • Please state your departure city. • How can I help you? • Influences user expectations • ASR grammar must be chosen accordingly • Best choice may differ from state to state! • May depend on user population & task • Early mistakes may be costly (e.g. confirmation) • Delayed reward

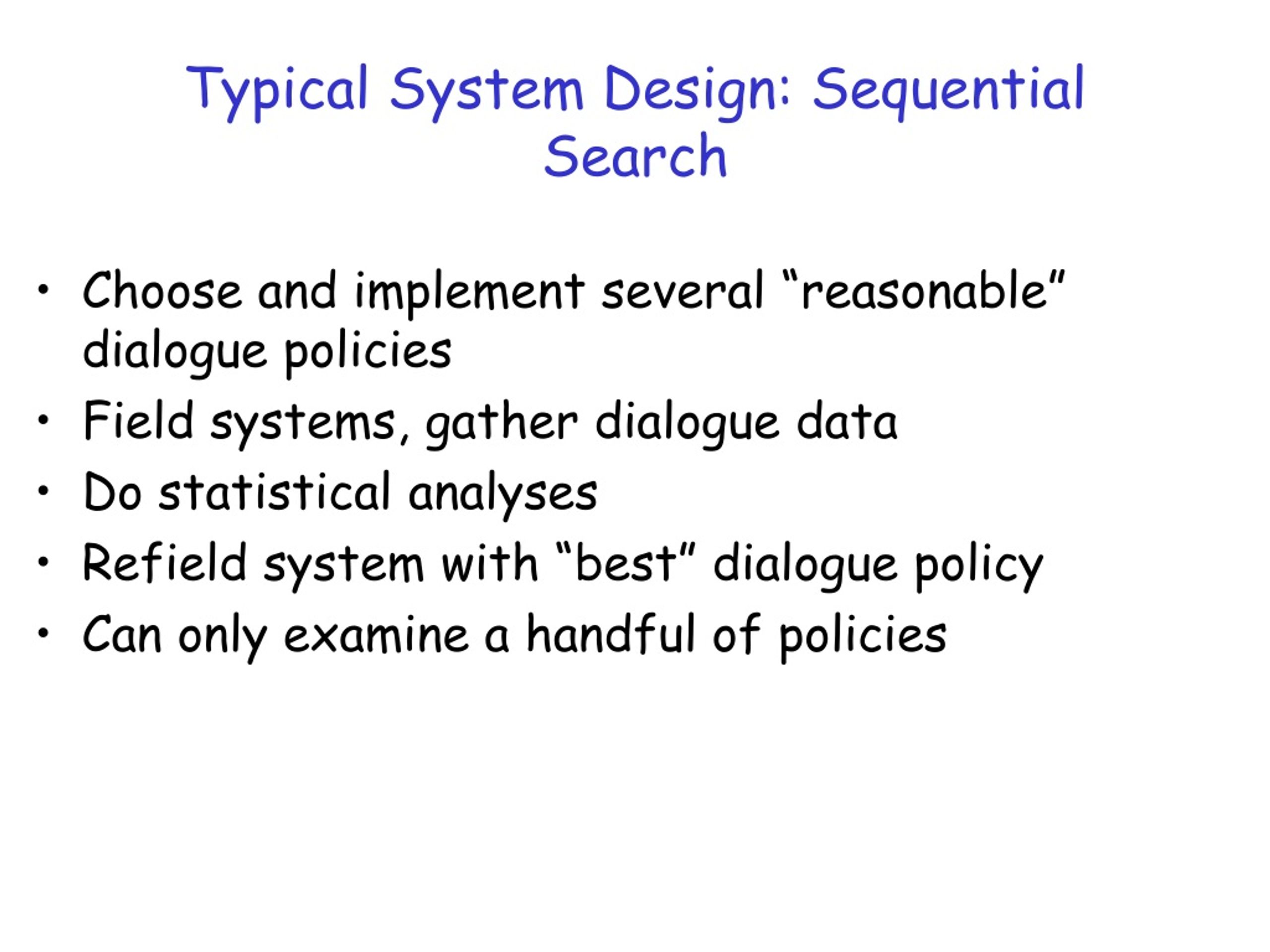

9. Typical System Design: Sequential Search • Choose and implement several “reasonable” dialogue policies • Field systems, gather dialogue data • Do statistical analyses • Refield system with “best” dialogue policy • Can only examine a handful of policies

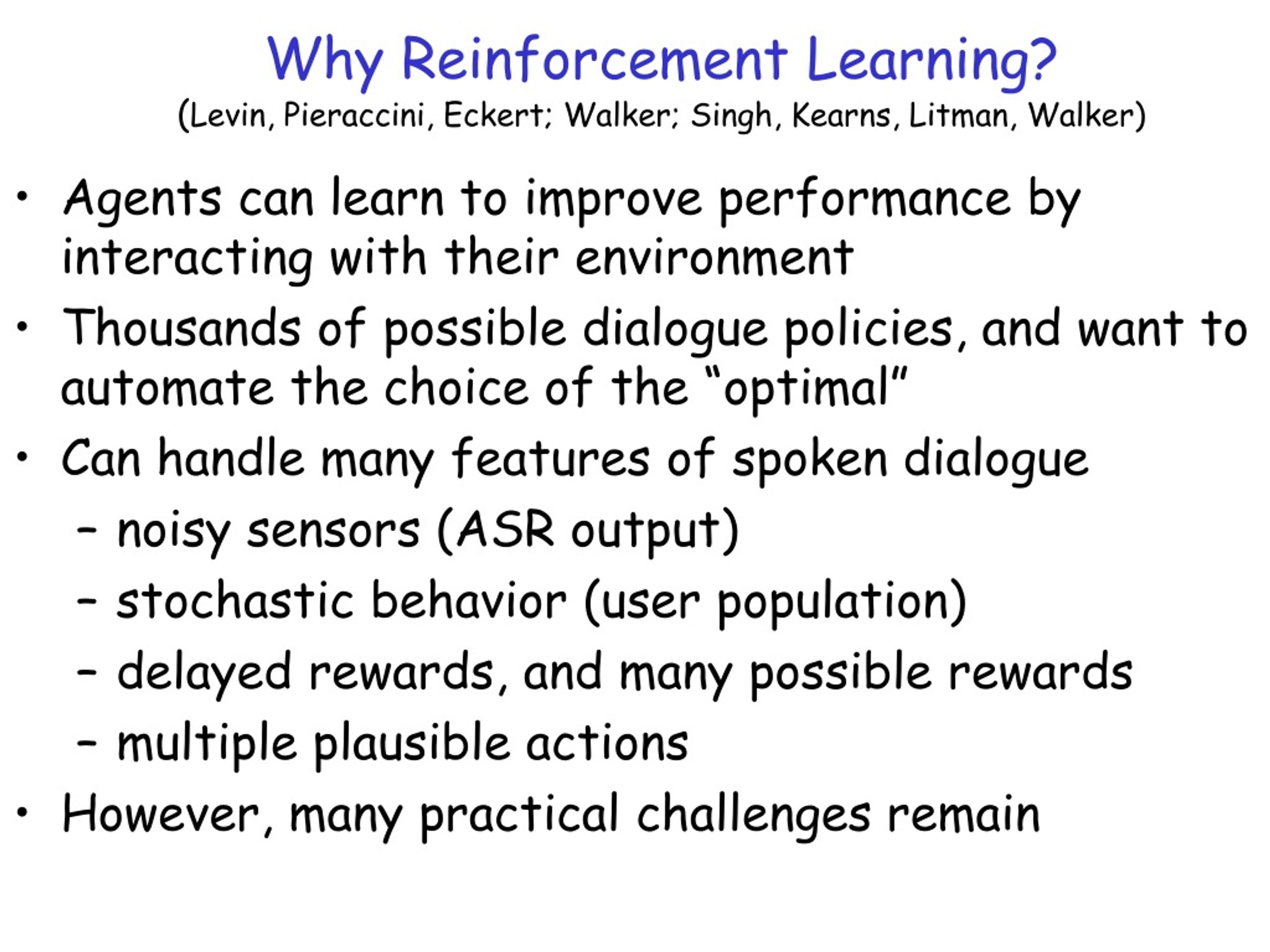

10. Why Reinforcement Learning?(Levin, Pieraccini, Eckert; Walker; Singh, Kearns, Litman, Walker) • Agents can learn to improve performance by interacting with their environment • Thousands of possible dialogue policies, and want to automate the choice of the “optimal” • Can handle many features of spoken dialogue • noisy sensors (ASR output) • stochastic behavior (user population) • delayed rewards, and many possible rewards • multiple plausible actions • However, many practical challenges remain

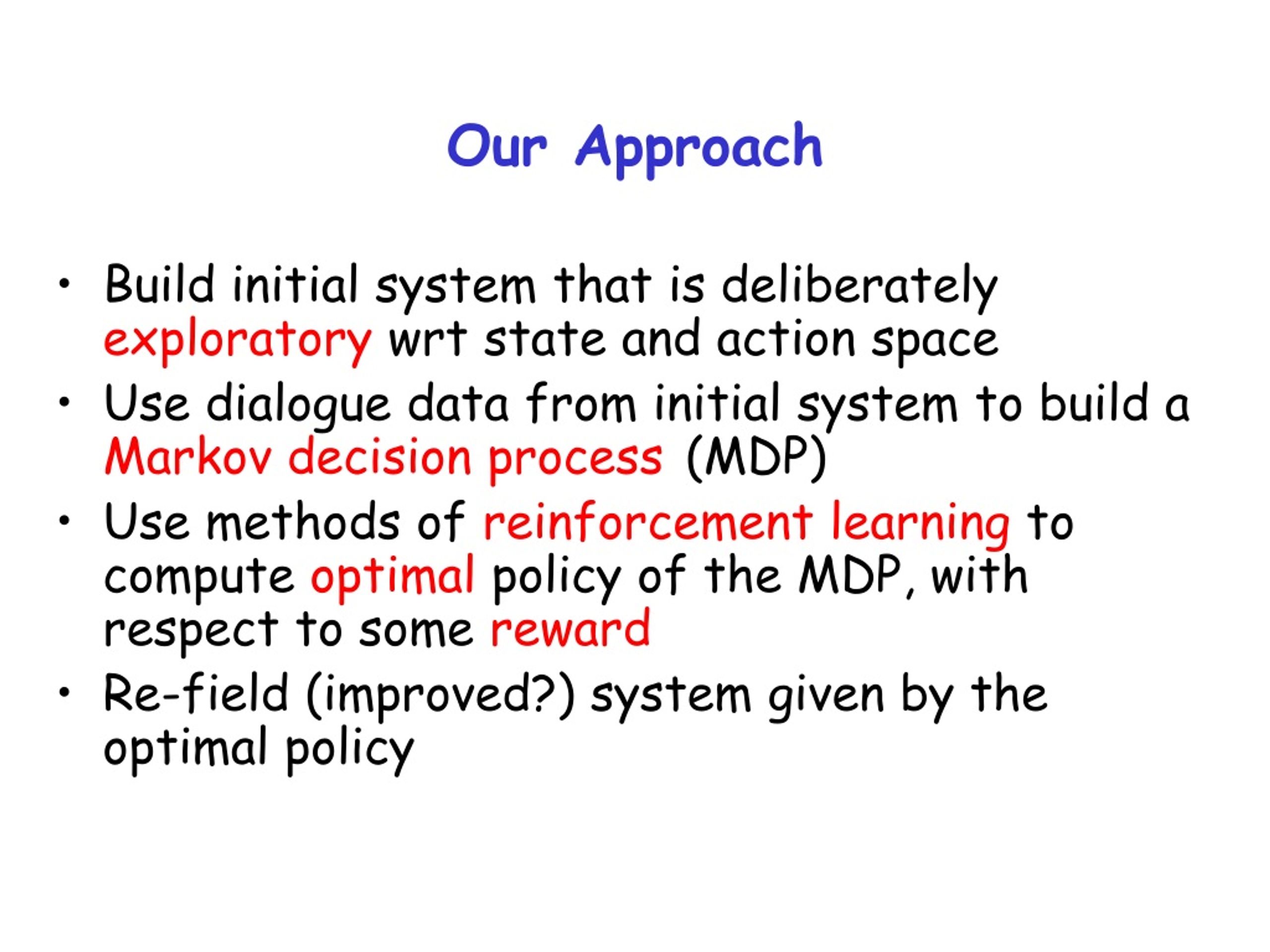

11. Our Approach • Build initial system that is deliberately exploratory wrt state and action space • Use dialogue data from initial system to build a Markov decision process(MDP) • Use methods of reinforcement learning to compute optimal policy of the MDP, with respect to some reward • Re-field (improved?) system given by the optimal policy

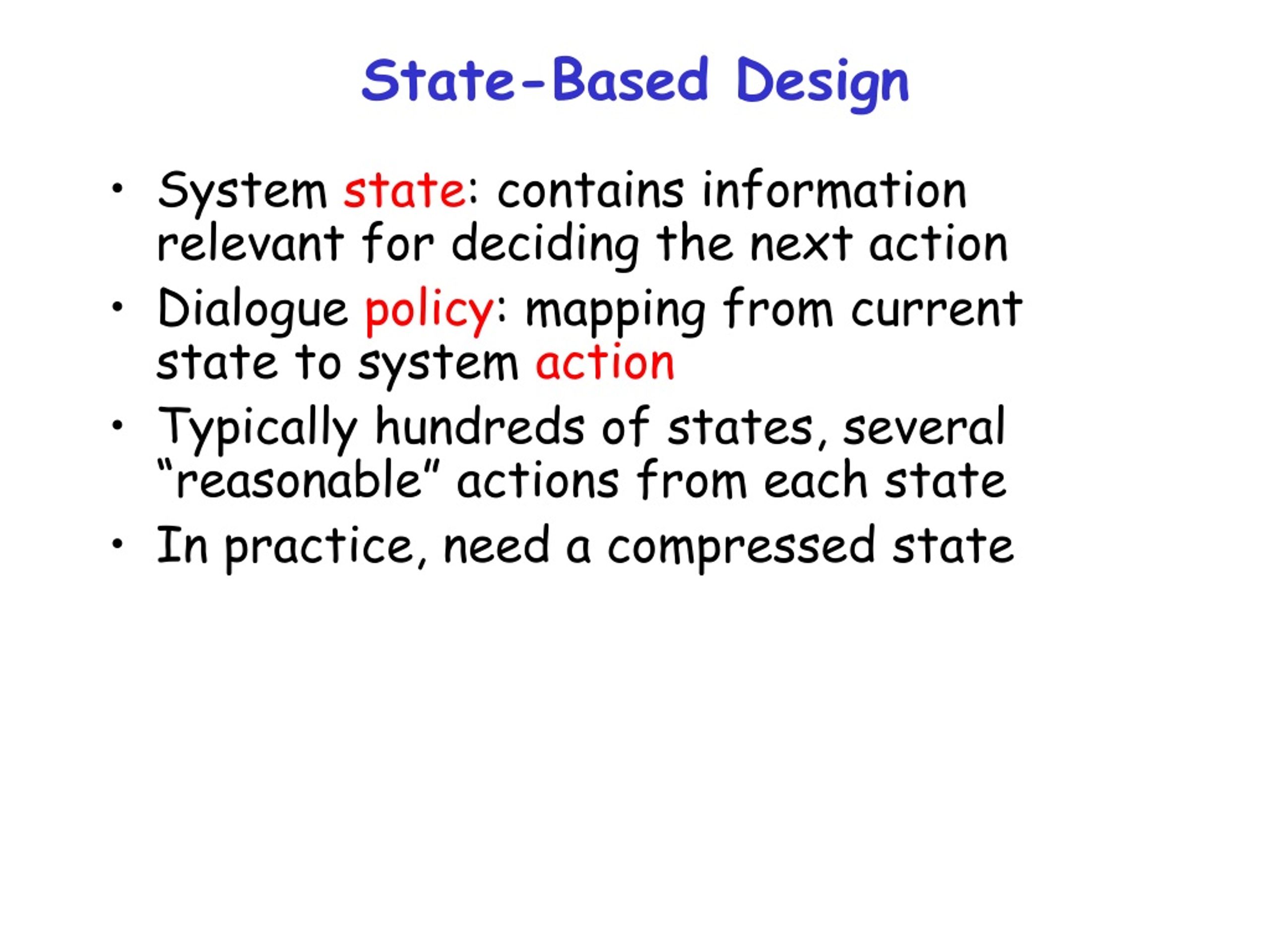

12. State-Based Design • System state: contains information relevant for deciding the next action • Dialogue policy: mapping from current state to system action • Typically hundreds of states, several “reasonable” actions from each state • In practice, need a compressed state

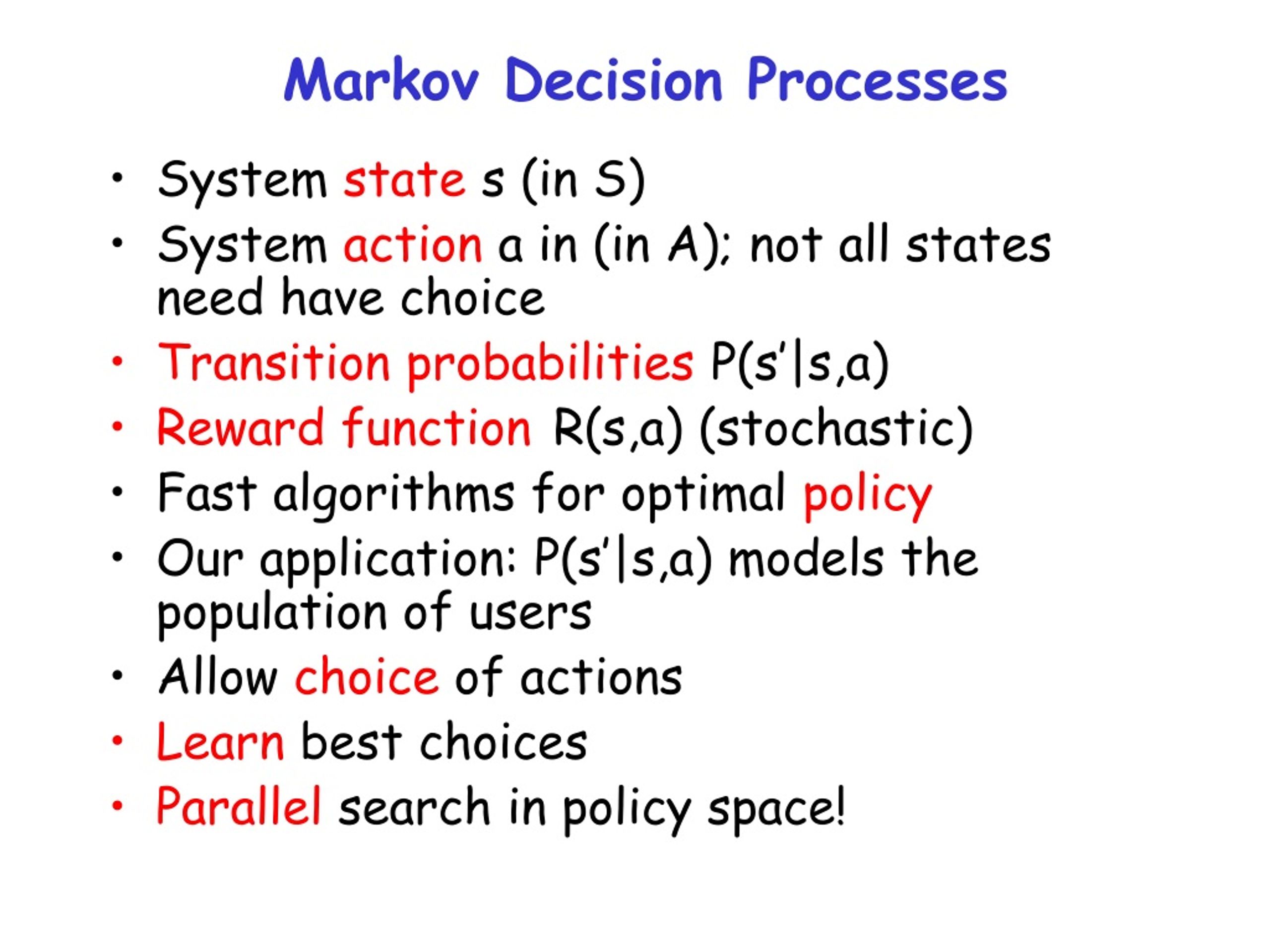

13. Markov Decision Processes • System state s (in S) • System action a in (in A); not all states need have choice • Transition probabilities P(s’|s,a) • Reward functionR(s,a) (stochastic) • Fast algorithms for optimal policy • Our application: P(s’|s,a) models the population of users • Allow choice of actions • Learn best choices • Parallel search in policy space!

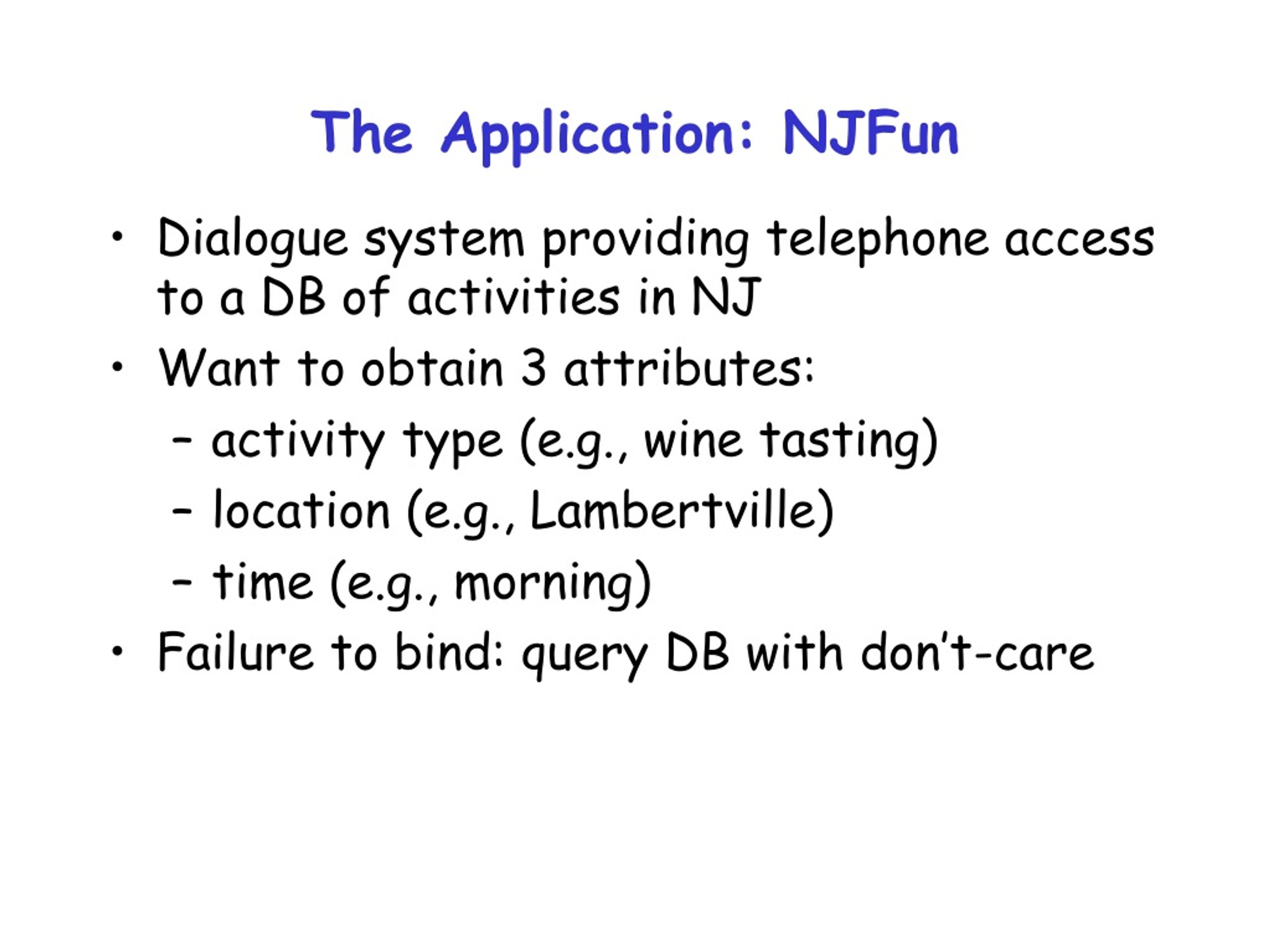

14. The Application: NJFun • Dialogue system providing telephone access to a DB of activities in NJ • Want to obtain 3 attributes: • activity type (e.g., wine tasting) • location (e.g., Lambertville) • time (e.g., morning) • Failure to bind: query DB with don’t-care

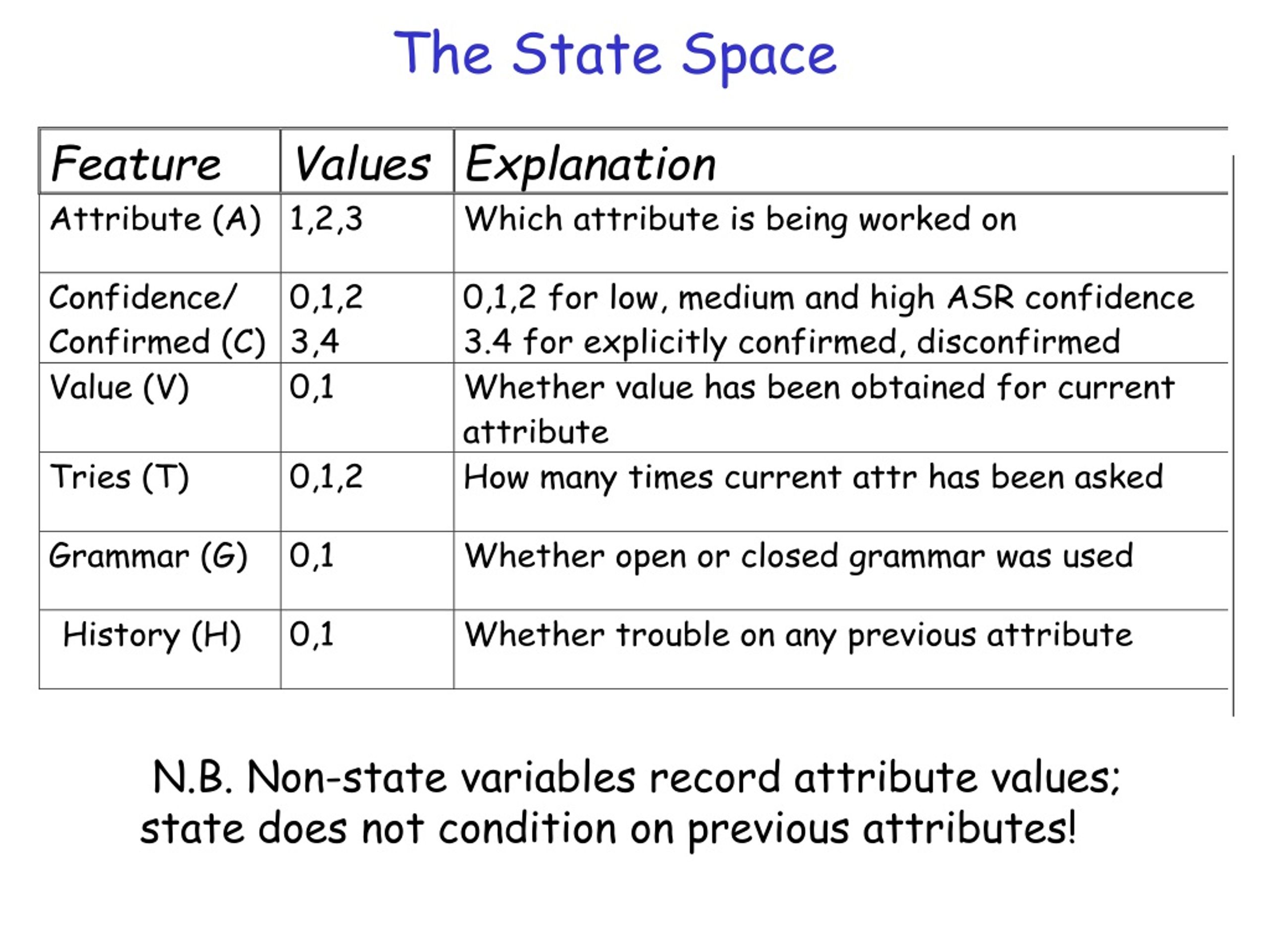

15. The State Space N.B. Non-state variables record attribute values; state does not condition on previous attributes!

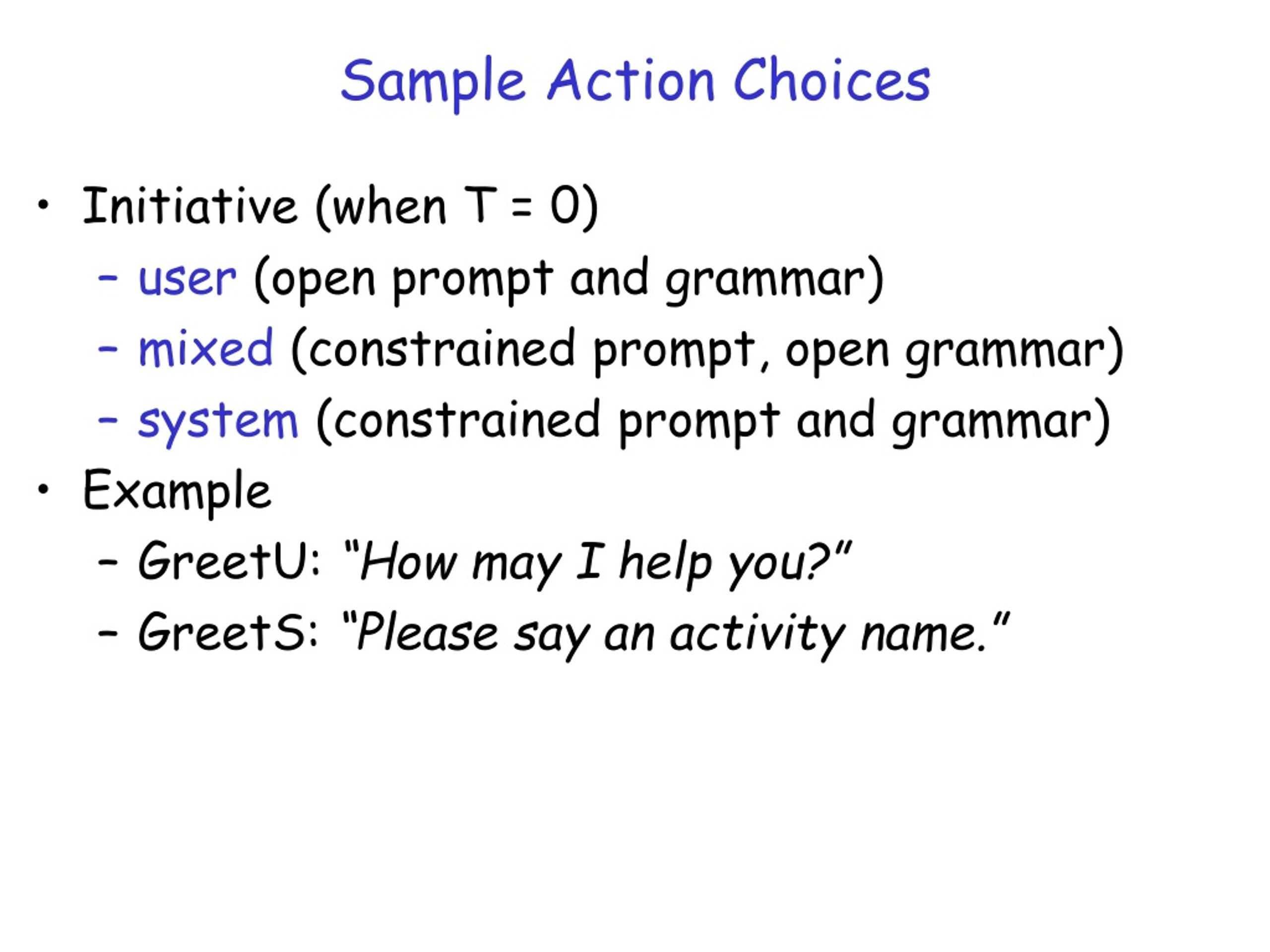

16. Sample Action Choices • Initiative (when T = 0) • user (open prompt and grammar) • mixed (constrained prompt, open grammar) • system (constrained prompt and grammar) • Example • GreetU: “How may I help you?” • GreetS: “Please say an activity name.”

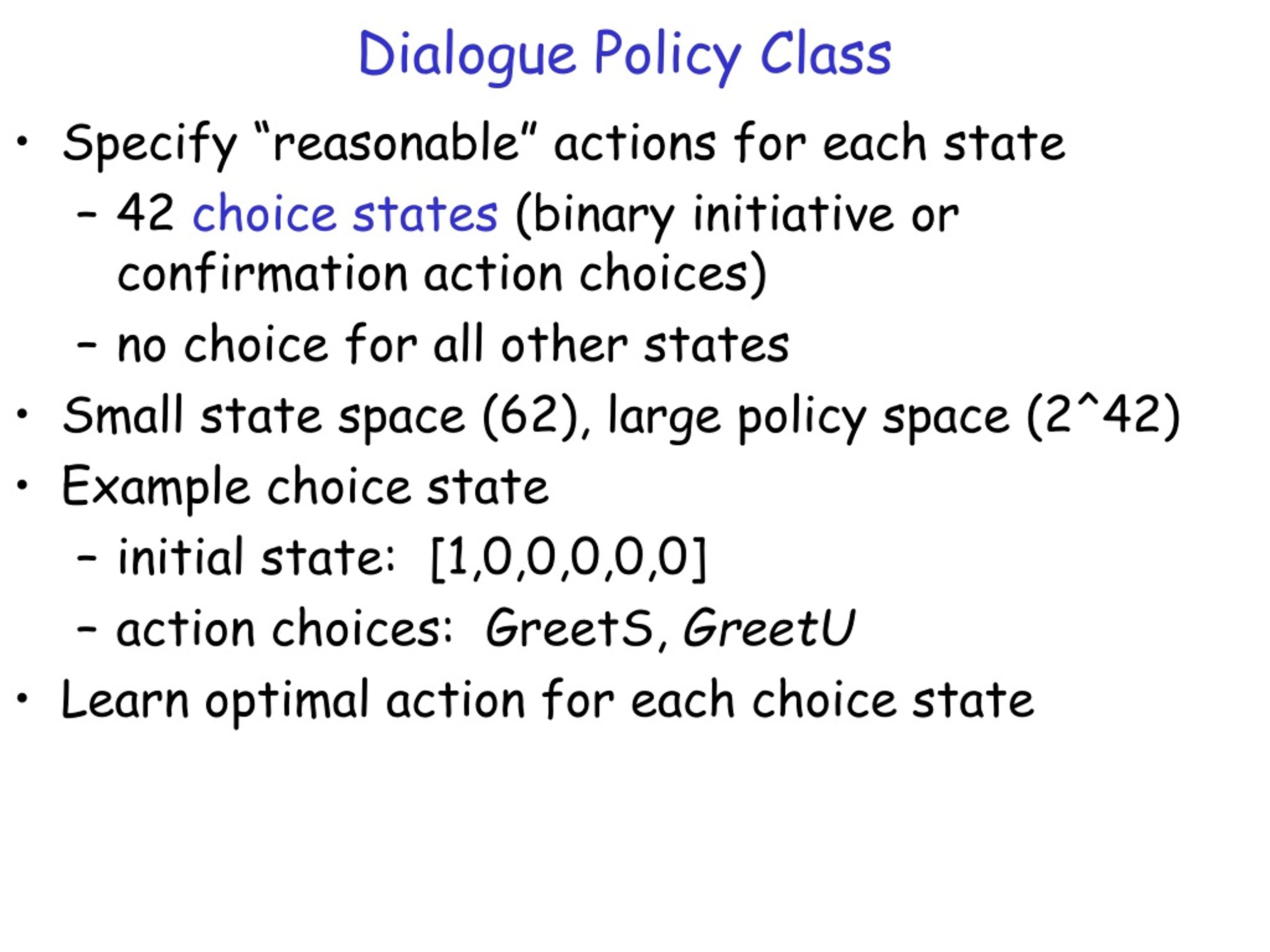

17. Dialogue Policy Class • Specify “reasonable” actions for each state • 42 choice states (binary initiative or confirmation action choices) • no choice for all other states • Small state space (62), large policy space (2^42) • Example choice state • initial state: [1,0,0,0,0,0] • action choices: GreetS, GreetU • Learn optimal action for each choice state

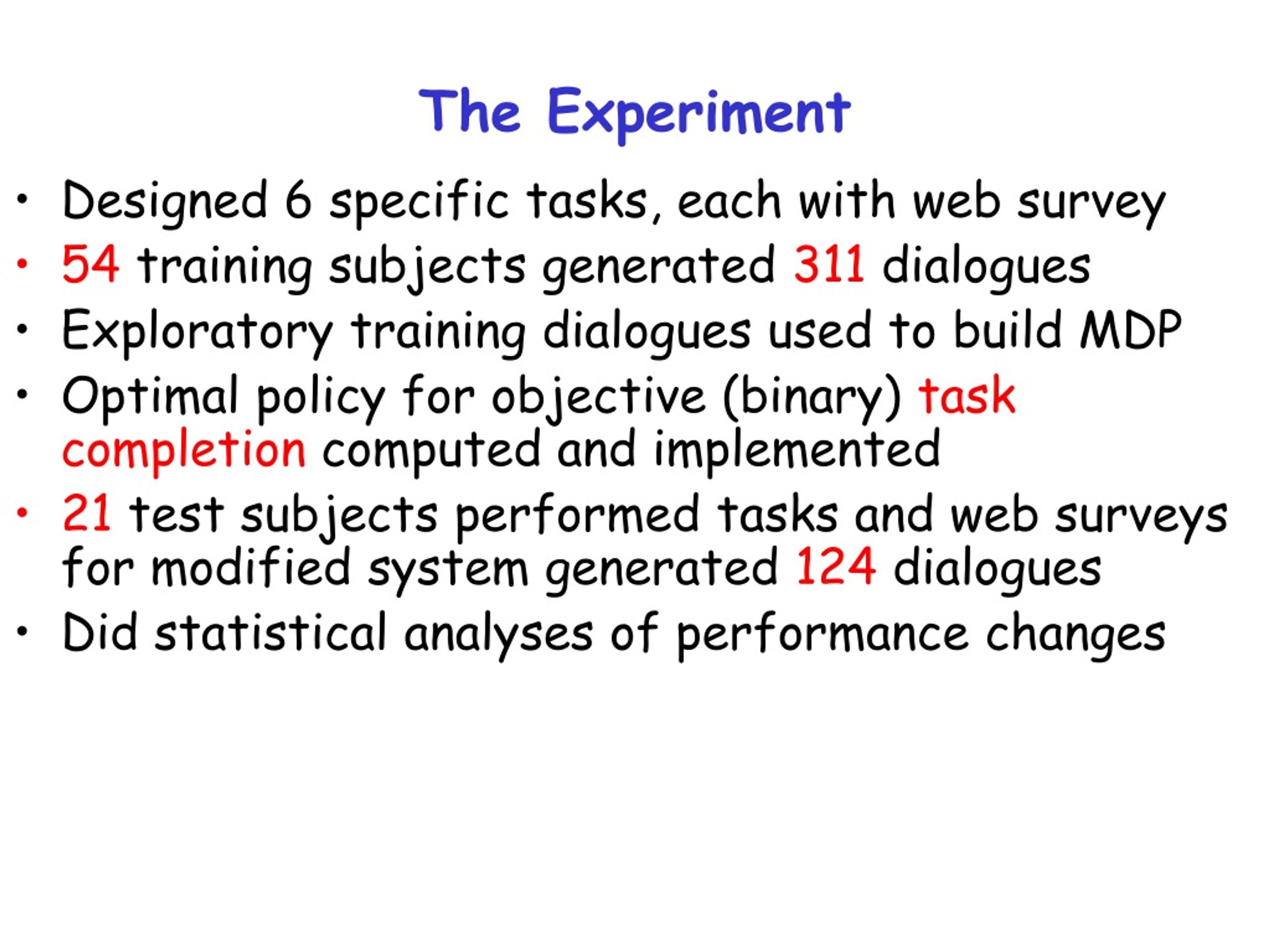

18. The Experiment • Designed 6 specific tasks, each with web survey • 54 training subjects generated 311dialogues • Exploratory training dialogues used to build MDP • Optimal policy for objective (binary) task completion computed and implemented • 21 test subjects performed tasks and web surveys for modified system generated 124 dialogues • Did statistical analyses of performance changes

19. Main Results • Objective task completion (-1 to 3, partial credit): • train mean ~ 1.722, test mean ~ 2.176 • two-sample t-test p-value ~ 0.0289 • Binary task completion: • train mean ~ 51.5%, test mean ~ 63.5% • two-sample t-test p-value ~ 0.05

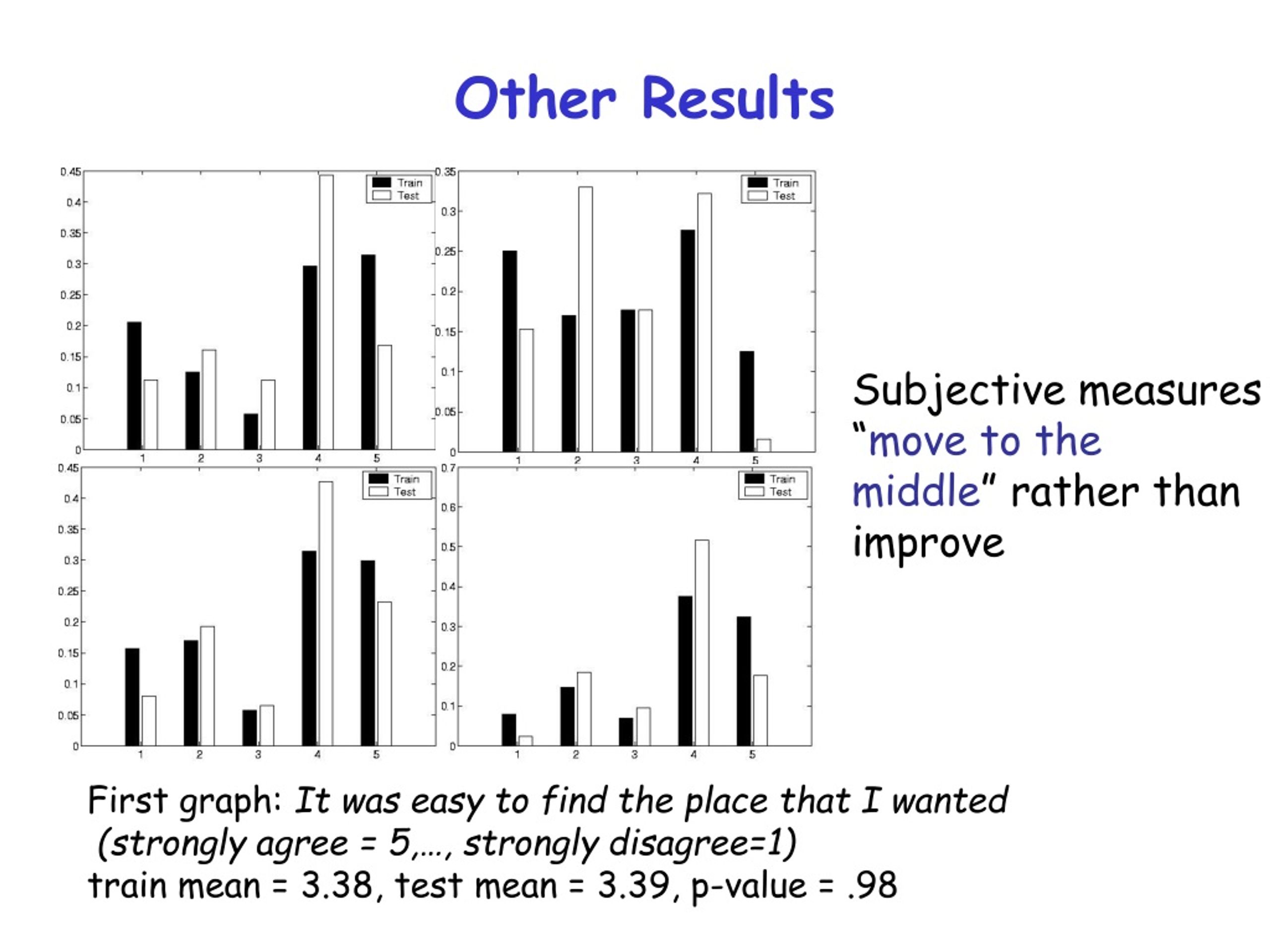

20. Other Results Subjective measures “move to the middle” rather than improve First graph: It was easy to find the place that I wanted (strongly agree = 5,…, strongly disagree=1) train mean = 3.38, test mean = 3.39, p-value = .98

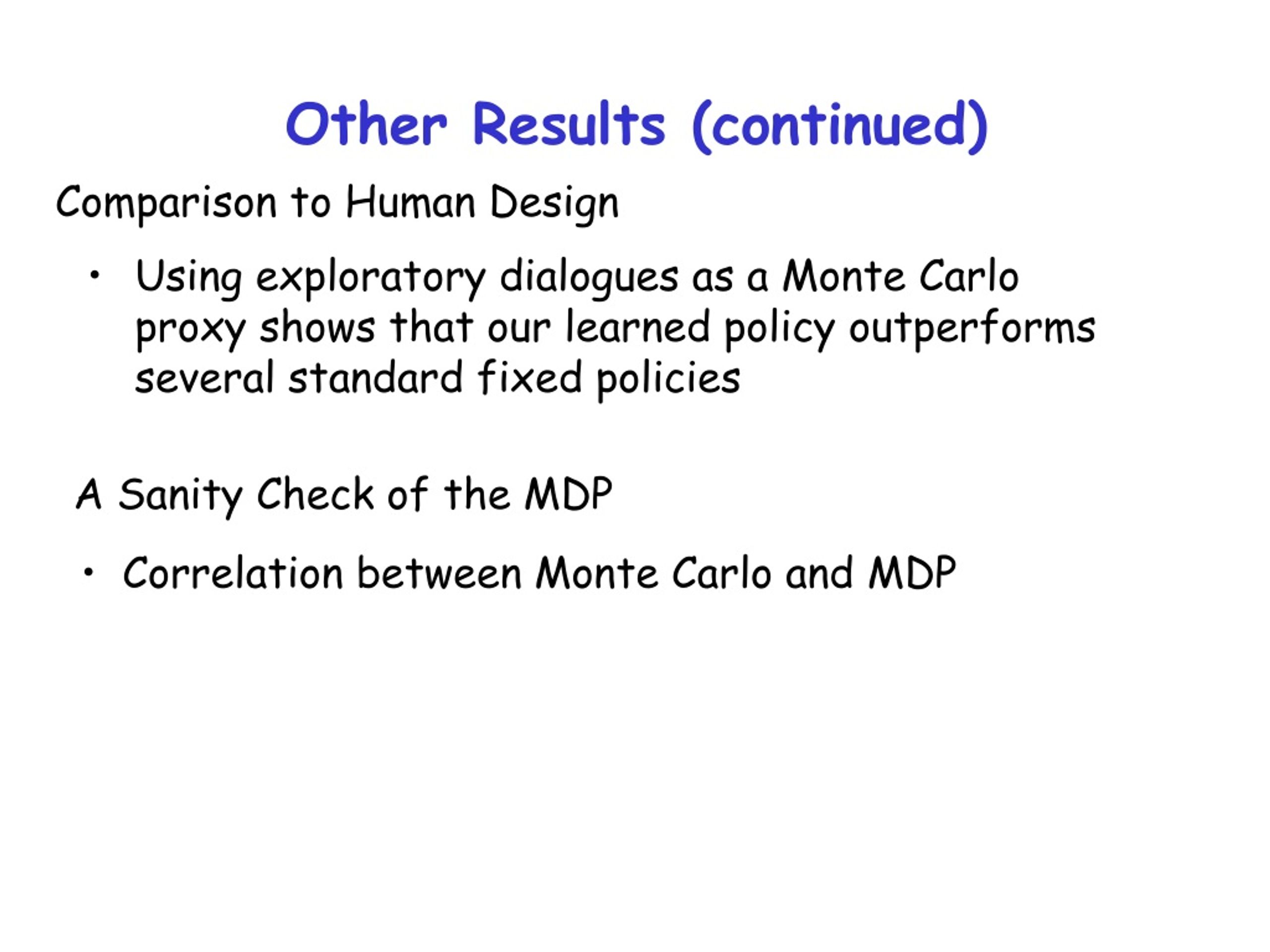

21. Other Results (continued) Comparison to Human Design • Using exploratory dialogues as a Monte Carlo proxy shows that our learned policy outperforms several standard fixed policies A Sanity Check of the MDP • Correlation between Monte Carlo and MDP

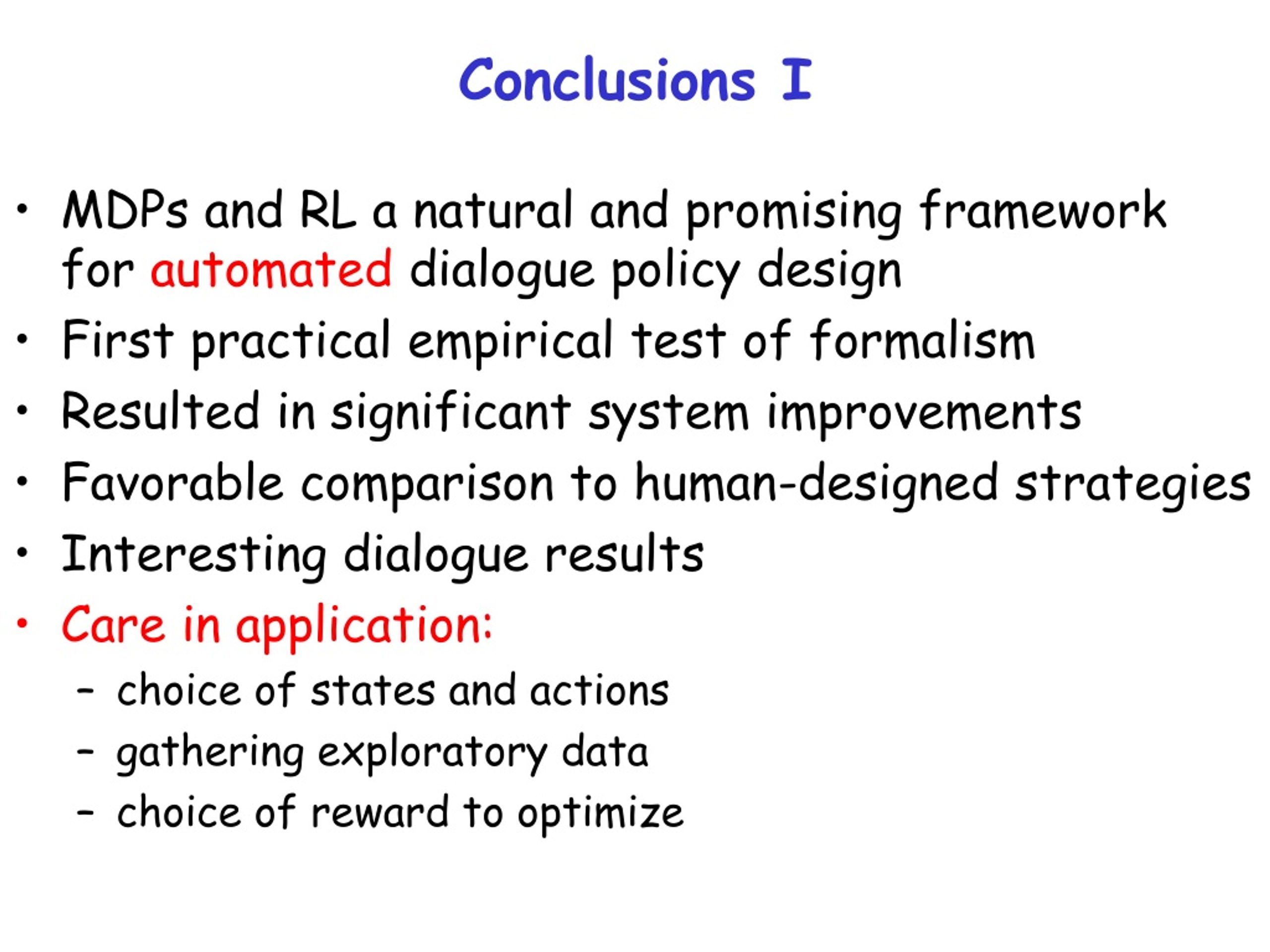

22. Conclusions I • MDPs and RL a natural and promising framework for automated dialogue policy design • First practical empirical test of formalism • Resulted in significant system improvements • Favorable comparison to human-designed strategies • Interesting dialogue results • Care in application: • choice of states and actions • gathering exploratory data • choice of reward to optimize

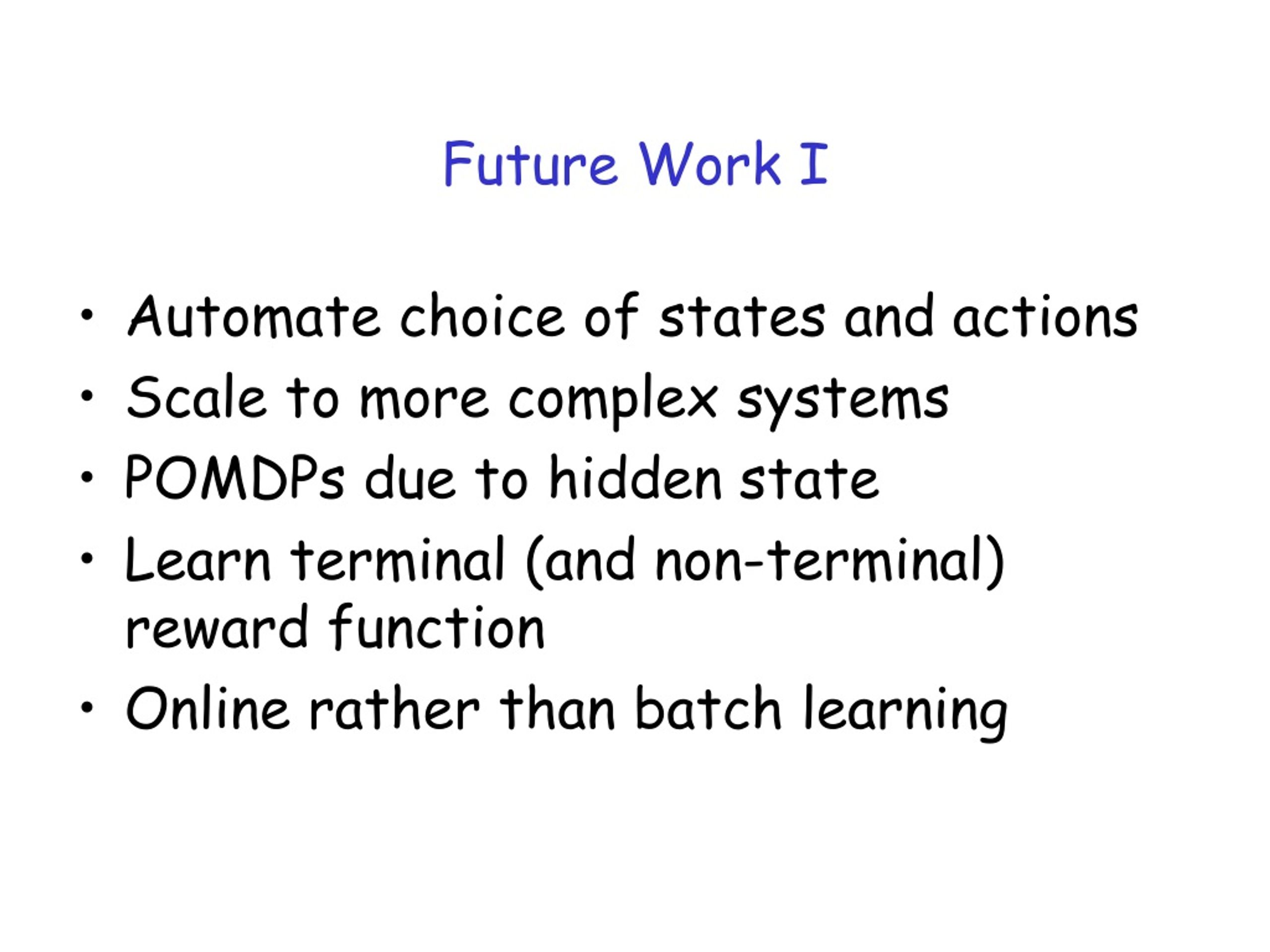

23. Future Work I • Automate choice of states and actions • Scale to more complex systems • POMDPs due to hidden state • Learn terminal (and non-terminal) reward function • Online rather than batch learning

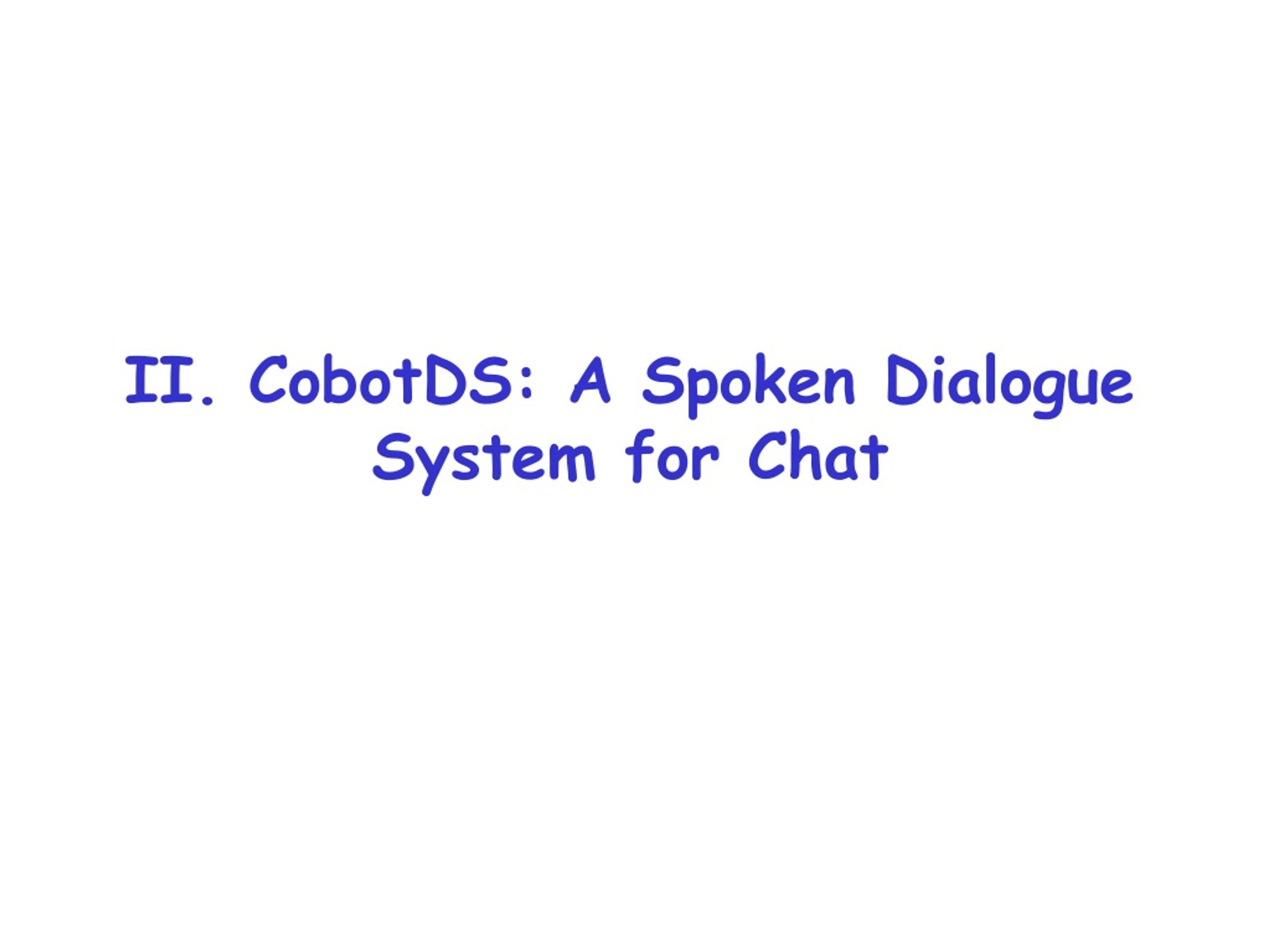

24. II. CobotDS: A Spoken Dialogue System for Chat

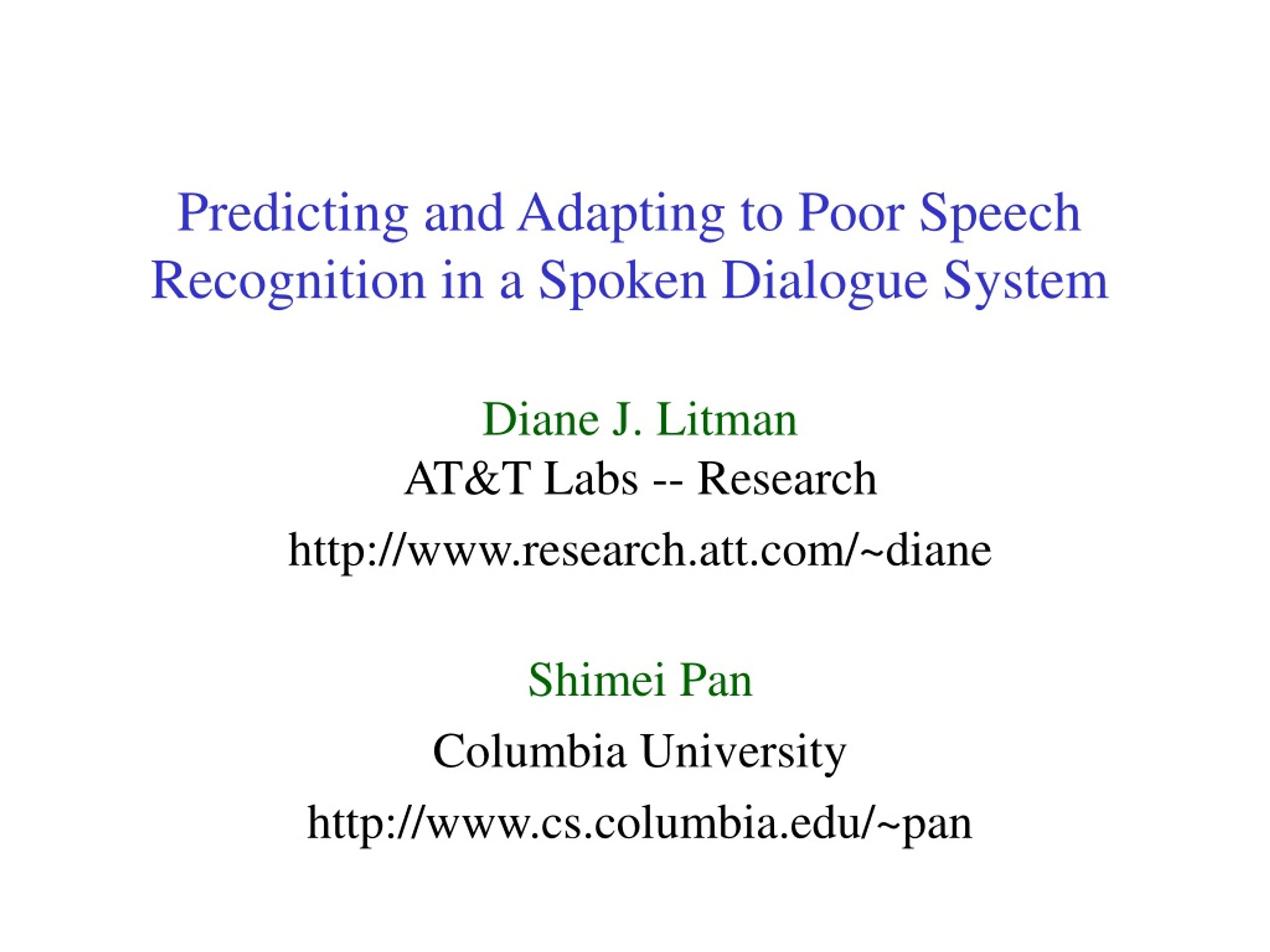

25. Predicting and Adapting to Poor Speech Recognition in a Spoken Dialogue System Diane J. LitmanAT&T Labs -- Research http://www.research.att.com/~diane Shimei Pan Columbia University http://www.cs.columbia.edu/~pan

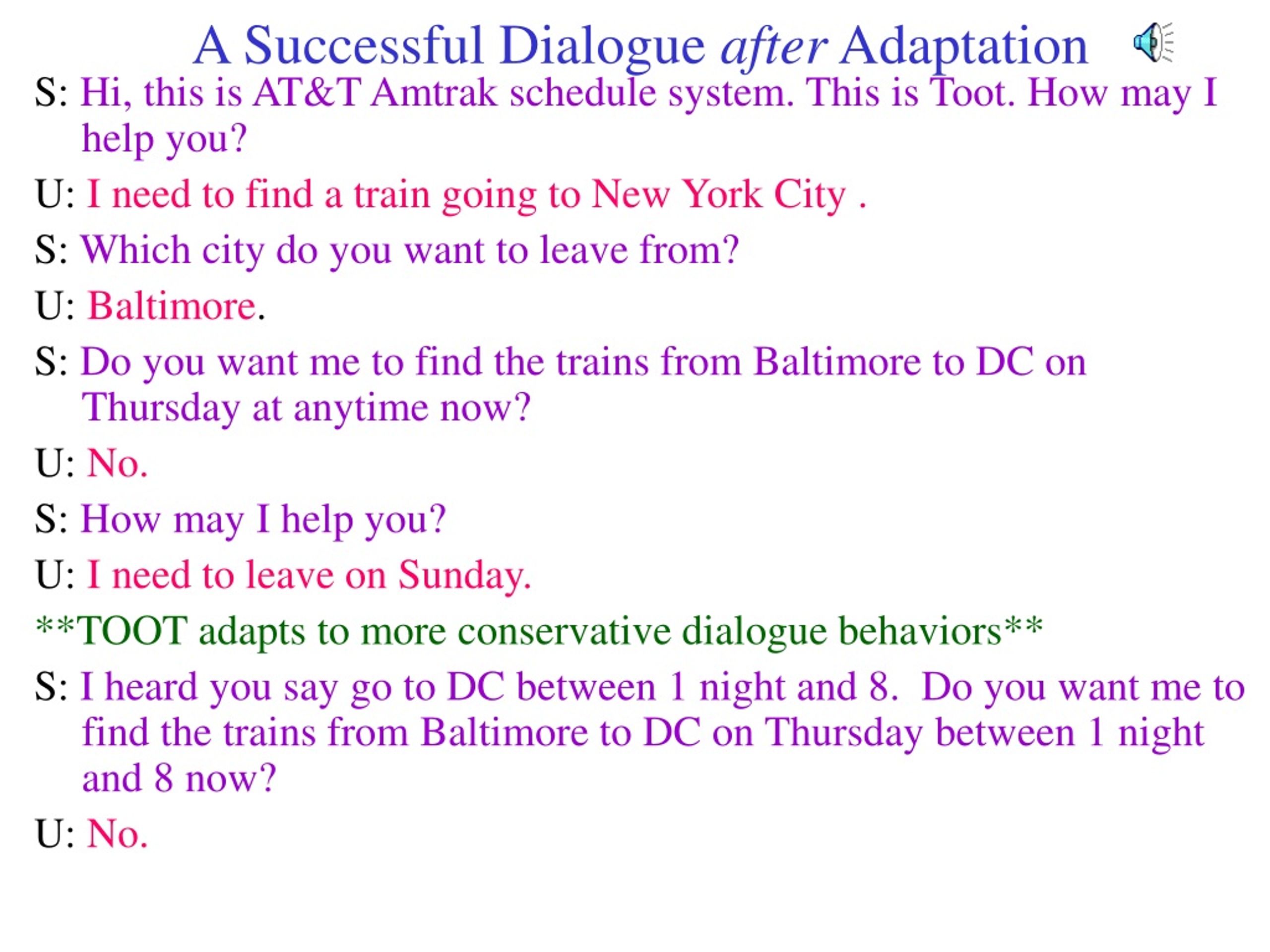

26. A Successful Dialogue after Adaptation S: Hi, this is AT&T Amtrak schedule system. This is Toot. How may I help you? U: I need to find a train going to New York City . S: Which city do you want to leave from? U: Baltimore. S: Do you want me to find the trains from Baltimore to DC on Thursday at anytime now? U: No. S: How may I help you? U: I need to leave on Sunday. **TOOT adapts to more conservative dialogue behaviors** S: I heard you say go to DC between 1 night and 8. Do you want me to find the trains from Baltimore to DC on Thursday between 1 night and 8 now? U: No.

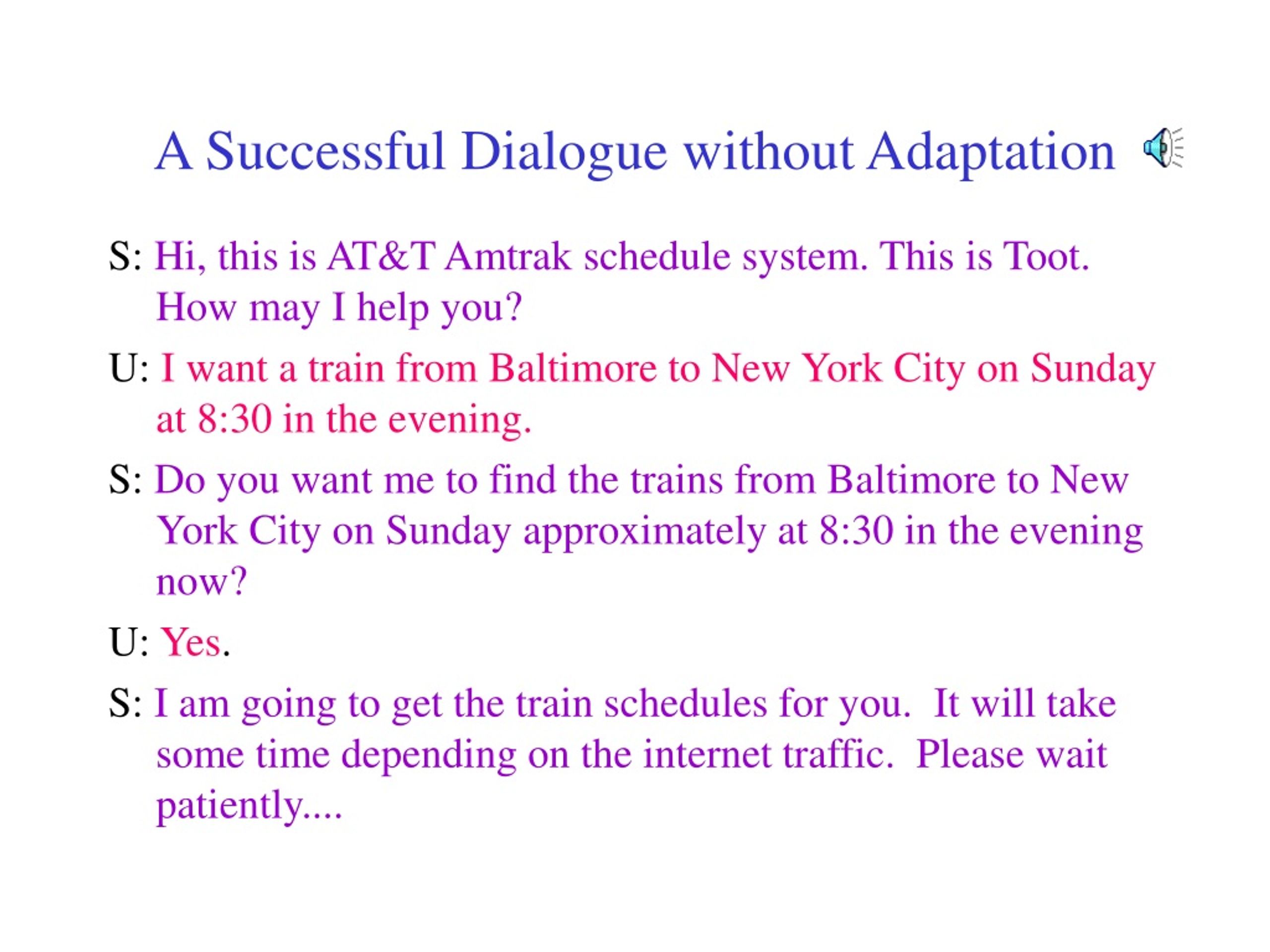

27. A Successful Dialogue without Adaptation S: Hi, this is AT&T Amtrak schedule system. This is Toot. How may I help you? U: I want a train from Baltimore to New York City on Sunday at 8:30 in the evening. S: Do you want me to find the trains from Baltimore to New York City on Sunday approximately at 8:30 in the evening now? U: Yes. S: I am going to get the train schedules for you. It will take some time depending on the internet traffic. Please wait patiently....

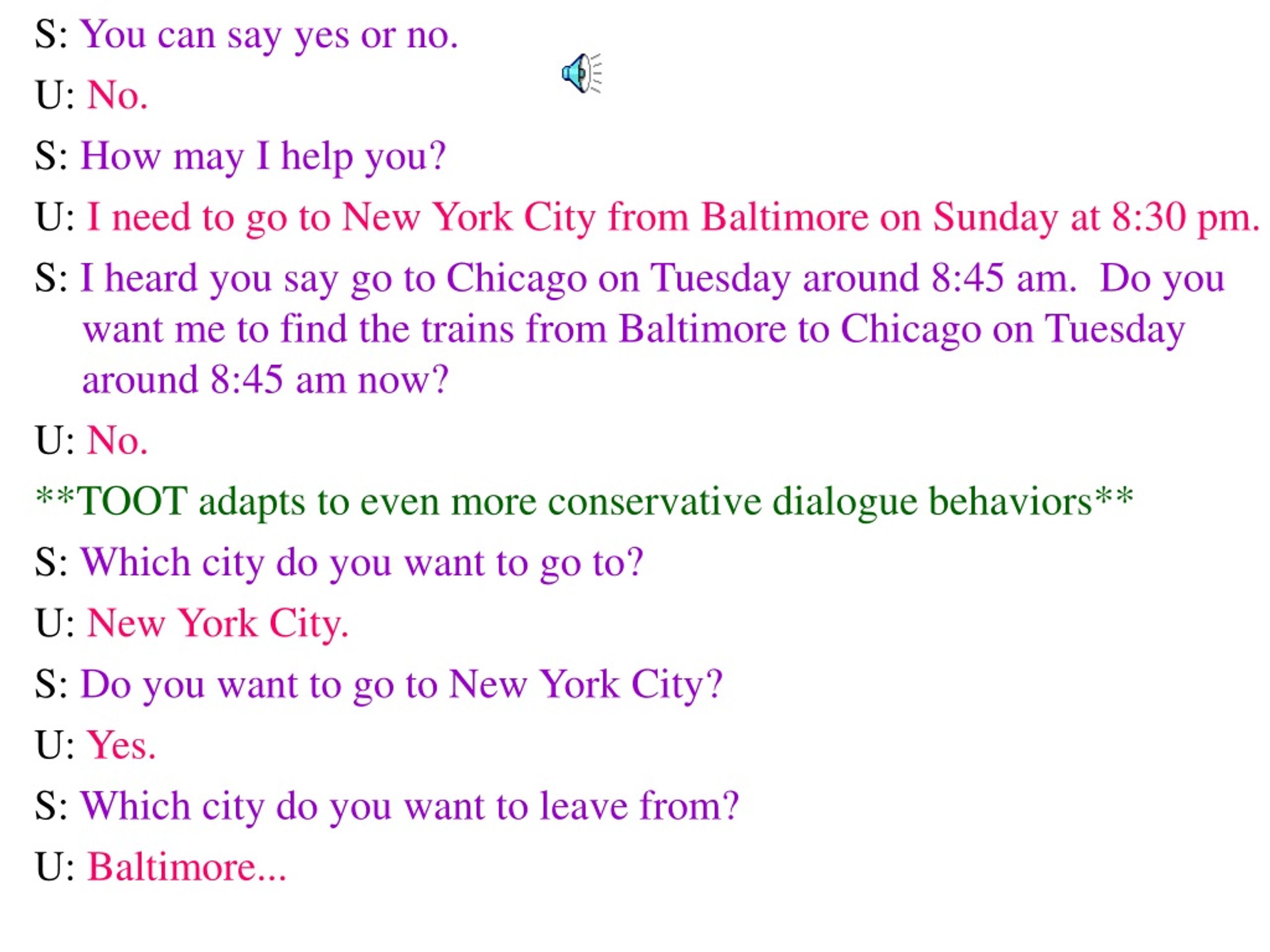

28. S: You can say yes or no. U: No. S: How may I help you? U: I need to go to New York City from Baltimore on Sunday at 8:30 pm. S: I heard you say go to Chicago on Tuesday around 8:45 am. Do you want me to find the trains from Baltimore to Chicago on Tuesday around 8:45 am now? U: No. **TOOT adapts to even more conservative dialogue behaviors** S: Which city do you want to go to? U: New York City. S: Do you want to go to New York City? U: Yes. S: Which city do you want to leave from? U: Baltimore...

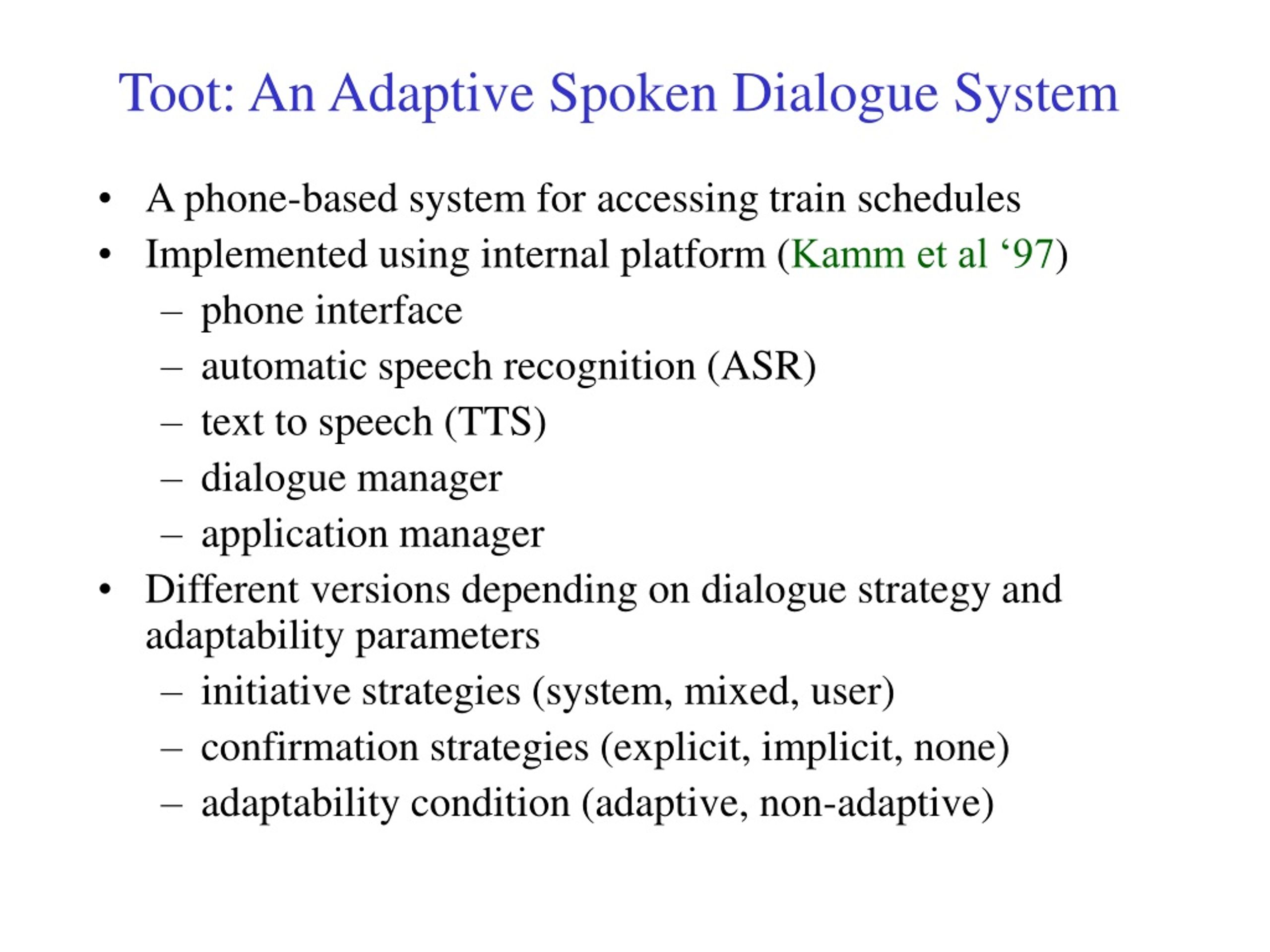

29. Toot: An Adaptive Spoken Dialogue System • A phone-based system for accessing train schedules • Implemented using internal platform (Kamm et al ‘97) • phone interface • automatic speech recognition (ASR) • text to speech (TTS) • dialogue manager • application manager • Different versions depending on dialogue strategy and adaptability parameters • initiative strategies (system, mixed, user) • confirmation strategies (explicit, implicit, none) • adaptability condition (adaptive, non-adaptive)

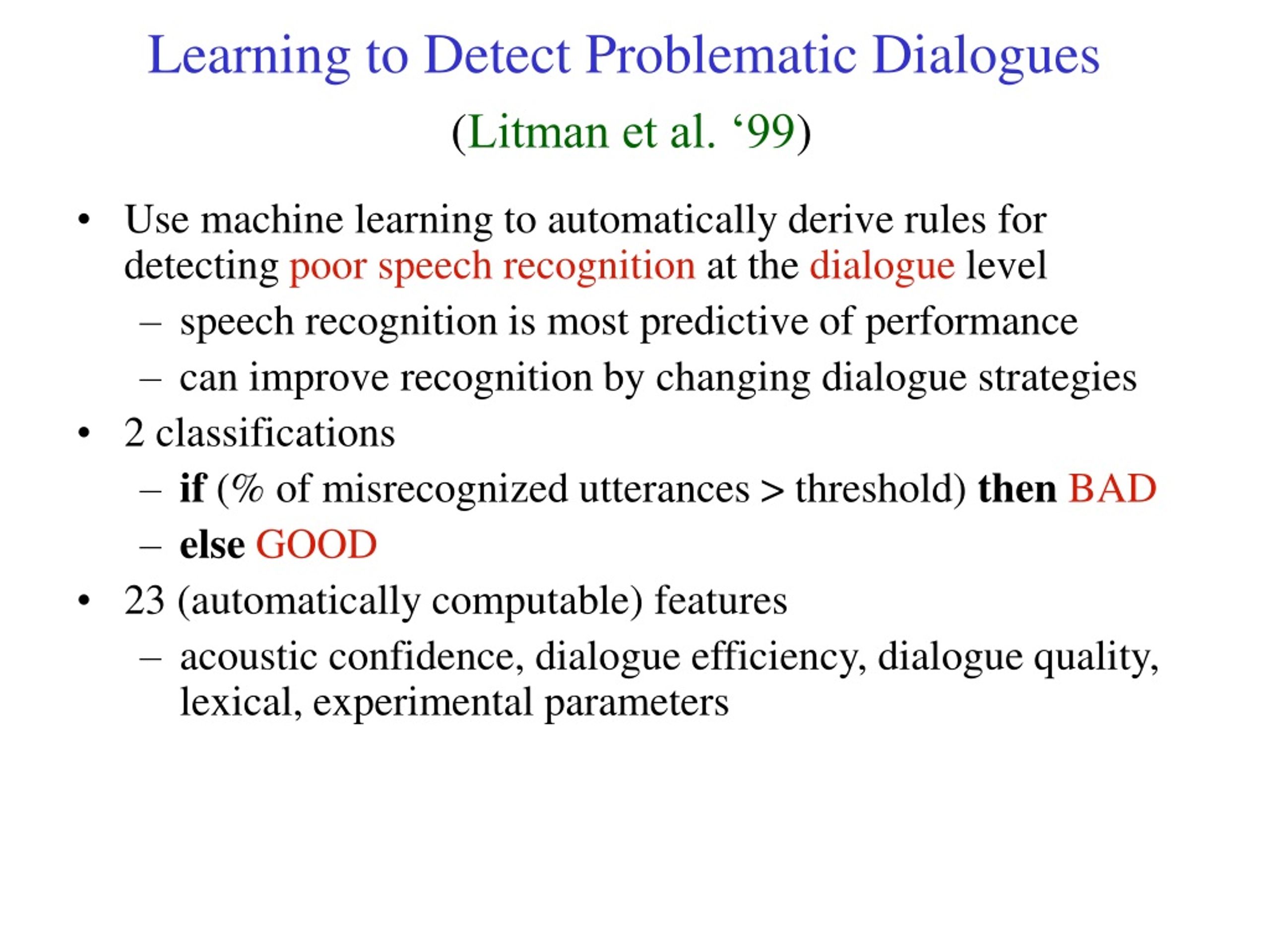

30. Learning to Detect Problematic Dialogues(Litman et al. ‘99) • Use machine learning to automatically derive rules for detecting poor speech recognition at the dialogue level • speech recognition is most predictive of performance • can improve recognition by changing dialogue strategies • 2 classifications • if (% of misrecognized utterances > threshold) thenBAD • elseGOOD • 23 (automatically computable) features • acoustic confidence, dialogue efficiency, dialogue quality, lexical, experimental parameters

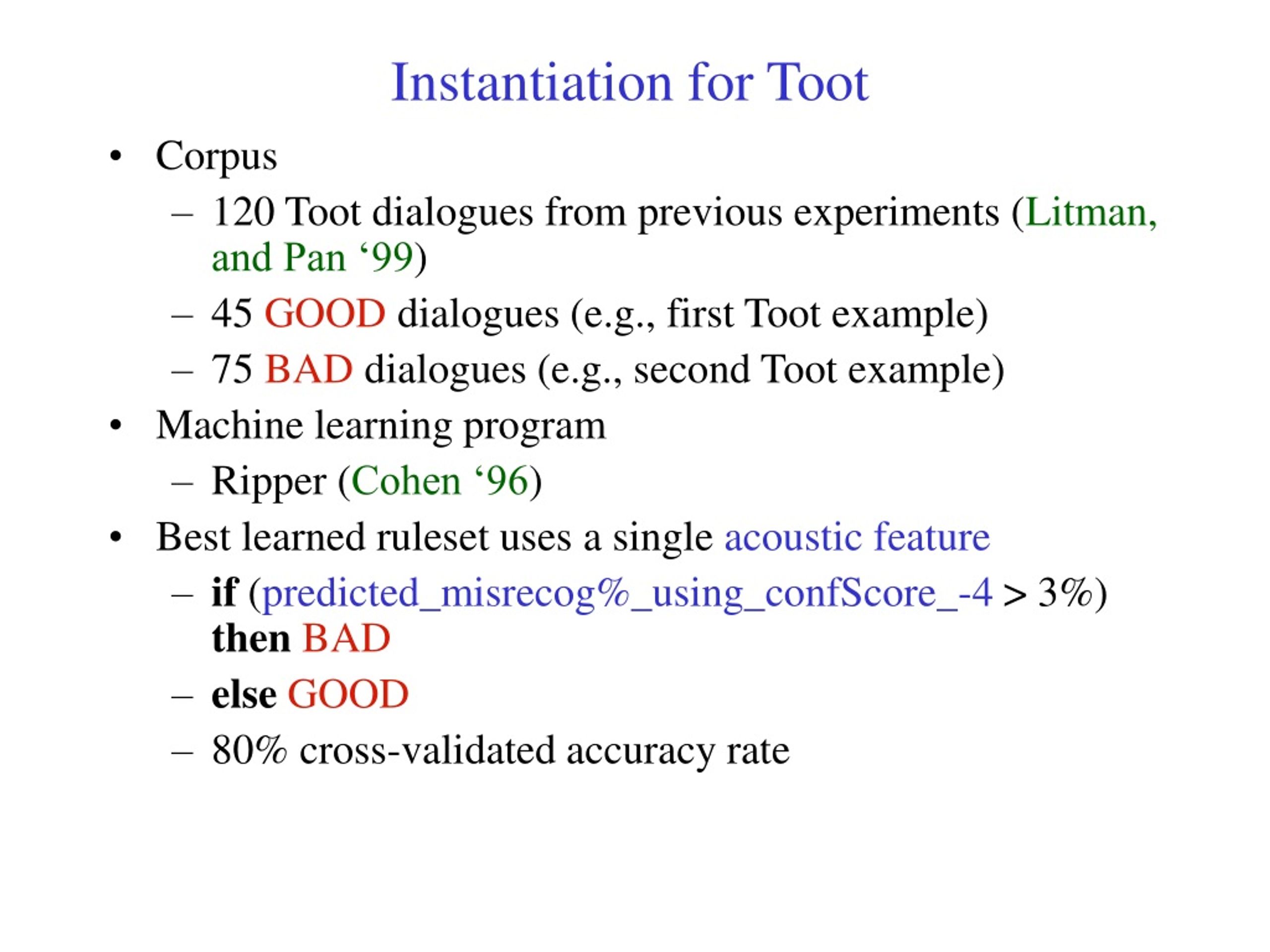

31. Instantiation for Toot • Corpus • 120 Toot dialogues from previous experiments (Litman, and Pan ‘99) • 45 GOOD dialogues (e.g., first Toot example) • 75 BAD dialogues (e.g., second Toot example) • Machine learning program • Ripper (Cohen ‘96) • Best learned ruleset uses a single acoustic feature • if (predicted_misrecog%_using_confScore_-4 > 3%) thenBAD • elseGOOD • 80% cross-validated accuracy rate

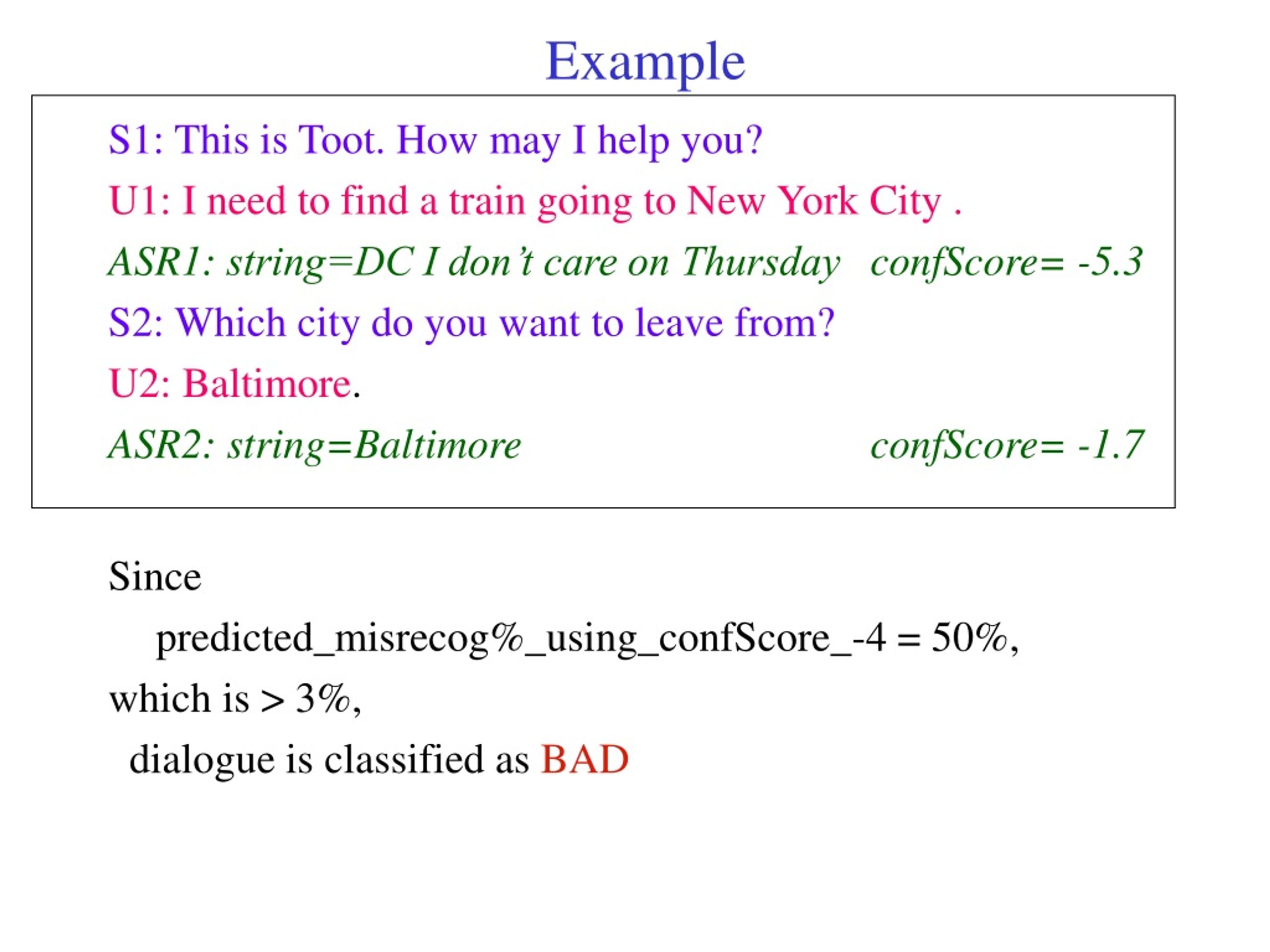

32. Example S1: This is Toot. How may I help you? U1:I need to find a train going to New York City . ASR1:string=DC I don’t care on Thursday confScore= -5.3 S2: Which city do you want to leave from? U2:Baltimore. ASR2:string=Baltimore confScore= -1.7 Since predicted_misrecog%_using_confScore_-4 = 50%, which is > 3%, dialogue is classified asBAD

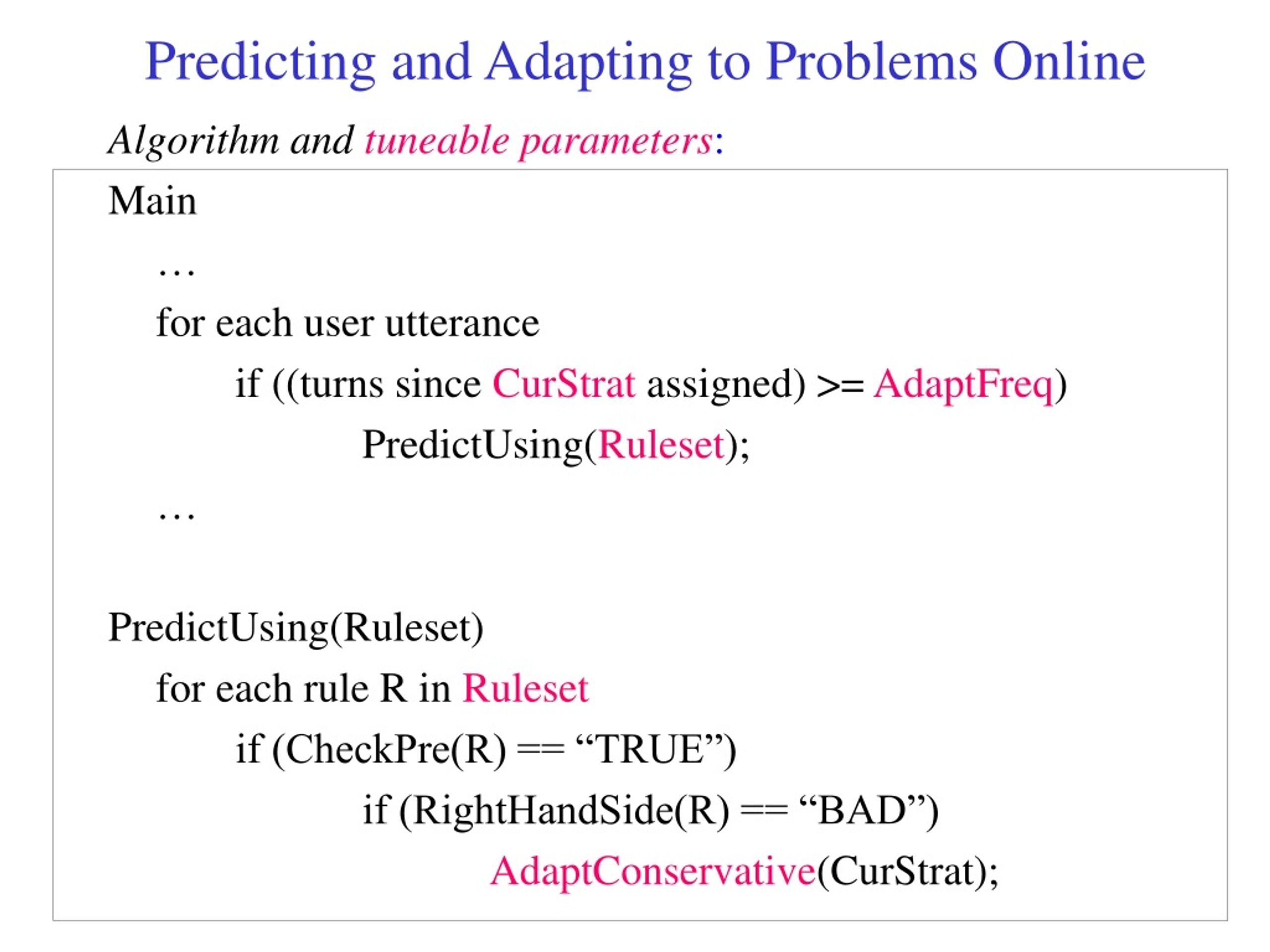

33. Predicting and Adapting to Problems Online Algorithm and tuneable parameters: Main … for each user utterance if ((turns since CurStrat assigned) >= AdaptFreq) PredictUsing(Ruleset); … PredictUsing(Ruleset) for each rule R in Ruleset if (CheckPre(R) == “TRUE”) if (RightHandSide(R) == “BAD”) AdaptConservative(CurStrat);

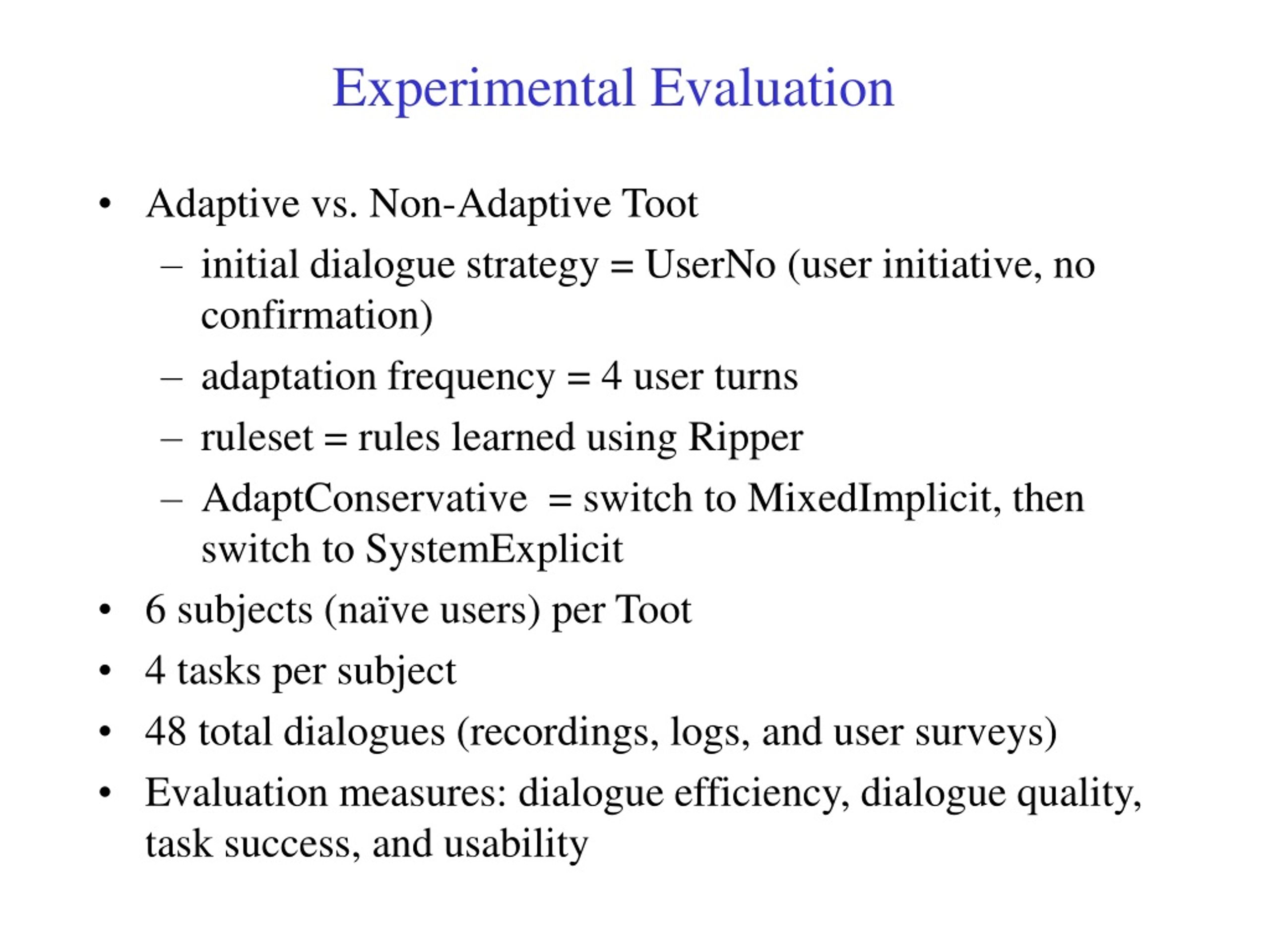

34. Experimental Evaluation • Adaptive vs. Non-Adaptive Toot • initial dialogue strategy = UserNo (user initiative, no confirmation) • adaptation frequency = 4 user turns • ruleset = rules learned using Ripper • AdaptConservative = switch to MixedImplicit, then switch to SystemExplicit • 6 subjects (naïve users) per Toot • 4 tasks per subject • 48 total dialogues (recordings, logs, and user surveys) • Evaluation measures: dialogue efficiency, dialogue quality, task success, and usability

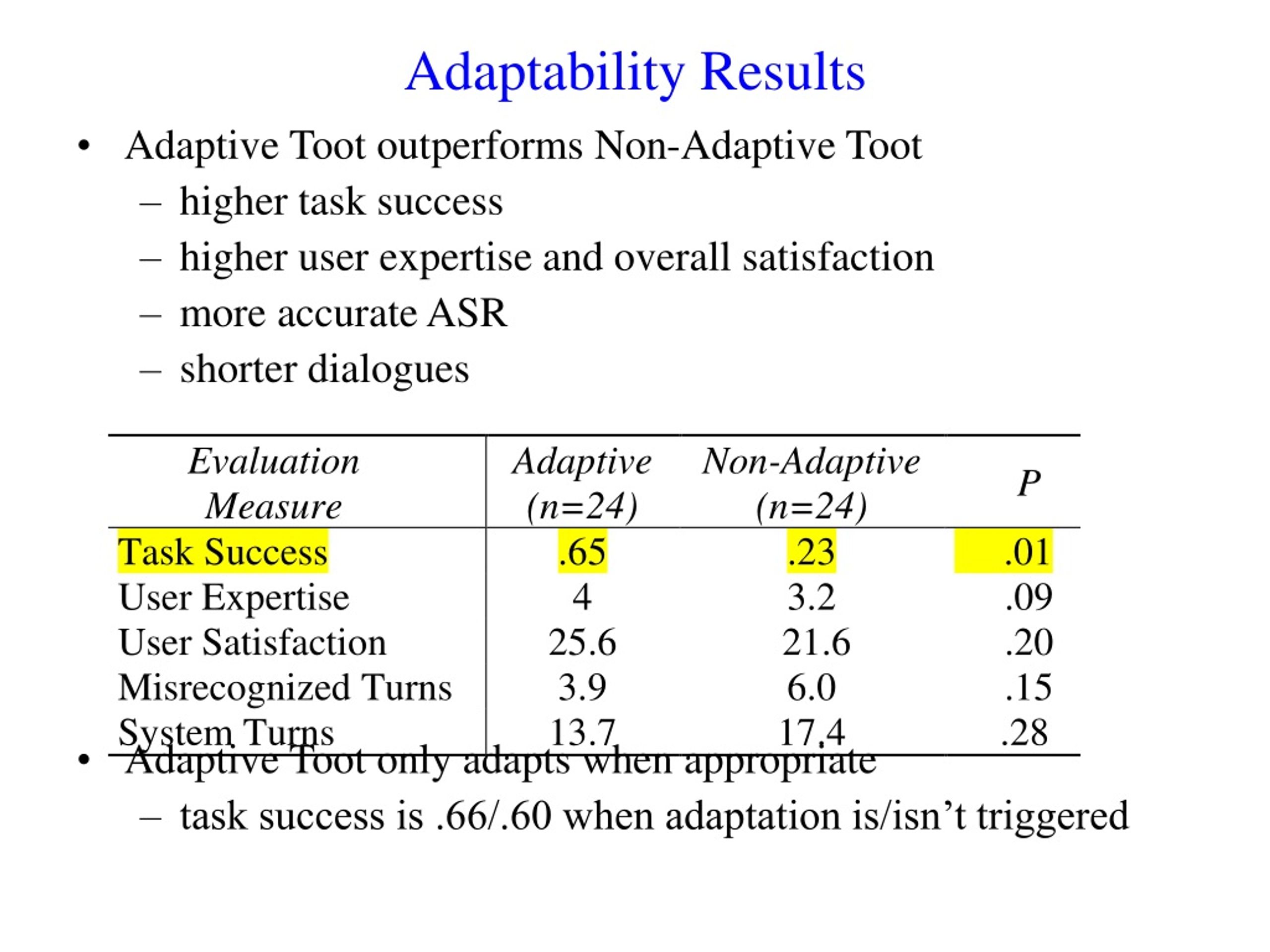

35. Adaptability Results • Adaptive Toot outperforms Non-Adaptive Toot • higher task success • higher user expertise and overall satisfaction • more accurate ASR • shorter dialogues • Adaptive Toot only adapts when appropriate • task success is .66/.60 when adaptation is/isn’t triggered

36. Related Work • Dialogue level • Litman and Pan ‘99, Litman et al.’99, Walker et al. ‘00 • Utterance level • Smith ‘98, Levow ‘98, Litman et al. ‘00, Chu-Caroll and Nickerson ‘00 • Multiple dialogue level • Levin & Pieraccini ‘97, Satinder et al. ‘00 (see talk tomorrow at 2!)

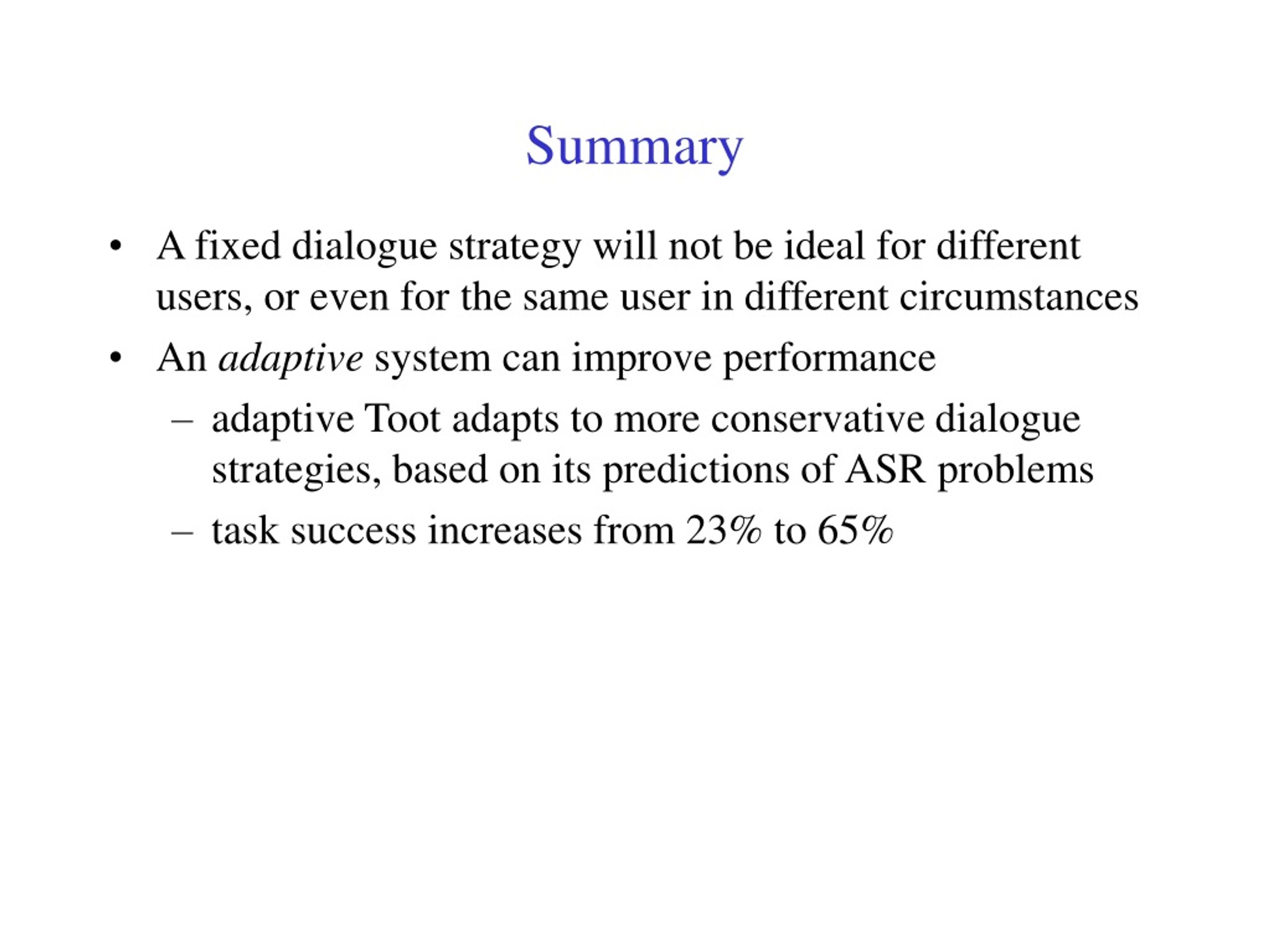

37. Summary • A fixed dialogue strategy will not be ideal for different users, or even for the same user in different circumstances • An adaptive system can improve performance • adaptive Toot adapts to more conservative dialogue strategies, based on its predictions of ASR problems • task success increases from 23% to 65%

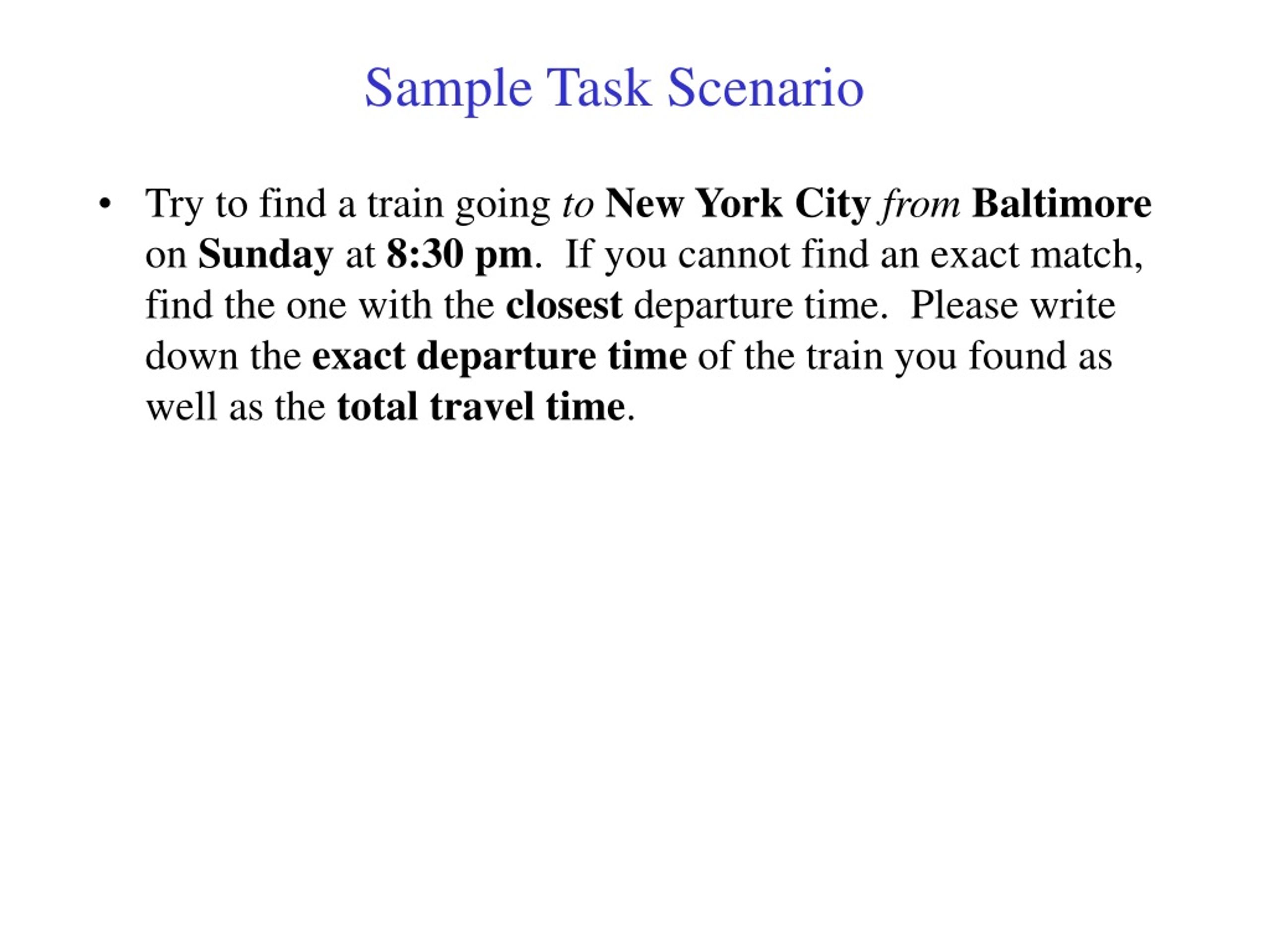

38. Sample Task Scenario • Try to find a train going toNew York Cityfrom Baltimore on Sunday at 8:30 pm. If you cannot find an exact match, find the one with the closest departure time. Please write down the exact departure time of the train you found as well as the total travel time.

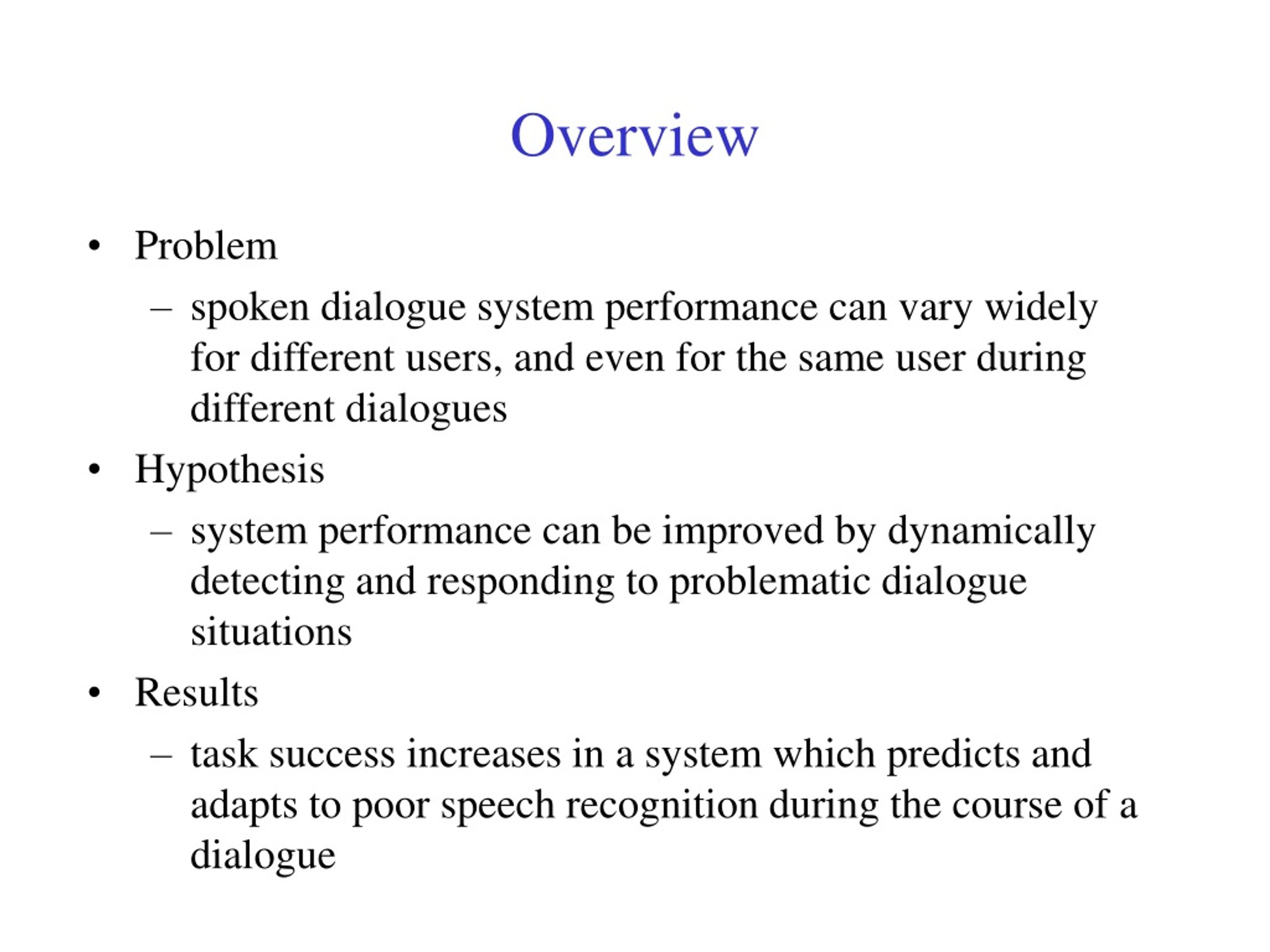

39. Overview • Problem • spoken dialogue system performance can vary widely for different users, and even for the same user during different dialogues • Hypothesis • system performance can be improved by dynamically detecting and responding to problematic dialogue situations • Results • task success increases in a system which predicts and adapts to poor speech recognition during the course of a dialogue

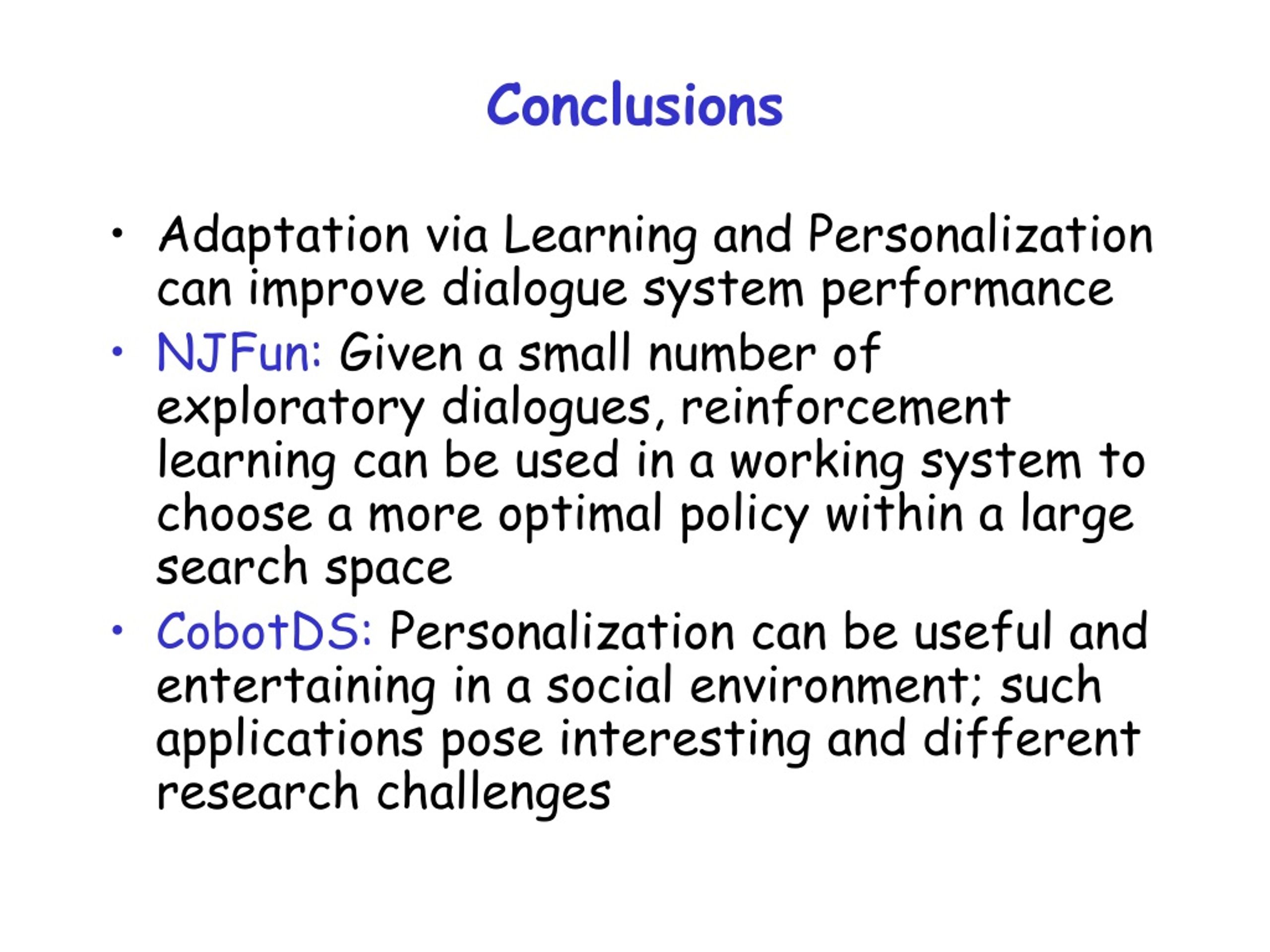

40. Conclusions • Adaptation via Learning and Personalization can improve dialogue system performance • NJFun:Given a small number of exploratory dialogues, reinforcement learning can be used in a working system to choose a more optimal policy within a large search space • CobotDS:Personalization can be useful and entertaining in a social environment; such applications pose interesting and different research challenges

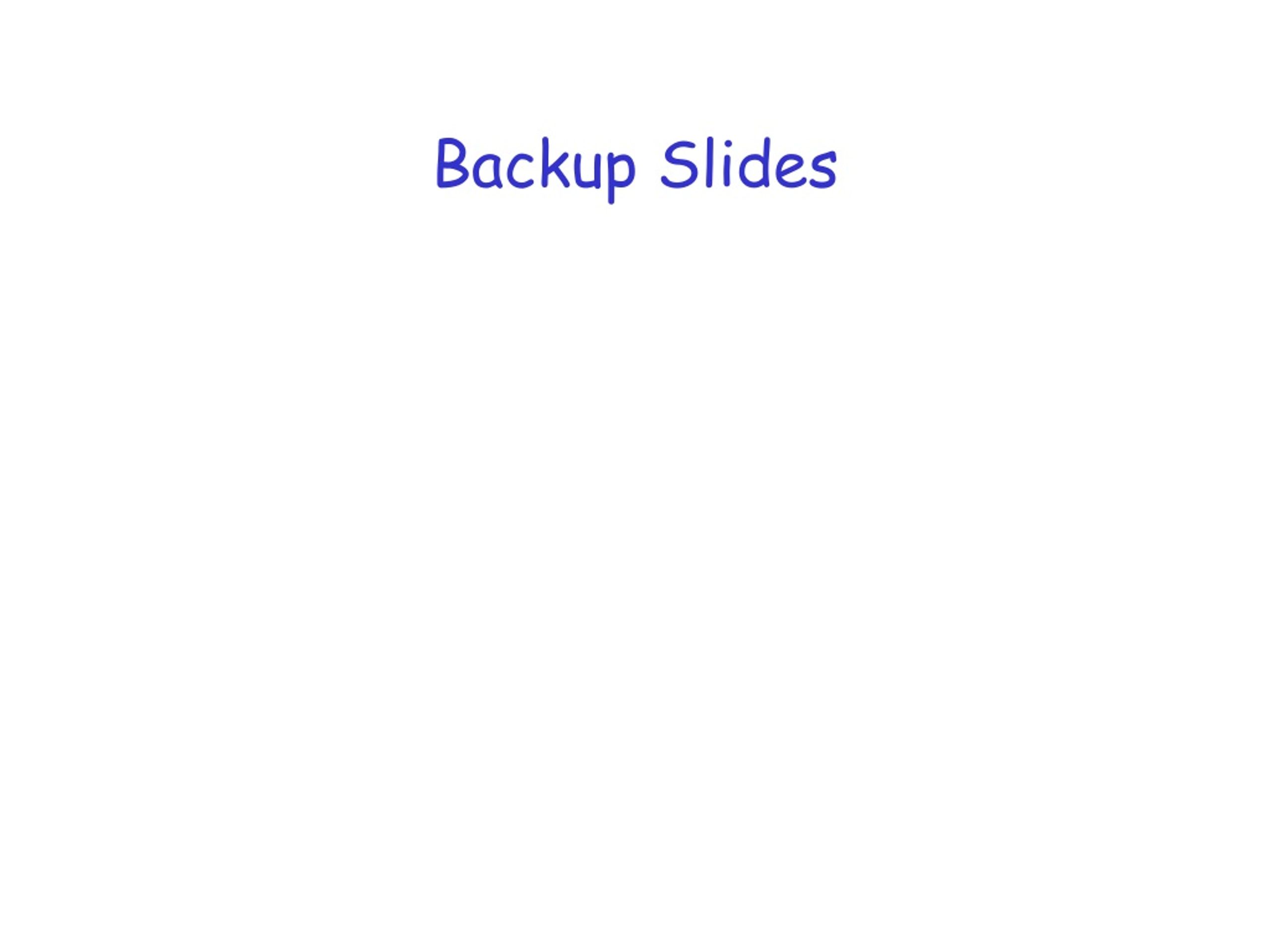

41. Backup Slides

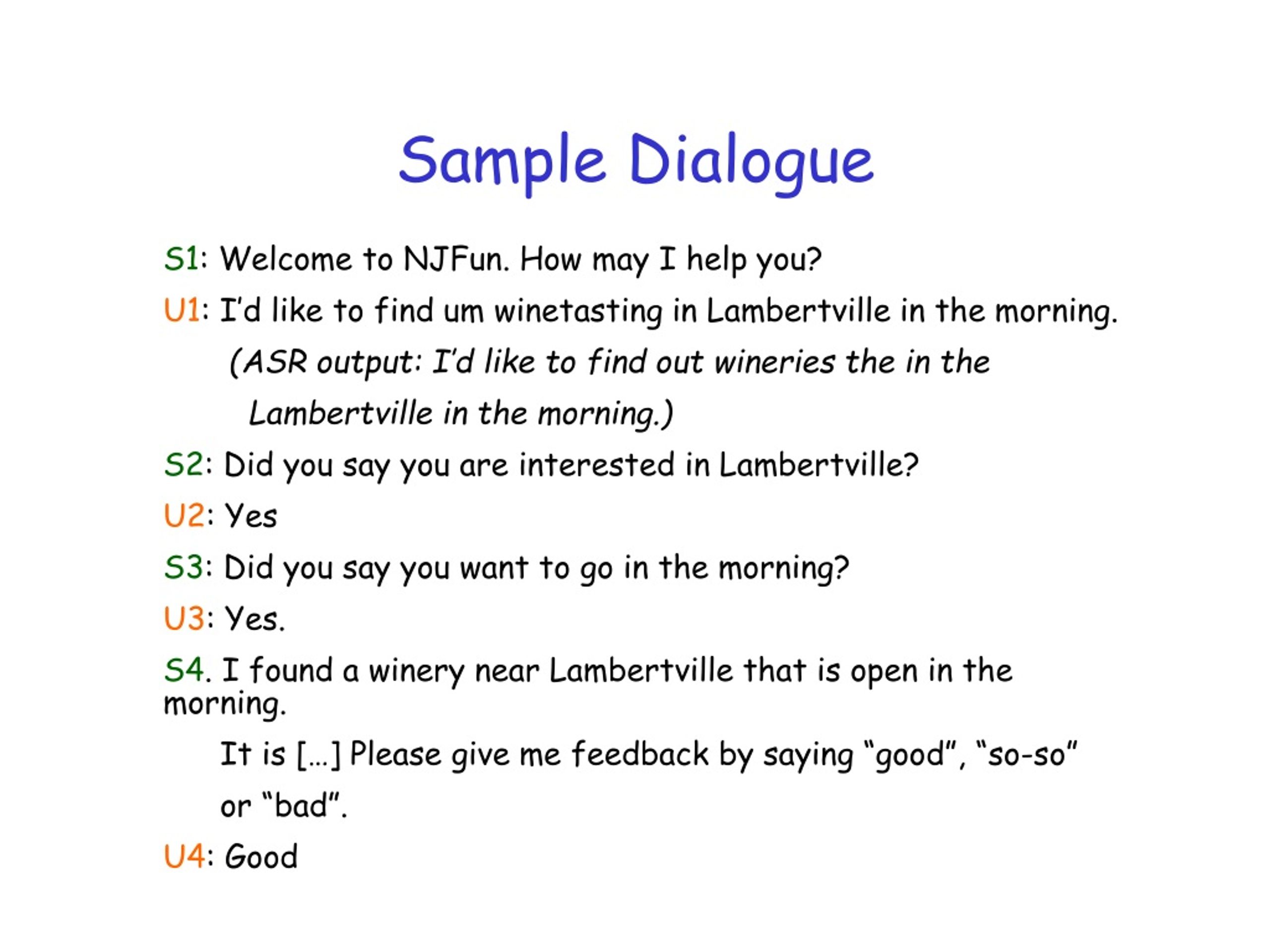

42. Sample Dialogue S1: Welcome to NJFun. How may I help you? U1: I’d like to find um winetasting in Lambertville in the morning. (ASR output: I’d like to find out wineries the in the Lambertville in the morning.) S2: Did you say you are interested in Lambertville? U2: Yes S3: Did you say you want to go in the morning? U3: Yes. S4. I found a winery near Lambertville that is open in the morning. It is […] Please give me feedback by saying “good”, “so-so” or “bad”. U4: Good

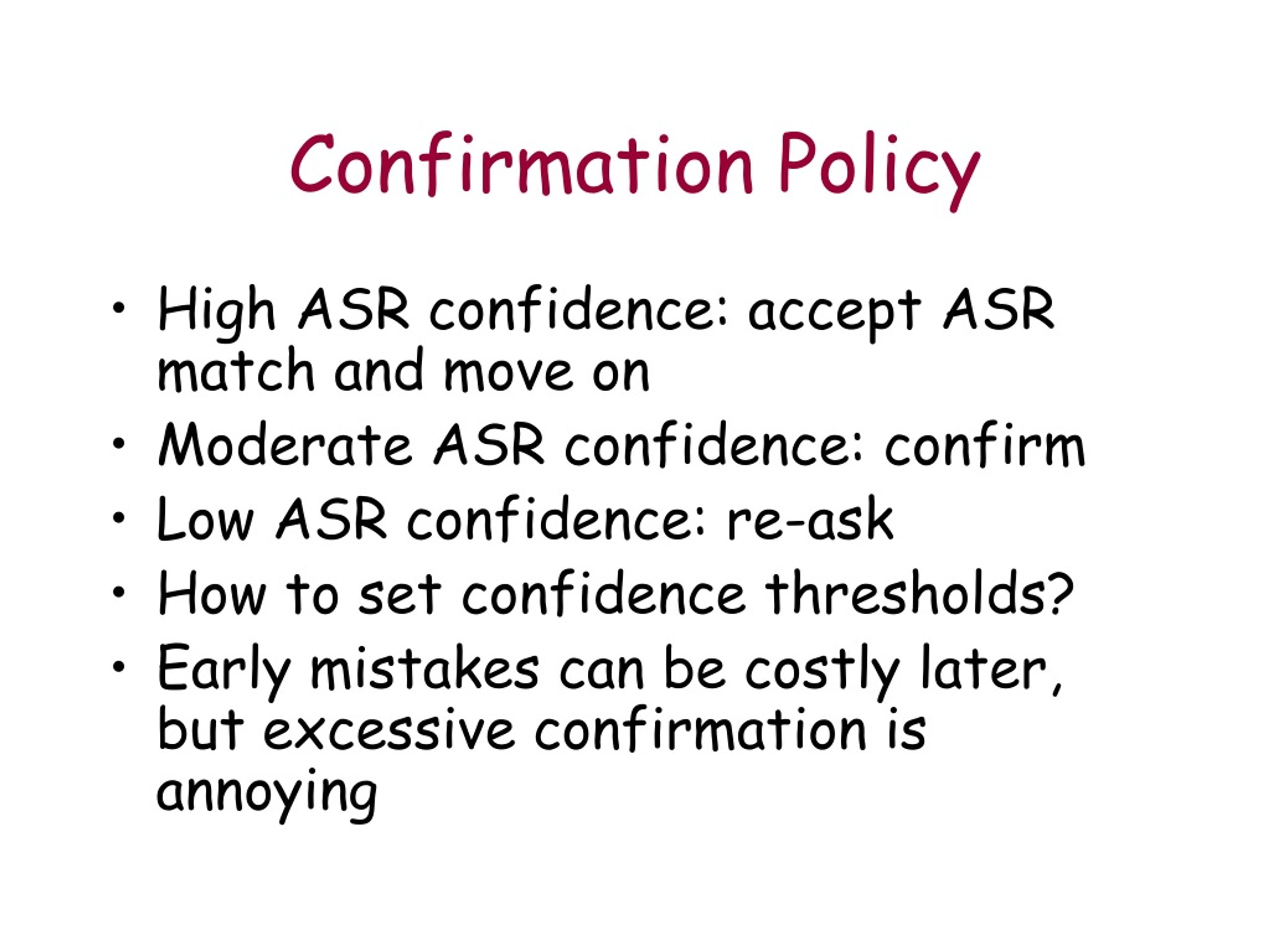

43. Confirmation Policy • High ASR confidence: accept ASR match and move on • Moderate ASR confidence: confirm • Low ASR confidence: re-ask • How to set confidence thresholds? • Early mistakes can be costly later, but excessive confirmation is annoying

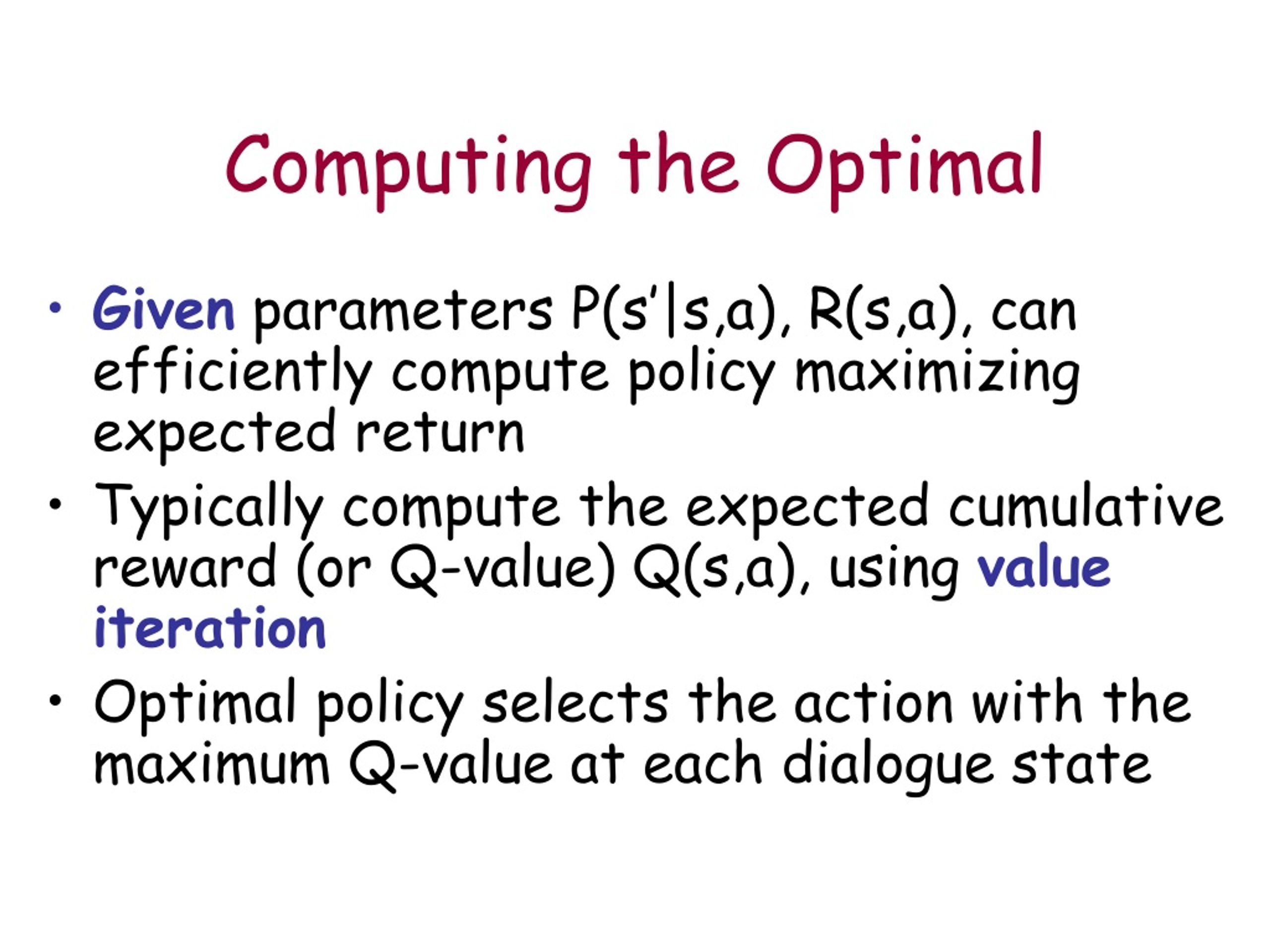

44. Computing the Optimal • Given parameters P(s’|s,a), R(s,a), can efficiently compute policy maximizing expected return • Typically compute the expected cumulative reward (or Q-value) Q(s,a), using value iteration • Optimal policy selects the action with the maximum Q-value at each dialogue state

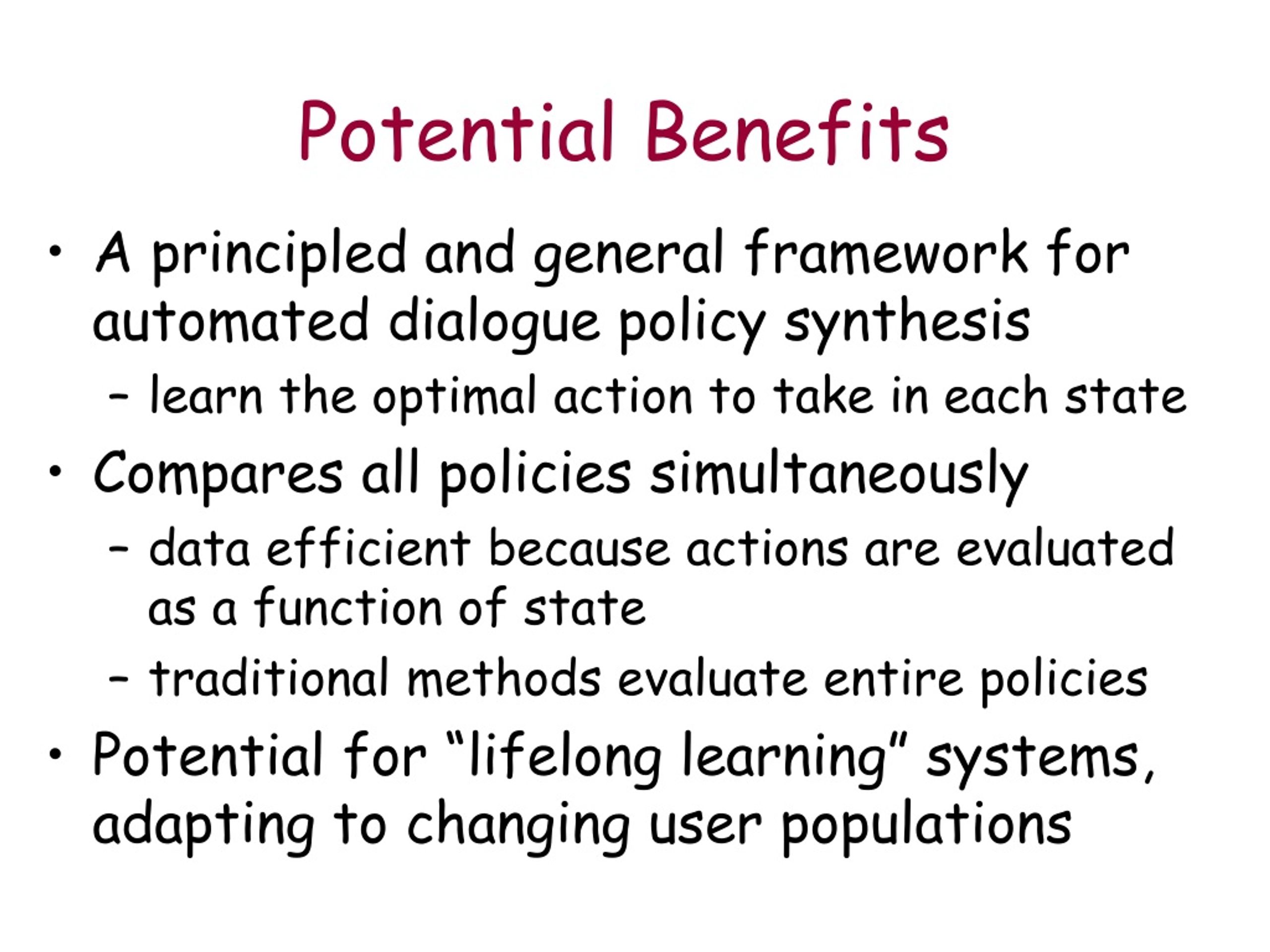

45. Potential Benefits • A principled and general framework for automated dialogue policy synthesis • learn the optimal action to take in each state • Compares all policies simultaneously • data efficient because actions are evaluated as a function of state • traditional methods evaluate entire policies • Potential for “lifelong learning” systems, adapting to changing user populations

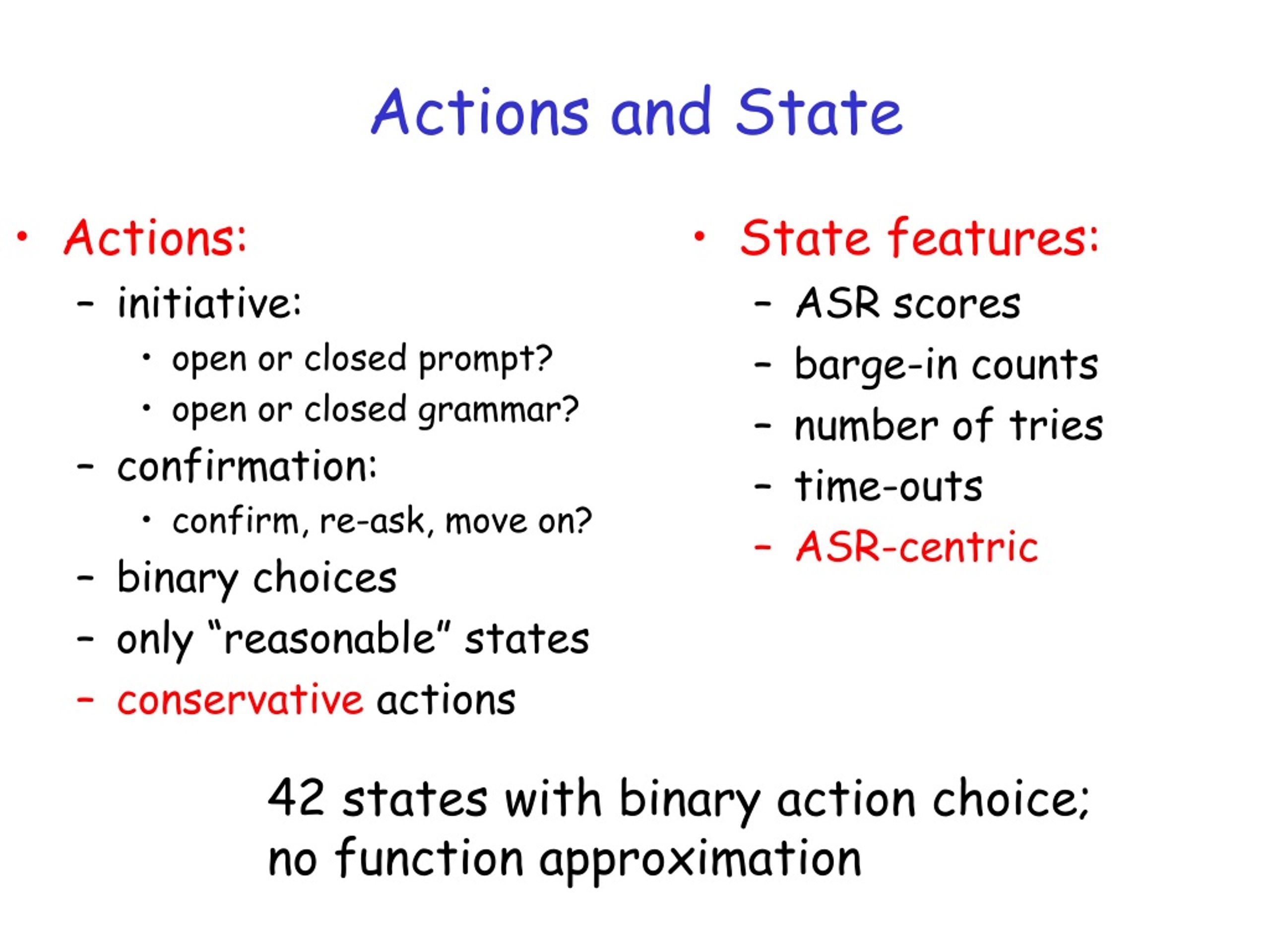

46. Actions: initiative: open or closed prompt? open or closed grammar? confirmation: confirm, re-ask, move on? binary choices only “reasonable” states conservative actions State features: ASR scores barge-in counts number of tries time-outs ASR-centric Actions and State 42 states with binary action choice; no function approximation

47. Sample Confirmation Choices • Confirmation (when V = 1) • confirm • no confirm • Example • Conf3: “Did you say want to go in the <time>?” • NoConf3: “”

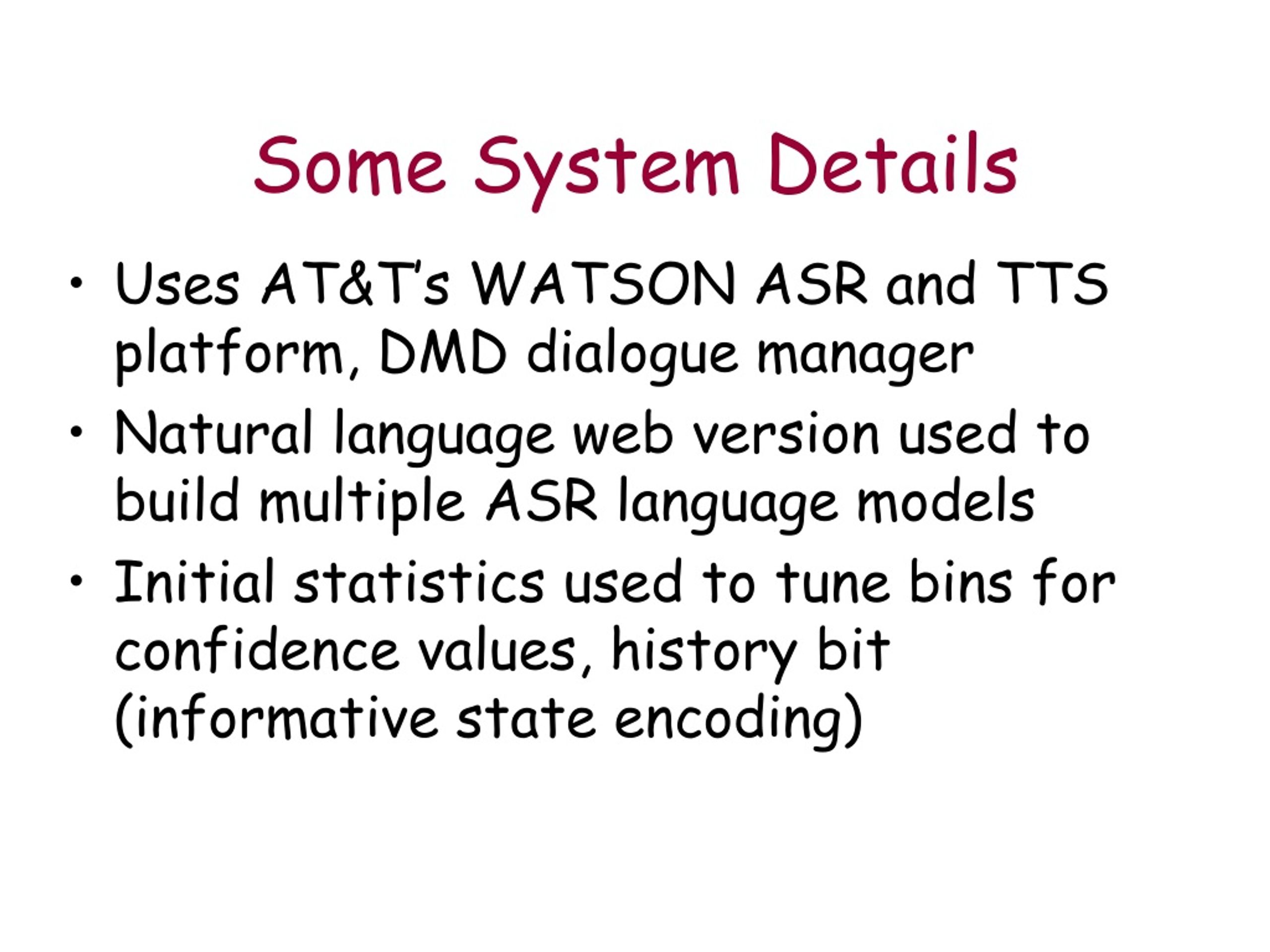

48. Some System Details • Uses AT&T’s WATSON ASR and TTS platform, DMD dialogue manager • Natural language web version used to build multiple ASR language models • Initial statistics used to tune bins for confidence values, history bit (informative state encoding)

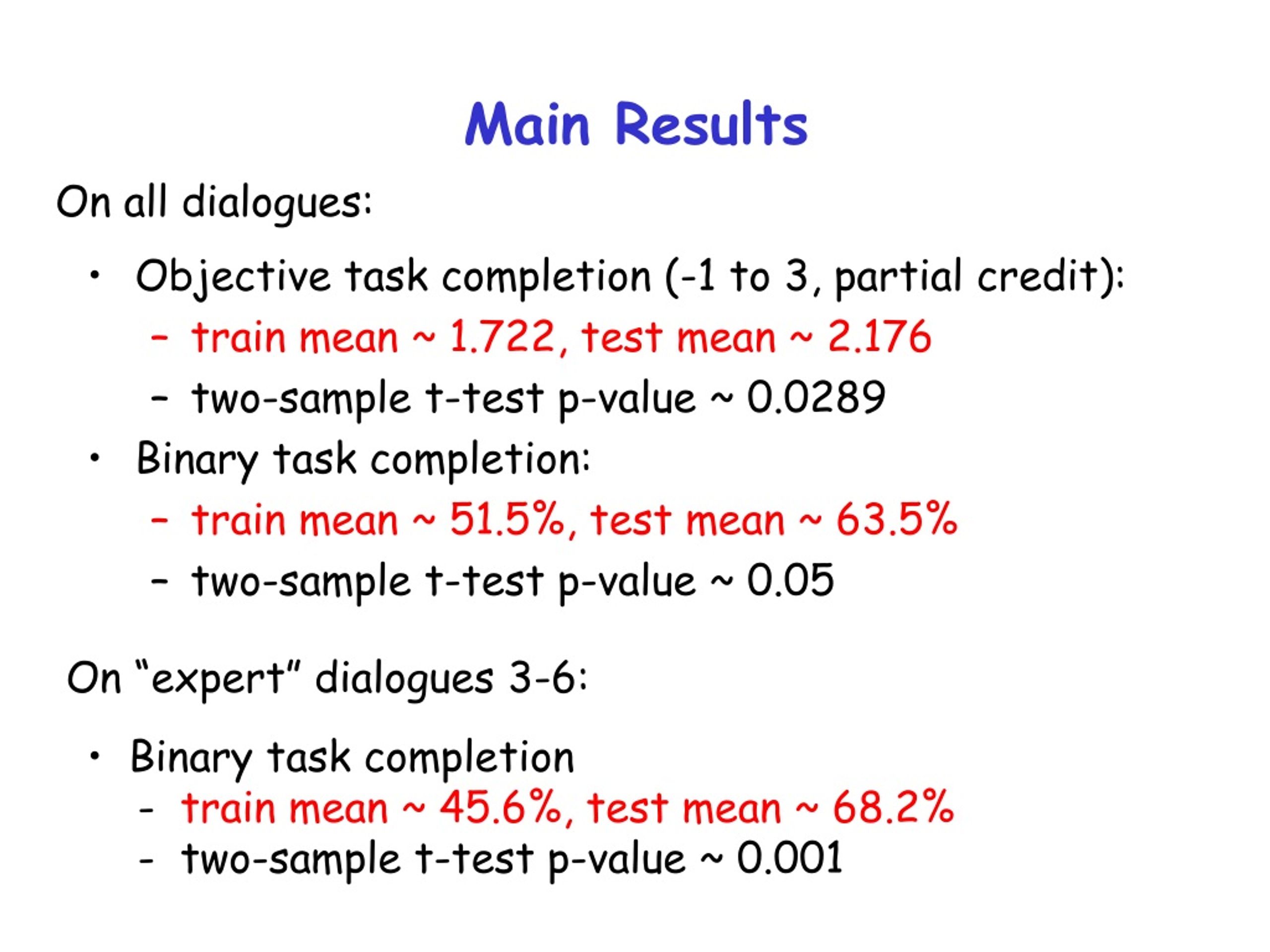

49. Main Results On all dialogues: • Objective task completion (-1 to 3, partial credit): • train mean ~ 1.722, test mean ~ 2.176 • two-sample t-test p-value ~ 0.0289 • Binary task completion: • train mean ~ 51.5%, test mean ~ 63.5% • two-sample t-test p-value ~ 0.05 On “expert” dialogues 3-6: • Binary task completion • - train mean ~ 45.6%, test mean ~ 68.2% • - two-sample t-test p-value ~ 0.001

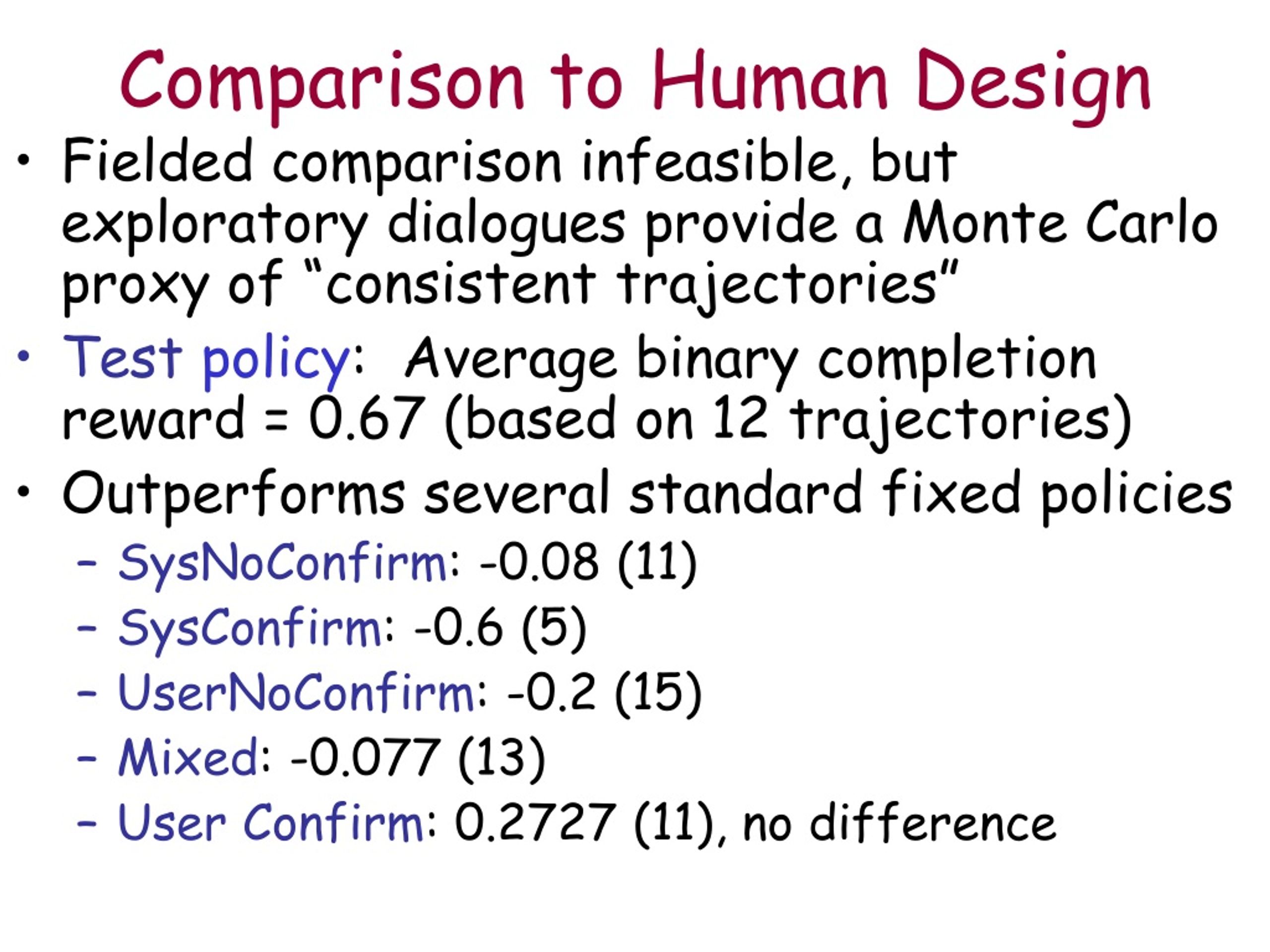

50. Comparison to Human Design • Fielded comparison infeasible, but exploratory dialogues provide a Monte Carlo proxy of “consistent trajectories” • Testpolicy: Average binary completion reward = 0.67 (based on 12 trajectories) • Outperforms several standard fixed policies • SysNoConfirm: -0.08 (11) • SysConfirm: -0.6 (5) • UserNoConfirm: -0.2 (15) • Mixed: -0.077 (13) • User Confirm: 0.2727 (11), no difference
