  1. Gaussian Interference Channel Capacity to Within One Bit R. Etkin, D. Tse (Berkeley), Hua Wang (UIUC) EPFL Nov 14, 2006 TexPoint fonts used in EMF: AAAAAAAAAAA

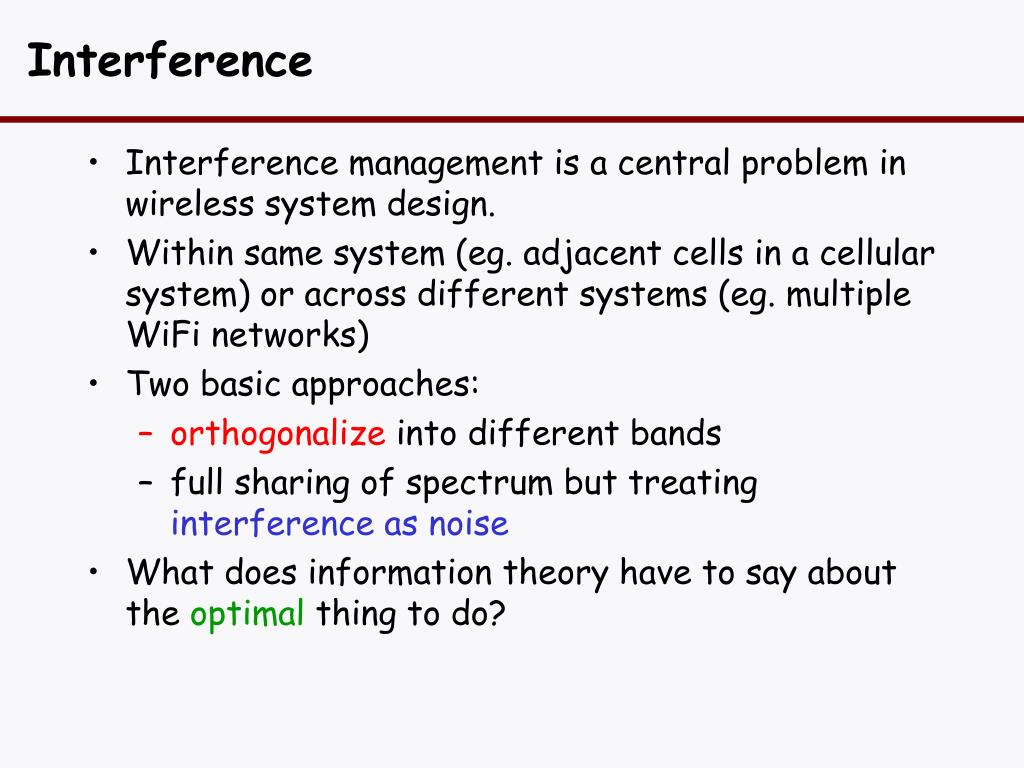

  2. Interference • Interference management is a central problem in wireless system design. • Within same system (eg. adjacent cells in a cellular system) or across different systems (eg. multiple WiFi networks) • Two basic approaches: • orthogonalize into different bands • full sharing of spectrum but treating interference as noise • What does information theory have to say about the optimalthing to do?

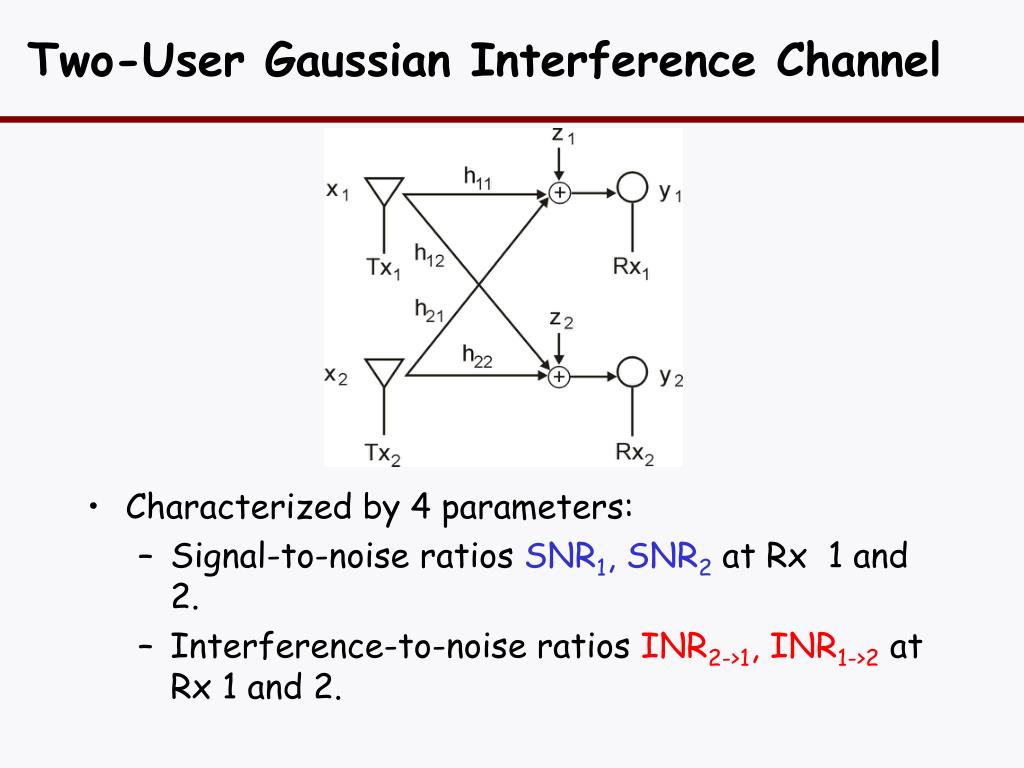

  3. Two-User Gaussian Interference Channel • Characterized by 4 parameters: • Signal-to-noise ratios SNR1, SNR2 at Rx 1 and 2. • Interference-to-noise ratios INR2->1, INR1->2 at Rx 1 and 2.

  4. Related Results • If receivers can cooperate, this is a multiple access channel. Capacity is known. (Ahlswede 71, Liao 72) • If transmitters can cooperate , this is a MIMO broadcast channel. Capacity recently found. (Weingarten et al 04) • When there is no cooperation of all, it’s the interference channel. Open problem for 30 years.

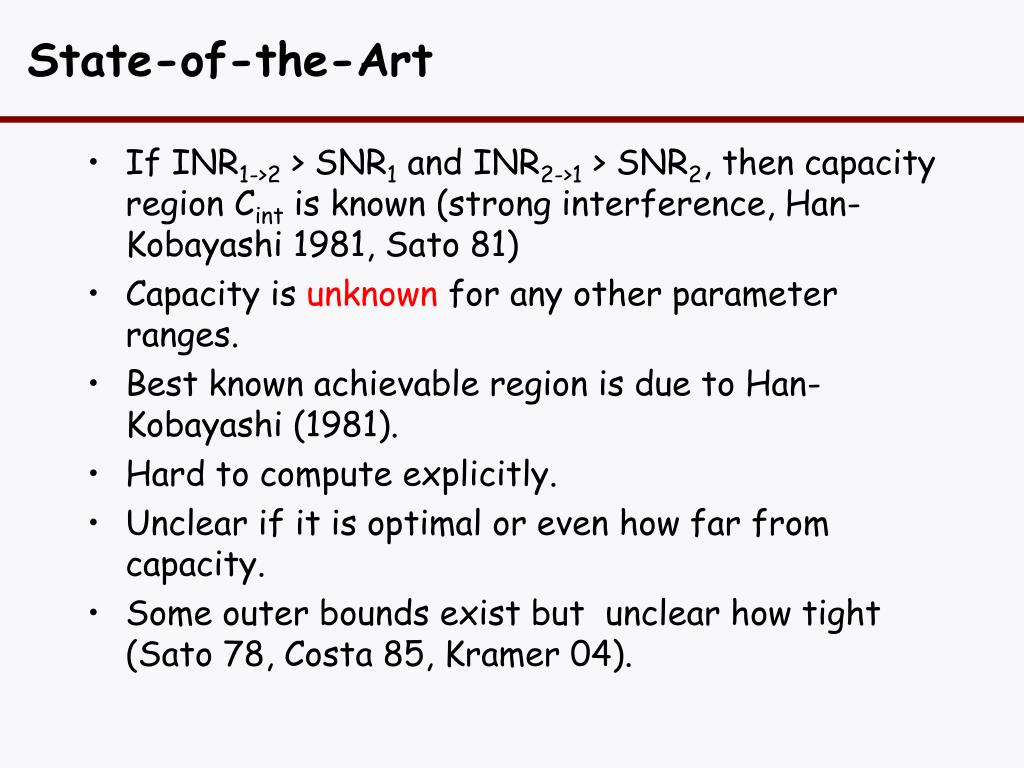

  5. State-of-the-Art • If INR1->2 > SNR1 and INR2->1 > SNR2, then capacity region Cint is known (strong interference, Han-Kobayashi 1981, Sato 81) • Capacity is unknown for any other parameter ranges. • Best known achievable region is due to Han-Kobayashi (1981). • Hard to compute explicitly. • Unclear if it is optimal or even how far from capacity. • Some outer bounds exist but unclear how tight (Sato 78, Costa 85, Kramer 04).

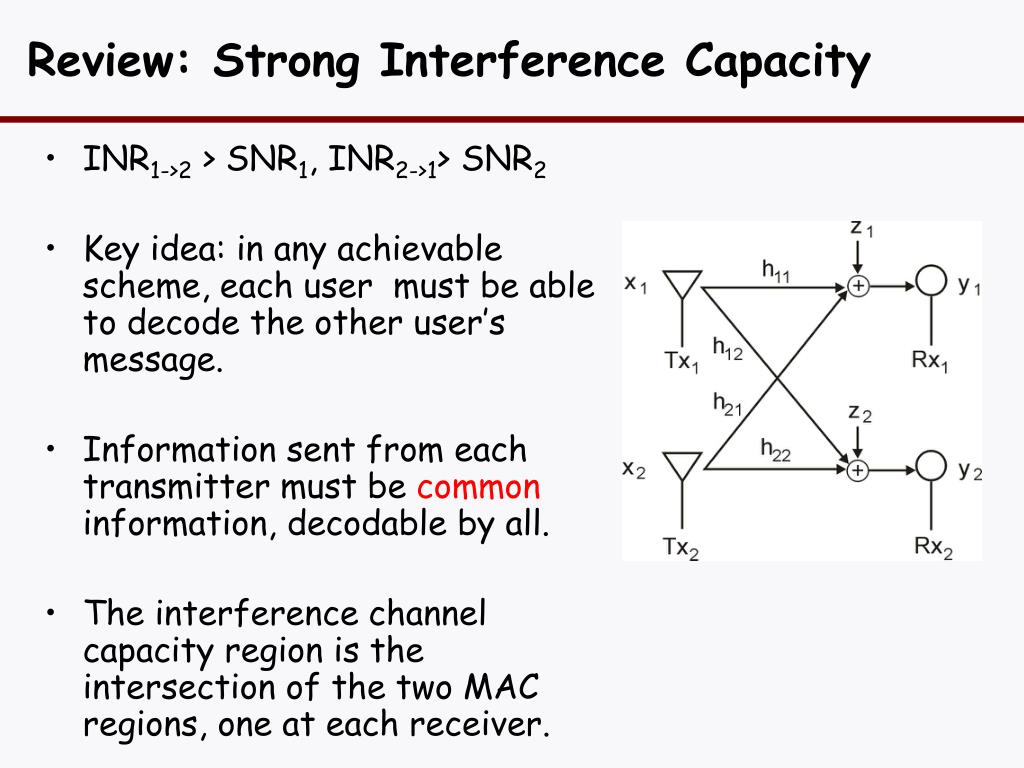

  6. Review: Strong Interference Capacity • INR1->2 > SNR1, INR2->1> SNR2 • Key idea: in any achievable scheme, each user must be able to decode the other user’s message. • Information sent from each transmitter must be common information, decodable by all. • The interference channel capacity region is the intersection of the two MAC regions, one at each receiver.

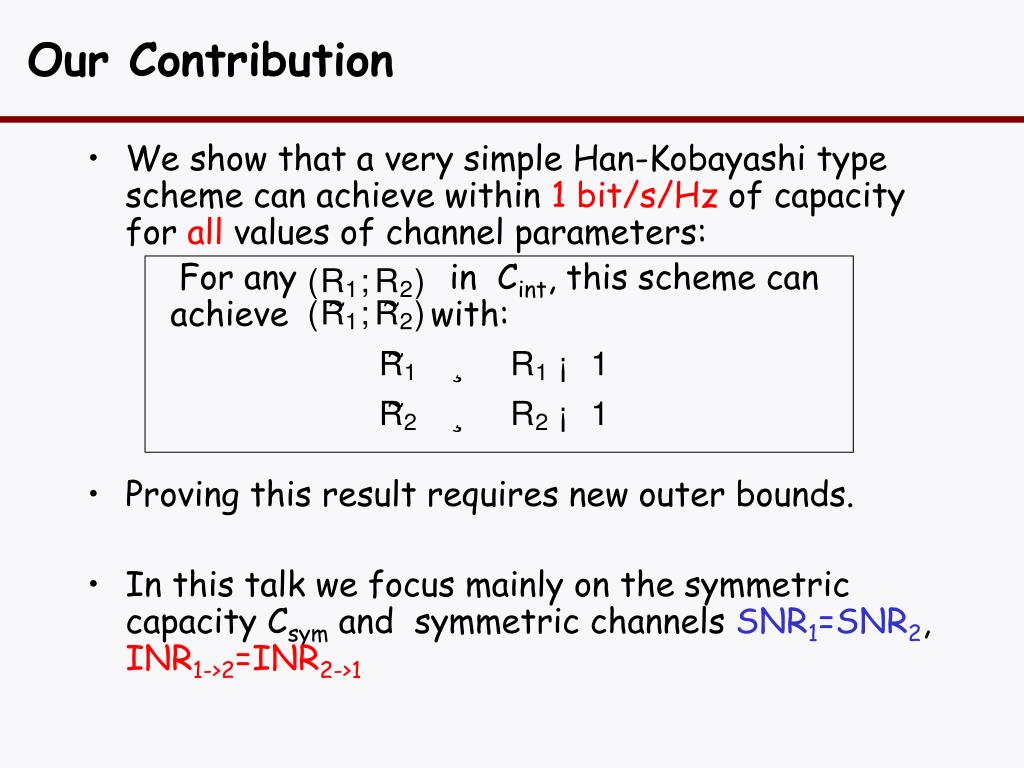

  7. Our Contribution • We show that a very simple Han-Kobayashi type scheme can achieve within 1 bit/s/Hz of capacity for all values of channel parameters: For any in Cint, this scheme can achieve with: • Proving this result requires new outer bounds. • In this talk we focus mainly on the symmetric capacity Csym and symmetric channels SNR1=SNR2, INR1->2=INR2->1

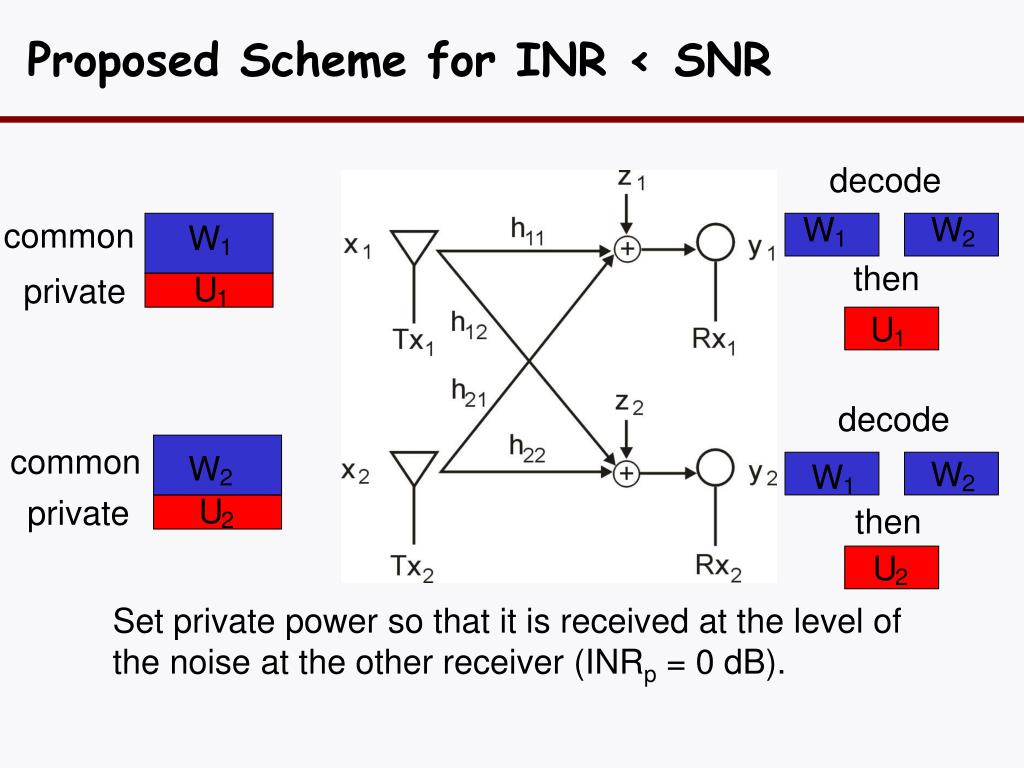

  8. Proposed Scheme for INR < SNR decode common then private decode common private then • Set private power so that it is received at the level of the noise at the other receiver (INRp = 0 dB).

  9. Why set INRp = 0 dB? • This is a sweet spot where the damage to the other link is small but can get a high rate in own link since SNR > INR.

  10. Main Result (SNR > INR) • The scheme achieves a symmetric rate per user: • The symmetric capacity is upper bounded by: • The gap is at most one bit for all values of SNR and INR.

  11. Interference-Limited Regime • At low SNR, links are noise-limited and interference plays little role. • At high SNR and high INR, links are interference-limited and interference plays a central role. • In this regime, capacity is unbounded and yet our scheme is always within 1 bit of capacity. • Interference-limited behavior is captured.

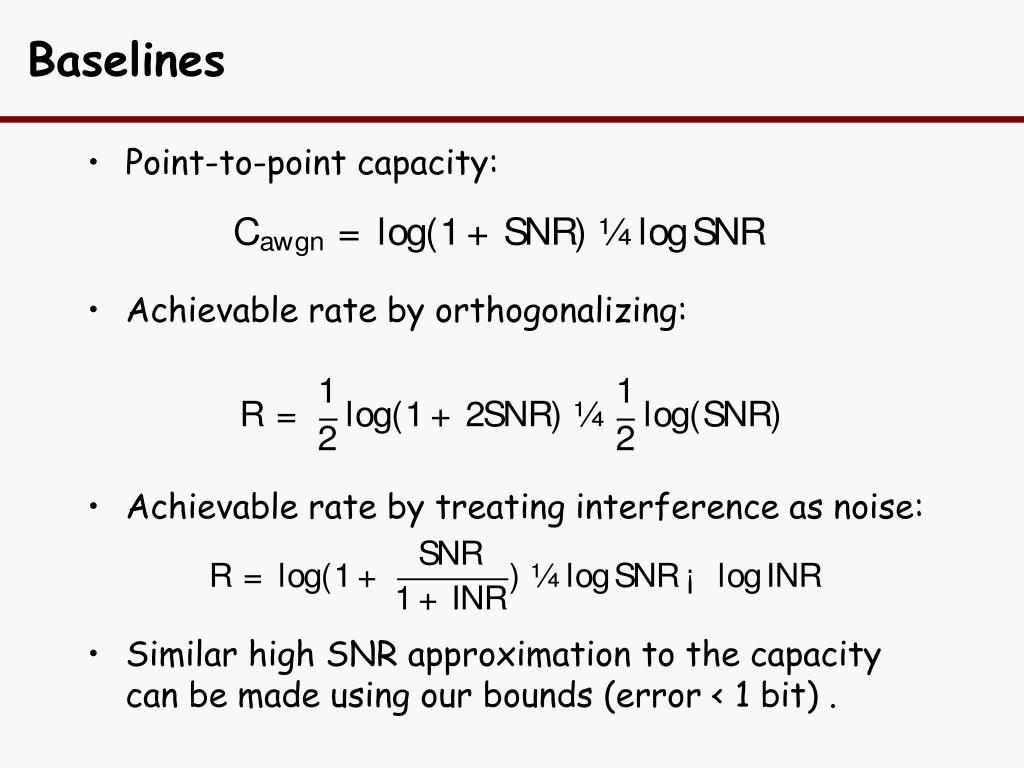

  12. Baselines • Point-to-point capacity: • Achievable rate by orthogonalizing: • Achievable rate by treating interference as noise: • Similar high SNR approximation to the capacity can be made using our bounds (error < 1 bit) .

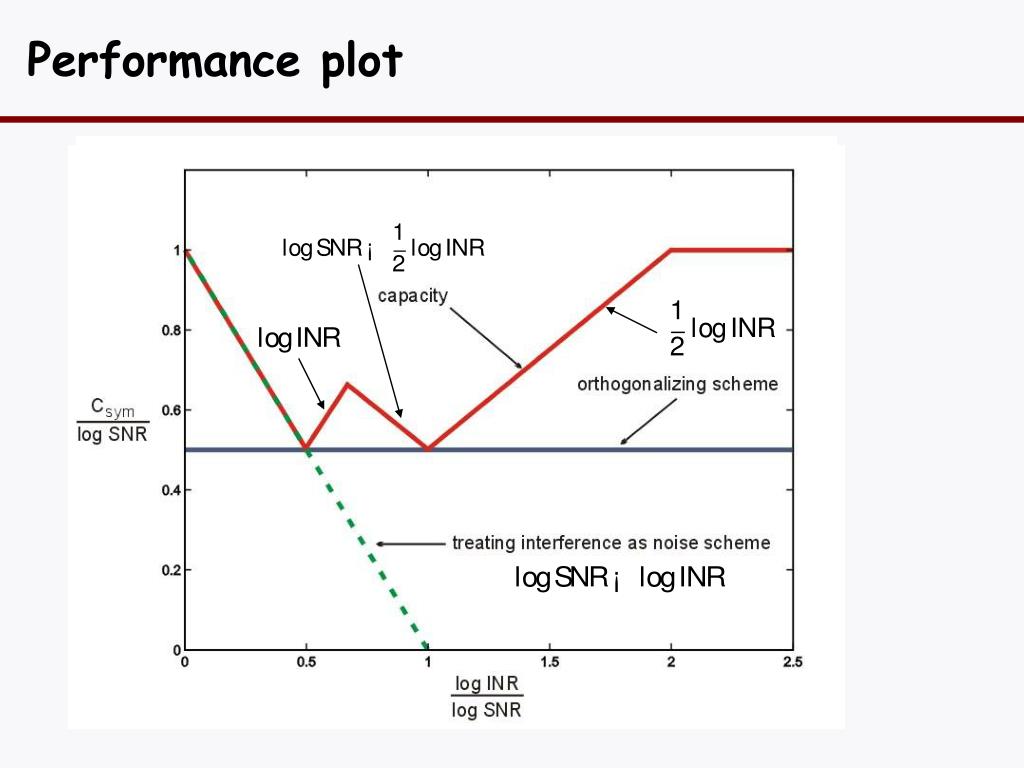

  13. Performance plot

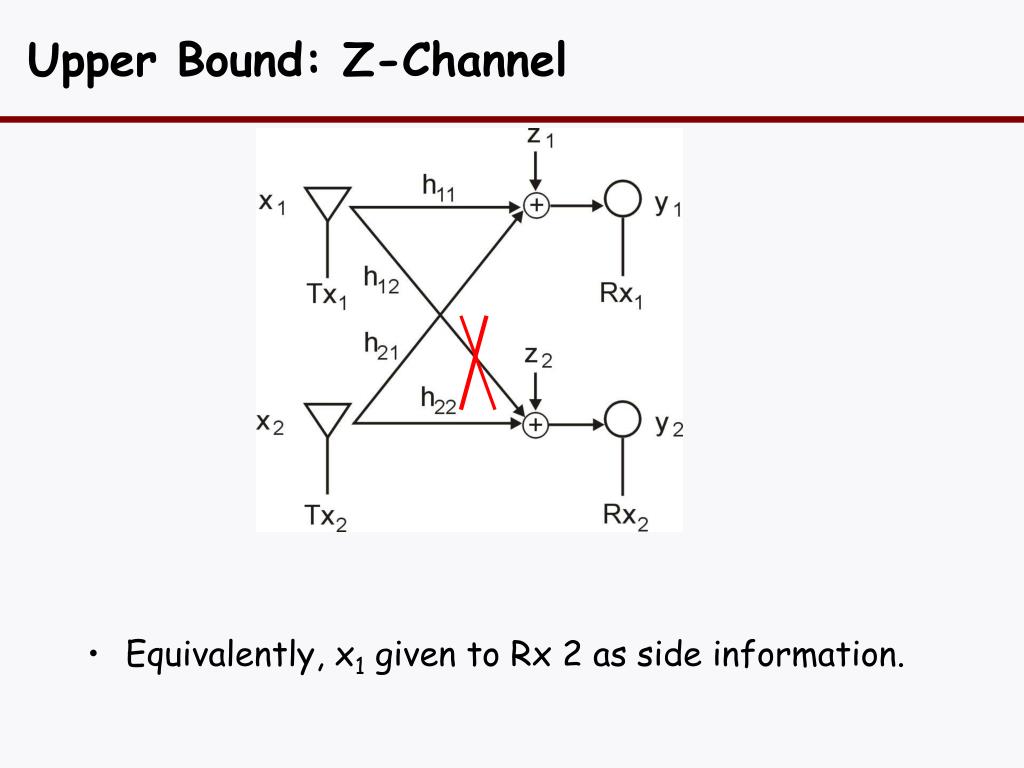

  14. Upper Bound: Z-Channel • Equivalently, x1 given to Rx 2 as side information.

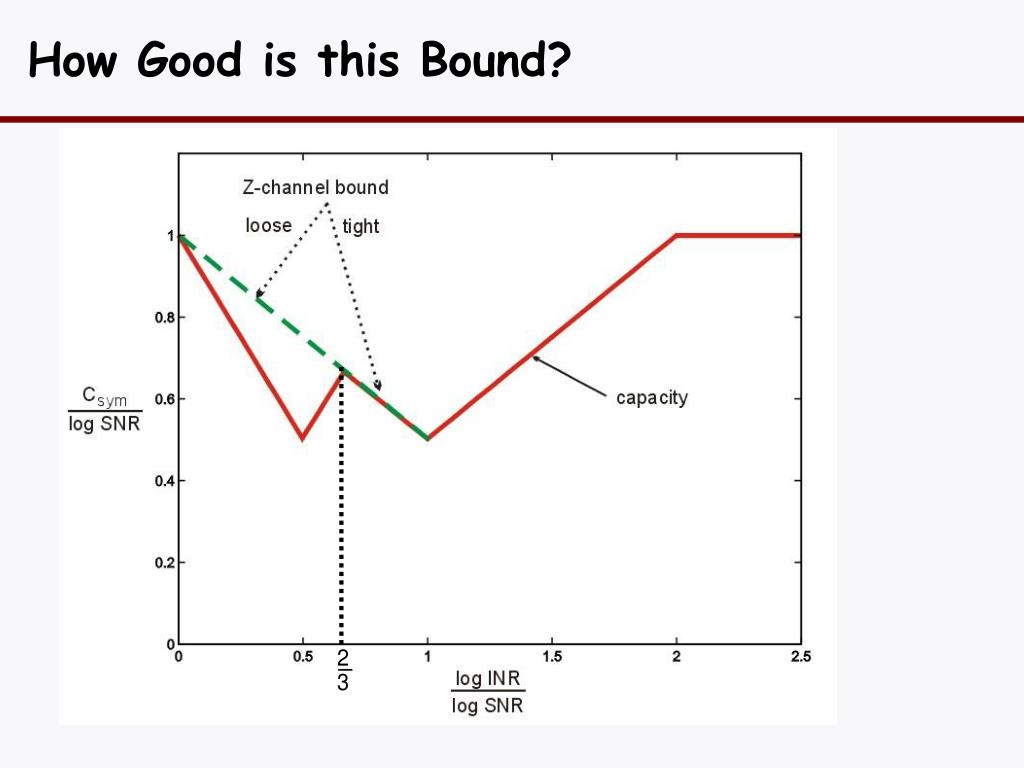

  15. How Good is this Bound?

  16. What’s going on? Scheme has 2 distinct regimes of operation: Z-channel bound is tight. Z-channel bound is not tight.

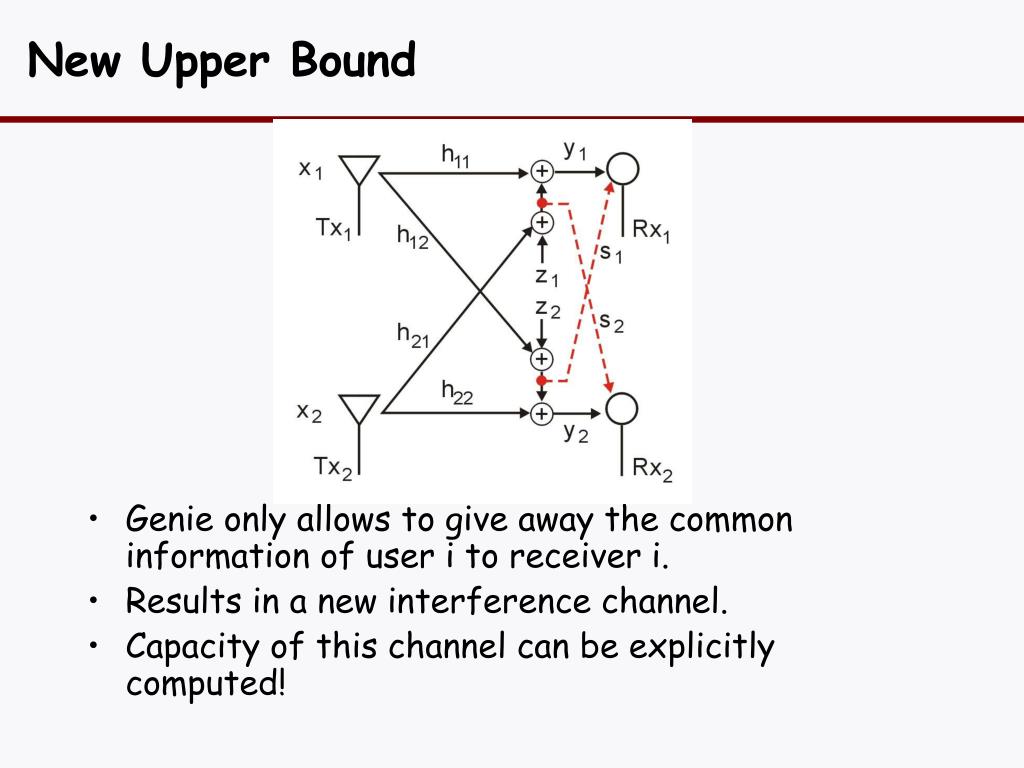

  17. New Upper Bound • Genie only allows to give away the common information of user i to receiver i. • Results in a new interference channel. • Capacity of this channel can be explicitly computed!

  18. New Upper Bound + Z-Channel Bound is Tight

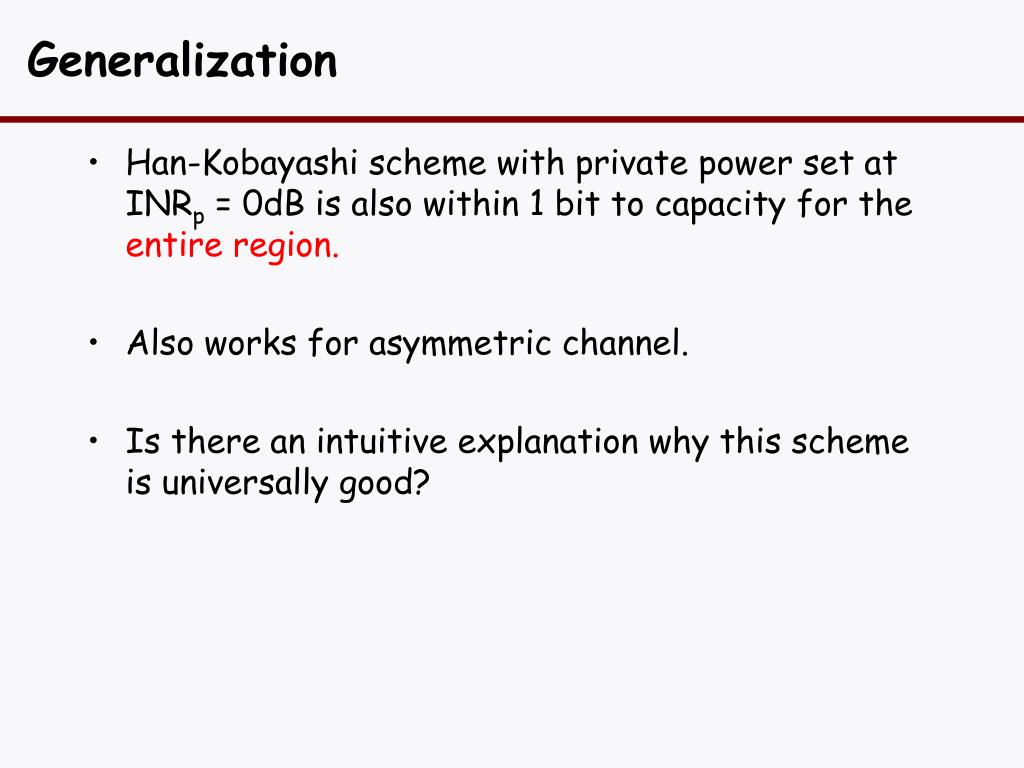

  19. Generalization • Han-Kobayashi scheme with private power set at INRp = 0dB is also within 1 bit to capacity for the entire region. • Also works for asymmetric channel. • Is there an intuitive explanation why this scheme is universally good?

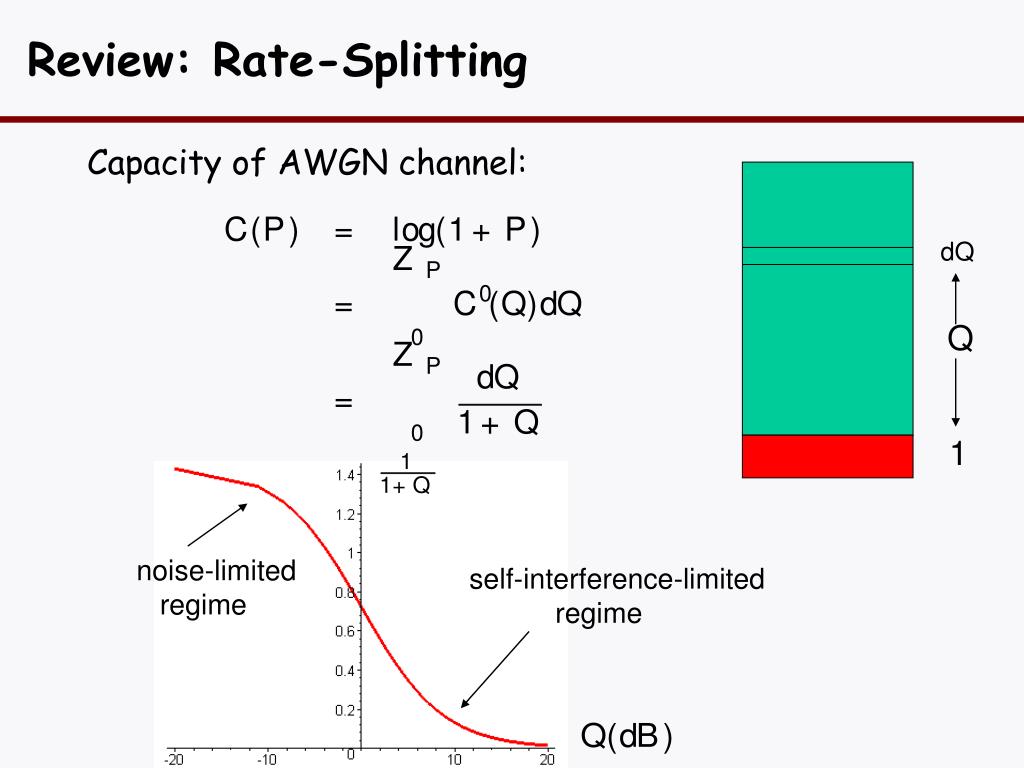

  20. Review: Rate-Splitting Capacity of AWGN channel: dQ Q 1 noise-limited regime self-interference-limited regime

  21. Rate-Splitting View Yields Natural Private-Common Split • Think of the transmitted signal from user 1 as a superposition of many layers. • Plot the marginal rate functions for both the direct link and cross link in terms of received power Q in direct link. SNR= 20dB INR = 10dB private common INRp =0dB Q(dB)

  22. Conclusion • We present a simple scheme that achieves within one bit of the interference channel capacity. • All existing upper bounds require one receiver to decode both messages and can be arbitrarily loose. • We derived a new upper bound that requires neither user to decode each other’s message. • Results have interesting parallels with El Gamal and Costa (1982) for deterministic interference channels.
