Distributed Processing and Large-Scale System Engineering for AGI

1. David Hart Axogenic Pty Ltd / Novamente LLC 10 slides - 20 minute talk Artificial General Intelligence Research Institute Workshop20 May 2006 Distributed Processing and Large-Scale System Engineering for AGI

2. “After exhaustive analysis Cray Inc. concluded that, although multi-core commodity processors will deliver some improvement, exploiting parallelism through a variety of processor technologies using scalar, vector, multithreading and hardware accelerators (e.g., FPGAs or ClearSpeed co-processors) creates the greatest opportunity for application acceleration.” — Christopher Lazou, HiPerCom “Distributed systems need radically different software than centralized systems do.” — Andrew S. Tanenbaum “Anybody who tells you that distributed algorithms are "simpler" is just so full of sh*t that it's not even funny.” — Linus Torvalds, 2006

3. Distributed Computing Benefits & Downsides • Low Hardware Cost • Low cost of entry, and low cost to grow organically • Great Flexibility • Heterogeneous infrastructures relatively easily integrated(i.e. instruction sets, network hardware, etc.) • Performance & Scaling Issues • Limited by interconnect and distributed algorithms (i.e. ability to keep pipelines full on scaled-up hardware; many tools and metrics exit to measure performance on parallel systems) • Increased Software Complexity • Programming for parallelism is more difficult, and creates more complicated code (e.g. debugging is a longer, more difficult process)

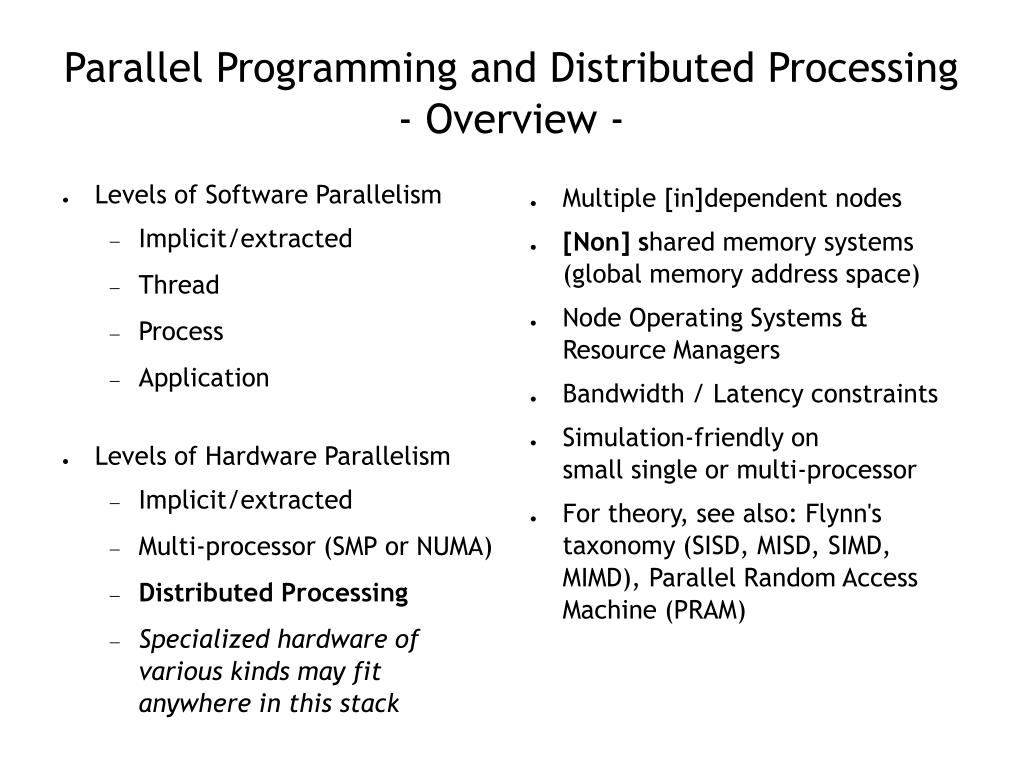

4. Multiple [in]dependent nodes [Non] shared memory systems(global memory address space) Node Operating Systems & Resource Managers Bandwidth / Latency constraints Simulation-friendly onsmall single or multi-processor For theory, see also: Flynn's taxonomy (SISD, MISD, SIMD, MIMD), Parallel Random Access Machine (PRAM) Parallel Programming and Distributed Processing- Overview - • Levels of Software Parallelism • Implicit/extracted • Thread • Process • Application • Levels of Hardware Parallelism • Implicit/extracted • Multi-processor (SMP or NUMA) • Distributed Processing • Specialized hardware of various kinds may fit anywhere in this stack

5. Tightness of Coupling(overlayed hardware & software examples) • Single - shared-memoryOS balances processes across processor/memory groups • PC (single or multiprocessor) • Server (multiprocessor) example: UNIX Server • Supercomputer (traditional) example: Cray X1E • Distributed - distributed-memory; may be geographically distributedOS or distributed control software balances processes across nodes • SSI Cluster (single-system-image with distributed-shared-memory)examples: SGI Altix, OpenSSI, openMosix • Supercomputer Class HPC (High Performance Cluster)examples: Deep Blue/Gene, ASC Purple, Earth-Simulator, Cray XD1 (OctigaBay) (many new designs moving to more tightly coupled SSI/DSM model) • Beowulf Class Cluster home-grown, from commodity PCs • Grid systems: Sun Grid, Folding@home, SETI@home, etc.

6. SSI Virtual large SMP machine 'fork and forget' Message Passing Interface (MPI) Portable and fast C, C++ and Fortran bindings Parallel Virtual Machine (PVM) C, C++ and Fortran bindings Grid Distributed Resource Management Application API (DRMAA) Practical Techniquesfor Parallel & Distributed Computing • Custom / Low Level (techniques used internally by SSI, MPI, PVM ,etc.) • Inter-process Communication (IPC) e.g. via sockets, shared memory or Remote Direct Memory Access (RDMA) • Client-server, e.g. via sockets

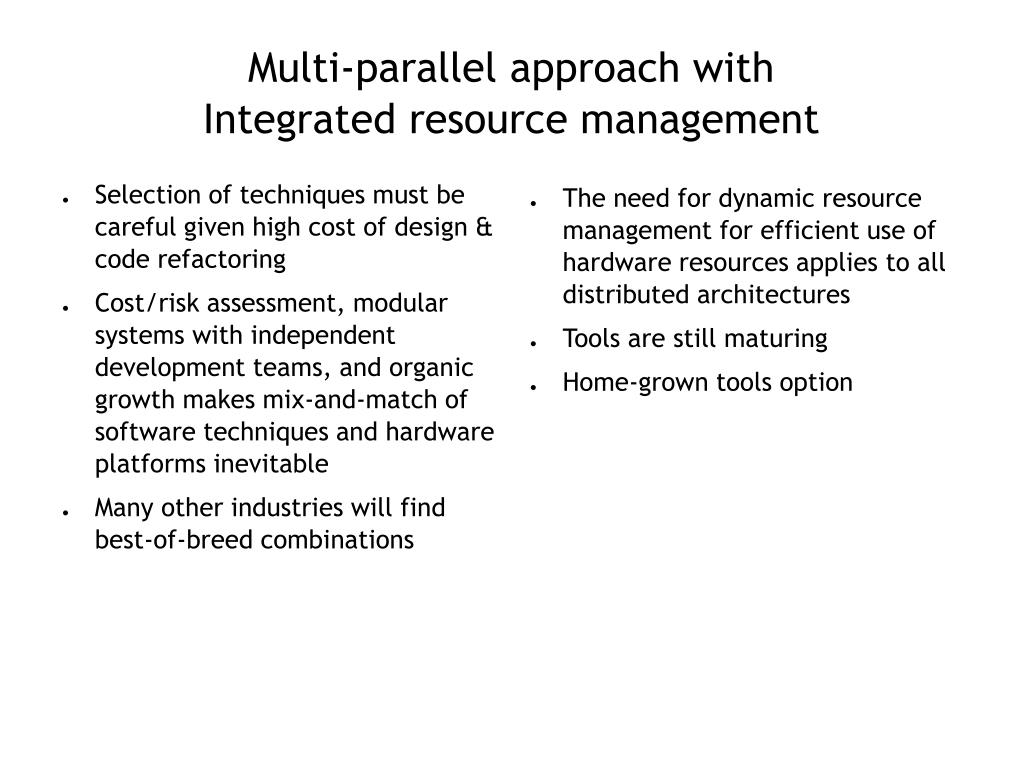

7. The need for dynamic resource management for efficient use of hardware resources applies to all distributed architectures Tools are still maturing Home-grown tools option Multi-parallel approach with Integrated resource management • Selection of techniques must be careful given high cost of design & code refactoring • Cost/risk assessment, modular systems with independent development teams, and organic growth makes mix-and-match of software techniques and hardware platforms inevitable • Many other industries will find best-of-breed combinations

8. Distributed computing applied to AGI(Novamente-specific select examples) • Primary “full cognitive unit” (monolithic AtomSpace) operations(execution in a single large shared-memory computer environment) • AttentionAllocation, interactive ShemaExecution, ongoing reasoning, goal/feeling evaluation, etc. • Distributed operations • Secondary “full cognitive units”(tightly coupled to primary unit) • Pre-processing sensory or language input, enacting output (e.g. 'motor control' or virtual/physical system control) • Pattern mining units utilizing copy/subset of primary AtomSpace(tightly coupled cluster or loosely coupled grid) • Map Encapsulation, Long-term importance, procedure mining • GP & Logic units: MOSES/BOA, batch-PLN (tightly and loosely coupled) • used by pattern mining and other units; co-processor use possible • Stand-alone units(loosely coupled) • Pre-processing text and other non-realtime input

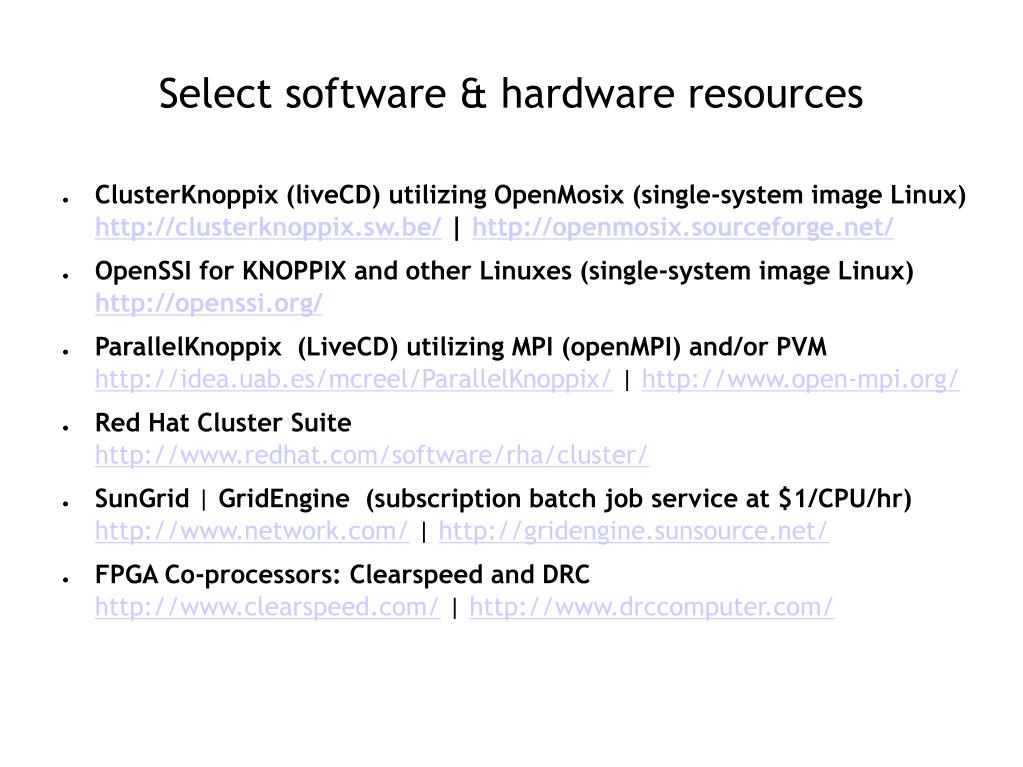

9. Select software & hardware resources • ClusterKnoppix (liveCD) utilizing OpenMosix (single-system image Linux)http://clusterknoppix.sw.be/ | http://openmosix.sourceforge.net/ • OpenSSI for KNOPPIX and other Linuxes (single-system image Linux)http://openssi.org/ • ParallelKnoppix (LiveCD) utilizing MPI (openMPI) and/or PVMhttp://idea.uab.es/mcreel/ParallelKnoppix/ | http://www.open-mpi.org/ • Red Hat Cluster Suitehttp://www.redhat.com/software/rha/cluster/ • SunGrid | GridEngine (subscription batch job service at $1/CPU/hr)http://www.network.com/ | http://gridengine.sunsource.net/ • FPGA Co-processors: Clearspeed and DRChttp://www.clearspeed.com/ | http://www.drccomputer.com/

10. HypergraphDB Borislav Iordanov Datatainer Google developing portable/interchangeable mini data centers for use at 300 Internet peering points globally The Future: Distributed Knowledge Representation & Storage • Centralized knowledge storage used in AGI systems of today • Distributed database technology immature compared with distributed computing • Distributed knowledge storage requires new architectures • RDBMS or something new?
