  1. Steel Honeycomb Vibration Isolation Tables SOT-P / R Series. High-Quality Flat Top Surface Fine surface flatness by high pressure and ultra find grinding. High Damping Efficiency Pneumatic damping techniques makes it reduces the amplification at the natural frequency and prevents the system from rocking in response to transient disturbances. Optical Top with Honeycomb structure Highly increased rigidity for maximum mechanical stability and damping improved prominently Hanwoori Science

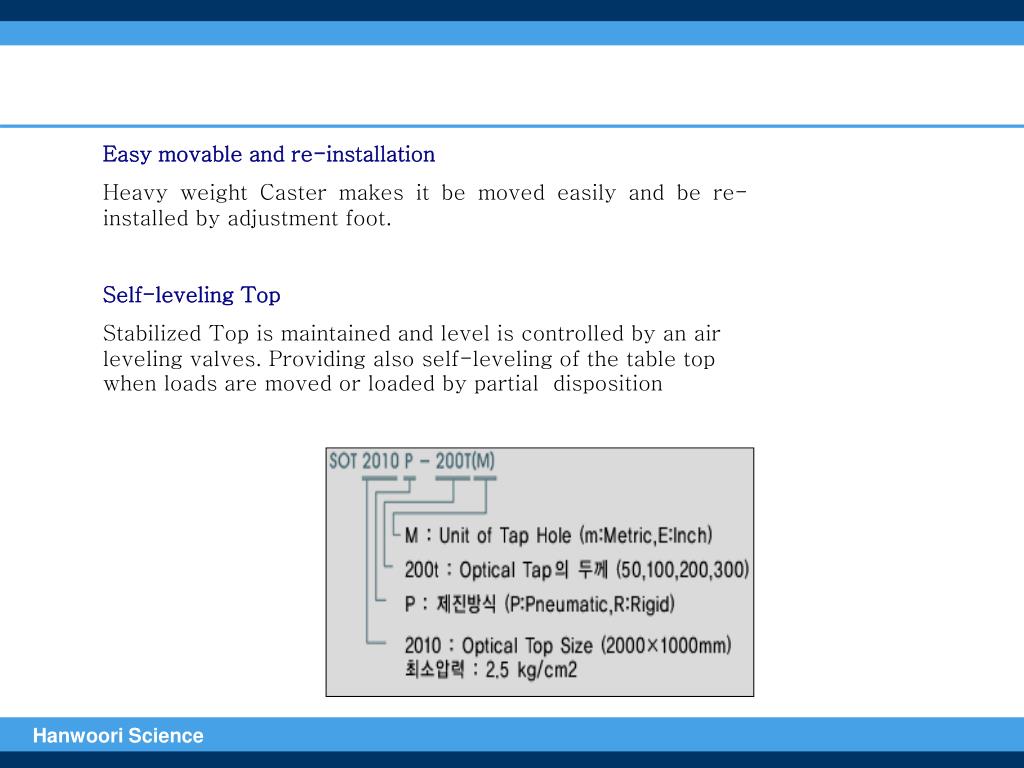

  2. Easy movable and re-installation Heavy weight Caster makes it be moved easily and be re-installed by adjustment foot. Self-leveling Top Stabilized Top is maintained and level is controlled by an air leveling valves. Providing also self-leveling of the table top when loads are moved or loaded by partial disposition Hanwoori Science

  3. General Specification High quality steel honeycomb board: keeping rigidity and maximum mechanical stability High performance Air Spring : providing excellent isolation in all directions by the specially designed vibration isolation mechanism . High performance damping: utilizing pneumatic damping technics, and reducing the amplification at the natural frequency also preventing stabilization from in response to transient disturbances. 3 Pieces Auto-leveling top: maintaining the constant height and quick stabilizing under patial disportion (±0.1mm reproducibility) Post system with Tie bars allowing the free standing stability . (Free standing Individual posts are available) Customized special design is available Hanwoori Science

  4. General Specifications of Honeycomb Structure: Stainless Steel Top Plate + Plastic Caps + Honeycomb Core + Steel Bottom PlateHoneycomb Core : Steel (0.25mmt, 3.2cm2 Cell Size)Top Plate : Over 4.0mmt SUS 430 or SUS 304Side Panel : Carbon SteelBottom Plate : 3.0~5.0mmt Carbon SteelTop Flatness : 0.15mm over 1200mm Hanwoori Science

  5. General Specifications Vertical Natural Frequency : 1.2~1.5HzHorizontal Natural Frequency : 2.0HzVertical Adjustable Range : ±5mmAir Pressure(recommand) : 5~6 bar (80 psi)Air Tube Diameter : 6mm Dia. standard Auto-Levelling Valve Hanwoori Science

  6. Optical Supports Rigid Support Pneumatic Isolation Support Hanwoori Science

  7. Model ¹× Size Model Size Model Size W(mm) D(mm) T(mm) W(mm) D(mm) T(mm) SOT 0606 P/R 600 600 50/100 SOT 1010 P/R 1000 1000 50/100 SOT 0906 P/R 900 600 50/100 SOT 1210 P/R 1200 1000 50/100 SOT 1206 P/R 1200 600 50/100 SOT 1510 P/R 1500 1000 50/100/200 SOT 1506 P/R 1500 600 50/100 SOT 1810 P/R 1800 1000 50/100/200/300 SOT 1806 P/R 1800 600 50/100 SOT 2010 P/R 2000 1000 50/100/200/300 SOT 2006 P/R 2000 600 50/100 SOT 2410 P/R 2400 1000 50/100/200/300 SOT 2406 P/R 2400 600 50/100 SOT 1212 P/R 1200 1200 50/100/200 SOT 0707 P/R 750 750 50/100 SOT 1512 P/R 1500 1200 50/100/200 SOT 0907 P/R 900 750 50/100 SOT 1812 P/R 1800 1200 50/100/200/300 SOT 1007 P/R 1000 750 50/100 SOT 2012 P/R 2000 1200 50/100/200/300 Hanwoori Science

  8. SOT 1207 P/R 1200 750 50/100 SOT 2412 P/R 2400 1200 50/100/200/300 SOT 1507 P/R 1500 750 50/100/200 SOT 3012 P/R 3000 1200 200/300 SOT 1807 P/R 1800 750 50/100/200/300 SOT 3612 P/R 3600 1200 200/300 SOT 2007 P/R 2000 750 50/100/200/300 SOT 3015 P/R 3000 1500 200/300 SOT 2407 P/R 2400 750 50/100/200/300 SOT 3615 P/R 3600 1500 200/300 SOT 0909 P/R 900 900 50/100 . . . . SOT 1209 P/R 1200 900 50/100 . . . . SOT 1509 P/R 1500 900 50/100/200 . . . . SOT 1809 P/R 1800 900 50/100/200/300 . . . . SOT 2009 P/R 2000 900 50/100/200/300 . . . . SOT 2409 P/R 2400 900 50/100/200/300 . . . . Customized size is available . Hanwoori Science

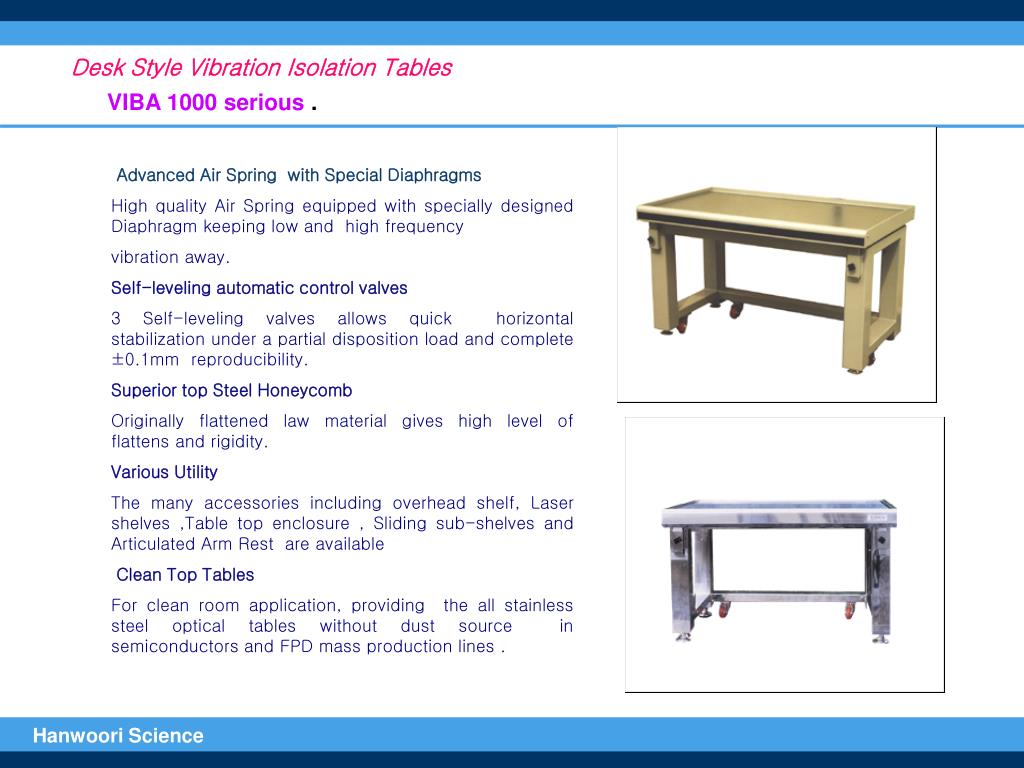

  9. Desk Style Vibration Isolation Tables VIBA 1000 serious . Advanced Air Spring with Special Diaphragms High quality Air Spring equipped with specially designed Diaphragm keeping low and high frequency vibration away. Self-leveling automatic control valves 3 Self-leveling valves allows quick horizontal stabilization under a partial disposition load and complete ±0.1mm reproducibility. Superior top Steel Honeycomb Originally flattened law material gives high level of flattens and rigidity. Various Utility The many accessories including overhead shelf, Laser shelves ,Table top enclosure , Sliding sub-shelves and Articulated Arm Rest are available Clean Top Tables For clean room application, providing the all stainless steel optical tables without dust source in semiconductors and FPD mass production lines . Hanwoori Science

  10. General Specification Top Plates Natural Frequency VerticalHorizontal VIBA 1000C 1.2~1.5Hz1.5~1.7Hz VIBA 1000L Damping VIBA 1000H Pneumatic Damping Stainless Steel LaminateAll Stainless Steel BodyFor Clean Room(SUS 304 or SUS 430) Steel Honey TopNo Tap Hole Air Damping by Orifice Steel Honey Comb Top(Sealed Cap)M 6 -- 25 mm or1/4 – 1” Tap Hole 3 Automatic Leveling Valves Leveling Repeatability +/- 0.1mm Load Capacity 250Kg(500Kg Option) Self Weight 170~280Kg Air Supply 1.5~5Kg/cm2 Compressed Air or Nitrogen Gas Desk Style Vibration Isolation Tables VIBA 1000 serious. Hanwoori Science

  11. Type and Size Model Size(mm) Model Size(mm) VIBA 0606 600X600 VIBA 0906 900X600 VIBA 0607 600X750 VIBA 0907 900X750 VIBA 0609 600X900 VIBA 0909 900X900 VIBA 0612 600X1200 VIBA 0912 900X1200 VIBA 0706 750X600 VIBA 1206 1200X600 VIBA 0707 750X750 VIBA 1207 1200X750 VIBA 0709 750X900 VIBA 1209 200X900 VIBA 0712 750X1200 VIBA 1212 1200X1200 VIBA1010 1000X1000 VIVA1536 1500X3600 Other sizes are available upon request Hanwoori Science

  12. How to select the VIBA Standard Model VIBA 1209 L (750H) Height L : For Lab ; C : For Clean Room ; H : For Patch Clamping Size of Top ( 1200 x 900 mm) Customized Model Customized Model VIBA 1000H ( 1050 x 930 x 780 mm) W x D x H ( Size of Top) L : For Lab ; C : For Clean Room ; H : For Patch Clamping Size of Top : ( 1050 X 930 X 780) Hanwoori Science

  13. Desk Style Vibration Isolation Workstation DOW Serious ● Magnetic resonance spectroscopy ● micro Photoluminescence ● micro Raman scattering ● Spectroscopic Ellipsometer● Scanning Electron microscope● Transmission electron microscope● Thickness /Roughness Tester● Coordinate measuring machine ● Holography ● Laser based optics system● Patch Clamping● Cell lnjection system● Mass spectrometer system ● Mass spectrometer system● Precision Optical experiment ● Wafer probe / Wafer stepper ● Precision Optical experiment • Faraday Cages type was designed to remove troublesome 60Hz(or 50Hz) electromagnetic interference source. • Copper screen panels and high dense copper mesh is used for high sensitive application. Hanwoori Science

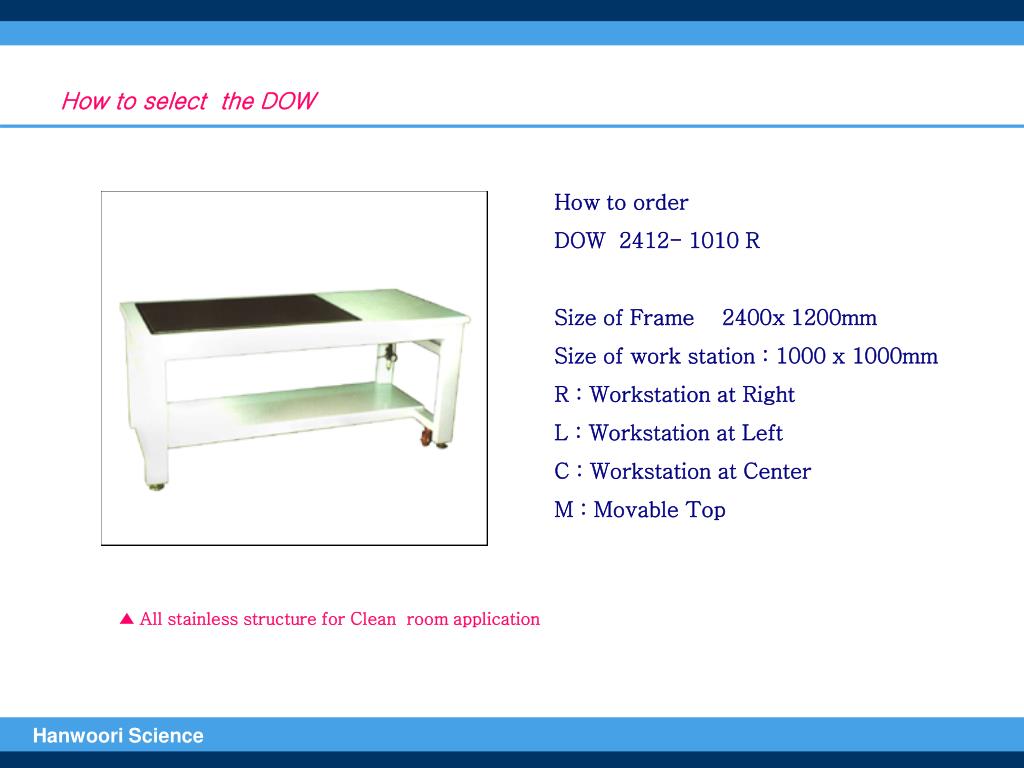

  14. How to select the DOW How to order DOW 2412- 1010 R Size of Frame 2400x 1200mm Size of work station : 1000 x 1000mm R : Workstation at Right L : Workstation at Left C : Workstation at Center M : Movable Top ▲ All stainless structure for Clean room application Hanwoori Science

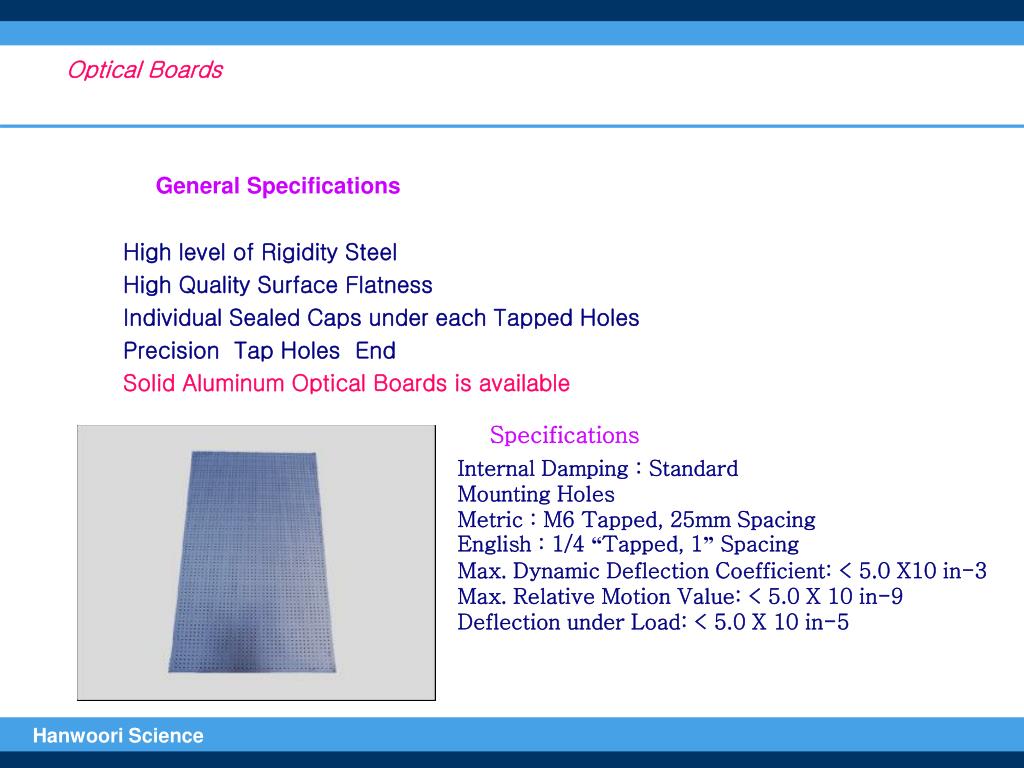

  15. Optical Boards General Specifications High level of Rigidity Steel High Quality Surface Flatness Individual Sealed Caps under each Tapped Holes Precision Tap Holes End Solid Aluminum Optical Boards is available Specifications Internal Damping : StandardMounting HolesMetric : M6 Tapped, 25mm SpacingEnglish : 1/4 “Tapped, 1” SpacingMax. Dynamic Deflection Coefficient: < 5.0 X10 in-3Max. Relative Motion Value: < 5.0 X 10 in-9Deflection under Load: < 5.0 X 10 in-5 Hanwoori Science

  16. Model Table Size(W) Outlet (110/200) No of Shelf(AL) SOT 04 1200mm 4ea 1ea SOT 05 1500mm 5ea 2ea SOT 06 1800mm 6ea 2ea SOT 08 2400mm 8ea 3ea SOT 10 3000mm 10ea 4ea SOT 12 3600mm 12ea 4ea Overhead Shelves Ordering information Hanwoori Science
