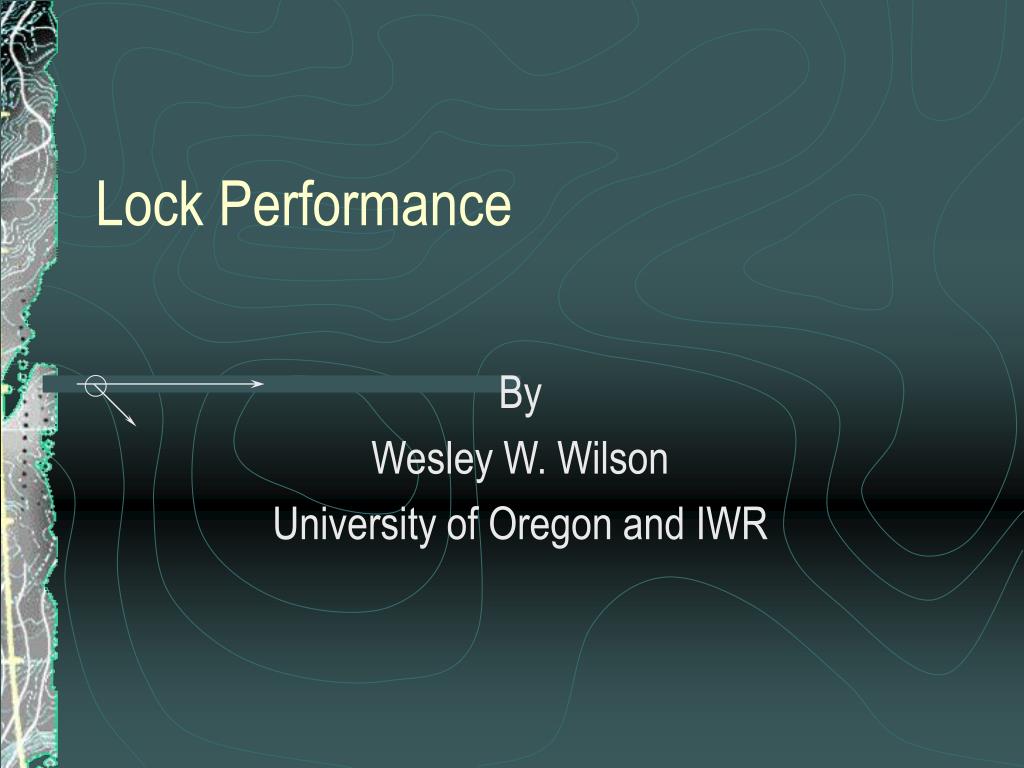

Lock Performance. By Wesley W. Wilson University of Oregon and IWR. Purpose of Study. The inland waterway consists of the river and a series of locks and dams that allow the river to be navigated. The capacity and use of the waterway depends on lock performance.

fausto
Télécharger la présentation

Lock Performance

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Lock Performance By Wesley W. Wilson University of Oregon and IWR

  2. Purpose of Study • The inland waterway consists of the river and a series of locks and dams that allow the river to be navigated. • The capacity and use of the waterway depends on lock performance. • There is a wealth of information on locks and lock performance which can be used to estimate the effects of particular lock characteristics on performance. Purpose To develop and estimate a model of lock performance as a function of lock and “flotilla” characteristics.

  3. Locks • Locks: Necessary to make the river navigatable. Lock Pool 1 River Pool 2 River

  4. Flotillas and Lockages • A flotilla consists of a power vessel and a set of barges which have different configurations and dimensions. • Locks have a fixed set of dimensions. • Single Lockage: Flotilla can pass through in one “cut”. • Double Lockage: Flotilla must take two cuts to pass through the lock.

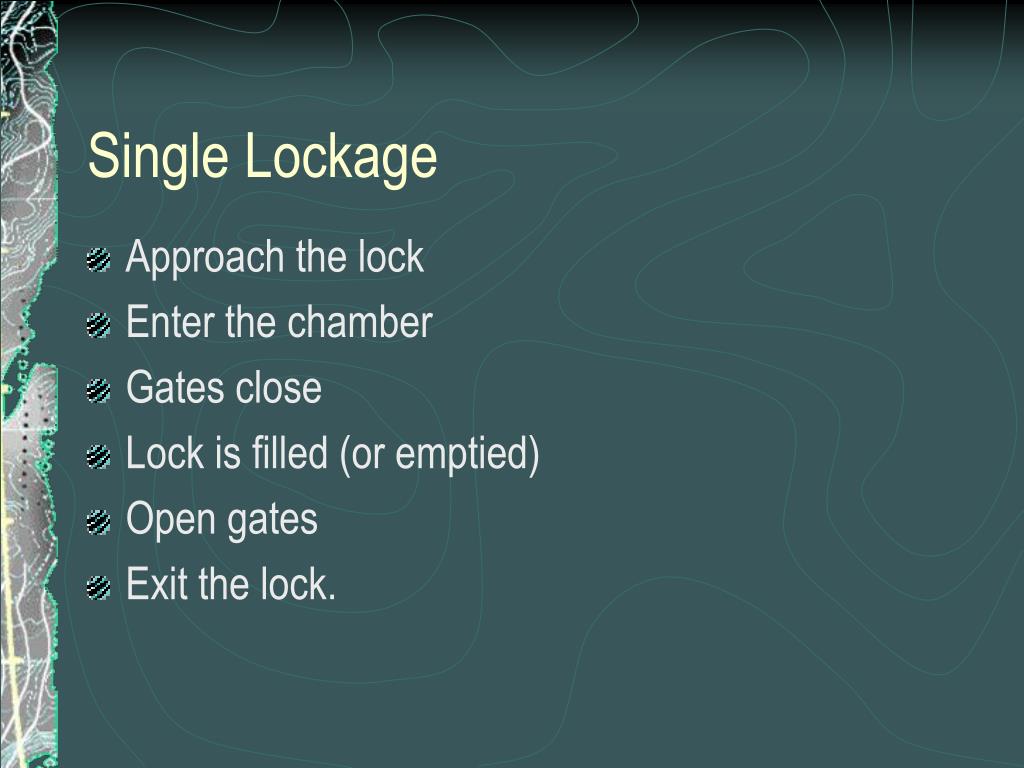

  5. Single Lockage • Approach the lock • Enter the chamber • Gates close • Lock is filled (or emptied) • Open gates • Exit the lock.

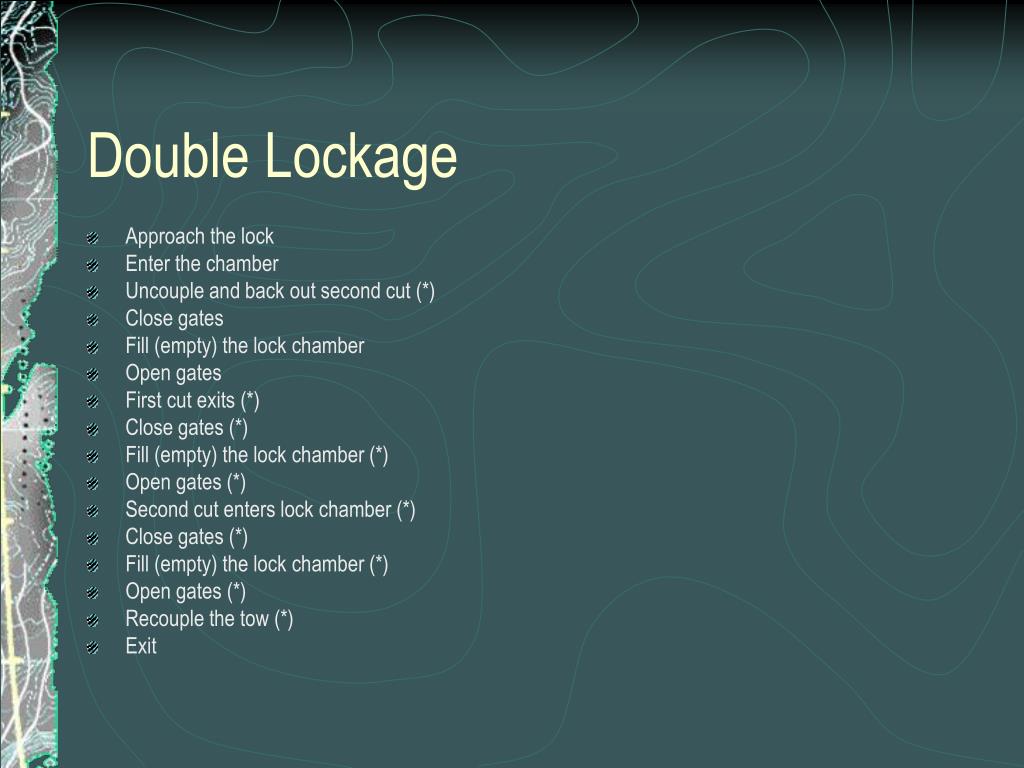

  6. Double Lockage • Approach the lock • Enter the chamber • Uncouple and back out second cut (*) • Close gates • Fill (empty) the lock chamber • Open gates • First cut exits (*) • Close gates (*) • Fill (empty) the lock chamber (*) • Open gates (*) • Second cut enters lock chamber (*) • Close gates (*) • Fill (empty) the lock chamber (*) • Open gates (*) • Recouple the tow (*) • Exit

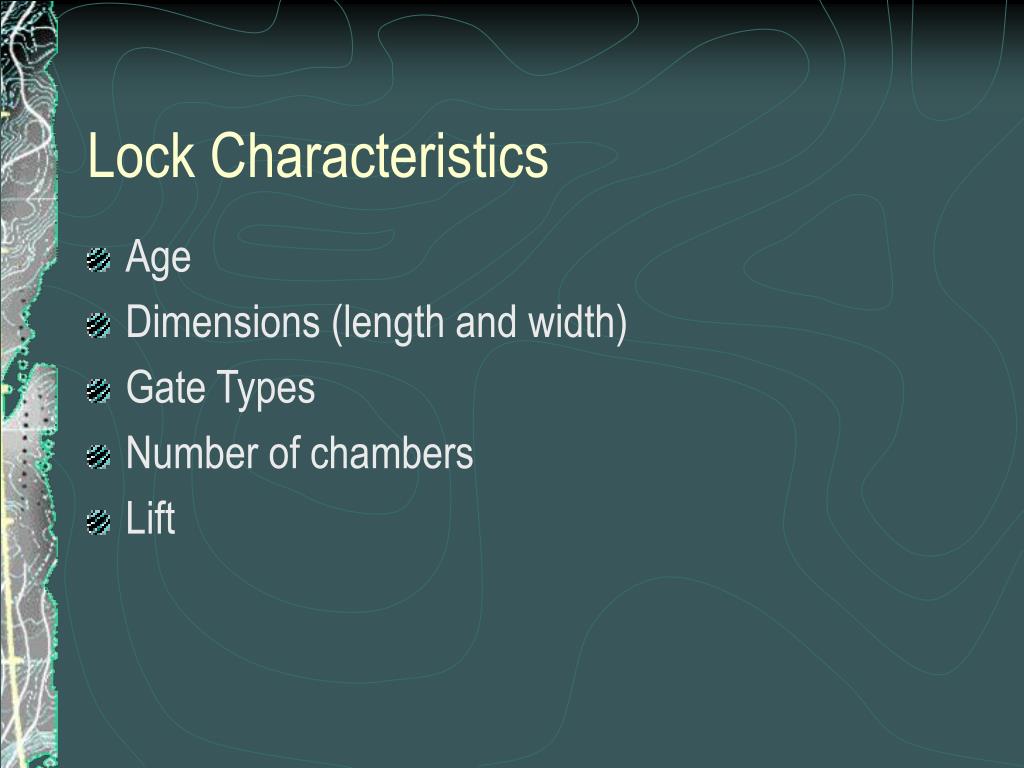

  7. Lock Characteristics • Age • Dimensions (length and width) • Gate Types • Number of chambers • Lift

  8. Upper Miss LocksAge • 29 Locks • Year opened ranges from 1922 – 1990

  9. Lock Length

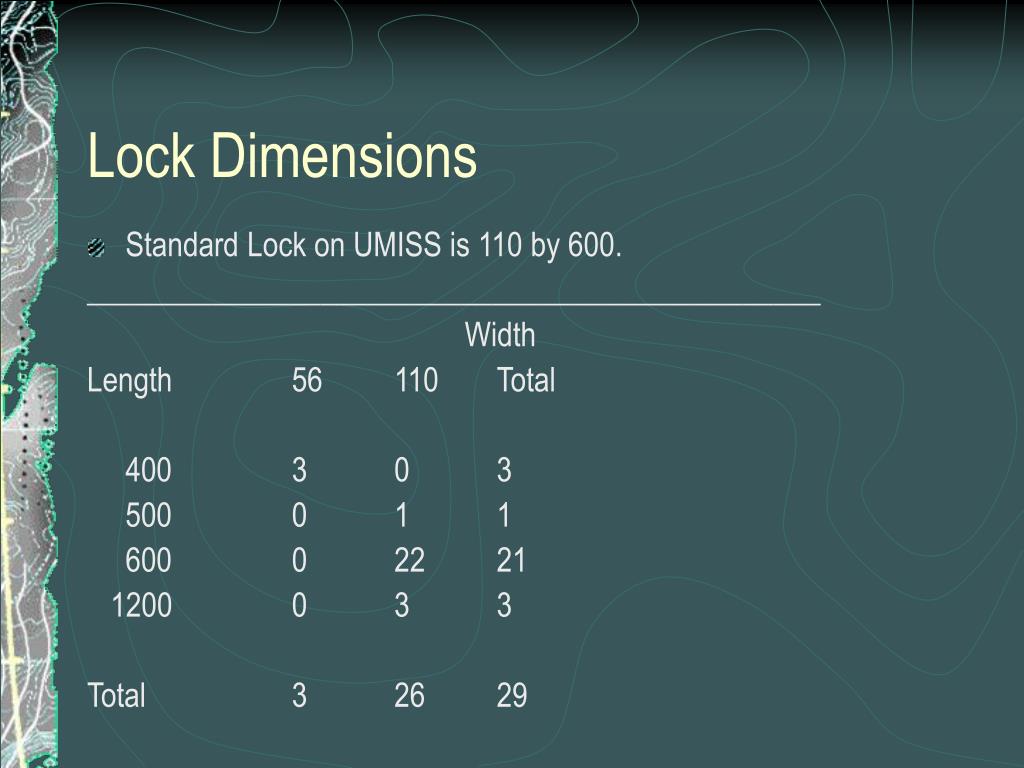

  10. Lock Dimensions • Standard Lock on UMISS is 110 by 600. _______________________________________________ Width Length 56 110 Total 400 3 0 3 500 0 1 1 600 0 22 21 1200 0 3 3 Total 3 26 29

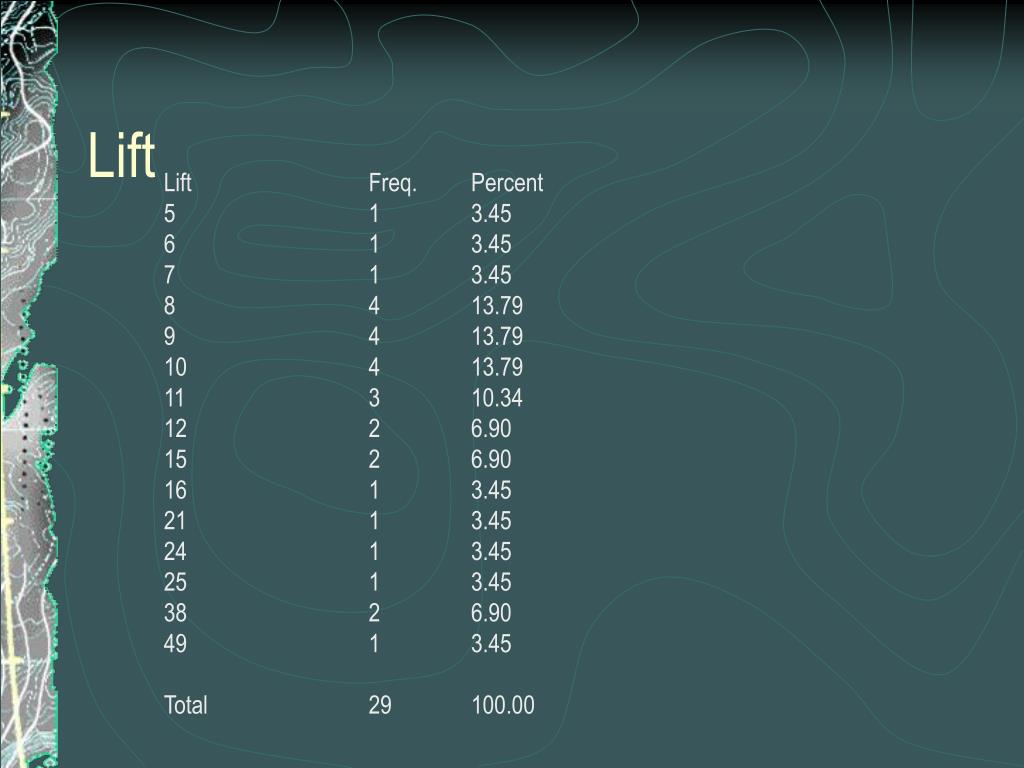

  11. Lift Lift Freq. Percent 5 1 3.45 6 1 3.45 7 1 3.45 8 4 13.79 9 4 13.79 10 4 13.79 11 3 10.34 12 2 6.90 15 2 6.90 16 1 3.45 21 1 3.45 24 1 3.45 25 1 3.45 38 2 6.90 49 1 3.45 Total 29 100.00

  12. Flotilla Characteristics • Flotilla is a tow-barge configuration that passes through a lock. • In 2000, there were about 69,989 flotillas on the UMiss that were used in the analysis.

  13. Flotilla Data • Over 69,000 observations (flotillas are tow/barge passages through a lock) • Characteristics: Number of barges per flotilla:

  14. Flotilla Data • Flotilla Lengths

  15. Flotilla Width

  16. Flotilla Draft

  17. Characteristics • Number of cuts 1-33,945 (48.5%) 2-36,043 (51.5%) • Up and Down River Cuts • 35,319 Down River • 34,670 Up River • Day versus Night • 38,481 (55%) Day

  18. Cuts and Month

  19. Lockage Types TYPE Number Percent C - Consecutive 35,560 51 J - Jackknife 9 0 K - Knockout 6,231 9 S - Straight 26,894 38 T - Barge Transfer 68 0 V - Set over 1,224 2 Z - Other 3 0

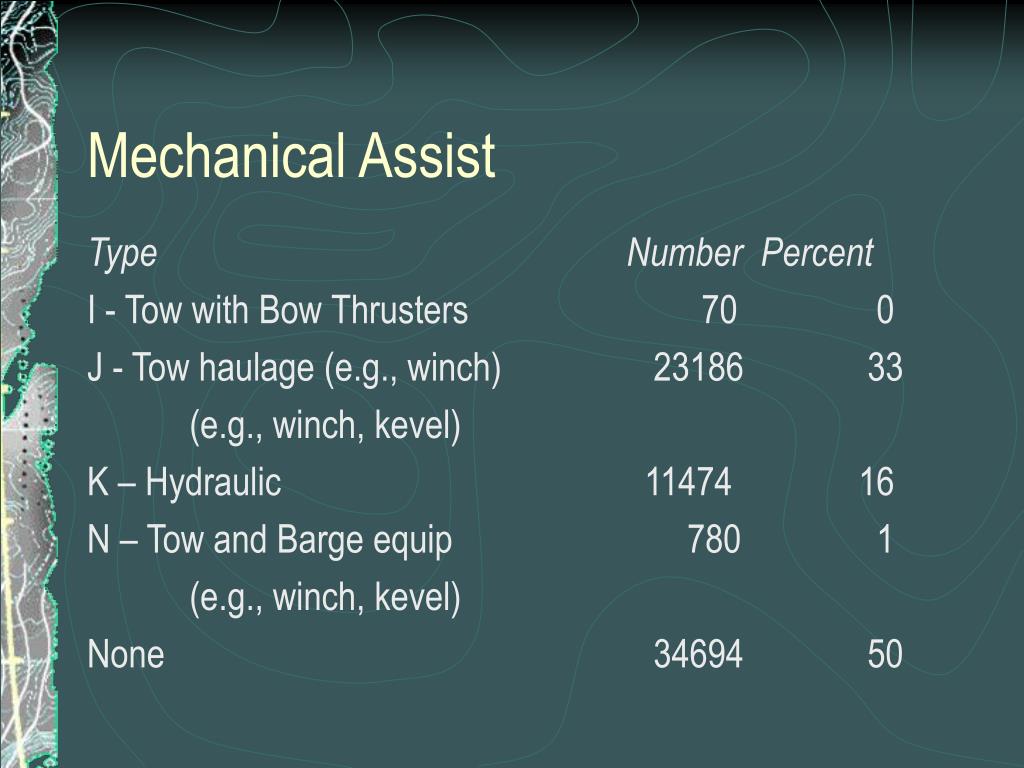

  20. Mechanical Assist Type Number Percent I - Tow with Bow Thrusters 70 0 J - Tow haulage (e.g., winch) 23186 33 (e.g., winch, kevel) K – Hydraulic 11474 16 N – Tow and Barge equip 780 1 (e.g., winch, kevel) None 34694 50

  21. Processing Time(End of lockage-Start of Lockage-Stoppage) • Mean 77 minutes • 50% 79 minutes

  22. Lock Length and Processing Time

  23. Lock Times-Size and Cuts Lock Minutes All Single Multiple 400-56 29 29 . 500-110 43 43 108 600-110 92 39 110 1200-110 49 48 . All 78 42 110

  24. Econometric Model Time = f(Lock, Flotilla, Vessel, Passage, Time of day) Lock: Dummies for width and length Lift Age Flotilla: Length, width, number of barges Vessel: Horse power and dummy for tugboat or not. Passage: Dummies for single or double cuts Dummy for “first in queue” or not Time of day: Dummy for night or day. Unobserved factors: River conditions, lockmaster rules.

  25. Results-Lock Types (R2=83) Lock (600 by 110 base) 1200 by 110 -.2779012 .0061766 -44.99 400 by 56 -.4273209 .0085801 -49.80 500 by 110 -.0983614 .0077284 -12.73 log_lift .1643288 .004017 40.91 log_age .0649217 .0028885 22.48

  26. Flotilla Effects log-length .6141746 .0079148 77.60 log_width .0086608 .0085224 1.02 log_area/NUMBAR -.0982405 .0078662 -12.49

  27. Vessel Effects v_hp .0311656 .0069811 4.46 v_length -.0580582 .008854 -6.56 v_brea~h -.0324201 .0145776 -2.22 v_age .0383967 .003187 12.05 v_draft .2432245 .0070532 34.48 tugboat -.0063391 .002503 -2.53

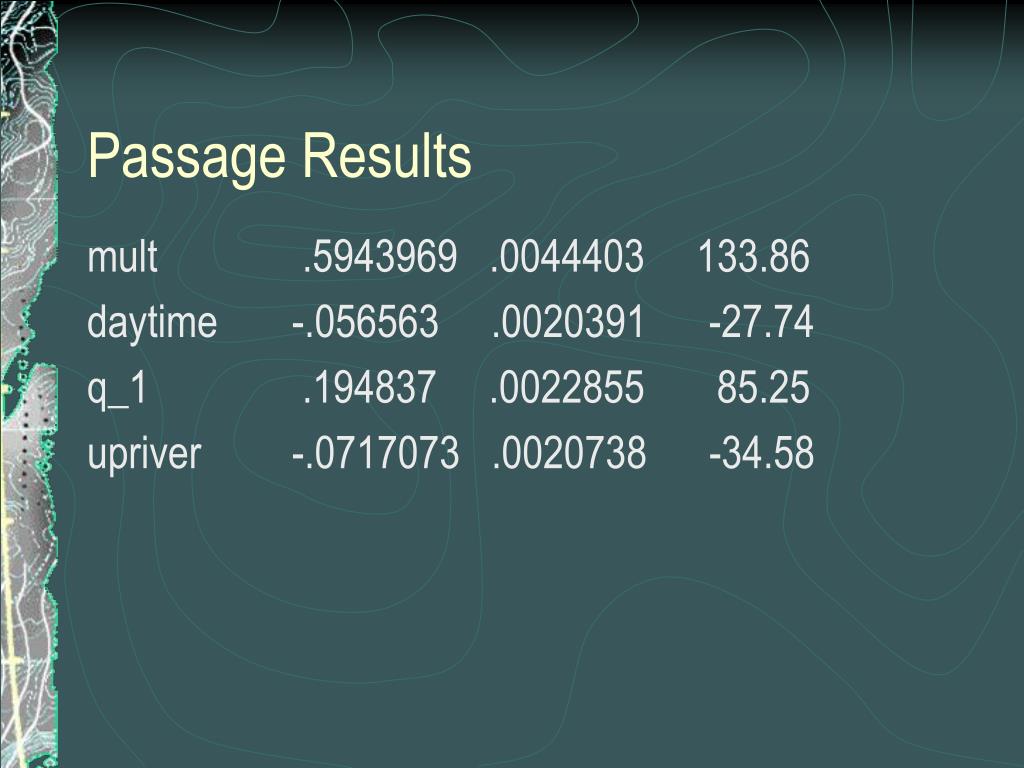

  28. Passage Results mult .5943969 .0044403 133.86 daytime -.056563 .0020391 -27.74 q_1 .194837 .0022855 85.25 upriver -.0717073 .0020738 -34.58
