FFMP Advanced: Eastern Region Flash Flood Conference, May 2010. FFMPA Flash Flood Monitoring and Prediction - Advanced. A Review for Experienced Users Eastern Region Flash Flood Conference Tom Filiaggi May 2010. http://www.nws.noaa.gov/mdl/ffmp.

fawzi
Télécharger la présentation

FFMPA Flash Flood Monitoring and Prediction - Advanced

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. FFMP Advanced: Eastern Region Flash Flood Conference, May 2010 FFMPAFlash Flood Monitoring and Prediction - Advanced A Review for Experienced Users Eastern Region Flash Flood ConferenceTom FiliaggiMay 2010 http://www.nws.noaa.gov/mdl/ffmp

  2. FFMP Advanced: Eastern Region Flash Flood Conference, May 2010 Topics to be covered . . . • Very Basic Overview • Highlights/Strengths • Other things you may not know about FFMP • Possible Future Enhancements (AWIPS2+) • Responsible Individuals http://www.nws.noaa.gov/mdl/ffmp

  3. FFMP Advanced: Eastern Region Flash Flood Conference, May 2010 FFMPAVery Basic Overview • Ingests precipitation data and guidance data in various forms (server-side): • Precip: QPE, QPF • Guidance: Flash Flood, Debris Flow, ?? • Gridded: Radar polar, lat/lon, HRAP (& derivative) • Transforms the data into the ‘small hydrologic basin’ world, based on small basin GIS shapefiles (server-side) • Displays and monitors according to what configuration the user has defined. This allows for: • Comparison of accumulation to guidance • Customizable time frame • Auto-aggregation http://www.nws.noaa.gov/mdl/ffmp

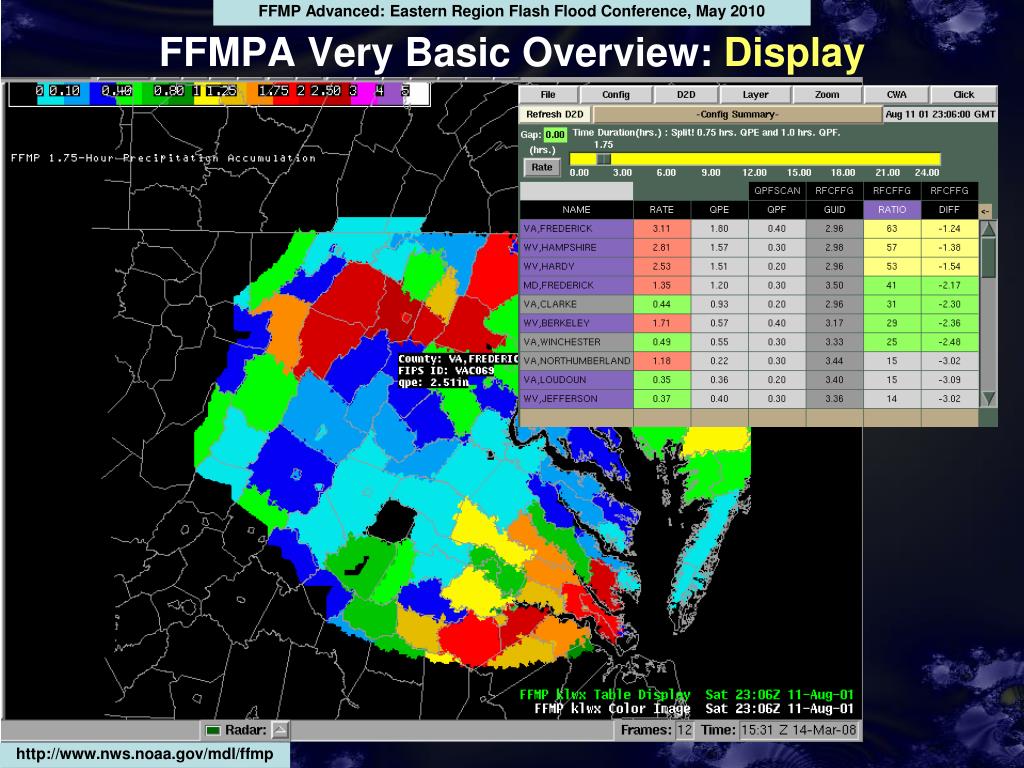

  4. FFMP Advanced: Eastern Region Flash Flood Conference, May 2010 FFMPA Very Basic Overview: Display http://www.nws.noaa.gov/mdl/ffmp

  5. FFMP Advanced: Eastern Region Flash Flood Conference, May 2010 FFMPAHighlights/Strengths • Variable, User-configured Data Source usage • QPE, QPF, Guidance (Flash Flood, Debris Flow, ++??) • Grids: Radar polar, lat/lon (& derivative), HRAP (& derivative) • Individual radars as well as full grid, multi-sourced analyses: HPE/HPN, Q2/NMQ • On-the-fly Service Backup implementation • Independent from D2D or workstation Service backup status • Drill down to single basin trend detail, when needed • Virtual Gage Basins (VGB): QPE Source QC http://www.nws.noaa.gov/mdl/ffmp

  6. FFMP Advanced: Eastern Region Flash Flood Conference, May 2010 Highlights/Strengths: Split Window • Combine QPE with QPF, then compare to guidance • Brings much more of a predictive quality to FFMP http://www.nws.noaa.gov/mdl/ffmp

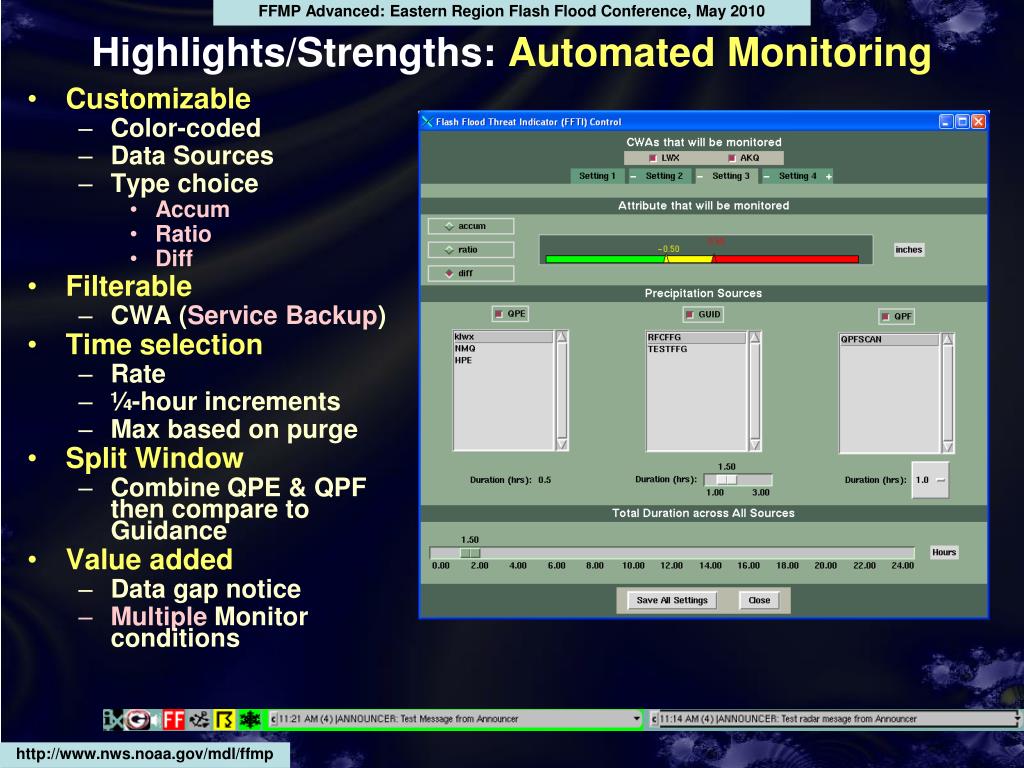

  7. Customizable Color-coded Data Sources Type choice Accum Ratio Diff Filterable CWA (Service Backup) Time selection Rate ¼-hour increments Max based on purge Split Window Combine QPE & QPF then compare to Guidance Value added Data gap notice Multiple Monitor conditions FFMP Advanced: Eastern Region Flash Flood Conference, May 2010 Highlights/Strengths: Automated Monitoring http://www.nws.noaa.gov/mdl/ffmp

  8. Applies user-defined FFG Strict override Modification(+-) For user-defined ‘Guidance’ data sources For a user-defined period of time For a user-defined area County / Basin / Entire domain That is retrievable Great for: Urban Fire scars FFMP Advanced: Eastern Region Flash Flood Conference, May 2010 Highlights/Strengths: Forced Guidance http://www.nws.noaa.gov/mdl/ffmp

  9. FFMP Advanced: Eastern Region Flash Flood Conference, May 2010 Highlights/Strengths: RFC FFG Update Method • Elements of Transition method: • Apply a lag, to eliminate double-counting of precipitation in FFMPA analyses. This lag will be equal to the Time Frame of the Guidance. (ie: 3-hr Guidance = 3-hr lag). • Apply an hourly interpolation scheme that manages precipitation in a way that greatly enhances the Guidance values for the transition period and avoids increased under-warn situations that could exist with a lag-only approach. http://www.nws.noaa.gov/mdl/ffmp

  10. FFMP Advanced: Eastern Region Flash Flood Conference, May 2010 FFMPAHighlights/Strengths • Auto-aggregation • Phenomenon scale variability • Areal • Temporal • flash flood vs. river flood http://www.nws.noaa.gov/mdl/ffmp

  11. FFMP Advanced: Eastern Region Flash Flood Conference, May 2010 Highlights/Strengths: Auto-Aggregation http://www.nws.noaa.gov/mdl/ffmp

  12. FFMP Advanced: Eastern Region Flash Flood Conference, May 2010 Highlights/Strengths: Auto-Aggregation http://www.nws.noaa.gov/mdl/ffmp

  13. FFMP Advanced: Eastern Region Flash Flood Conference, May 2010 Highlights/Strengths: Auto-Aggregation http://www.nws.noaa.gov/mdl/ffmp

  14. FFMP Advanced: Eastern Region Flash Flood Conference, May 2010 Highlights/Strengths: Auto-Aggregation http://www.nws.noaa.gov/mdl/ffmp

  15. FFMP Advanced: Eastern Region Flash Flood Conference, May 2010 Highlights/Strengths: Auto-Aggregation http://www.nws.noaa.gov/mdl/ffmp

  16. FFMP Advanced: Eastern Region Flash Flood Conference, May 2010 Highlights/Strengths: Auto-Aggregation http://www.nws.noaa.gov/mdl/ffmp

  17. Specific Time Frame Trends Can still view All-times QPF interpretation (ie: Split Window) may be easier for specific time frames FFMP Advanced: Eastern Region Flash Flood Conference, May 2010 Things you may not know about FFMPA http://www.nws.noaa.gov/mdl/ffmp

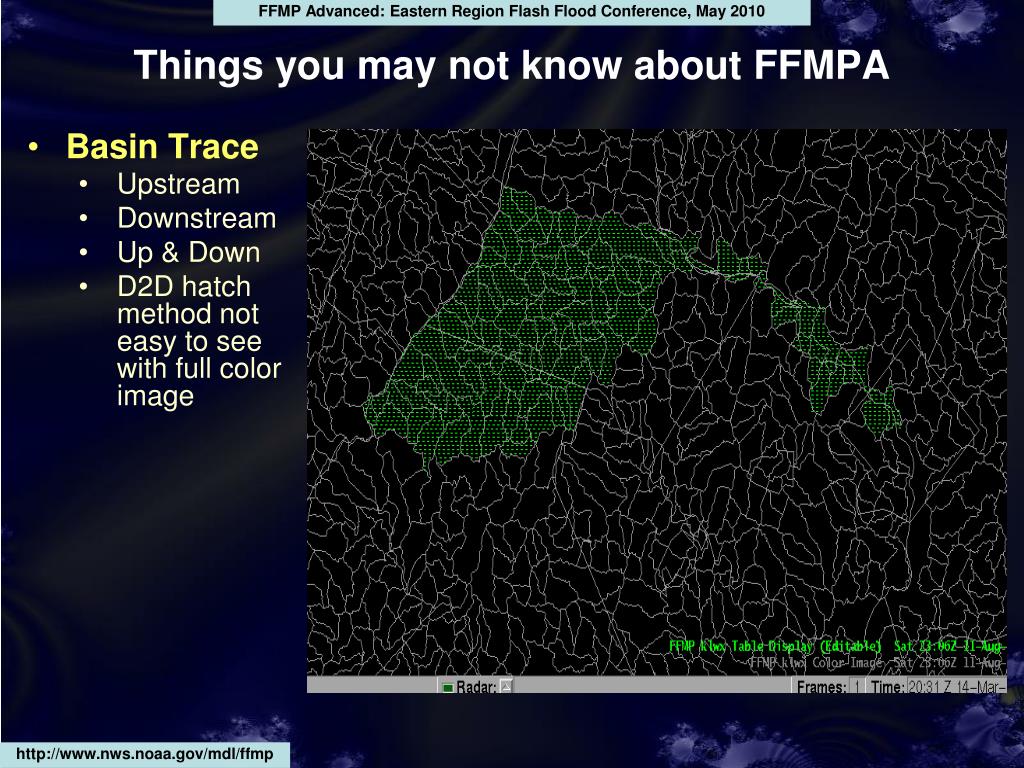

  18. FFMP Advanced: Eastern Region Flash Flood Conference, May 2010 Things you may not know about FFMPA • Basin Trace • Upstream • Downstream • Up & Down • D2D hatch method not easy to see with full color image http://www.nws.noaa.gov/mdl/ffmp

  19. Ingest Monitor Notes health of data ingest, of interest to FFMPA User-defined determination of “too old” HTML Interface Special rules for RADAR DHR FFMP Advanced: Eastern Region Flash Flood Conference, May 2010 Things you may not know about FFMPA http://www.nws.noaa.gov/mdl/ffmp

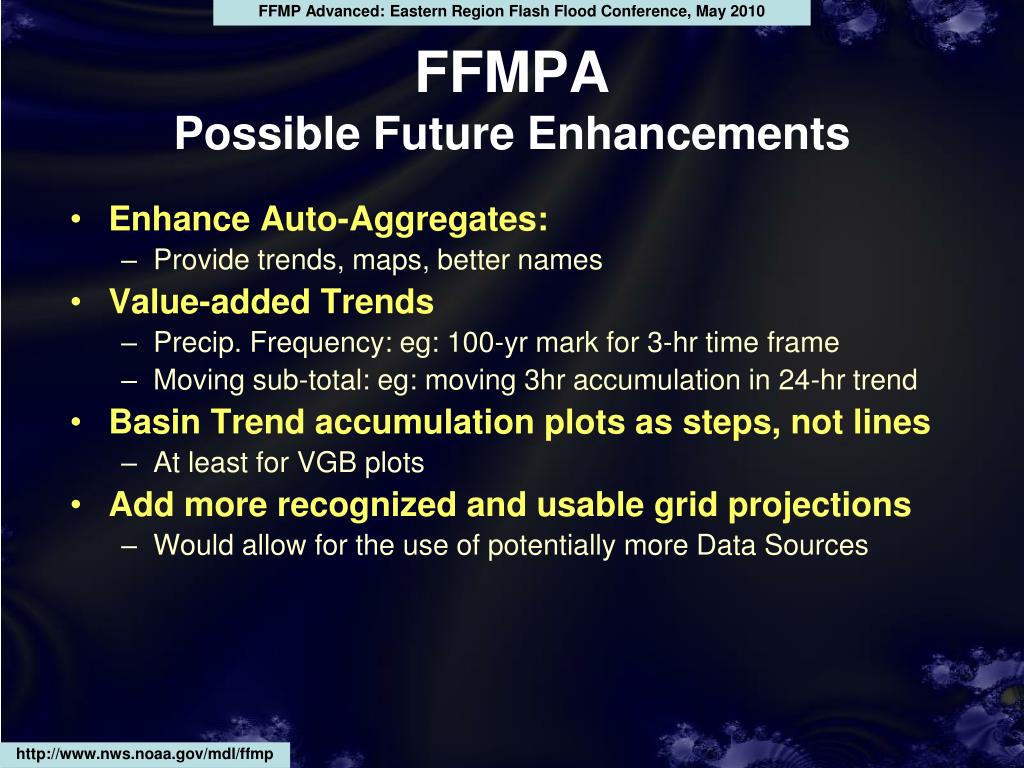

  20. FFMP Advanced: Eastern Region Flash Flood Conference, May 2010 FFMPAPossible Future Enhancements • Enhance Auto-Aggregates: • Provide trends, maps, better names • Value-added Trends • Precip. Frequency: eg: 100-yr mark for 3-hr time frame • Moving sub-total: eg: moving 3hr accumulation in 24-hr trend • Basin Trend accumulation plots as steps, not lines • At least for VGB plots • Add more recognized and usable grid projections • Would allow for the use of potentially more Data Sources http://www.nws.noaa.gov/mdl/ffmp

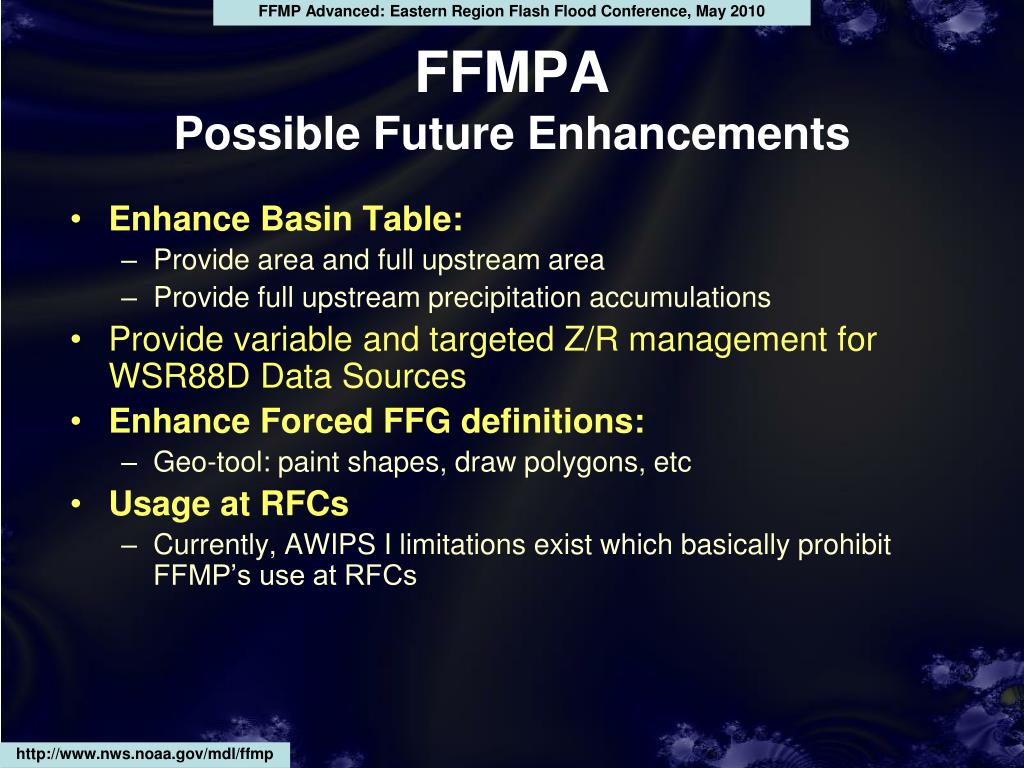

  21. FFMP Advanced: Eastern Region Flash Flood Conference, May 2010 FFMPAPossible Future Enhancements • Enhance Basin Table: • Provide area and full upstream area • Provide full upstream precipitation accumulations • Provide variable and targeted Z/R management for WSR88D Data Sources • Enhance Forced FFG definitions: • Geo-tool: paint shapes, draw polygons, etc • Usage at RFCs • Currently, AWIPS I limitations exist which basically prohibit FFMP’s use at RFCs http://www.nws.noaa.gov/mdl/ffmp

  22. FFMP Advanced: Eastern Region Flash Flood Conference, May 2010 FFMPA Responsible Individuals • Main Developers • Tom Filiaggi - MDL: Lead Tom.Filiaggi@noaa.gov • Lingyan Xin - MDL Lingyan.Xin@noaa.gov http://www.nws.noaa.gov/mdl/ffmp
