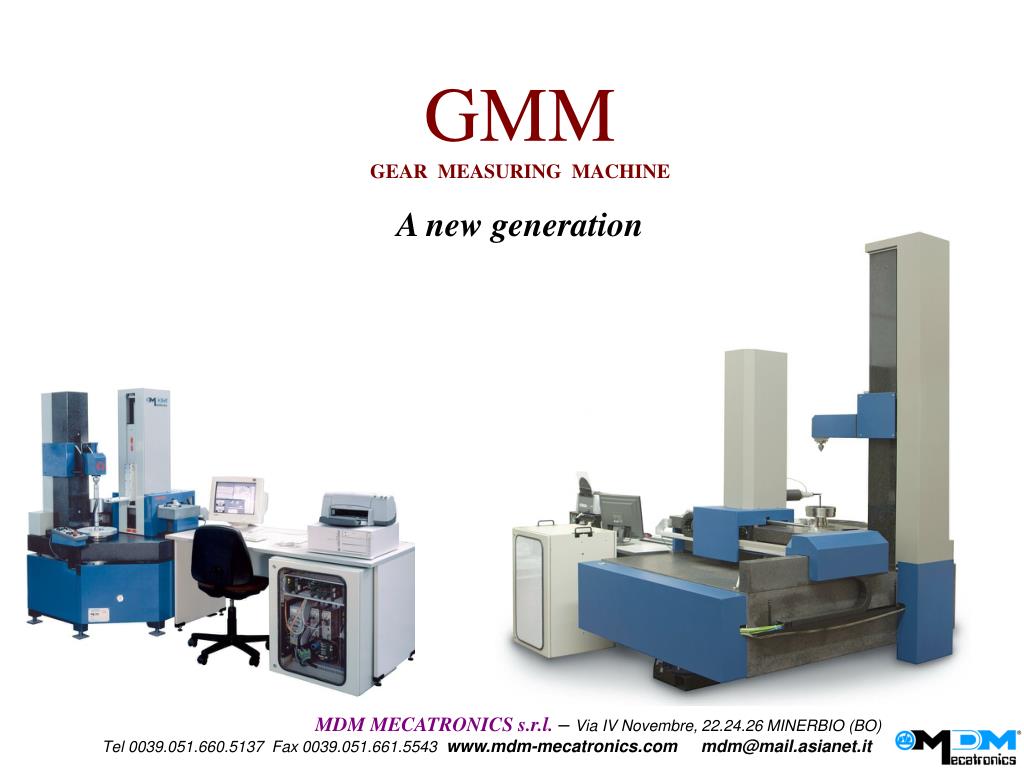

  1. GMM GEAR MEASURING MACHINE A new generation MDM MECATRONICS s.r.l.– Via IV Novembre, 22.24.26 MINERBIO (BO) Tel 0039.051.660.5137 Fax 0039.051.661.5543www.mdm-mecatronics.commdm@mail.asianet.it

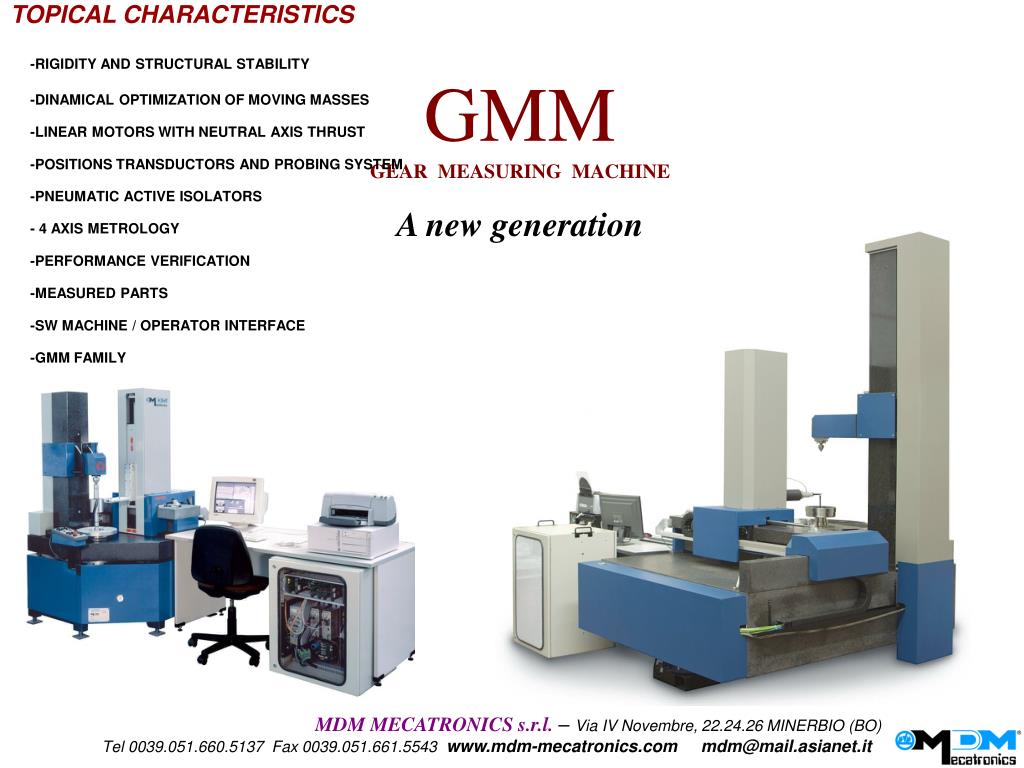

  2. TOPICAL CHARACTERISTICS -RIGIDITY AND STRUCTURAL STABILITY GMM GEAR MEASURING MACHINE A new generation -DINAMICAL OPTIMIZATION OF MOVING MASSES -LINEAR MOTORS WITH NEUTRAL AXIS THRUST -POSITIONS TRANSDUCTORS AND PROBING SYSTEM -PNEUMATIC ACTIVE ISOLATORS - 4 AXIS METROLOGY -PERFORMANCE VERIFICATION -MEASURED PARTS -SW MACHINE / OPERATOR INTERFACE -GMM FAMILY MDM MECATRONICS s.r.l.– Via IV Novembre, 22.24.26 MINERBIO (BO) Tel 0039.051.660.5137 Fax 0039.051.661.5543www.mdm-mecatronics.commdm@mail.asianet.it

  3. TOPICAL CHARACTERISTICS -RIGIDITY AND STRUCTURAL STABILITY -DINAMICAL OPTIMIZATION OF MOVING MASSES -LINEAR MOTORS WITH NEUTRAL AXIS THRUST -POSITIONS TRANSDUCTORS AND PROBING SYSTEM -PNEUMATIC ACTIVE ISOLATORS - 4 AXIS METROLOGY -PERFORMANCE VERIFICATION -MEASURED PARTS -SW MACHINE / OPERATOR INTERFACE -GMM FAMILY Rigidity and long term structural stability are achieved by means of lapped granite guideways with well dimensioned cursors sustained from a special frictionless airbearings configuration and design MDM MECATRONICS s.r.l.– Via IV Novembre, 22.24.26 MINERBIO (BO) Tel 0039.051.660.5137 Fax 0039.051.661.5543www.mdm-mecatronics.commdm@mail.asianet.it

  4. TOPICAL CHARACTERISTICS -RIGIDITY AND STRUCTURAL STABILITY -DINAMICAL OPTIMIZATION OF MOVING MASSES -LINEAR MOTORS WITH NEUTRAL AXIS THRUST -POSITIONS TRANSDUCTORS AND PROBING SYSTEM -PNEUMATIC ACTIVE ISOLATORS - 4 AXIS METROLOGY -PERFORMANCE VERIFICATION -MEASURED PARTS -SW MACHINE / OPERATOR INTERFACE -GMM FAMILY Rigidity and long term structural stability are achieved by means of lapped granite guideways with well dimensioned cursors sustained from a special frictionless airbearings configuration and design MDM MECATRONICS s.r.l.– Via IV Novembre, 22.24.26 MINERBIO (BO) Tel 0039.051.660.5137 Fax 0039.051.661.5543www.mdm-mecatronics.commdm@mail.asianet.it

  5. TOPICAL CHARACTERISTICS -RIGIDITY AND STRUCTURAL STABILITY -DINAMICAL OPTIMIZATION OF MOVING MASSES -LINEAR MOTORS WITH NEUTRAL AXIS THRUST -POSITIONS TRANSDUCTORS AND PROBING SYSTEM A careful dimensioning and dislocation of the moving masses and the pneumatic balancing system of the vertical axis have allowed the realization of a light structure, capable of large dimensional capability of linear and angular movements -PNEUMATIC ACTIVE ISOLATORS - 4 AXIS METROLOGY -PERFORMANCE VERIFICATION -MEASURED PARTS -SW MACHINE / OPERATOR INTERFACE -GMM FAMILY MDM MECATRONICS s.r.l.– Via IV Novembre, 22.24.26 MINERBIO (BO) Tel 0039.051.660.5137 Fax 0039.051.661.5543www.mdm-mecatronics.commdm@mail.asianet.it

  6. TOPICAL CHARACTERISTICS -RIGIDITY AND STRUCTURAL STABILITY -DINAMICAL OPTIMIZATION OF MOVING MASSES -LINEAR MOTORS WITH NEUTRAL AXIS THRUST -POSITIONS TRANSDUCTORS AND PROBING SYSTEM The linear axis (XYZ) are moved by means of Special linear motors thrusting along the neutral axis without lateral components of force and dimensioned for a minimum thermal effects. The range of controlled speed is very large and the linearity of the movements is perfect ; characteristics not easily obteinable when a rotary movement is transformed into a linear one -PNEUMATIC ACTIVE ISOLATORS - 4 AXIS METROLOGY -PERFORMANCE VERIFICATION -MEASURED PARTS -SW MACHINE / OPERATOR INTERFACE -GMM FAMILY A careful dimensioning and dislocation of the moving masses and the pneumatic balancing system of the vertical axis have allowed the realization of a light structure, capable of large dimensional capability of linear and angular movements MDM MECATRONICS s.r.l.– Via IV Novembre, 22.24.26 MINERBIO (BO) Tel 0039.051.660.5137 Fax 0039.051.661.5543www.mdm-mecatronics.commdm@mail.asianet.it

  7. TOPICAL CHARACTERISTICS -RIGIDITY AND STRUCTURAL STABILITY -DINAMICAL OPTIMIZATION OF MOVING MASSES -LINEAR MOTORS WITH NEUTRAL AXIS THRUST -POSITIONS TRANSDUCTORS AND PROBING SYSTEM The linear axis (XYZ) are moved by means of Special linear motors thrusting along the neutral axis without lateral components of force and dimensioned for a minimum thermal effects. The range of controlled speed is very large and the linearity of the movements is perfect ; characteristics not easily obteinable when a rotary movement is transformed into a linear one -PNEUMATIC ACTIVE ISOLATORS - 4 AXIS METROLOGY -PERFORMANCE VERIFICATION -MEASURED PARTS -SW MACHINE / OPERATOR INTERFACE -GMM FAMILY MDM MECATRONICS s.r.l.– Via IV Novembre, 22.24.26 MINERBIO (BO) Tel 0039.051.660.5137 Fax 0039.051.661.5543www.mdm-mecatronics.commdm@mail.asianet.it

  8. TOPICAL CHARACTERISTICS -RIGIDITY AND STRUCTURAL STABILITY -DINAMICAL OPTIMIZATION OF MOVING MASSES -LINEAR MOTORS WITH NEUTRAL AXIS THRUST -POSITIONS TRANSDUCTORS AND PROBING SYSTEM The linear and notary transducers are first class high resolutions devices made of glass protected scales with certified CTE -PNEUMATIC ACTIVE ISOLATORS - 4 AXIS METROLOGY -PERFORMANCE VERIFICATION -MEASURED PARTS -SW MACHINE / OPERATOR INTERFACE -GMM FAMILY The Probing System is a patented proprietary design of MDM-MECATRONICS based on a special high linearity LVDT capable of 50nm resolution. MDM MECATRONICS s.r.l.– Via IV Novembre, 22.24.26 MINERBIO (BO) Tel 0039.051.660.5137 Fax 0039.051.661.5543www.mdm-mecatronics.commdm@mail.asianet.it

  9. TOPICAL CHARACTERISTICS -RIGIDITY AND STRUCTURAL STABILITY -DINAMICAL OPTIMIZATION OF MOVING MASSES -LINEAR MOTORS WITH NEUTRAL AXIS THRUST -POSITIONS TRANSDUCTORS AND PROBING SYSTEM The linear and notary transducers are first class high resolutions devices made of glass protected scales with certified CTE -PNEUMATIC ACTIVE ISOLATORS - 4 AXIS METROLOGY -PERFORMANCE VERIFICATION -MEASURED PARTS -SW MACHINE / OPERATOR INTERFACE -GMM FAMILY The Probing System is a patented proprietary design of MDM-MECATRONICS based on a special high linearity LVDT capable of 50nm resolution. MDM MECATRONICS s.r.l.– Via IV Novembre, 22.24.26 MINERBIO (BO) Tel 0039.051.660.5137 Fax 0039.051.661.5543www.mdm-mecatronics.commdm@mail.asianet.it

  10. TOPICAL CHARACTERISTICS -RIGIDITY AND STRUCTURAL STABILITY -DINAMICAL OPTIMIZATION OF MOVING MASSES -LINEAR MOTORS WITH NEUTRAL AXIS THRUST -POSITIONS TRANSDUCTORS AND PROBING SYSTEM The models GMM70 e GMM110 are based to the ground by means of pneumatic autolevelling supports of first quality willing to warranty maximum insulation from external vibrations and absorb the kinetic energy of moving masses -PNEUMATIC ACTIVE ISOLATORS - 4 AXIS METROLOGY -PERFORMANCE VERIFICATION -MEASURED PARTS -SW MACHINE / OPERATOR INTERFACE -GMM FAMILY MDM MECATRONICS s.r.l.– Via IV Novembre, 22.24.26 MINERBIO (BO) Tel 0039.051.660.5137 Fax 0039.051.661.5543www.mdm-mecatronics.commdm@mail.asianet.it

  11. TOPICAL CHARACTERISTICS -RIGIDITY AND STRUCTURAL STABILITY -DINAMICAL OPTIMIZATION OF MOVING MASSES -LINEAR MOTORS WITH NEUTRAL AXIS THRUST -POSITIONS TRANSDUCTORS AND PROBING SYSTEM The models GMM70 e GMM110 are based to the ground by means of pneumatic autolevelling supports of first quality willing to warranty maximum insulation from external vibrations and absorb the kinetic energy of moving masses -PNEUMATIC ACTIVE ISOLATORS - 4 AXIS METROLOGY -PERFORMANCE VERIFICATION -MEASURED PARTS -SW MACHINE / OPERATOR INTERFACE -GMM FAMILY MDM MECATRONICS s.r.l.– Via IV Novembre, 22.24.26 MINERBIO (BO) Tel 0039.051.660.5137 Fax 0039.051.661.5543www.mdm-mecatronics.commdm@mail.asianet.it

  12. TOPICAL CHARACTERISTICS -RIGIDITY AND STRUCTURAL STABILITY -DINAMICAL OPTIMIZATION OF MOVING MASSES -LINEAR MOTORS WITH NEUTRAL AXIS THRUST -POSITIONS TRANSDUCTORS AND PROBING SYSTEM The 4th axis is an airbearing/ballbearing composite rotary table, moved by means of an special high-quality torque motor over dimensioned configured as frictionless „Electronic Shaft“ without mechanical reductions and capable of a very large dinamic performance -PNEUMATIC ACTIVE ISOLATORS - 4 AXIS METROLOGY -PERFORMANCE VERIFICATION -MEASURED PARTS -SW MACHINE / OPERATOR INTERFACE -GMM FAMILY MDM MECATRONICS s.r.l.– Via IV Novembre, 22.24.26 MINERBIO (BO) Tel 0039.051.660.5137 Fax 0039.051.661.5543www.mdm-mecatronics.commdm@mail.asianet.it

  13. TOPICAL CHARACTERISTICS -RIGIDITY AND STRUCTURAL STABILITY -DINAMICAL OPTIMIZATION OF MOVING MASSES -LINEAR MOTORS WITH NEUTRAL AXIS THRUST -POSITIONS TRANSDUCTORS AND PROBING SYSTEM -PNEUMATIC ACTIVE ISOLATORS - 4 AXIS METROLOGY -PERFORMANCE VERIFICATION -MEASURED PARTS -SW MACHINE / OPERATOR INTERFACE -GMM FAMILY The 4th axis is an airbearing/ballbearing composite rotary table, moved by means of an special high-quality torque motor over dimensioned configured as frictionless „Electronic Shaft“ without mechanical reductions and capable of a very large dinamic performance MDM MECATRONICS s.r.l.– Via IV Novembre, 22.24.26 MINERBIO (BO) Tel 0039.051.660.5137 Fax 0039.051.661.5543www.mdm-mecatronics.commdm@mail.asianet.it

  14. TOPICAL CHARACTERISTICS Performance Verification based on a procedure performed from the MDM-MECATRONICS, that is accredited in the National Calibration System (SIT 082) in compliance to the ISO 17025 with the use of artifacts calibrated from primary National Calibration bodies -RIGIDITY AND STRUCTURAL STABILITY -DINAMICAL OPTIMIZATION OF MOVING MASSES -LINEAR MOTORS WITH NEUTRAL AXIS THRUST -POSITIONS TRANSDUCTORS AND PROBING SYSTEM -PNEUMATIC ACTIVE ISOLATORS - 4 AXIS METROLOGY -PERFORMANCE VERIFICATION -MEASURED PARTS -SW MACHINE / OPERATOR INTERFACE -GMM FAMILY MDM MECATRONICS s.r.l.– Via IV Novembre, 22.24.26 MINERBIO (BO) Tel 0039.051.660.5137 Fax 0039.051.661.5543www.mdm-mecatronics.commdm@mail.asianet.it

  15. TOPICAL CHARACTERISTICS -RIGIDITY AND STRUCTURAL STABILITY -DINAMICAL OPTIMIZATION OF MOVING MASSES -LINEAR MOTORS WITH NEUTRAL AXIS THRUST -POSITIONS TRANSDUCTORS AND PROBING SYSTEM Performance Verification based on a procedure performed from the MDM-MECATRONICS, that is accredited in the National Calibration System (SIT 082) in compliance to the ISO 17025 with the use of artifacts calibrated from primary National Calibration bodies -PNEUMATIC ACTIVE ISOLATORS - 4 AXIS METROLOGY -PERFORMANCE VERIFICATION -MEASURED PARTS -SW MACHINE / OPERATOR INTERFACE -GMM FAMILY MDM MECATRONICS s.r.l.– Via IV Novembre, 22.24.26 MINERBIO (BO) Tel 0039.051.660.5137 Fax 0039.051.661.5543www.mdm-mecatronics.commdm@mail.asianet.it

  16. TOPICAL CHARACTERISTICS -RIGIDITY AND STRUCTURAL STABILITY -DINAMICAL OPTIMIZATION OF MOVING MASSES -LINEAR MOTORS WITH NEUTRAL AXIS THRUST -POSITIONS TRANSDUCTORS AND PROBING SYSTEM -PNEUMATIC ACTIVE ISOLATORS - 4 AXIS METROLOGY -PERFORMANCE VERIFICATION -MEASURED PARTS -SW MACHINE / OPERATOR INTERFACE -GMM FAMILY -Measurable Cylindrical parallel/helical, internal/external Spur, Worm and Bevel Gears with involute profile -Profiles of solids of revolution -3D Metrology and Reverse Engineering -Statistical Process Control (SPC) MDM MECATRONICS s.r.l.– Via IV Novembre, 22.24.26 MINERBIO (BO) Tel 0039.051.660.5137 Fax 0039.051.661.5543www.mdm-mecatronics.commdm@mail.asianet.it

  17. TOPICAL CHARACTERISTICS -RIGIDITY AND STRUCTURAL STABILITY -DINAMICAL OPTIMIZATION OF MOVING MASSES -LINEAR MOTORS WITH NEUTRAL AXIS THRUST -POSITIONS TRANSDUCTORS AND PROBING SYSTEM -PNEUMATIC ACTIVE ISOLATORS - 4 AXIS METROLOGY -PERFORMANCE VERIFICATION -MEASURED PARTS -SW MACHINE / OPERATOR INTERFACE -GMM FAMILY -Measurable Cylindrical parallel/helical, internal/external Spur, Worm and Bevel Gears with involute profile -Profiles of solids of revolution -3D Metrology and Reverse Engineering -Statistical Process Control (SPC) MDM MECATRONICS s.r.l.– Via IV Novembre, 22.24.26 MINERBIO (BO) Tel 0039.051.660.5137 Fax 0039.051.661.5543www.mdm-mecatronics.commdm@mail.asianet.it

  18. TOPICAL CHARACTERISTICS -RIGIDITY AND STRUCTURAL STABILITY -DINAMICAL OPTIMIZATION OF MOVING MASSES -LINEAR MOTORS WITH NEUTRAL AXIS THRUST -POSITIONS TRANSDUCTORS AND PROBING SYSTEM -PNEUMATIC ACTIVE ISOLATORS - 4 AXIS METROLOGY -PERFORMANCE VERIFICATION -MEASURED PARTS -SW MACHINE / OPERATOR INTERFACE -GMM FAMILY Metrologic SW is developed, assisted and Licensed to end users from the sister SW Company MDM-Metrosoft MDM MECATRONICS s.r.l.– Via IV Novembre, 22.24.26 MINERBIO (BO) Tel 0039.051.660.5137 Fax 0039.051.661.5543www.mdm-mecatronics.commdm@mail.asianet.it

  19. TOPICAL CHARACTERISTICS -RIGIDITY AND STRUCTURAL STABILITY -DINAMICAL OPTIMIZATION OF MOVING MASSES -LINEAR MOTORS WITH NEUTRAL AXIS THRUST -POSITIONS TRANSDUCTORS AND PROBING SYSTEM -PNEUMATIC ACTIVE ISOLATORS - 4 AXIS METROLOGY -PERFORMANCE VERIFICATION -MEASURED PARTS -SW MACHINE / OPERATOR INTERFACE -GMM FAMILY Metrologic SW is developed, assisted and Licensed to end users from the sister SW Company MDM-Metrosoft MDM MECATRONICS s.r.l.– Via IV Novembre, 22.24.26 MINERBIO (BO) Tel 0039.051.660.5137 Fax 0039.051.661.5543www.mdm-mecatronics.commdm@mail.asianet.it

  20. TOPICAL CHARACTERISTICS -RIGIDITY AND STRUCTURAL STABILITY -DINAMICAL OPTIMIZATION OF MOVING MASSES -LINEAR MOTORS WITH NEUTRAL AXIS THRUST -POSITIONS TRANSDUCTORS AND PROBING SYSTEM -PNEUMATIC ACTIVE ISOLATORS - 4 AXIS METROLOGY -PERFORMANCE VERIFICATION -MEASURED PARTS -SW MACHINE / OPERATOR INTERFACE -GMM FAMILY The Windows based SW follows the simple rule WYSIWYG (what you see is what you get). The SW is „User Friendly“ and adds expectise to the operator. MDM MECATRONICS s.r.l.– Via IV Novembre, 22.24.26 MINERBIO (BO) Tel 0039.051.660.5137 Fax 0039.051.661.5543www.mdm-mecatronics.commdm@mail.asianet.it

  21. TOPICAL CHARACTERISTICS -RIGIDITY AND STRUCTURAL STABILITY -DINAMICAL OPTIMIZATION OF MOVING MASSES -LINEAR MOTORS WITH NEUTRAL AXIS THRUST -POSITIONS TRANSDUCTORS AND PROBING SYSTEM -PNEUMATIC ACTIVE ISOLATORS - 4 AXIS METROLOGY -PERFORMANCE VERIFICATION -MEASURED PARTS -SW MACHINE / OPERATOR INTERFACE -GMM FAMILY The Windows based SW follows the simple rule WYSIWYG (what you see is what you get). The SW is „User Friendly“ and adds expectise to the operator. MDM MECATRONICS s.r.l.– Via IV Novembre, 22.24.26 MINERBIO (BO) Tel 0039.051.660.5137 Fax 0039.051.661.5543www.mdm-mecatronics.commdm@mail.asianet.it

  22. TOPICAL CHARACTERISTICS -RIGIDITY AND STRUCTURAL STABILITY -DINAMICAL OPTIMIZATION OF MOVING MASSES -LINEAR MOTORS WITH NEUTRAL AXIS THRUST -POSITIONS TRANSDUCTORS AND PROBING SYSTEM -PNEUMATIC ACTIVE ISOLATORS - 4 AXIS METROLOGY -PERFORMANCE VERIFICATION -MEASURED PARTS -SW MACHINE / OPERATOR INTERFACE -GMM FAMILY The measurement results are clearly rapresented with the most popular graphs, with numerical values and classification always displaied MDM MECATRONICS s.r.l.– Via IV Novembre, 22.24.26 MINERBIO (BO) Tel 0039.051.660.5137 Fax 0039.051.661.5543www.mdm-mecatronics.commdm@mail.asianet.it

  23. TOPICAL CHARACTERISTICS -RIGIDITY AND STRUCTURAL STABILITY -DINAMICAL OPTIMIZATION OF MOVING MASSES -LINEAR MOTORS WITH NEUTRAL AXIS THRUST -POSITIONS TRANSDUCTORS AND PROBING SYSTEM -PNEUMATIC ACTIVE ISOLATORS - 4 AXIS METROLOGY -PERFORMANCE VERIFICATION -MEASURED PARTS -SW MACHINE / OPERATOR INTERFACE -GMM FAMILY The measurement results are clearly rapresented with the most popular graphs, with numerical values and classification always displaied MDM MECATRONICS s.r.l.– Via IV Novembre, 22.24.26 MINERBIO (BO) Tel 0039.051.660.5137 Fax 0039.051.661.5543www.mdm-mecatronics.commdm@mail.asianet.it

  24. TOPICAL CHARACTERISTICS -RIGIDITY AND STRUCTURAL STABILITY -DINAMICAL OPTIMIZATION OF MOVING MASSES -LINEAR MOTORS WITH NEUTRAL AXIS THRUST -POSITIONS TRANSDUCTORS AND PROBING SYSTEM -PNEUMATIC ACTIVE ISOLATORS - 4 AXIS METROLOGY -PERFORMANCE VERIFICATION -MEASURED PARTS -SW MACHINE / OPERATOR INTERFACE -GMM FAMILY Profile and lead test charts with classification compliant to Norms DIN/ISO/AGMA MDM MECATRONICS s.r.l.– Via IV Novembre, 22.24.26 MINERBIO (BO) Tel 0039.051.660.5137 Fax 0039.051.661.5543www.mdm-mecatronics.commdm@mail.asianet.it

  25. TOPICAL CHARACTERISTICS -RIGIDITY AND STRUCTURAL STABILITY -DINAMICAL OPTIMIZATION OF MOVING MASSES -LINEAR MOTORS WITH NEUTRAL AXIS THRUST -POSITIONS TRANSDUCTORS AND PROBING SYSTEM -PNEUMATIC ACTIVE ISOLATORS - 4 AXIS METROLOGY -PERFORMANCE VERIFICATION -MEASURED PARTS -SW MACHINE / OPERATOR INTERFACE -GMM FAMILY Profile and lead test charts with classification compliant to Norms DIN/ISO/AGMA MDM MECATRONICS s.r.l.– Via IV Novembre, 22.24.26 MINERBIO (BO) Tel 0039.051.660.5137 Fax 0039.051.661.5543www.mdm-mecatronics.commdm@mail.asianet.it

  26. TOPICAL CHARACTERISTICS -RIGIDITY AND STRUCTURAL STABILITY -DINAMICAL OPTIMIZATION OF MOVING MASSES -LINEAR MOTORS WITH NEUTRAL AXIS THRUST -POSITIONS TRANSDUCTORS AND PROBING SYSTEM -PNEUMATIC ACTIVE ISOLATORS - 4 AXIS METROLOGY -PERFORMANCE VERIFICATION -MEASURED PARTS -SW MACHINE / OPERATOR INTERFACE -GMM FAMILY The files of all measurements can be printed, saved,riedited choosing the display parameters at need MDM MECATRONICS s.r.l.– Via IV Novembre, 22.24.26 MINERBIO (BO) Tel 0039.051.660.5137 Fax 0039.051.661.5543www.mdm-mecatronics.commdm@mail.asianet.it

  27. TOPICAL CHARACTERISTICS -RIGIDITY AND STRUCTURAL STABILITY -DINAMICAL OPTIMIZATION OF MOVING MASSES -LINEAR MOTORS WITH NEUTRAL AXIS THRUST -POSITIONS TRANSDUCTORS AND PROBING SYSTEM -PNEUMATIC ACTIVE ISOLATORS - 4 AXIS METROLOGY -PERFORMANCE VERIFICATION -MEASURED PARTS -SW MACHINE / OPERATOR INTERFACE -GMM FAMILY The files of all measurements can be printed, saved,riedited choosing the display parameters at need MDM MECATRONICS s.r.l.– Via IV Novembre, 22.24.26 MINERBIO (BO) Tel 0039.051.660.5137 Fax 0039.051.661.5543www.mdm-mecatronics.commdm@mail.asianet.it

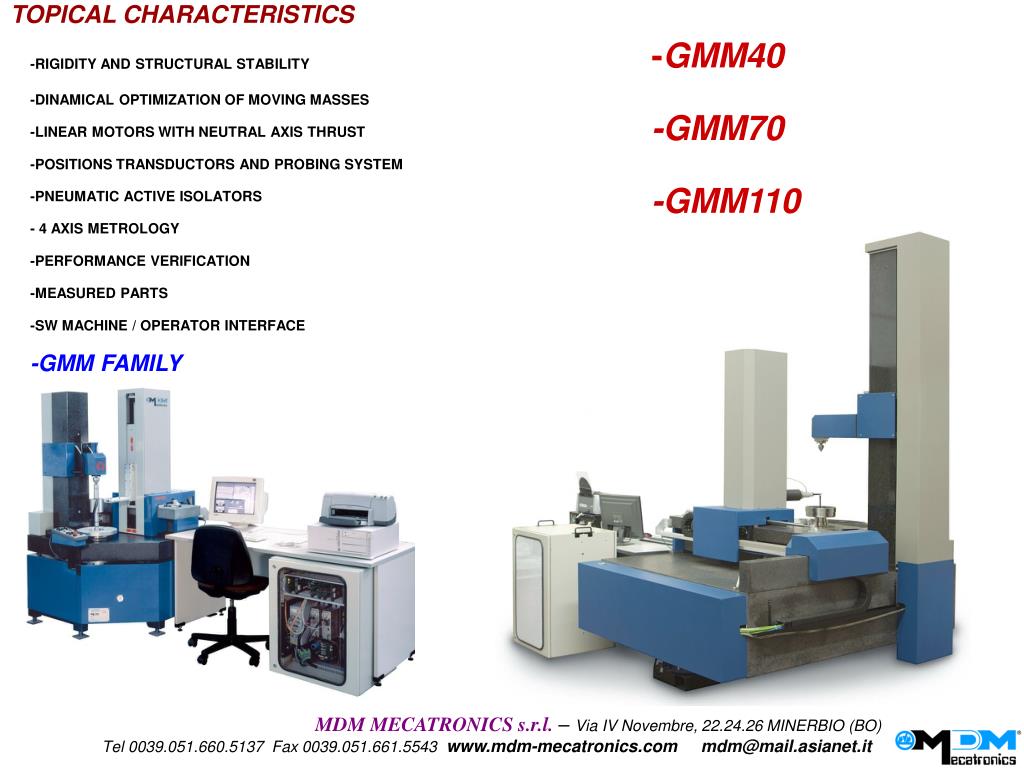

  28. TOPICAL CHARACTERISTICS -GMM40 -RIGIDITY AND STRUCTURAL STABILITY -DINAMICAL OPTIMIZATION OF MOVING MASSES -GMM70 -LINEAR MOTORS WITH NEUTRAL AXIS THRUST -POSITIONS TRANSDUCTORS AND PROBING SYSTEM -GMM110 -PNEUMATIC ACTIVE ISOLATORS - 4 AXIS METROLOGY -PERFORMANCE VERIFICATION -MEASURED PARTS -SW MACHINE / OPERATOR INTERFACE -GMM FAMILY MDM MECATRONICS s.r.l.– Via IV Novembre, 22.24.26 MINERBIO (BO) Tel 0039.051.660.5137 Fax 0039.051.661.5543www.mdm-mecatronics.commdm@mail.asianet.it

  29. TOPICAL CHARACTERISTICS AVAILABLE MODELS GMM40 -RIGIDITY AND STRUCTURAL STABILITY -DINAMICAL OPTIMIZATION OF MOVING MASSES -GMM70 -LINEAR MOTORS WITH NEUTRAL AXIS THRUST -POSITIONS TRANSDUCTORS AND PROBING SYSTEM -GMM110 -PNEUMATIC ACTIVE ISOLATORS - 4 AXIS METROLOGY -PERFORMANCE VERIFICATION -MEASURED PARTS -SW MACHINE / OPERATOR INTERFACE -GMM FAMILY MDM MECATRONICS s.r.l.– Via IV Novembre, 22.24.26 MINERBIO (BO) Tel 0039.051.660.5137 Fax 0039.051.661.5543www.mdm-mecatronics.commdm@mail.asianet.it

  30. AVAILABLE MODELS GMM40 Measuring Range: X = 350mm. Y = 240mm. Z = 390mm. Max Diam. = 400mm. Max.Shaft Length = 700mm Layout Dimensions: Heigh: 1840mm. Length: 2680mm. Width: 1160mm. MDM MECATRONICS s.r.l.– Via IV Novembre, 22.24.26 MINERBIO (BO) Tel 0039.051.660.5137 Fax 0039.051.661.5543www.mdm-mecatronics.commdm@mail.asianet.it

  31. AVAILABLE MODELS GMM40 Measuring Range: X = 350mm. Y = 240mm. Z = 390mm. Max Diam. = 400mm. Max.Shaft Length = 700mm Layout Dimensions: Heigh: 1840mm. Length: 2680mm. Width: 1160mm. MDM MECATRONICS s.r.l.– Via IV Novembre, 22.24.26 MINERBIO (BO) Tel 0039.051.660.5137 Fax 0039.051.661.5543www.mdm-mecatronics.commdm@mail.asianet.it

  32. AVAILABLE MODELS GMM70 Measuring Range: X = 650mm. Y = 390mm. Z = 590mm. Max Diam. = 700mm. Max.Shaft Length = 1000mm Layout Dimensions: Heigh: 2200mm. Length: 3200mm. Width: 1395mm. MDM MECATRONICS s.r.l.– Via IV Novembre, 22.24.26 MINERBIO (BO) Tel 0039.051.660.5137 Fax 0039.051.661.5543www.mdm-mecatronics.commdm@mail.asianet.it

  33. AVAILABLE MODELS GMM70 Measuring Range: X = 650mm. Y = 390mm. Z = 590mm. Max Diam. = 700mm. Max.Shaft Length = 1000mm Layout Dimensions: Heigh: 2200mm. Length: 3200mm. Width: 1395mm. MDM MECATRONICS s.r.l.– Via IV Novembre, 22.24.26 MINERBIO (BO) Tel 0039.051.660.5137 Fax 0039.051.661.5543www.mdm-mecatronics.commdm@mail.asianet.it

  34. AVAILABLE MODELS GMM110 Measuring Range: X = 900mm. Y = 600mm. Z = 590mm. Max Diam. = 1100mm. Max.Shaft Length = 1400mm Layout Dimensions: Heigh: 2855mm. Length: 3550mm. Width: 2115mm. MDM MECATRONICS s.r.l.– Via IV Novembre, 22.24.26 MINERBIO (BO) Tel 0039.051.660.5137 Fax 0039.051.661.5543www.mdm-mecatronics.commdm@mail.asianet.it

  35. AVAILABLE MODELS GMM110 Measuring Range: X = 900mm. Y = 600mm. Z = 590mm. Max Diam. = 1100mm. Max.Shaft Length = 1400mm Layout Dimensions: Heigh: 2855mm. Length: 3550mm. Width: 2115mm. MDM MECATRONICS s.r.l.– Via IV Novembre, 22.24.26 MINERBIO (BO) Tel 0039.051.660.5137 Fax 0039.051.661.5543www.mdm-mecatronics.commdm@mail.asianet.it

  36. MDM MECATRONICS s.r.l.– Via IV Novembre, 22.24.26 MINERBIO (BO) Tel 0039.051.660.5137 Fax 0039.051.661.5543www.mdm-mecatronics.commdm@mail.asianet.it
