  1. Parallel Lines & Transversals Notes 12 – Section 3.1

  2. Essential Learnings • Students will understand and be able to identify the relationship between two lines or two planes. • Students will be able to identify angle pairs formed by parallel lines and transversals.

  3. Vocabulary • Parallel lines – coplanar lines that do not intersect. • Skew lines – lines that do not intersect and are not coplanar. • Parallel planes – planes that do not intersect

  4. Vocabulary • Transversal – a line that intersects two or more coplanar lines at two different points. 1 2 3 4 5 6 7 8

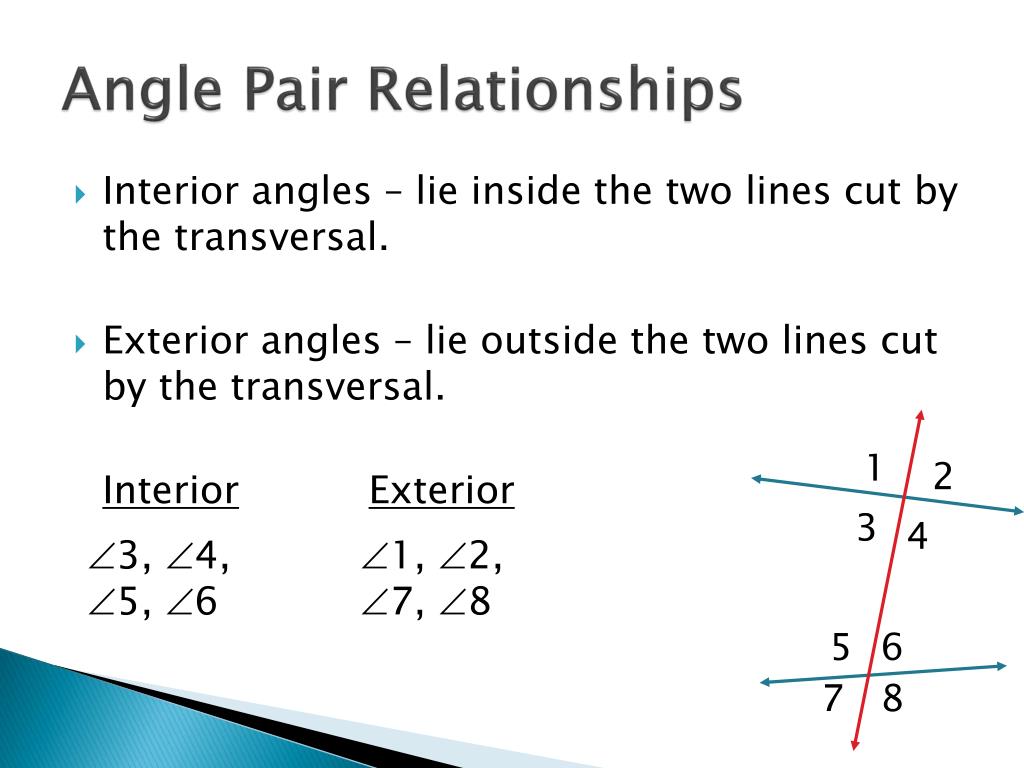

  5. Angle Pair Relationships • Interior angles – lie inside the two lines cut by the transversal. • Exterior angles – lie outside the two lines cut by the transversal. InteriorExterior 1 2 3 4 3, 4, 5, 6 1, 2, 7, 8 5 6 7 8

  6. Angle Pair Relationships • Consecutive interior angles – interior angles that lie on the same side of the transversal. • Corresponding angles – lie on the same side of the transversal and on the same side of the two lines that the transversal cuts.

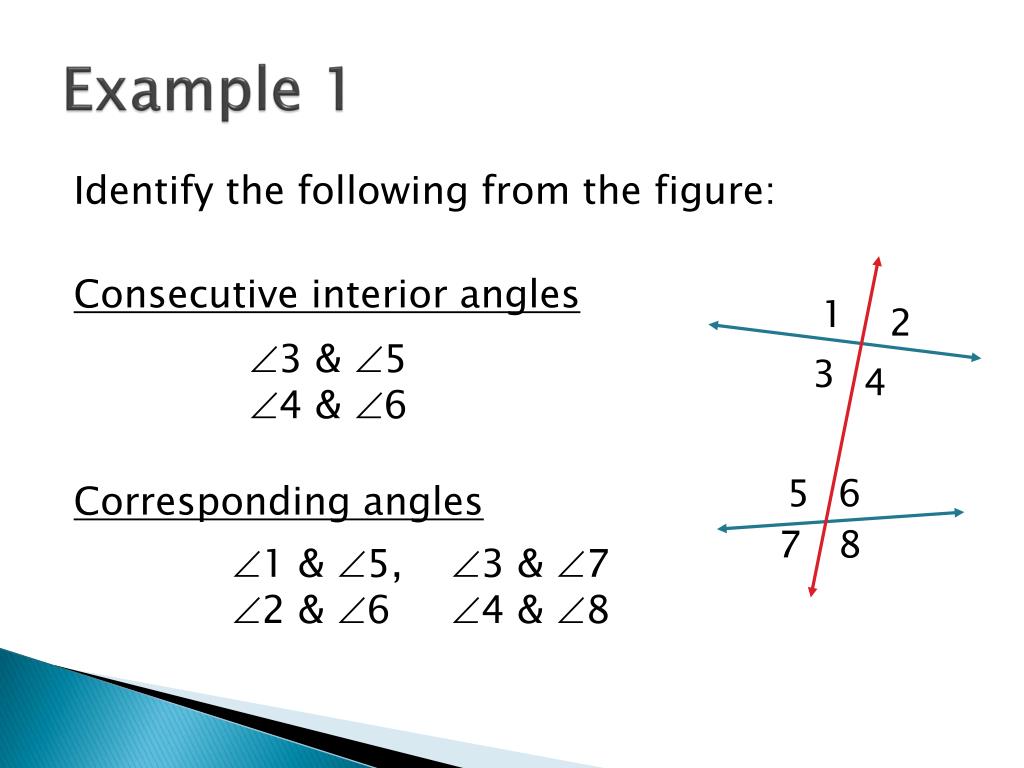

  7. Example 1 Identify the following from the figure: Consecutive interior angles Corresponding angles 1 2 3 &5 4 &6 3 4 5 6 7 8 1 &5, 3 &7 2 &6 4 &8

  8. Angle Pair Relationships • Alternate interior angles – angles that are nonadjacent interior angles that lie on opposite sides of the transversal. • Alternate exterior angles – angles that are nonadjacent exterior angles that lie on opposite sides of the transversal.

  9. Example 2 Identify the following from the figure: Alternate interior angles Alternate exterior angles 1 2 3 &6 4 &5 3 4 5 6 7 8 1 &8 2 &7

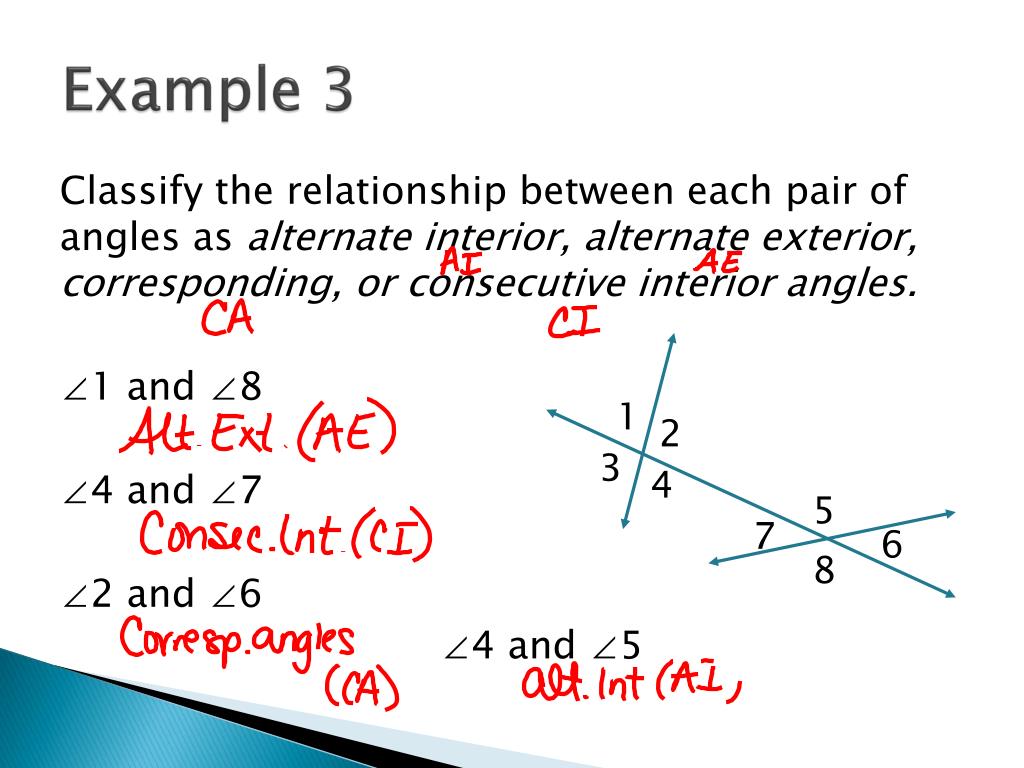

  10. Example 3 Classify the relationship between each pair of angles as alternate interior, alternate exterior, corresponding, or consecutive interior angles. ∠1 and ∠8 ∠4 and ∠7 ∠2 and ∠6 ∠4 and ∠5 1 2 3 4 5 7 6 8

  11. Example 4 Identify the transversal connecting each pair of angles in the figure then classify the relationship between the angles. ∠1 and ∠4 ∠4 and ∠5 ∠2 and ∠5 ∠6 and ∠8 b 1 2 5 3 4 c a d 6 7 e 8 f

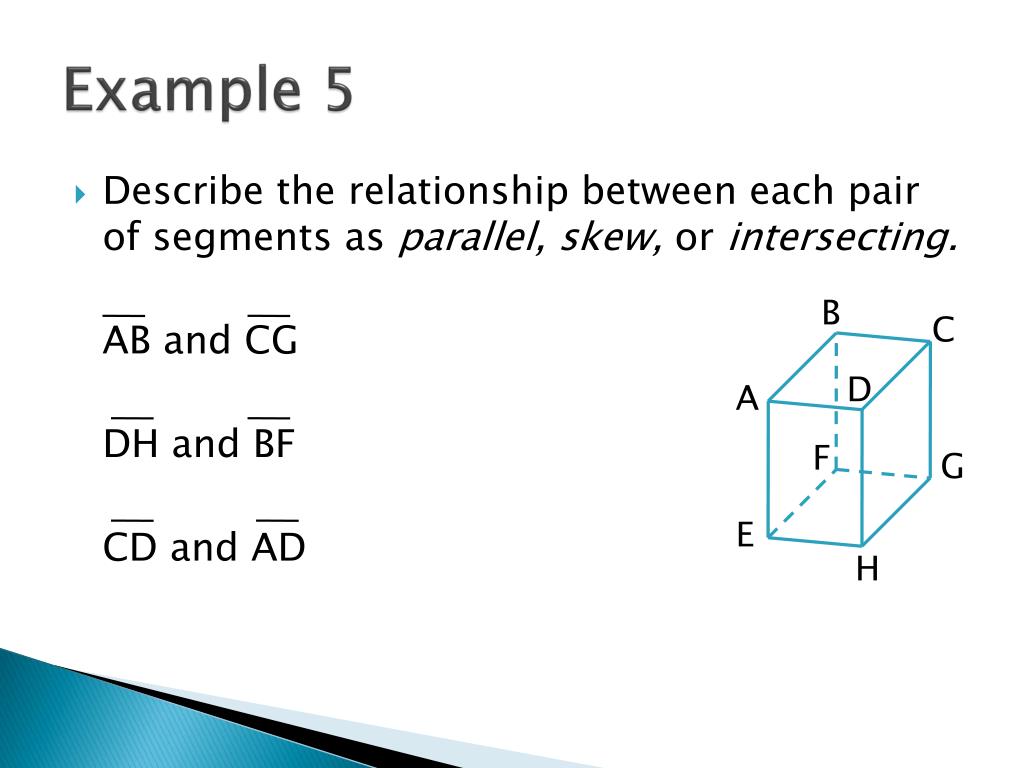

  12. Example 5 • Describe the relationship between each pair of segments as parallel, skew, or intersecting. AB and CG DH and BF CD and AD B C D A F G E H

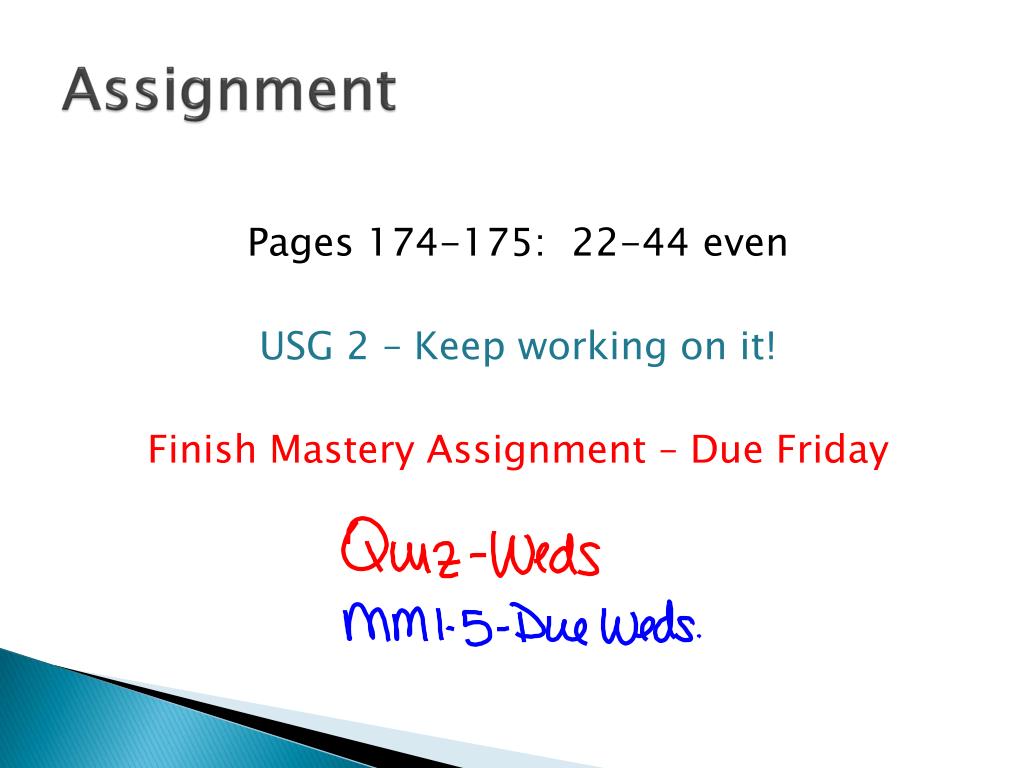

  13. Assignment Pages 174-175: 22-44 even USG 2 – Keep working on it! Finish Mastery Assignment – Due Friday
