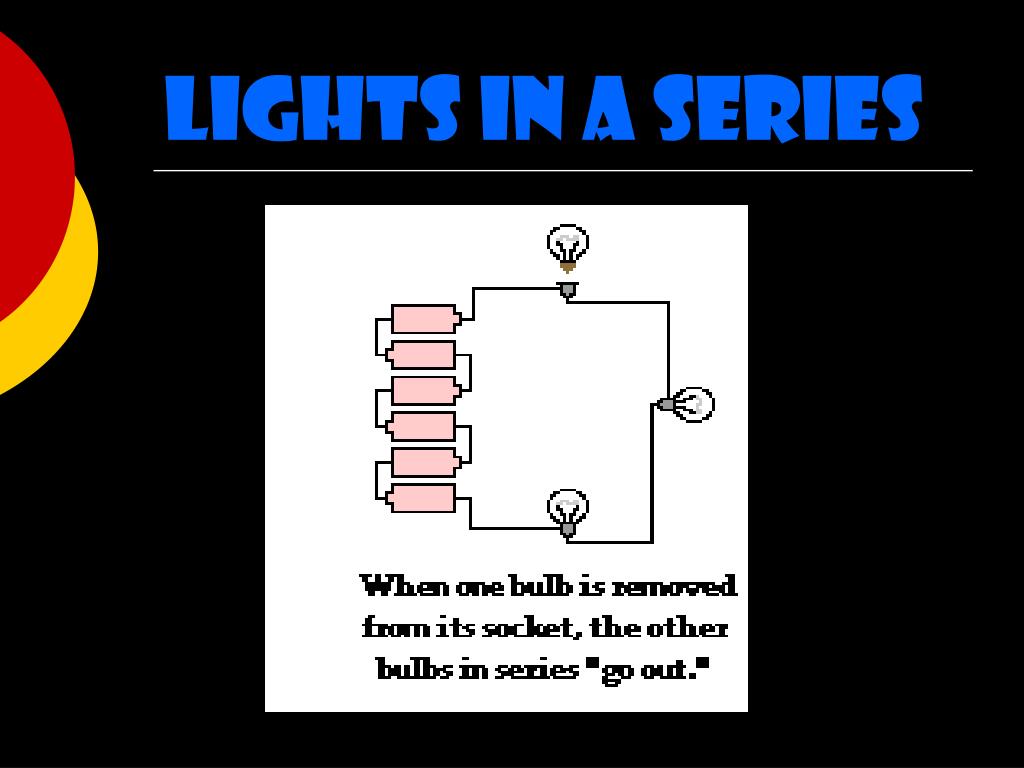

Series and Parallel Circuits. Circuits. Can either be series or parallel. Series. Current only takes one path for electrons Current flows through every part of the circuit. Lights in a Series. Series. If you add a resistor (like another light):

Télécharger la présentation
## Series and Parallel Circuits

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

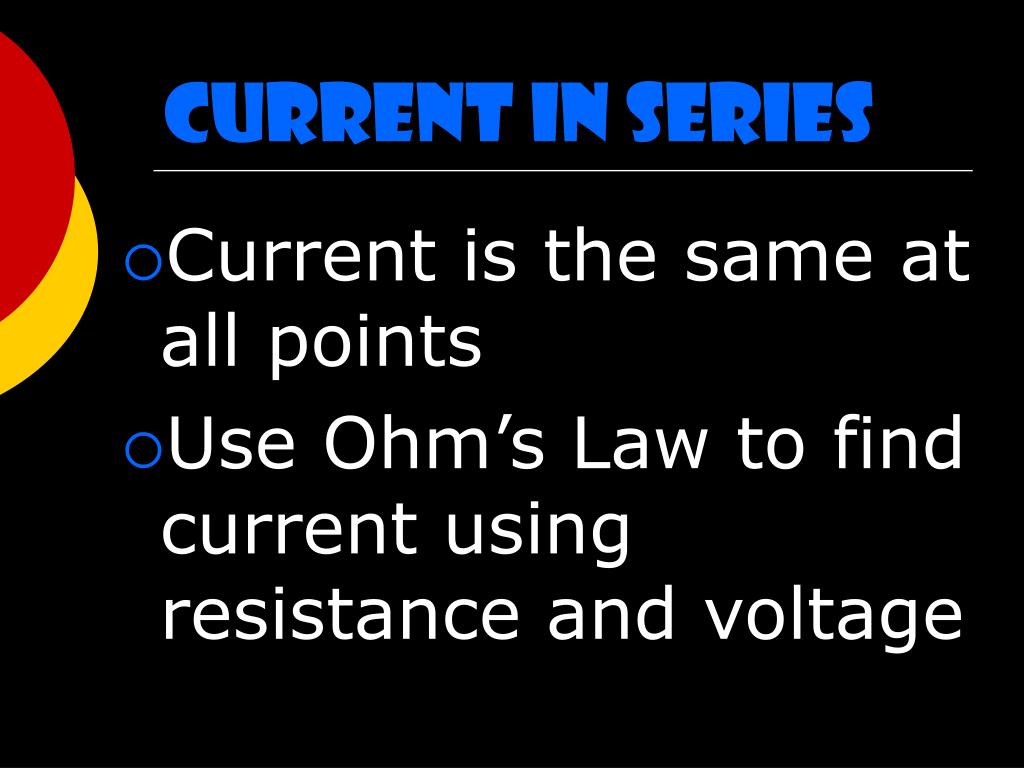

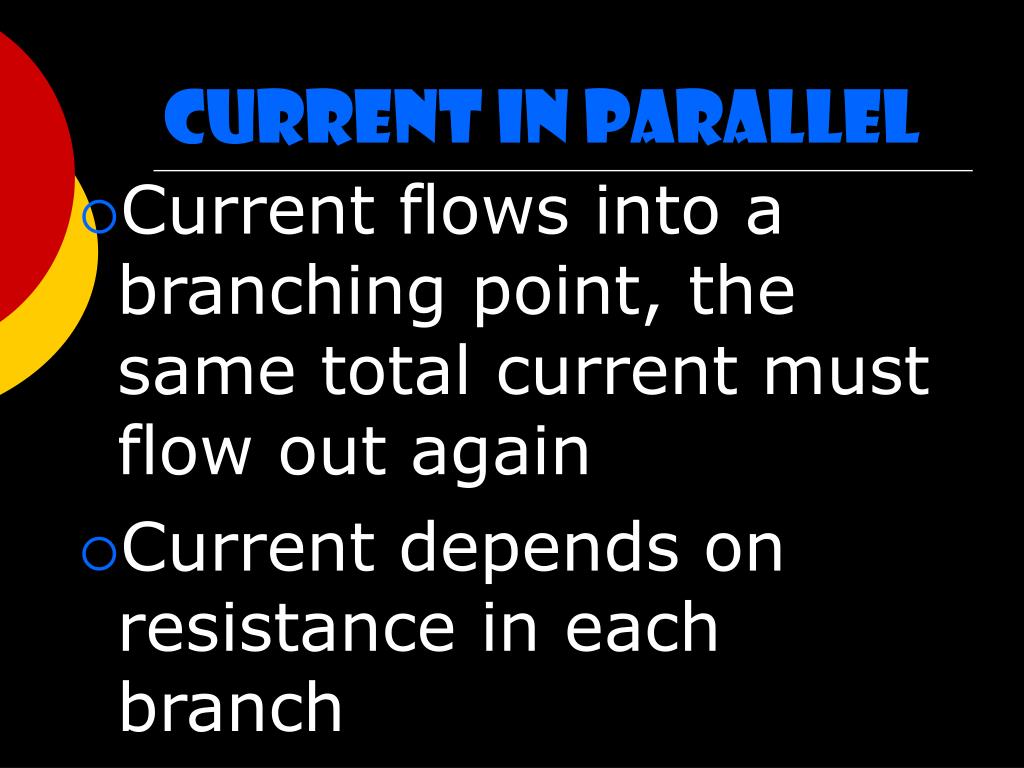

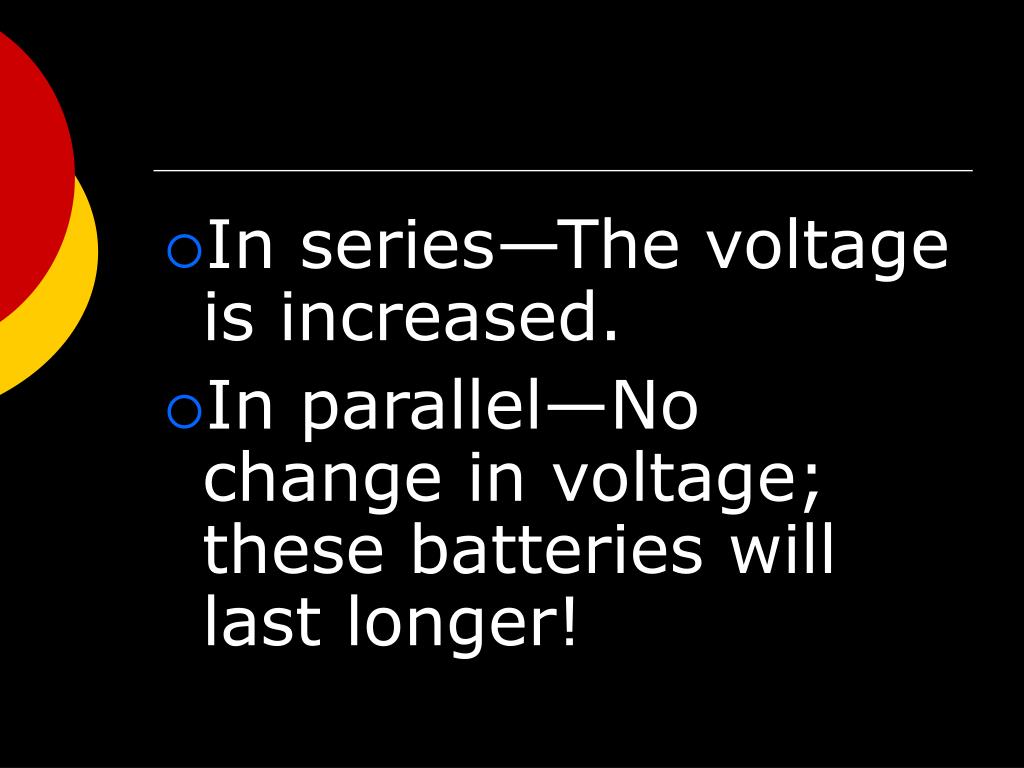

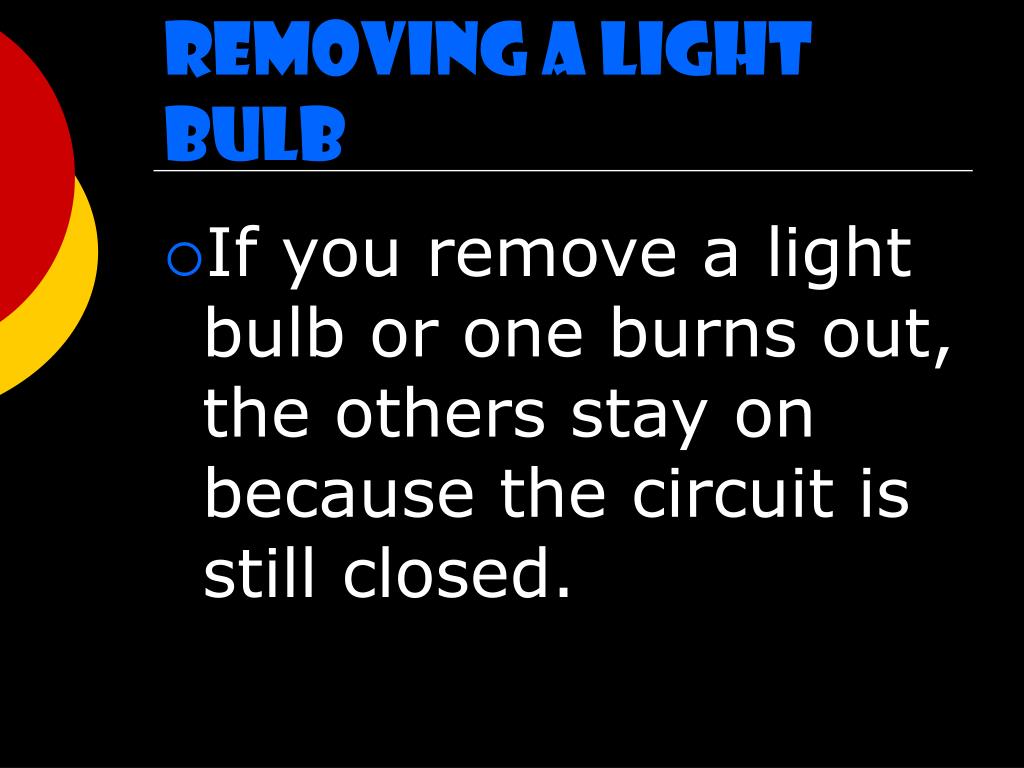

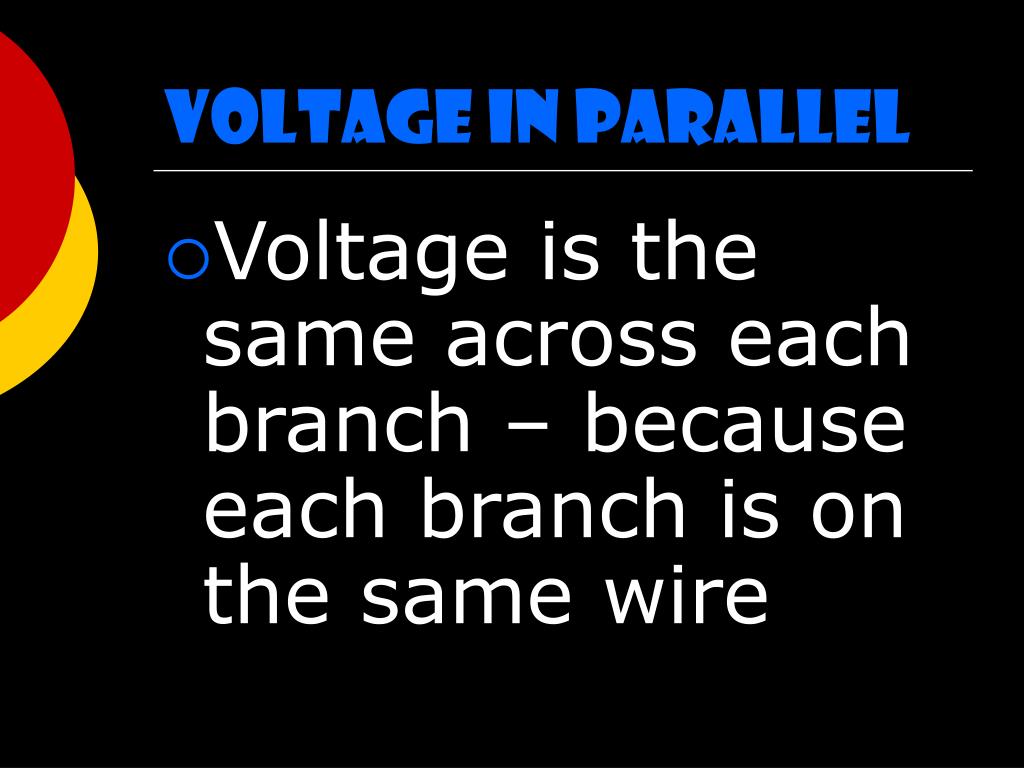

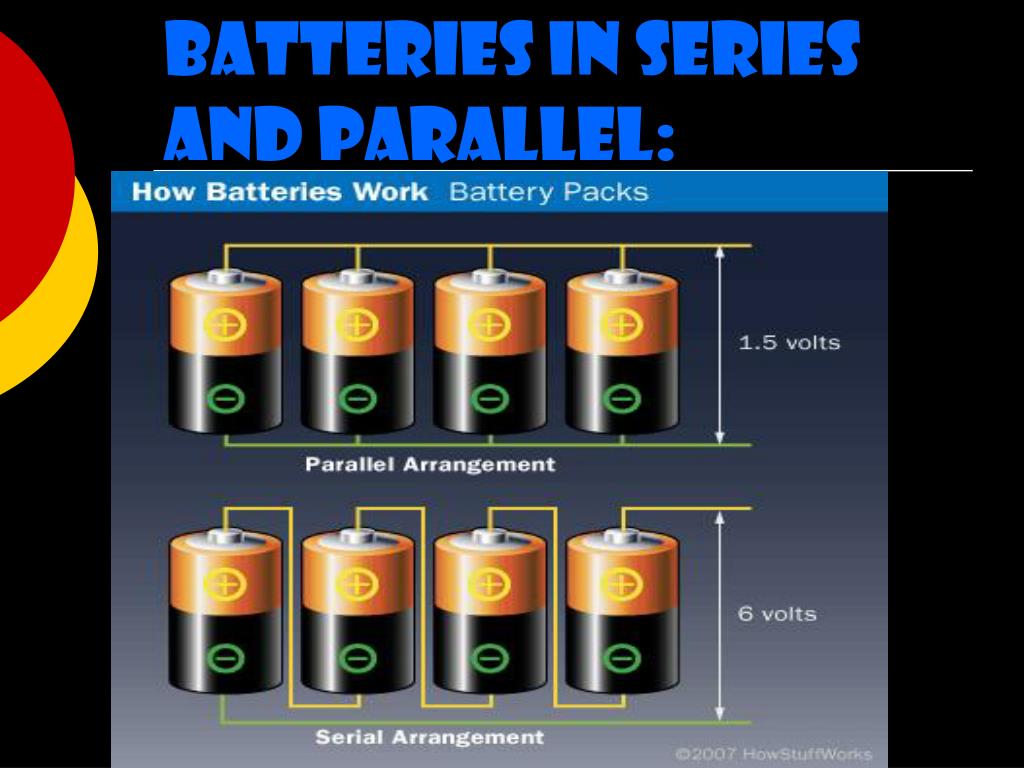

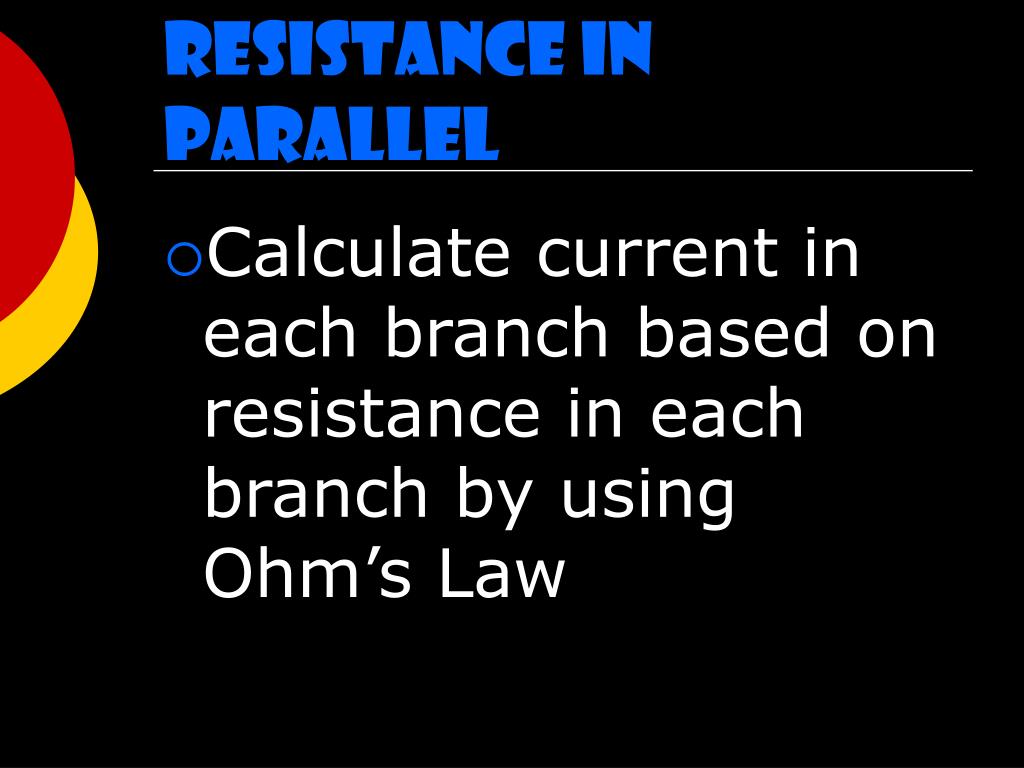

**Circuits**• Can either be series or parallel.**Series**• Current only takes one path for electrons • Current flows through every part of the circuit**Series**• If you add a resistor (like another light): • Total resistance goes UP since all the current has must go through each resistor.**Adding Resistors to Series:**• Current in the circuit will go DOWN (lights will dim) • If you remove a light bulb or one burns out—all go out!**Current in Series**• Current is the same at all points • Use Ohm’s Law to find current using resistance and voltage**Voltage in Series**• Voltage is reduced by each resistance – voltage drop**Resistance in Series**• Add up all resistors to get total • Total resistance will go up because all of the current must go through each resistor.**Sample Problem #1**• Draw a series circuit with two 1.5 V batteries, 3 resistors, and a current of 0.5 A. • What is the total voltage of the circuit? • What is the resistance of each resistor? • What is the voltage drop across each resistor? Label on your circuit.**Parallel Circuits**• Has at least one point where current divides • More than one path for current to flow • Paths are also known as branches**Parallel:**• If you add a resistor: • Total resistance goes down • Total current goes up when you add another path**Removing a Light Bulb**• If you remove a light bulb or one burns out, the others stay on because the circuit is still closed.**Current in Parallel**• Current flows into a branching point, the same total current must flow out again • Current depends on resistance in each branch**Voltage in Parallel**• Voltage is the same across each branch – because each branch is on the same wire**Resistance in Parallel**• Calculate current in each branch based on resistance in each branch by using Ohm’s Law**Practice problem #2**• Draw a parallel circuit with two resistors (one on each branch) and a 12 V battery. • What is the voltage through each resistor? • What is the current flowing through each branch?**Toll Booth Explanation**• Adding toll booths in series increases resistance and slows the current flow. • Adding toll booths in parallel lowers resistance and increases the current flow.**In series—The voltage is increased.**• In parallel—No change in voltage; these batteries will last longer!**One More FINAL Thing:**• Two Types of Current: • DC—Direct Current—produced by solar cells and chemical cells (batteries) • Current only flows in one direction.**2nd type of current:**• AC—Alternating Current • Current flows back and forth (alternates) • Found in homes • Generators produce AC current
