Series and Parallel Circuits

Series and Parallel Circuits. Circuits. In order for electricity to flow we need Power source Closed circuit There are two type of circuits we will explore Series circuit Parallel circuit. Series Circuit. In a series circuit there is only one path for the electrons to flow

wheatley-hamza
Télécharger la présentation

Series and Parallel Circuits

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Series and Parallel Circuits

  2. Circuits • In order for electricity to flow we need • Power source • Closed circuit • There are two type of circuits we will explore • Series circuit • Parallel circuit

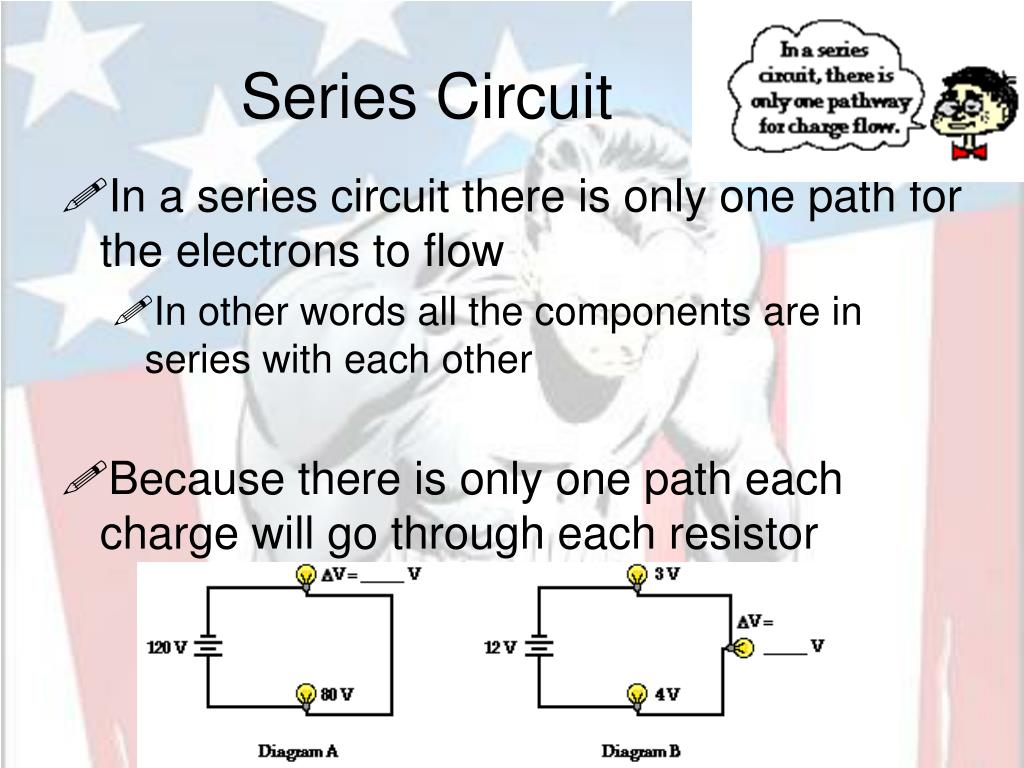

  3. Series Circuit • In a series circuit there is only one path for the electrons to flow • In other words all the components are in series with each other • Because there is only one path each charge will go through each resistor

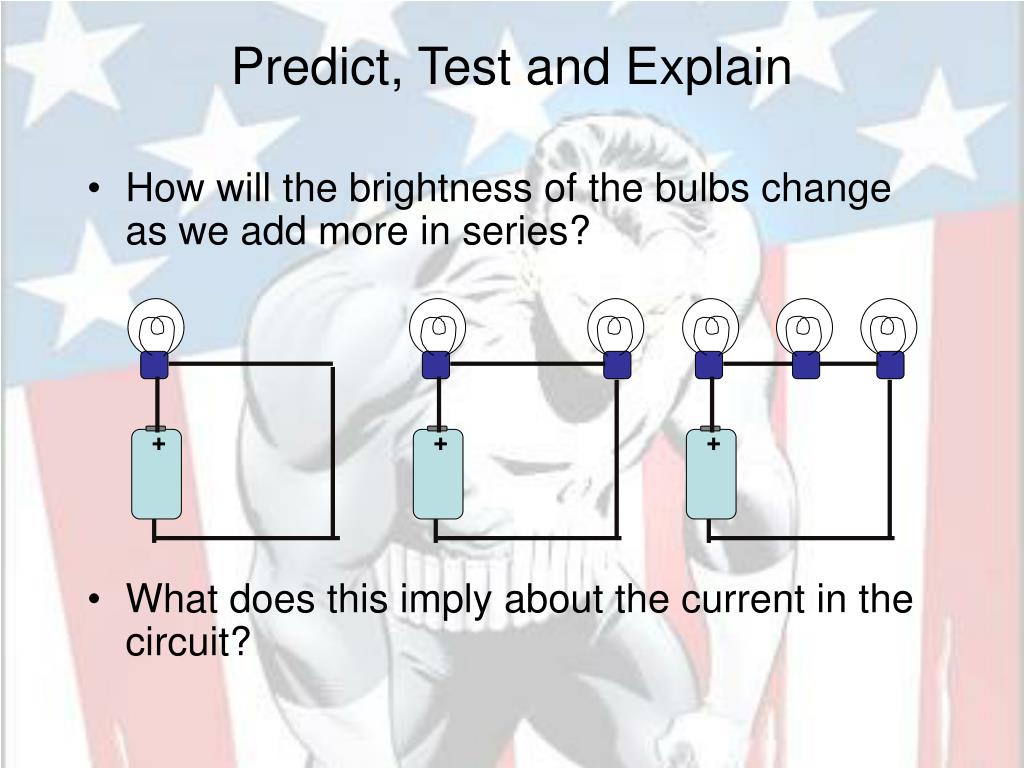

  4. + + + Predict, Test and Explain • How will the brightness of the bulbs change as we add more in series? • What does this imply about the current in the circuit?

  5. Parallel Circuit • In a Parallel circuit there are multiple pathways for charge to flow • Each device is placed on it’s own separate branch • Current goes through each of the branches at the same time

  6. + + + Predict, Test and Explain • How will the brightness of the bulbs change as we add more in parallel? • What does this imply about the current in the circuit?

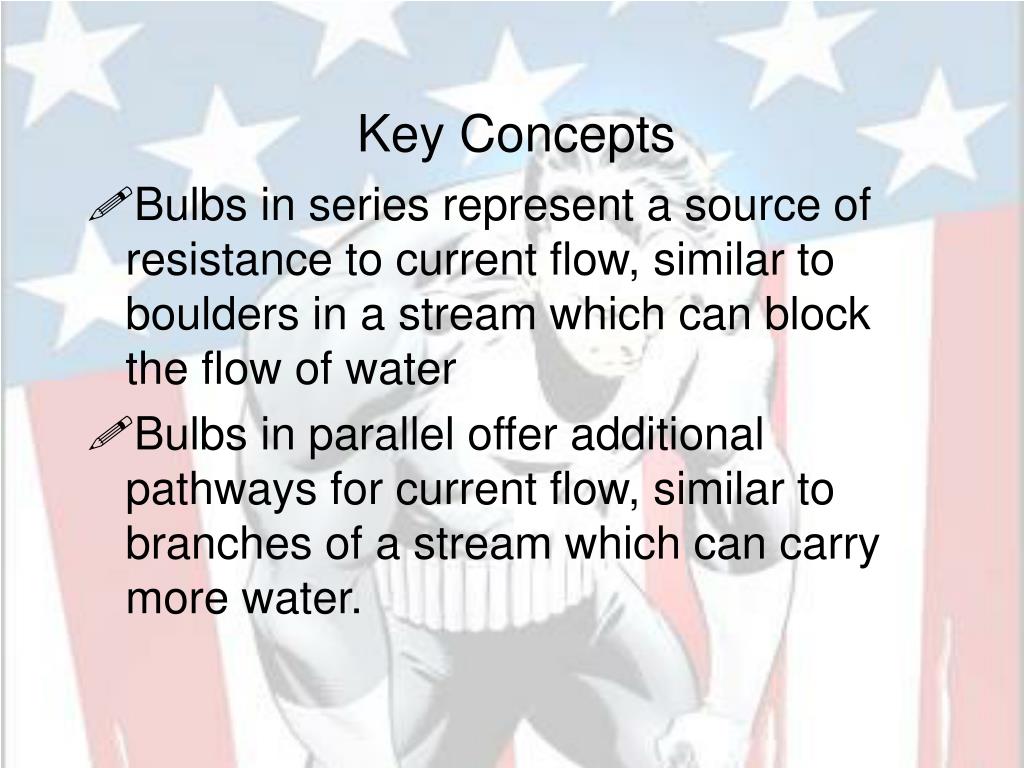

  7. Key Concepts • Bulbs in series represent a source of resistance to current flow, similar to boulders in a stream which can block the flow of water • Bulbs in parallel offer additional pathways for current flow, similar to branches of a stream which can carry more water.

  8. Calculating Resistance in Series Circuits • The rule for calculating Series Circuits is to… • Add up the values of each individual in the series. • R1 + R2 + R3… • 5 + 5 + 10 • 20 Ω (ohms)

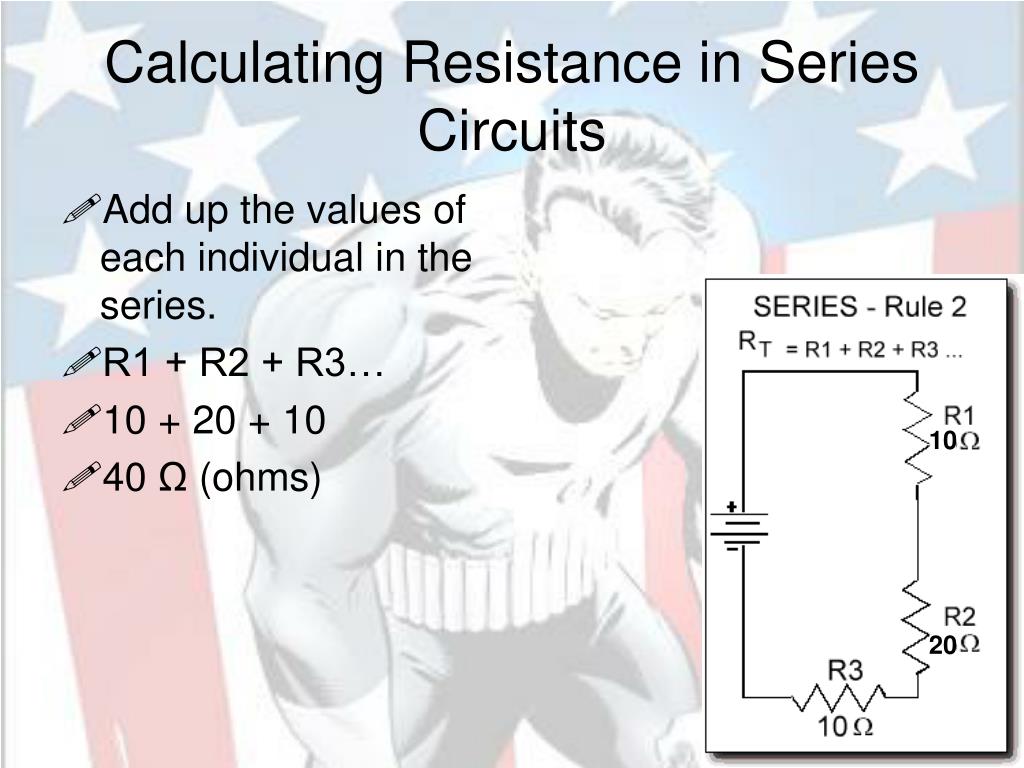

  9. Calculating Resistance in Series Circuits • Add up the values of each individual in the series. • R1 + R2 + R3… • 10 + 20 + 10 • 40 Ω (ohms) 10 20

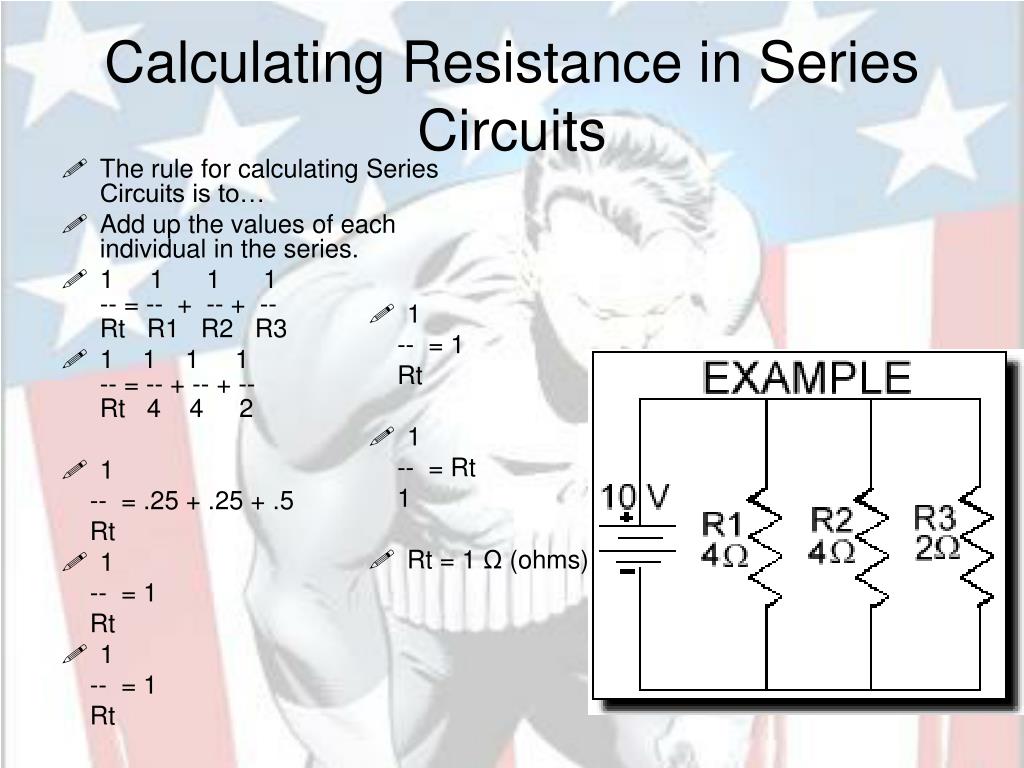

  10. Calculating Resistance in Series Circuits • The rule for calculating Series Circuits is to… • Add up the values of each individual in the series. • 1    1     1   1  -- = -- + -- + --  Rt   R1   R2   R3 • 1    1    1    1  -- = -- + -- + --  Rt   4    4     2 • 1 -- = .25 + .25 + .5  Rt • 1 -- = 1 Rt • 1 -- = 1 Rt • 1 -- = 1 Rt • 1 -- = Rt 1 • Rt = 1 Ω (ohms) 20

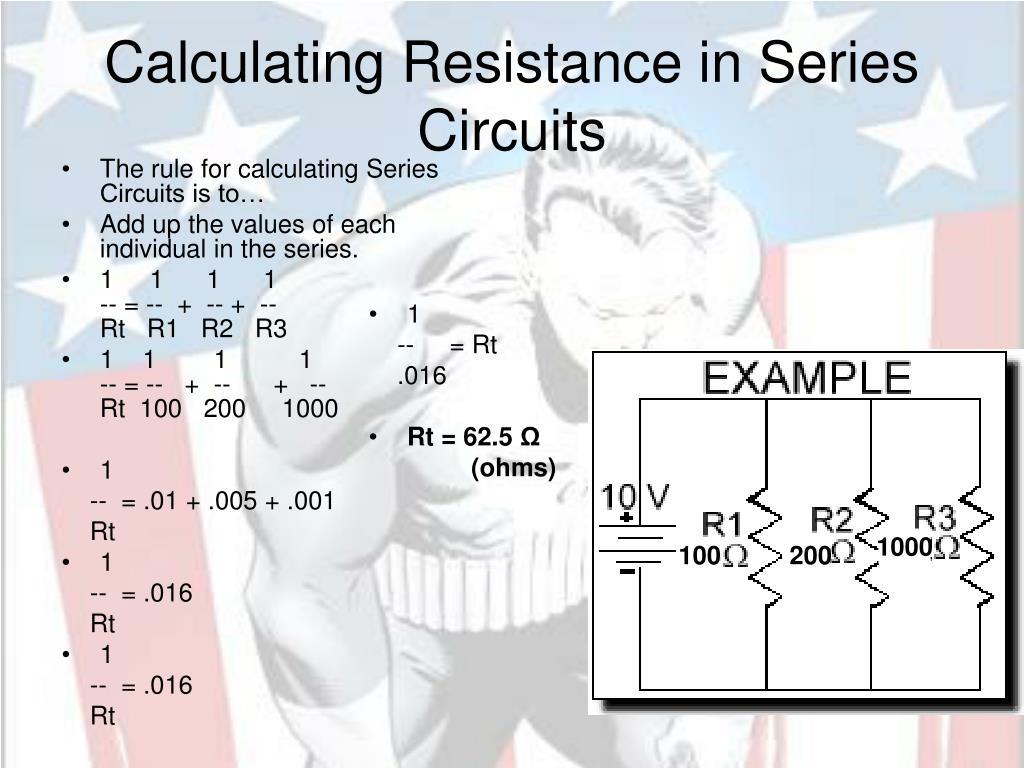

  11. Calculating Resistance in Series Circuits • The rule for calculating Series Circuits is to… • Add up the values of each individual in the series. • 1    1     1   1  -- = -- + -- + --  Rt   R1   R2   R3 • 1    1    1 1  -- = -- + -- + --  Rt  100   200     1000 • 1 -- = .01 + .005 + .001  Rt • 1 -- = .016 Rt • 1 -- = .016 Rt • 1 -- = Rt .016 • Rt = 62.5 Ω (ohms) 1000 100 200 20
