  1. CS101 Introduction to ComputingLecture 25Web Design for Usability

  2. During the last lecture … • We looked at the role of heuristics in architectural (or high-level) design • We also became familiar with a few popular design heuristics

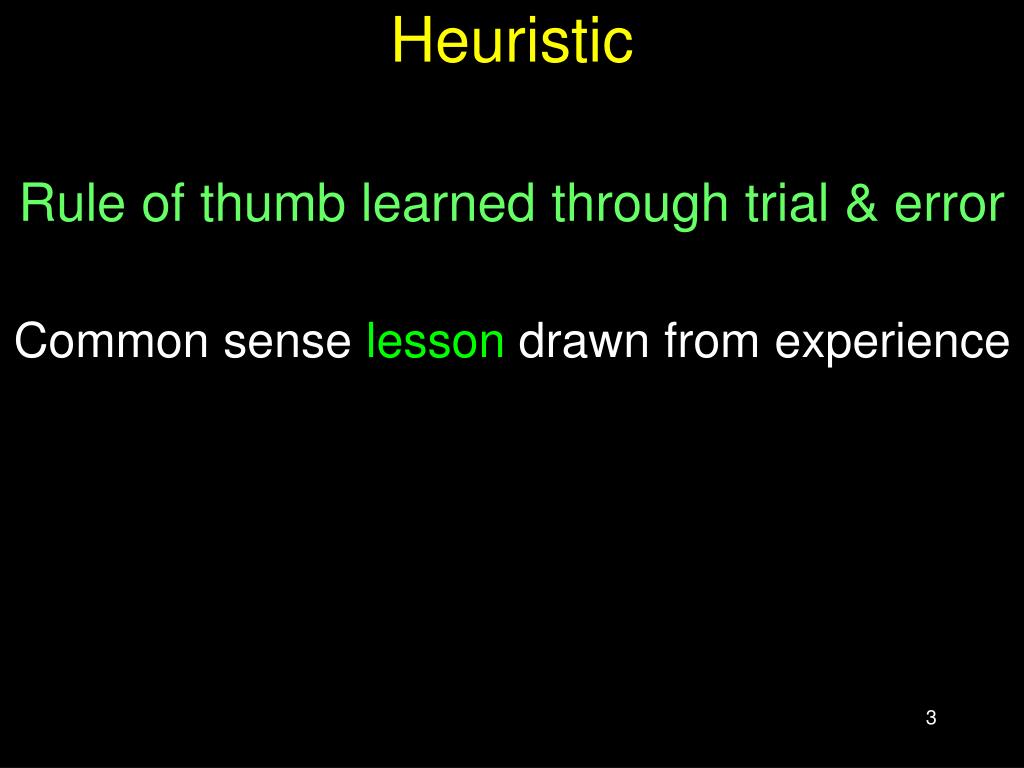

  3. Heuristic Rule of thumb learned through trial & error Common sense lesson drawn from experience

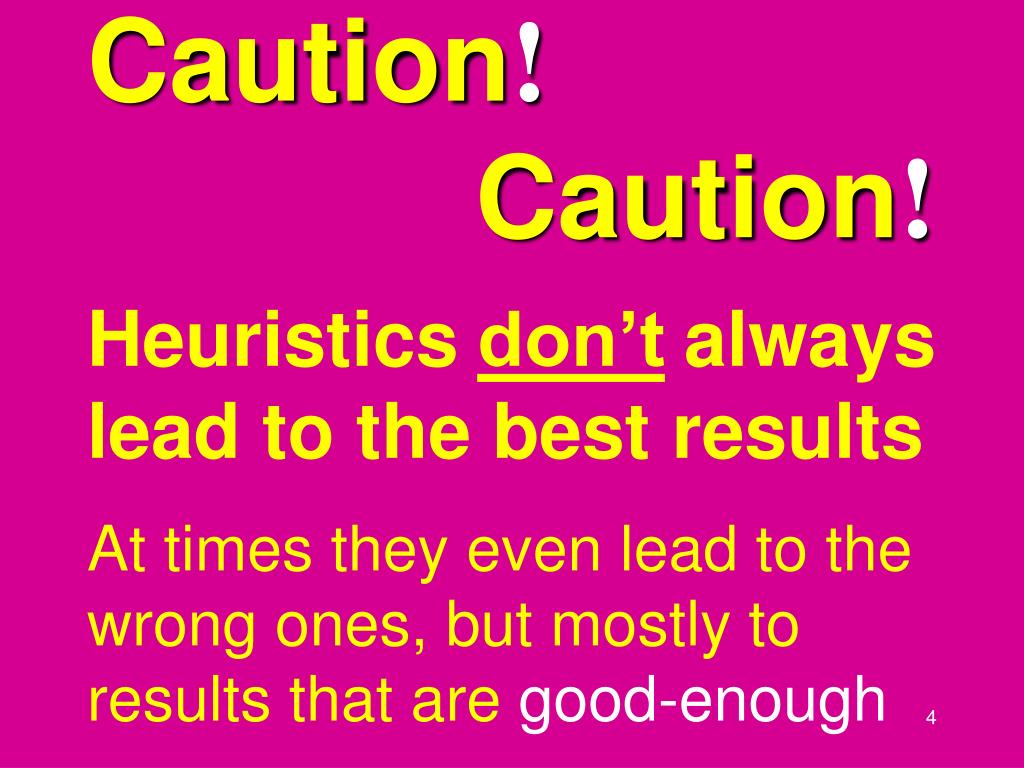

  4. Caution!Caution!Heuristicsdon’talways lead to the best resultsAt times they even lead to the wrong ones, but mostly to results that are good-enough

  5. Given many parts of a system to be designed/built,do thehardpart1st

  6. Today’s Goal:Web Design for Usability • To become able to appreciate the role of usability in Web design • To become able to identify some of the factors affecting the usability of a Web page

  7. When I look at a Web page it should beself-evident, obvious, self-explanatoryI should be able to ‘get it’ - what it is &how to use it - without expendingany effort thinking about itexcerpt from Steve Krug’s bookDon’t Make Me Think

  8. don’t make me think!

  9. Usability!

  10. What’s a Good Site? • The one that achieves the result that it was designed for • Generally, that result can only be achieved by giving the user what s/he wants, as quickly as possible, without her/him expending much effort • One definition of usability: Let the user have what s/he wants, quickly, without much effort • “Quickly” is important!

  11. speed!

  12. Users don't read; they scan Users don't make optimal choices; they look for the first good-enough solution Users don't figure out how things work; they muddle through

  13. thinkroadside billboardrather thanDewan-e-Ghalib

  14. Design is Important! • 62% of shoppers gave up looking for the item they wanted to buy online (Zona Research) • 40% visitors don’t return to a site if their first visit was a -ive experience (Forrester Research) • 83% of users have left sites in frustration due to poor navigation, slowness (NetSmart Research) • Simple designs have greater impact: they can be understood immediately! (Mullet/Sano)

  15. Simplify, simplify,simplify!

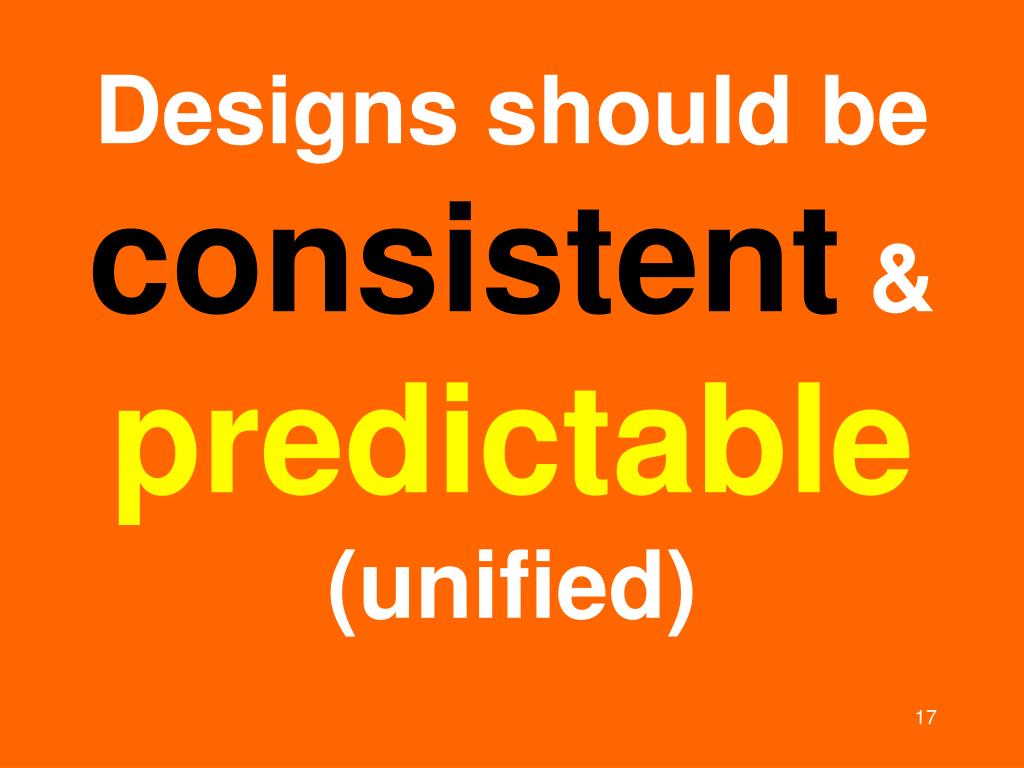

  16. Designs should be consistent & predictable(unified)

  17. Elements of Website Design • Navigation scheme • Layout of information • Overall look and feel

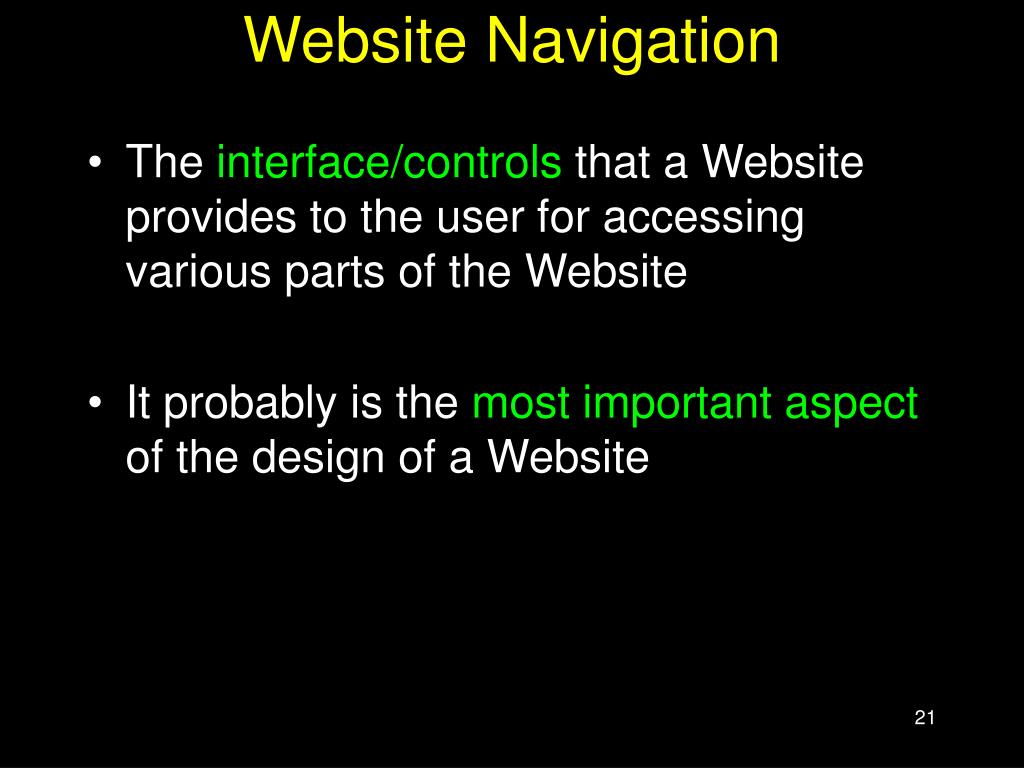

  18. Website Navigation • The interface/controls that a Website provides to the user for accessing various parts of the Website • It probably is the most important aspect of the design of a Website

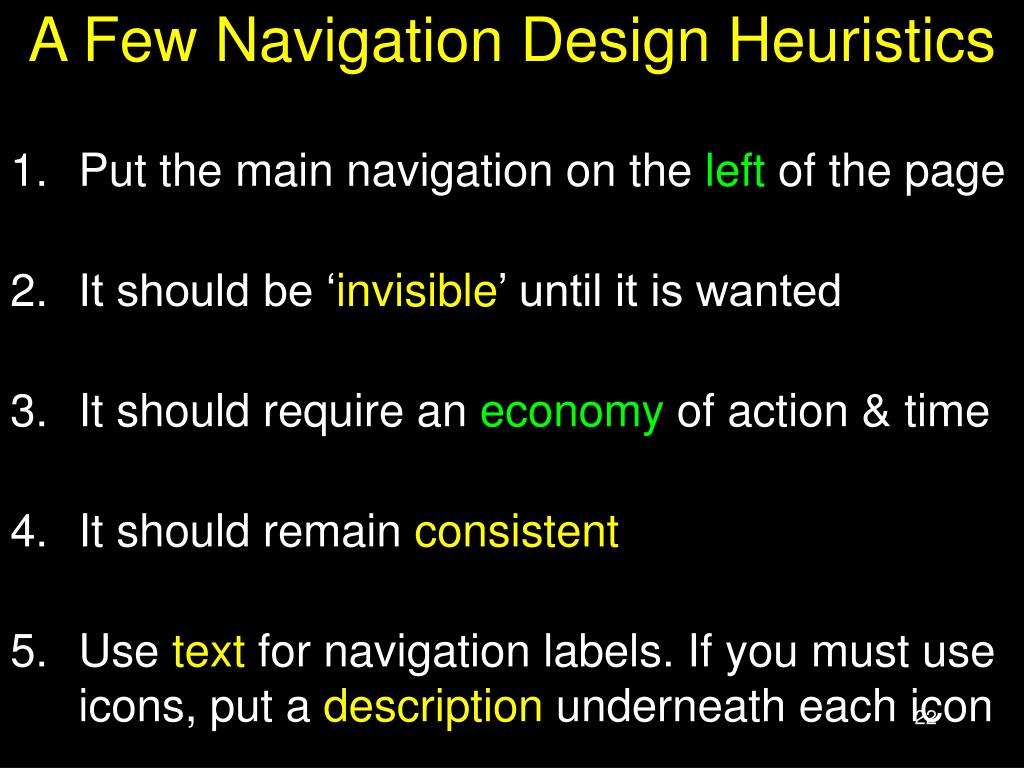

  19. A Few Navigation Design Heuristics • Put the main navigation on the left of the page • It should be ‘invisible’ until it is wanted • It should require an economy of action & time • It should remain consistent • Use text for navigation labels. If you must use icons, put a description underneath each icon

  20. Navigation Design Heuristics (contd.) • Labels should be clear, understandable • Labels should be legible • Do not play with standard browser buttons & features • Provide search capability

  21. 1- clicknavigation ?

  22. Now, let’s take a look ata few good designs …

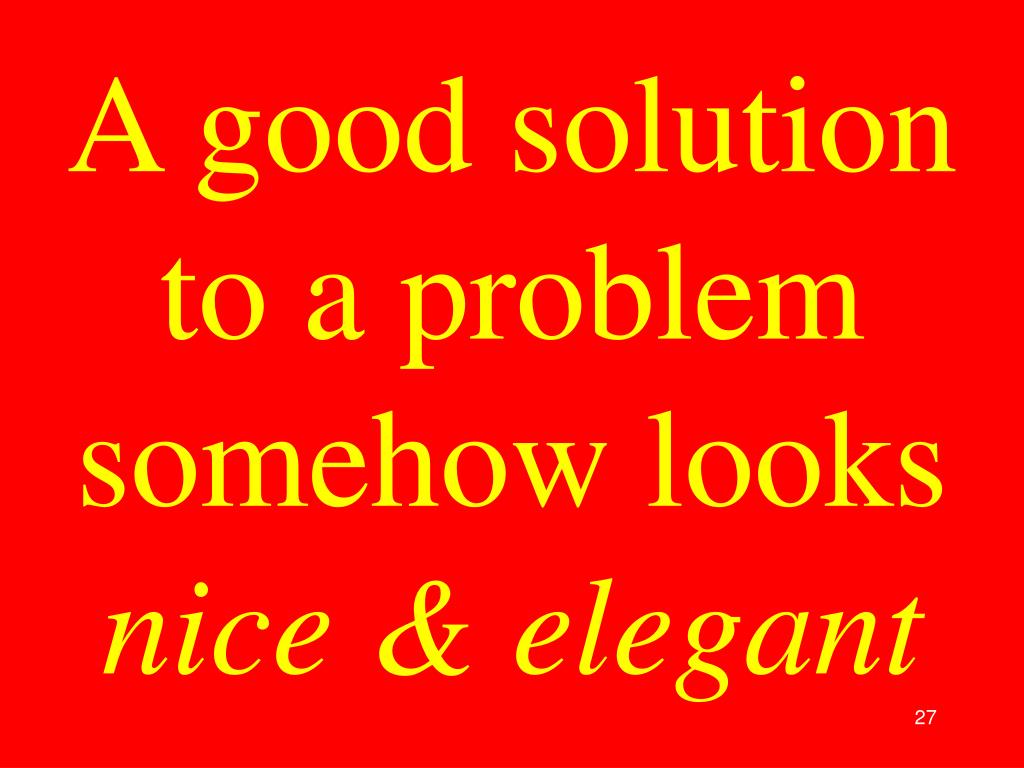

  23. A good solution to a problem somehow looks nice&elegant

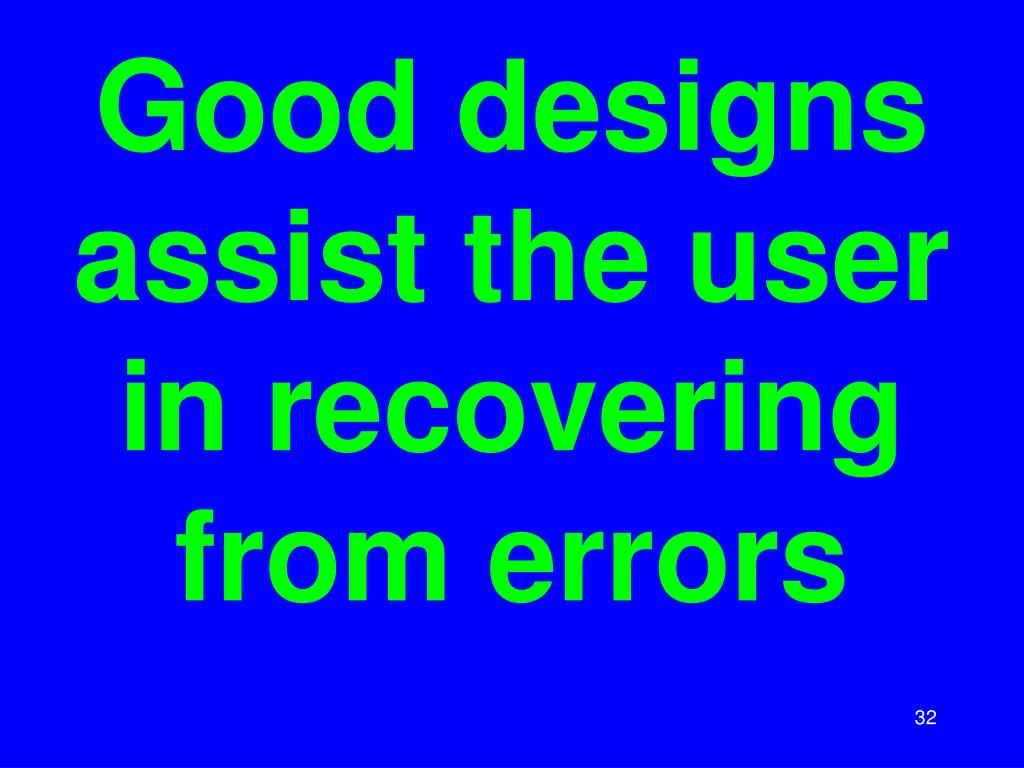

  24. Good designs assist the user in recovering from errors

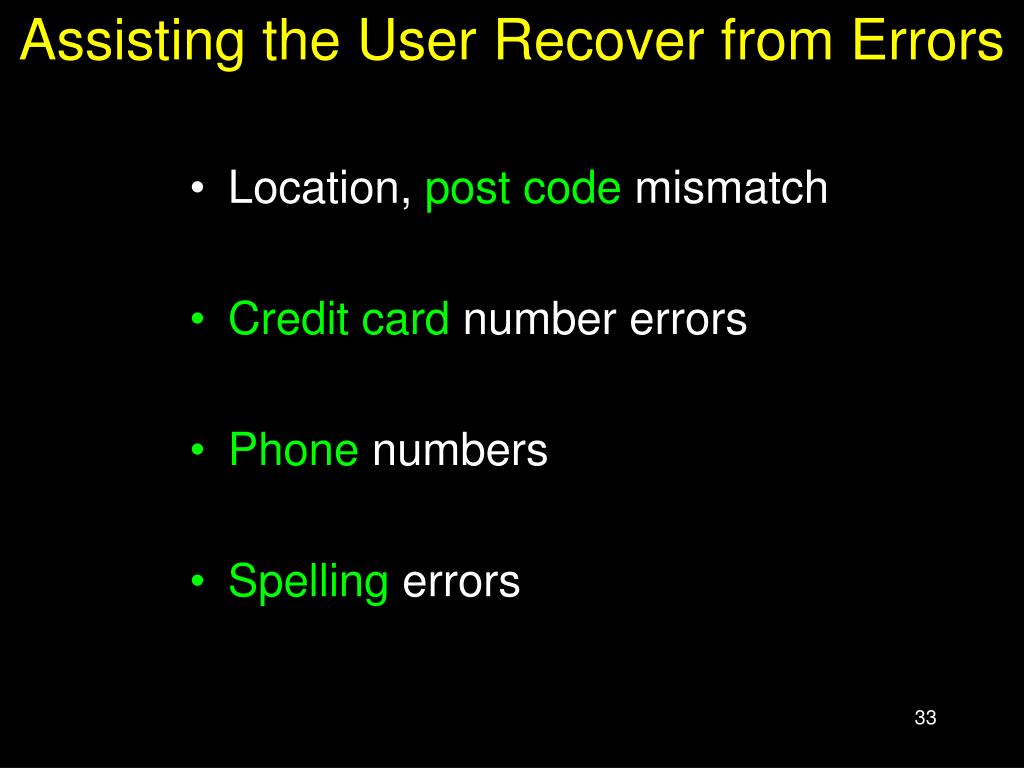

  25. Assisting the User Recover from Errors • Location, post code mismatch • Credit card number errors • Phone numbers • Spelling errors

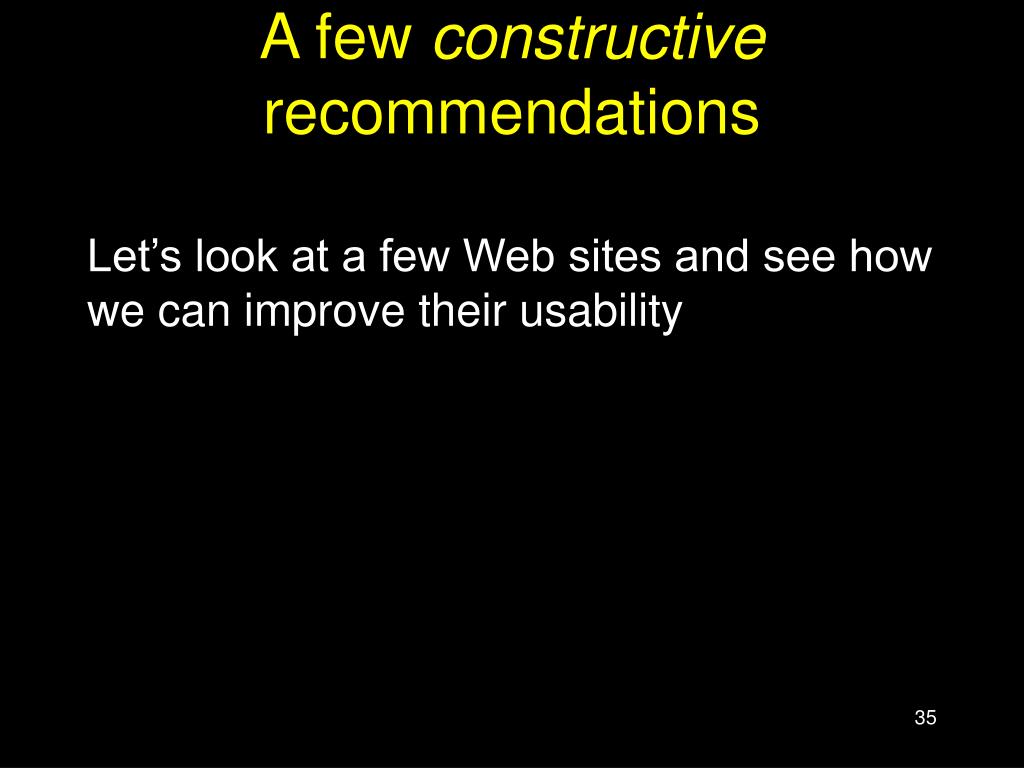

  26. A few constructive recommendations Let’s look at a few Web sites and see how we can improve their usability

  27. Enter Dragon’s Lair All rights reserved, 2002.

  28. WWW

  29. LOADING … RESTART SKIP Click here to go to the main page directly

  30. A few more Web design heuristics

  31. 1. Designing (arranging) Display Elements

  32. Making Display Elements Legible • Elements must be large enough tobe processed visually • Elements must contrast sufficiently with their backgrounds

  33. Making Display Elements Legible • Related elements should be visuallygrouped through the use of space, color, or graphical boundaries • The relative levels of importance among elements in a display should be revealed graphically

  34. 2. Ensuring Text is Readable

  35. Use sans serif (e.g. Arial, Helvetica, Verdana) typefaces for display on screen • Display type intended for continuous reading at 10 to 14 points • Avoid the overuse of bold and italics • Avoid setting type in all caps
