  1. Client Registration Examples Update 5/16/2011 Denis Pochuev

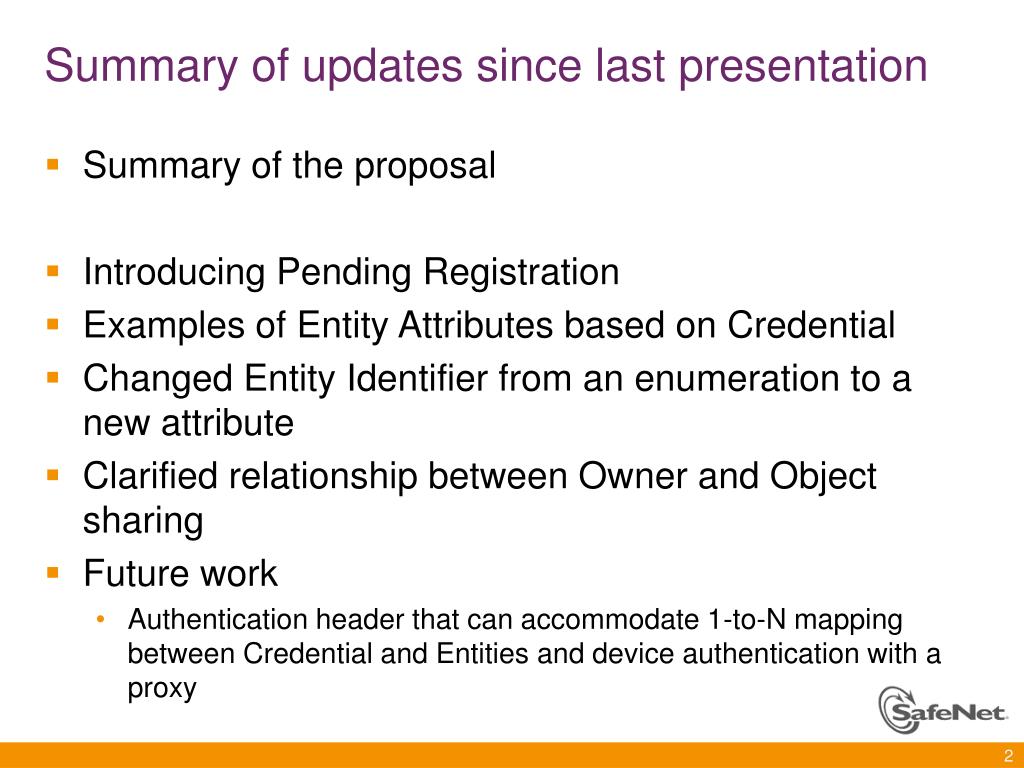

  2. Summary of updates since last presentation • Summary of the proposal • Introducing Pending Registration • Examples of Entity Attributes based on Credential • Changed Entity Identifier from an enumeration to a new attribute • Clarified relationship between Owner and Object sharing • Future work • Authentication header that can accommodate 1-to-N mapping between Credential and Entities and device authentication with a proxy

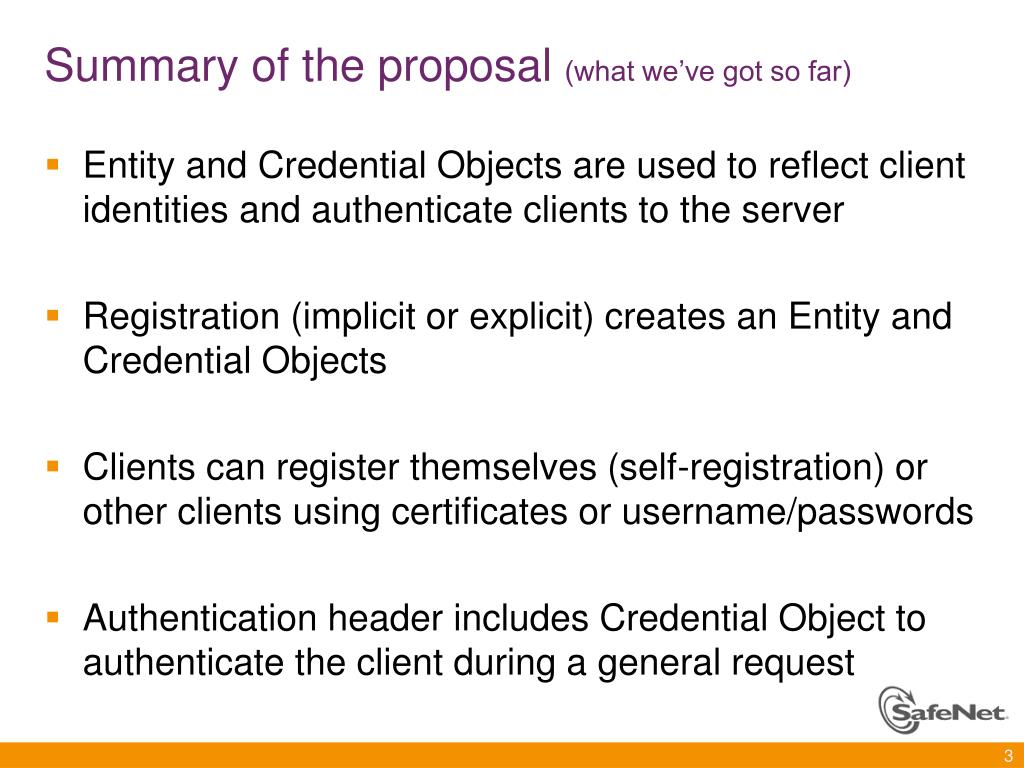

  3. Summary of the proposal (what we’ve got so far) • Entity and Credential Objects are used to reflect client identities and authenticate clients to the server • Registration (implicit or explicit) creates an Entity and Credential Objects • Clients can register themselves (self-registration) or other clients using certificates or username/passwords • Authentication header includes Credential Object to authenticate the client during a general request

  4. Summary of the proposal (contd.) • Previously proposed registration types • Implicit self-registration with cert • Explicit self-registration with cert • Explicit registration with cert • Explicit registration with username/password New: • Pending registration • Can be done with cert or username/password • Can be self-registration or registration of another client • Has to be explicit

  5. Summary of the proposal (contd.) • Implicit self-registration with cert (+2 object creations) “Normal” Create operation Authentication Credential Credential Type: Transport Certificate Credential Value: <empty> Authentication Credential Credential Type: Transport Certificate Credential Value: <empty> • Explicit self-registration with cert (+1 object creation) Register Object Type=Entity Template-Attribute Attribute Attribute Name: “Credential” Attribute Value: Credential Type: Transport Certificate Credential Value: <empty> KMIP Server KMIP Server KMIP Client KMIP Client Auth Request + Create Entity + Create Object Register Entity Create Object Auth Request + Create Entity Entity UUID + Obj UUID Entity UUID Create Object Create Object Obj UUID Obj UUID Create Object Create Object

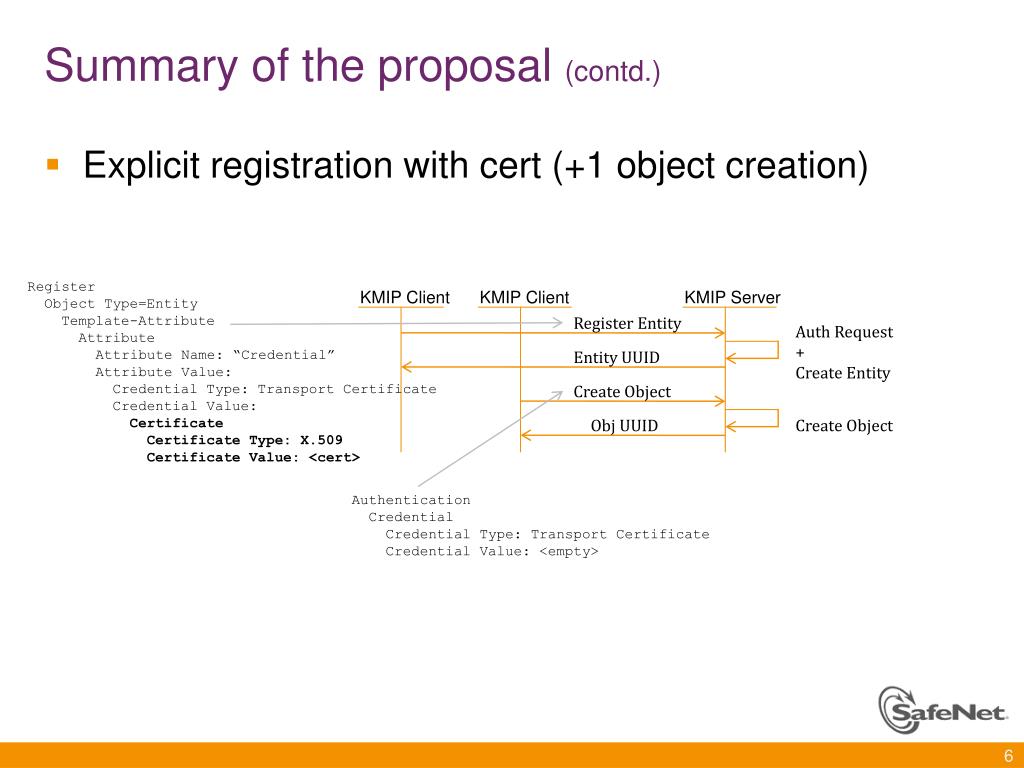

  6. Summary of the proposal (contd.) • Explicit registration with cert (+1 object creation) KMIP Client Register Object Type=Entity Template-Attribute Attribute Attribute Name: “Credential” Attribute Value: Credential Type: Transport Certificate Credential Value: Certificate Certificate Type: X.509 Certificate Value: <cert> Authentication Credential Credential Type: Transport Certificate Credential Value: <empty> KMIP Client KMIP Server Register Entity Auth Request + Create Entity Entity UUID Create Object Obj UUID Create Object

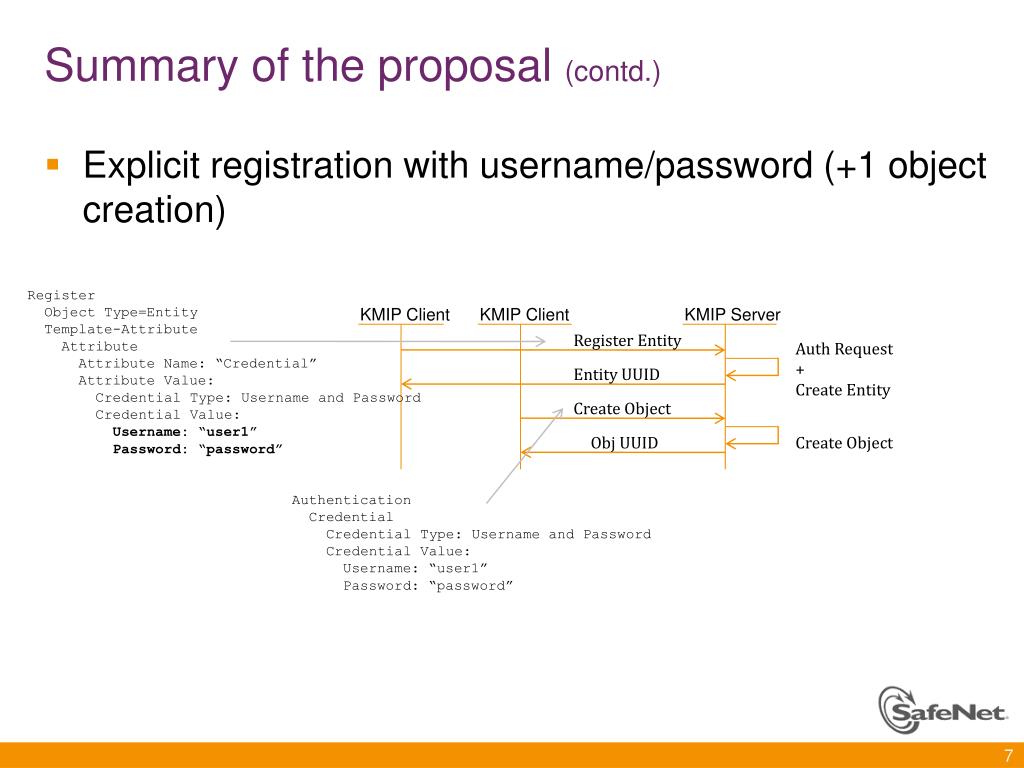

  7. Summary of the proposal (contd.) • Explicit registration with username/password (+1 object creation) KMIP Client Register Object Type=Entity Template-Attribute Attribute Attribute Name: “Credential” Attribute Value: Credential Type: Username and Password Credential Value: Username: “user1” Password: “password” Authentication Credential Credential Type: Username and Password Credential Value: Username: “user1” Password: “password” KMIP Client KMIP Server Register Entity Auth Request + Create Entity Entity UUID Create Object Obj UUID Create Object

  8. Pending Registration • Asynchronous registration, uses existing asynchronous request mechanism • Provides a way for the server admin to authorize requests off-line KMIP Client Register Object Type=Entity Asynchronous Indicator=True Template-Attribute Attribute Attribute Name: “Credential” Attribute Value: Credential Type: Transport Certificate Credential Value: <empty> KMIP Server Register Entity Queue up the request Status=pending; ACV=0353256 Authorize requests Poll; ACV=0353256 Obj UUID

  9. Entity Attributes based on Credentials • Result of a registration is an Entity, by default it contains credential attribute Register Object Type=Entity Template-Attribute Attribute Attribute Name: “Credential” Attribute Value: Credential Type: Transport Certificate Credential Value: <empty> Entity UUID: ABCD-1234 Attribute Attribute Name: “Credential” Attribute Value: …

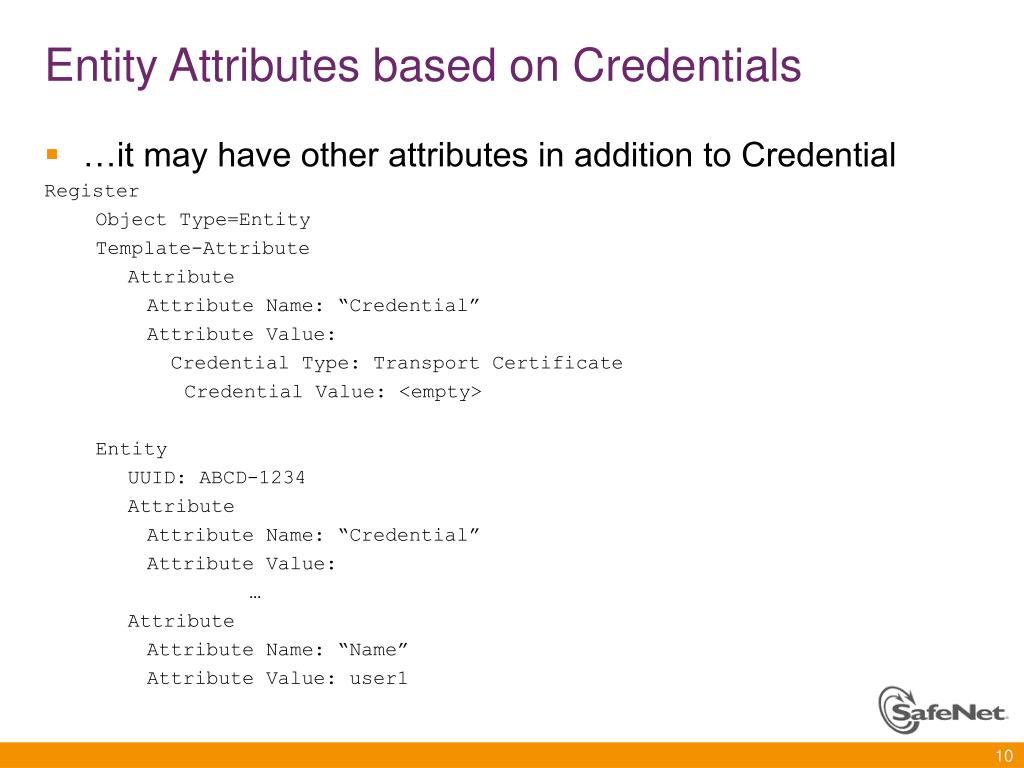

  10. Entity Attributes based on Credentials • …it may have other attributes in addition to Credential Register Object Type=Entity Template-Attribute Attribute Attribute Name: “Credential” Attribute Value: Credential Type: Transport Certificate Credential Value: <empty> Entity UUID: ABCD-1234 Attribute Attribute Name: “Credential” Attribute Value: … Attribute Attribute Name: “Name” Attribute Value: user1

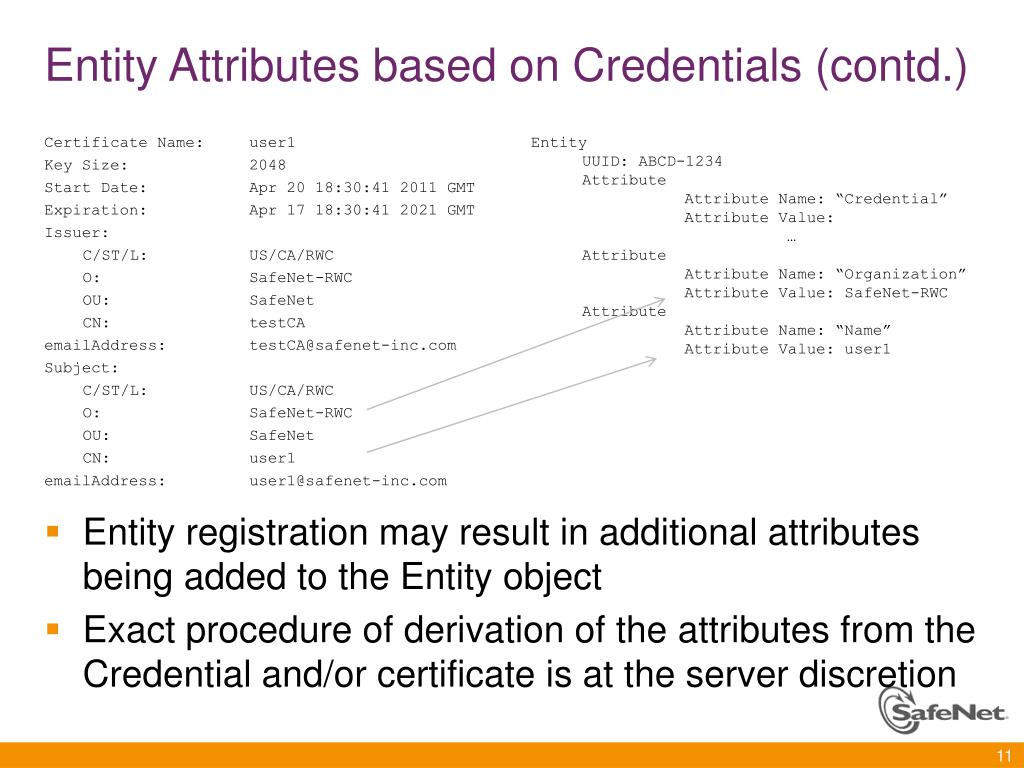

  11. Entity Attributes based on Credentials (contd.) Entity UUID: ABCD-1234 • Attribute • Attribute Name: “Credential” • Attribute Value: … • Attribute • Attribute Name: “Organization” • Attribute Value: SafeNet-RWC • Attribute • Attribute Name: “Name” • Attribute Value: user1 Certificate Name: user1 Key Size: 2048 Start Date: Apr 20 18:30:41 2011 GMT Expiration: Apr 17 18:30:41 2021 GMT Issuer: C/ST/L: US/CA/RWC O: SafeNet-RWC OU: SafeNet CN: testCA emailAddress: testCA@safenet-inc.com Subject: C/ST/L: US/CA/RWC O: SafeNet-RWC OU: SafeNet CN: user1 emailAddress: user1@safenet-inc.com • Entity registration may result in additional attributes being added to the Entity object • Exact procedure of derivation of the attributes from the Credential and/or certificate is at the server discretion

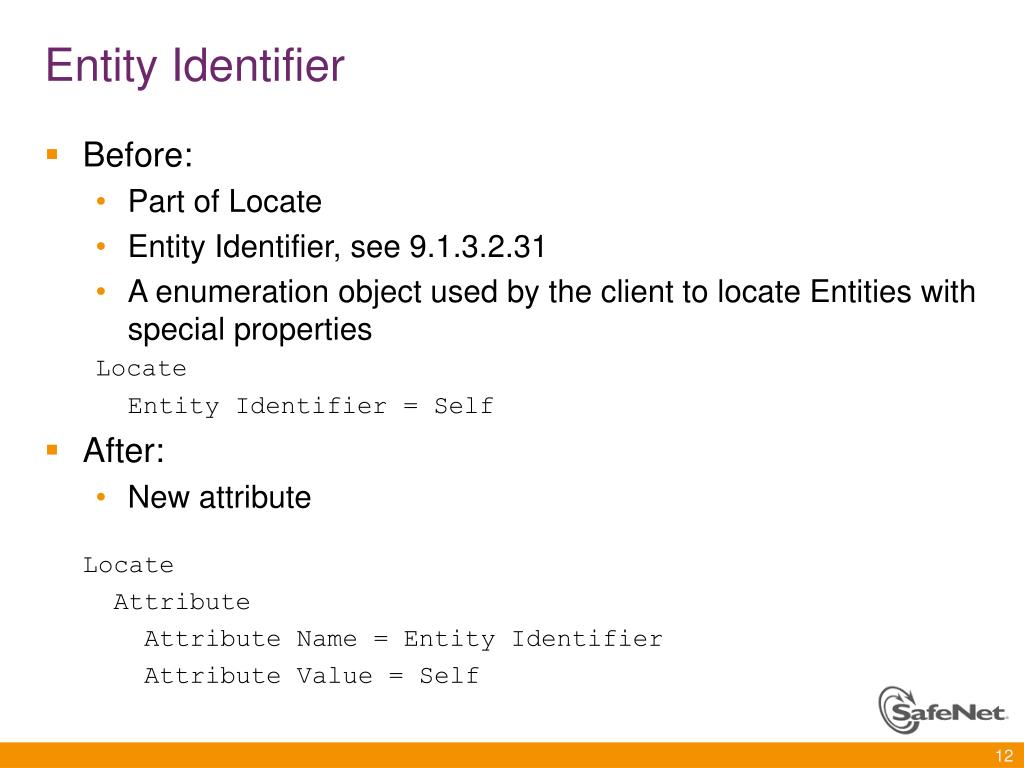

  12. Entity Identifier • Before: • Part of Locate • Entity Identifier, see 9.1.3.2.31 • A enumeration object used by the client to locate Entities with special properties Locate Entity Identifier = Self • After: • New attribute Locate Attribute Attribute Name = Entity Identifier Attribute Value = Self

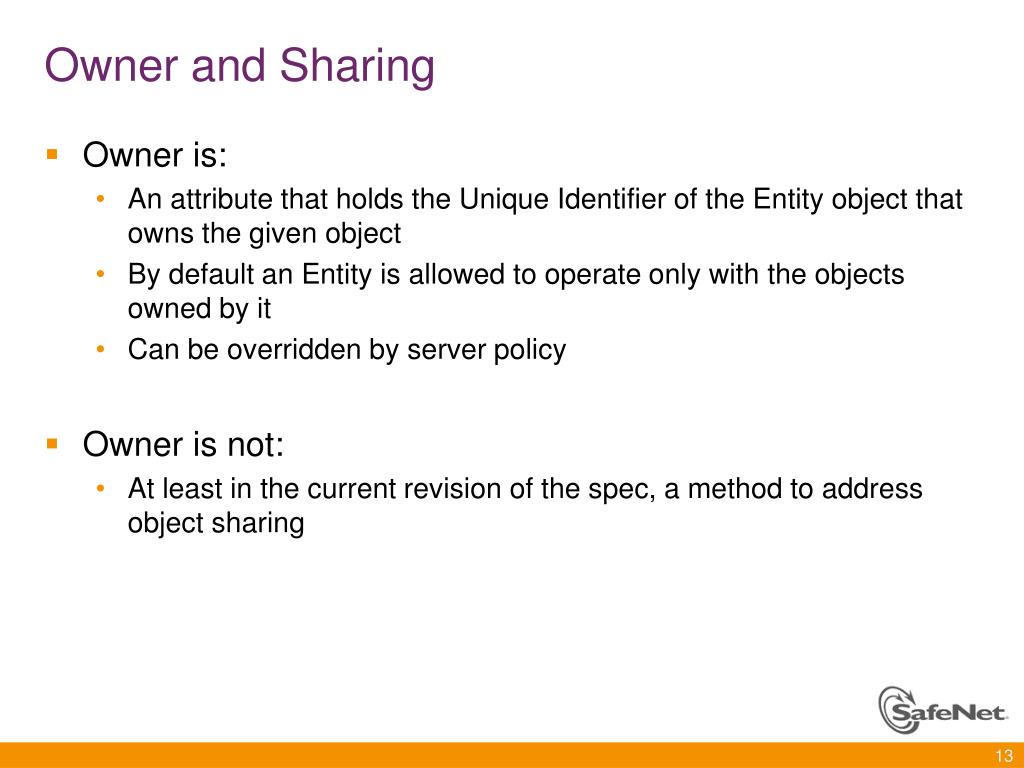

  13. Owner and Sharing • Owner is: • An attribute that holds the Unique Identifier of the Entity object that owns the given object • By default an Entity is allowed to operate only with the objects owned by it • Can be overridden by server policy • Owner is not: • At least in the current revision of the spec, a method to address object sharing

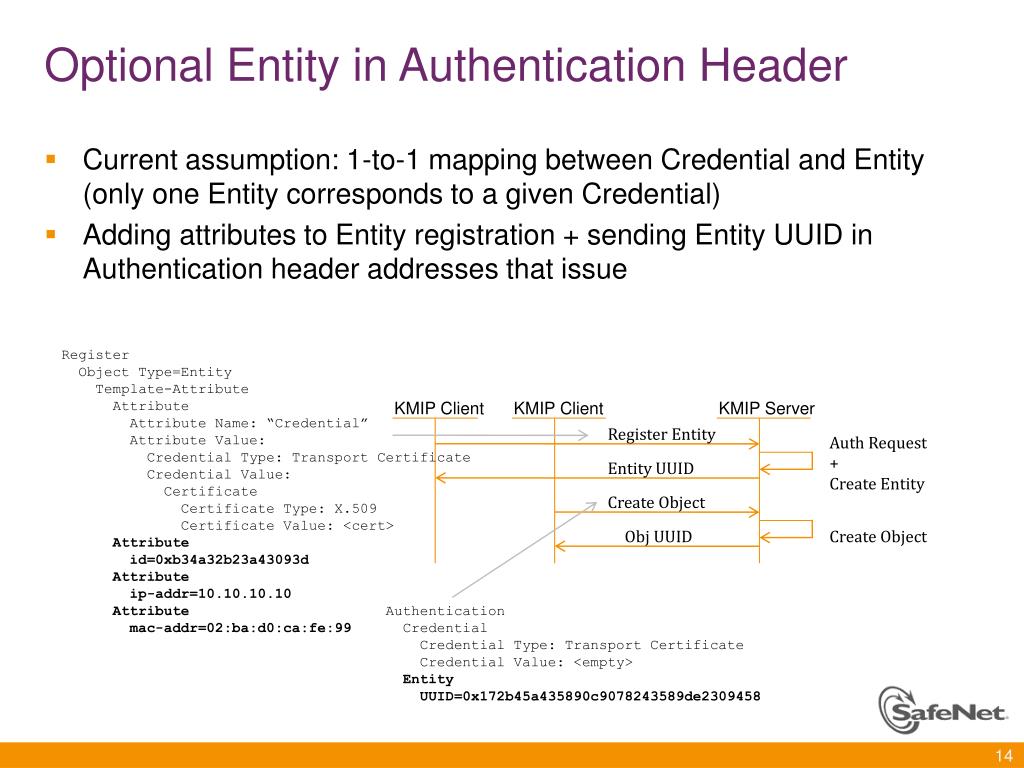

  14. Optional Entity in Authentication Header • Current assumption: 1-to-1 mapping between Credential and Entity (only one Entity corresponds to a given Credential) • Adding attributes to Entity registration + sending Entity UUID in Authentication header addresses that issue KMIP Client Register Object Type=Entity Template-Attribute Attribute Attribute Name: “Credential” Attribute Value: Credential Type: Transport Certificate Credential Value: Certificate Certificate Type: X.509 Certificate Value: <cert> Attribute id=0xb34a32b23a43093d Attribute ip-addr=10.10.10.10 Attribute mac-addr=02:ba:d0:ca:fe:99 Authentication Credential Credential Type: Transport Certificate Credential Value: <empty> Entity UUID=0x172b45a435890c9078243589de2309458 KMIP Client KMIP Server Register Entity Auth Request + Create Entity Entity UUID Create Object Obj UUID Create Object
