  1. EVLA Front-End CDR Solar Mode EVLA Front-End CDR – Solar Mode April 24, 2006

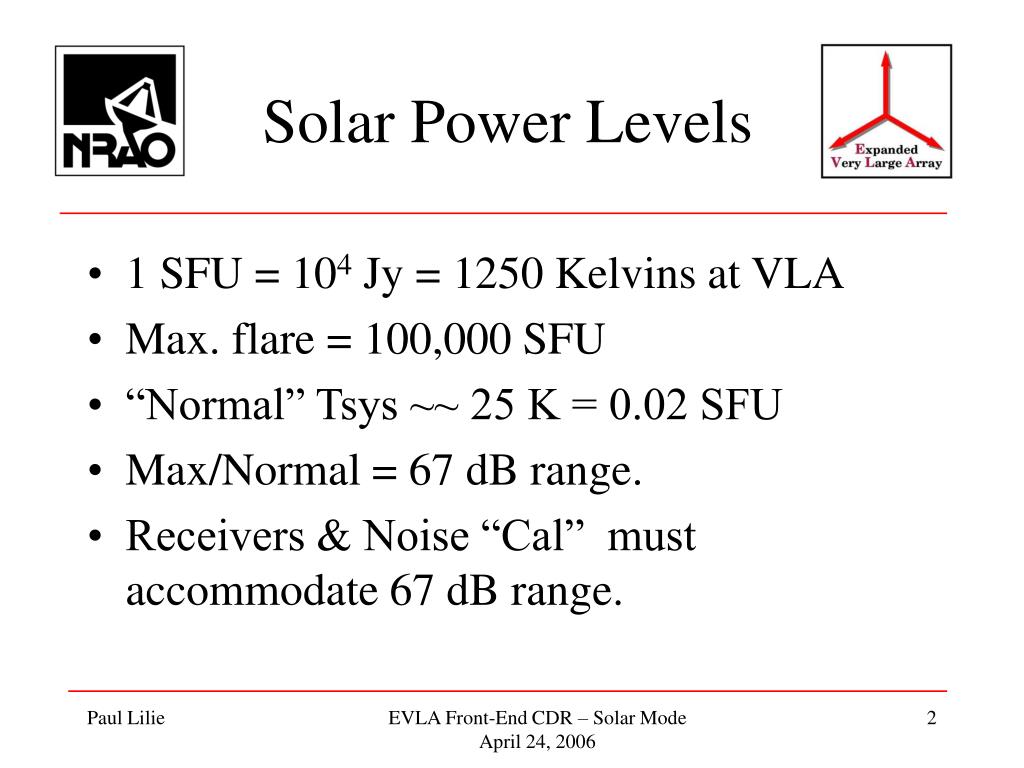

  2. Solar Power Levels • 1 SFU = 104 Jy = 1250 Kelvins at VLA • Max. flare = 100,000 SFU • “Normal” Tsys ~~ 25 K = 0.02 SFU • Max/Normal = 67 dB range. • Receivers & Noise “Cal” must accommodate 67 dB range. EVLA Front-End CDR – Solar Mode April 24, 2006

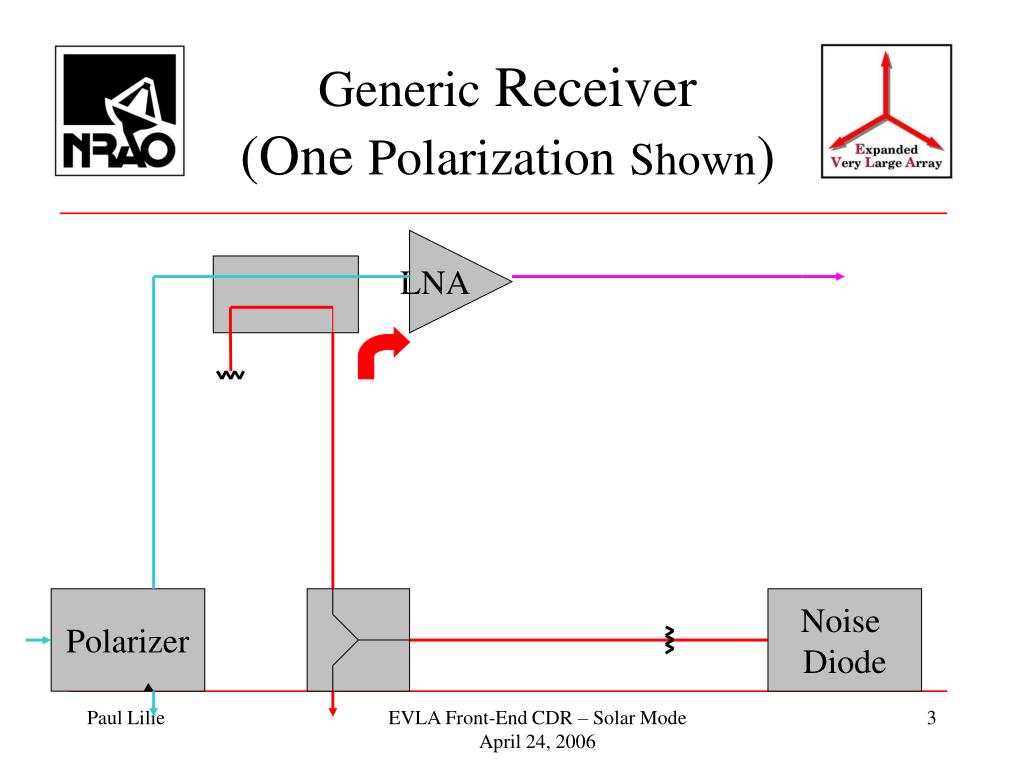

  3. Generic Receiver(One PolarizationShown) LNA Polarizer Noise Diode EVLA Front-End CDR – Solar Mode April 24, 2006

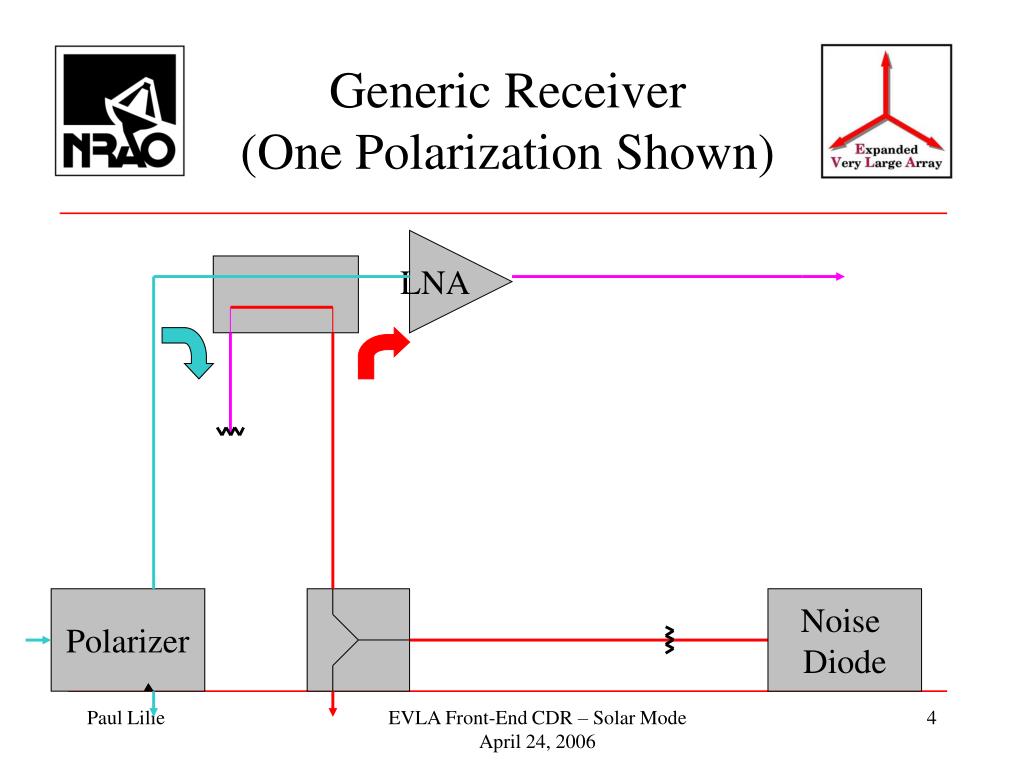

  4. Generic Receiver(One Polarization Shown) LNA Polarizer Noise Diode EVLA Front-End CDR – Solar Mode April 24, 2006

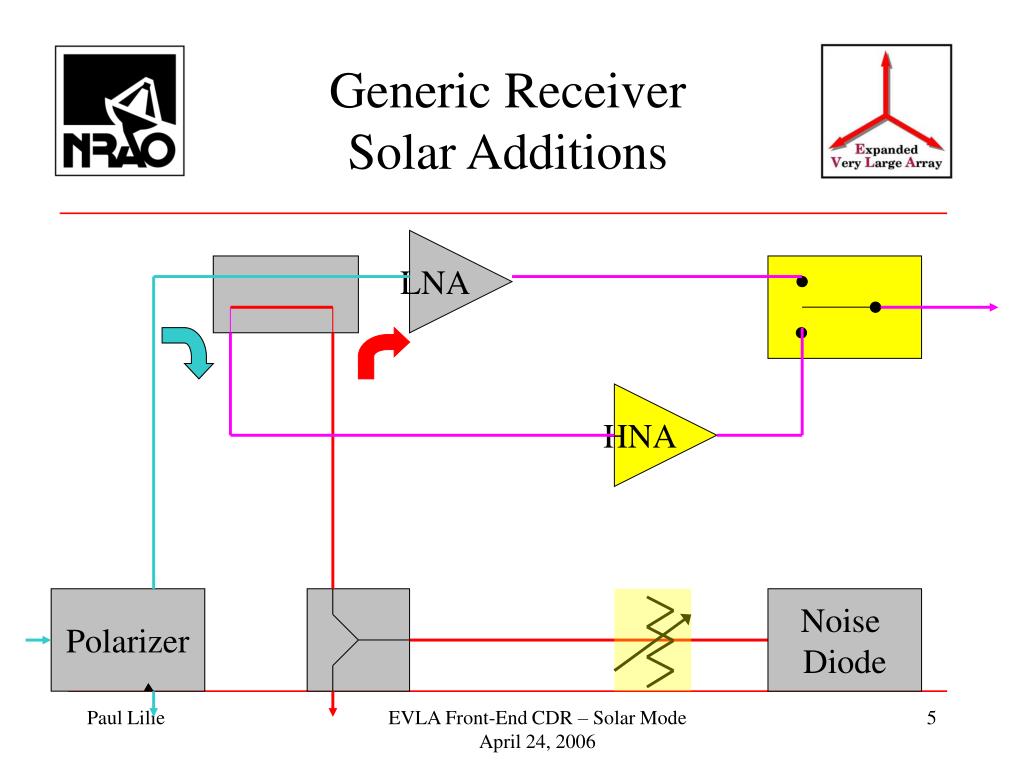

  5. Generic ReceiverSolar Additions LNA HNA Polarizer Noise Diode EVLA Front-End CDR – Solar Mode April 24, 2006

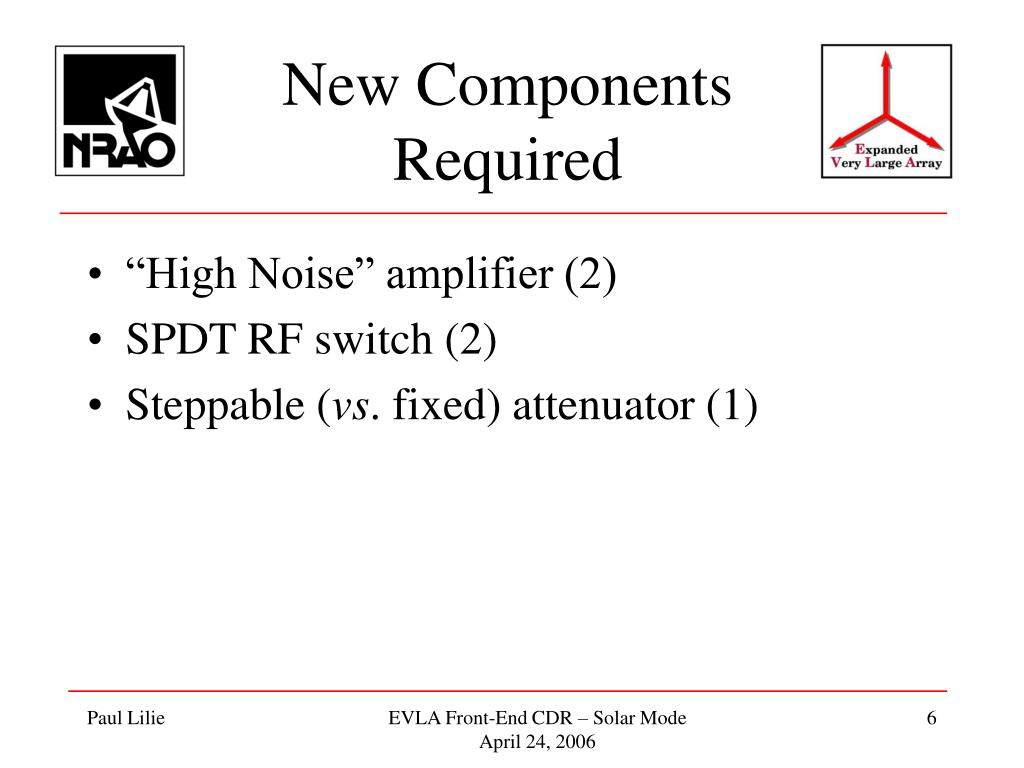

  6. New Components Required • “High Noise” amplifier (2) • SPDT RF switch (2) • Steppable (vs. fixed) attenuator (1) EVLA Front-End CDR – Solar Mode April 24, 2006

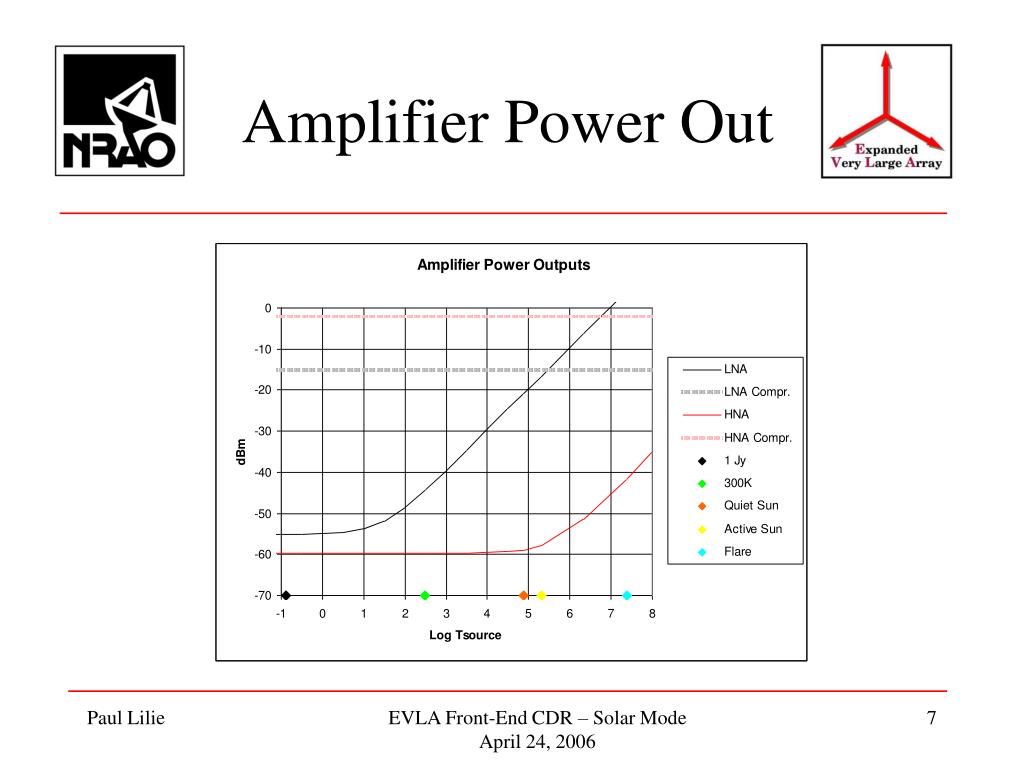

  7. Amplifier Power Out EVLA Front-End CDR – Solar Mode April 24, 2006

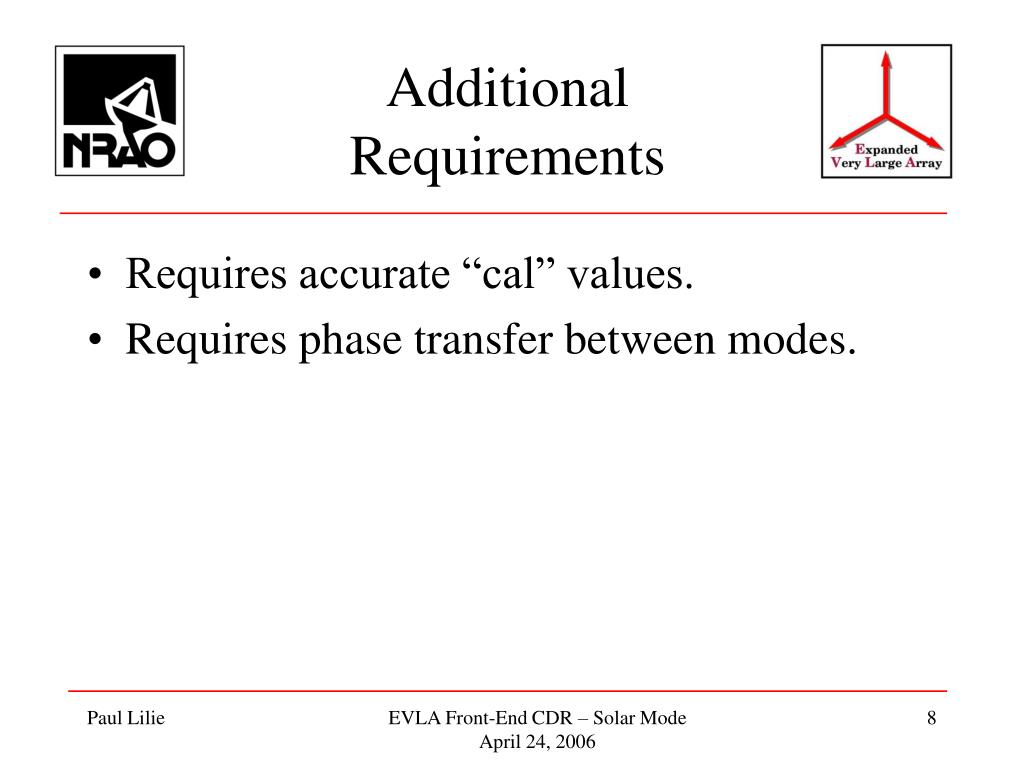

  8. Additional Requirements • Requires accurate “cal” values. • Requires phase transfer between modes. EVLA Front-End CDR – Solar Mode April 24, 2006

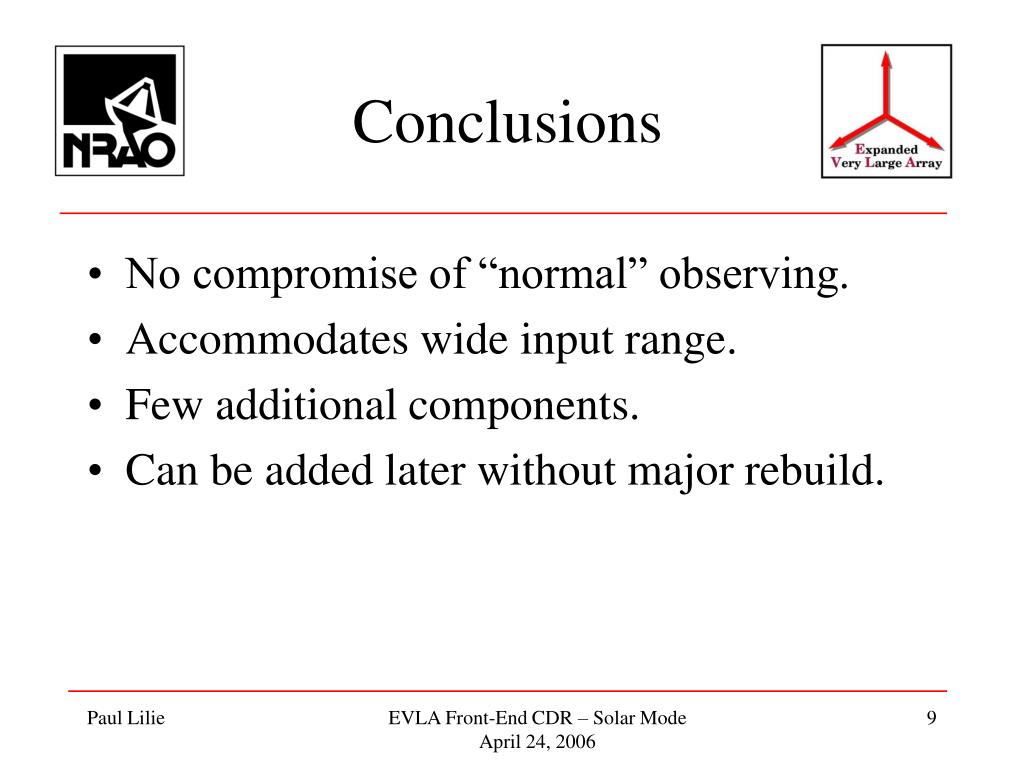

  9. Conclusions • No compromise of “normal” observing. • Accommodates wide input range. • Few additional components. • Can be added later without major rebuild. EVLA Front-End CDR – Solar Mode April 24, 2006
