COLD FRONT END

nitsa avatar
nitsa
14 diapositives · 305 Views · Jul 23, 2014

This document outlines the physical considerations and requirements for developing a radio frequency (RF) system specifically tailored for low-temperature observatory scenarios, achieving temperatures below 50K across the 1-18GHz bandwidth. Key features include enhanced stability, optimal beam matching, efficient cooling solutions, and an innovative mounting proposal for seamless installation and operation. The timeline for component selection, machining, and system testing is detailed, ensuring a fully operational system by Summer 2013. Collaboration with experts ensures high-quality RF component design and implementation.

#cold front end #cold front end ppt #powerpoint #presentation
COLD FRONT END - slide 1
01 / 14COLD FRONT END
1 / 17

Télécharger la présentation

COLD FRONT END
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

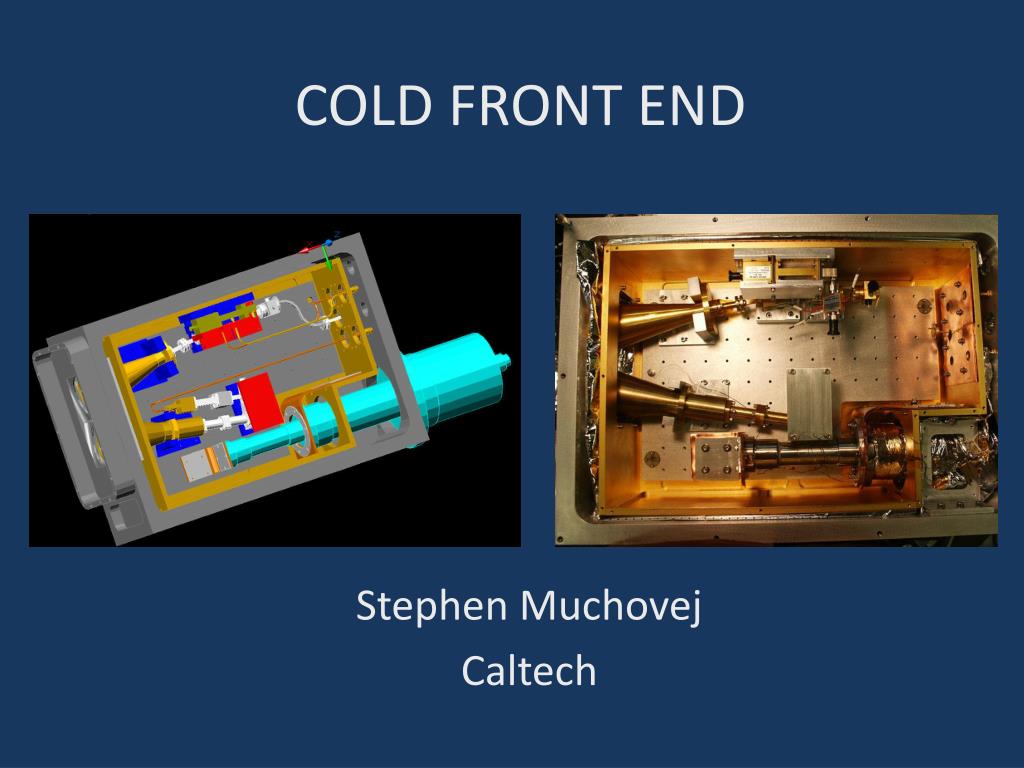

  1. COLD FRONT END Stephen Muchovej Caltech

  2. CONSIDERATIONS RF System Itself Physical Considerations Packaging Mounting

  3. RF System Requirements Noise temps of < 50K from 1-18GHz 1% Amp Stability, 1 degree phase stability Polar accuracy: 15 dB isolation Ready in Fall – completely done by Summer 2013

  4. RF System Note: amp symbols are reversed.

  5. Horn Considerations - Spillover

  6. Horn Considerations - Cooling

  7. Possible Solution Well-matched optics Low spillover Free Design …only operates over factor of 6 in frequency. Means we have to split the system

  8. Telescope Focus Point 2m in front of platform. We can put the two systems side-by-side, and cool all components in a single dewar.

  9. Features Better system temp ( <50K across whole band ) Perfect beam matching between two systems. Lateral translation between 2 systems. Need 15cm Vertical Translation between two feeds. Needs to rotate to calibrate smaller dishes.

  10. Mount Proposal Replace the mechanism up there with a full, self-contained system that bolts onto the ring platform. Uses tracks for linear (and vertical -- focus) translations with actuators. Uses a gear for rotation Install whole rx system at once Adjust y once on installation

  11. Mount Proposal Replace the mechanism up there with a full, self-contained system that bolts onto the ring platform. • Allows for rotation and translation

  12. Prime Focus Inventory Rx and cryo lines. Temp Controlled (TECA) box with: Bias for amps Temp Stable noise source Temp monitoring RF switch Pre-amp module RF-optical converter Ethernet Switch Ethernet controllable power supply Small computer to control Noise Diode, Bias, and Alignment jig (rotation, x, and z)

  13. Other people involved are TomiHovatta • (most machining) and Russ Keeney • March-Mid May: Component Selection and Costing, Rx Design, and Support Jig Design • May 15: Order RF components, Quotes on Machining (that won’t happen here) • May-July: Machining (Jig, horns, cryostat), control subsystem development • August-September: Rx construction, Mechanical testing of Jig, Rx Testing • October: Buffer Month. • Nov-Dec: Installation/Commissioning Timeline

  14. Communications between small computer and control system • Amount of focus shift in pointing the telescope • Tolerances for Rx placement -- laterally and rotationally • Control of focus mechanism (distortion of dish) • Budget. Still to define
