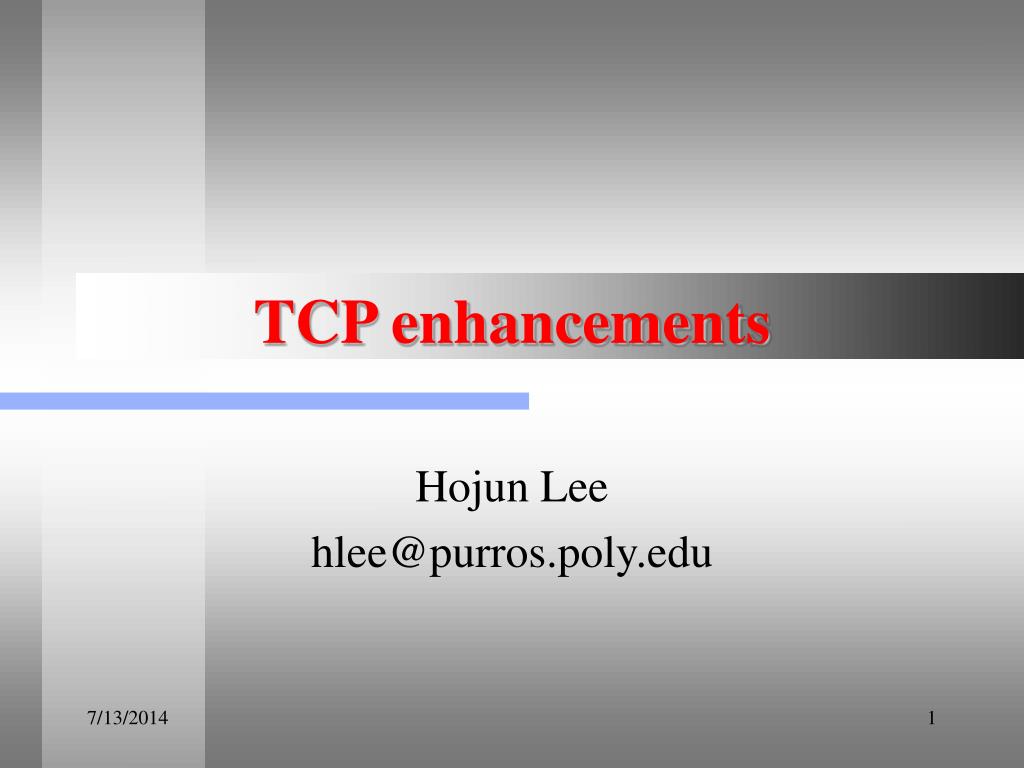

  1. TCP enhancements Hojun Lee hlee@purros.poly.edu

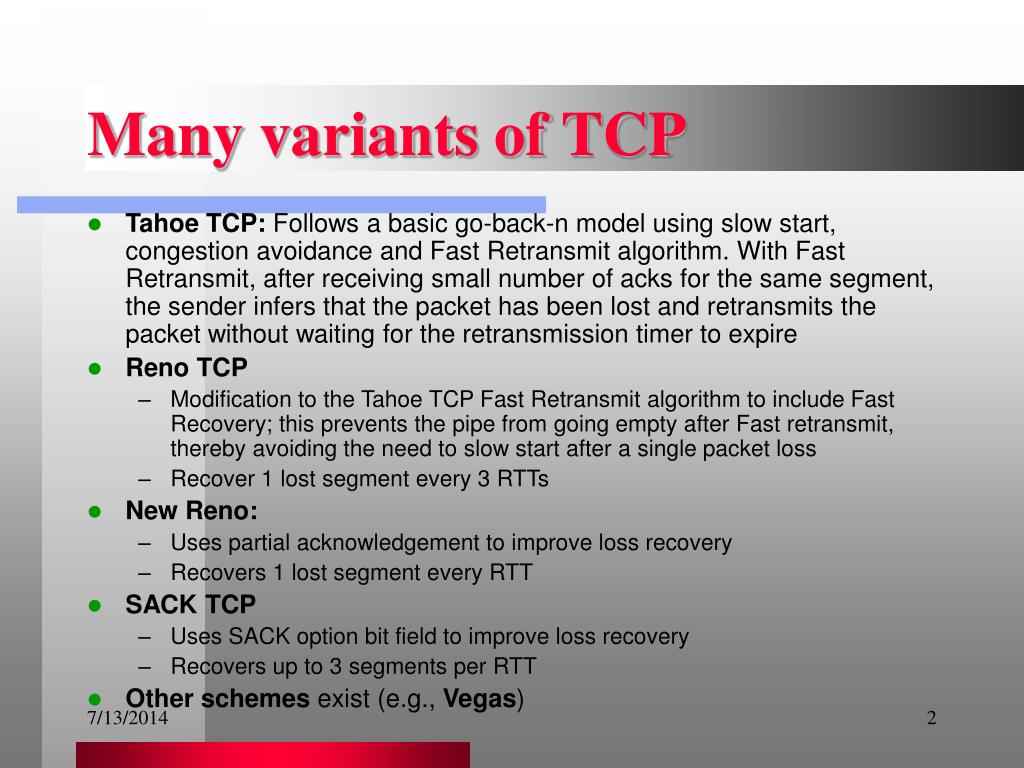

  2. Many variants of TCP • Tahoe TCP: Follows a basic go-back-n model using slow start, congestion avoidance and Fast Retransmit algorithm. With Fast Retransmit, after receiving small number of acks for the same segment, the sender infers that the packet has been lost and retransmits the packet without waiting for the retransmission timer to expire • Reno TCP • Modification to the Tahoe TCP Fast Retransmit algorithm to include Fast Recovery; this prevents the pipe from going empty after Fast retransmit, thereby avoiding the need to slow start after a single packet loss • Recover 1 lost segment every 3 RTTs • New Reno: • Uses partial acknowledgement to improve loss recovery • Recovers 1 lost segment every RTT • SACK TCP • Uses SACK option bit field to improve loss recovery • Recovers up to 3 segments per RTT • Other schemes exist (e.g., Vegas)

  3. Outline • LFN • Needs some TCP options such as window scale, timestamp and PAWS • Methods to recover from multiple packet losses in a window • SACK • TCP with “partial acknowledgements” • Effects of increasing window size

  4. Long fat pipes problems • The TCP window size is a 16-bit field in the TCP header, limiting the window to 65,535 bytes • Can be solved with “window scale option” • Packet loss in an LFN can reduce throughput drastically (Possible solutions for multiple packet loss within a window?) • SACK (Selective acknowledgements) • New Reno (use partial acknowledgements) • Better RTT measurements are required for operating on an LFN • Timestamp option • If the network is so fast that sequence number wrap occurs in less than MSL • PAWS algorithm (Protection Against Wrapped Sequence Number)

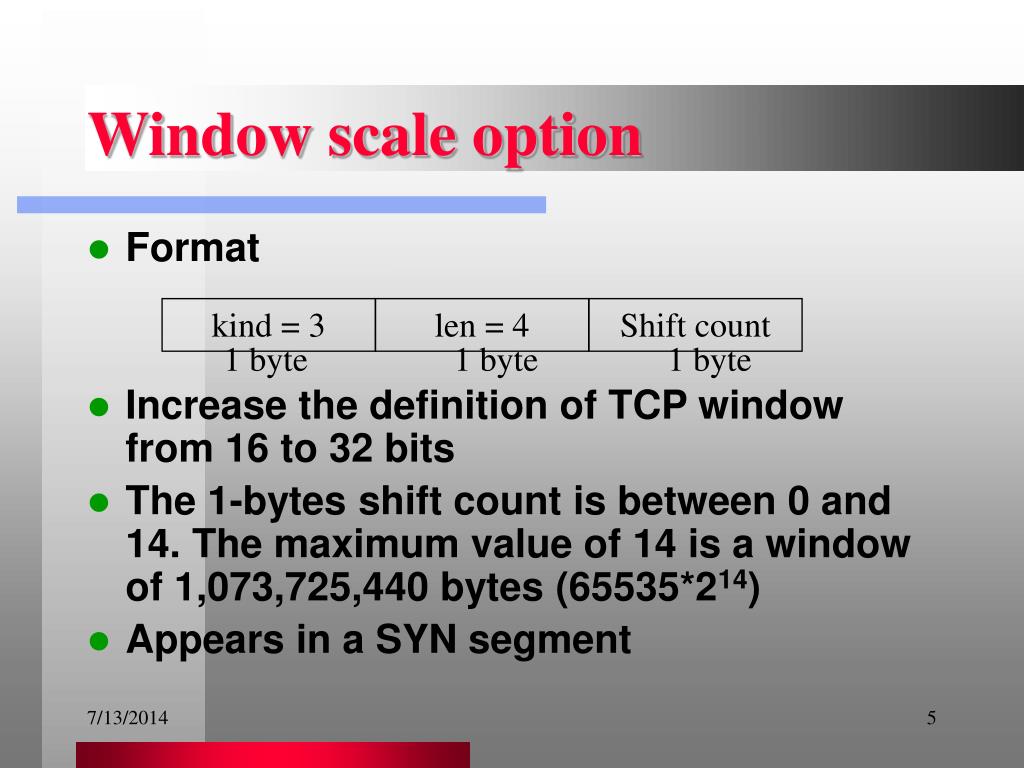

  5. Window scale option • Format • Increase the definition of TCP window from 16 to 32 bits • The 1-bytes shift count is between 0 and 14. The maximum value of 14 is a window of 1,073,725,440 bytes (65535*214) • Appears in a SYN segment kind = 3 len = 4 Shift count 1 byte 1 byte 1 byte

  6. Timestamp option • Format • Let the sender place a timestamp value in every segment • Receiver echoes this value in the ACK by allowing the sender to calculate an RTT for each received ACK • Uses in SYN segment • Larger window sizes require better RTT calculation • Does not require any form of clock synchronization between the two hosts Kind=8 len=10 timestamp value timestamp echo reply 1 byte 1 byte 4 bytes 4 bytes

  7. PAWS • Largest receiver window = 230 = 1 GB • “Lost” segment may reappear before MSL, and the sequence numbers may have wrapped around. • The receiver considers the timestamp as an extension of the sequence number  discard out-of- sequence segment based on both seq # and timestamp.

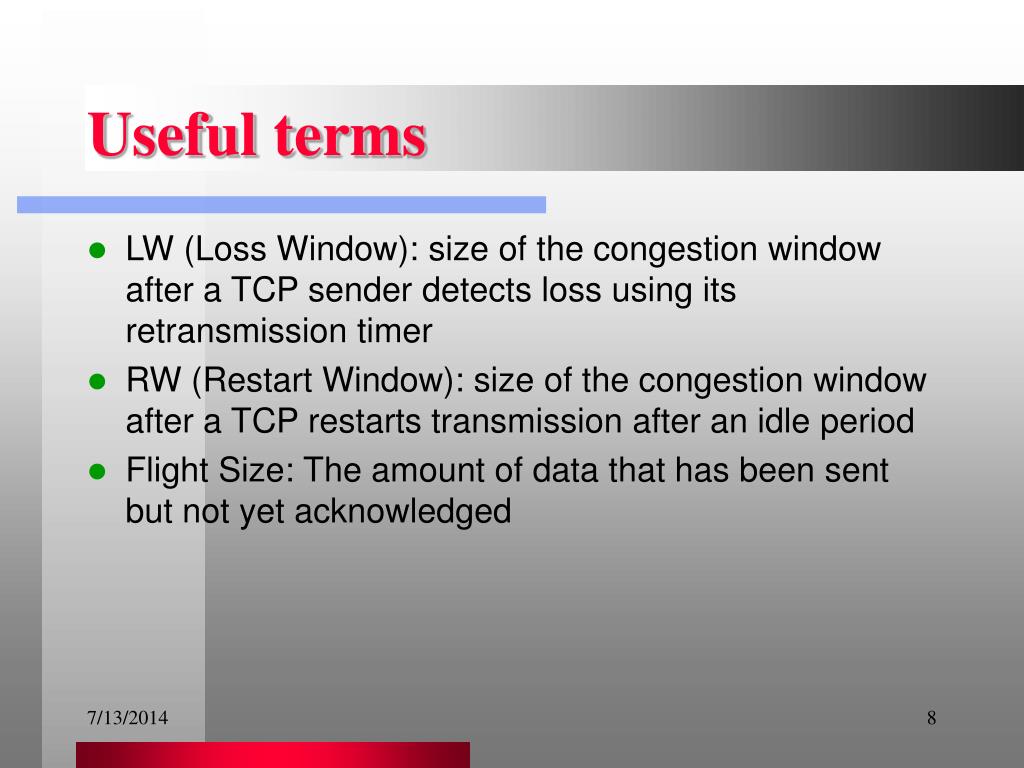

  8. Useful terms • LW (Loss Window): size of the congestion window after a TCP sender detects loss using its retransmission timer • RW (Restart Window): size of the congestion window after a TCP restarts transmission after an idle period • Flight Size: The amount of data that has been sent but not yet acknowledged

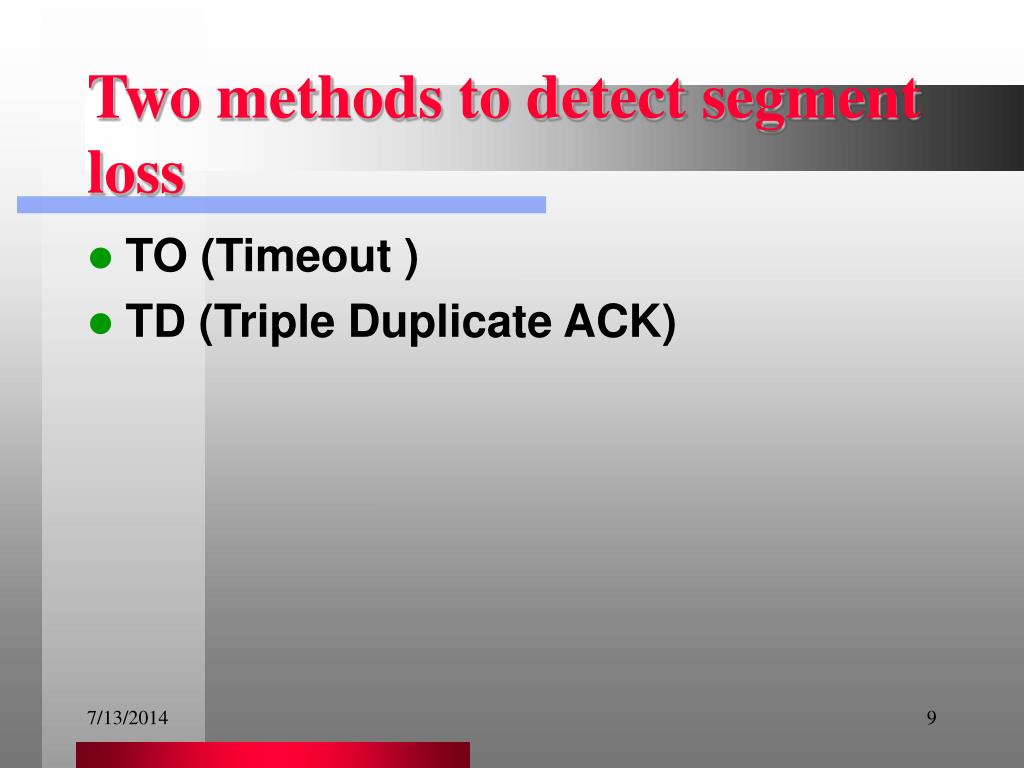

  9. Two methods to detect segment loss • TO (Timeout ) • TD (Triple Duplicate ACK)

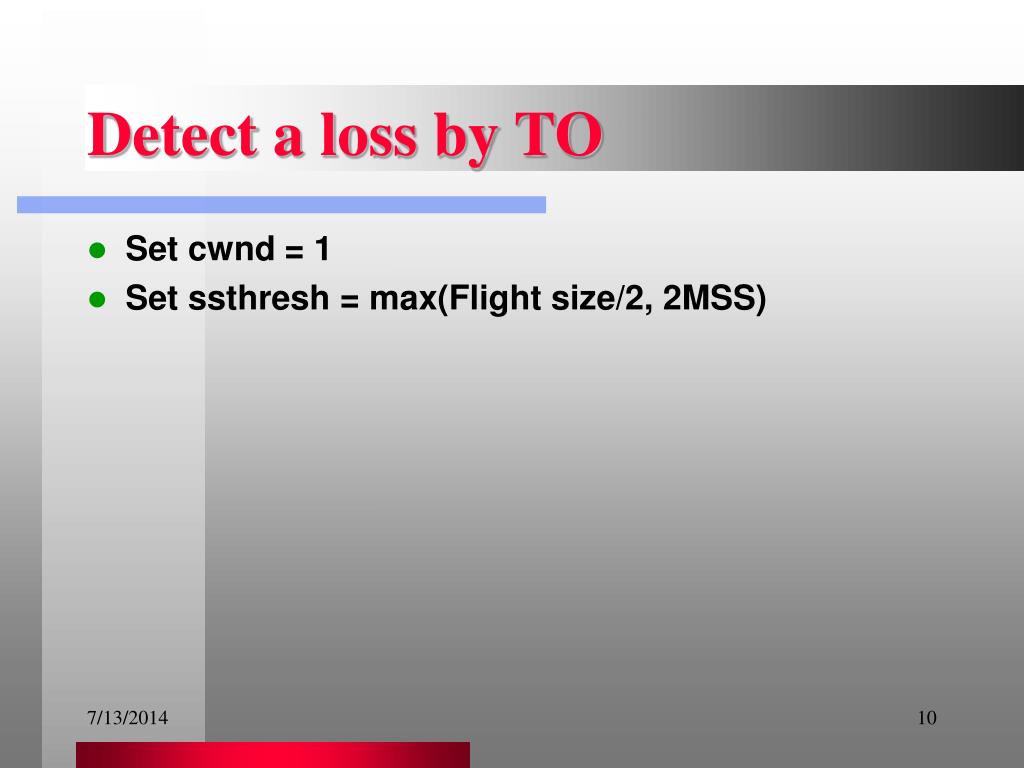

  10. Detect a loss by TO • Set cwnd = 1 • Set ssthresh = max(Flight size/2, 2MSS)

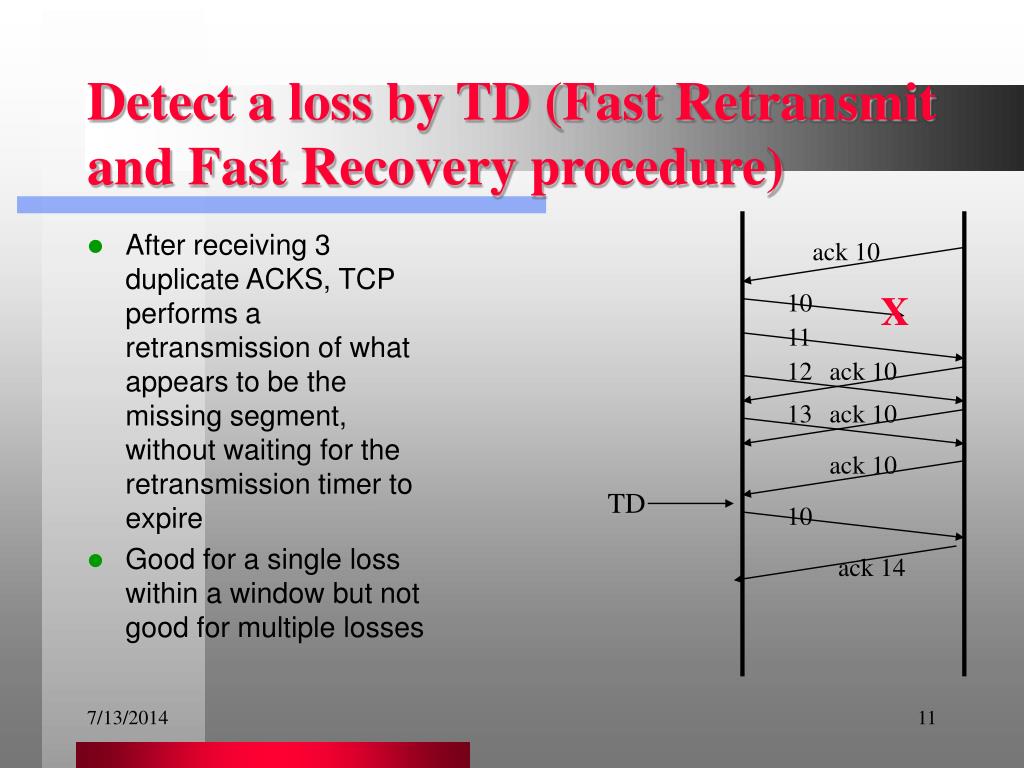

  11. Detect a loss by TD (Fast Retransmit and Fast Recovery procedure) • After receiving 3 duplicate ACKS, TCP performs a retransmission of what appears to be the missing segment, without waiting for the retransmission timer to expire • Good for a single loss within a window but not good for multiple losses ack 10 10 X 11 12 ack 10 13 ack 10 ack 10 TD 10 ack 14

  12. Fast retransmit and fast recovery algorithms 1. When the third duplicate ACK is received, then set ssthresh = max(Flight size/2, 2MSS) 2. Retransmit the lost segment and then set cwnd = ssthresh + 3*MSS (Inflating the window)  The reason for this is that since the three duplicate ACKS are received, it assumes that three segments got through because according to the TCP rule, if the receiver receives a new packet, it must generate an ACK. 3. For each additional duplicate ACK received, increase cwnd by 1. 4. Transmit a segment, if allowed by min(cwnd, receiver’s AW) 5. When the next ACK arrives that acknowledges new data, set cwnd = ssthresh (the value set in step 1) (deflating the window)

  13. Problem occurs if multiple packets loss happens within a window ack 10 • Two possible answers • TCP with SACK • TCP with partial acknowledgement (New Reno TCP) 10 X 11 12 ack 10 X 13 14 ack 10 ack 10 TD 10 partial ack 12 15 16 ack 12 17 ack 12 2nd TD 18 ack 12

  14. TCP with SACK (Selective Acknowledgement) • Based on RFC 2018 (TCP Selective Acknowledgement Options) –standards track • Good for when multiple packets are lost from one window of data • Gives sender view of which segments queued at receiver and which in flight • Uses two TCP options • “SACK permitted” (may be sent in a SYN segment) • SACK option itself (may be sent over an established connection)

  15. Format of two SACK options • Sack-permitted option • Two bytes option • Sack option itself (Kind = 5, Length=variable) Kind = 2 Length = 4 Kind = 5 Length Left edge of 1st block Right edge of 1st block Left edge of nth block Right edge of nth block

  16. SACK option examples ~ Assume the left edge is 5000 and transmitter sends a burst of 8 segments, each containing 500 data bytes Example (1) The first four segments are received but the last 4 are dropped - The data receiver will return a normal TCP ACK segment acknowledging sequence number 7000, with no SACK option

  17. SACK option examples con’t [1] Example (2) The first segment is lost but the remaining 7 segments are received. • Receiver will return a TCP ACK segment that acknowledges sequence number 5000 and contains SACK option specifying one block of queued data • LE = Left Edge • RE = Right Edge

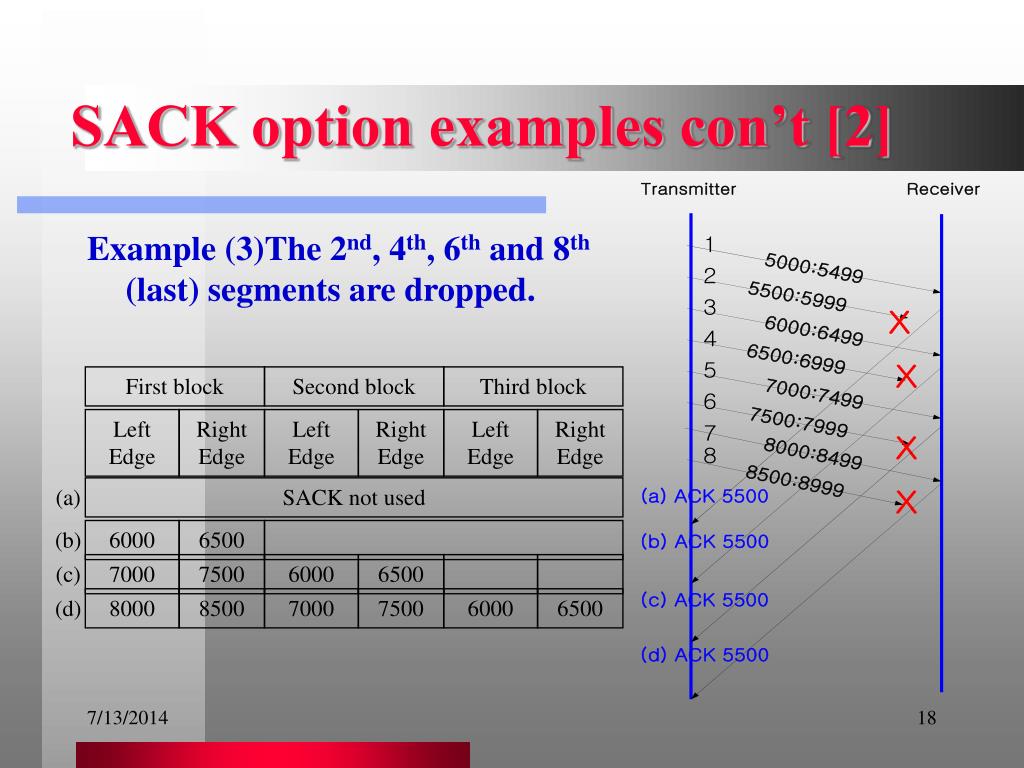

  18. SACK option examples con’t [2] Example (3)The 2nd, 4th, 6th and 8th (last) segments are dropped. First block Second block Third block Left Edge Right Edge Left Edge Right Edge Left Edge Right Edge (a) SACK not used (b) 6000 6500 (c) 7000 7500 6000 6500 (d) 8000 8500 7000 7500 6000 6500

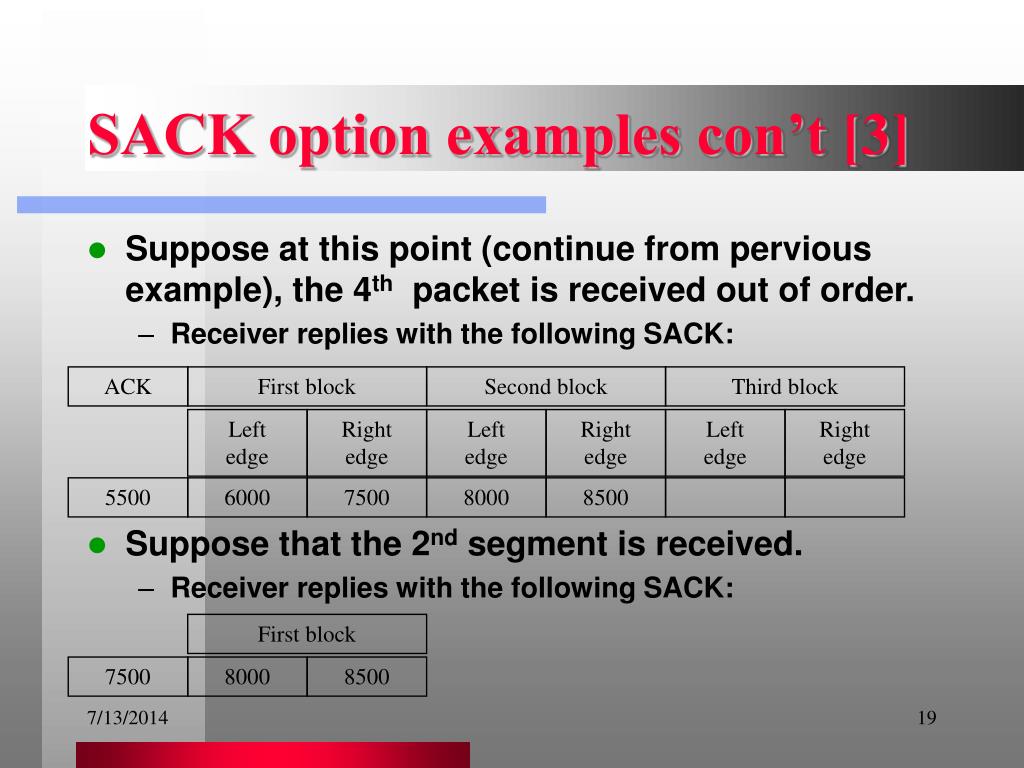

  19. SACK option examples con’t [3] • Suppose at this point (continue from pervious example), the 4th packet is received out of order. • Receiver replies with the following SACK: • Suppose that the 2nd segment is received. • Receiver replies with the following SACK: ACK First block Second block Third block Left edge Right edge Left edge Right edge Left edge Right edge 5500 6000 7500 8000 8500 First block 7500 8000 8500

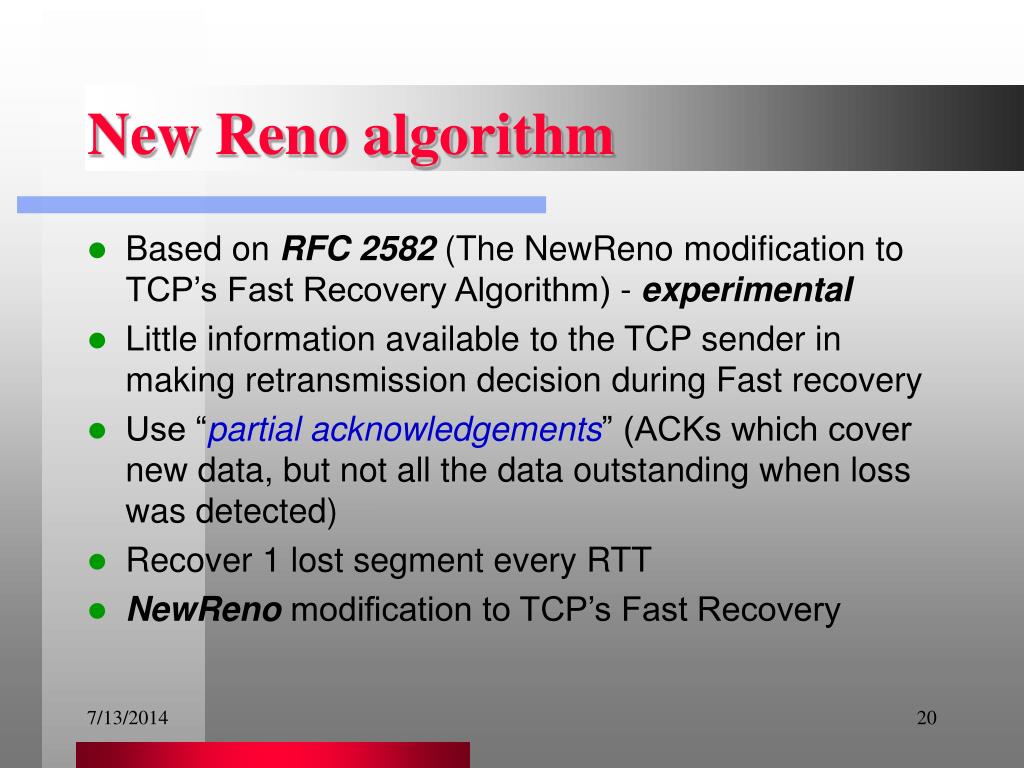

  20. New Reno algorithm • Based on RFC 2582 (The NewReno modification to TCP’s Fast Recovery Algorithm) - experimental • Little information available to the TCP sender in making retransmission decision during Fast recovery • Use “partial acknowledgements” (ACKs which cover new data, but not all the data outstanding when loss was detected) • Recover 1 lost segment every RTT • NewReno modification to TCP’s Fast Recovery

  21. New Reno algorithm con’t [1] • Refer to slide 12 • Variable “recover” – used to record the highest sequence number transmitted • Add variable “recover” in step 1. • Step 5: when an ACK arrives that acknowledges new data, this ACK could be the acknowledgement elicited by the retransmission from step 2, or elicited by a later transmission

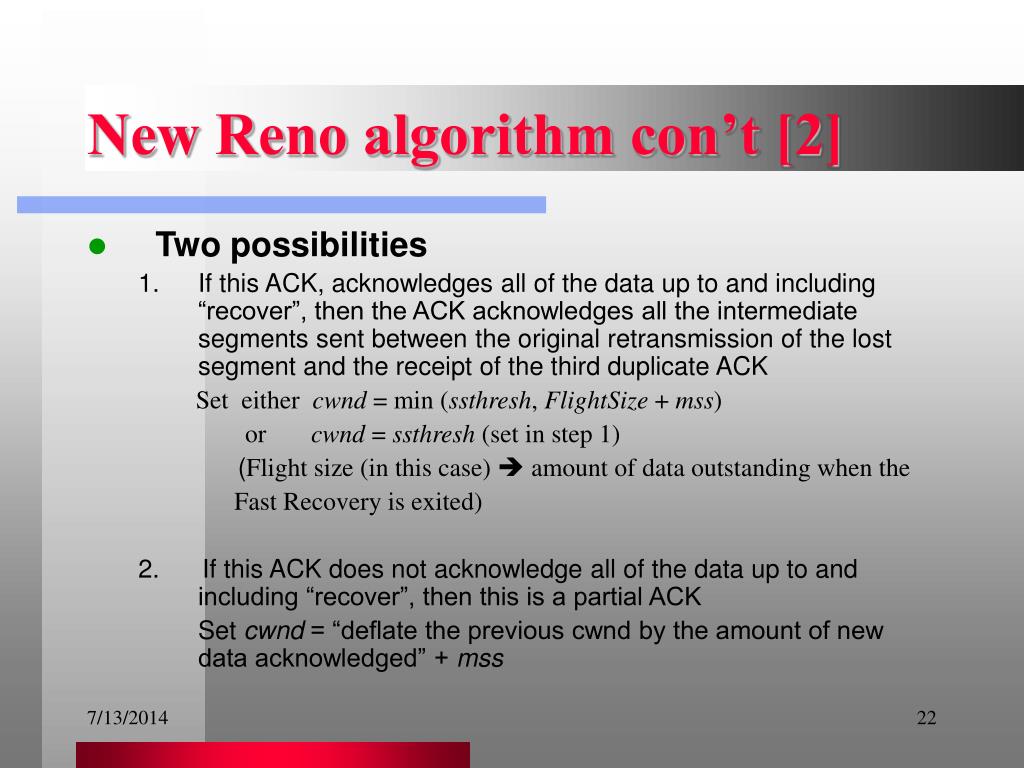

  22. New Reno algorithm con’t [2] • Two possibilities • If this ACK, acknowledges all of the data up to and including “recover”, then the ACK acknowledges all the intermediate segments sent between the original retransmission of the lost segment and the receipt of the third duplicate ACK Set either cwnd = min (ssthresh, FlightSize + mss) or cwnd = ssthresh (set in step 1) (Flight size (in this case)  amount of data outstanding when the Fast Recovery is exited) 2. If this ACK does not acknowledge all of the data up to and including “recover”, then this is a partial ACK Set cwnd = “deflate the previous cwnd by the amount of new data acknowledged” + mss

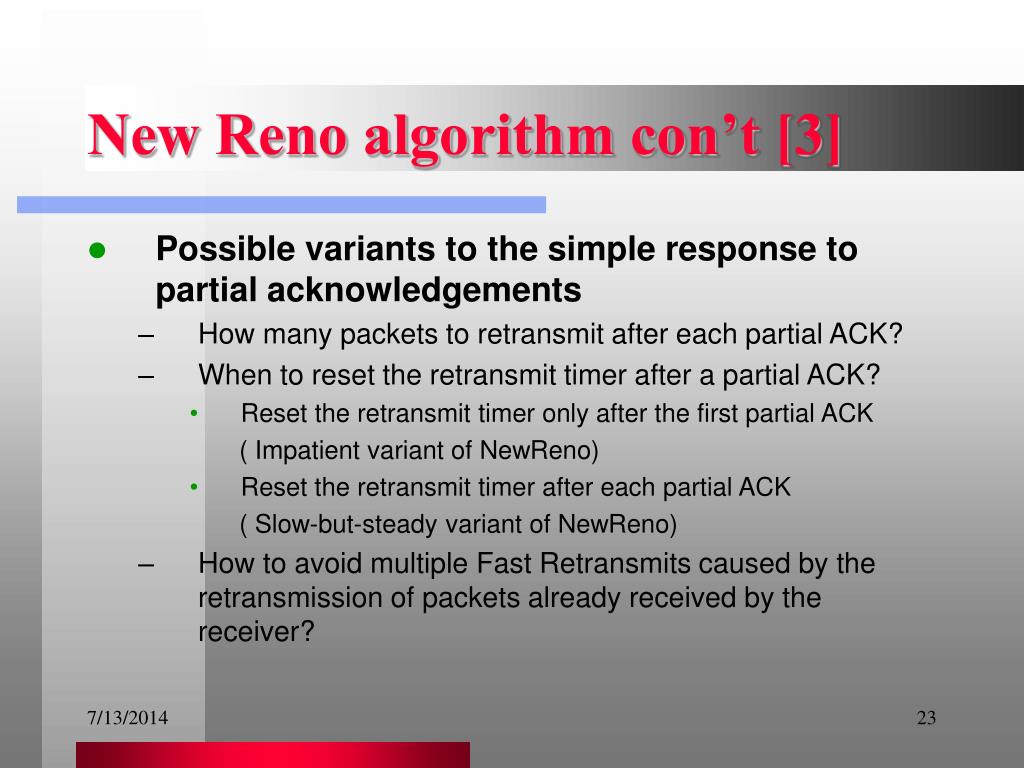

  23. New Reno algorithm con’t [3] • Possible variants to the simple response to partial acknowledgements • How many packets to retransmit after each partial ACK? • When to reset the retransmit timer after a partial ACK? • Reset the retransmit timer only after the first partial ACK ( Impatient variant of NewReno) • Reset the retransmit timer after each partial ACK ( Slow-but-steady variant of NewReno) • How to avoid multiple Fast Retransmits caused by the retransmission of packets already received by the receiver?

  24. New Reno algorithm con’t [4] • Avoiding multiple fast retransmit Reason: TCP data sender is unable to distinguish between a duplicate ACK that results from a lost or delay data packet, and a duplicate ACK that results from the sender’s retransmission of a data packet that had already been received at the receiver Needs a new variable called “send_high” = highest sequence number transmitted so far after each retransmit timeout

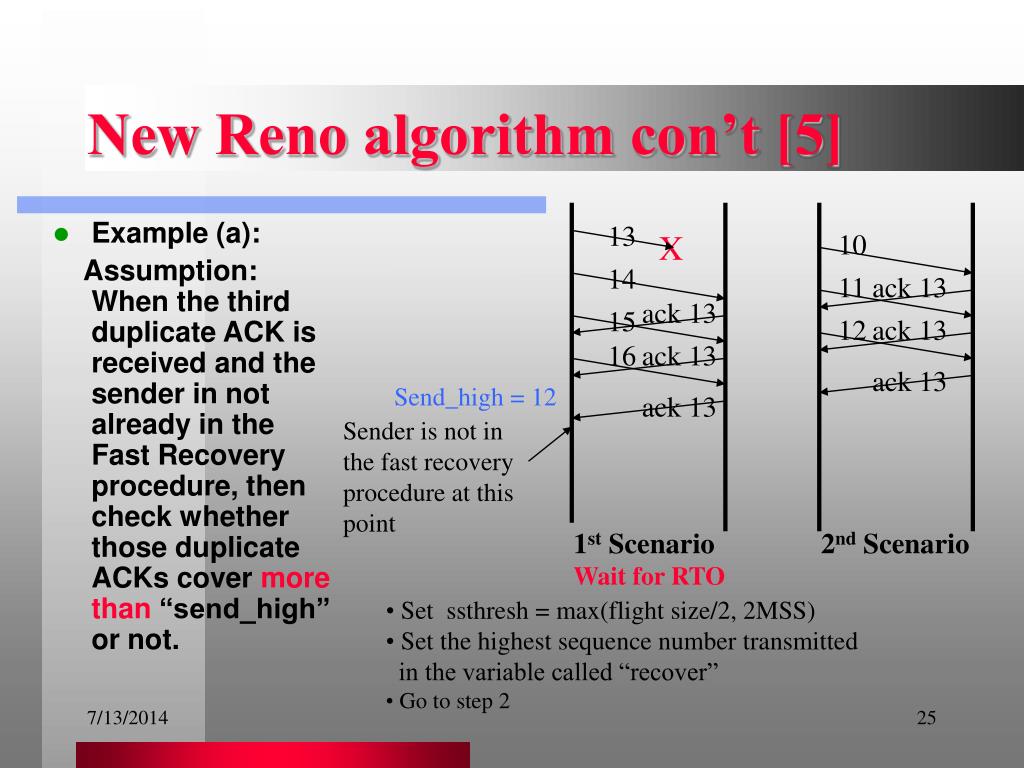

  25. New Reno algorithm con’t [5] 13 • Example (a): Assumption: When the third duplicate ACK is received and the sender in not already in the Fast Recovery procedure, then check whether those duplicate ACKs cover more than “send_high” or not. X 10 14 11 ack 13 ack 13 15 12 ack 13 16 ack 13 ack 13 Send_high = 12 ack 13 Sender is not in the fast recovery procedure at this point 1st Scenario 2nd Scenario Wait for RTO • Set ssthresh = max(flight size/2, 2MSS) • Set the highest sequence number transmitted • in the variable called “recover” • Go to step 2

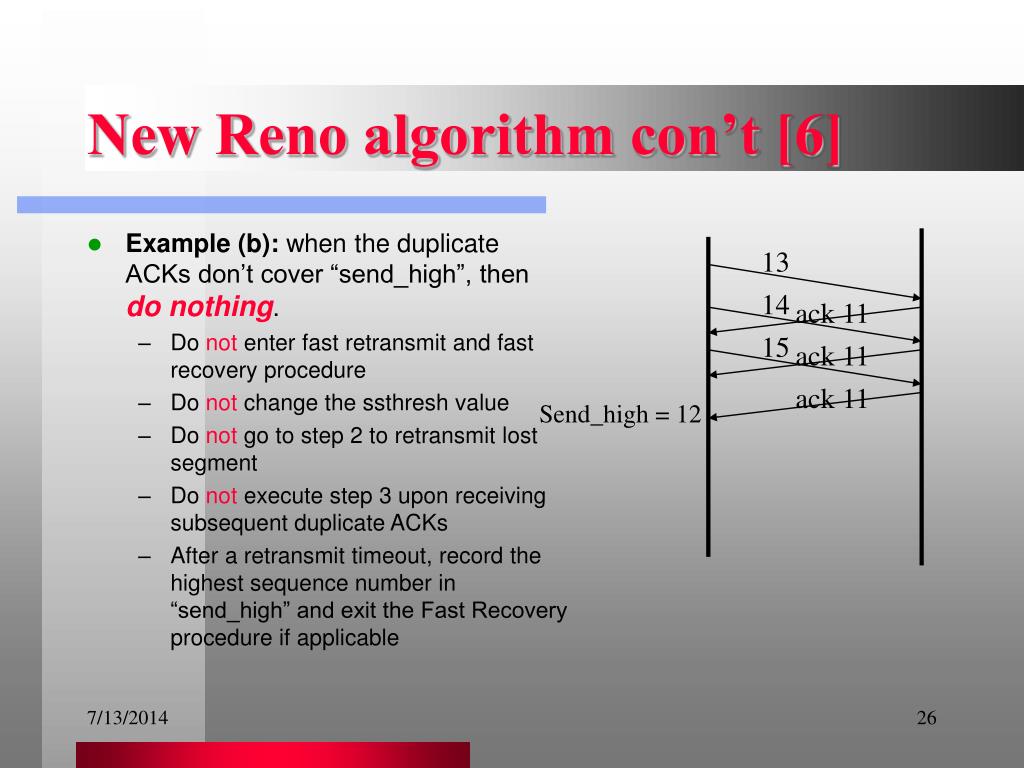

  26. New Reno algorithm con’t [6] • Example (b): when the duplicate ACKs don’t cover “send_high”, then do nothing. • Do not enter fast retransmit and fast recovery procedure • Do not change the ssthresh value • Do not go to step 2 to retransmit lost segment • Do not execute step 3 upon receiving subsequent duplicate ACKs • After a retransmit timeout, record the highest sequence number in “send_high” and exit the Fast Recovery procedure if applicable 13 14 ack 11 15 ack 11 ack 11 Send_high = 12

  27. Increase IW (Initial Window) size • Limited to 2 segments (RFC 2581) • Standard track RFC (not experimental) • Upper bound for IW is given more precisely: • IW = min (4*MSS, max(2*MSS,4380 bytes)) • 4 segments (RFC 2416) - informational • A simple experiment with only 3 buffers leading into a 9600 baud modem at the receiver • No significant degradation of performance even when the IW size 4

  28. Advantages/disadvantages of larger IW • Advantages • When an IW of at least two segments, the receiver will generate an ACK after the second data segment arrives (eliminates the wait on the timeout (~200 msec) • For small file sizes, delay can be improved from 3RTTs down to 1 (Email, webpage transfers less than 4 Kbytes  yields 1RTT) • Disadvantages • A burst of 4 segments (small burst) may not be “handable” in a rotuer • Slightly increase packet drop rate

  29. Re-starting after idle connections • A known problem with TCP congestion control algorithm: • Potentially in appropriate burst of traffic to be transmitted after TCP has been idle for a relatively long period of time (line rate burst occurs – source is idle but also due to ACK losses) • Idle time; more than one retransmission timeout (RTO) • When TCP does not receive during the idle time, then set RW(Restart Window) = IW

  30. Summary • Studied TCP options for LFN,many variants of TCP such as SACK TCP and New Reno, and the effect of increasing IW • ECN (Explicit Congestion Notification) with RED (other TCP enhancement)
