  1. Rhythm Jogger Kai Hsu Kevin Nichols Peter Liang

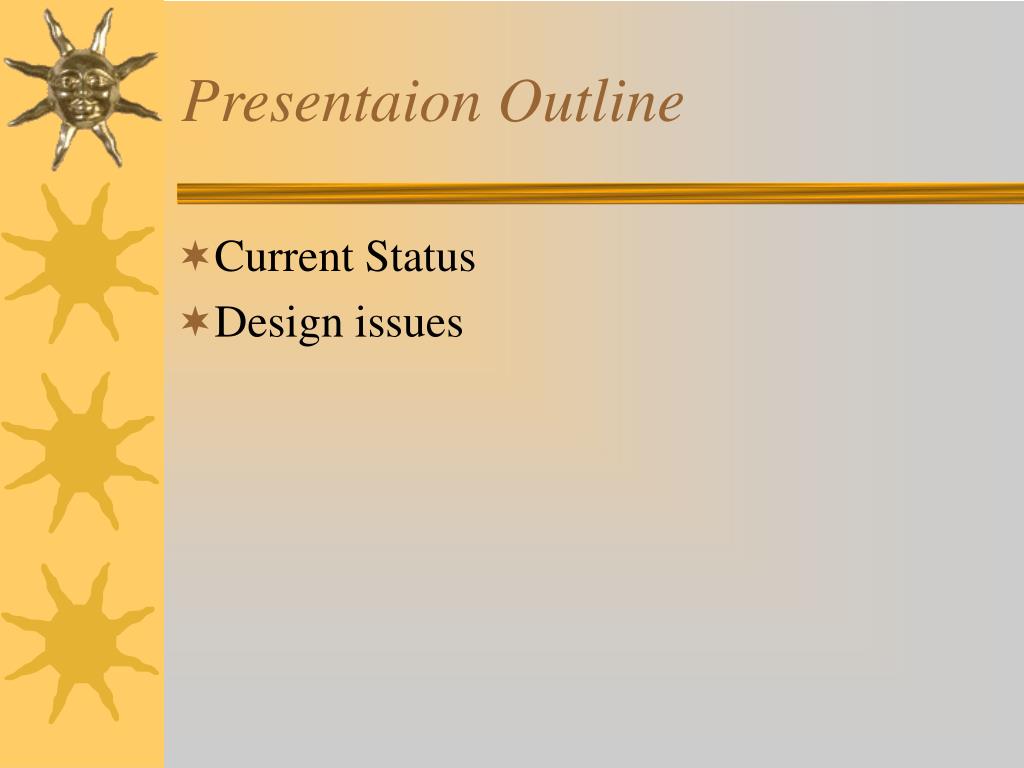

  2. Presentaion Outline • Current Status • Design issues

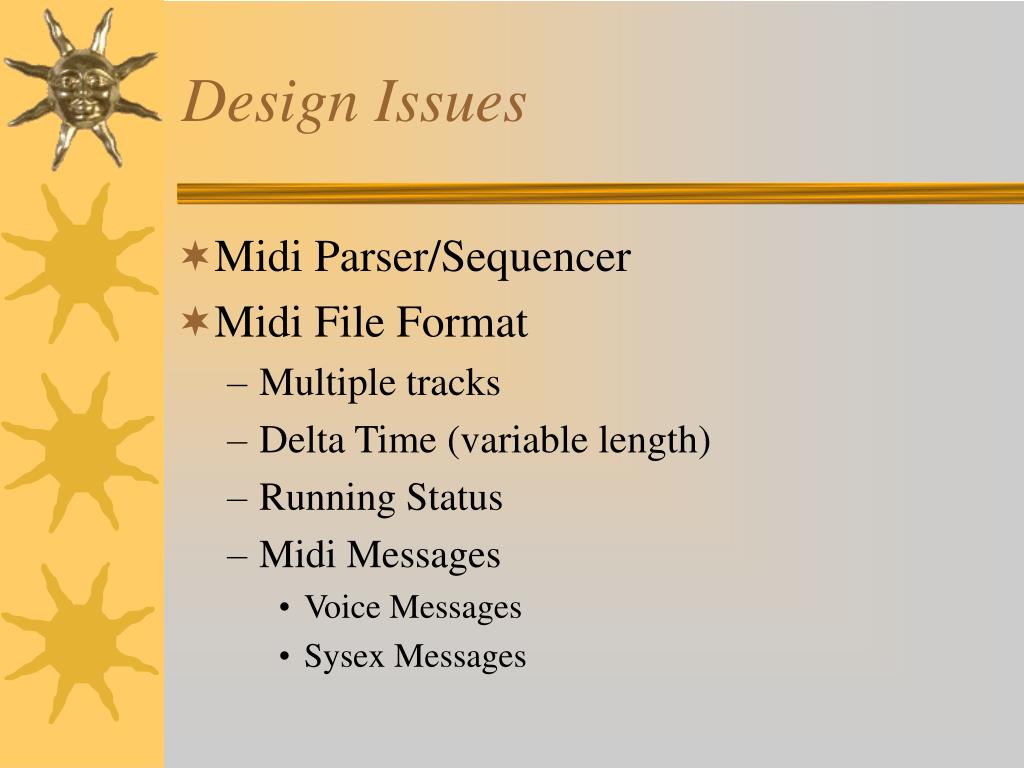

  3. Design Issues • Midi Parser/Sequencer • Midi File Format • Multiple tracks • Delta Time (variable length) • Running Status • Midi Messages • Voice Messages • Sysex Messages

  4. Downloading Midi • Combine all tracks into one • Parse out the unnecessary bytes • Convert it into hex bytes • Use VB tool to upload it to extern. ram • Software agent on the microcontroller to send the midi messages real-time.

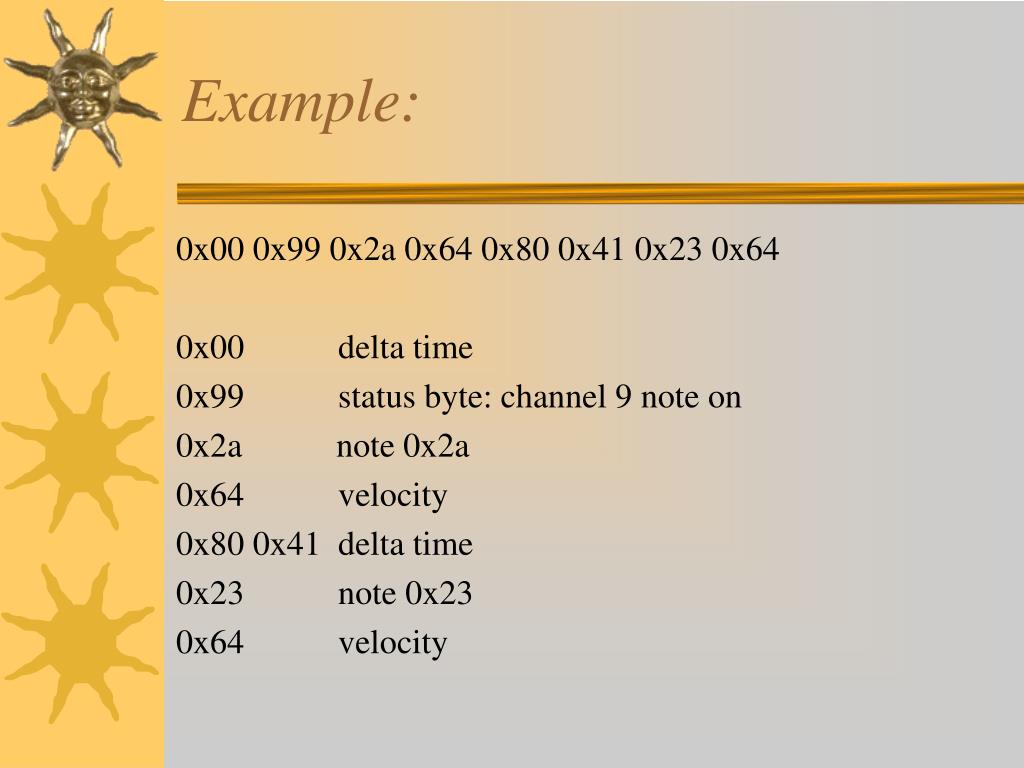

  5. Example: 0x00 0x99 0x2a 0x64 0x80 0x41 0x23 0x64 0x00 delta time 0x99 status byte: channel 9 note on 0x2a note 0x2a 0x64 velocity 0x80 0x41 delta time 0x23 note 0x23 0x64 velocity

  6. Other Issues • Limited Timers • Software Timers • Multiple Initializations • Music playing Real-time constraint
