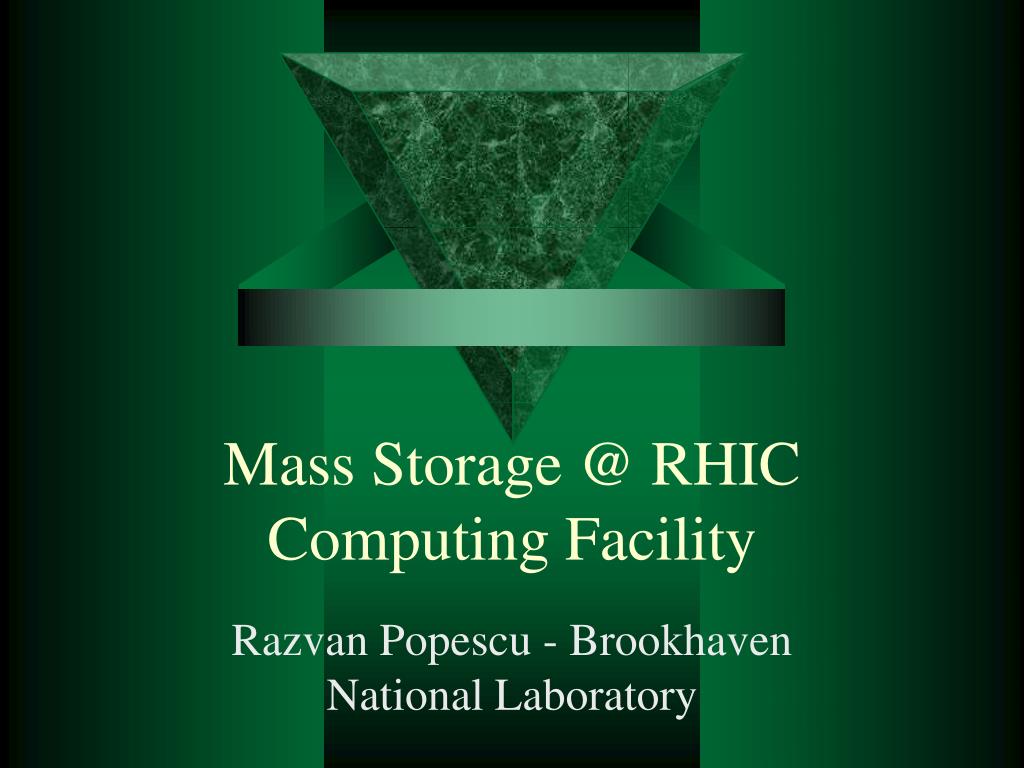

  1. Mass Storage @ RHIC Computing Facility Razvan Popescu - Brookhaven National Laboratory

  2. Overview • Data Types: • Raw: very large volume (xPB), average bandwidth (50MB/s). • DST: average volume (x00TB), large bandwidth (x00MB/s). • mDST: low volume (x0TB), large bandwidth (x00MB/s). Mass Storage @ RCF

  3. Data Flow (generic) ReconstructionFarm (Linux) RHIC raw 35MB/s DST raw 10MB/s Archive(HPSS) 50MB/s File Servers(DST/mDST) DST 200MB/s mDST mDST 400MB/s 10MB/s AnalysisFarm (Linux) Mass Storage @ RCF

  4. Mass Storage @ RCF

  5. Present resources • Tape Storage: • (1) STK Powderhorn silo (6000 cart.) • (11) SD-3 (Redwood) drives. • (10) 9840 (Eagle) drives. • Disk Storage: • ~8TB of RAID disk. • 1TB for HPSS cache. • 7TB Unix workspace. • Servers: • (5) RS/6000 H50/70 for HPSS. • (6) E450&E4000 for file serving and data mining. Mass Storage @ RCF

  6. The HPSS Archive • Constraints - large capacity & high bandwidth: • Two types of tape technology: SD-3 (best $/GB) & 9840 (best $/MB/s). • Two tape layers hierarchies. Easy management of the migration. • Reliable and fast disk storage: • FC attached RAID disk. • Platform compatible with HPSS: • IBM, SUN, SGI. Mass Storage @ RCF

  7. HPSS Structure • (1) Core Server: • RS/6000 Model H50 • 4x CPU • 2GB RAM • Fast Ethernet (control) • Hardware RAID (metadata storage) Mass Storage @ RCF

  8. HPSS Structure • (3) Movers: • RS/6000 Model H70 • 4x CPU • 1GB RAM • Fast Ethernet (control) • Gigabit Ethernet (data) (1500&9000MTU) • 2x FC attached RAID - 300GB - disk cache • (3-4) SD-3 “Redwood” tape transports • (3-4) 9840 “Eagle” tape transports Mass Storage @ RCF

  9. HPSS Structure • Guarantee availability of resources for a specific user group  separate resources  separate PVRs & movers. • One mover per user group  total exposure to single-machine failure. • Guarantee availability of resources for Data Acquisition stream  separate hierarchies. • Result: 2PVR&2COS&1Mvr per group. Mass Storage @ RCF

  10. Net 1 - Data (1000baseSX) 10baseT Client STK Core M1 M2 M3 (Routing) N x PVR pftpd Net 2 - Control (100baseT) HPSS topology Mass Storage @ RCF

  11. HPSS Performance • 80 MB/sec for the disk subsystem. • 1 CPU per 40MB/sec for TCPIP (Gbit) traffic (1500MTU). • ~8MB/sec per SD-3 transport. • ? per 9840 transport. Mass Storage @ RCF

  12. I/O intensive systems • Mining and Analysis systems. • High I/O & moderate CPU usage. • To avoid large network traffic merge file servers with HPSS movers: • Major problem with HPSS support on non-AIX platforms. • Several (Sun) SMP machines or Large (SGI) Modular System. Mass Storage @ RCF

  13. I/O intensive systems • (6) NFS file servers for workareas • (5) x E450 + (1) x E4000 • 4(6) x CPU; 2GB RAM; Fast/Gbit Ethernet. • 2 x FC attached hardware RAID - 1.5TB • (1) NFS Home directory server (E450). • (3+3) AFS Servers (code dev. & home dirs.) • RS/6000 model E30 and 43P • (NFS to AFS migration) Mass Storage @ RCF

  14. Problems • Short lifecycle of the SD-3 heads. • ~ 500 hours < 2 months @ average usage. (6 of 10 drives in 10 months) • Low throughput interface (F/W) for SD-3 -> high slot consumption. • 9840 ??? • HPSS: tape cartridge closure @ transport error. • Built a monitoring tool to try to predict transport failure (based of soft error frequency). • SFS response when heavy loaded - no graceful failure (timeouts & lost connections). Mass Storage @ RCF

  15. Issues • Partially tested two tape layer hierarchies: • Cartridge based migration. • Manually scheduled reclaim. • Integration of file server and mover functions on the same node: • Solaris mover port. • Not an objective anymore. Mass Storage @ RCF

  16. Issues • Guarantee avail. of resources for specific user groups: • Separate PVRs & movers. • Total exposure to single-mach. failure ! • Reliability: • Distribute resources across movers  share movers (acceptable?). • Inter-mover traffic: • 1 CPU per 40MB/sec TCPIP per adapter: Expensive!!! Mass Storage @ RCF

  17. Inter-mover traffic - solutions • Affinity. • Limited applicability. • Diskless hierarchies. • Not for SD-3. Not tested on 9840. • High performance networking: SP switch. • IBM only. • Lighter protocol: HIPPI. • Expensive hardware. • Multiply attached storage (SAN). • Requires HPSS modifications. Mass Storage @ RCF

  18. Client Mover 1 Mover 2 (!) Multiply Attached Storage (SAN) 1 2 Mass Storage @ RCF

  19. Summary • Problems with divergent requirements: • Cost effective archive capacity and bandwidth. • Two tape hierarchies: SD-3 & 9840. • Test the configuration. • Availability and reliability of HPSS resources. • Separated COS and shared movers. • Inter-mover traffic ?!? • Merger of file servers and HPSS movers? Mass Storage @ RCF
