FileWall : Implementing File Access Policies Using Dynamic Access Context

1. FileWall : Implementing File Access Policies Using Dynamic Access Context Stephen Smaldone, Aniruddha Bohra, and Liviu Iftode DiscoLab Department of Computer Science Rutgers University Workshop on Spontaneous Networking May 12, 2006

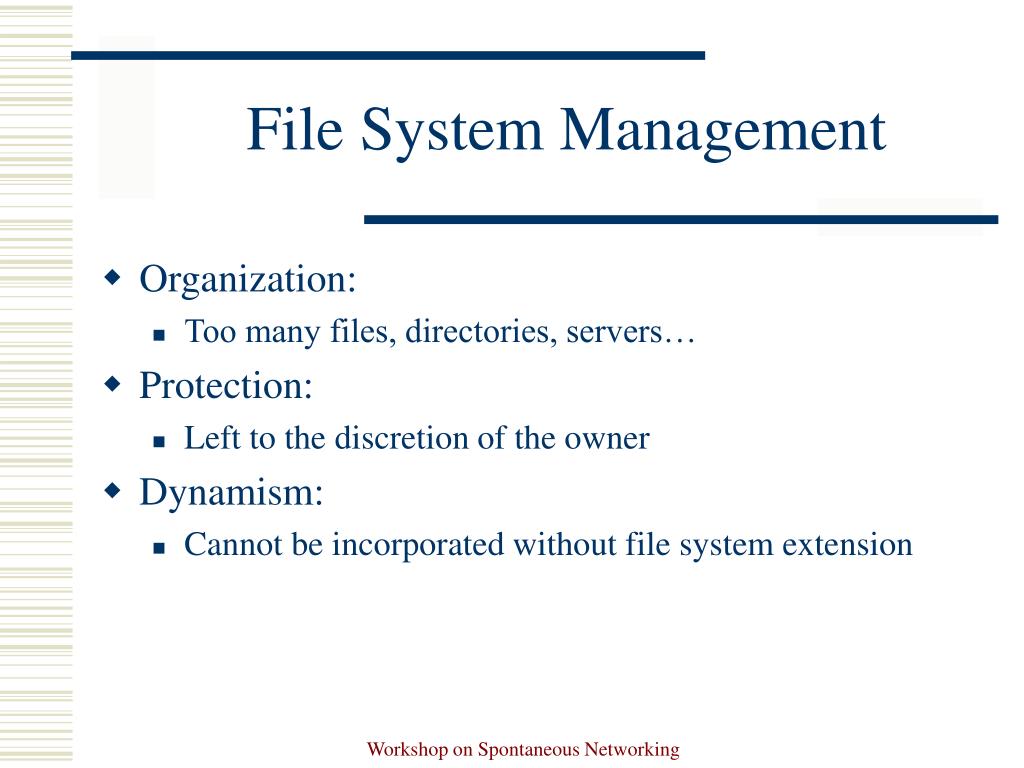

2. File System Management • Organization: • Too many files, directories, servers… • Protection: • Left to the discretion of the owner • Dynamism: • Cannot be incorporated without file system extension Workshop on Spontaneous Networking

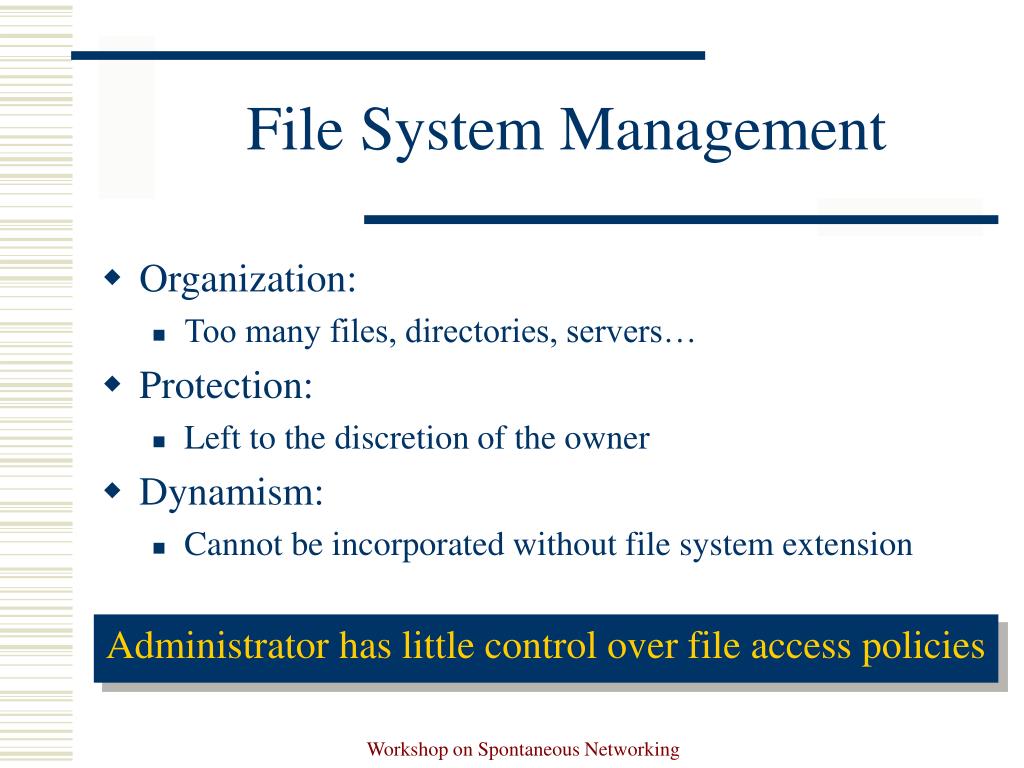

3. File System Management • Organization: • Too many files, directories, servers… • Protection: • Left to the discretion of the owner • Dynamism: • Cannot be incorporated without file system extension Administrator has little control over file access policies Workshop on Spontaneous Networking

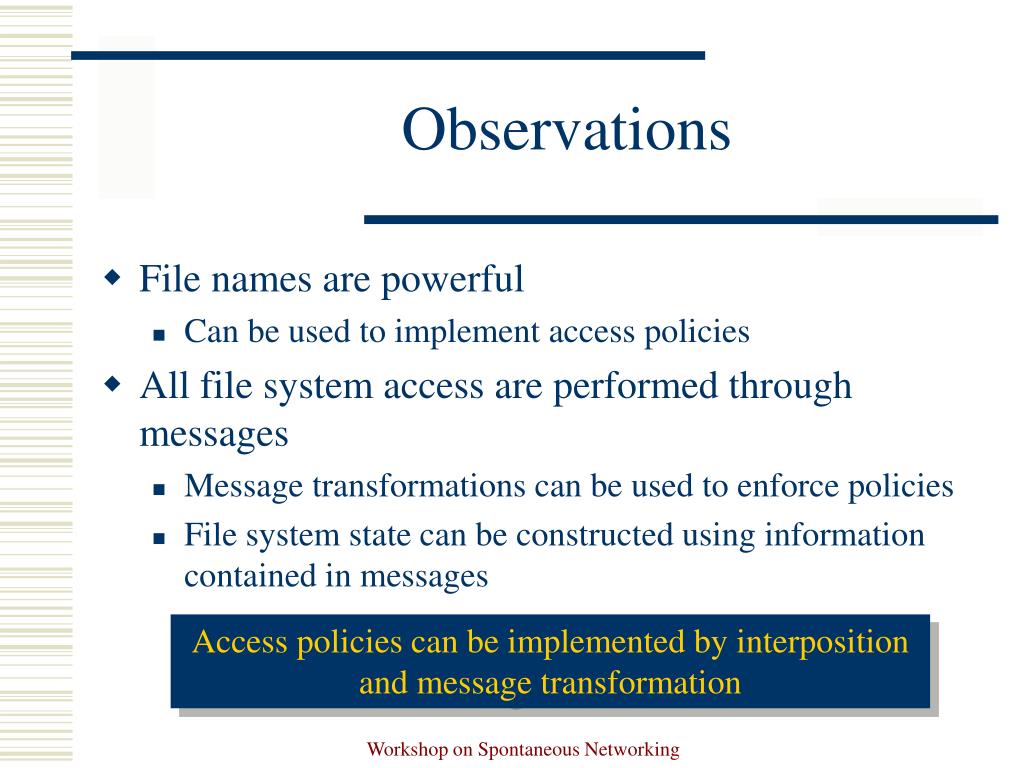

4. Observations • File names are powerful • Can be used to implement access policies • All file system access are performed through messages • Message transformations can be used to enforce policies • File system state can be constructed using information contained in messages Workshop on Spontaneous Networking

5. Observations • File names are powerful • Can be used to implement access policies • All file system access are performed through messages • Message transformations can be used to enforce policies • File system state can be constructed using information contained in messages Access policies can be implemented by interposition and message transformation Workshop on Spontaneous Networking

6. FireWall • Interposes on the client-server path • Stores network flow history • Evaluates each message against the firewall policies • Passes-through, drops, or transforms network packets Workshop on Spontaneous Networking

7. FileWall • Interposes on client-server path • Stores file access history • Evaluates each message against FileWall policies • Transforms file system messages Workshop on Spontaneous Networking

8. FileWall • Interposes on client-server path • Stores file access history • Evaluates each message against FileWall policies • Transforms file system messages FileWall constructs virtual namespaces using file system namespaces and access policies through message transformation Workshop on Spontaneous Networking

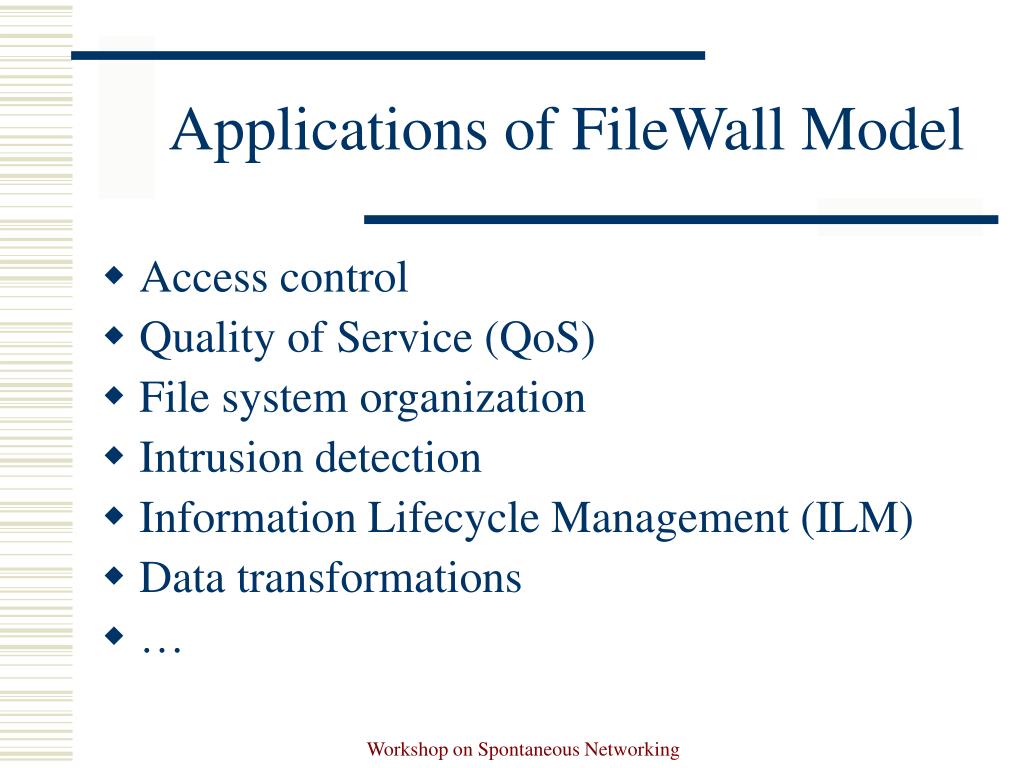

9. Applications of FileWall Model • Access control • Quality of Service (QoS) • File system organization • Intrusion detection • Information Lifecycle Management (ILM) • Data transformations • … Workshop on Spontaneous Networking

10. Outline • Motivation • Design • Access Context • FileWall Policies • Implementation • Evaluation • Related Work • Conclusions Workshop on Spontaneous Networking

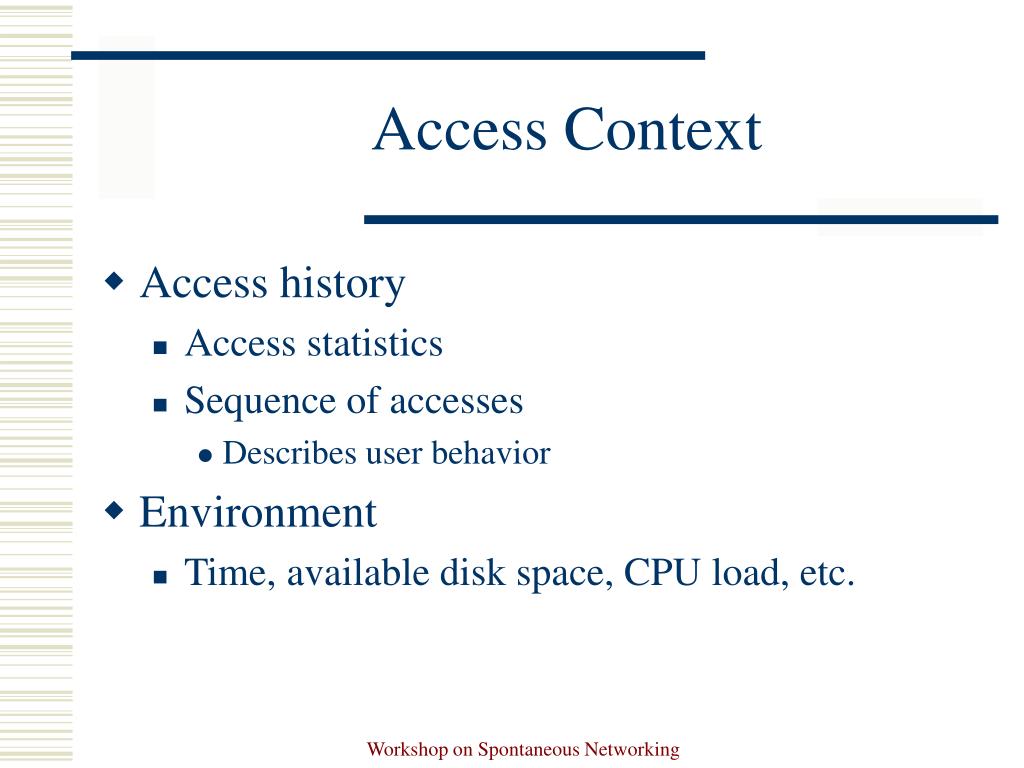

11. Access Context • Access history • Access statistics • Sequence of accesses • Describes user behavior • Environment • Time, available disk space, CPU load, etc. Workshop on Spontaneous Networking

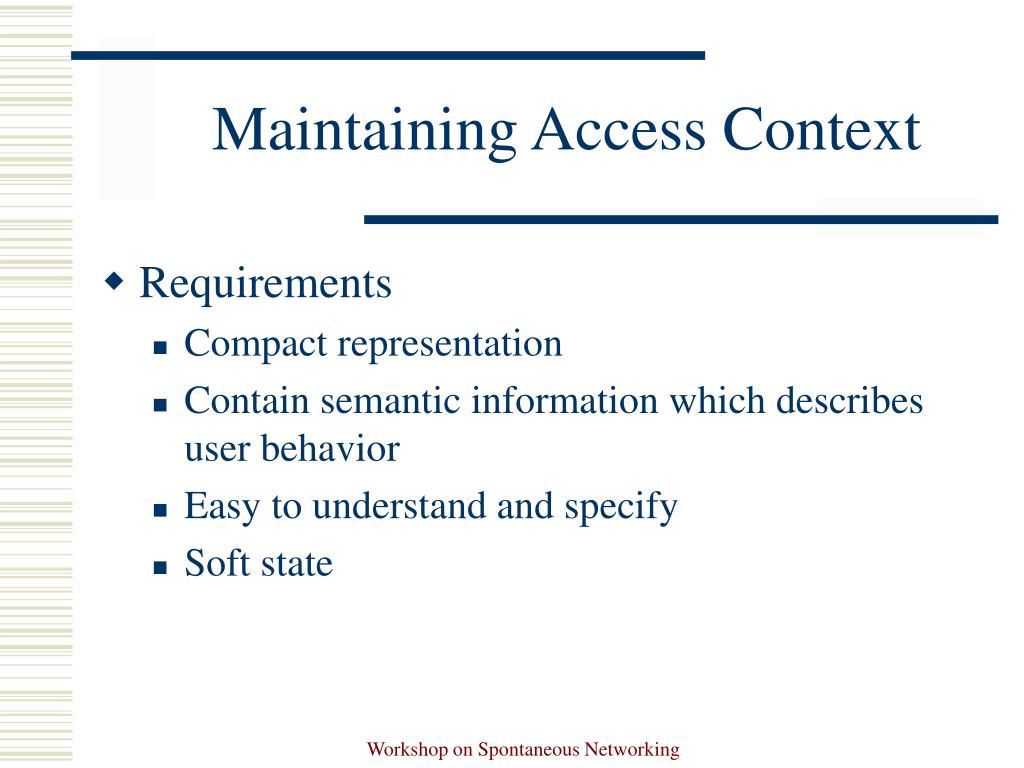

12. Maintaining Access Context • Requirements • Compact representation • Contain semantic information which describes user behavior • Easy to understand and specify • Soft state Workshop on Spontaneous Networking

13. Access Tree • Node = file “run” • Groups of accesses performed by same application • Open to close or approximate using clustered accesses • Attributes • File name • Type of run (READ, WRITE, etc.) • Operation count • Edge • Run started after and ended before parent • Depth-first traversal defines sequence of runs in an access tree Workshop on Spontaneous Networking

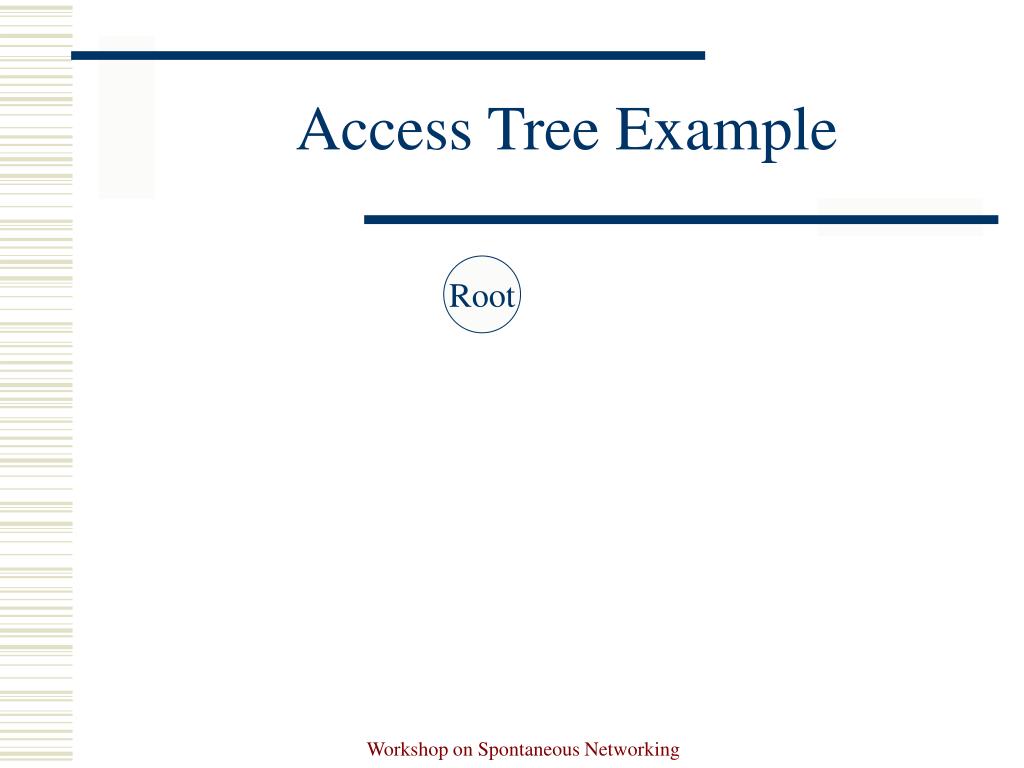

14. Access Tree Example Root Workshop on Spontaneous Networking

15. Access Tree Example Read 1 Root 1 Workshop on Spontaneous Networking

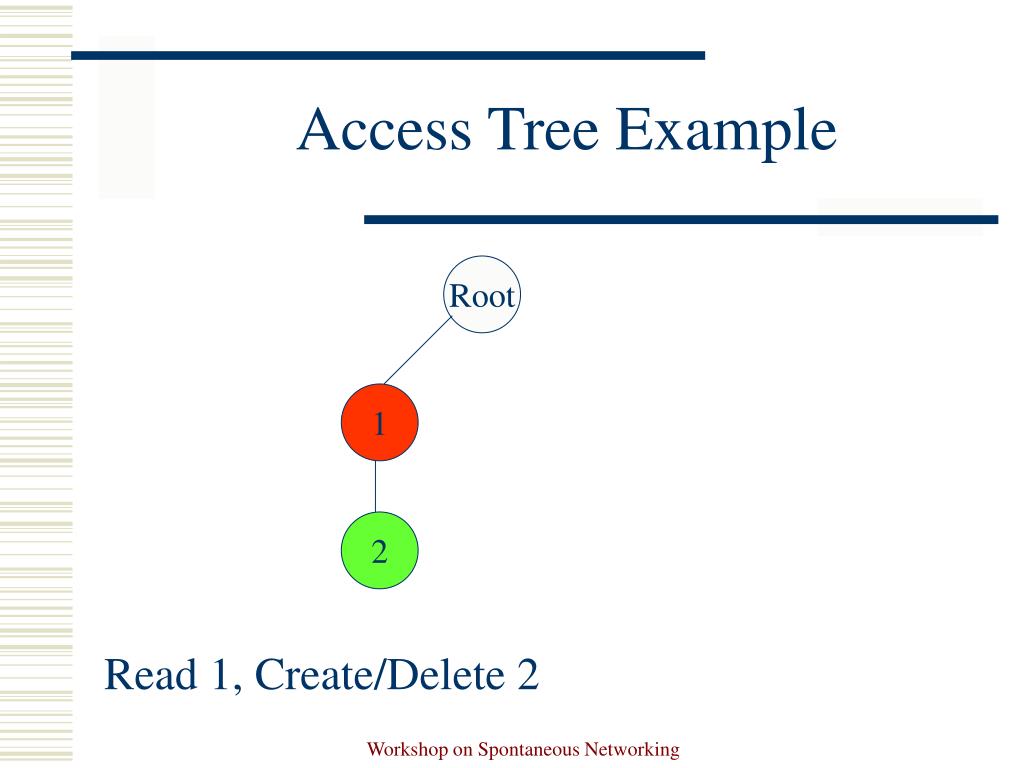

16. Access Tree Example Read 1, Create/Delete 2 Root 1 2 Workshop on Spontaneous Networking

17. Access Tree Example Read 1, Create/Delete 2, Read/Write 3 Root 1 3 2 Workshop on Spontaneous Networking

18. Access Tree Example Read 1, Create/Delete 2, Read/Write 3, Write 1 Root 1 3 1 2 Workshop on Spontaneous Networking

19. Outline • Motivation • Design • Access Context • FileWall Policies • Implementation • Evaluation • Related Work • Conclusions Workshop on Spontaneous Networking

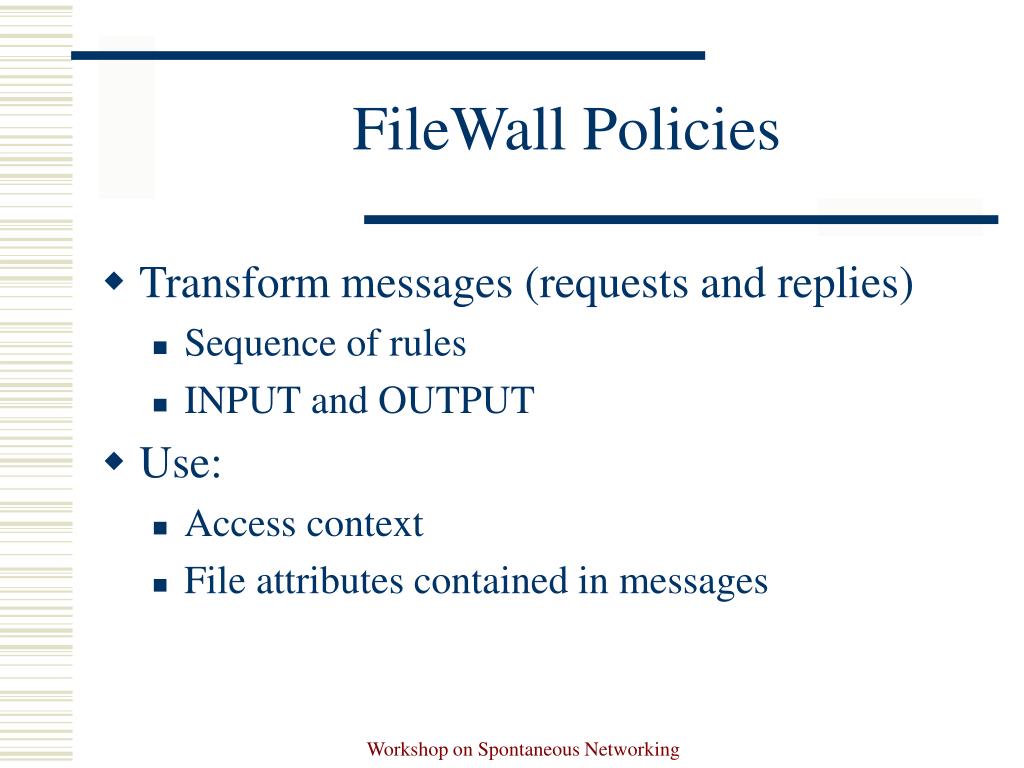

20. FileWall Policies • Transform messages (requests and replies) • Sequence of rules • INPUT and OUTPUT • Use: • Access context • File attributes contained in messages Workshop on Spontaneous Networking

21. FileWall Policy Example • Policy: “Show files accessed today” • For each client-visible file: • Access Time = TODAY • Transform directory listing messages • READDIR and READDIRPLUS Workshop on Spontaneous Networking

22. FileWall Policy Example Policies Access Context FileWall Workshop on Spontaneous Networking

23. FileWall Policy Example Policies READDIR M Access Context FileWall Workshop on Spontaneous Networking

24. FileWall Policy Example Policies READDIR Access Context FileWall Workshop on Spontaneous Networking

25. FileWall Policy Example Policies READDIR Access Context FileWall Workshop on Spontaneous Networking

26. FileWall Policy Example Policies READDIR READDIRPLUS Access Context FileWall Workshop on Spontaneous Networking

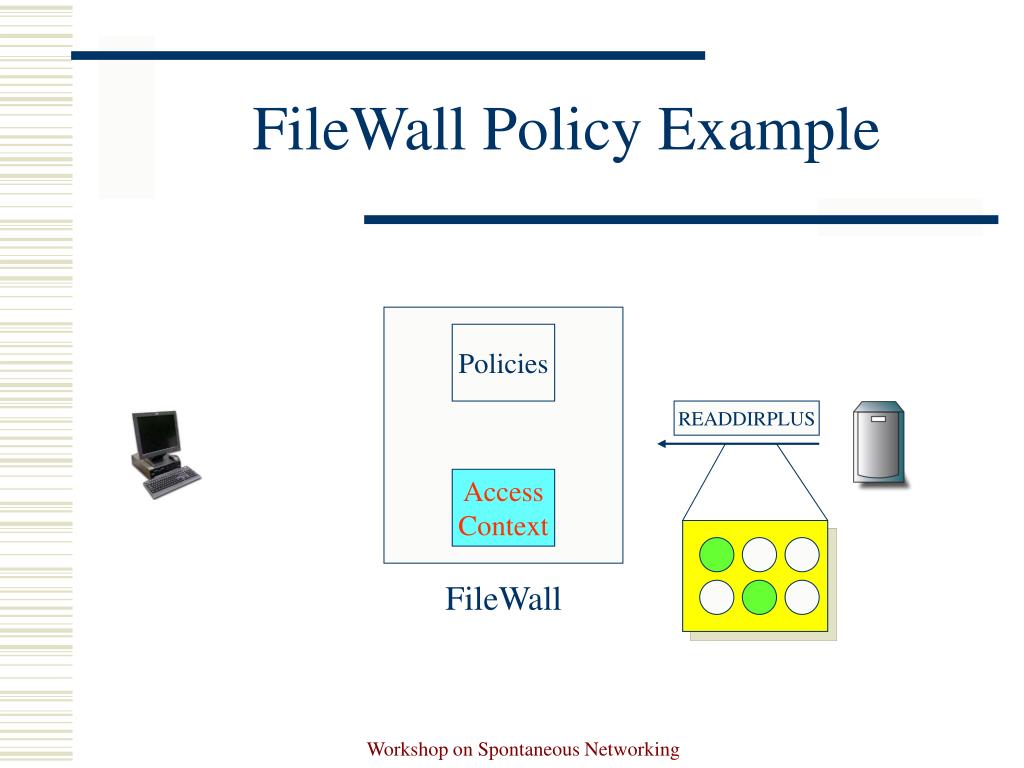

27. FileWall Policy Example Policies READDIRPLUS Access Context FileWall Workshop on Spontaneous Networking

28. FileWall Policy Example Policies READDIRPLUS Access Context FileWall Workshop on Spontaneous Networking

29. FileWall Policy Example Policies READDIRPLUS Access Context FileWall Workshop on Spontaneous Networking

30. FileWall Policy Example Policies READDIR READDIRPLUS Access Context FileWall Workshop on Spontaneous Networking

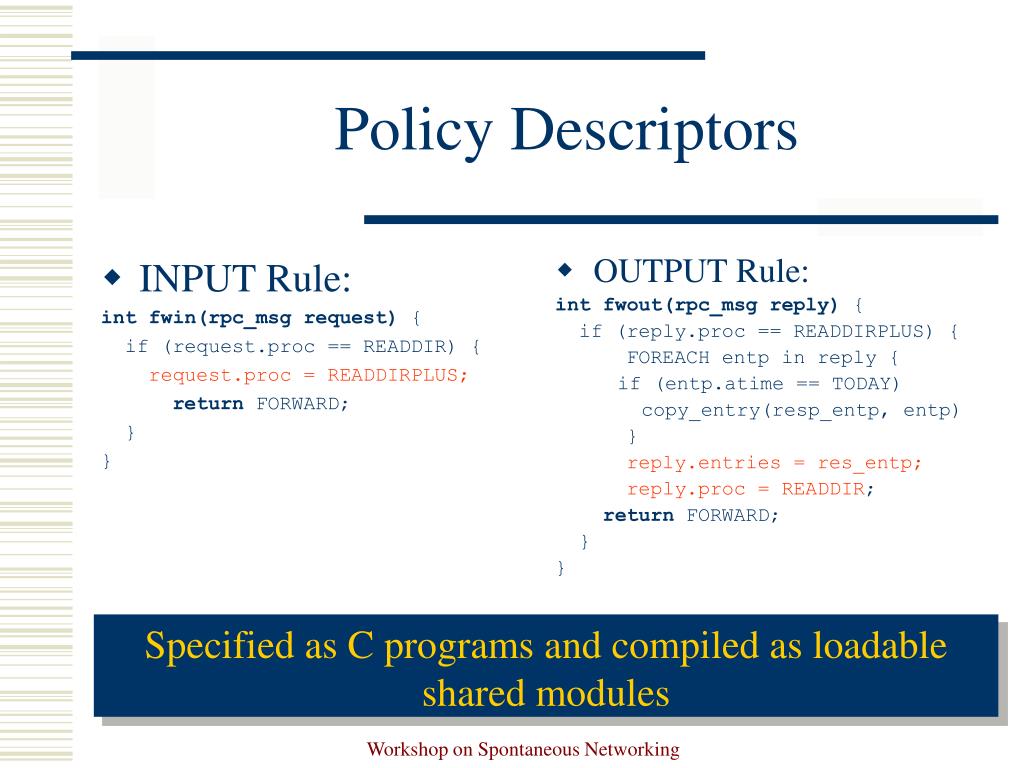

31. INPUT Rule: int fwin(rpc_msg request) { if (request.proc == READDIR) { request.proc = READDIRPLUS; return FORWARD; } } OUTPUT Rule: int fwout(rpc_msg reply) { if (reply.proc == READDIRPLUS) { FOREACH entp in reply { if (entp.atime == TODAY) copy_entry(resp_entp, entp) } reply.entries = res_entp; reply.proc = READDIR; return FORWARD; } } Policy Descriptors Specified as C programs and compiled as loadable shared modules Workshop on Spontaneous Networking

32. Outline • Motivation • Design • Access Context • FileWall Policies • Implementation • Evaluation • Related Work • Conclusions Workshop on Spontaneous Networking

33. Implementation • FileWall: • Click Modular Router • NFS over UDP Workshop on Spontaneous Networking

34. Implementation • FileWall • Click Modular Router • NFS over UDP • FileWall Client • SFS toolkit • Session establishment • Bootstrapping • Identify list of available file systems Workshop on Spontaneous Networking

35. Outline • Motivation • Design • Access Context • FileWall Policies • Implementation • Evaluation • Related Work • Conclusions Workshop on Spontaneous Networking

36. Interposition Overhead: Emacs Compilation Workshop on Spontaneous Networking

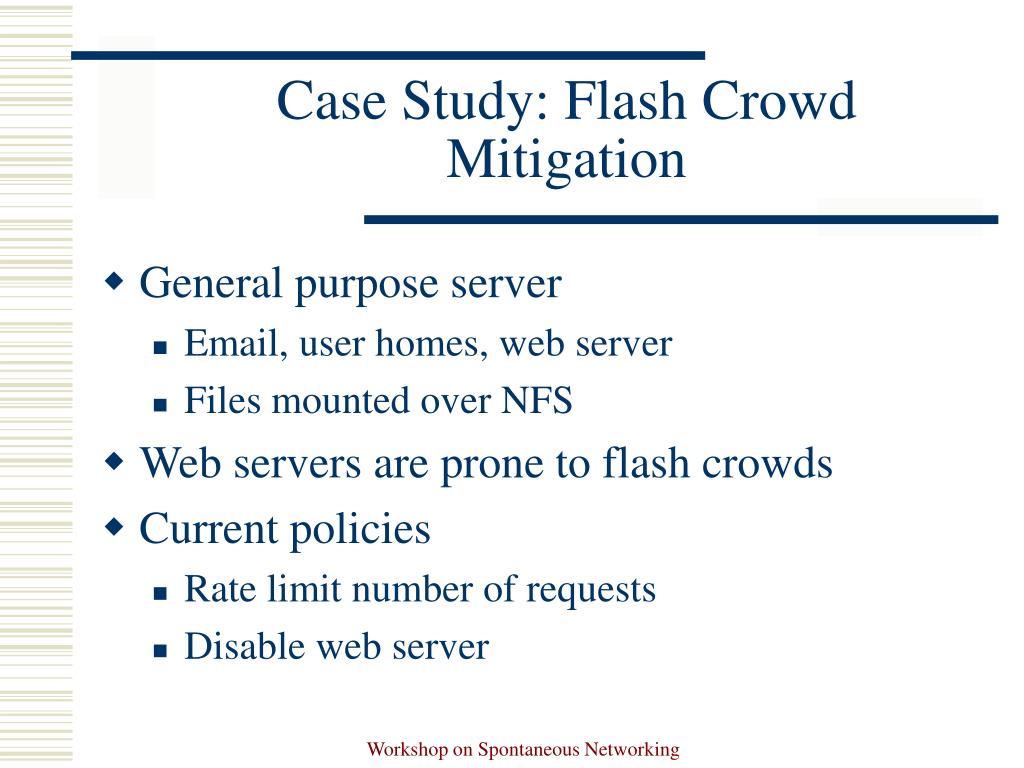

37. Case Study: Flash Crowd Mitigation • General purpose server • Email, user homes, web server • Files mounted over NFS • Web servers are prone to flash crowds • Current policies • Rate limit number of requests • Disable web server Workshop on Spontaneous Networking

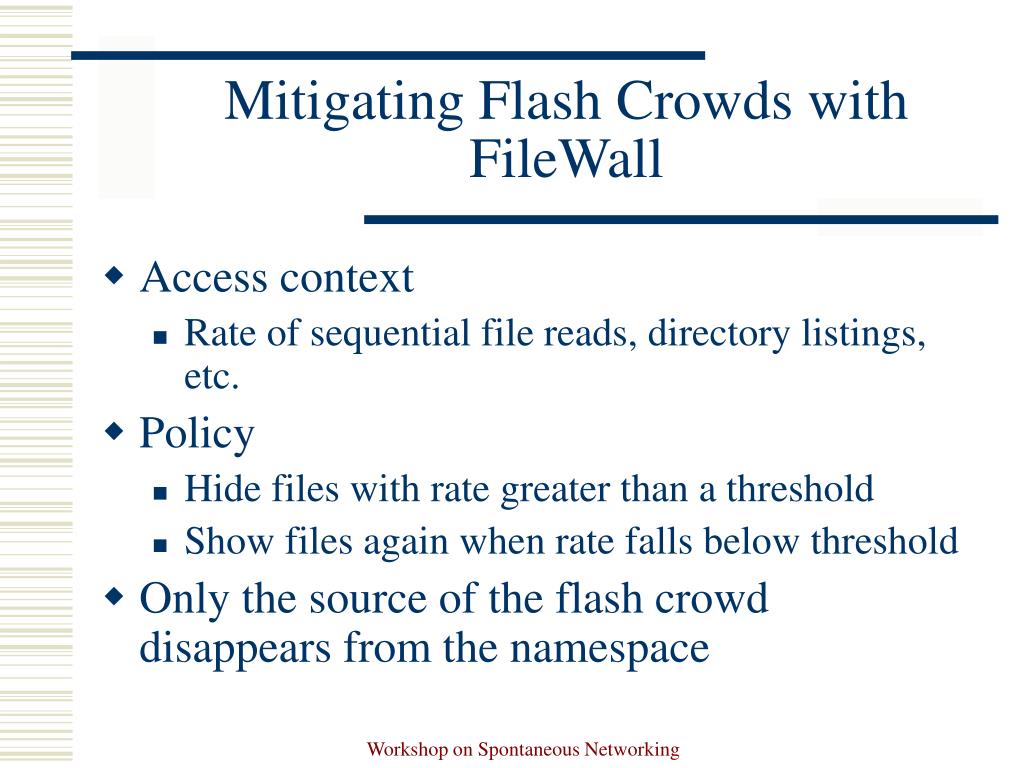

38. Mitigating Flash Crowds with FileWall • Access context • Rate of sequential file reads, directory listings, etc. • Policy • Hide files with rate greater than a threshold • Show files again when rate falls below threshold • Only the source of the flash crowd disappears from the namespace Workshop on Spontaneous Networking

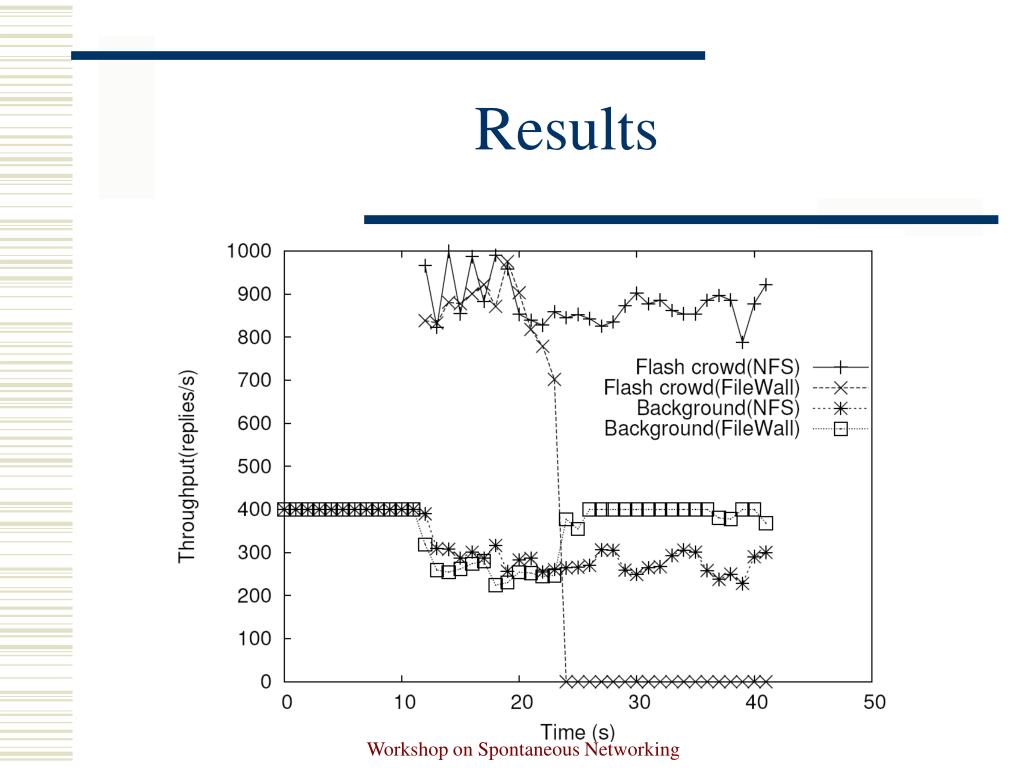

39. Results Workshop on Spontaneous Networking

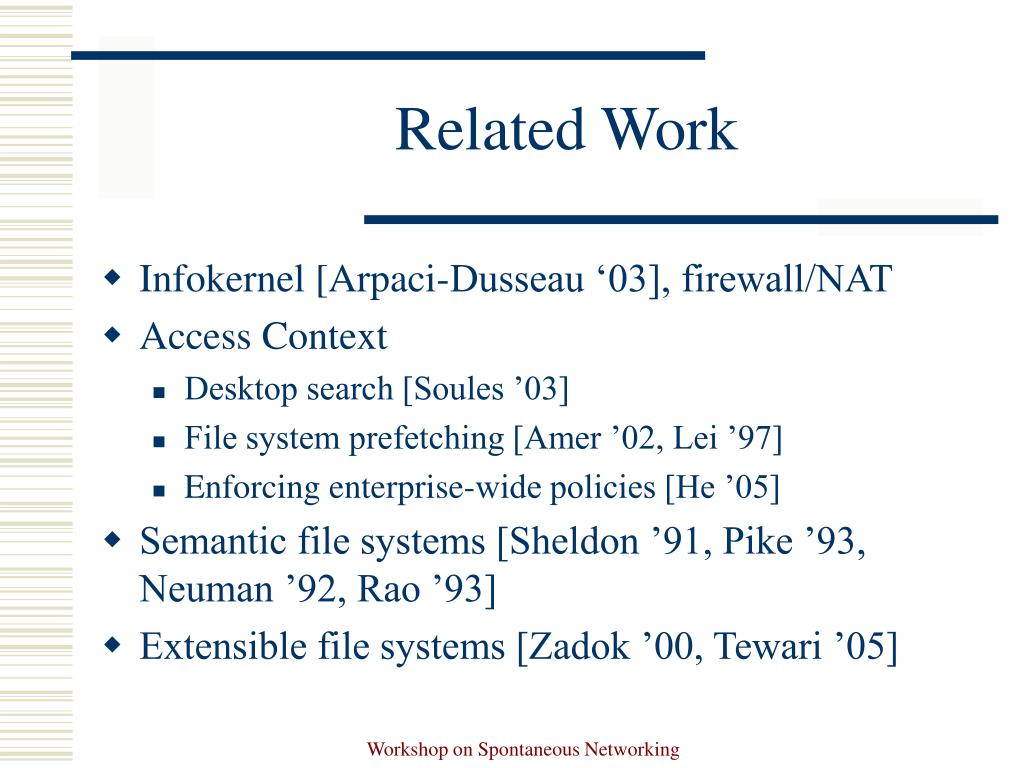

40. Related Work • Infokernel [Arpaci-Dusseau ‘03], firewall/NAT • Access Context • Desktop search [Soules ’03] • File system prefetching [Amer ’02, Lei ’97] • Enforcing enterprise-wide policies [He ’05] • Semantic file systems [Sheldon ’91, Pike ’93, Neuman ’92, Rao ’93] • Extensible file systems [Zadok ’00, Tewari ’05] Workshop on Spontaneous Networking

41. Future Work • User study • Real deployment • Behavior models Workshop on Spontaneous Networking

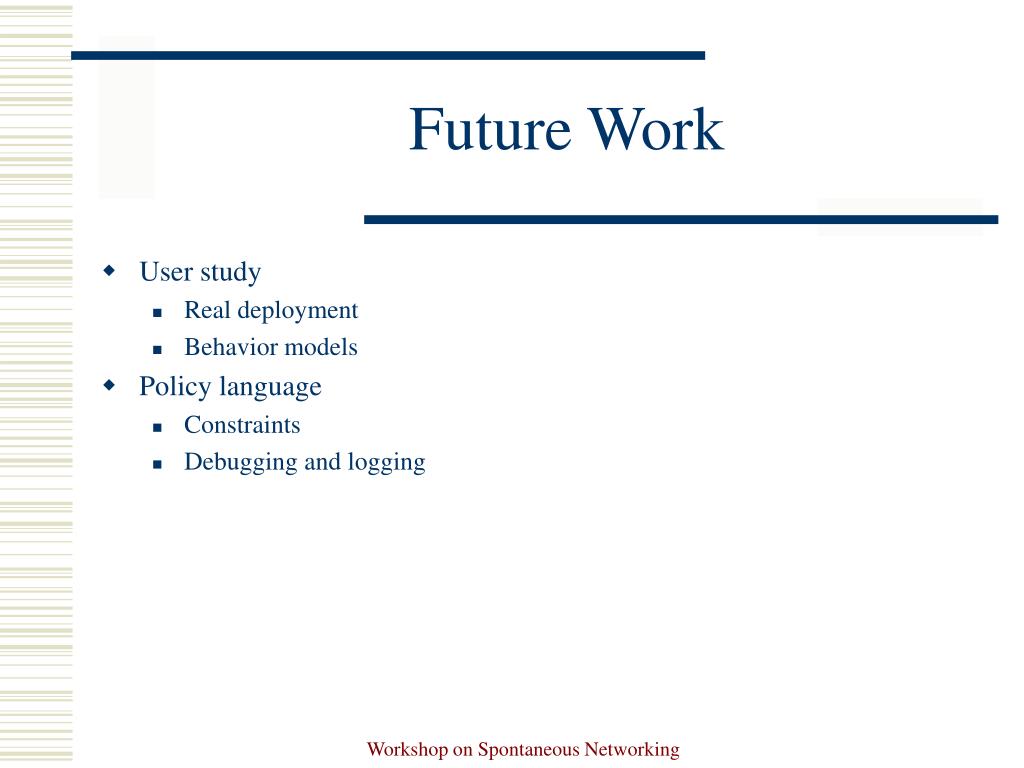

42. Future Work • User study • Real deployment • Behavior models • Policy language • Constraints • Debugging and logging Workshop on Spontaneous Networking

43. Future Work • User study • Real deployment • Behavior models • Policy language • Constraints • Debugging and logging • Data transformations • Censorship • Protocol translations • NFS -> CIFS • Recipe-based file system (CASPER) • IP -> RDMA • Video encoding • Content adaptation Workshop on Spontaneous Networking

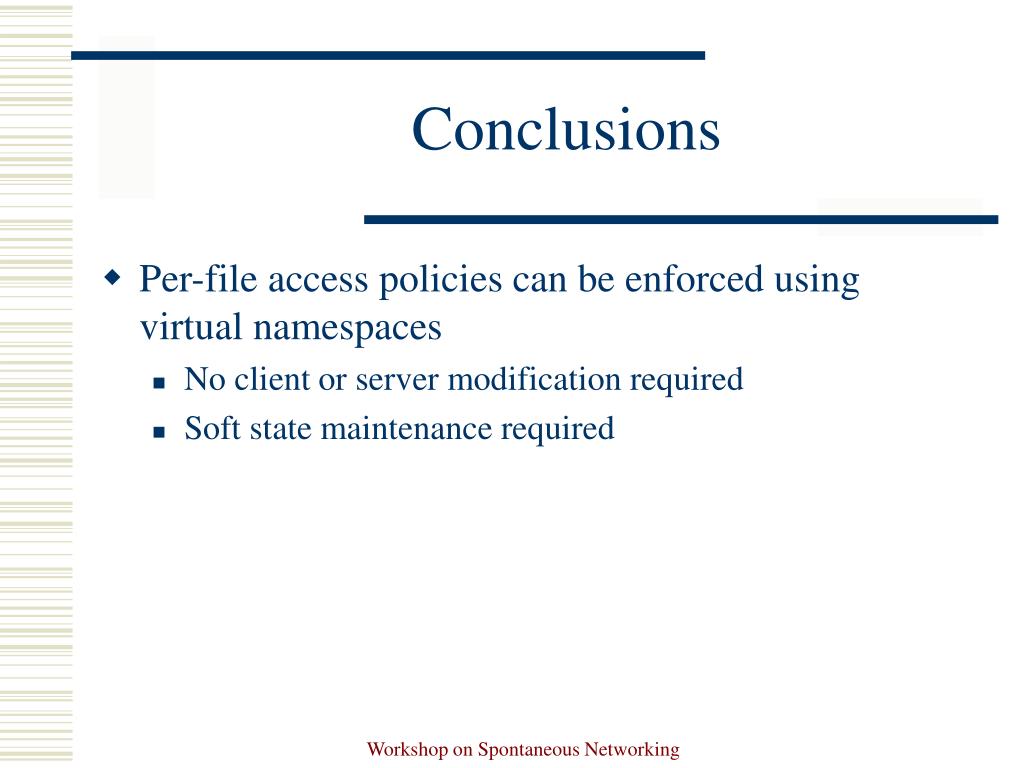

44. Conclusions • Per-file access policies can be enforced using virtual namespaces • No client or server modification required • Soft state maintenance required Workshop on Spontaneous Networking

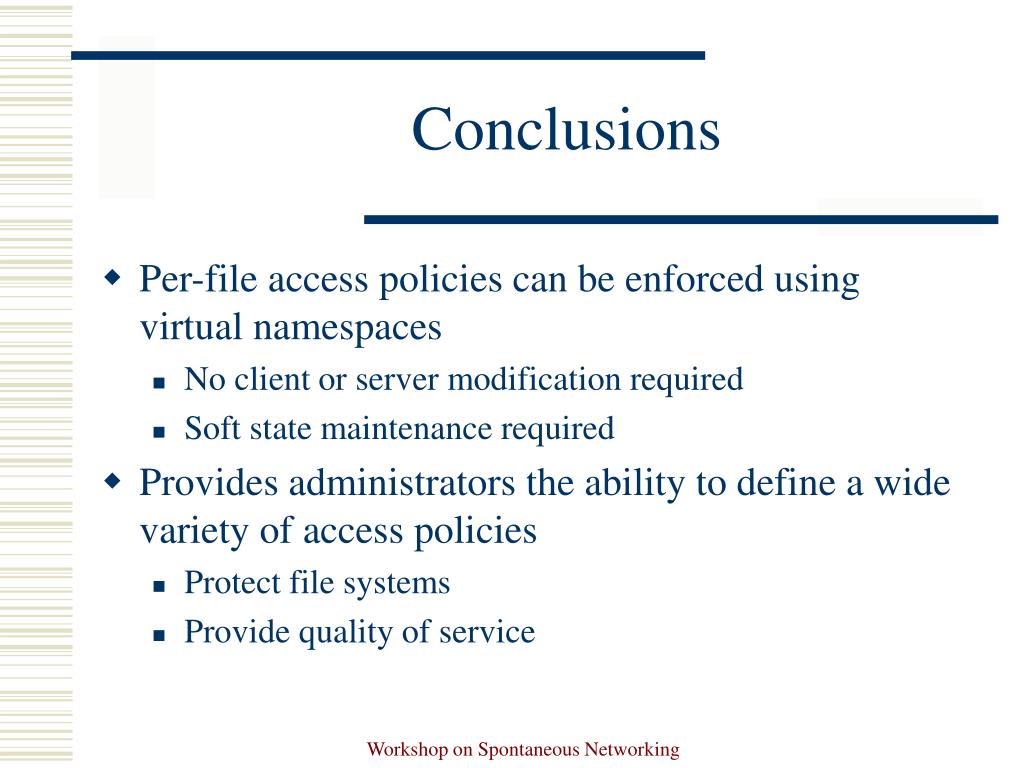

45. Conclusions • Per-file access policies can be enforced using virtual namespaces • No client or server modification required • Soft state maintenance required • Provides administrators the ability to define a wide variety of access policies • Protect file systems • Provide quality of service Workshop on Spontaneous Networking

46. Thank You Questions?

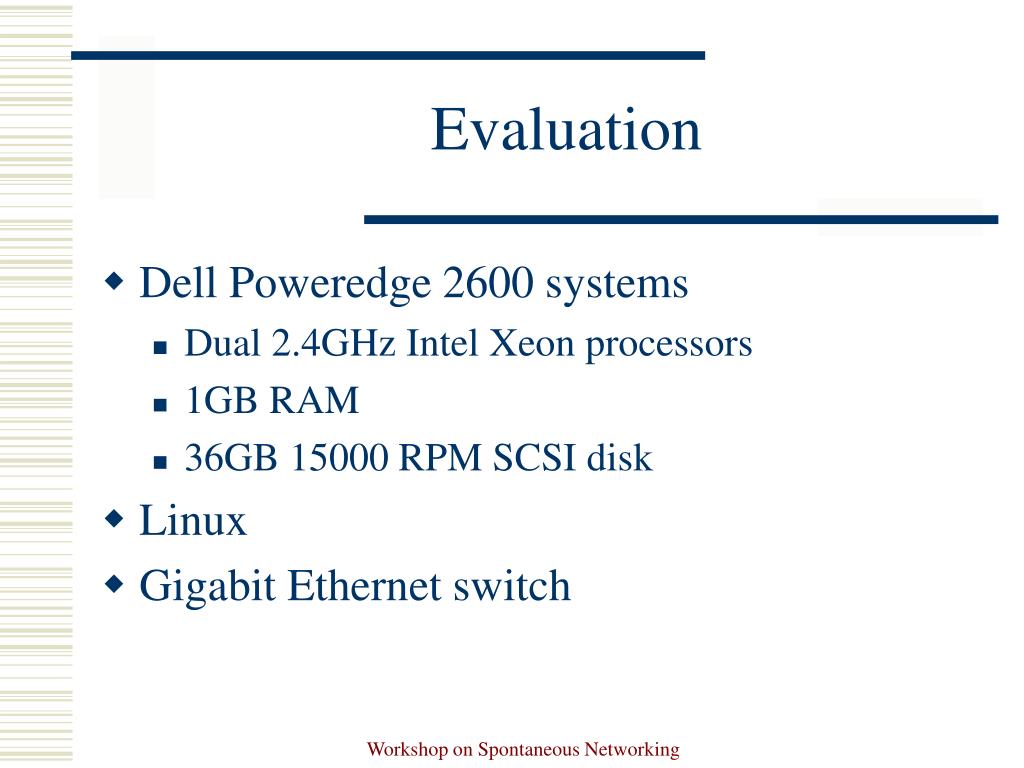

47. Evaluation • Dell Poweredge 2600 systems • Dual 2.4GHz Intel Xeon processors • 1GB RAM • 36GB 15000 RPM SCSI disk • Linux • Gigabit Ethernet switch Workshop on Spontaneous Networking

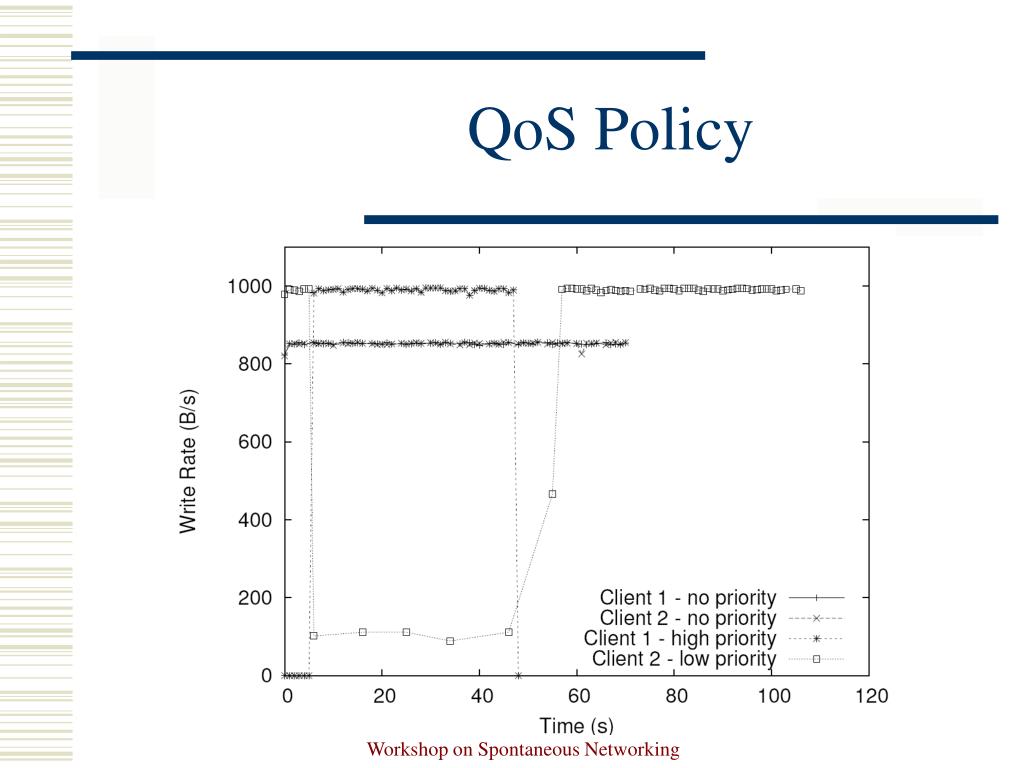

48. QoS Policy Workshop on Spontaneous Networking

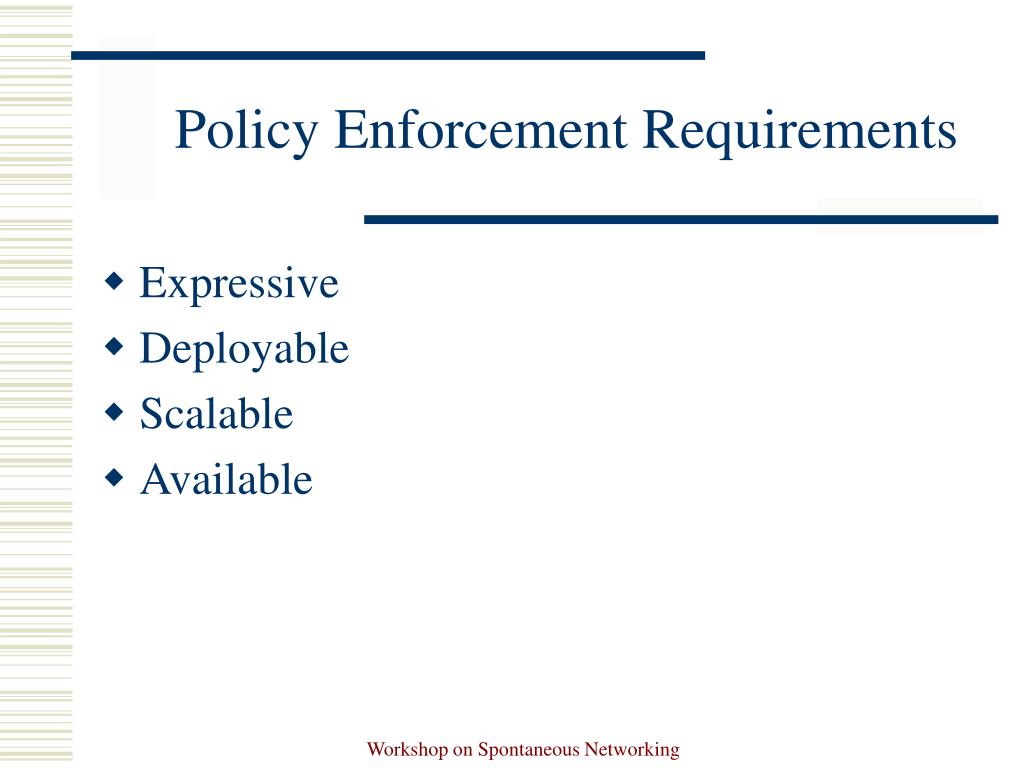

49. Policy Enforcement Requirements • Expressive • Deployable • Scalable • Available Workshop on Spontaneous Networking
