Presentation Transcript

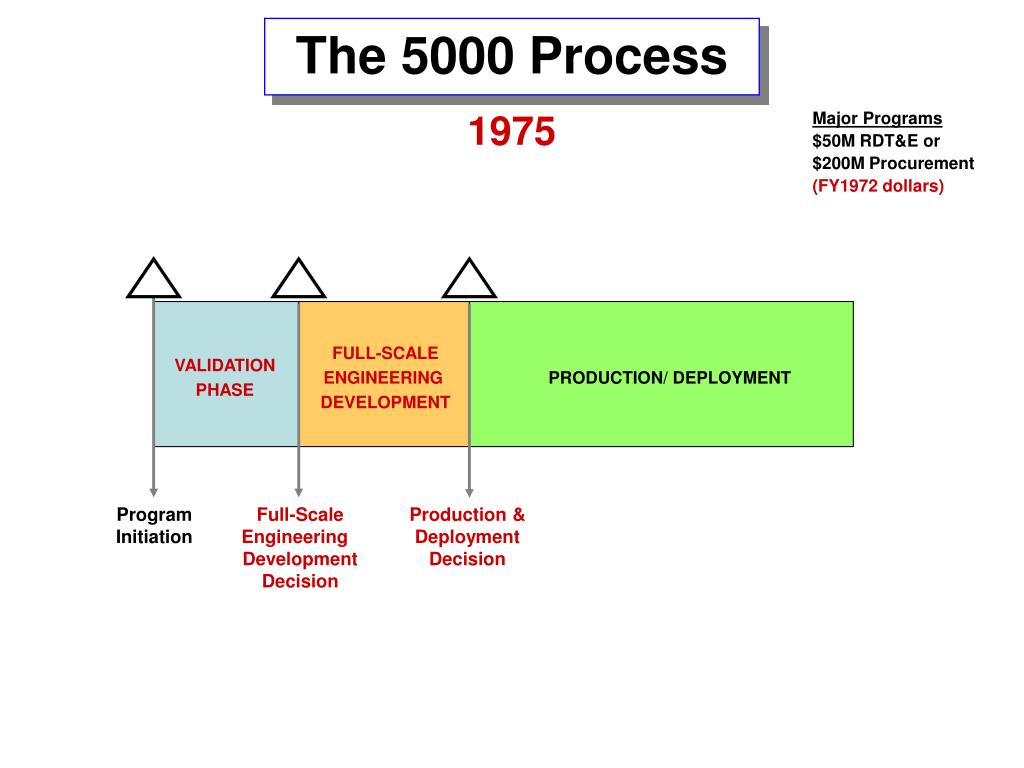

  1. FULL-SCALE ENGINEERING DEVELOPMENT Full-Scale Engineering Development Decision The 5000 Process 1975 Major Programs $50M RDT&E or $200M Procurement (FY1972 dollars) VALIDATION PHASE PRODUCTION/ DEPLOYMENT Program Initiation Production & Deployment Decision

  2. I II III Phase 0 Phase I Phase II Phase III EXPLORATION OF ALTERNATIVE SYSTEM CONCEPTS FULL-SCALE ENGINEERING DEVELOPMENT DEMONSTRATION & VALIDATION PRODUCTION & DEPLOYMENT Approval to Enter Demonstration & Validation Approval to Enter Full-Scale Engineering Development Approval to Enter Production & Deployment The 5000 Process 1977 Major Programs $75M RDT&E or $300M Procurement (FY1972 dollars) 0 MENS* Approved Program Initiation *Mission Element Need Statement (MENS)

  3. III Phase III PRODUCTION & DEPLOYMENT Approval to Enter Production & Deployment The 5000 Process 1980 Major Programs $100M RDT&E or $500M Procurement (FY1980 dollars) 0 I II Phase 0 Phase I Phase II DEMONSTRATION & VALIDATION CONCEPT EXPLORATION FULL-SCALE DEVELOPMENT MENS Approved Program Initiation Approval to Enter Demonstration & Validation Approval to Enter Full-Scale Development • SECDEF Decision Memorandum (SDDM) implemented to document milestone decisions

  4. The 5000 Process 1982 Major Programs $200M RDT&E or $1B Procurement (FY1980 dollars) I II III Phase 0 Phase I Phase II Phase III DEMONSTRATION & VALIDATION PRODUCTION & DEPLOYMENT CONCEPT EXPLORATION FULL-SCALE DEVELOPMENT Approval of JMSNS In PPBS is Program Initiation Concept Selection Program Go-Ahead Production Decision (Delegated To Components) • May proceed into FSD with delayed MS II – contracts must be written so program can be terminated at least cost to government

  5. 0 Phase 0 Phase I Phase II Phase III DEMONSTRATION & VALIDATION PRODUCTION & DEPLOYMENT CONCEPT EXPLORATION FULL-SCALE DEVELOPMENT The 5000 Process 1985 Major Programs $200M RDT&E or $1B Procurement (FY1980 dollars) I II III Approval of JMSNS In PPBS is Program Initiation Concept Selection Program Go-Ahead Production Decision (May Be Delegated To Components) • May proceed into FSD with delayed MS II – contracts must be written so program can be terminated at least cost to government

  6. IV V PRODUCTION, FIELDING/ DEPLOYMENT, & OPERATIONAL SUPPORT FULL-SCALE DEVELOPMENT & LRIP Logistics Readiness & Support Review Major Upgrade\ Replace Decision Approval to Enter Full- Scale Development & LRIP Approval For Full-Rate Production & Deployment The 5000 Process 1987 Major Programs $200M RDT&E or $1B Procurement (FY1980 dollars) 0 I II III Phase 0 Phase I Phase II Phase III CONCEPT EXPLORATION/ DEFINITION CONCEPT DEMONSTRATION/ VALIDATION Approval to Enter Concept Demonstration/ Validation Approval of JMSNS In PPBS is Program Initiation • DSARC replaced by JRMB; JRMD replaced by DAB

  7. IV 0 I II III Phase III Phase IV Phase 0 Phase I Phase II CONCEPT EXPLORATION/ DEFINITION ENGINEERING & MANUFACTURING DEVELOPMENT DEMONSTRATION & VALIDATION PRODUCTION & DEPLOYMENT OPERATIONS & SUPPORT Determination of Mission Need Major Modification Approval Concept Demonstration Approval Development Approval The 5000 Process 1991 Major Programs $300M RDT&E or $1.8B Procurement (FY1990 dollars) Approval to Conduct Concept Studies Production Approval • Acquisition Decision Memorandum (ADM) signed by USD(Acq) replaces SDDM • Provision for delayed MS II eliminated • ACAT structure created • JROC approved MNS replaces SECDEF approved JMSNS at MS 0

  8. I Phase I Phase III PROGRAM DEFINITION & RISK REDUCTION ENGINEERING & MANUFACTURING DEVELOPMENT PRODUCTION, FIELDING/ DEPLOYMENT, & OPERATIONAL SUPPORT Demilitarization & Disposal Approval to Begin a New Acquisition Program Approval to Enter Engineering & Manufacturing Development The 5000 Process 1996 Major Programs $300M RDT&E or $1.8B Procurement (FY1990 dollars) 0 II III Phase 0 Phase II Determination of Mission Need CONCEPT EXPLORATION Approval to Conduct Concept Studies Production or Fielding/ Deployment Approval • Program Initiation moved to Milestone I • AIS acquisition programs folded into the DoD 5000 process

  9. A B C SYSTEM DEVELOPMENT & DEMONSTRATION PRODUCTION & DEPLOYMENT OPERATIONS & SUPPORT CONCEPT & TECHNOLOGY DEVELOPMENT Interim Progress Review FRP Decision Review Decision Review Approval to Enter Concept & Technology Development Approval to Enter Systems Development & Demonstration Approval to Enter LRIP/ Production & Deployment The 5000 Process 2000 Major Programs $365M RDT&E or $2.19B Procurement (FY2000 dollars) User Needs & Technology Opportunities • Program Initiation at MS B • Commitment to Production at MS C (LRIP) • Evolutionary Acquisition (EA) becomes preferred approach

  10. CONCEPT REFINEMENT TECHNOLOGY DEVELOPMENT Concept Decision Approval to Enter Technology Development The 5000 Process 2003 Major Programs $365M RDT&E or $2.19B Procurement (FY2000 dollars) User Needs & Technology Opportunities A B C SYSTEM DEVELOPMENT & DEMONSTRATION PRODUCTION & DEPLOYMENT OPERATIONS & SUPPORT Design Readiness Review FRP Decision Review Approval to Enter Systems Development & Demonstration Approval to Enter LRIP/Production & Deployment • MNS becomes ICD approved prior to Concept Decision

  11. The 5000 Process 2003 Major Programs $365M RDT&E or $2.19B Procurement (FY2000 dollars) User Needs & Technology Opportunities A B C SYSTEM DEVELOPMENT & DEMONSTRATION PRODUCTION & DEPLOYMENT OPERATIONS & SUPPORT CONCEPT REFINEMENT TECHNOLOGY DEVELOPMENT Design Readiness Review FRP Decision Review Concept Decision Approval to Enter Technology Development Approval to Enter Systems Development & Demonstration Approval to Enter LRIP/Production & Deploymentl • MNS becomes ICD approved prior to Concept Decision
