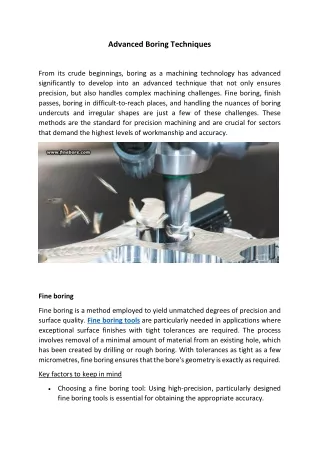

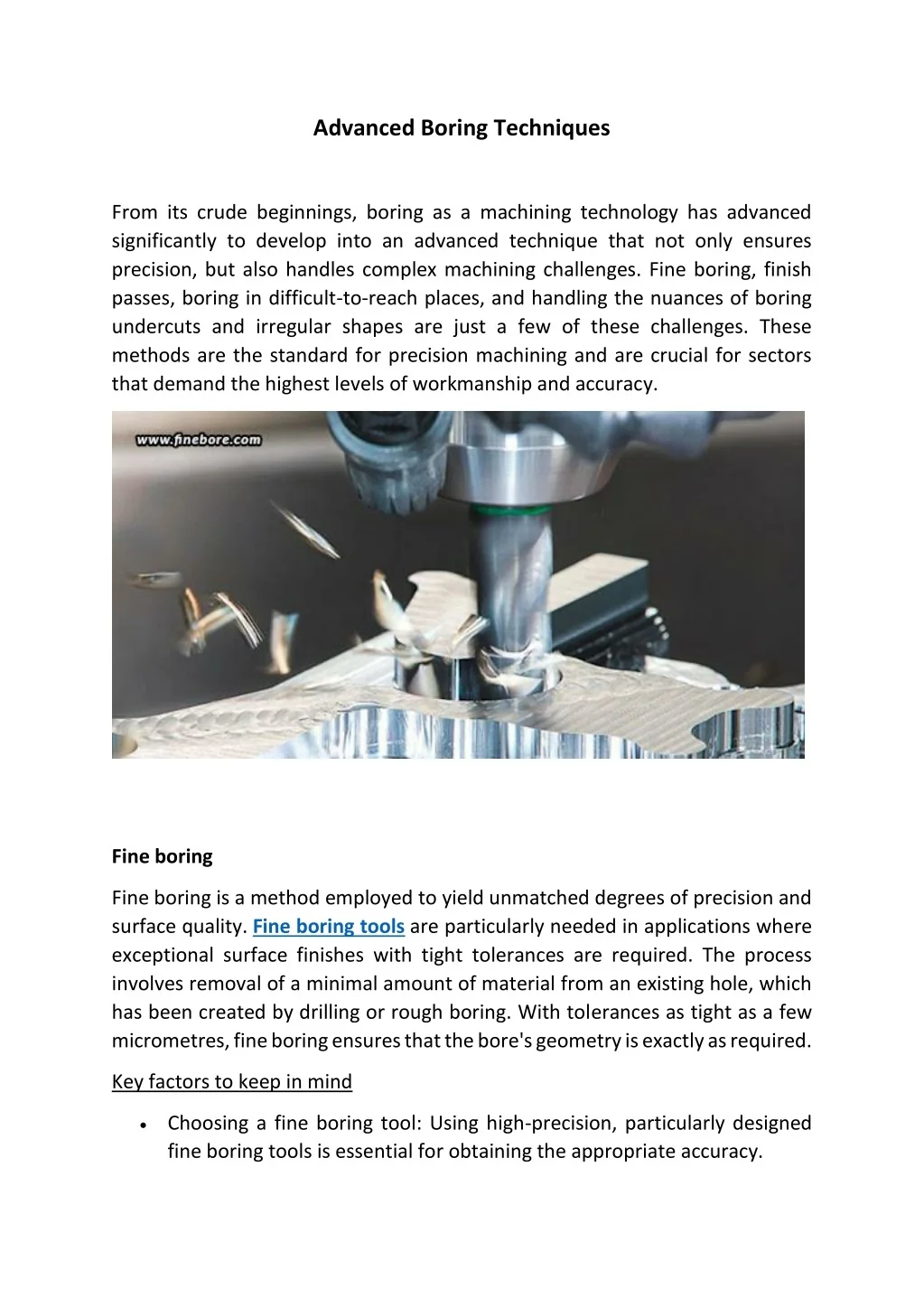

1. Advanced Boring Techniques From its crude beginnings, boring as a machining technology has advanced significantly to develop into an advanced technique that not only ensures precision, but also handles complex machining challenges. Fine boring, finish passes, boring in difficult-to-reach places, and handling the nuances of boring undercuts and irregular shapes are just a few of these challenges. These methods are the standard for precision machining and are crucial for sectors that demand the highest levels of workmanship and accuracy. Fine boring Fine boring is a method employed to yield unmatched degrees of precision and surface quality. Fine boring tools are particularly needed in applications where exceptional surface finishes with tight tolerances are required. The process involves removal of a minimal amount of material from an existing hole, which has been created by drilling or rough boring. With tolerances as tight as a few micrometres, fine boring ensures that the bore's geometry is exactly as required. Key factors to keep in mind •Choosing a fine boring tool: Using high-precision, particularly designed fine boring tools is essential for obtaining the appropriate accuracy.

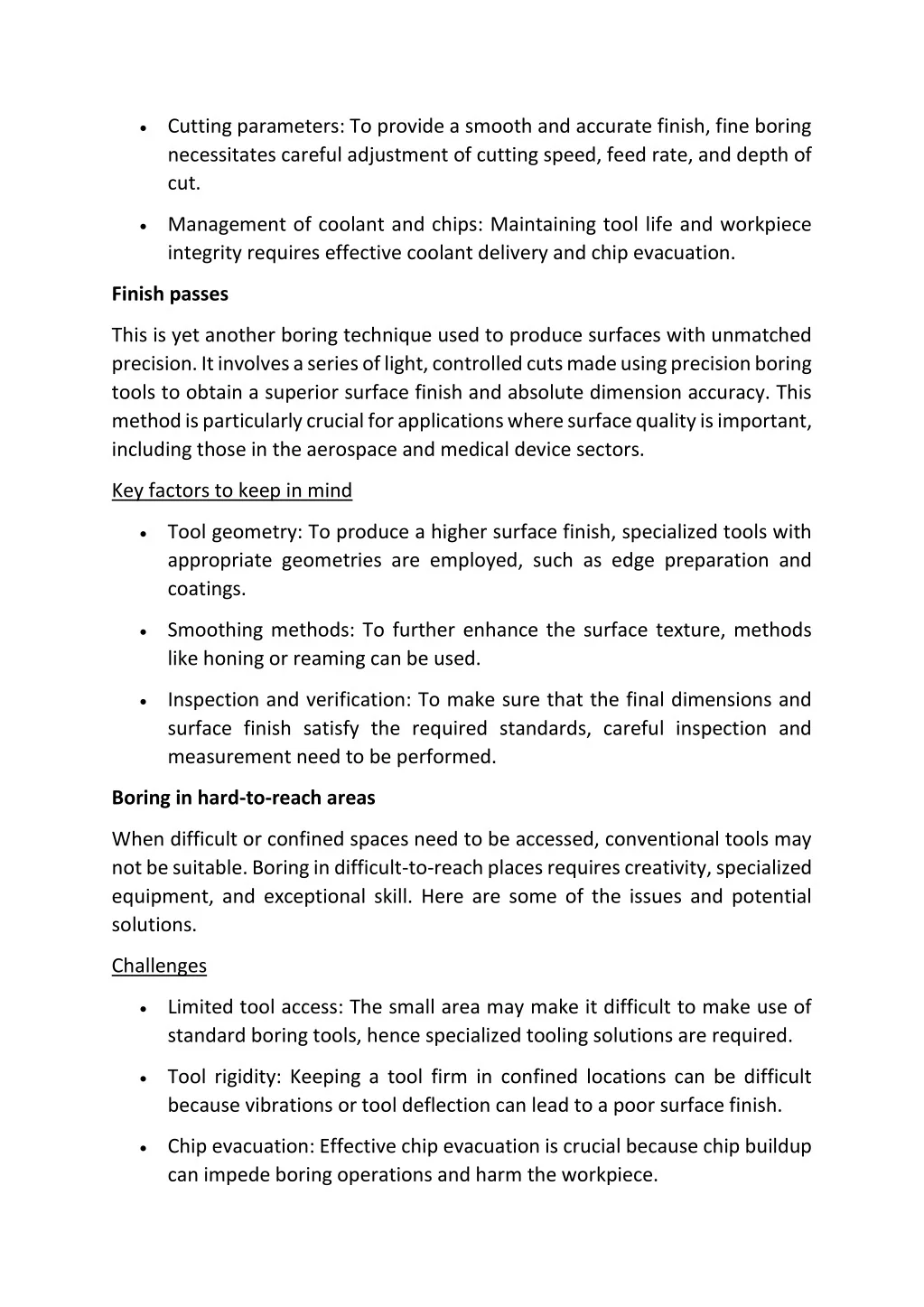

2. •Cutting parameters: To provide a smooth and accurate finish, fine boring necessitates careful adjustment of cutting speed, feed rate, and depth of cut. •Management of coolant and chips: Maintaining tool life and workpiece integrity requires effective coolant delivery and chip evacuation. Finish passes This is yet another boring technique used to produce surfaces with unmatched precision. It involves a series of light, controlled cuts made using precision boring tools to obtain a superior surface finish and absolute dimension accuracy. This method is particularly crucial for applications where surface quality is important, including those in the aerospace and medical device sectors. Key factors to keep in mind •Tool geometry: To produce a higher surface finish, specialized tools with appropriate geometries are employed, such as edge preparation and coatings. •Smoothing methods: To further enhance the surface texture, methods like honing or reaming can be used. •Inspection and verification: To make sure that the final dimensions and surface finish satisfy the required standards, careful inspection and measurement need to be performed. Boring in hard-to-reach areas When difficult or confined spaces need to be accessed, conventional tools may not be suitable. Boring in difficult-to-reach places requires creativity, specialized equipment, and exceptional skill. Here are some of the issues and potential solutions. Challenges •Limited tool access: The small area may make it difficult to make use of standard boring tools, hence specialized tooling solutions are required. •Tool rigidity: Keeping a tool firm in confined locations can be difficult because vibrations or tool deflection can lead to a poor surface finish. •Chip evacuation: Effective chip evacuation is crucial because chip buildup can impede boring operations and harm the workpiece.

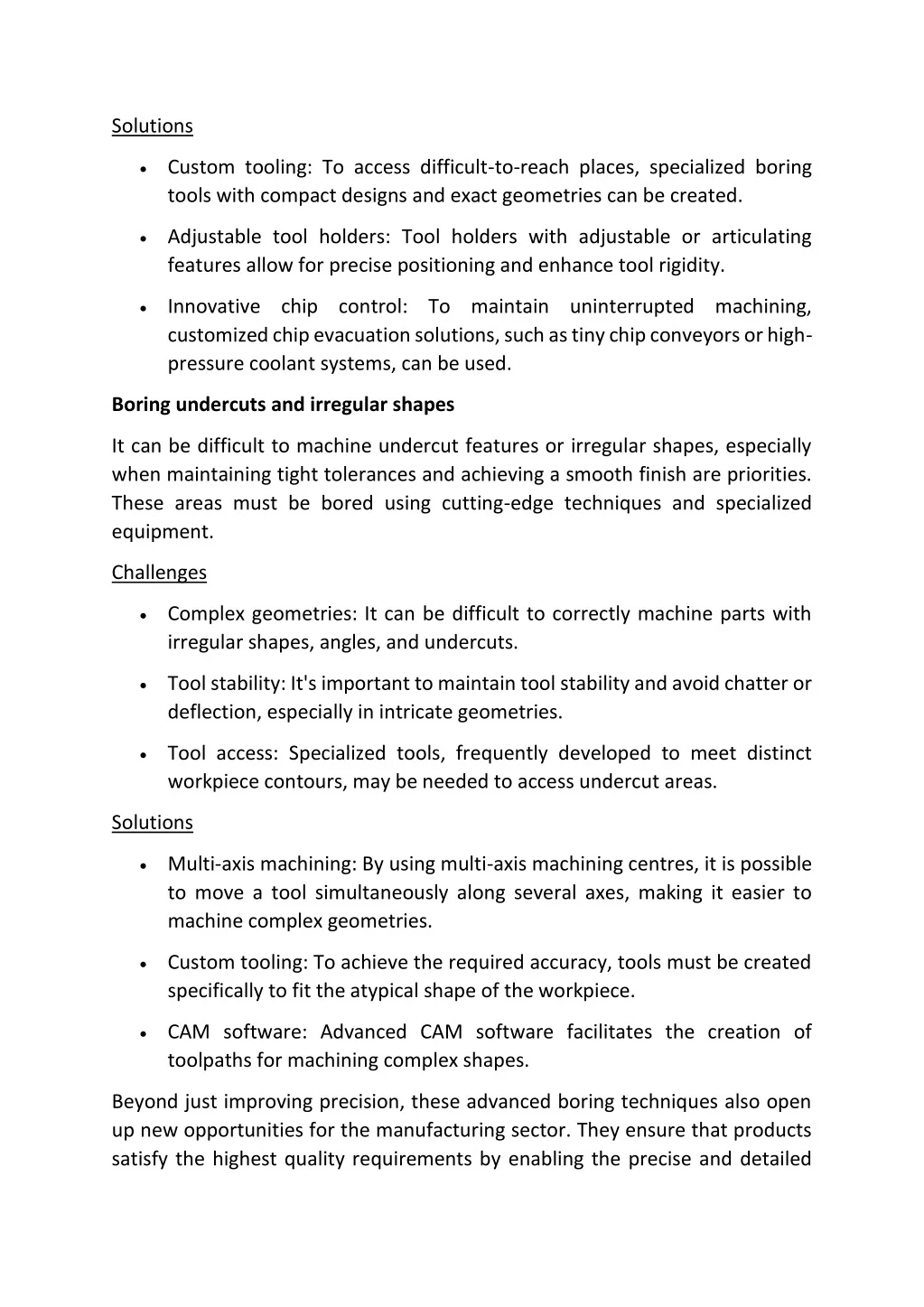

3. Solutions •Custom tooling: To access difficult-to-reach places, specialized boring tools with compact designs and exact geometries can be created. •Adjustable tool holders: Tool holders with adjustable or articulating features allow for precise positioning and enhance tool rigidity. •Innovative chip control: To maintain uninterrupted machining, customized chip evacuation solutions, such as tiny chip conveyors or high- pressure coolant systems, can be used. Boring undercuts and irregular shapes It can be difficult to machine undercut features or irregular shapes, especially when maintaining tight tolerances and achieving a smooth finish are priorities. These areas must be bored using cutting-edge techniques and specialized equipment. Challenges •Complex geometries: It can be difficult to correctly machine parts with irregular shapes, angles, and undercuts. •Tool stability: It's important to maintain tool stability and avoid chatter or deflection, especially in intricate geometries. •Tool access: Specialized tools, frequently developed to meet distinct workpiece contours, may be needed to access undercut areas. Solutions •Multi-axis machining: By using multi-axis machining centres, it is possible to move a tool simultaneously along several axes, making it easier to machine complex geometries. •Custom tooling: To achieve the required accuracy, tools must be created specifically to fit the atypical shape of the workpiece. •CAM software: Advanced CAM software facilitates the creation of toolpaths for machining complex shapes. Beyond just improving precision, these advanced boring techniques also open up new opportunities for the manufacturing sector. They ensure that products satisfy the highest quality requirements by enabling the precise and detailed

4. production of intricate components. Such cutting-edge boring techniques are at the forefront of precision machining, enabling businesses to produce components with unsurpassed accuracy and surface finish. These methods are anticipated to become even more important in the production environment as technology and tooling solutions constantly develop. This is why you are advised to partner with such boring tools suppliers who is always active and enthusiastic to meet up with the changing demands of the industry. One such boring tools suppliers in Bangalore is FineTech Toolings, where precision is a culture, passion is a belief, and continuous innovation is a custom. Hence, you know that you’ll always get the best when you approach them, no matter what your boring requirement may be. Follow us on: Facebook & Instagram
