Advanced Troubleshooting Techniques

lourdes avatar
lourdes
33 diapositives · 636 Views · Sep 01, 2012

Advanced Troubleshooting Techniques. Chris Conlon- Fall 2002. Macintosh. Have your system CD Dump Prefs. Windows. 2 Easy Steps Reformat Reinstall. Overview of Topics. Troubled beginnings- when computers don’t start Lost but not forgotten- Data Recovery

Advanced Troubleshooting Techniques - slide 1
01 / 33Advanced Troubleshooting Techniques
1 / 17

Télécharger la présentation

Advanced Troubleshooting Techniques
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. Advanced Troubleshooting Techniques Chris Conlon- Fall 2002

  2. Macintosh • Have your system CD • Dump Prefs

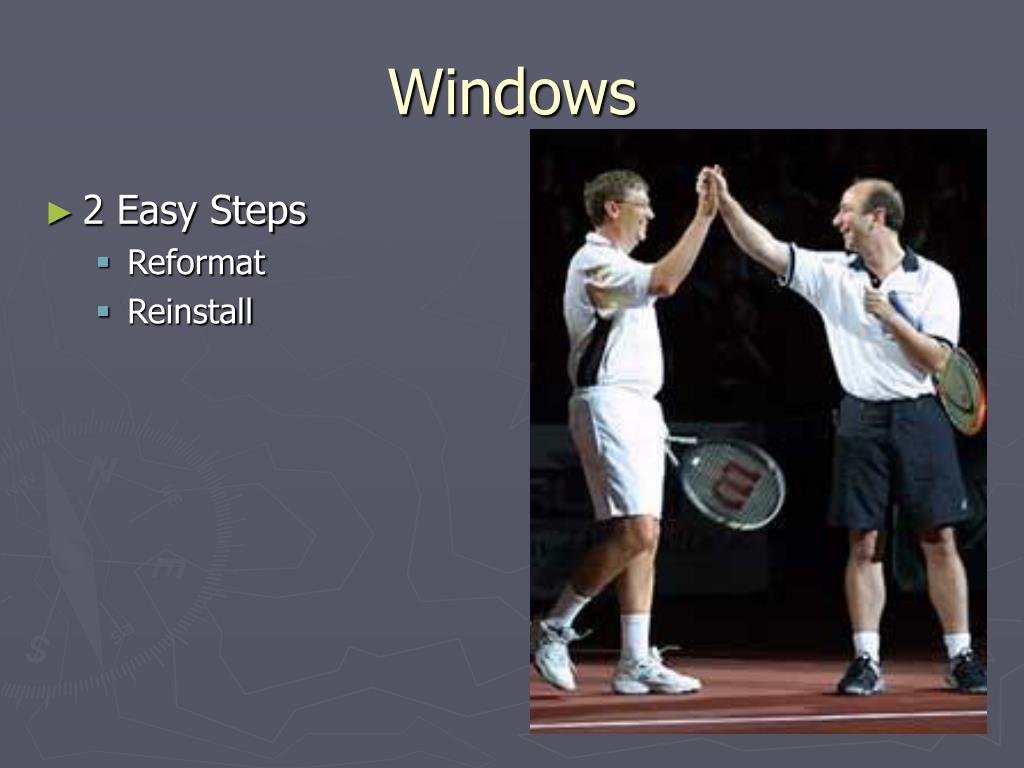

  3. Windows • 2 Easy Steps • Reformat • Reinstall

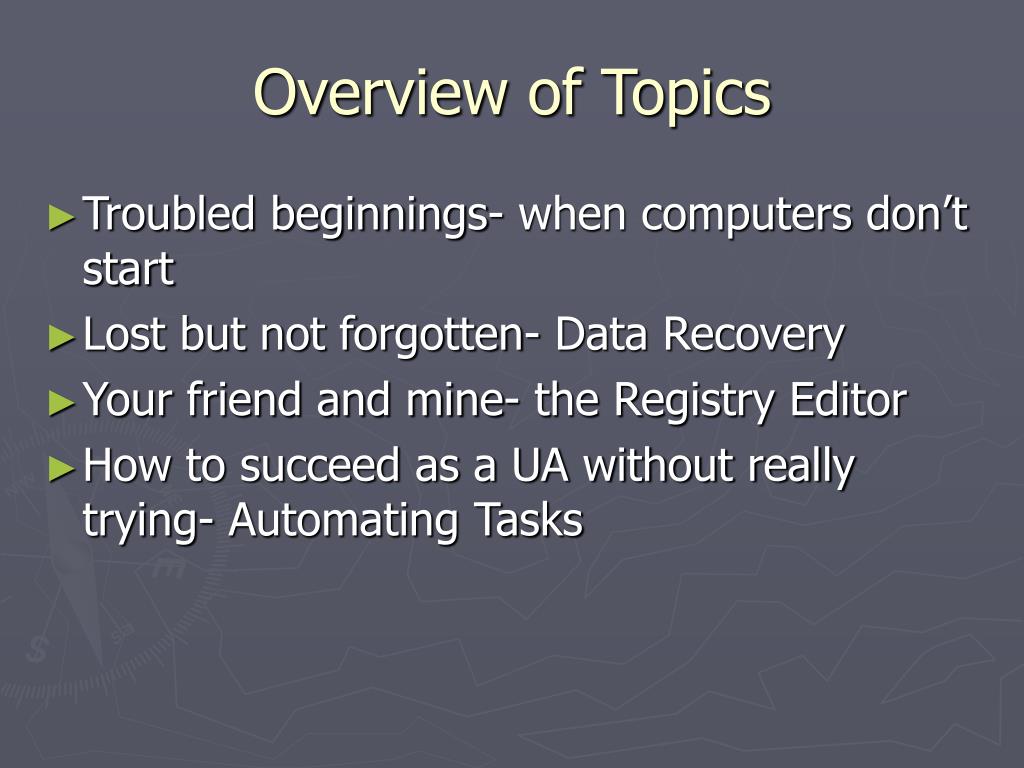

  4. Overview of Topics • Troubled beginnings- when computers don’t start • Lost but not forgotten- Data Recovery • Your friend and mine- the Registry Editor • How to succeed as a UA without really trying- Automating Tasks

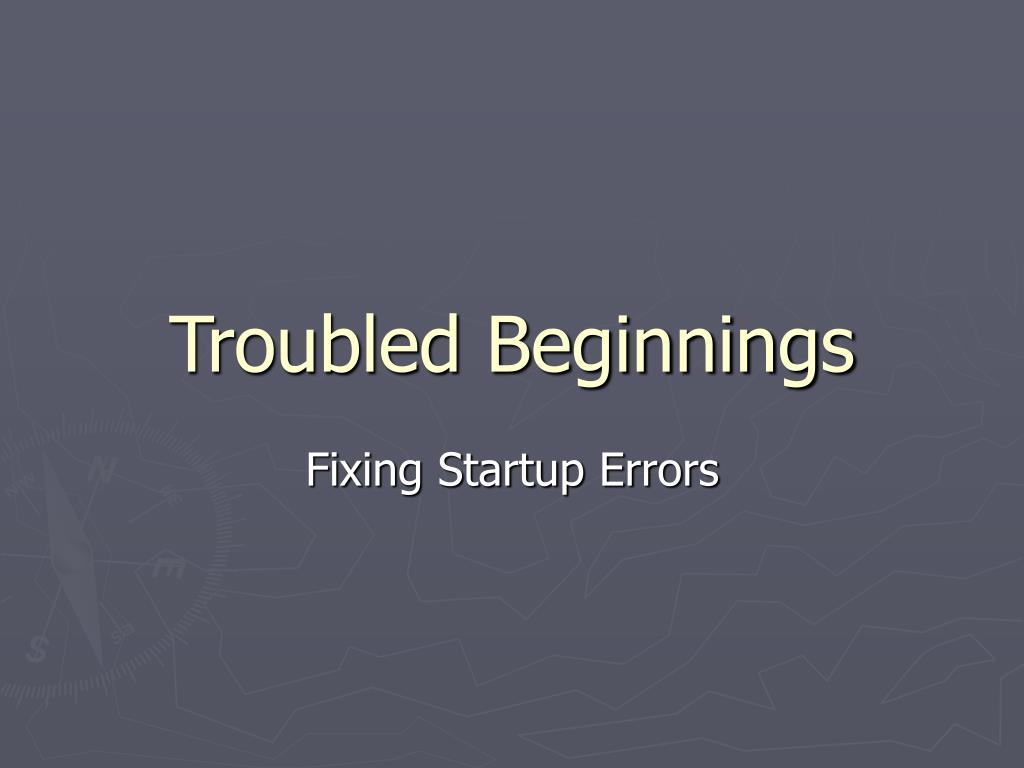

  5. Troubled Beginnings Fixing Startup Errors

  6. If you can’t get to Windows • Safe Mode- F8 • Boot off of the CD • Recovery Console (2k/XP) vs Repair Option • Security Policy Setting –otherwise you’re locked out • BIOS • Delete, F1, F2 • Escape first to disable silent boot • Quick boot is the enemy • Resetting the NVRAM/PnP data • Boot Sector virus protection vs OS reinstall • Check Beep Codes – RAM or Video Card? • Doc Memory on Tools CD—RAM testing

  7. Basics- Tools of the Trade • MSConfig • Best method-easily repaired • Startup Group and Run and Run- key • Services in NT/2000/XP • .INI Files

  8. Basics- Tools of the Trade • Sysedit • Can edit old startup files • Autoexec.bat, Config.sys, System.ini, win.ini • Good for Multimedia drivers, and old things • That pesky Norton Uninstall (navapw32.dll is missing…)

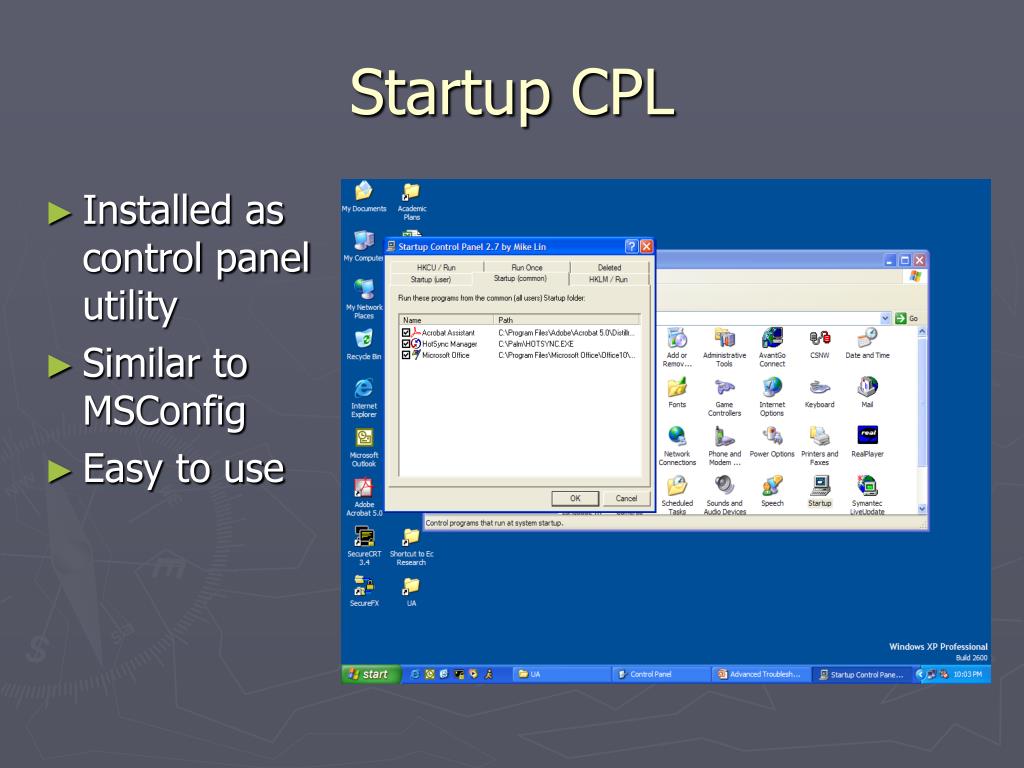

  9. Startup CPL • Installed as control panel utility • Similar to MSConfig • Easy to use

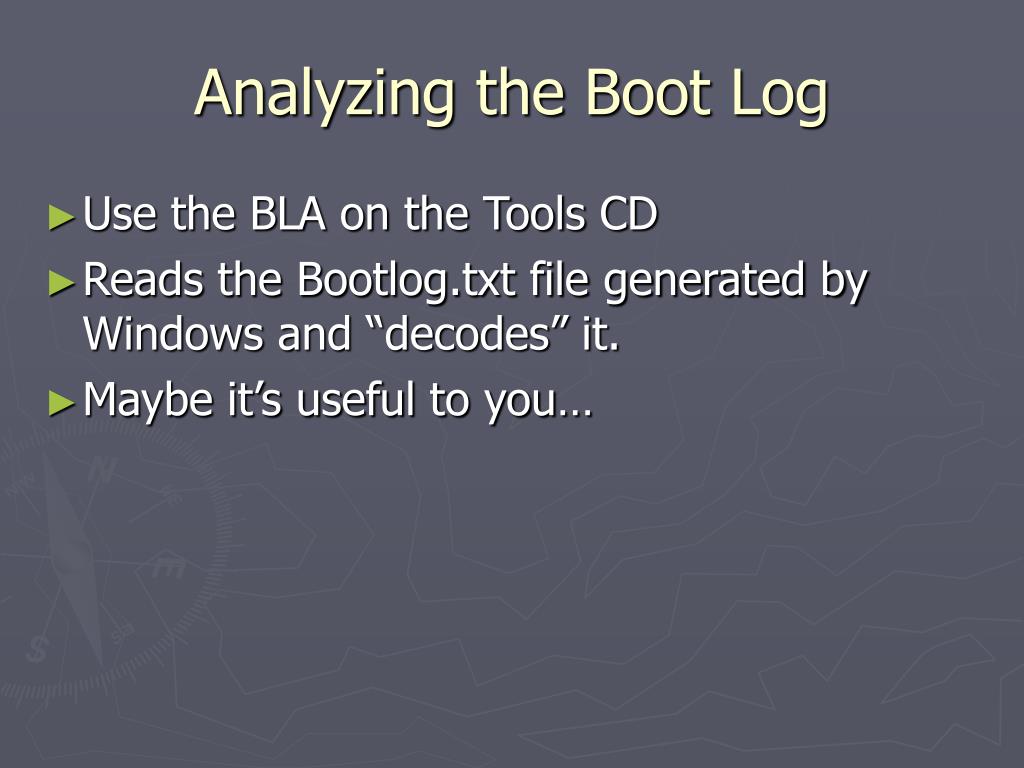

  10. Analyzing the Boot Log • Use the BLA on the Tools CD • Reads the Bootlog.txt file generated by Windows and “decodes” it. • Maybe it’s useful to you…

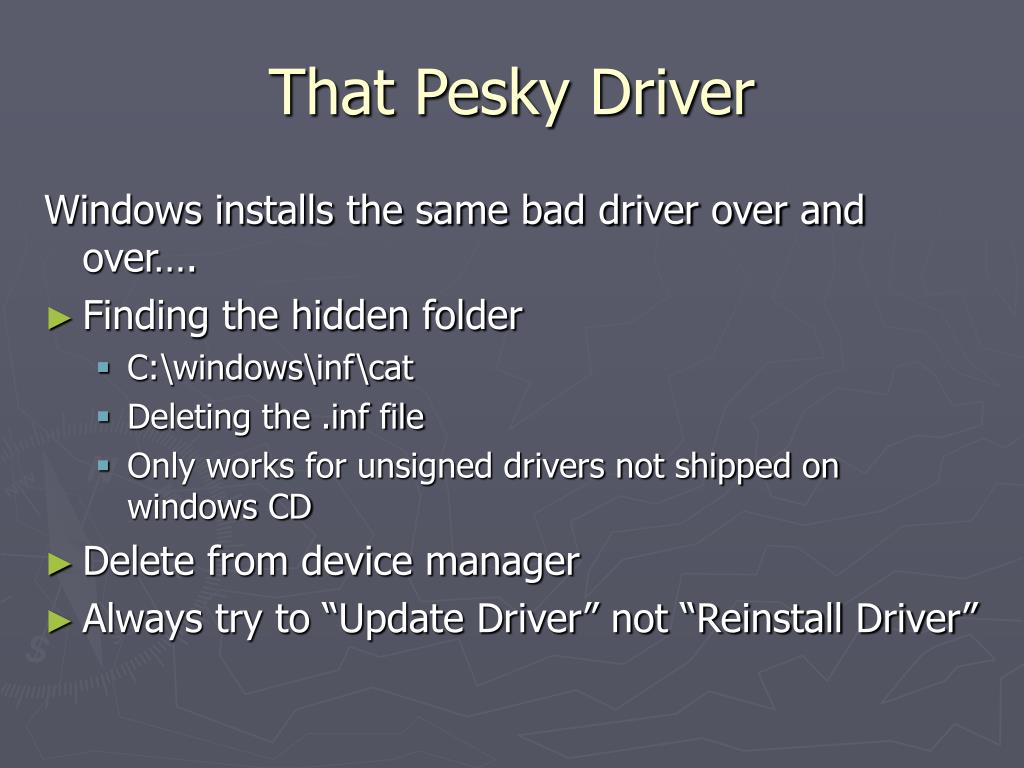

  11. That Pesky Driver Windows installs the same bad driver over and over…. • Finding the hidden folder • C:\windows\inf\cat • Deleting the .inf file • Only works for unsigned drivers not shipped on windows CD • Delete from device manager • Always try to “Update Driver” not “Reinstall Driver”

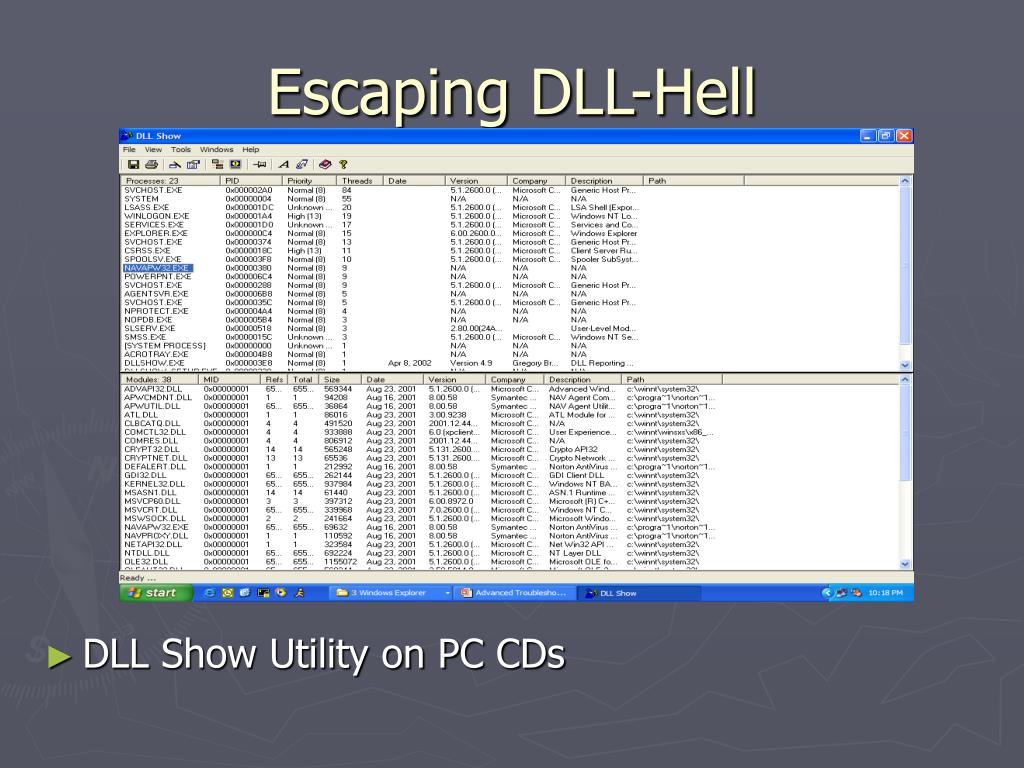

  12. Escaping DLL-Hell • DLL Show Utility on PC CDs

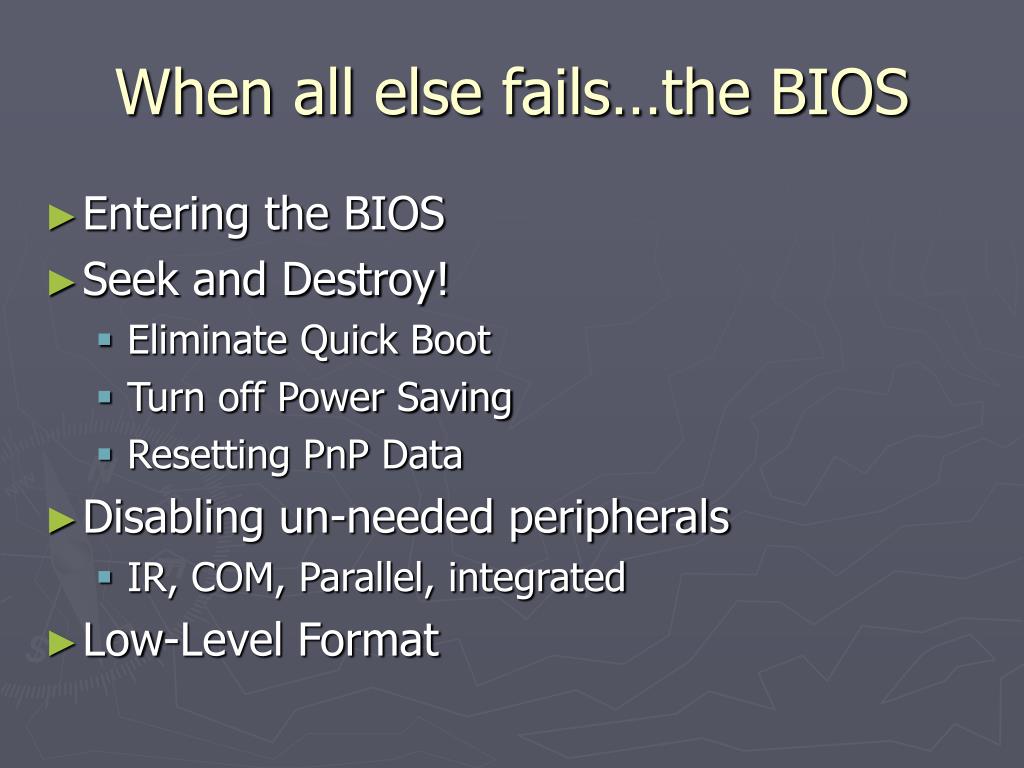

  13. When all else fails…the BIOS • Entering the BIOS • Seek and Destroy! • Eliminate Quick Boot • Turn off Power Saving • Resetting PnP Data • Disabling un-needed peripherals • IR, COM, Parallel, integrated • Low-Level Format

  14. Showing Hidden Devices • Use the registry file on tools CD to show hidden devices in device manager • What’s a hidden device you ask? • Unplugged PC Cards or USB devices, etc. • “Ghosting” network adapters

  15. Lost but not forgotten… Data Recovery…

  16. Spying on Yourself Security Tools

  17. Port Scanning • Port Scanning yourself is a good way to look for trojans • Superficial – netstat /a • Listening • Established • Port #’s

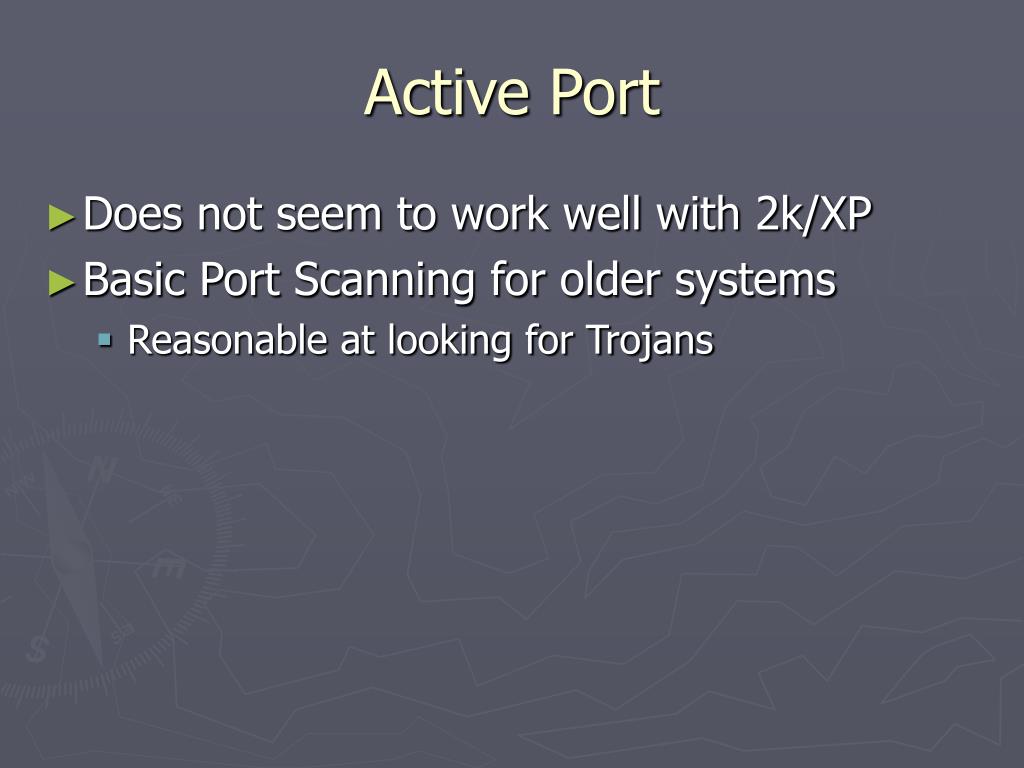

  18. Active Port • Does not seem to work well with 2k/XP • Basic Port Scanning for older systems • Reasonable at looking for Trojans

  19. SpyWorks or SpyWare? • Very Robust suite of something • Port Scanning • Intrustion Detection Tools • Intrusion Defense Tools • Key loggers and other sketchiness

  20. Hard Disk Troubles • Using Norton 2002 • Disk Doctor (FAT32 Preferred) • Repairs errors • Limitations under NTFS • Scandisk v. chkdsk /f • fdisk, format (boot disk) • Lose all data and start over (6mo) • FAT32 v. NTFS • Fdisk /mbr (when switching OS’s) • DelPart.exe – Win 9x over NT/2K • Low level format

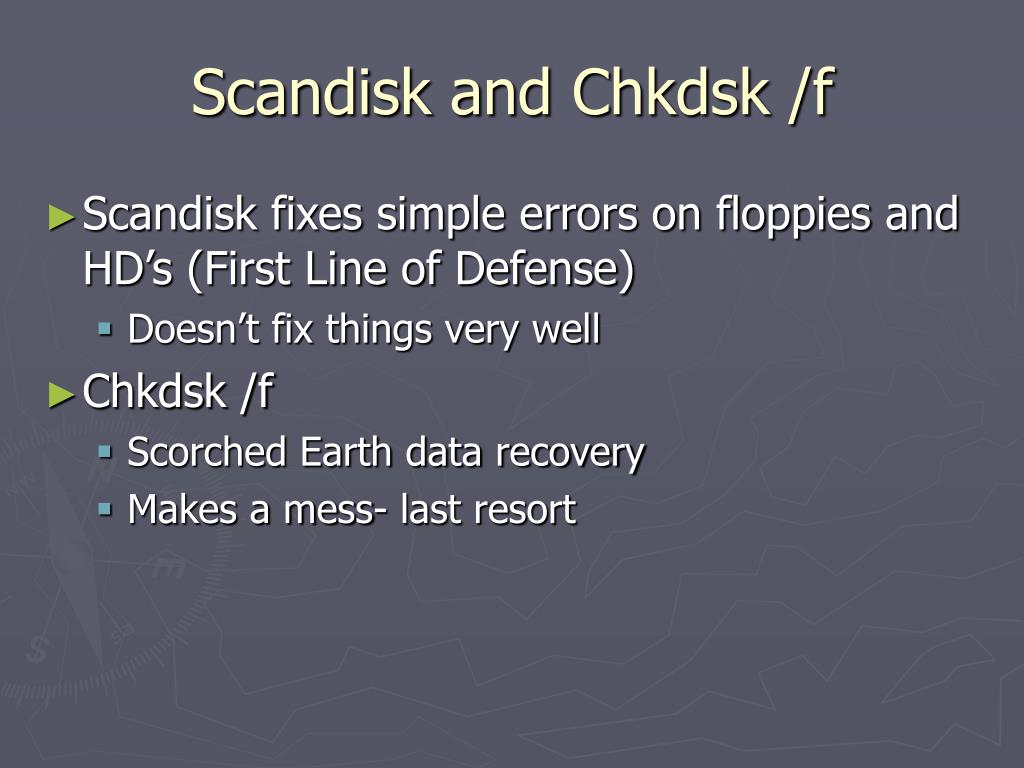

  21. Scandisk and Chkdsk /f • Scandisk fixes simple errors on floppies and HD’s (First Line of Defense) • Doesn’t fix things very well • Chkdsk /f • Scorched Earth data recovery • Makes a mess- last resort

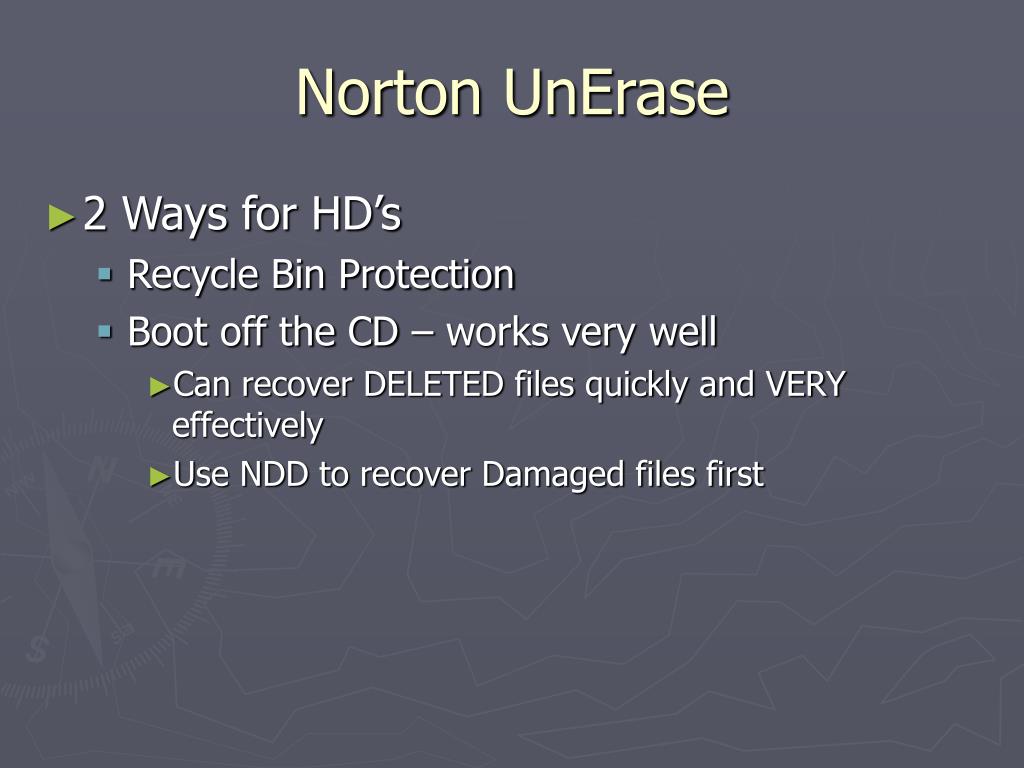

  22. Norton UnErase • 2 Ways for HD’s • Recycle Bin Protection • Boot off the CD – works very well • Can recover DELETED files quickly and VERY effectively • Use NDD to recover Damaged files first

  23. Floppy Recovery • Same Basics, scandisk, chkdsk /f, ndd • Can also use hex editor to grab TEXT ONLY from files. • Slow and Tedious • Use searching • Winhex on Tools CD

  24. How to succeed as a UA without really trying… Automating Tasks (or borrowing)

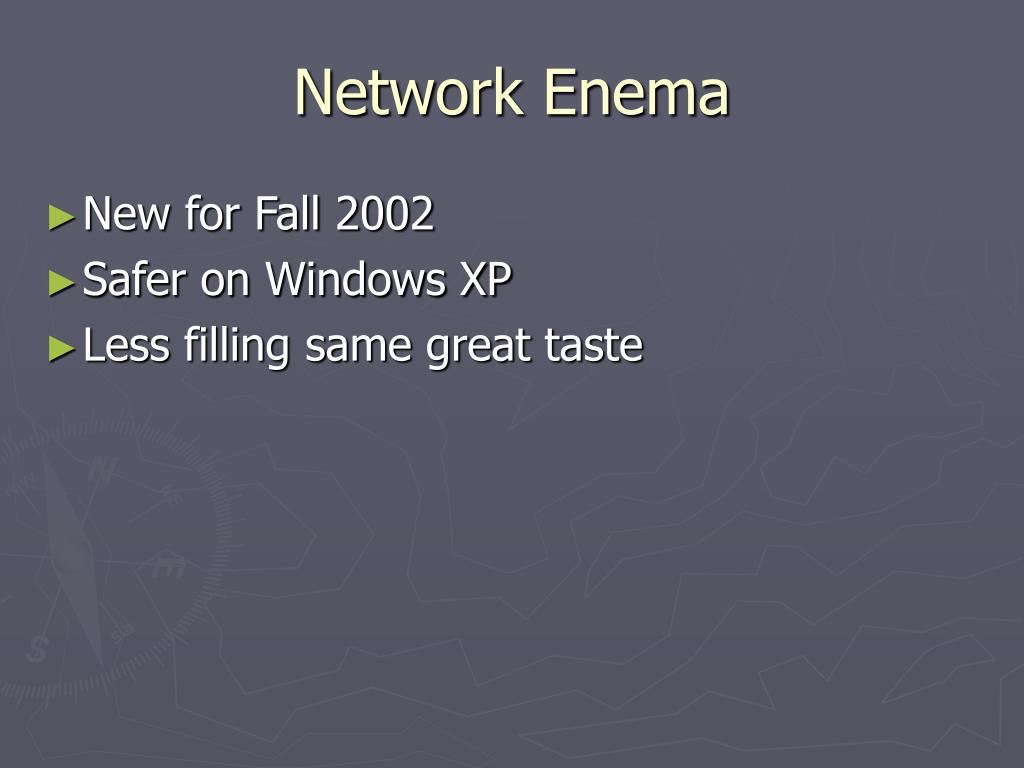

  25. Network Enema • New for Fall 2002 • Safer on Windows XP • Less filling same great taste

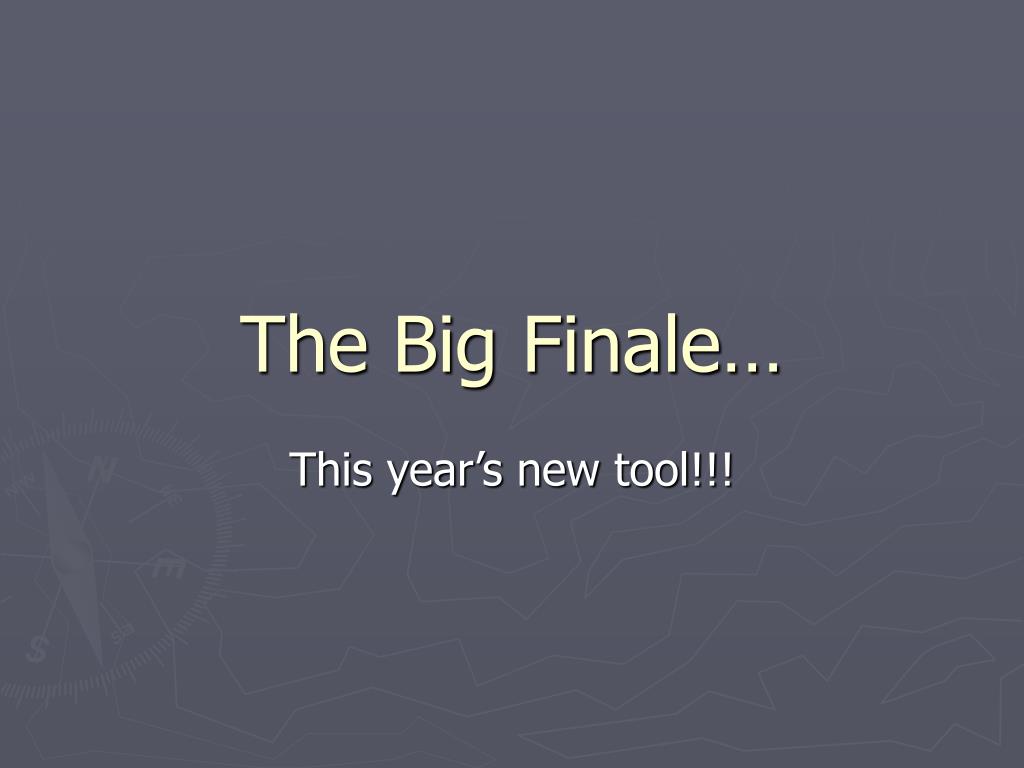

  26. The Big Finale… This year’s new tool!!!

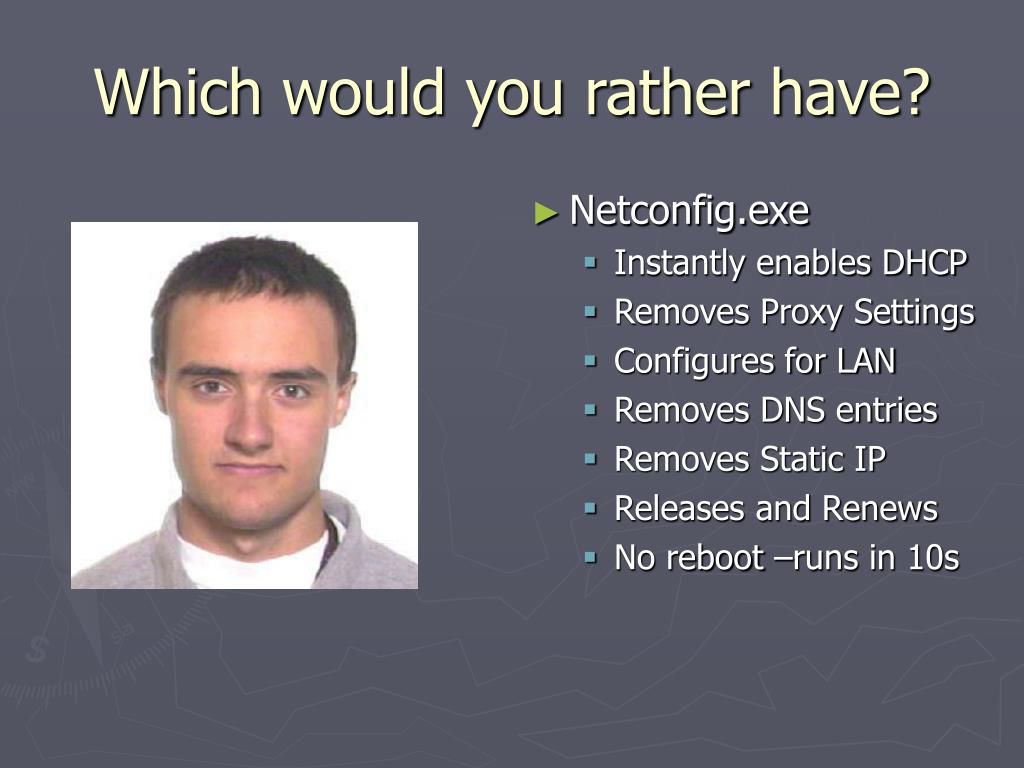

  27. Which would you rather have? • Netconfig.exe • Instantly enables DHCP • Removes Proxy Settings • Configures for LAN • Removes DNS entries • Removes Static IP • Releases and Renews • No reboot –runs in 10s

  28. Additional Resources • AdvTeam webpage • Chris’ webpage (http://fas/~cconlon) IE only! • www.driverguide.com (drivers:all) • www.regedit.com
