Nuclear Size

Nuclear Size. Alpha particle (+2e). Gold nucleus (+79e). d. Not exactly for Au!!!. Quite old!!!. Nuclear Size. Closest approach “d”. E  = E Coulomb  d = 2kZe 2 /E  What about the recoil nucleus? HW 7 Show that where m N : mass of the nucleus m  : mass of alpha

finley
Télécharger la présentation

Nuclear Size

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

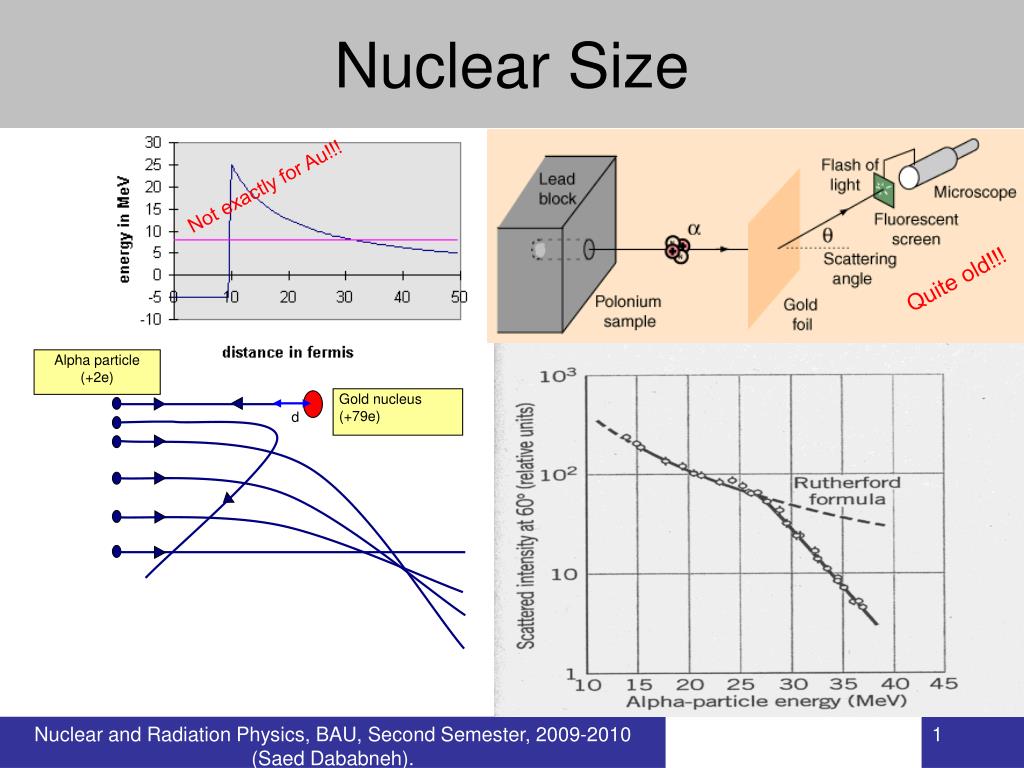

  1. Nuclear Size Alpha particle (+2e) Gold nucleus (+79e) d Not exactly for Au!!! Quite old!!! Nuclear and Radiation Physics, BAU, Second Semester, 2009-2010 (Saed Dababneh).

  2. Nuclear Size • Closest approach “d”. • E = ECoulomb d = 2kZe2/E • What about the recoil nucleus? • HW 7Show that • where mN : mass of the nucleus • m : mass of alpha • What are the values of d for 10, 20, 30 and 40 MeV  on Au? • How does this explain … ? Nuclear and Radiation Physics, BAU, Second Semester, 2009-2010 (Saed Dababneh).

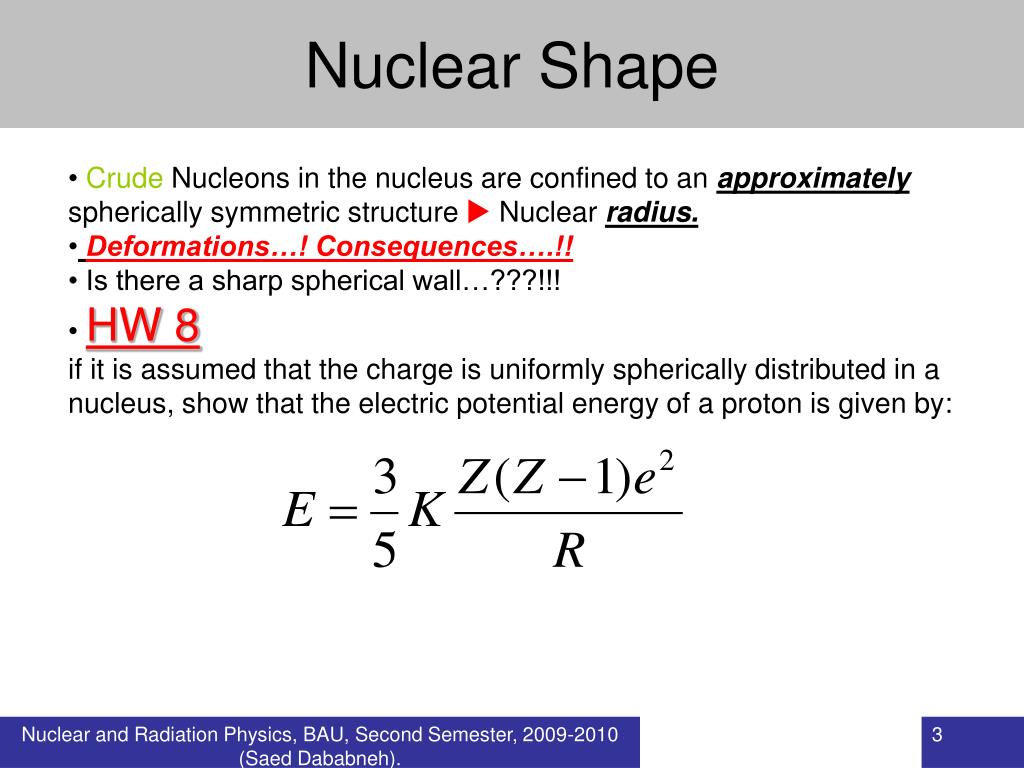

  3. Nuclear Shape • Crude Nucleons in the nucleus are confined to an approximately spherically symmetric structure  Nuclear radius. • Deformations…! Consequences….!! • Is there a sharp spherical wall…???!!! • HW 8 • if it is assumed that the charge is uniformly spherically distributed in a nucleus, show that the electric potential energy of a proton is given by: Nuclear and Radiation Physics, BAU, Second Semester, 2009-2010 (Saed Dababneh).

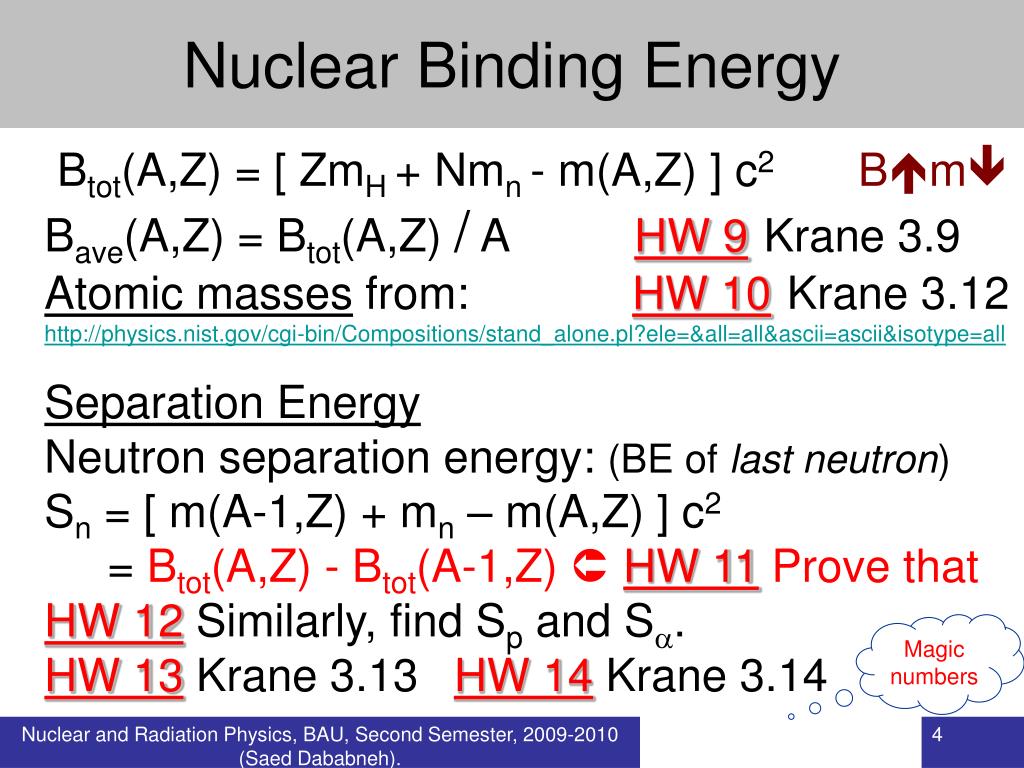

  4. Nuclear Binding Energy Btot(A,Z) = [ ZmH+ Nmn- m(A,Z) ] c2 Bm Bave(A,Z) = Btot(A,Z) / A HW 9Krane 3.9 Atomic masses from: HW 10Krane 3.12 http://physics.nist.gov/cgi-bin/Compositions/stand_alone.pl?ele=&all=all&ascii=ascii&isotype=all Separation Energy Neutron separation energy: (BE of last neutron) Sn = [ m(A-1,Z) + mn – m(A,Z) ] c2 = Btot(A,Z) - Btot(A-1,Z)HW 11Prove that HW 12 Similarly, find Sp and S. HW 13 Krane 3.13 HW 14 Krane 3.14 Magic numbers Nuclear and Radiation Physics, BAU, Second Semester, 2009-2010 (Saed Dababneh).

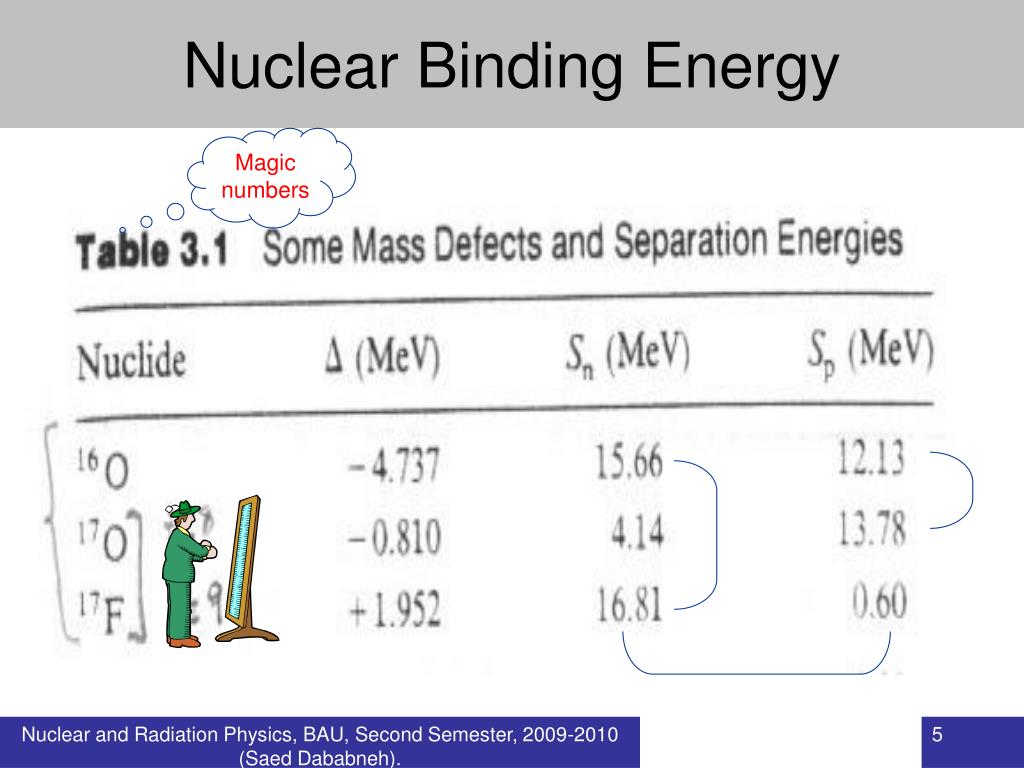

  5. Nuclear Binding Energy Magic numbers Nuclear and Radiation Physics, BAU, Second Semester, 2009-2010 (Saed Dababneh).

  6. Nuclear Binding Energy In general X  Y + a Sa(X) = (ma + mY –mX) c2 = BX –BY –Ba The energy needed to remove a nucleon from a nucleus ~ 8 MeV  average binding energy per nucleon (Exceptions???). Mass spectroscopy  B. Nuclear reactions  S. Nuclear reactionsQ-value Nuclear and Radiation Physics, BAU, Second Semester, 2009-2010 (Saed Dababneh).

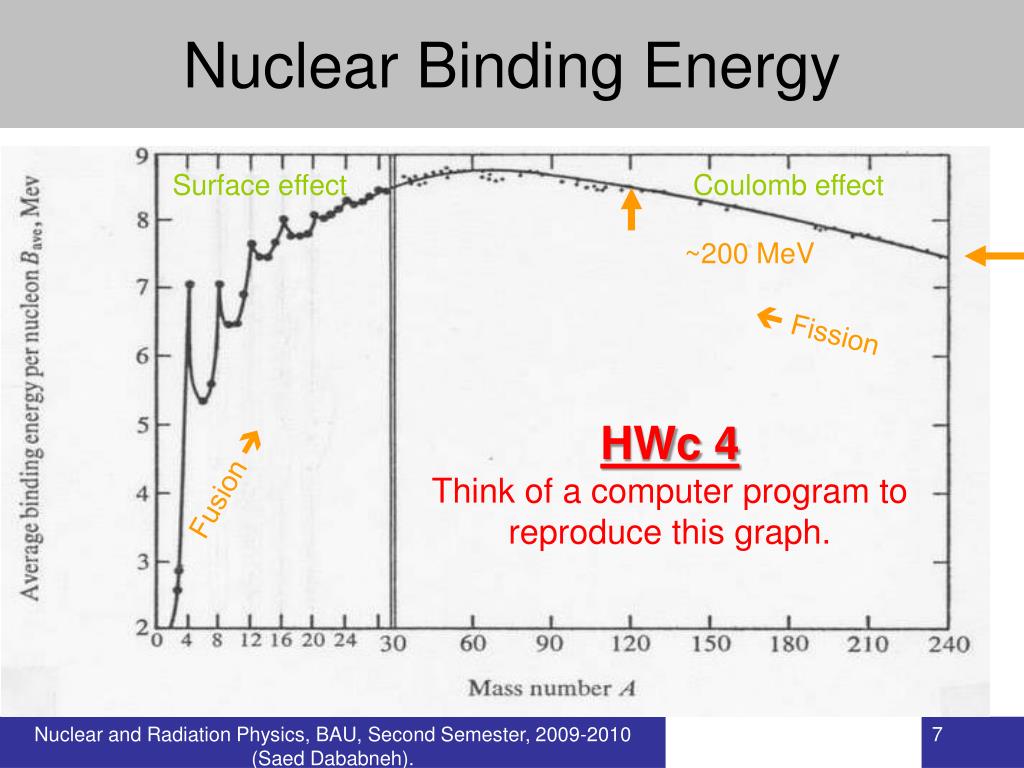

  7. Nuclear Binding Energy Surface effect Coulomb effect ~200 MeV  Fission HWc 4 Think of a computer program to reproduce this graph. Fusion  Nuclear and Radiation Physics, BAU, Second Semester, 2009-2010 (Saed Dababneh).

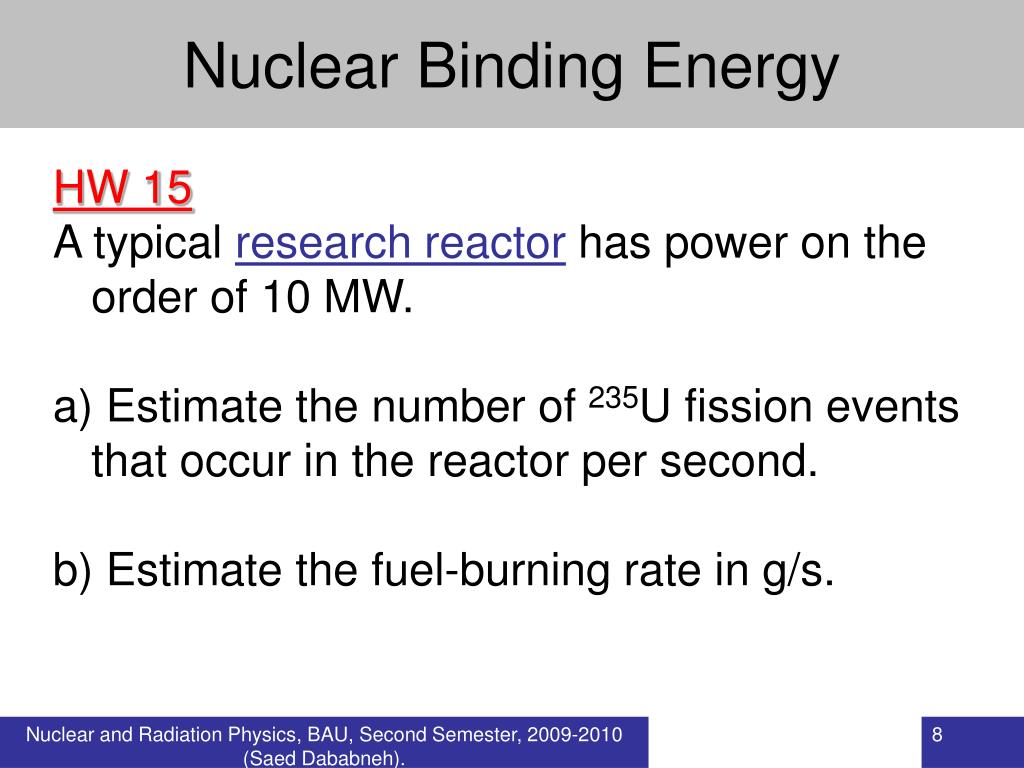

  8. Nuclear Binding Energy • HW 15 • A typical research reactor has power on the order of 10 MW. • Estimate the number of 235U fission events that occur in the reactor per second. • b) Estimate the fuel-burning rate in g/s. Nuclear and Radiation Physics, BAU, Second Semester, 2009-2010 (Saed Dababneh).

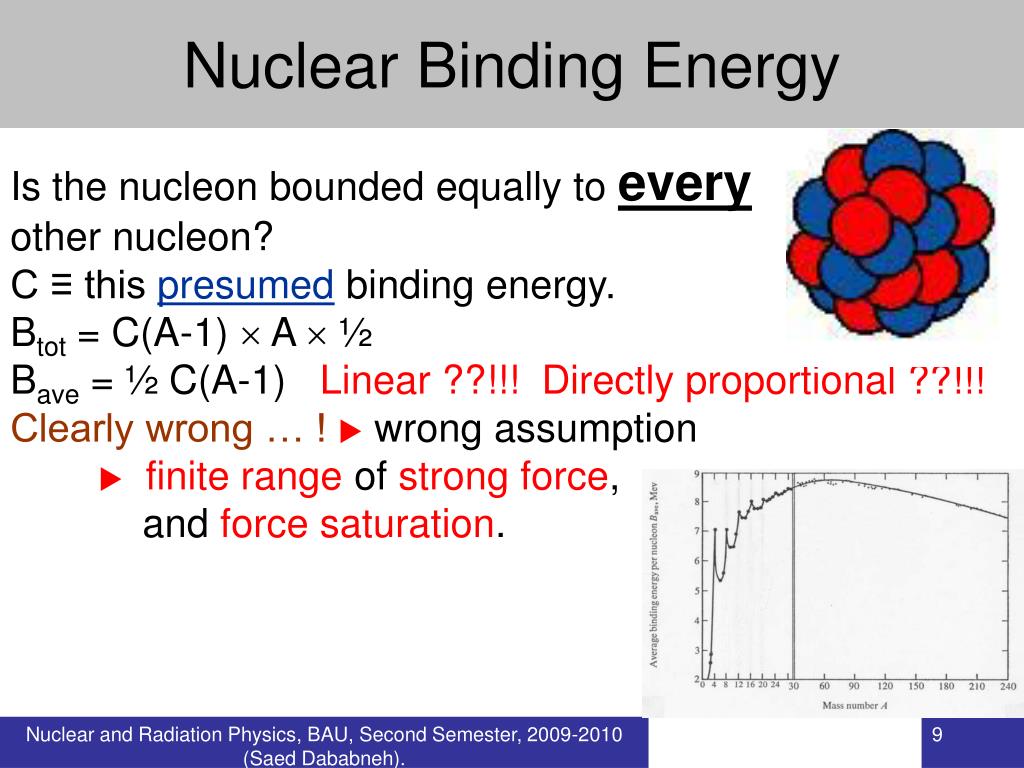

  9. Nuclear Binding Energy Is the nucleon bounded equally to every other nucleon? C ≡ this presumed binding energy. Btot = C(A-1)  A  ½ Bave = ½ C(A-1) Linear ??!!! Directly proportional ??!!!Clearly wrong … !  wrong assumption finite range of strong force, and force saturation. Nuclear and Radiation Physics, BAU, Second Semester, 2009-2010 (Saed Dababneh).

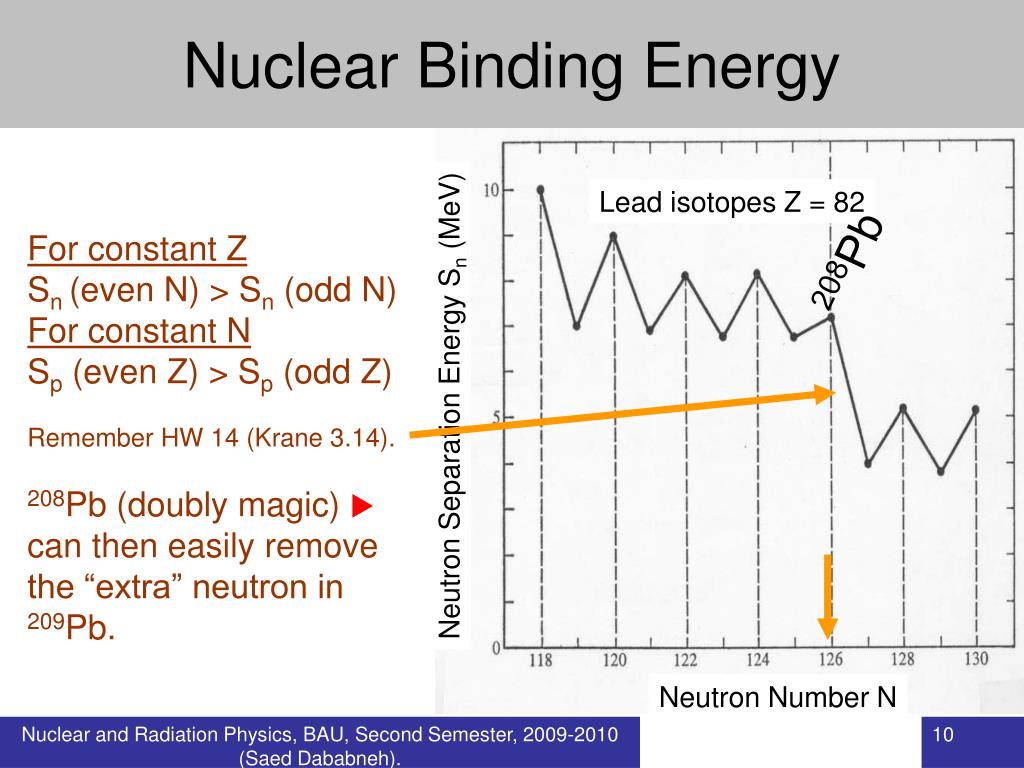

  10. Nuclear Binding Energy Lead isotopes Z = 82 For constant Z Sn (even N) > Sn (odd N) For constant N Sp (even Z) > Sp (odd Z) Remember HW 14 (Krane 3.14). 208Pb (doubly magic)  can then easily remove the “extra” neutron in 209Pb. 208Pb Neutron Separation Energy Sn (MeV) Neutron Number N Nuclear and Radiation Physics, BAU, Second Semester, 2009-2010 (Saed Dababneh).

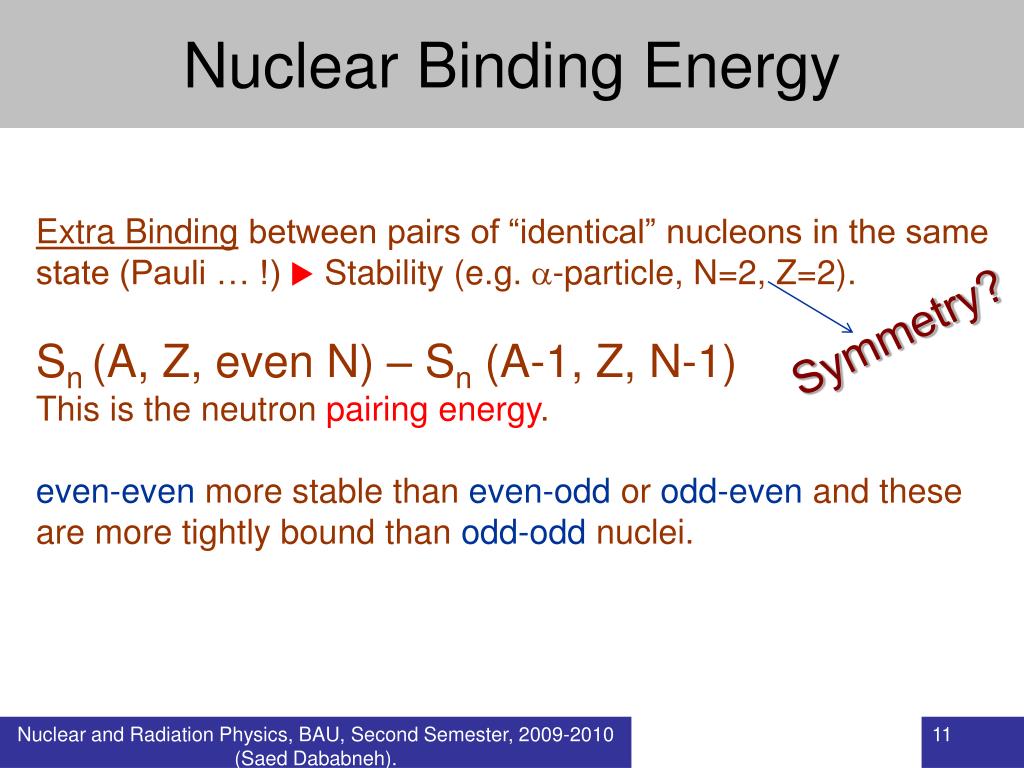

  11. Nuclear Binding Energy Extra Binding between pairs of “identical” nucleons in the same state (Pauli … !)  Stability (e.g. -particle, N=2, Z=2). Sn (A, Z, even N) – Sn (A-1, Z, N-1) This is the neutron pairing energy. even-even more stable than even-odd or odd-even and these are more tightly bound than odd-odd nuclei. Symmetry? Nuclear and Radiation Physics, BAU, Second Semester, 2009-2010 (Saed Dababneh).

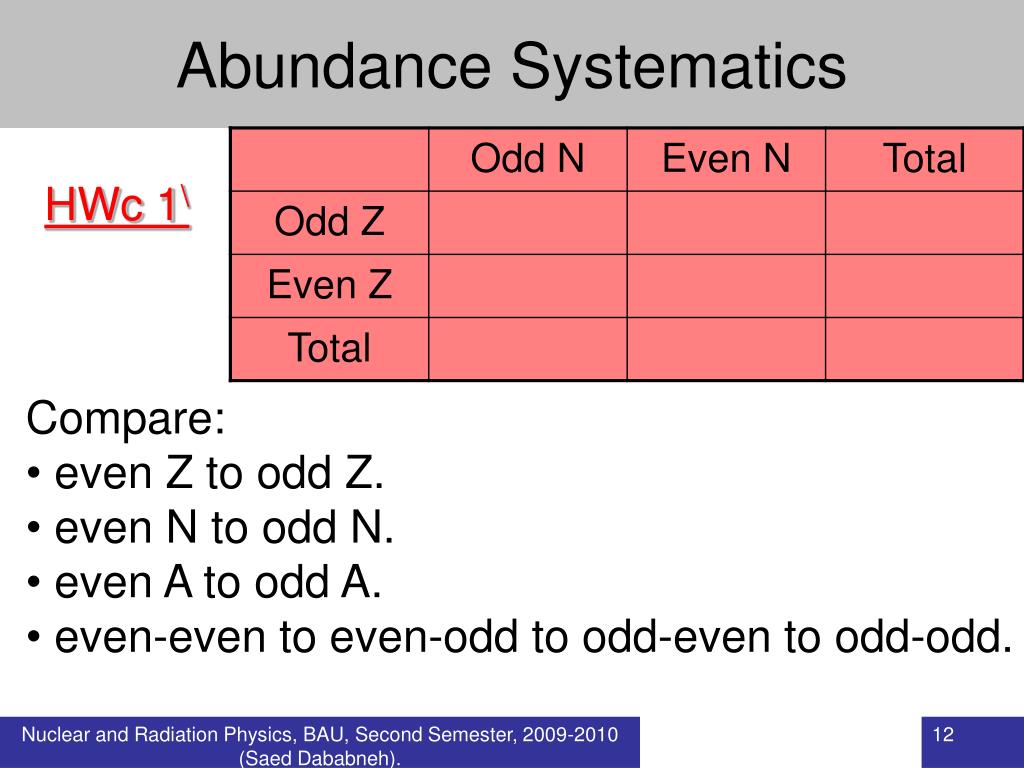

  12. Abundance Systematics HWc 1\ • Compare: • even Z to odd Z. • even N to odd N. • even A to odd A. • even-even to even-odd to odd-even to odd-odd. Nuclear and Radiation Physics, BAU, Second Semester, 2009-2010 (Saed Dababneh).

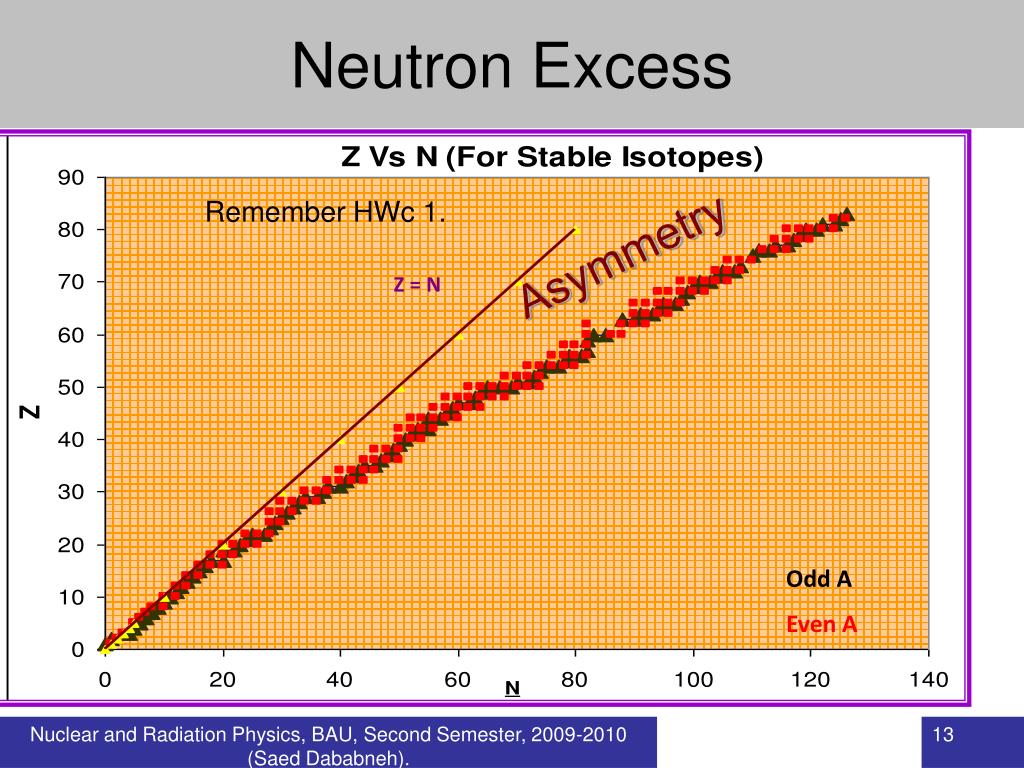

  13. Neutron Excess Z = N Odd A Even A Remember HWc 1. Asymmetry Nuclear and Radiation Physics, BAU, Second Semester, 2009-2010 (Saed Dababneh).

  14. Neutron Excess Remember HWc 1. Asymmetry Nuclear and Radiation Physics, BAU, Second Semester, 2009-2010 (Saed Dababneh).
