  1. Tutorial Outline

  2. From Content Management Systems to VREs: requirements, challenges, and opportunities RCDL 2008 10 October 2007 Dubna (Russia) Pasquale Pagano CNR-ISTI Pasquale.pagano@isti.cnr.it www.d4science.eu

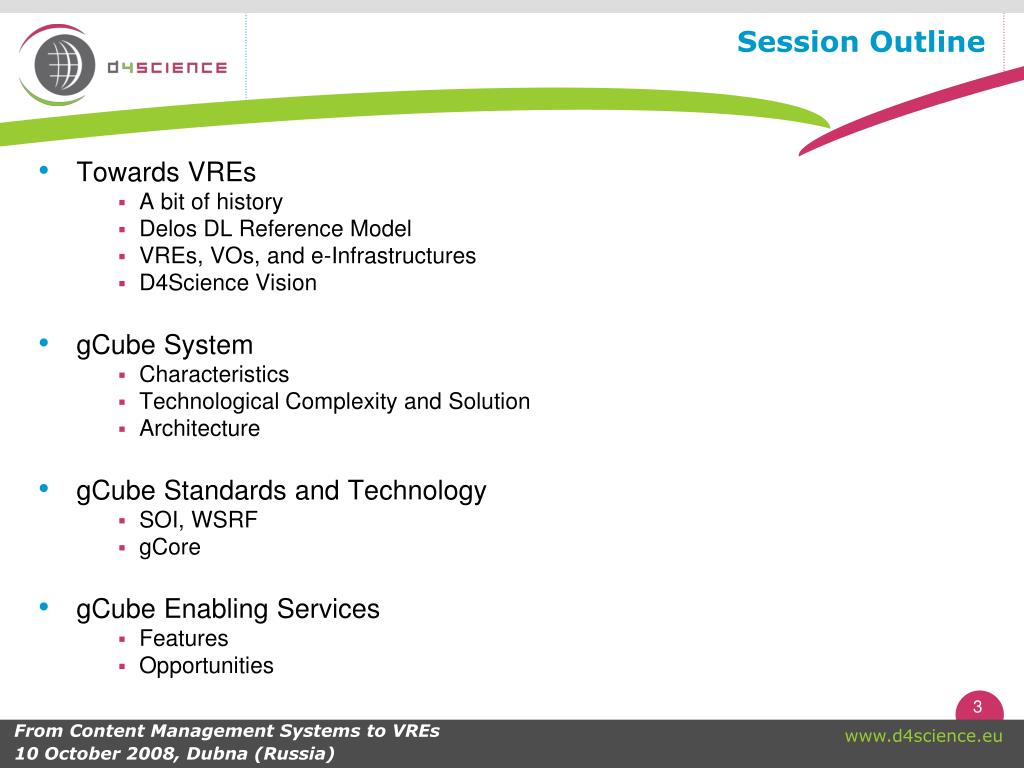

  3. From Content Management Systems to VREs Session Outline • Towards VREs • A bit of history • Delos DL Reference Model • VREs, VOs, and e-Infrastructures • D4Science Vision • gCube System • Characteristics • Technological Complexity and Solution • Architecture • gCube Standards and Technology • SOI, WSRF • gCore • gCube Enabling Services • Features • Opportunities 10 October 2008, Dubna (Russia)

  4. From Content Management Systems to VREs consumer and data provider consumer and resource provider consumer consumer The evolution Virtual Research Environments 2006 Digital Library Management System 2001 2003 Digital Library Repository + Catalogue + Search service 1996 few large institutions few small institutions many small institutions many virtual organizations 10 October 2008, Dubna (Russia)

  5. From Content Management Systems to VREs The DL Universe EUROPEANA DIENST NSDL NDLTD ECHO ADEPT ACM DL DSPACE PERSEUS OPENDLIB FEDORA TEL DRIVER DILIGENT BRICKS 10 October 2008, Dubna (Russia)

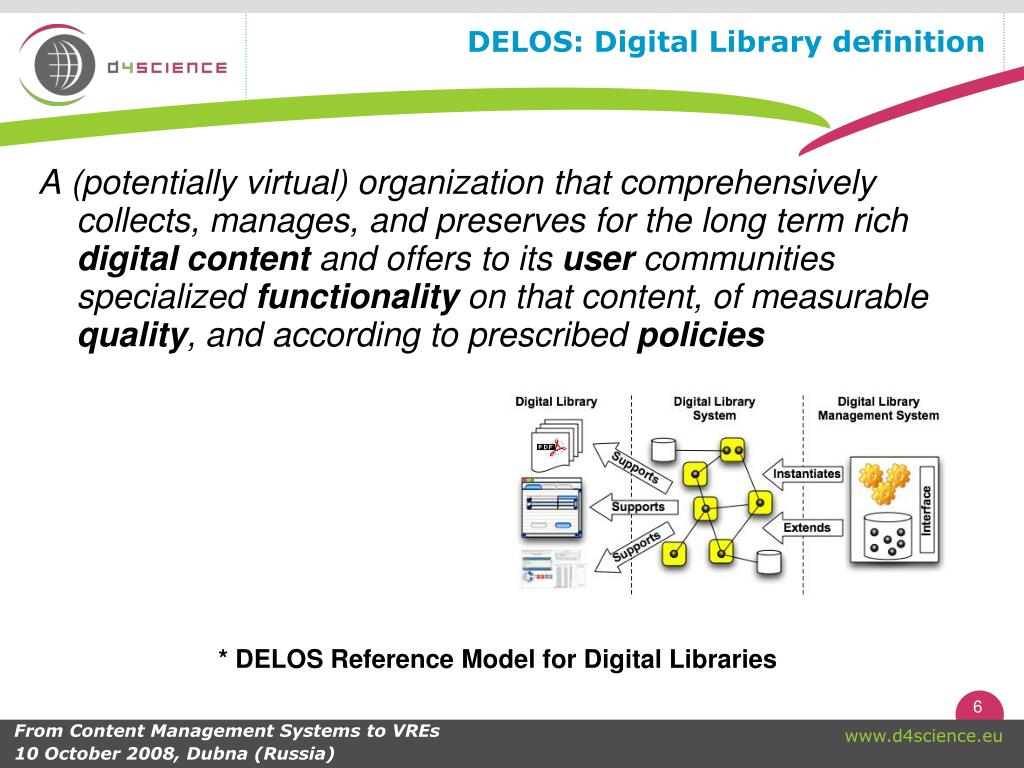

  6. From Content Management Systems to VREs DELOS: DigitalLibrarydefinition A (potentially virtual) organization that comprehensively collects, manages, and preserves for the long term rich digital content and offers to its user communities specialized functionality on that content, of measurable quality, and according to prescribed policies * DELOS Reference Model for Digital Libraries 10 October 2008, Dubna (Russia)

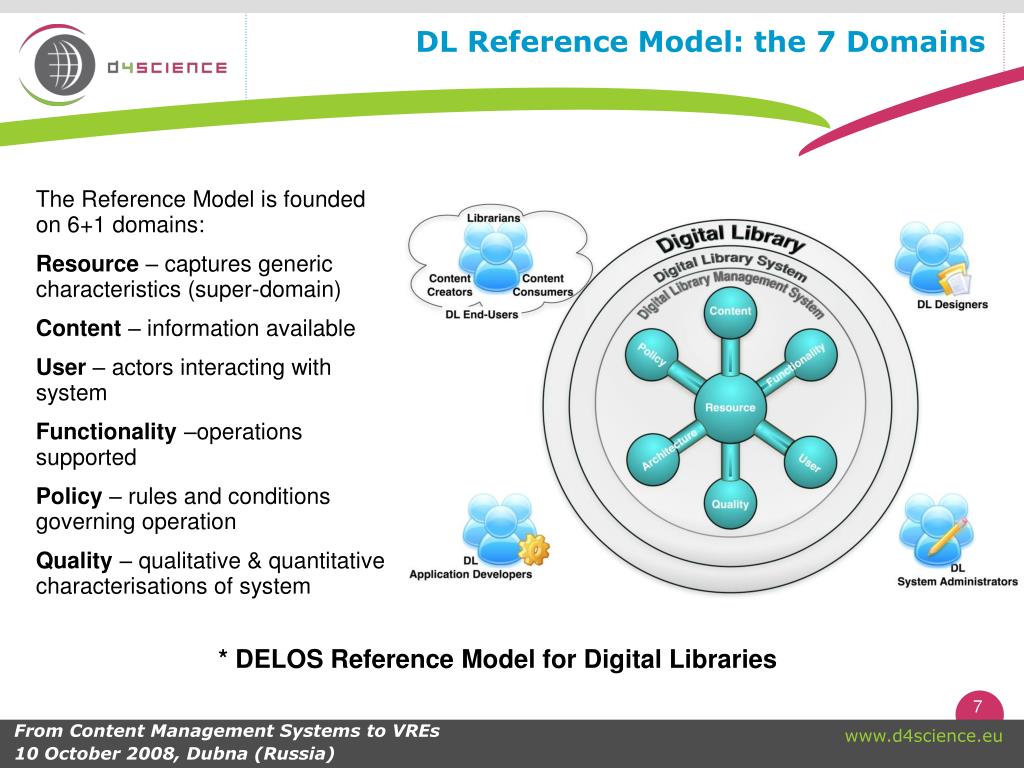

  7. From Content Management Systems to VREs DL Reference Model: the 7 Domains The Reference Model is founded on 6+1 domains: Resource – captures generic characteristics (super-domain) Content – information available User – actors interacting with system Functionality –operations supported Policy – rules and conditions governing operation Quality – qualitative & quantitative characterisations of system Architecture–physical software (and hardware) constituents concretely realising the DL * DELOS Reference Model for Digital Libraries 10 October 2008, Dubna (Russia)

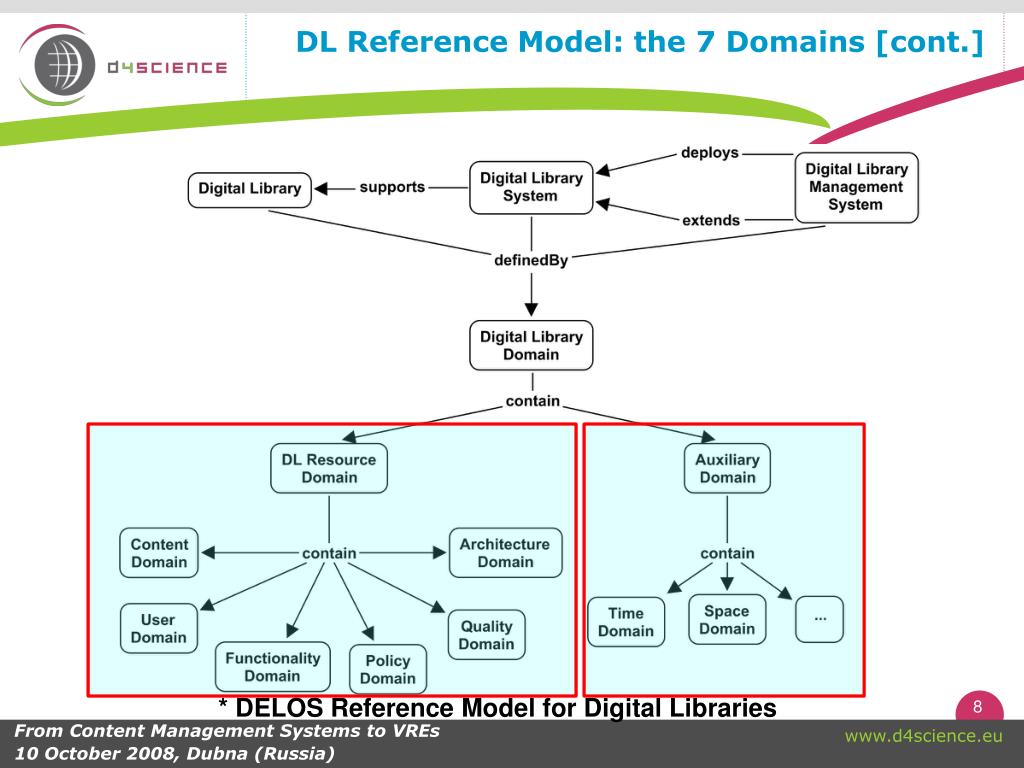

  8. From Content Management Systems to VREs DL Reference Model: the 7 Domains [cont.] * DELOS Reference Model for Digital Libraries 10 October 2008, Dubna (Russia)

  9. From Content Management Systems to VREs Reference Frameworks 10 October 2008, Dubna (Russia)

  10. From Content Management Systems to VREs Virtual Research Environments (VRE) • Distributed frameworks for carrying out cooperative activities like “in silico experiments”, data analysis and processing, production of new knowledge using specialized tools • Largely based on retrieval and access of always updated knowledge from diverse heterogeneous content sources • Produce knowledge that is preserved and madeavailable for other usages inside and outside the VRE 10 October 2008, Dubna (Russia)

  11. From Content Management Systems to VREs Highly dynamic, created and dismissed on-demand M26 1,2 Prototype Available Build 1 0,8 0,6 0,4 0,2 0 CSDS DVOS Keeper Arte Portal Annotation Data Fusion Index Service ImpECt Portal VDL Generator Search Service Personalization Content Security Metadata Broker Wrapper & Monitor Informaion Service Process Optimization Content Management Broker & Matchmaker Metadata Management Feature Extraction Service Process Design & Verification Process Execution & Reliability Based on specialised tools which support the generation of new knowledge Virtual Research Environments: characteristics Operating on new information objects 10 October 2008, Dubna (Russia)

  12. From Content Management Systems to VREs Virtual Research Environments: the vision • A Virtual Research Environment (VRE) provides a framework of applications, services and data sources dynamically identified to support the underlying processes of research/collaboration/cooperation. The purpose of a VRE is to help researchers* belonging to Virtual Organization by managing the increasingly complex range of tasks involved in carrying out their activities. *Researcher has to be considered in the large, i.e. end-user, decision-makers, resource and data providers, etc. 10 October 2008, Dubna (Russia)

  13. From Content Management Systems to VREs Virtual Organization (VO) • A Virtual Organization (VO) models sets of users and resources belonging to a e-Infrastructure. It defines clearly and carefully • what is shared, • who is allowed to share, • and the conditions under which sharing occurs, usually based on an authentication and authorization policies. VOs may have a limited lifetime and they are dynamically created to satisfy transient needs of the constituent potentially heterogeneous actual Organizations. 10 October 2008, Dubna (Russia)

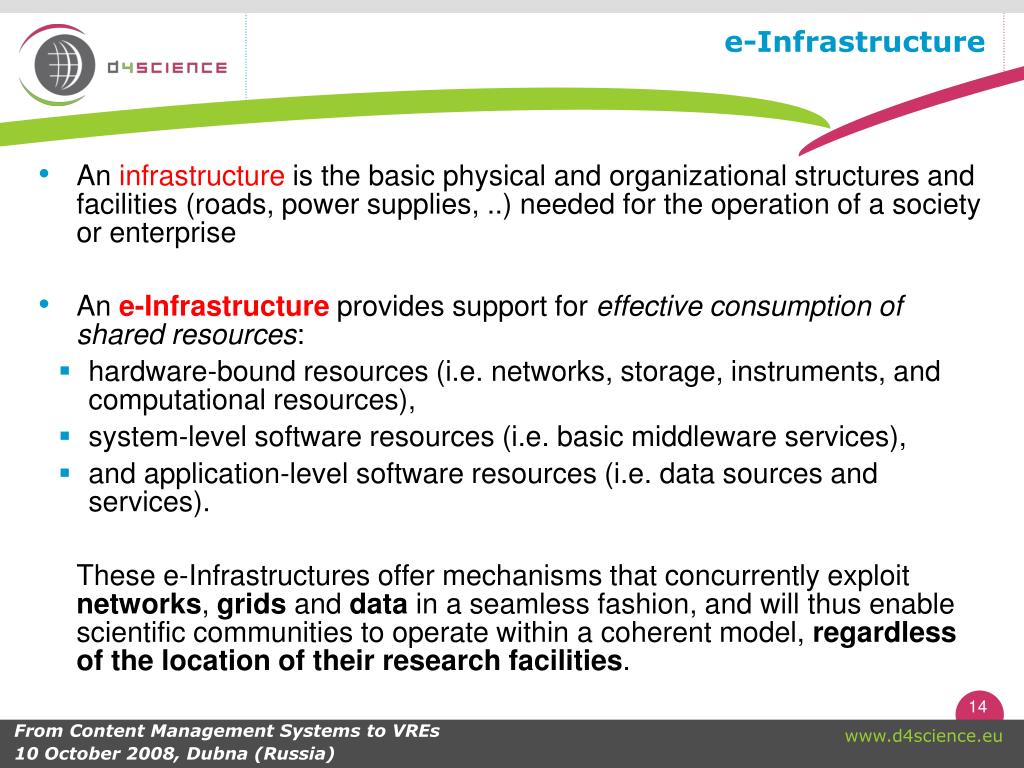

  14. From Content Management Systems to VREs e-Infrastructure • An infrastructure is the basic physical and organizational structures and facilities (roads, power supplies, ..) needed for the operation of a society or enterprise • An e-Infrastructure provides support for effectiveconsumption of shared resources: • hardware-bound resources (i.e. networks, storage, instruments, and computational resources), • system-level software resources (i.e. basic middleware services), • and application-level software resources (i.e. data sources and services). These e-Infrastructures offer mechanisms that concurrently exploit networks, grids and data in a seamless fashion, and will thus enable scientific communities to operate within a coherent model, regardless of the location of their research facilities. 10 October 2008, Dubna (Russia)

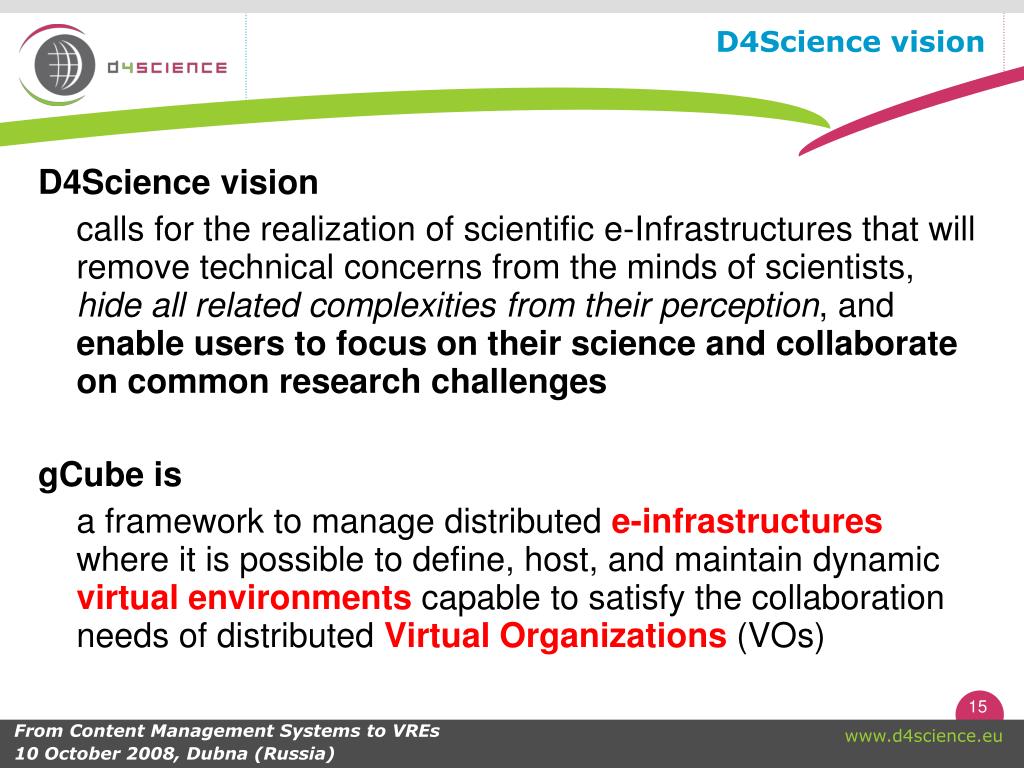

  15. From Content Management Systems to VREs D4Science vision D4Science vision calls for the realization of scientific e-Infrastructures that will remove technical concerns from the minds of scientists, hide all related complexities from their perception, and enable users to focus on their science and collaborate on common research challenges gCube is a framework to manage distributed e-infrastructures where it is possible to define, host, and maintain dynamic virtual environments capable to satisfy the collaboration needs of distributed Virtual Organizations (VOs) 10 October 2008, Dubna (Russia)

  16. gCube System From Content Management Systems to VREs 10 October 2008, Dubna (Russia)

  17. From Content Management Systems to VREs gCube Characteristics • A Software framework • to support ON-DEMAND virtual collaborations* among remote parties • cost-effective, secure, • dynamic, both short and long lived • overcome ad-hoc systems alike • to make discoverable and accessible • computing, storage, • data and service resources • to promote and/or contribute to data and service integration • * Research Environment 10 October 2008, Dubna (Russia)

  18. From Content Management Systems to VREs gCube Technological Complexity • Software framework • needs a ‘middleware’ (typically distributed)‏ • is open by definition • new resource types and/or new resource instances can be de/registered at any time • is powerful if it supports application scope • the portion of the infrastructure in which a resource exists • the portion of the infrastructure in which a resource can act, operate, or has power or control • is powerful if it supports sharing scope (controlled resource sharing) • machines, storage, data and services resources 10 October 2008, Dubna (Russia)

  19. From Content Management Systems to VREs gCube Technological Solution • By relying on gLite, gCubeis an e-Infrastructure enabling system to share • computing, storage, dataand service resources → g3 • gCube system allows collaborations in eScience • strongly content-oriented, potentially data and processing intensive • within the sharing scope of Virtual Organizations (VOs)‏ • broader and longer lived • may stretch across the whole infrastructure • or else over significant subsets thereof • take place in Virtual Research Environments (VREs) scope • interactively created, managed, defined, and used: system administrators, application designers, researchers • typically short to medium lifespan 10 October 2008, Dubna (Russia)

  20. From Content Management Systems to VREs gCube Architecture gCube framework is composed by 4 main subsystems: • Enabling Services • definition and runtime management of VREs • Information Organization Services • storage, management, description, and annotation of information in a VRE • Information Retrieval Services • retrieval of information in a VRE • Presentation Services • VRE users interface with system and application services 10 October 2008, Dubna (Russia)

  21. gCube Standards and Technology From Content Management Systems to VREs 10 October 2008, Dubna (Russia)

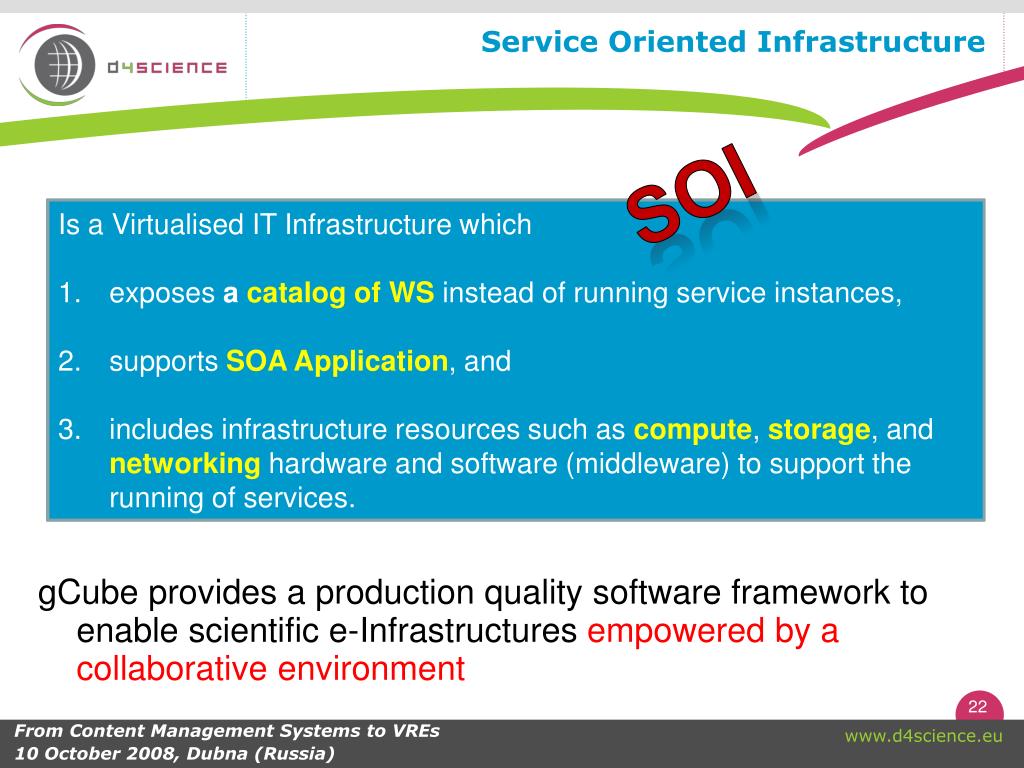

  22. From Content Management Systems to VREs Service Oriented Infrastructure SOI gCube provides a production quality software framework to enable scientific e-Infrastructures empowered by a collaborative environment Is a Virtualised IT Infrastructure which exposes a catalog of servicesinstead of running service instances, supports Workflow definition and execution, and includes infrastructure resources such as compute, storage, and networkinghardware and software (middleware) to support the running of services. Is a Virtualised IT Infrastructure which exposes a catalog of WS instead of running service instances, supports SOA Application, and includes infrastructure resources such as compute, storage, and networkinghardware and software (middleware) to support the running of services. 10 October 2008, Dubna (Russia)

  23. From Content Management Systems to VREs gCube & Standards for communication • Java WSCore, Apache Axis, and GridForumspecifications (and implementation if any): • WS-Notification, WS-Addressing, WS-Security • WSRF • WS-ResourceProperties (WSRF-RP)‏ • WS-ResourceLifetime (WSRF-RL)‏ • WS-BaseFaults (WSRF-BF)‏ • WS-ServiceGroup (WSRF-SG)‏ • WS-DAI, WS-DAIR, WS-DAIX 10 October 2008, Dubna (Russia)

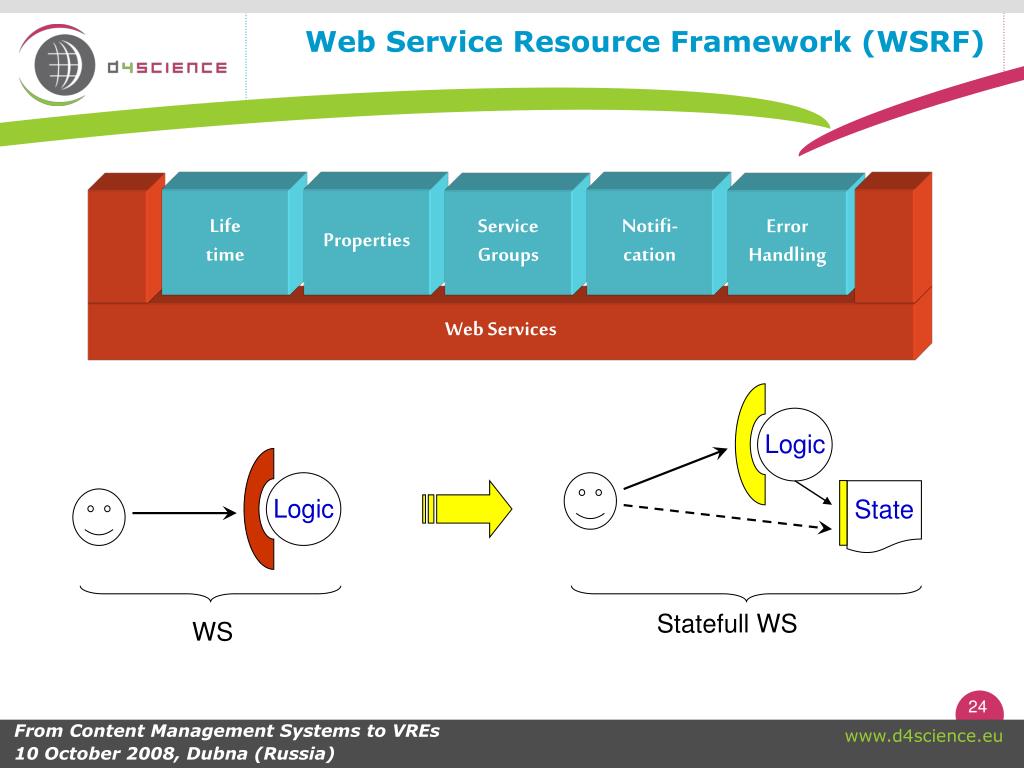

  24. Web Service Resource Framework (WSRF) From Content Management Systems to VREs Logic Logic State Statefull WS WS Life time Properties Notifi- cation Service Groups Error Handling Web Services Unified way to model and interact with stateful web services 10 October 2008, Dubna (Russia)

  25. Web Service Resource Framework (WSRF) Lifetime (WS-ResourceLifetime) Factory based dynamic creation of services Instances are created with a limited lifetime Prevent services from consuming resource indefinitely (“Garbage Collection”) Properties (WS-ResourceProperties) Defines type and values of a resource state From Content Management Systems to VREs Life time Properties Notifi- cation Service Groups Error Handling Web Services • Service groups (WS-ServiceGroups) • Describes an interface for operating on collections of WS-Resources • E.g. to distribute an action to a set of services • Notification (WS-Notification) • Notification about state changes • Applies traditional publish/subscribe paradigm • Error Handling (WS-BaseFaults) • Defines base handling of communication errors 10 October 2008, Dubna (Russia)

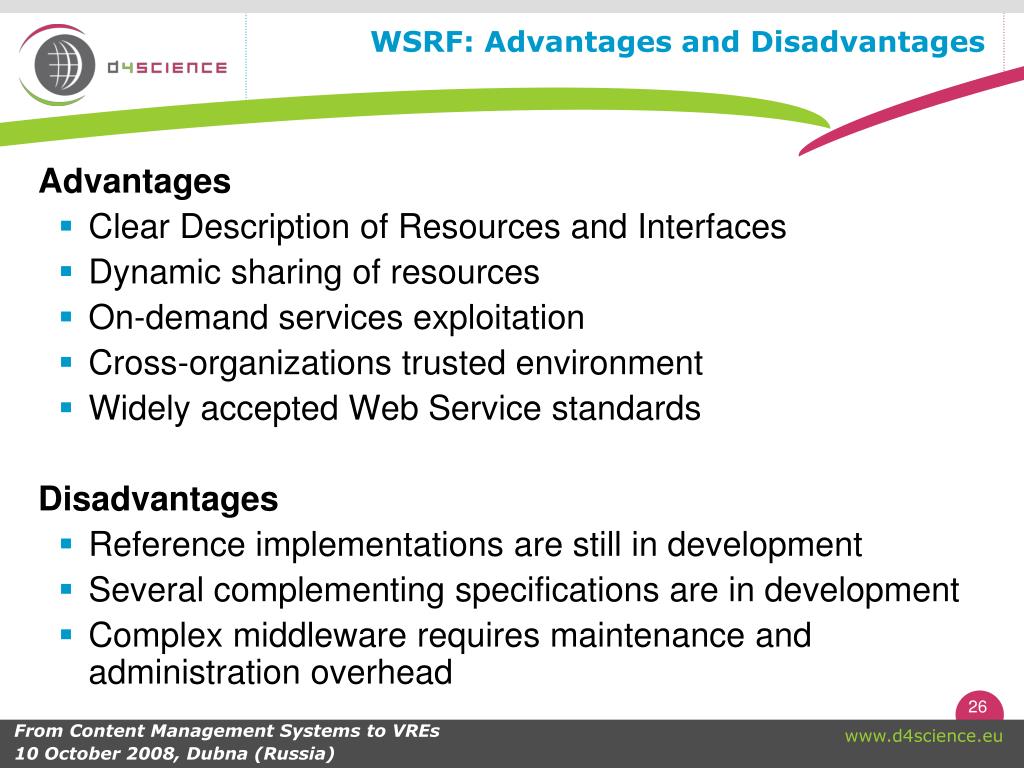

  26. WSRF: Advantages and Disadvantages Advantages Clear Description of Resources and Interfaces Dynamic sharing of resources On-demand services exploitation Cross-organizations trusted environment Widely accepted Web Service standards Disadvantages Reference implementations are still in development Several complementing specifications are in development Complex middleware requires maintenance and administration overhead From Content Management Systems to VREs 10 October 2008, Dubna (Russia)

  27. From Content Management Systems to VREs Towards the usability: gCore • To overcome the complexities of the design and implementation of SOI compliant services • an application framework for the consolidation / development of existing/new gCube services • the gCoreFramework (gCF)‏ • To meet the needs of system administrators, infrastructure managers, and resource providers • an easy to install self-contained service container for the participation to Service Oriented Infrastructures • the gCore Container (gCore)‏ 10 October 2008, Dubna (Russia)

  28. From Content Management Systems to VREs gCF facilities: partial overview re-deployement activation update models lifetime failure lifetime scoping scoping State WS management notification publication Calls configuration persistence scoping security faults port-types service 10 October 2008, Dubna (Russia)

  29. From Content Management Systems to VREs gCube & Standards for communication • Mutual authentication based on GSI secure conversation (through delegation and renewal)‏ • Business Process Execution Language for Web Services (WS-BPEL)‏ • GridFTPand SRM support • VOMS for users and groups management • GWT and JSR168(JSR268 is coming)‏ https://quality.wiki.d4science.research-infrastructures.eu/quality/index.php/Standards 10 October 2008, Dubna (Russia)

  30. gCube Enabling Services From Content Management Systems to VREs 10 October 2008, Dubna (Russia)

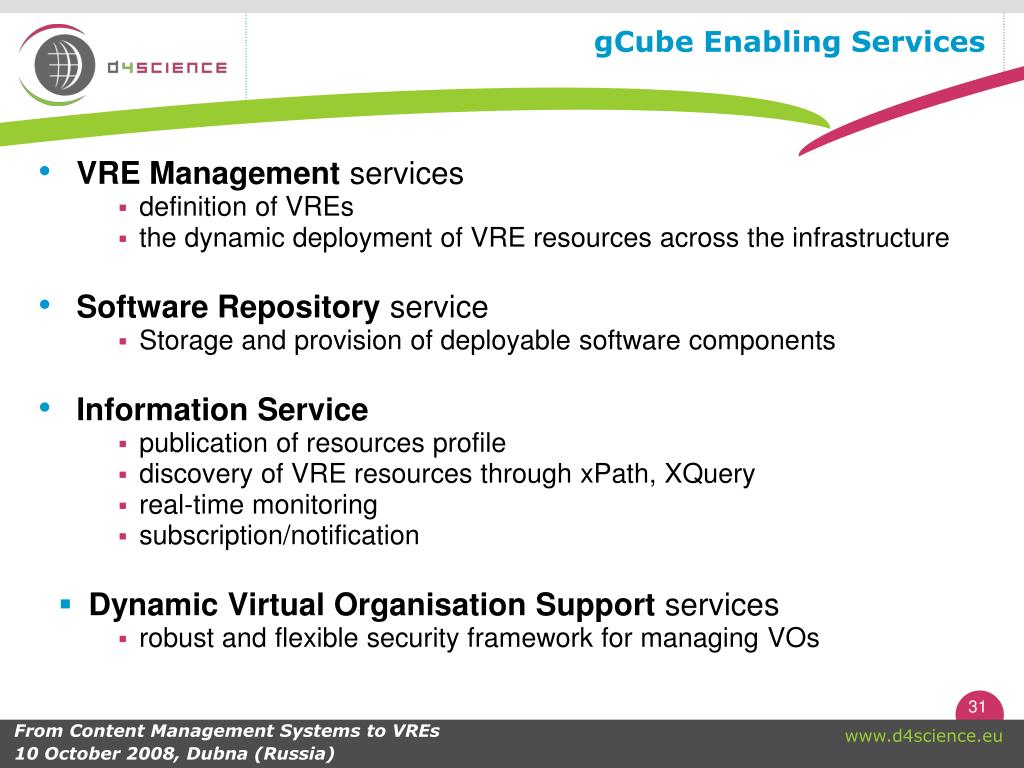

  31. From Content Management Systems to VREs gCube Enabling Services • VRE Management services • definition of VREs • the dynamic deployment of VRE resources across the infrastructure • Software Repository service • Storage and provision of deployable software components • Information Service • publication of resources profile • discovery of VRE resources through xPath, XQuery • real-time monitoring • subscription/notification • Dynamic Virtual Organisation Support services • robust and flexible security framework for managing VOs 10 October 2008, Dubna (Russia)

  32. From Content Management Systems to VREs … WS State State State State WS WS WS WS gCubeEnablingServices Production Failure Recovery Software Repository gHN HW Rapid deployment Dynamic Load Balancing gHN gHN HW HW State State WS WS Service provision continuity gHN gHN HW HW CPU Usage CPU Usage 30% 90% Soon available Balancing utilization with head room 10 October 2008, Dubna (Russia)

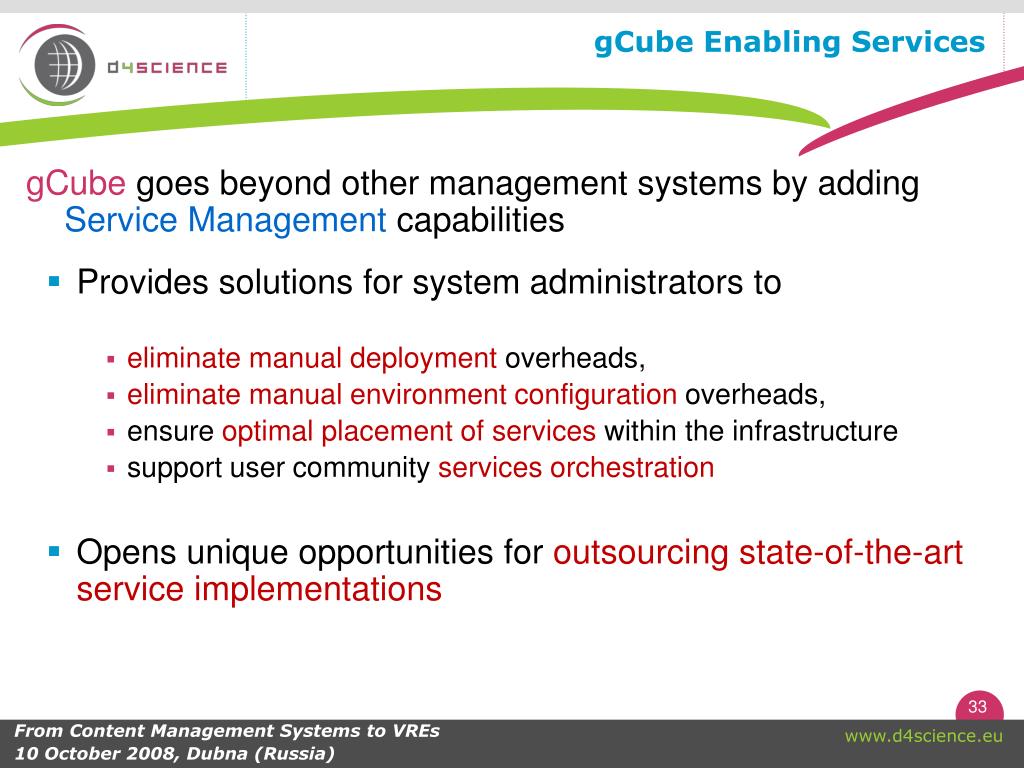

  33. From Content Management Systems to VREs gCubeEnablingServices gCubegoes beyond other management systems by adding Service Management capabilities • Provides solutions for system administrators to • eliminate manual deployment overheads, • eliminate manual environment configuration overheads, • ensure optimal placement of services within the infrastructure • support user community services orchestration • Opens unique opportunities for outsourcing state-of-the-art service implementations 10 October 2008, Dubna (Russia)

  34. From Content Management Systems to VREs Conclusions • gCube infrastructures creates new opportunities to change the VRE development model used by distributed and dynamic organisations and communities • gCube offers • an application framework for the development of Stateful Web Services (gCF) • an easy to install self-contained service container (gCore) • SOI middleware (Enabling services) • Rapid deployment • Failure recovery • Load balance (soon) 10 October 2008, Dubna (Russia)

  35. http://www.gcube-system.org/ http://www.d4science.org/

  36. From Content Management Systems to VREs gCube & Standardization Bodies • ISO: data representation (e.g. ISO3166 for countries, ISO4217 for currencies) and metadata (ISO19115 for GIS)‏ • OGF: Standards related to Architecture (e.g. OGSA), Data (e.g. DAIS, GridFTP), Management (e.g. GLUE, Resources Usage), Applications (e.g. DRMAA), Compute (e.g. JSDL)‏ • OAI: Resources Exposure/Harvesting (OAI-PMH) Resources Exchange (OAI-ORE)‏ • OASIS: Standards related to stateful web services (e.g. WSRF), process management (BPEL), remote user interfaces (WSRP), A&A (SAML / XACML)‏ • W3C: All the standards related to Web Architecture (e.g., URI/URL, HTTP), Service Oriented Architectures (e.g. SOAP, WSDL, WS-Addressing) and data representation and manipulation( e.g. XML*) • Others: Classification systems (e.g. ISSCAAP, ISSCFV, ISSCFG), features representation (e.g. GML for GIS), metadata (e.g. AgMES for Agricultural, SDMX for Statistics)‏ 10 October 2008, Dubna (Russia)
