Understanding Triangle Congruence: Identifying and Proving Congruent Figures

In this lesson, we explore the concepts of congruence in triangles, focusing on identifying congruent figures and their corresponding parts. Learn how to prove that two triangles are congruent through various methods, including the 3rd Angles Theorem, which states that if two angles of one triangle are congruent to two angles of another triangle, the third angles must also be congruent. We will also cover properties of congruent triangles, such as reflexive, symmetric, and transitive properties, and practice constructing congruence statements.

fleta
Télécharger la présentation

Understanding Triangle Congruence: Identifying and Proving Congruent Figures

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 4.2 Congruence and Triangles Identify congruent figures and corresponding parts Prove that 2 triangles are congruent

  2. Congruence and Correspondence • When 2 figures are congruent there is a correspondence between their angles and sides such that corresponding angles are congruent and corresponding sides are congruent.

  3. Z • If Δ ABC is  to Δ XYZ, which angle is  to C?

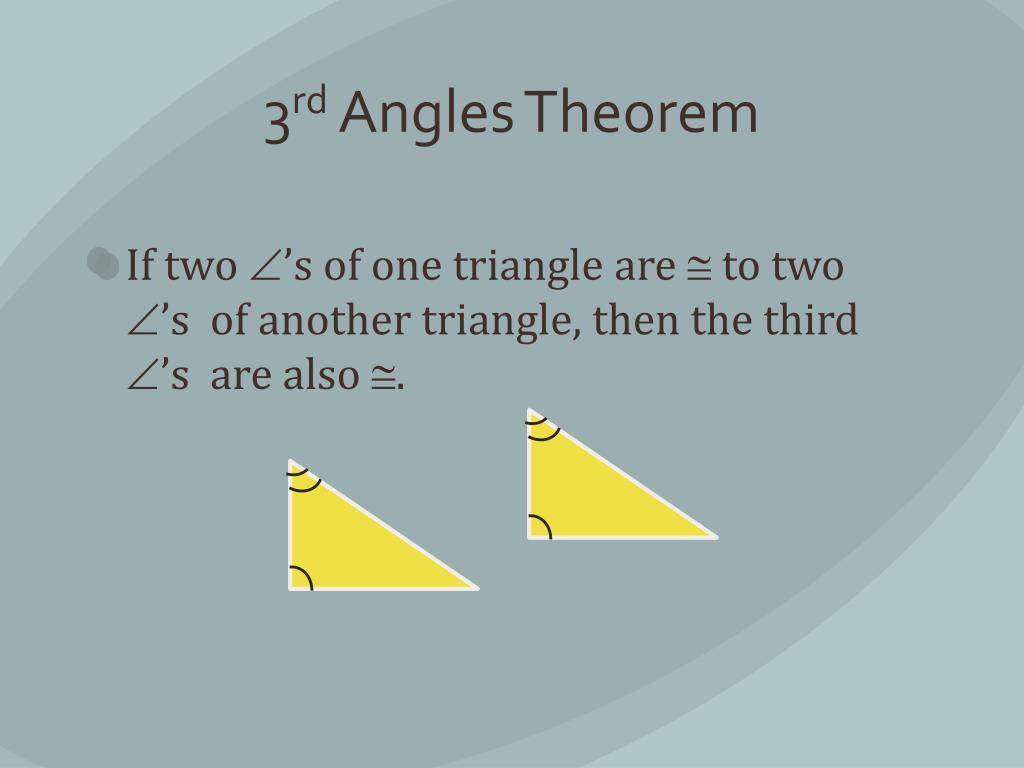

  4. 3rd Angles Theorem • If two ’s of one triangle are  to two ’s of another triangle, then the third ’s are also .

  5. ARE THESE 2 TRIANGLES CONGRUENT?

  6. Example: find x ) ) 22o )) 87o )) (4x+15)o

  7. Example: Continued 22+87+4x+15=180 4x+15=71 4x=56 x=14

  8. Ex: ABCD is  to HGFE, find x and y. F E 9cm B (5y-12)o A 91o 86o H G 113o 4x-3cm D C 4x-3=9 5y-12=113 4x=12 5y=125 x=3 y=25

  9. Properties of Congruent Triangles(Theorem 4.4) 1. Reflexive: 2. Symmetric: 3.Transitive:

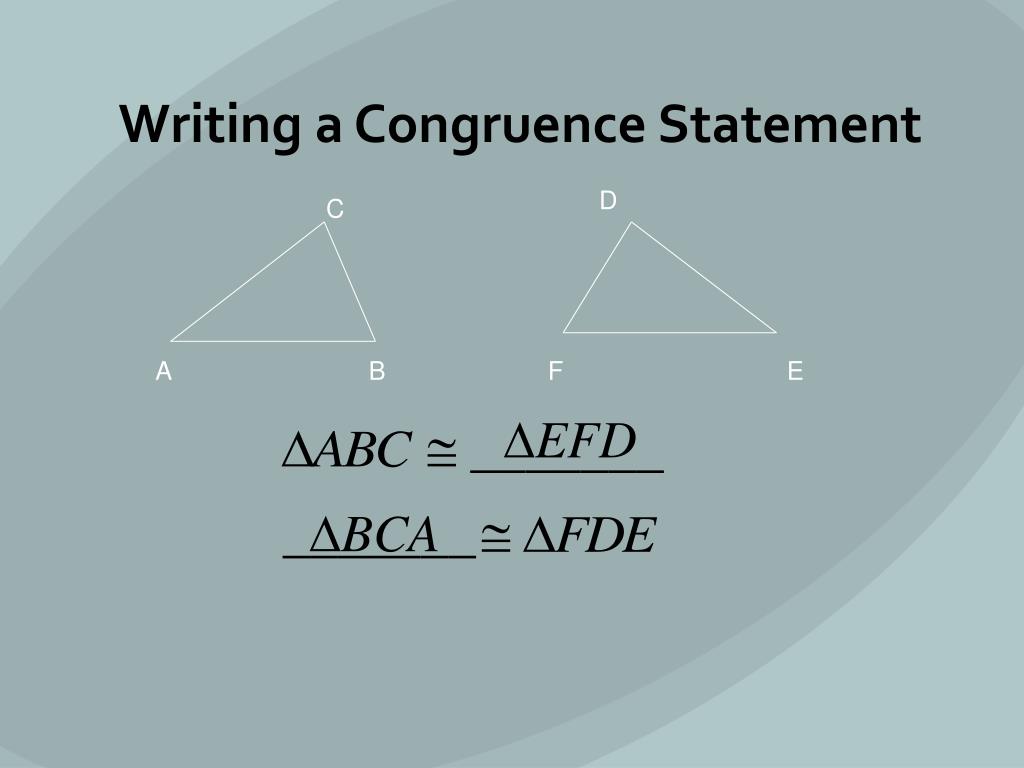

  10. Writing a Congruence Statement D C A B F E
