  1. Wiring a plug. The Quiz Start

  2. 1. Which is the Earth Wire ?

  3. 2. Which is the Neutral Pin ?

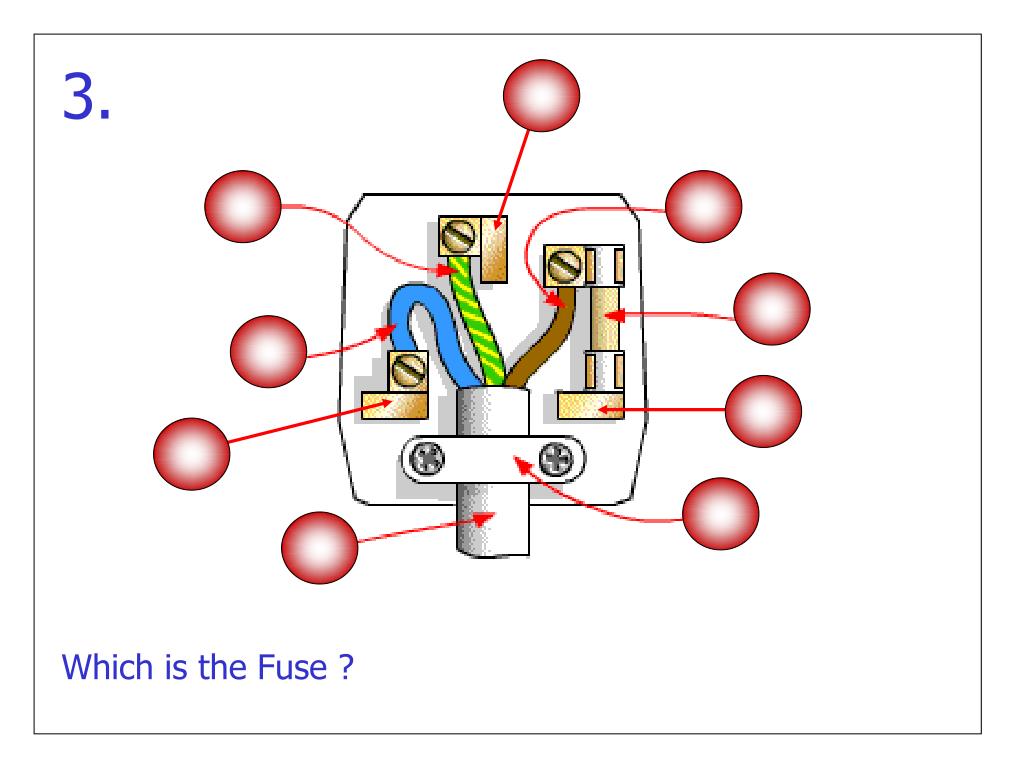

  4. 3. Which is the Fuse ?

  5. 4. Which is the Outer insulation ?

  6. 5. Which is the Live Wire ?

  7. 6. Which wire normally has current flowing in it ?

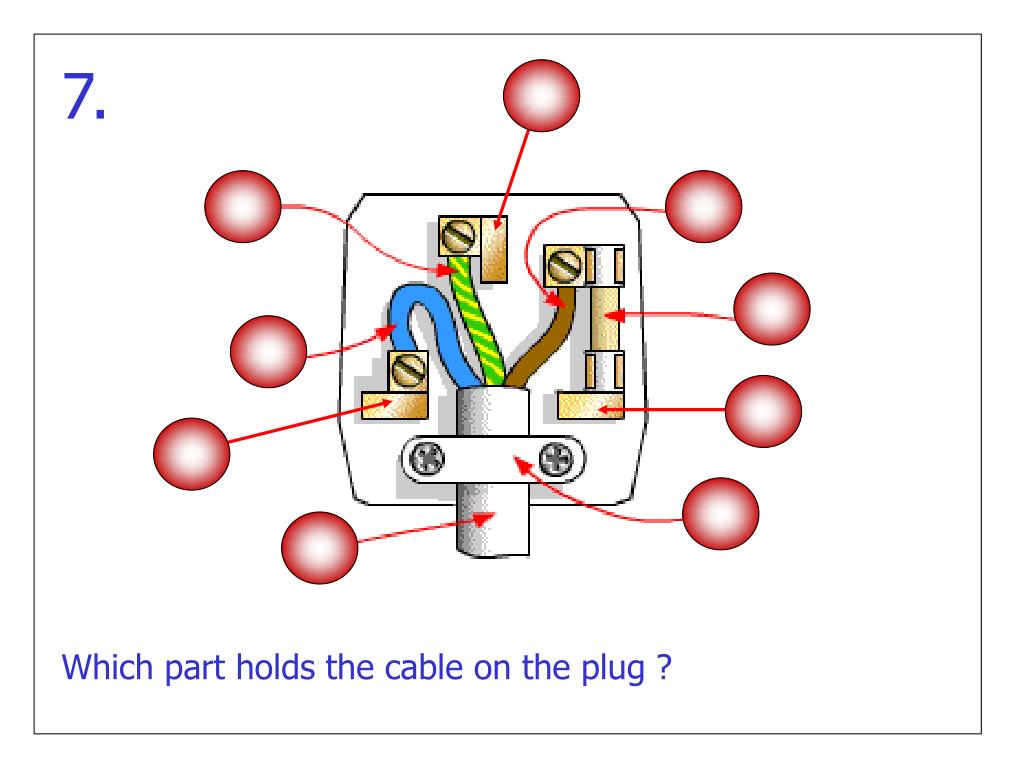

  8. 7. Which part holds the cable on the plug ?

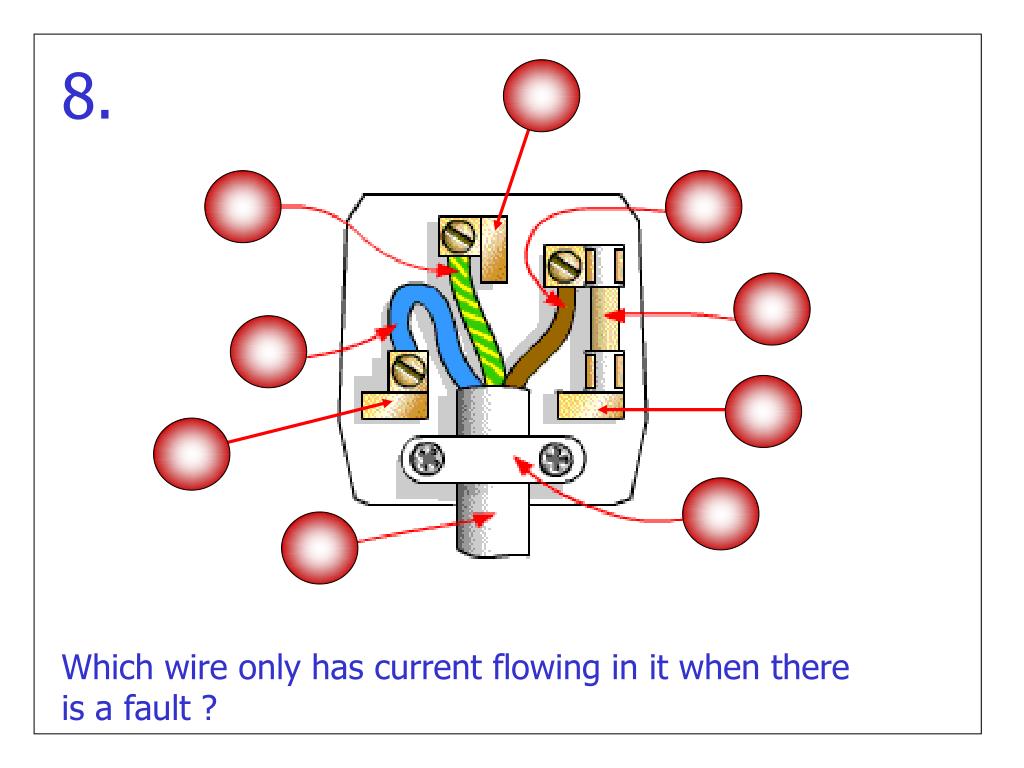

  9. 8. Which wire only has current flowing in it when there is a fault ?

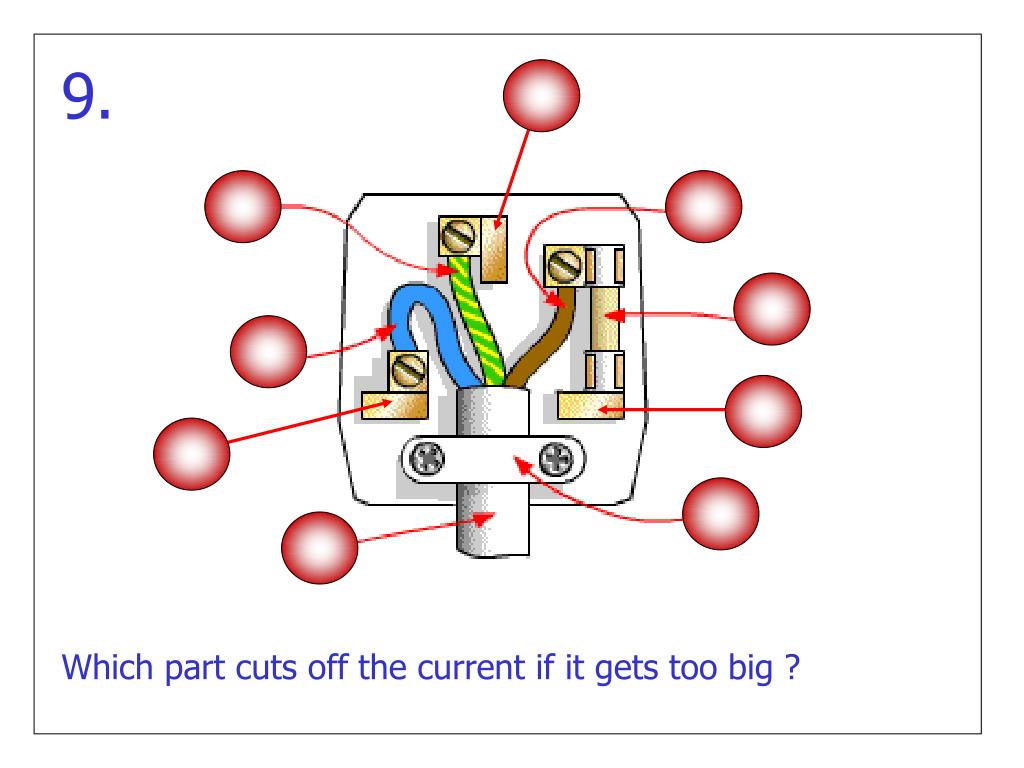

  10. 9. Which part cuts off the current if it gets too big ?

  11. 10. Touch the fault

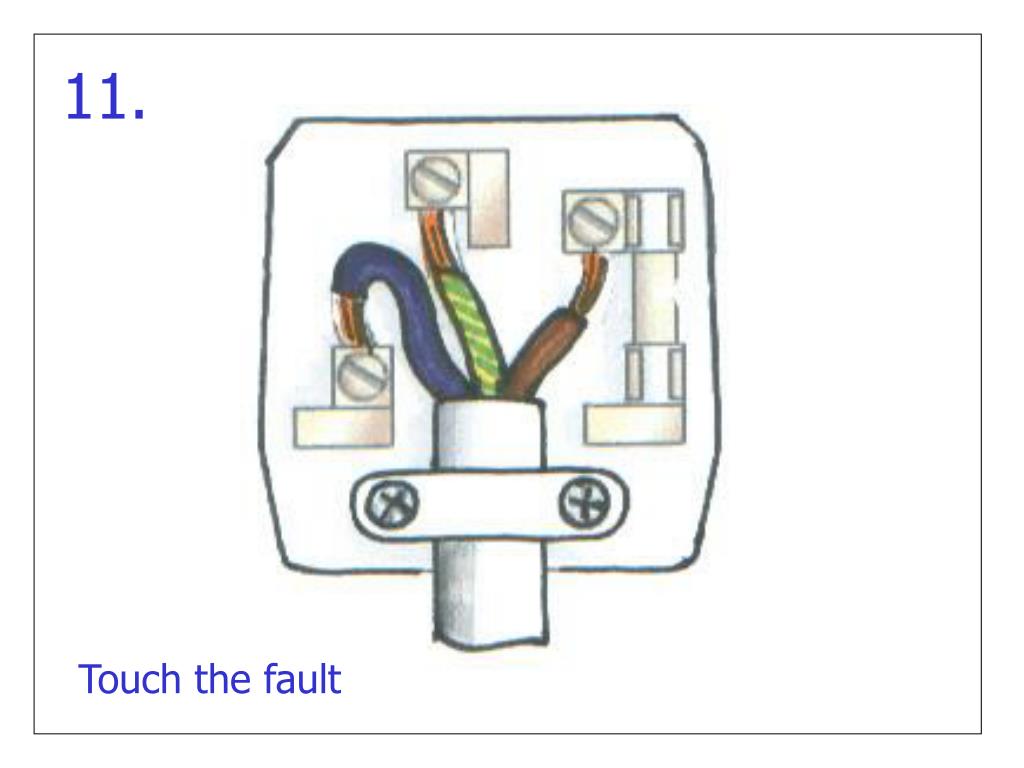

  12. 11. Touch the fault

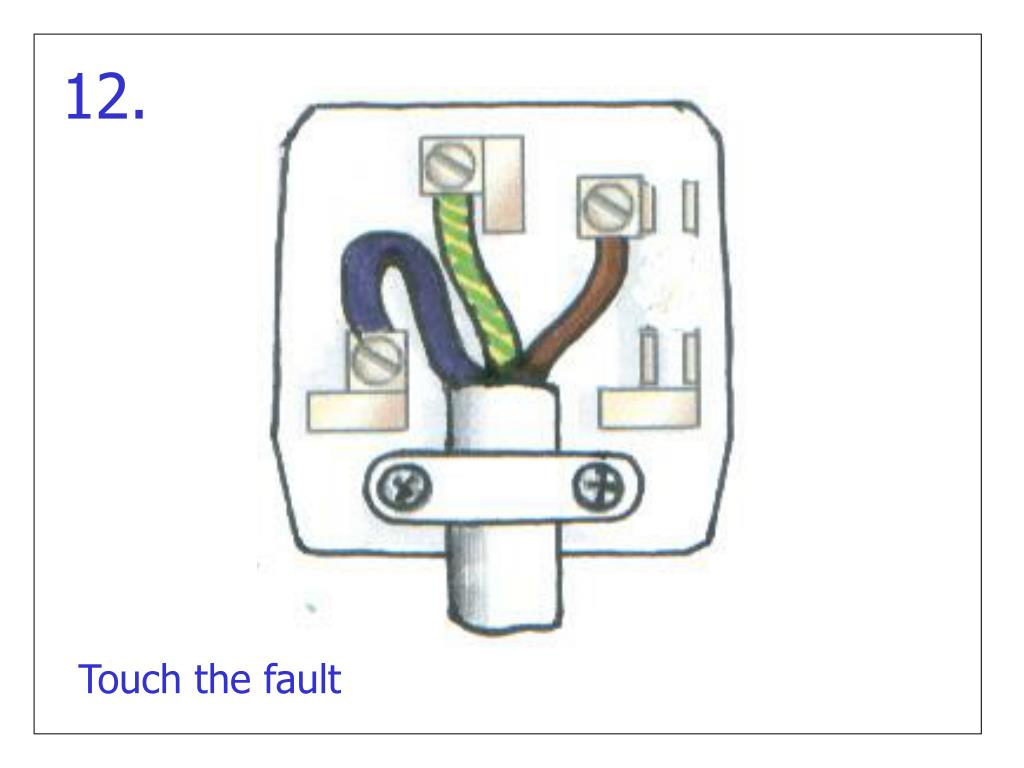

  13. 12. Touch the fault

  14. 13. Touch the fault

  15. 14. Touch the fault

  16. Well done ! You have completed the quiz Start Again

  17. Sorry, that was the wrong answer. Now you must start the quiz again Click
