  1. A New Design Methodology for DSM Abdallah Tabbara Bassam Tabbara Robert K. Brayton, A. Richard Newton, Kurt Keutzer GSRC NexSIS Group University of California at Berkeley

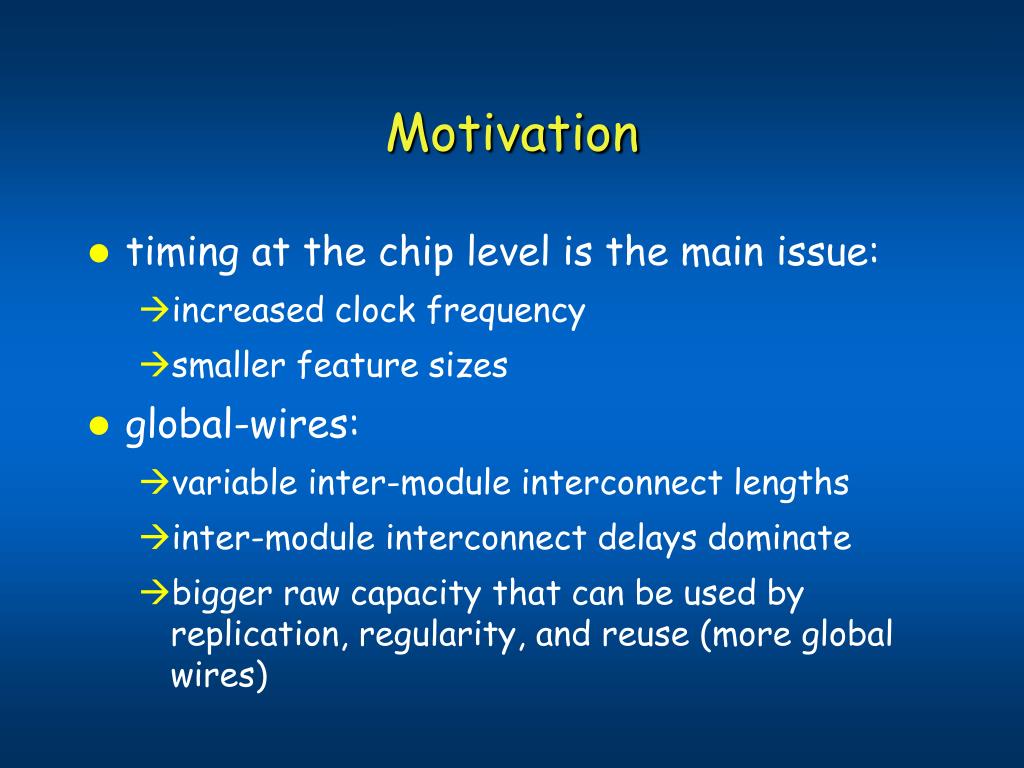

  2. Motivation • timing at the chip level is the main issue: • increased clock frequency • smaller feature sizes • global-wires: • variable inter-module interconnect lengths • inter-module interconnect delays dominate • bigger raw capacity that can be used by replication, regularity, and reuse (more global wires)

  3. Domain: SoC Design in DSM • 200-2000 IP blocks, average size: 50k gates • dynamic range of modules sizes: 1-500k gates • types of modules: hard, firm, soft • hard: layout • firm: gates + aspect ratio • soft: RTL • large number of nets: 40k-100k • pins per module: 10-100 • properties: • register-bound (easier to integrate in a synchronous fashion) • different area-delay trade-offs (implementations)

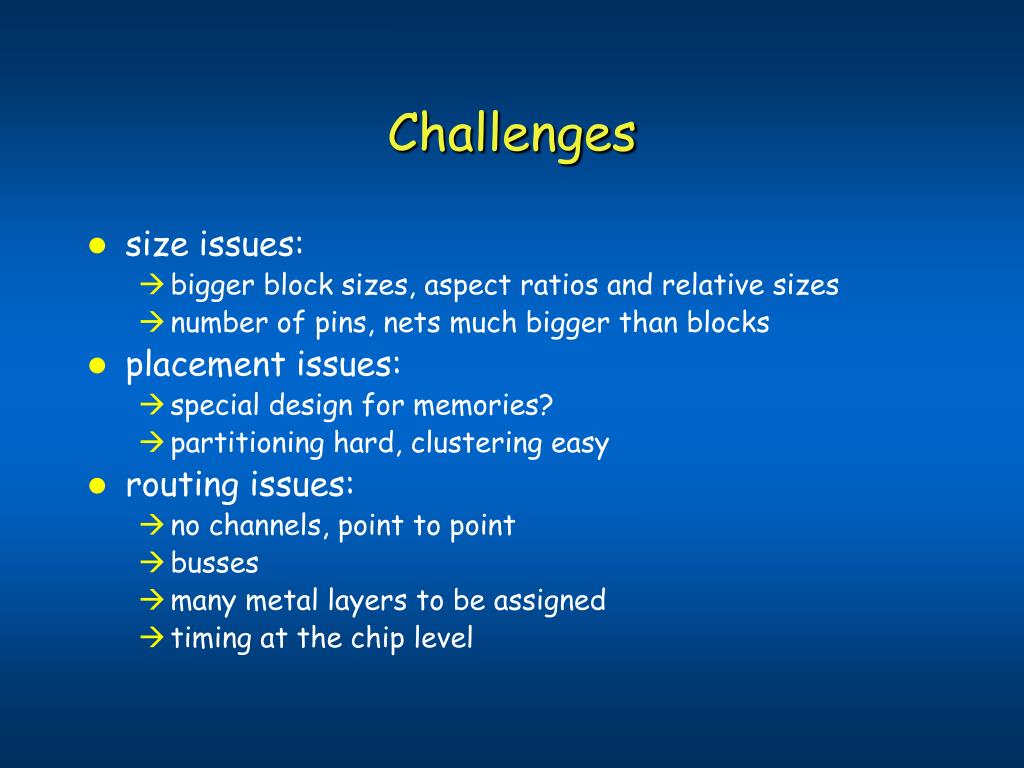

  4. Challenges • size issues: • bigger block sizes, aspect ratios and relative sizes • number of pins, nets much bigger than blocks • placement issues: • special design for memories? • partitioning hard, clustering easy • routing issues: • no channels, point to point • busses • many metal layers to be assigned • timing at the chip level

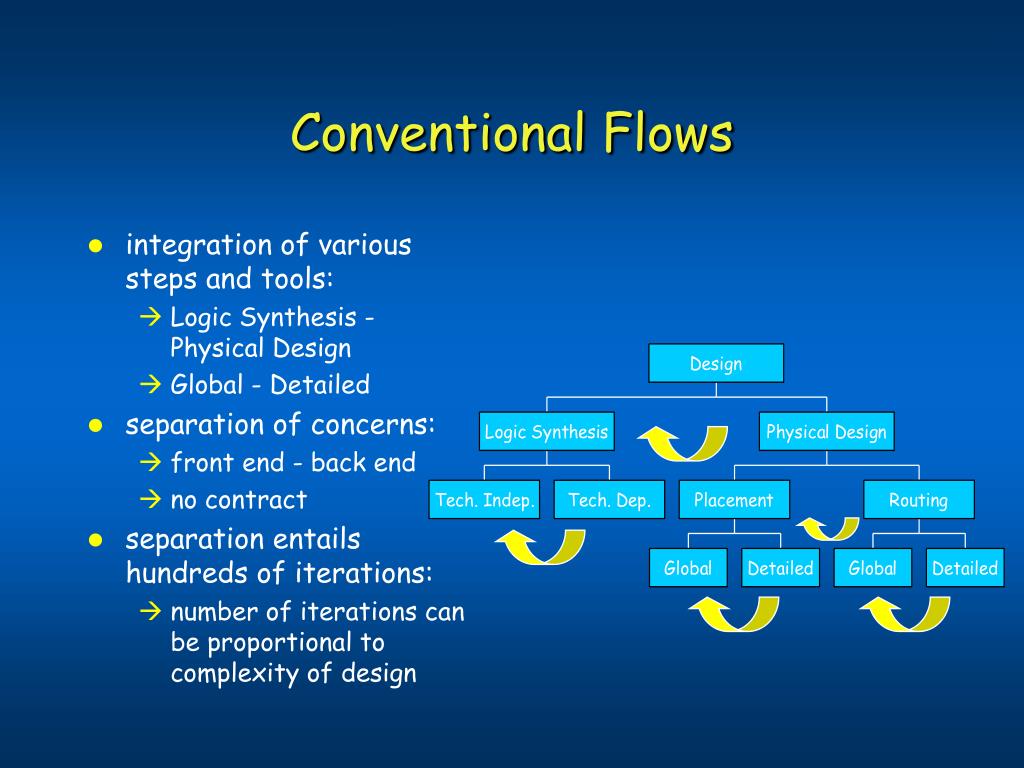

  5. Conventional Flows • integration of various steps and tools: • Logic Synthesis - Physical Design • Global - Detailed • separation of concerns: • front end - back end • no contract • separation entails hundreds of iterations: • number of iterations can be proportional to complexity of design

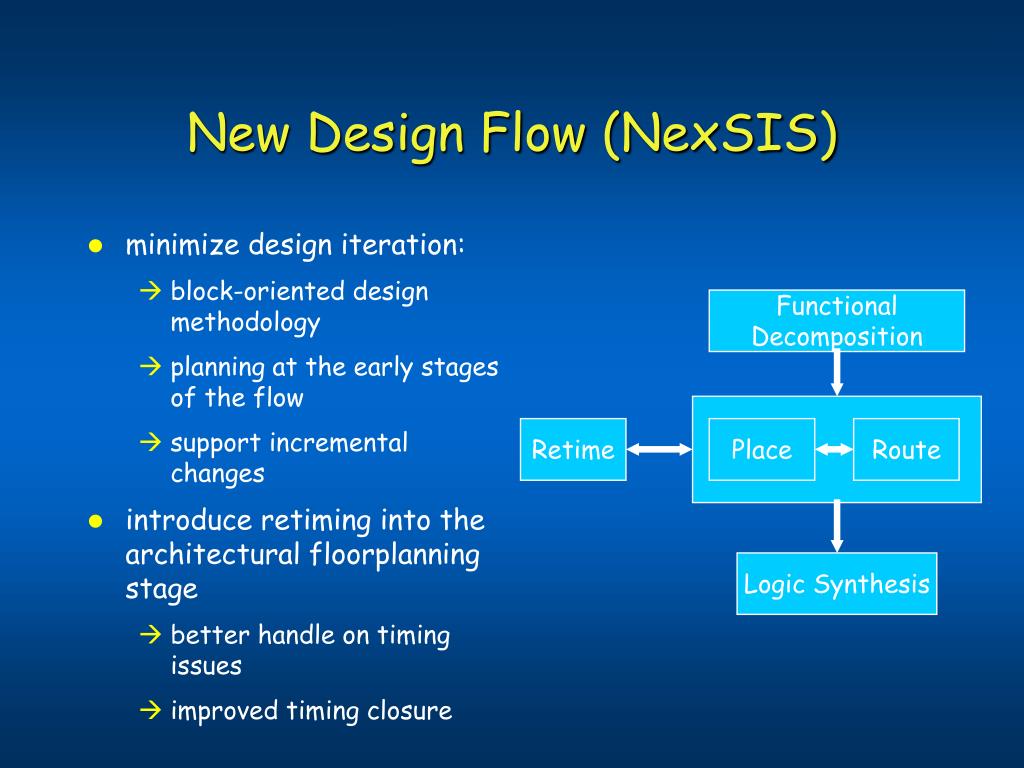

  6. Functional Decomposition Retime Place Route Logic Synthesis New Design Flow (NexSIS) • minimize design iteration: • block-oriented design methodology • planning at the early stages of the flow • support incremental changes • introduce retiming into the architectural floorplanning stage • better handle on timing issues • improved timing closure

  7. Functional Decomposition Retiming • provides an entry point for reused IPs • RTL may already be well characterized • area-delay trade-off as an important performance characteristic • result is: • a set of blocks • some area-delay trade-off estimates • takes in lower bound constraints • creates upper bound constraints • reduces area of modules whenever possible • can be made refinable and incremental • depends on granularity of the representation • path-based

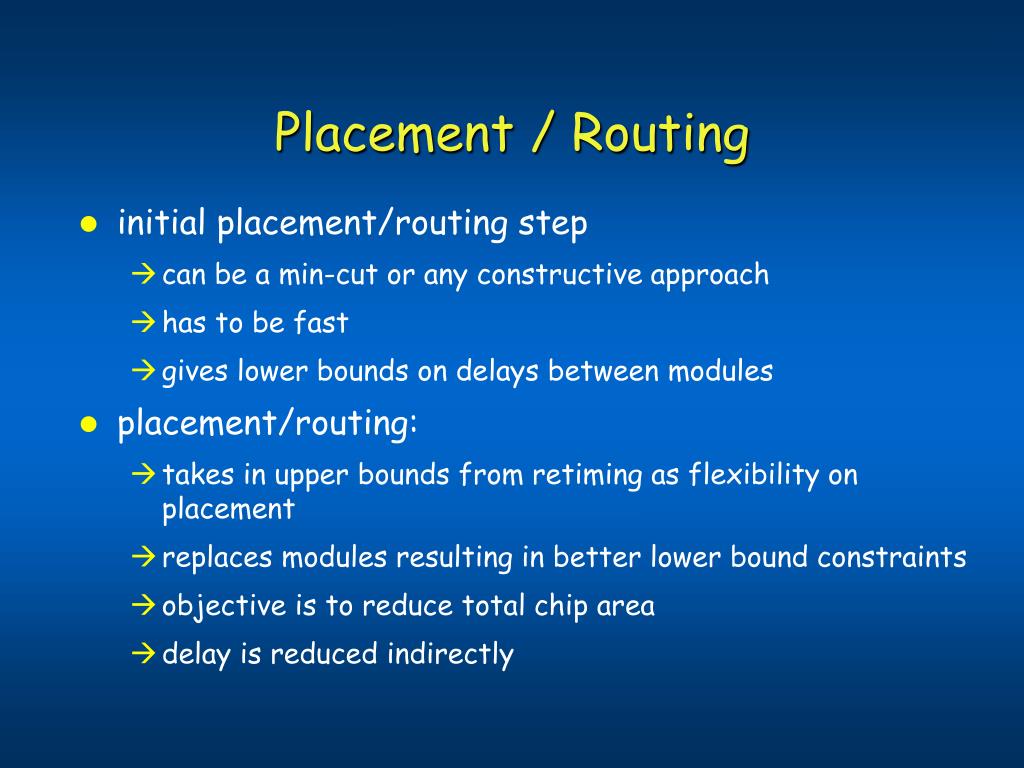

  8. Placement / Routing • initial placement/routing step • can be a min-cut or any constructive approach • has to be fast • gives lower bounds on delays between modules • placement/routing: • takes in upper bounds from retiming as flexibility on placement • replaces modules resulting in better lower bound constraints • objective is to reduce total chip area • delay is reduced indirectly

  9. Iterations Logic Synthesis • assumption: • problems can be solved at the module level • predictable for given size modules • can be run in parallel for the different modules • provides better estimates of area-delay trade-offs for subsequent iterations • placement and retiming • until no further improvements • may iterate many times • very similar to: • initial min-cut partitioning • low temperature simulated annealing • proof of convergence criteria • floorplanning and layout • only a few iterations • iteration information retained through area-delay trade-offs • also proof of convergence

  10. New Data Model • Object-Oriented • UML notation • design management: • packages • languages: • high-level GUI: Java • low-level: C++,C • advantages: • very flexible • disadvantages: • may be too complex

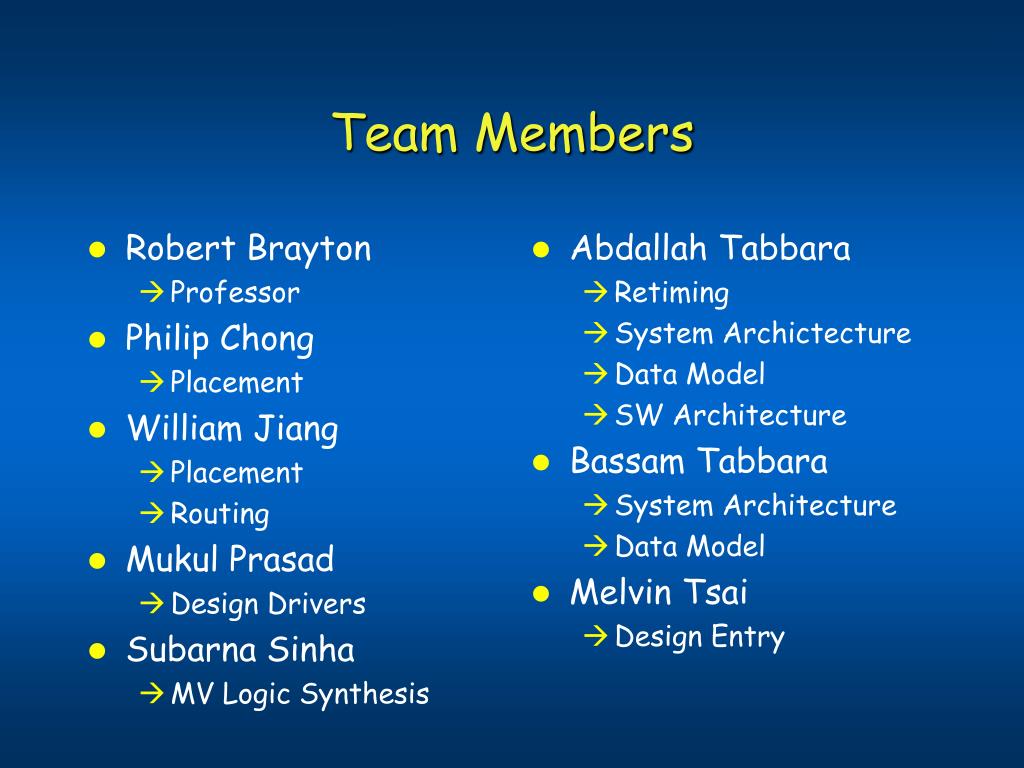

  11. Robert Brayton Professor Philip Chong Placement William Jiang Placement Routing Mukul Prasad Design Drivers Subarna Sinha MV Logic Synthesis Abdallah Tabbara Retiming System Archictecture Data Model SW Architecture Bassam Tabbara System Architecture Data Model Melvin Tsai Design Entry Team Members

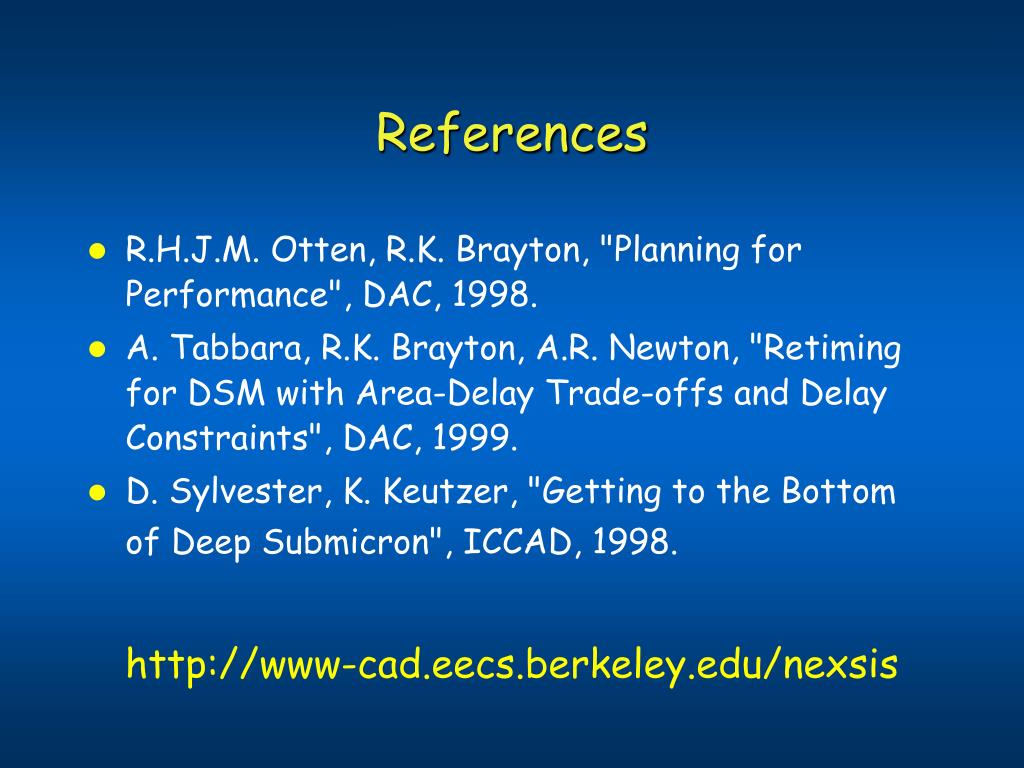

  12. References • R.H.J.M. Otten, R.K. Brayton, "Planning for Performance", DAC, 1998. • A. Tabbara, R.K. Brayton, A.R. Newton, "Retiming for DSM with Area-Delay Trade-offs and Delay Constraints", DAC, 1999. • D. Sylvester, K. Keutzer, "Getting to the Bottom of Deep Submicron", ICCAD, 1998. http://www-cad.eecs.berkeley.edu/nexsis
