  1. Towards Robust Protocol Design: 4 Ways to Kill TCP without Much Trouble Aleksandar Kuzmanovic Northwestern University http://networks.cs.northwestern.edu

  2. The Internet • 1969 • 2007 The system of astonishing scale and complexity

  3. Denial of Service Problem • Assumption • Trust and cooperation among endpoints • Denial of Service Attacks • A malicious way to consume resources in a network, a server cluster or in an end host, thereby denying service to other legitimate users • FBI Computer Crime & Security Survey: • Overall financial losses: $201,000,000 • Denial of Service: $65,000,000

  4. Approach • Should we find ways to defend the Internet from DoS attacks? • Of course! • Anticipating novel types of DoS attacks is essential • More relevant and more challenging • My focus: TCP • More than 90% of traffic today is TCP

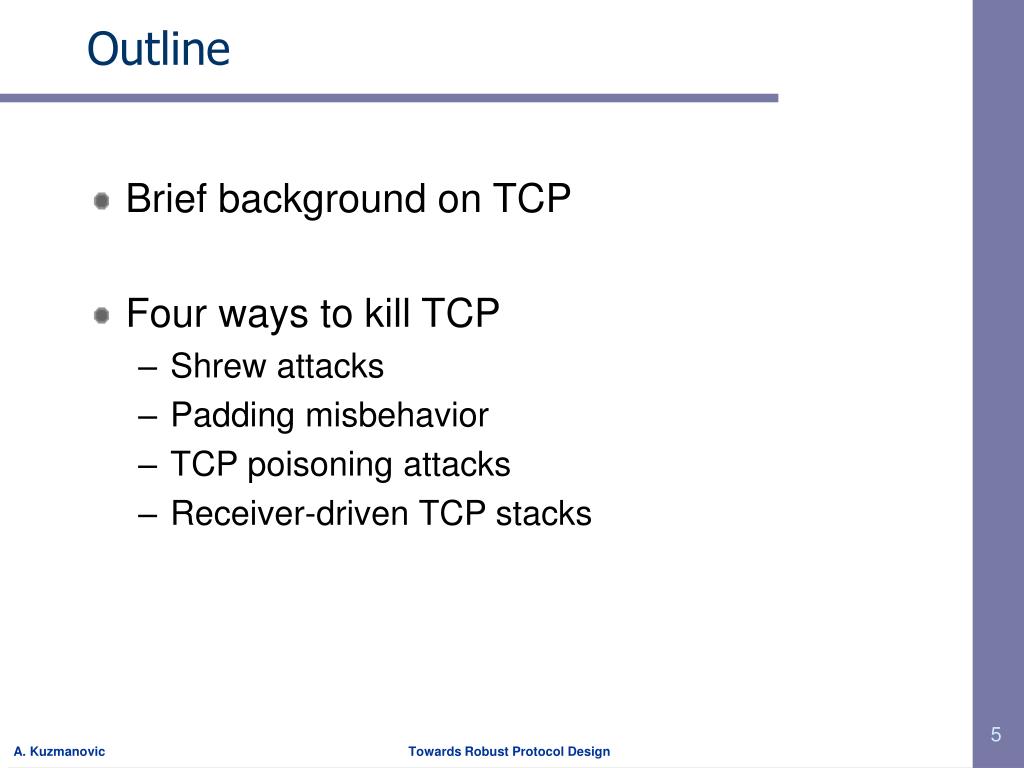

  5. Outline • Brief background on TCP • Four ways to kill TCP • Shrew attacks • Padding misbehavior • TCP poisoning attacks • Receiver-driven TCP stacks

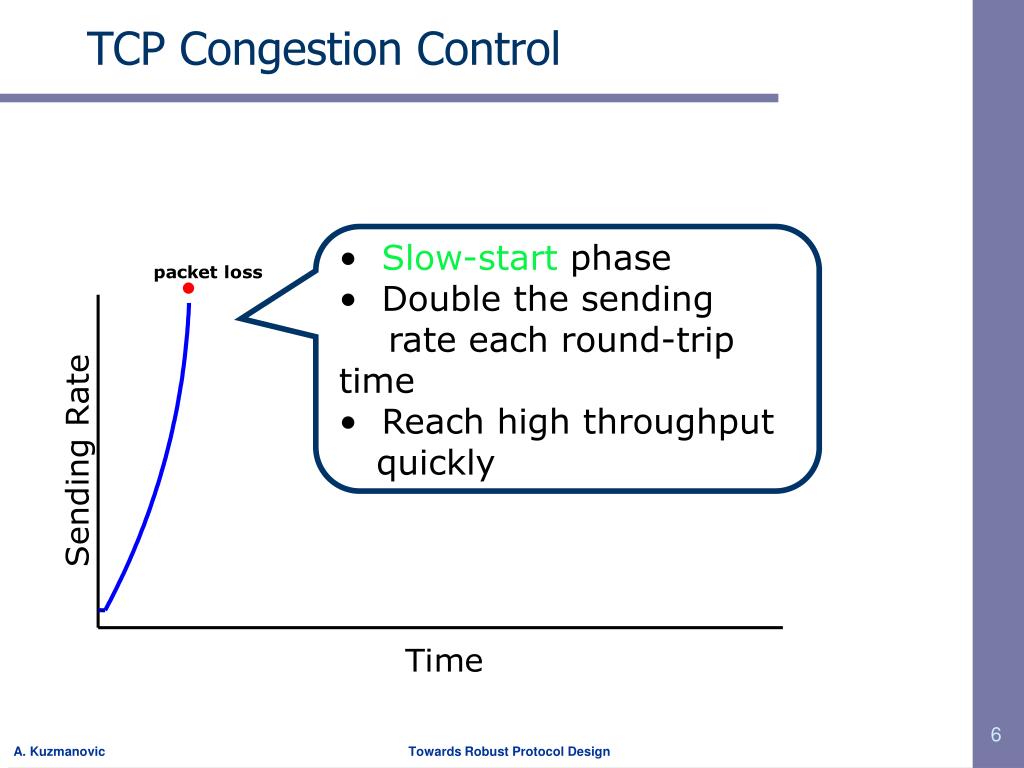

  6. TCP Congestion Control • Slow-start phase • Double the sending ...... rate each round-trip ... time • Reach high throughput ...quickly

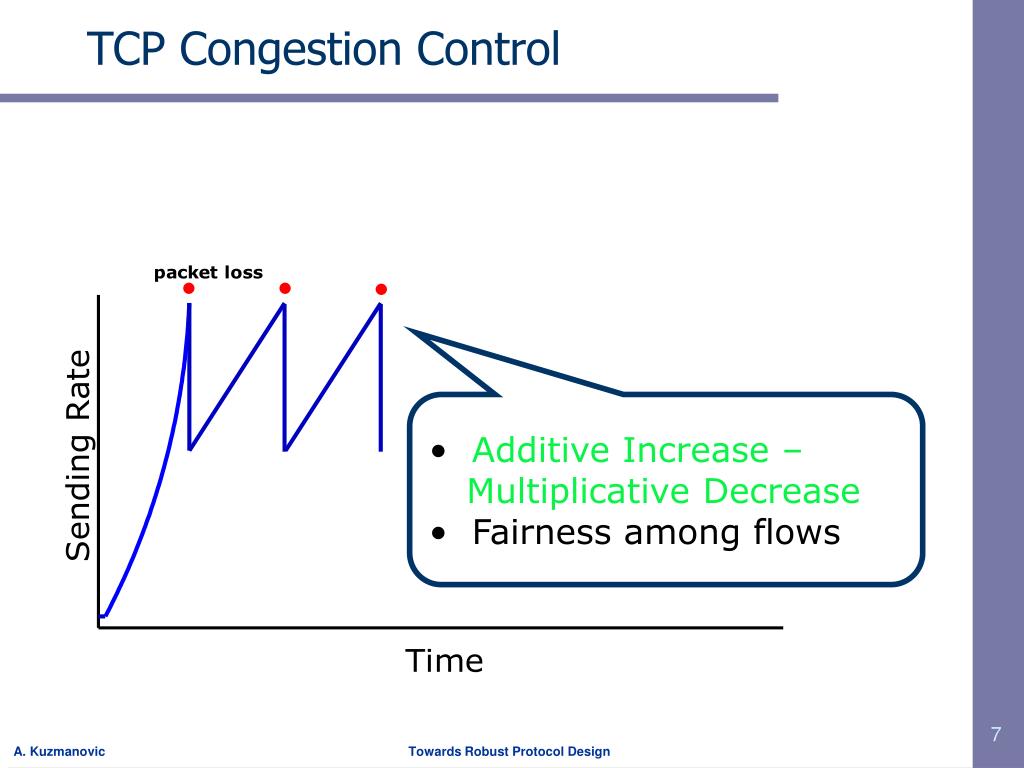

  7. TCP Congestion Control • Additive Increase –...Multiplicative Decrease • Fairness among flows

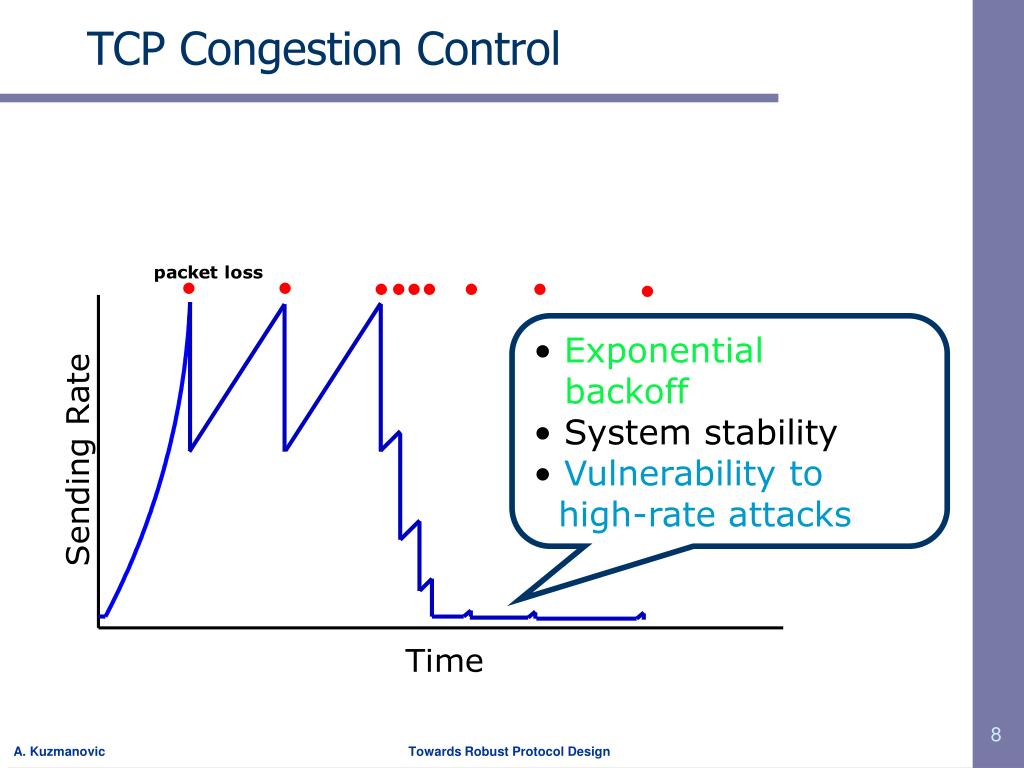

  8. TCP Congestion Control • Exponential • .backoff • System stability • Vulnerability to .....high-rate attacks

  9. Shrew Attacks • TCP is vulnerable to low-rate DoS attacks

  10. Shrew • Very small but aggressive mammal that ferociously attacks and kills much larger animals with a venomous bite • Reviewer 3: “only some shrews are venomous and the amount of venom in even the venomous species is very mild.”

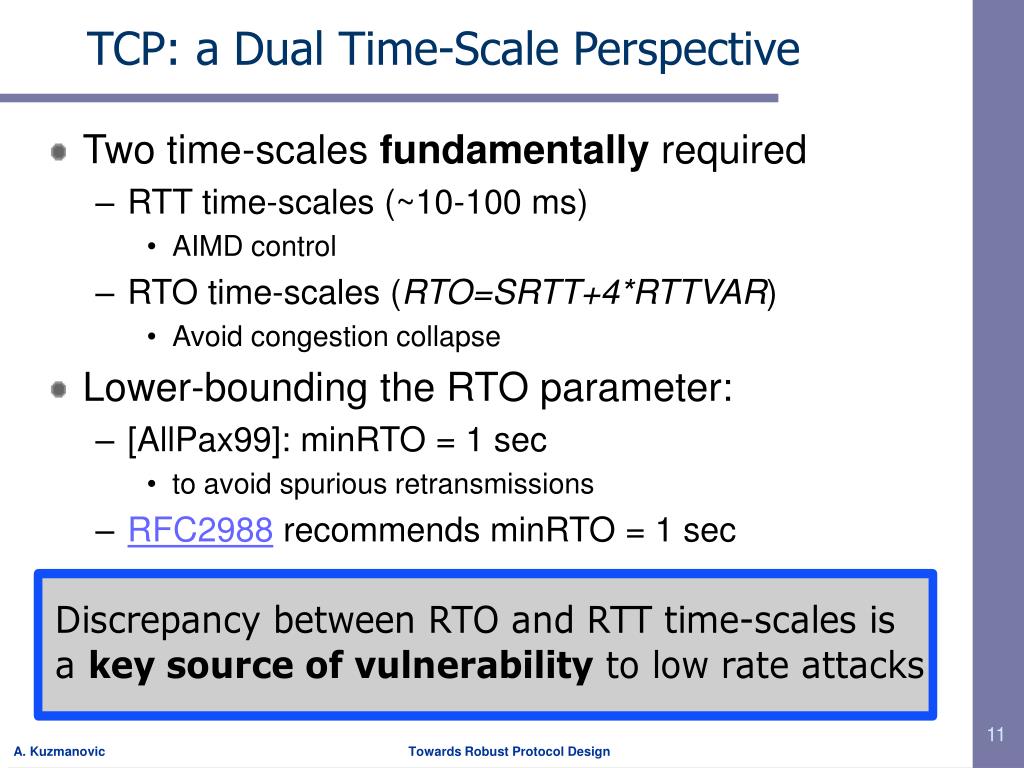

  11. TCP: a Dual Time-Scale Perspective • Two time-scales fundamentally required • RTT time-scales (~10-100 ms) • AIMD control • RTO time-scales (RTO=SRTT+4*RTTVAR) • Avoid congestion collapse • Lower-bounding the RTO parameter: • [AllPax99]: minRTO = 1 sec • to avoid spurious retransmissions • RFC2988 recommends minRTO = 1 sec

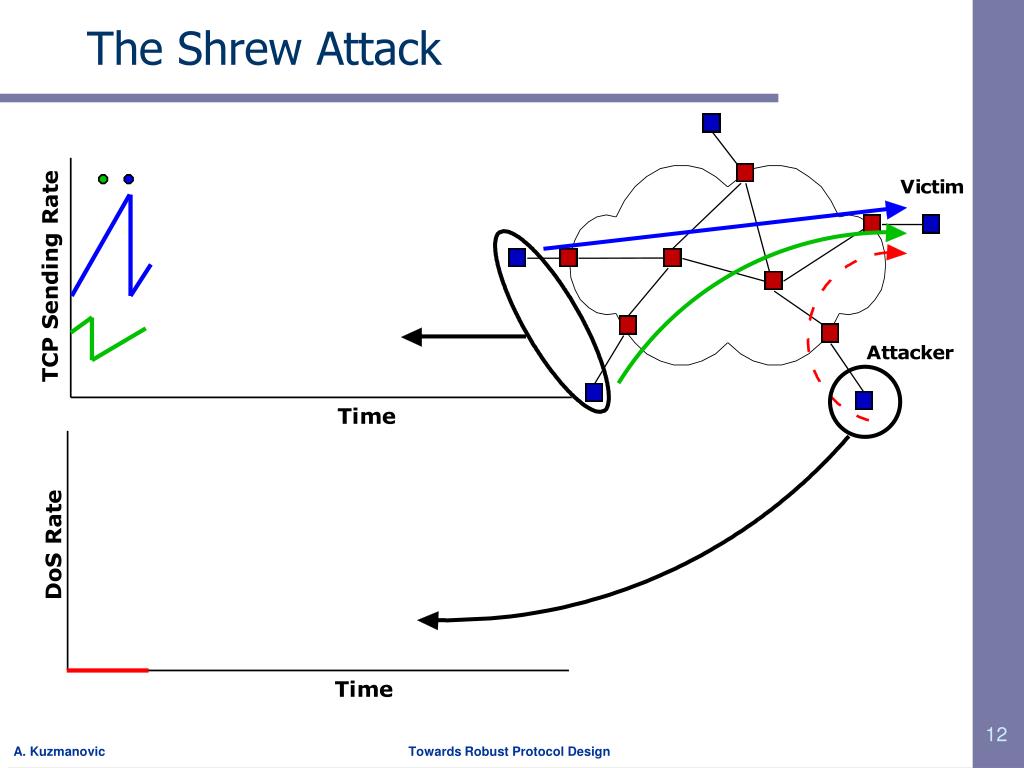

  12. The Shrew Attack

  13. The Shrew Attack • A short burst (~RTT)sufficient to create outage • Outage – event of correlated packet losses that forces TCP to enter RTO mechanism

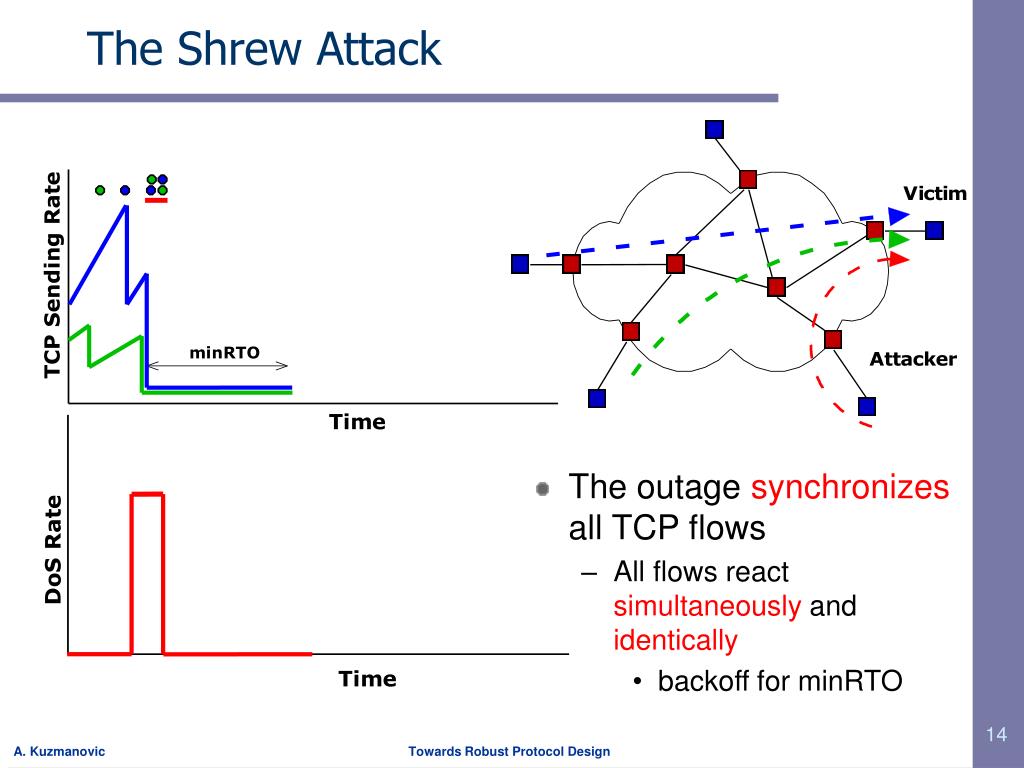

  14. The Shrew Attack • The outage synchronizes all TCP flows • All flows react simultaneouslyandidentically • backoff for minRTO

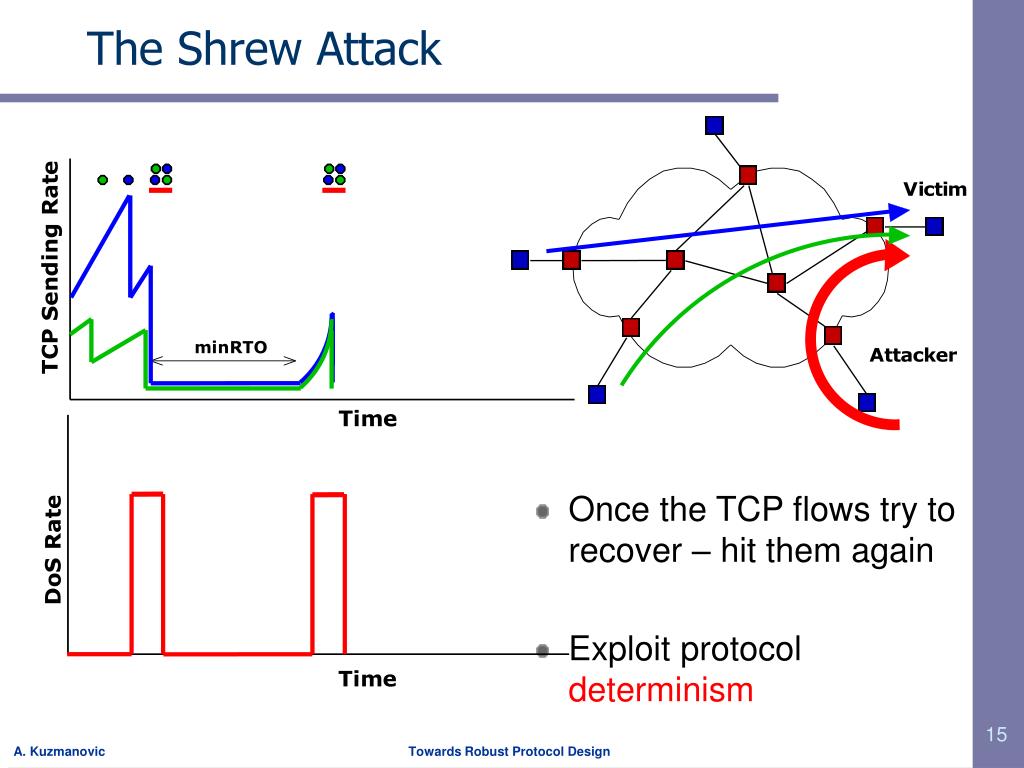

  15. The Shrew Attack • Once the TCP flows try to recover – hit them again • Exploit protocol determinism

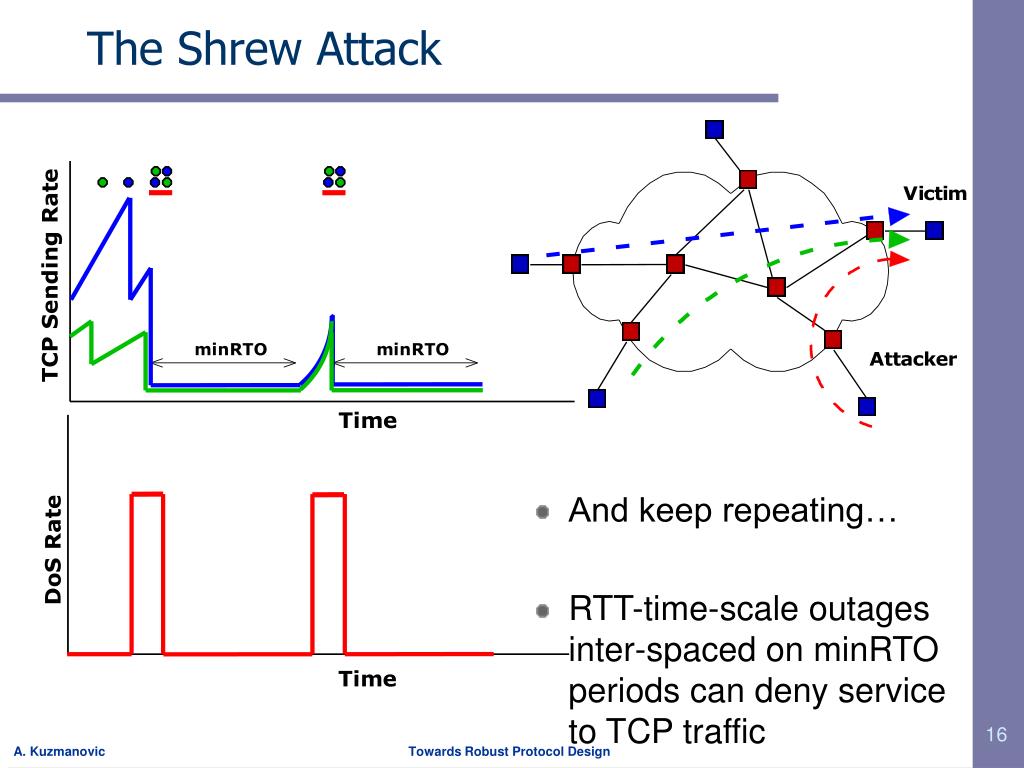

  16. The Shrew Attack • And keep repeating… • RTT-time-scale outages inter-spaced on minRTO periods can deny service to TCP traffic

  17. Shrews are Hard to Detect • l/T << 1 • Low-rate flow is hard to detect • Most counter-DOS mechanisms tuned for high-rate attacks • Detecting Shrews may have unacceptably many false alarms (due to legitimate bursty flows)

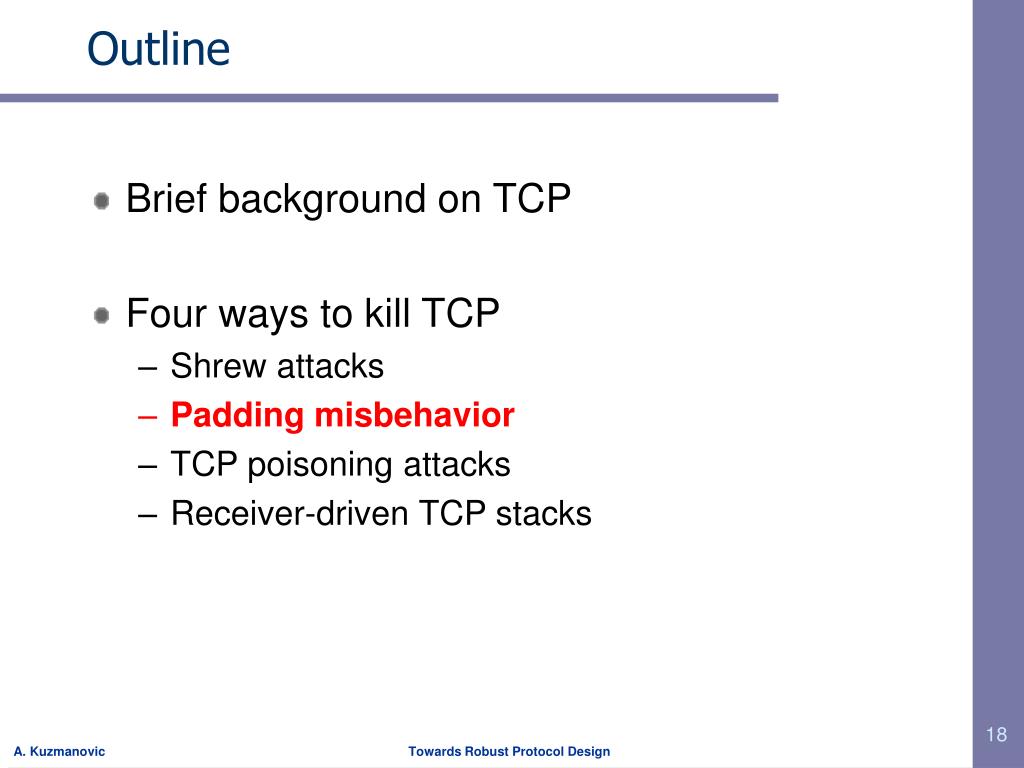

  18. Outline • Brief background on TCP • Four ways to kill TCP • Shrew attacks • Padding misbehavior • TCP poisoning attacks • Receiver-driven TCP stacks

  19. improvement C D A B The Source of the Problem • TCP optimized for throughput • Interactive applications may suffer • telnet, ssh, games, chat… RTO Incentive for misbehavior!

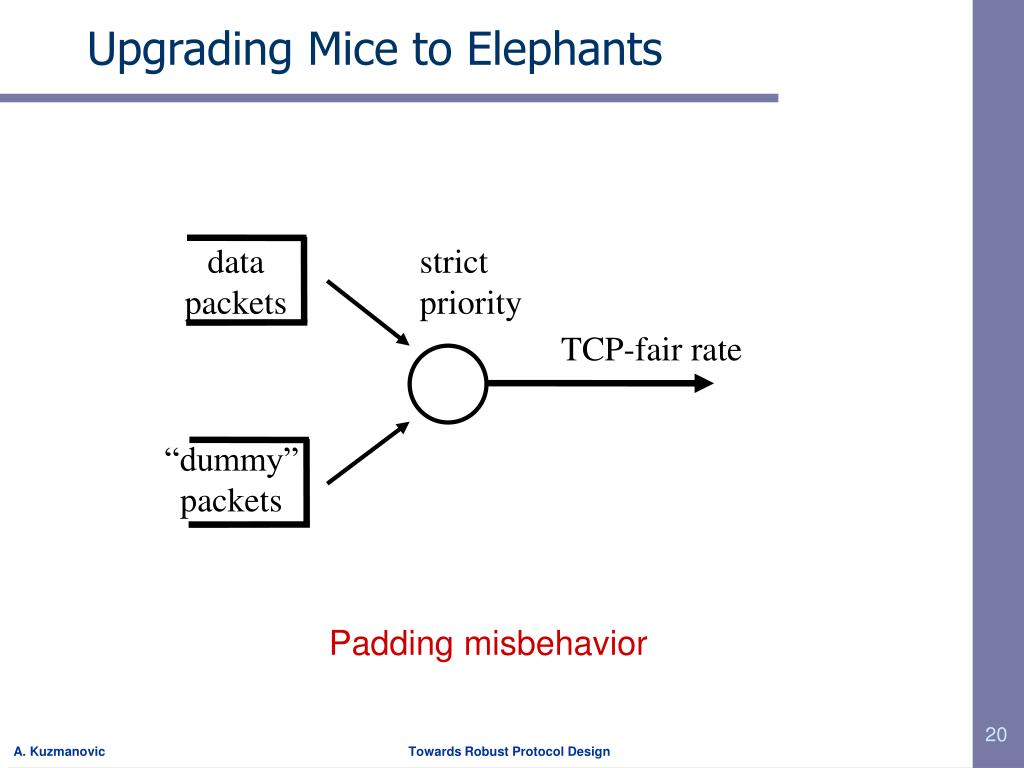

  20. Upgrading Mice to Elephants data packets strict priority TCP-fair rate “dummy” packets Padding misbehavior

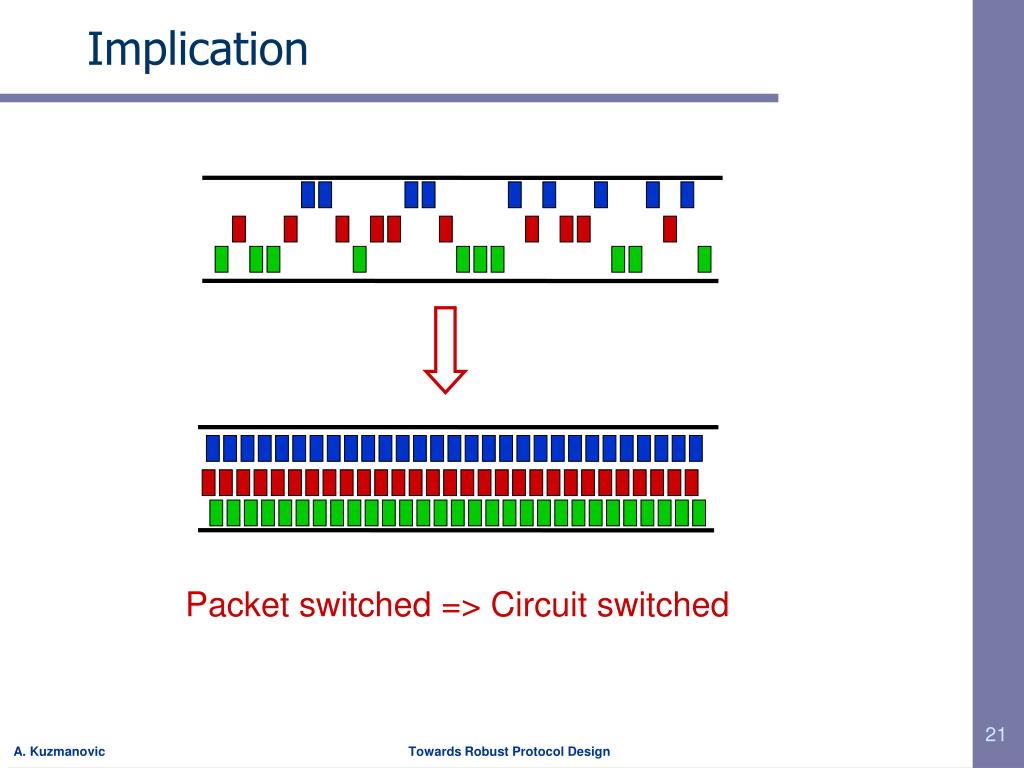

  21. Implication Packet switched => Circuit switched

  22. RED FIFO Gain Fully-backlogged flows always achieve gain relative to interactive flows

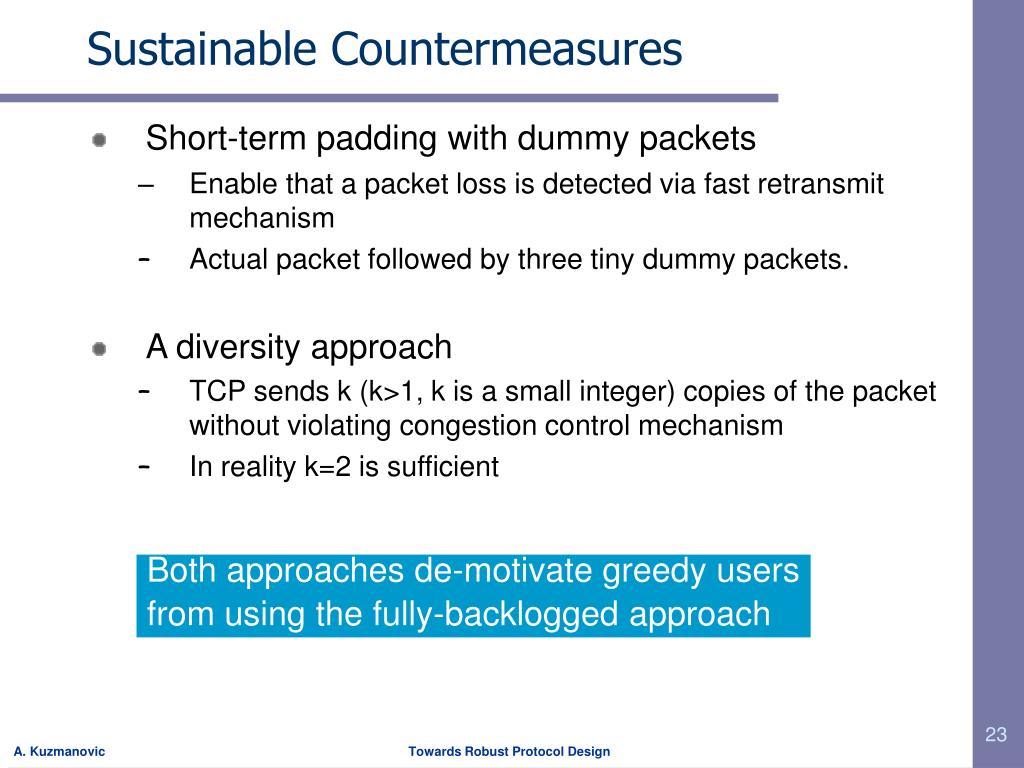

  23. Sustainable Countermeasures • Short-term padding with dummy packets • Enable that a packet loss is detected via fast retransmit mechanism • Actual packet followed by three tiny dummy packets. • A diversity approach • TCP sends k (k>1, k is a small integer) copies of the packet without violating congestion control mechanism • In reality k=2 is sufficient Both approaches de-motivate greedy users from using the fully-backlogged approach

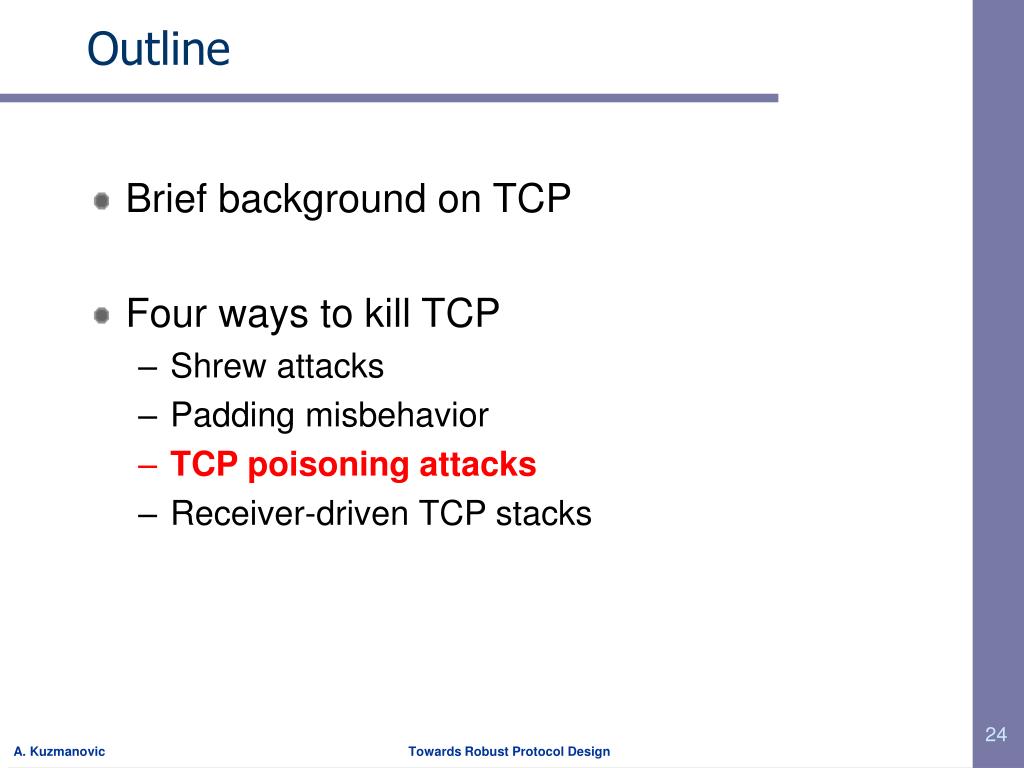

  24. Outline • Brief background on TCP • Four ways to kill TCP • Shrew attacks • Padding misbehavior • TCP poisoning attacks • Receiver-driven TCP stacks

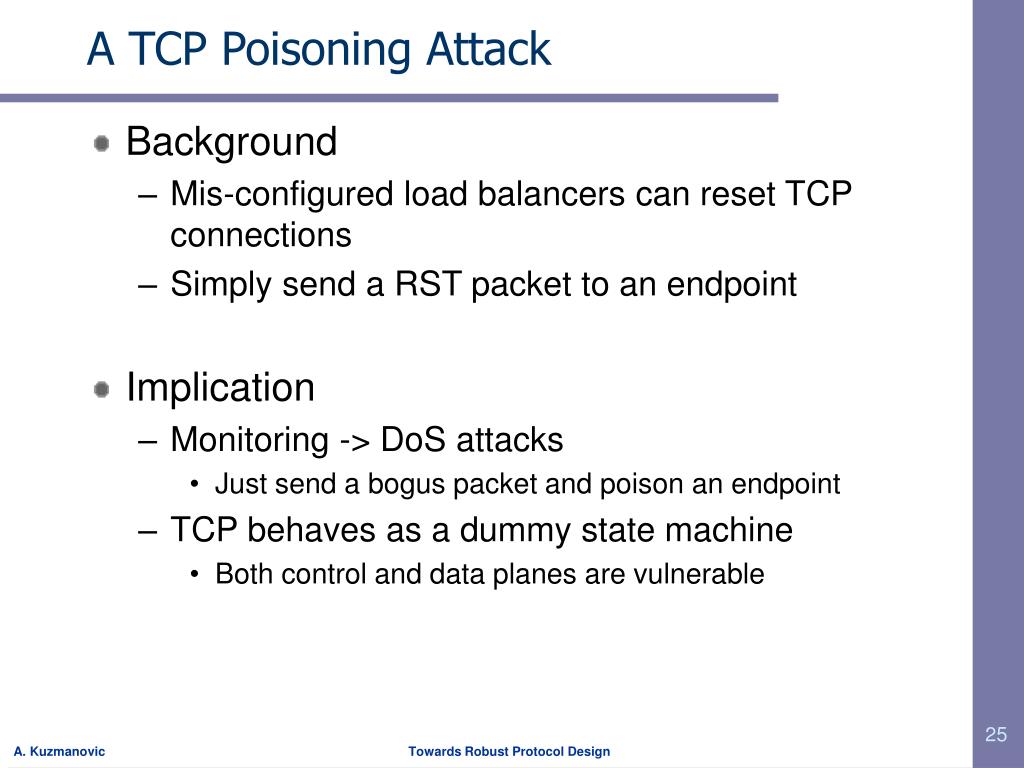

  25. A TCP Poisoning Attack • Background • Mis-configured load balancers can reset TCP connections • Simply send a RST packet to an endpoint • Implication • Monitoring -> DoS attacks • Just send a bogus packet and poison an endpoint • TCP behaves as a dummy state machine • Both control and data planes are vulnerable

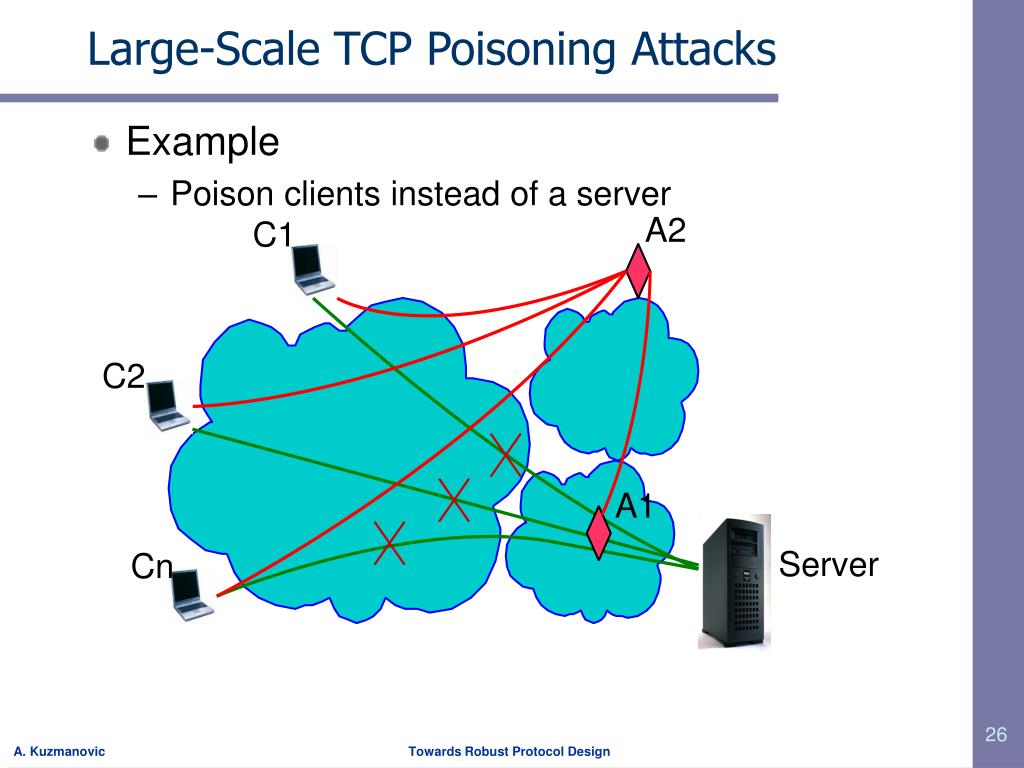

  26. Large-Scale TCP Poisoning Attacks • Example • Poison clients instead of a server A2 C1 C2 A1 Server Cn

  27. Why Not Cryptography? • Explicit monitoring required in networks • Advanced congestion control protocols (e.g., XCP) • Intrusion-detection mechanisms • Not implemented widely • E.g., IPSec • Even cryptography won’t help • Key exchange vulnerable to poisoning

  28. Our Approach • Deferred protocol reaction • Attack detection • Forward nonces • Distinguish packet streams from different hosts • Self-clocking based correlation • Identify the valid packet stream

  29. How long to defer?

  30. PN FN PN PN FN FN PN FN PN FN PN FN Forward Nonces … … • Chaining mechanism to distinguish among different packet sources • Past and future nonce • 8-bit random numbers • Overhead: 2 bytes/packet

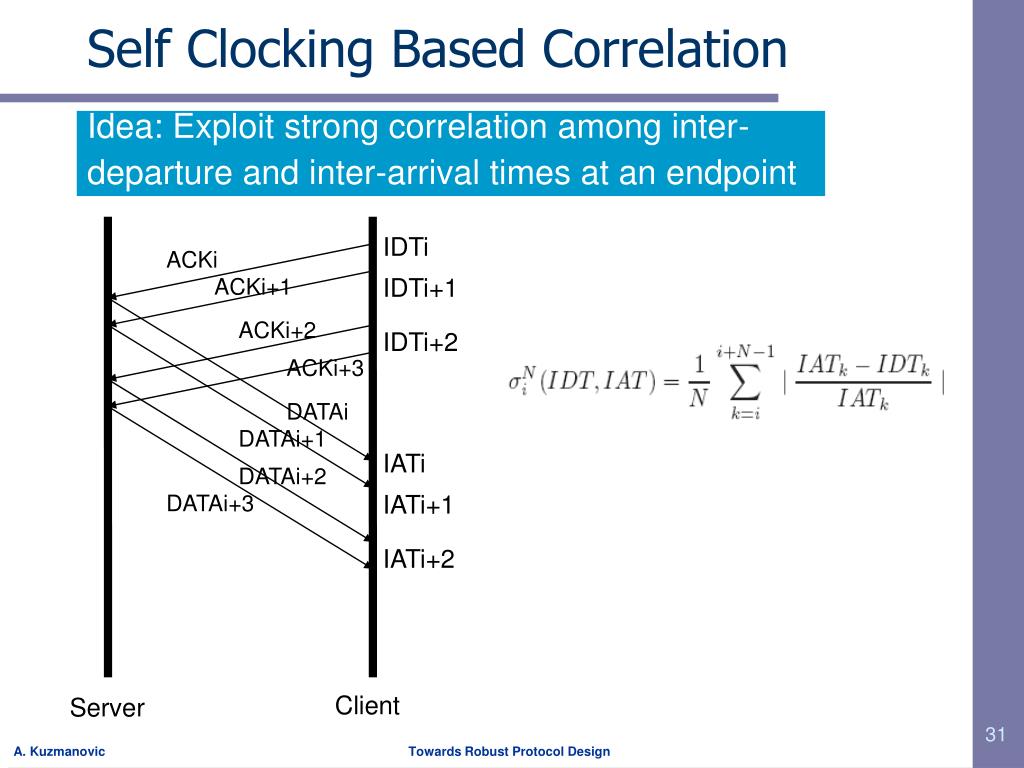

  31. Client Server Self Clocking Based Correlation Idea: Exploit strong correlation among inter- departure and inter-arrival times at an endpoint IDTi ACKi ACKi+1 IDTi+1 ACKi+2 IDTi+2 ACKi+3 DATAi DATAi+1 IATi DATAi+2 DATAi+3 IATi+1 IATi+2

  32. Evaluation • Our approach dramatically improves performance over standard TCP

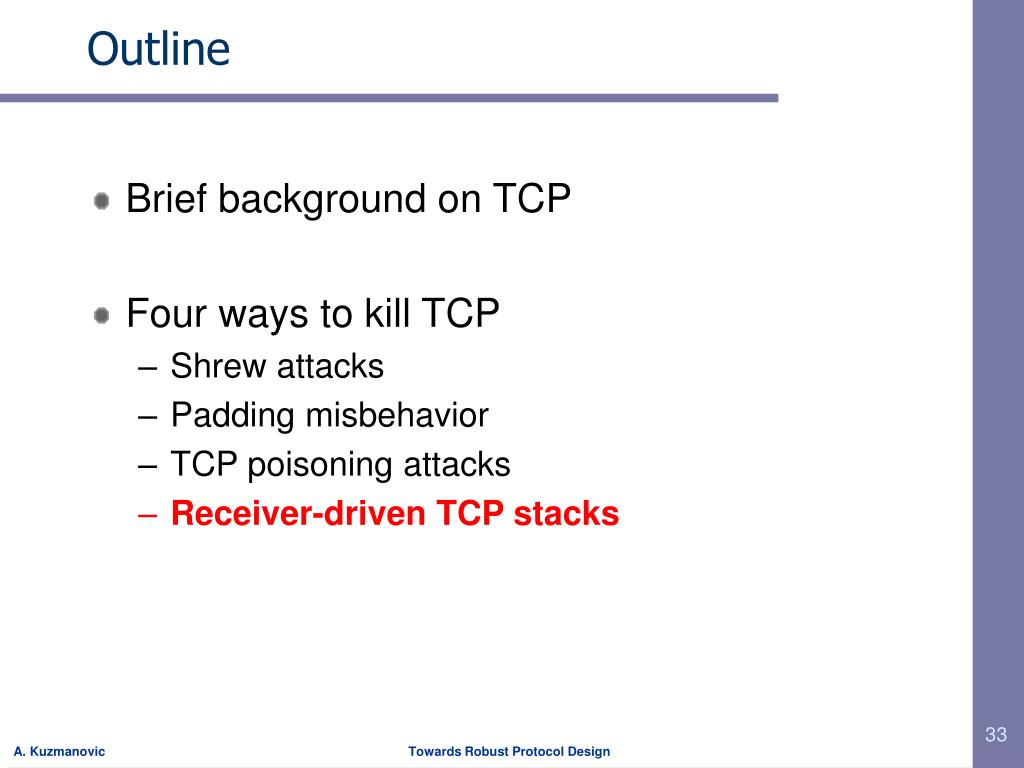

  33. Outline • Brief background on TCP • Four ways to kill TCP • Shrew attacks • Padding misbehavior • TCP poisoning attacks • Receiver-driven TCP stacks

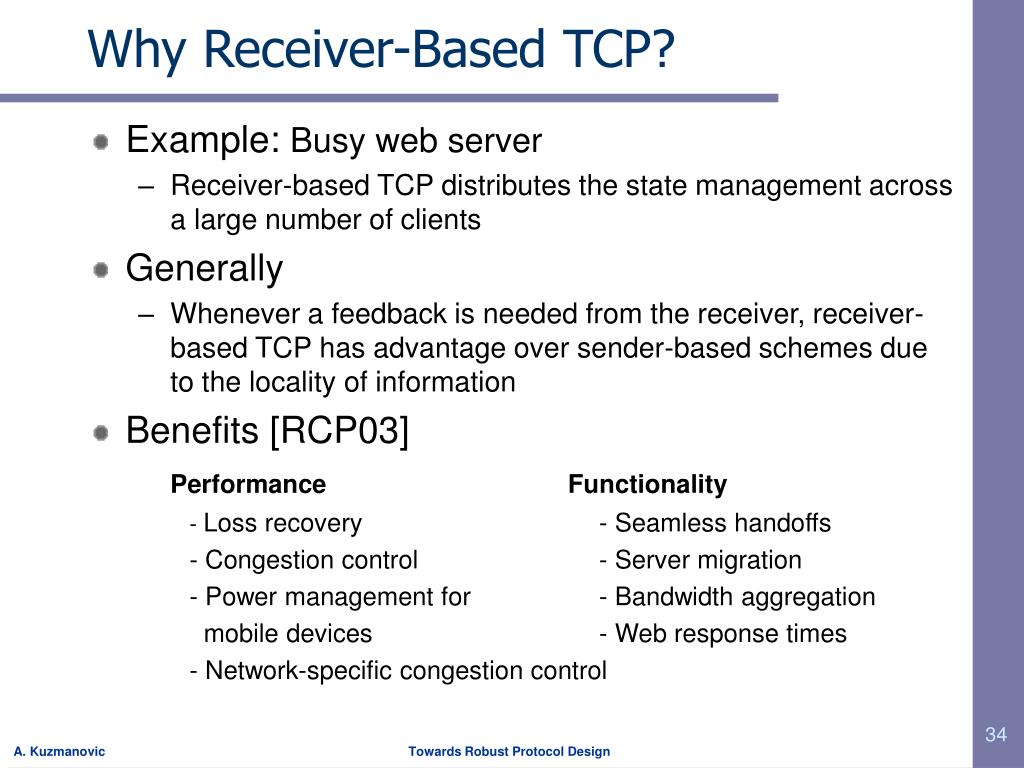

  34. Why Receiver-Based TCP? • Example: Busy web server • Receiver-based TCP distributes the state management across a large number of clients • Generally • Whenever a feedback is needed from the receiver, receiver-based TCP has advantage over sender-based schemes due to the locality of information • Benefits [RCP03] PerformanceFunctionality - Loss recovery- Seamless handoffs - Congestion control - Server migration - Power management for - Bandwidth aggregation mobile devices - Web response times - Network-specific congestion control

  35. Vulnerability • Receivers remotely control servers by deciding which packets and when to be sent • Receivers have both means and incentive to manipulate the congestion control algorithm • Means: open source OS • Incentive: faster web browsing & file download

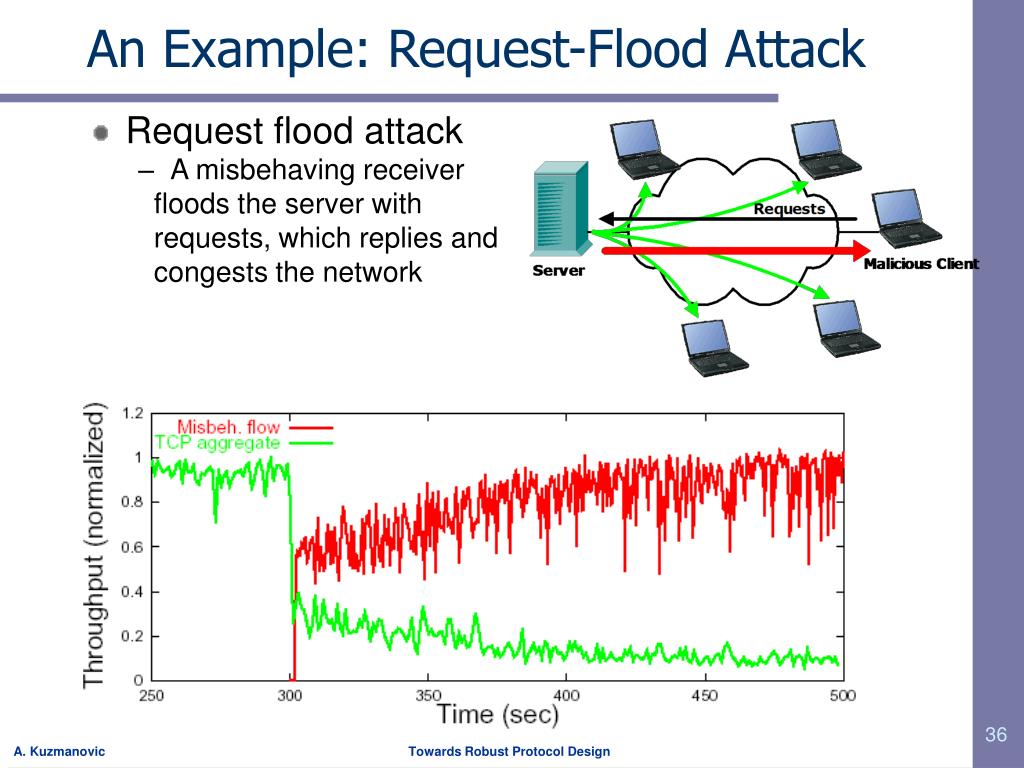

  36. An Example: Request-Flood Attack • Request flood attack • A misbehaving receiver floods the server with requests, which replies and congests the network

  37. Conclusions • Think of attacks, not just defenses • More challenging and more relevant • Robust protocol design • Avoid determinism whenever you can • Understand extreme scenarios • Explore novel defense mechanisms • E.g., use measurements to achieve DoS resilience • Anticipate effects before applying a change

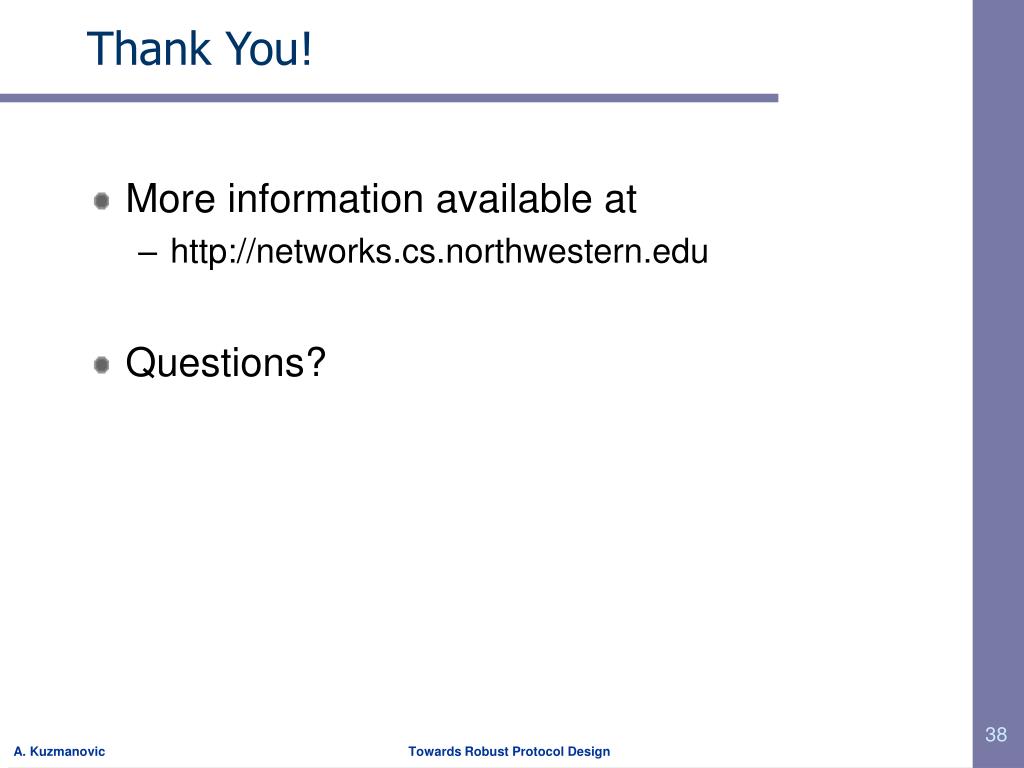

  38. Thank You! • More information available at • http://networks.cs.northwestern.edu • Questions?
