High-Performance Frequency Dividers: Design, Features, and Test Results

This project presents a comprehensive analysis of frequency dividers designed by Hengky Chandrahalim, Toai Nguyen, and Mike Tjuatja. Key features include inputs accepting 5V Clk_In up to 200MHz, RESET signals, and outputs divided by 2 and 3. The specifications indicate a skew of less than 1ns, symmetric rise and fall times under 800 ps, and a 45%-55% duty cycle. The design, using the AMI16 process, occupies 1740.47 mil² and successfully drives a 20 pF load with an average power of 0.25 mW.

floria
Télécharger la présentation

High-Performance Frequency Dividers: Design, Features, and Test Results

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

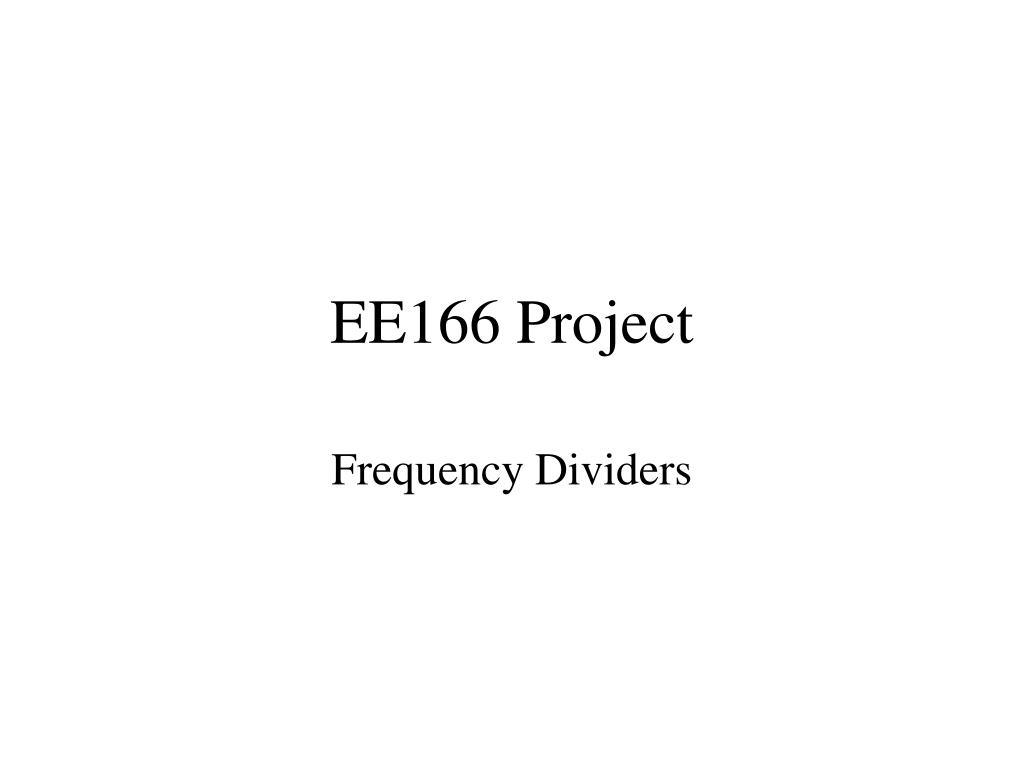

  1. EE166 Project Frequency Dividers

  2. Group Members • Hengky Chandrahalim • Toai Nguyen • Mike Tjuatja

  3. Inputs and Outputs Features • Input • -1 Clk_In at 5V <200MHz • -1 RESET signal • -4 VDDs at 5V • -4 VSSs

  4. Inputs and Outputs Features • Outputs • -1 Output at 5V = Clk_In/2 • -1 Output at 5 V = Clk_In/3

  5. Key Specifications • Skew DIV2-DIV3 < 1ns • Symmetric Tr and Tf DIV2 < 800 ps • Symmetric Tr and Tf DIV3 < 800 ps • Duty Cycle : 45%-55% • Output Load : 10pF

  6. Top Level View of Schematic

  7. Layout View

  8. Extracted View of Layout

  9. Divider Block

  10. Divide by 2 Block

  11. DFF Schematic

  12. DFF Layout

  13. Divide by 3 Block

  14. Layout Divide by 3

  15. Pulse Stretcher

  16. Test Bench • Test functionality of the circuit • Test the outputs skew • Test Tr and Tf of the outputs • Test the duty cycle • Test the driving capability

  17. Schematic of the test bench

  18. Functionality

  19. Functionality

  20. Outputs Skew

  21. Duty Cycle Divide by 2

  22. Duty Cycle Divide by3

  23. Tr of Divide by2

  24. Tf of Divide by2

  25. Tr of Divide by 3

  26. Tf of Divide by3

  27. Conclusion • Process used for the design is AMI16 • Total area used in the design is 1740.47 mil^2 • The circuit is functional • Skew outputs is about 950 ps • Duty cycles 45%-55% • The circuit is capable of driving 20 pF load • Pavg=1/2 x CL x f x VDD^2 • Pavg=1/2 x 20pf x 100MHz x 25 = 25mW
