Female Connector – Double Ferrule Tube Fitting

A Female Connector is a high-performance double ferrule compression tube fitting designed to provide a secure, leak-tight connection between a tubing line and a female threaded port. The fitting features a double ferrule design that grips the tube firmly and ensures reliable sealing for high-pressure and critical fluid systems. One end accepts tubing via a precision double ferrule compression joint, while the opposite end incorporates a female pipe thread (such as NPT or ISO tapered) to connect with male threaded equipment, valves, or instrumentation ports. This versatile fitting.

fluidcontrols
Télécharger la présentation

Female Connector – Double Ferrule Tube Fitting

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

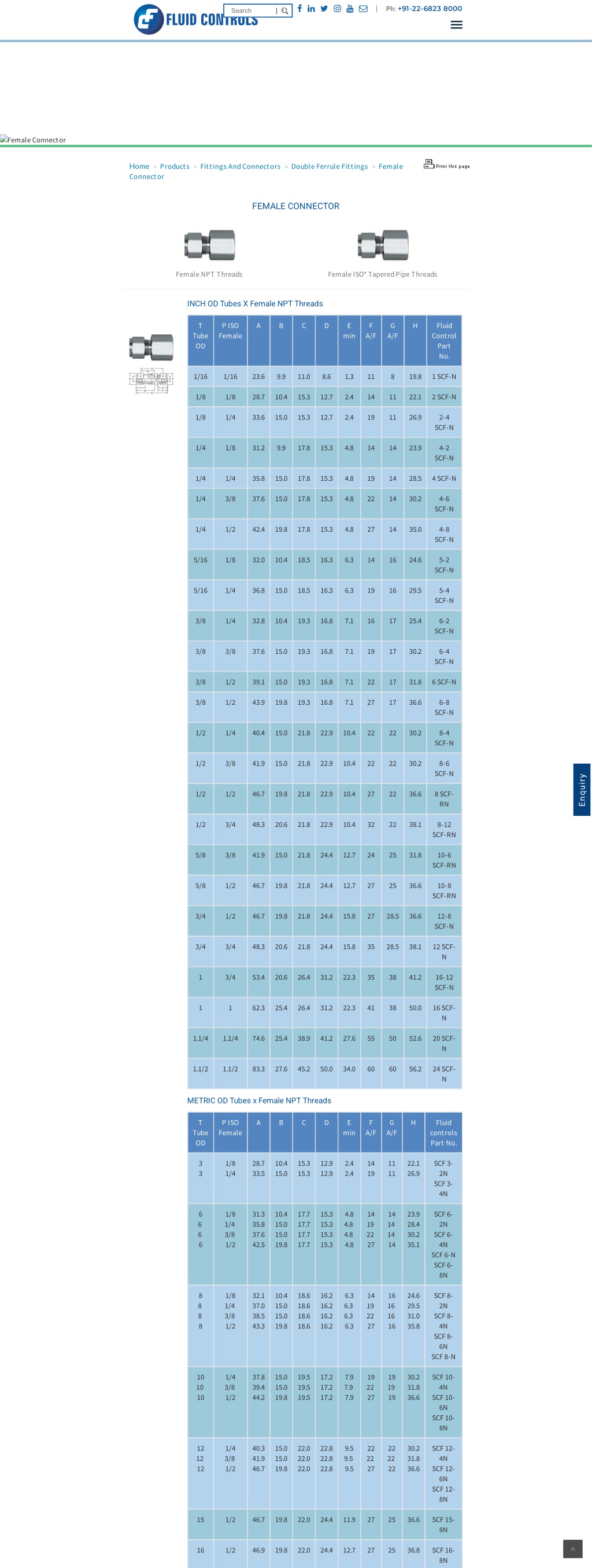

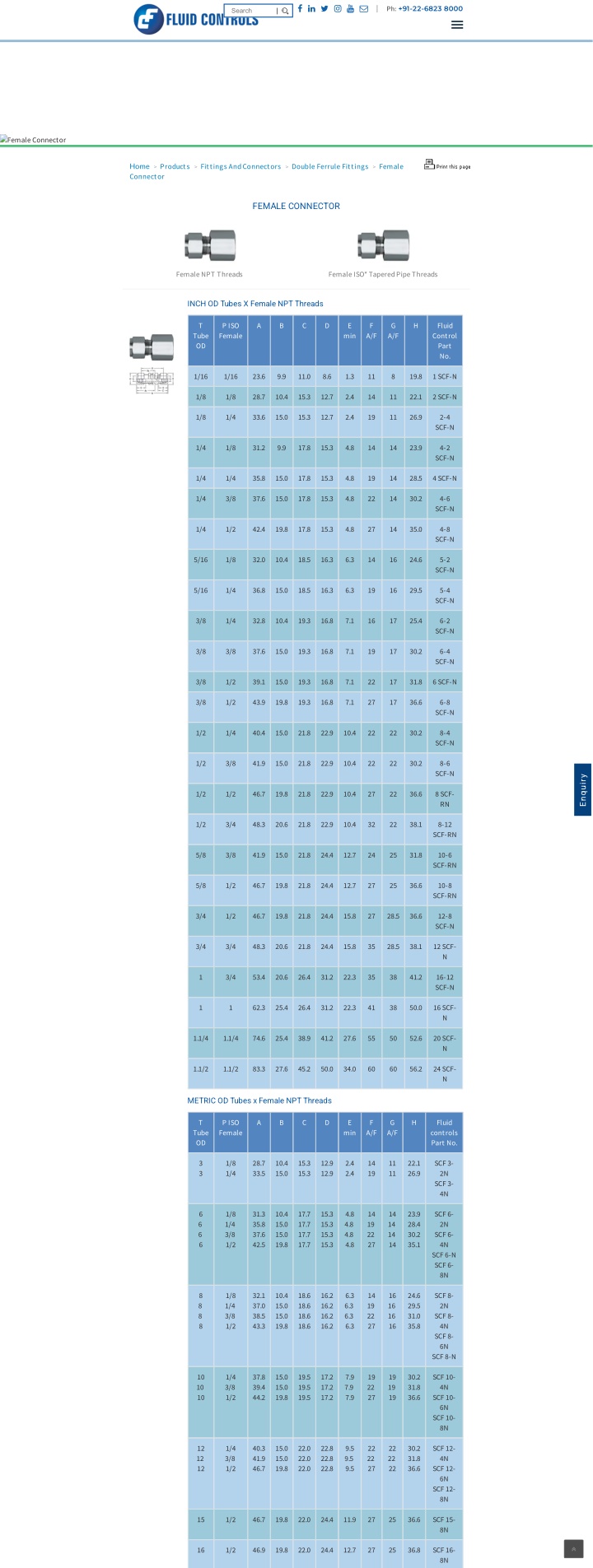

  1. Ph: +91-22-6823 8000       Search  Female Connector Home > Products > Fittings And Connectors > Double Ferrule Fittings > Female Connector FEMALE CONNECTOR Female NPT Threads Female ISO* Tapered Pipe Threads INCH OD Tubes X Female NPT Threads T P ISO Female A B C D E F G A/F H Fluid Control Part No. Tube OD min A/F 1/16 1/16 23.6 9.9 11.0 8.6 1.3 11 8 19.8 1 SCF-N 1/8 1/8 28.7 10.4 15.3 12.7 2.4 14 11 22.1 2 SCF-N 1/8 1/4 33.6 15.0 15.3 12.7 2.4 19 11 26.9 2-4 SCF-N 1/4 1/8 31.2 9.9 17.8 15.3 4.8 14 14 23.9 4-2 SCF-N 1/4 1/4 35.8 15.0 17.8 15.3 4.8 19 14 28.5 4 SCF-N 1/4 3/8 37.6 15.0 17.8 15.3 4.8 22 14 30.2 4-6 SCF-N 1/4 1/2 42.4 19.8 17.8 15.3 4.8 27 14 35.0 4-8 SCF-N 5/16 1/8 32.0 10.4 18.5 16.3 6.3 14 16 24.6 5-2 SCF-N 5/16 1/4 36.8 15.0 18.5 16.3 6.3 19 16 29.5 5-4 SCF-N 3/8 1/4 32.8 10.4 19.3 16.8 7.1 16 17 25.4 6-2 SCF-N 3/8 3/8 37.6 15.0 19.3 16.8 7.1 19 17 30.2 6-4 SCF-N 3/8 1/2 39.1 15.0 19.3 16.8 7.1 22 17 31.8 6 SCF-N 3/8 1/2 43.9 19.8 19.3 16.8 7.1 27 17 36.6 6-8 SCF-N 1/2 1/4 40.4 15.0 21.8 22.9 10.4 22 22 30.2 8-4 SCF-N 1/2 3/8 41.9 15.0 21.8 22.9 10.4 22 22 30.2 8-6 SCF-N Enquiry 1/2 1/2 46.7 19.8 21.8 22.9 10.4 27 22 36.6 8 SCF- RN 1/2 3/4 48.3 20.6 21.8 22.9 10.4 32 22 38.1 8-12 SCF-RN 5/8 3/8 41.9 15.0 21.8 24.4 12.7 24 25 31.8 10-6 SCF-RN 5/8 1/2 46.7 19.8 21.8 24.4 12.7 27 25 36.6 10-8 SCF-RN 3/4 1/2 46.7 19.8 21.8 24.4 15.8 27 28.5 36.6 12-8 SCF-N 3/4 3/4 48.3 20.6 21.8 24.4 15.8 35 28.5 38.1 12 SCF- N 1 3/4 53.4 20.6 26.4 31.2 22.3 35 38 41.2 16-12 SCF-N 1 1 62.3 25.4 26.4 31.2 22.3 41 38 50.0 16 SCF- N 1.1/4 1.1/4 74.6 25.4 38.9 41.2 27.6 55 50 52.6 20 SCF- N 1.1/2 1.1/2 83.3 27.6 45.2 50.0 34.0 60 60 56.2 24 SCF- N METRIC OD Tubes x Female NPT Threads T P ISO Female A B C D E F G A/F H Fluid controls Part No. Tube OD min A/F 3 3 1/8 1/4 28.7 33.5 10.4 15.0 15.3 15.3 12.9 12.9 2.4 2.4 14 19 11 11 22.1 26.9 SCF 3- 2N SCF 3- 4N 6 6 6 6 1/8 1/4 3/8 1/2 31.3 35.8 37.6 42.5 10.4 15.0 15.0 19.8 17.7 17.7 17.7 17.7 15.3 15.3 15.3 15.3 4.8 4.8 4.8 4.8 14 19 22 27 14 14 14 14 23.9 28.4 30.2 35.1 SCF 6- 2N SCF 6- 4N SCF 6-N SCF 6- 8N 8 8 8 8 1/8 1/4 3/8 1/2 32.1 37.0 38.5 43.3 10.4 15.0 15.0 19.8 18.6 18.6 18.6 18.6 16.2 16.2 16.2 16.2 6.3 6.3 6.3 6.3 14 19 22 27 16 16 16 16 24.6 29.5 31.0 35.8 SCF 8- 2N SCF 8- 4N SCF 8- 6N SCF 8-N 10 10 10 1/4 3/8 1/2 37.8 39.4 44.2 15.0 15.0 19.8 19.5 19.5 19.5 17.2 17.2 17.2 7.9 7.9 7.9 19 22 27 19 19 19 30.2 31.8 36.6 SCF 10- 4N SCF 10- 6N SCF 10- 8N 12 12 12 1/4 3/8 1/2 40.3 41.9 46.7 15.0 15.0 19.8 22.0 22.0 22.0 22.8 22.8 22.8 9.5 9.5 9.5 22 22 27 22 22 22 30.2 31.8 36.6 SCF 12- 4N SCF 12- 6N SCF 12- 8N 15 1/2 46.7 19.8 22.0 24.4 11.9 27 25 36.6 SCF 15- 8N 16 1/2 46.9 19.8 22.0 24.4 12.7 27 25 36.8 SCF 16- 8N 

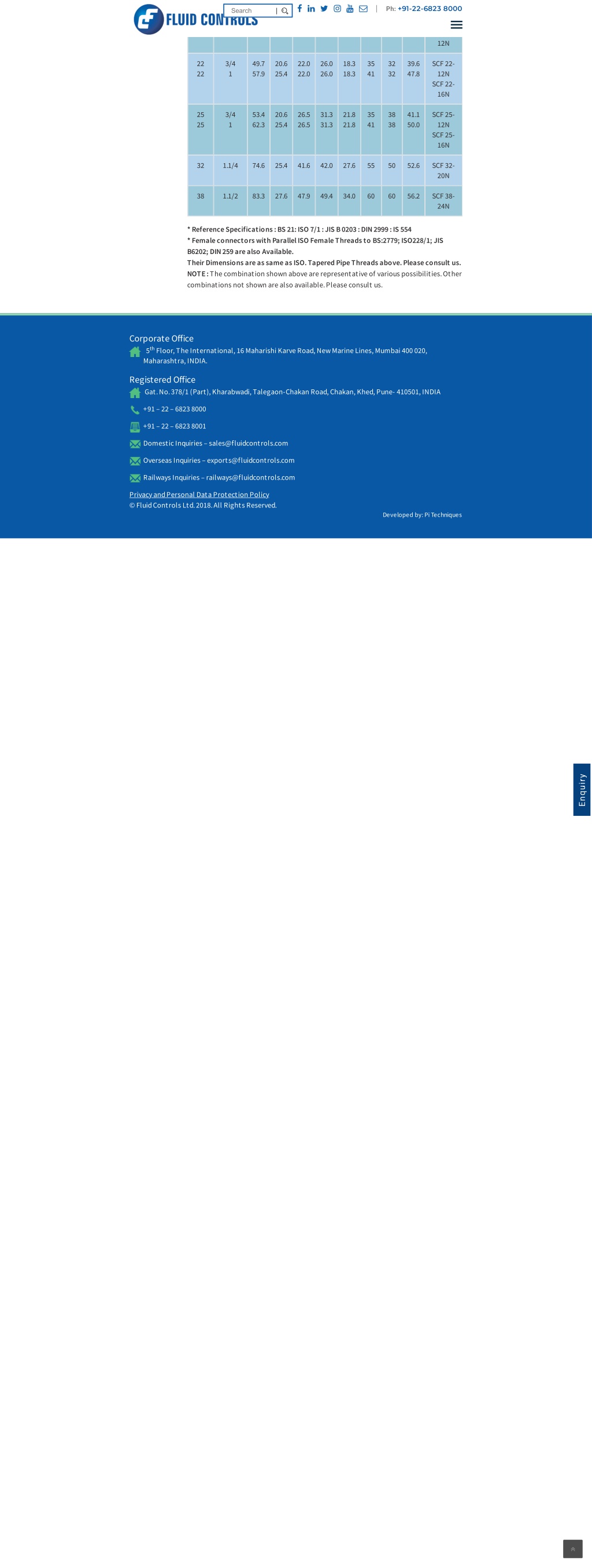

  2. Ph: +91-22-6823 8000       Search  20 20 1/2 3/4 47.9 49.7 19.8 20.6 22.0 22.0 26.0 26.0 15.9 15.9 30 35 32 32 37.8 39.6 SCF 20- 8N SCF 20- 12N 22 22 3/4 1 49.7 57.9 20.6 25.4 22.0 22.0 26.0 26.0 18.3 18.3 35 41 32 32 39.6 47.8 SCF 22- 12N SCF 22- 16N 25 25 3/4 1 53.4 62.3 20.6 25.4 26.5 26.5 31.3 31.3 21.8 21.8 35 41 38 38 41.1 50.0 SCF 25- 12N SCF 25- 16N 32 1.1/4 74.6 25.4 41.6 42.0 27.6 55 50 52.6 SCF 32- 20N 38 1.1/2 83.3 27.6 47.9 49.4 34.0 60 60 56.2 SCF 38- 24N * Reference Specifications : BS 21: ISO 7/1 : JIS B 0203 : DIN 2999 : IS 554 * Female connectors with Parallel ISO Female Threads to BS:2779; ISO228/1; JIS B6202; DIN 259 are also Available. Their Dimensions are as same as ISO. Tapered Pipe Threads above. Please consult us. NOTE : The combination shown above are representative of various possibilities. Other combinations not shown are also available. Please consult us. Corporate O?ice 5 Floor, The International, 16 Maharishi Karve Road, New Marine Lines, Mumbai 400 020, Maharashtra, INDIA. th Registered O?ice Gat. No. 378/1 (Part), Kharabwadi, Talegaon-Chakan Road, Chakan, Khed, Pune- 410501, INDIA +91 – 22 – 6823 8000 +91 – 22 – 6823 8001 Domestic Inquiries – sales@fluidcontrols.com Overseas Inquiries – exports@fluidcontrols.com Railways Inquiries – railways@fluidcontrols.com Privacy and Personal Data Protection Policy © Fluid Controls Ltd. 2018. All Rights Reserved. Developed by: Pi Techniques Enquiry 
