Results of Linac Momentum Dump with Titanium Window for 400 MeV Protons

This report presents the results from a study of the linac momentum dump employing a Titanium (Ti 6Al-4V) window for 400 MeV protons. The setup included a 6.8” diameter stainless steel pipe positioned 350 cm upstream from the wall. Key parameters include total flux, dose equivalent, and dose residual measurements taken at various beam window configurations. The data provides critical insights into the radiation outputs and star density phenomena across different conditions, essential for optimizing safety and efficiency in proton beam applications.

foy
Télécharger la présentation

Results of Linac Momentum Dump with Titanium Window for 400 MeV Protons

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Linac Momentum Dump Ti Window Results S.D. Reitzner 2/16/2011

  2. Linac Input Params • 400 MeV protons • Vertex • 350 cm upstream from wall • Stainless steel pipe 6, 8” diameter • Ti 6Al-4V window 10, 15 mils • 5’, 4’, 2’, -10” from wall

  3. Beam Window Side View 5’ Sleeve

  4. No Window Total Flux (cm-2 s-1)

  5. R = 6” Z = 5’ dZ = 10 mils Fluence

  6. R = 8” Z = 5’ dZ = 10 mils Fluence

  7. R = 8” Z = 5’ dZ = 15 mils Fluence

  8. R = 6” Z = 4’ dZ = 10 mils Fluence

  9. R = 6” Z = 2’ dZ = 10 mils Fluence

  10. Z = -10” dZ = 10 mils Fluence

  11. Z = -10” dZ = 15 mils Fluence

  12. No Window Dose Equivalent (mSv/hr)

  13. R = 6” Z = 5’ dZ = 10 mils Dose Equivalent (mSv/h)

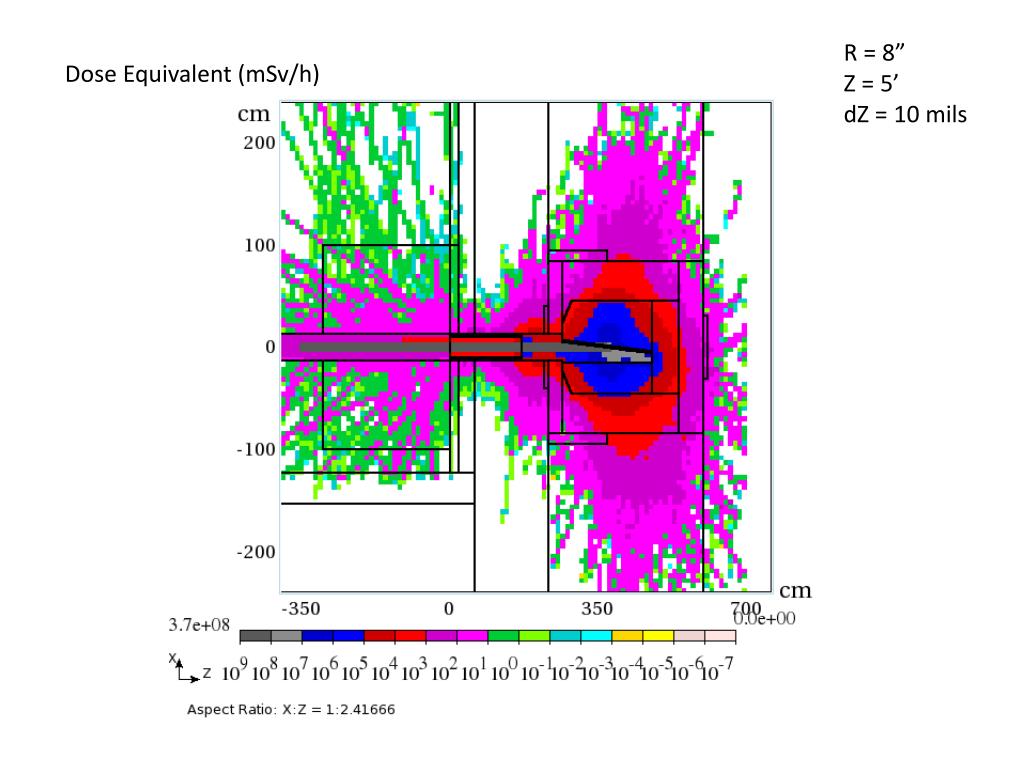

  14. R = 8” Z = 5’ dZ = 10 mils Dose Equivalent (mSv/h)

  15. R = 8” Z = 5’ dZ = 15 mils Dose Equivalent (mSv/h)

  16. R = 6” Z = 4’ dZ = 10 mils Dose Equivalent (mSv/h)

  17. R = 6” Z = 2’ dZ = 10 mils Dose Equivalent (mSv/h)

  18. Z = -10” dZ = 10 mils Dose Equivalent (mSv/h)

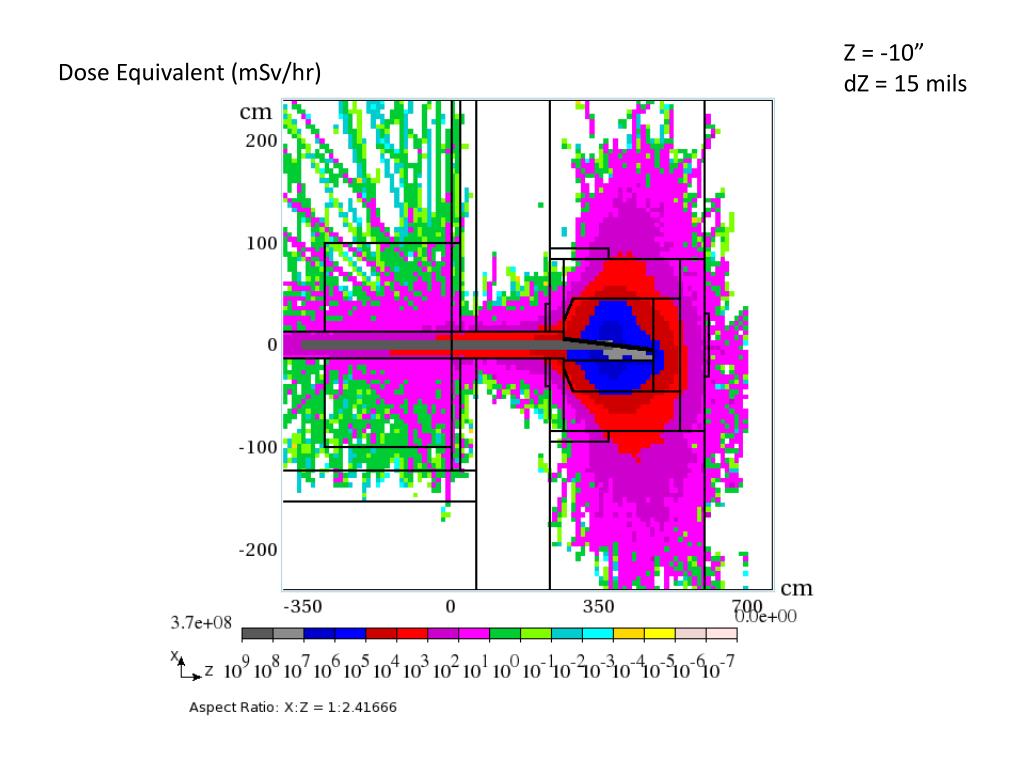

  19. Z = -10” dZ = 15 mils Dose Equivalent (mSv/hr)

  20. No Window Dose Residue (mSv/hr)

  21. R = 6” Z = 5’ dZ = 10 mils Dose Residual (mSv/hr)

  22. R = 8” Z = 5’ dZ = 10 mils Dose Residual (mSv/hr)

  23. R = 8” Z = 5’ dZ = 15 mils Dose Residual (mSv/hr)

  24. R = 6” Z = 4’ dZ = 10 mils Dose Residual

  25. R = 6” Z = 2’ dZ = 10 mils Dose Residual

  26. Z = -10” dZ = 10 mils Dose Residual (mSv/hr)

  27. Z = -10” dZ = 15 mils Dose Residual (mSv/hr)

  28. Star Density No Window

  29. R = 6” Z = 5’ dZ = 10 mils Star Density

  30. R = 8” Z = 5’ dZ = 10 mils Star Density

  31. R = 8” Z = 5’ dZ = 15 mils Star Density

  32. R = 6” Z = 4’ dZ = 10 mils Star Density

  33. R = 6” Z = 2’ dZ = 10 mils Star Density

  34. Z = -10” dZ = 10 mils Star Density

  35. Z = -10” dZ = 15 mils Star Density
