Presentation Transcript

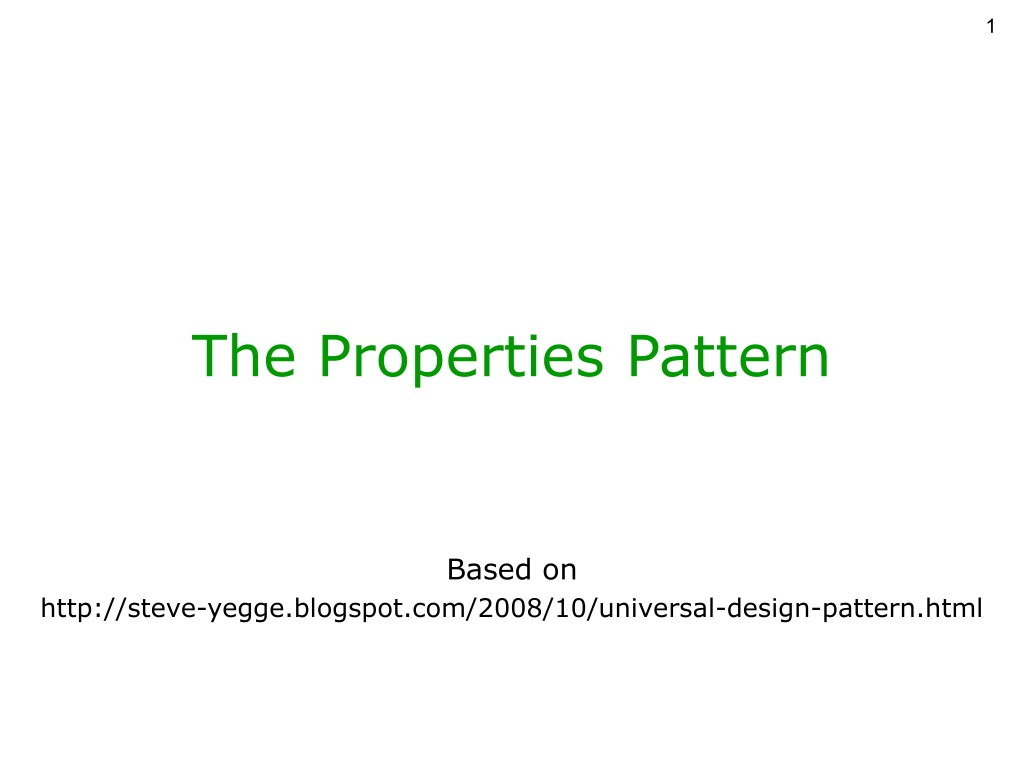

  1. The Properties Pattern Based on http://steve-yegge.blogspot.com/2008/10/universal-design-pattern.html

  2. Introduction • Many names • Prototype • Property List • Properties Object • Adaptive Object Model • Bottom line • Seems like a low-level hack • Actually, a new way to look at the world

  3. Map API • get(key) • put(key, value) • has(key) • remove(key) • Also: keys()

  4. Properties Pattern API • Based on the Map API • Enhancement: a parent() link • Points at another Properties object • Supplies additional properties • Map method need to be adjusted

  5. public class PropList { private PropList parent; private Map<String, Object> map = new HashMap<String, Object>(); public PropList(PropList parent) { this.parent = parent; } public Object get(String key) { if(map.containsKey(key)) return map.get(key); if(parent != null) return parent.get(key); return null; } public void put(String key, Object value) { map.put(key, value); }

  6. public boolean has(String key) { return map.containsKey(key) || parent != null && parent.has(key); } public void remove(String key) { map.remove(key); } public Collection<String> keys() { List<String> result = new ArrayList<String>(); result.addAll(map.keySet()); if(parent != null) result.addAll(parent.keys()); return result; } public PropList parent() { return parent; } }

  7. Motivation • NoSql Databases (BigTable, HBase, …) • Relational DB: change resistant, do not scale well • New storage facilities are based on triplets: key, attribute, value • Property objects are the ideal in-memory counterpart • Flexible list of properties • Variable user content • When the logic is not interested in specific properties • It is interested in the relationship between the properties • Examples: A movie list browser, protein-peptide browser

  8. org.eclipse.jdt.core.dom.ASTNode Each AST node is capable of carrying an open-ended collection of client-defined properties. Newly created nodes have none. getProperty and setProperty are used to access these properties.

  9. Implementation • Representation of keys • String (almost always) • Arbitrary objects • Instances of a Key class • String + Numbers • Representation of key-value pairs • Linked list of pairs • Hashtable

  10. Deletion • Three alternative • Remove from current instance • Remove also from its complete parent chain • Remove replaces the value with a special “not here” value

  11. public class PropList { private static final Object NOT_HERE = new Object(); public void remove(String key) { map.put(key, NOT_HERE); } public Object get(String key) { if(map.containsKey(key)) { Object o = map.get(key); if(o == NOT_HERE) o = null; return o; } if(parent != null) return parent.get(key); return null; } // Similar changes in has() method

  12. Safety & Invariants • A parent is notified of put() actions on any child • Can veto the change

  13. public class PropList { public interface Interceptor { public Object onPut(PropList p, String key, Object value); } private List<Interceptor> interceptors = new ArrayList<Interceptor>(); public void addInterceptor(Interceptor i) { interceptors.add(i); } public void put(String key, Object value) { for(PropList p = this; p != null; p = p.parent) for(Interceptor i : p.interceptors) value = i.onPut(p, key, value); map.put(key, value); }

  14. Persistence • Quite easy if all values are primitive • E.g.: One key/value pair per line (Otherwise) • Maintain a unique id property (primitive or string) • Saving • If value is another PropList save its id • Loading • Build an id -> PropList map • In each PropList replace properties that hold an id with the actual reference • Maps nicely to a ternary table on a relational DB: id, key, value

  15. Motivation: Object-level inheritance • Sometimes we want to extend an object! • Here’s an existing instance • I want some new instance to be essentially the same as the existing one • Except for some additions, changes • When the existing instance changes I want the new ones to change as well • “I want that one” • “Inheritance by example”

  16. Example: Disabling of Menus

  17. Example: Disabling of Menus (cont.) • No open file -> Nine menu items are disabled • Class-level inheritance • A superclass, S, with setEnabled(boolean) method • Each menu item is an instance of this superclass • When a file is closed call setEnabled(false) on all nine instances • Object-level inheriance • A PropList object, x, with an "enabled" property • Each menu items is a PropList object, with x being the parent • When a file is closed: x.put("enabled", false)
