Azure 71-D

Azure 71-D. Natural Innovation Inside. Shock-absorbing high tech microphones for acoustic stability. ReSound Azure technology inside. Top-performing, silicone-sealed receiver: Output 133 dB SPL Gain 63 dB (IEC118). TPE rubber-sealed Push Button to protect from humidity and dirt.

franz
Télécharger la présentation

Azure 71-D

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Azure 71-D

  2. Natural Innovation Inside Shock-absorbing high tech microphones for acoustic stability ReSound Azure technology inside Top-performing, silicone-sealed receiver: Output 133 dB SPL Gain 63 dB (IEC118) TPE rubber-sealed Push Button to protect from humidity and dirt Industry leading Coyote 3.1 digital signal processor New, slim telecoil Anti-corrosion protective coating of all components TPE rubber-sealed VC to protect from humidity and dirt Anti corrosion protective coating of battery springs Lean power consumption

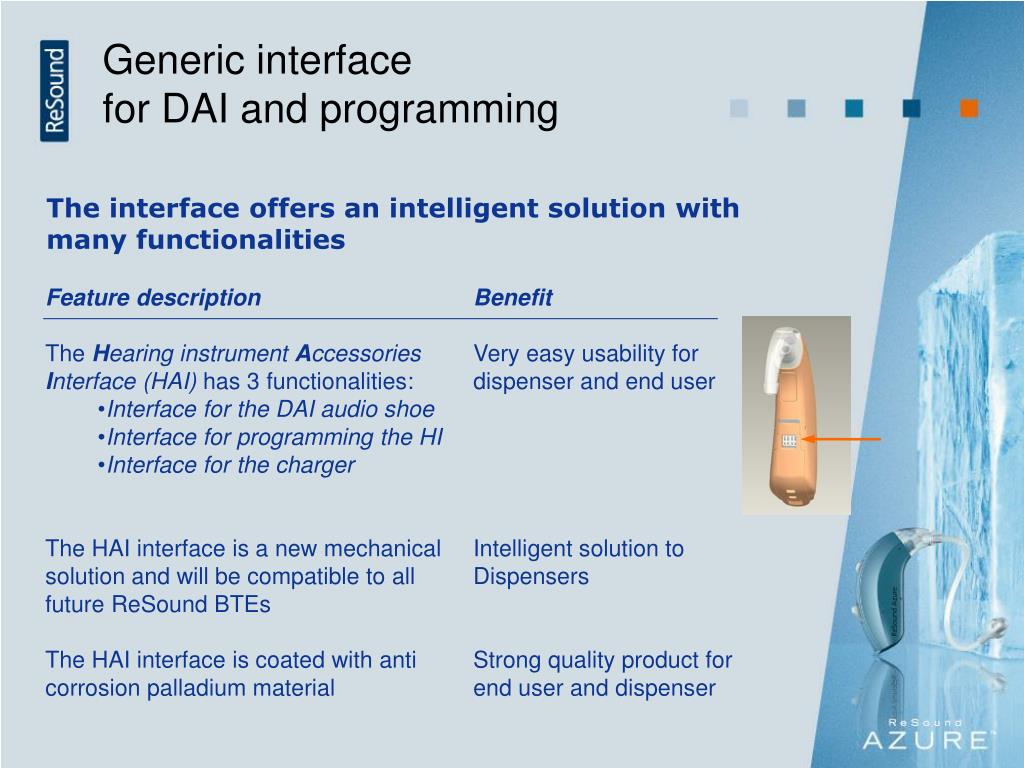

  3. Generic interface for DAI and programming The interface offers an intelligent solution with many functionalities • Feature description • The Hearing instrument Accessories Interface (HAI) has 3 functionalities: • Interface for the DAI audio shoe • Interface for programming the HI • Interface for the charger • The HAI interface is a new mechanical solution and will be compatible to all future ReSound BTEs • The HAI interface is coated with anti corrosion palladium material • Benefit • Very easy usability for dispenser and end user • Intelligent solution to Dispensers • Strong quality product for end user and dispenser

  4. Compatible to 3rd generation charger ONE charger for all future ReSound BTE models! Feature description ONE charger for all HI’s with and HAI interface Up to 28 hours of use time per charge 7 hours charge time Easy-to-use light indicator panel Elegant and ergonomic design! • Benefit • No more changing batteries! • Reliable durability all day long • Elegant high tech technology

  5. “3 in one” BTE with 3 volume control optionsIntelligent design The BTE can easily be reconfigured between following 3 VC options: • Feature description • Functional VC • Cosmetic VC • No VC • Benefit • A more practical VC version that is very easy to find and handle when wearing the HI • A smaller VC version than the functional one • The VC port can be covered with a lid that is shaped and colored in accordance to the HI

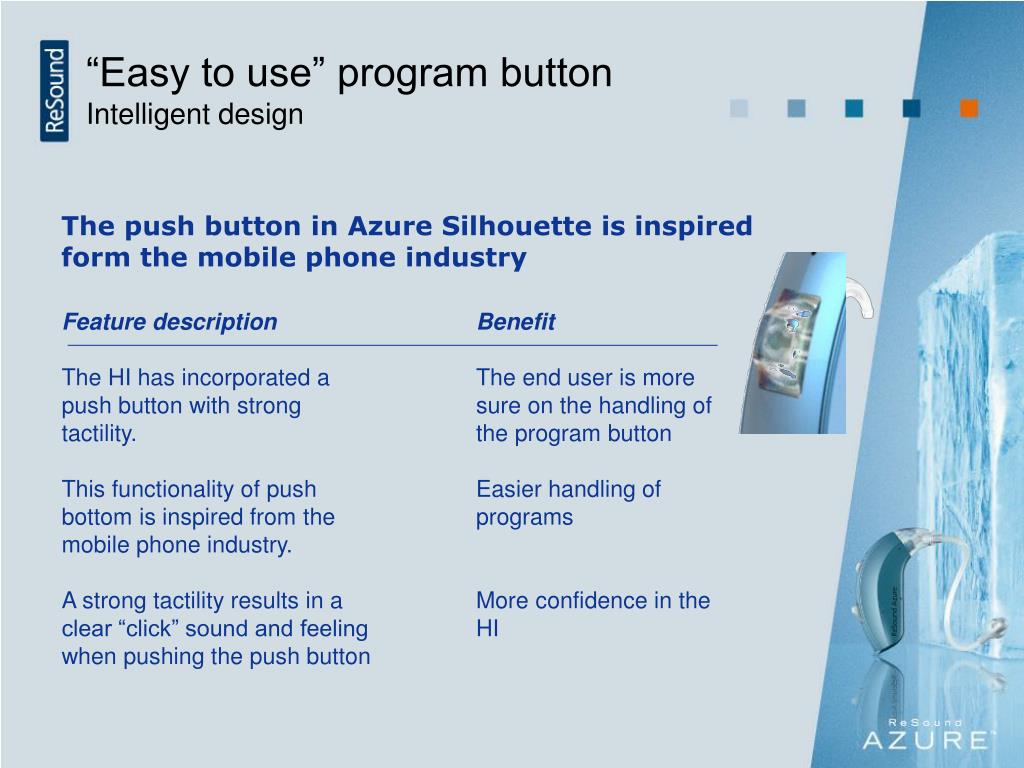

  6. “Easy to use” program buttonIntelligent design The push button in Azure Silhouette is inspired form the mobile phone industry • Feature description • The HI has incorporated a push button with strong tactility. • This functionality of push bottom is inspired from the mobile phone industry. • A strong tactility results in a clear “click” sound and feeling when pushing the push button • Benefit • The end user is more sure on the handling of the program button • Easier handling of programs • More confidence in the HI

  7. Rubber suspended high tech microphones Intelligent construction Feature description Newest generation microphones on the market Special build integrated electric circuit inside that cuts unwanted frequencies from mobile phones Each microphone is rubber suspended • Benefit • Optimized sound quality – providing even better speech understanding and awareness of surroundings • Improved sound quality when • talking in mobile phone • Intensified sound • Robust construction; “Shock resistant”

  8. Top-performing receiver Intelligent construction • Feature description • Newest generation receiver • (FTEC technology) to optimize stability, gain, output and efficiency • Attached to the frame of the HI and rubber suspended • Benefit • Highly efficient receiver in minimal size • Optimized sound quality Optimized gain (63dB) Optimized output (133 dB) • Power consumption efficiency • Extremely strong construction to ensure superior quality and acoustical stability

  9. New slim telecoilIntelligent construction • Feature description • New telecoil constructed with very thin thread • Benefit • Extremely slim size – enabling the construction of a slim HI

  10. Anti corrosion protective coating for all components • Feature description • All components are coated with a special anti corrosion material • Examples: • Battery springs • Receiver • Chip • Electrical circuits • Benefit • Strong internal construction that minimizes repairs due to outside challenging conditions • Highly resistant to: • Sweat • Humidity and humid climates • Dust and Dirt

  11. Rubber sealed VC and push buttonIntelligent construction inside • Feature description • Volume control and push button are sealed with rubber material • Benefit • Strong construction with high robustness tolerance • Protects against humidity and dirt robustness

  12. Microphones suspensions

  13. Industry leading Coyote 3.1 chipIntelligent construction inside Strong improvements in Coyote 3.1 Feature description Novel sound output principle (new patent) Ultra low-power programmable DSP core Improved low battery scheme • Benefit • High speed sound processing ensuring extremely high sound quality • Improved battery life time

  14. PCB Mics. Rec. Covers T-coil B. spring Amplifier moduleEasy handling and high reliability

  15. Postponed Color Variantselection

  16. Velvet Soft Black Charcoal Classic line Medium Light Dark Beige Blonde Blonde Brown Exclusive line Marble gray Soft charcoal Velvet black Light gray Velvet black-Silver Silver Silver Silver Silver Velvet black Fashion line Gloss Metallic Metallic Metallic Metallic White Cerice pink Neon green Ice blue Midnight blue

  17. Replacement kits • Replacement kit: • Top housing • Bottom housing • Battery door • Locking pins (3x2) • Push button cap • 2 VC toggle cap • VC lid

  18. Replacement kits

  19. Color kits

  20. 3D product comparisons

  21. Oticon Epoq Starkey Destiney Siemens Centra Widex Inteo Phonak Verve Short and slim on the side Azure Silhouette Competitor

  22. Phonak Verve Starkey Destiney Oticon Epoq Widex Inteo Centra Siemens Slimmest on the back Competitive-wise the slimmest BTE out there Azure Silhouette Competitor

  23. Starkey Destiney Oticon Epoq Phonak Verve Widex Inteo Centra Siemens Slimmest on top Competitive-wise the slimmest BTE out there Azure Silhouette Competitor

  24. Centra Siemens Oticon Epoq Starkey Destiney Widex Flash Phonak Verve Short and slim on the side Azure Silhouette Competitor

  25. Azure Silhouette Measured deviation in slimness Oticon Epoq Phonak Verve Red zones: Azure silhouette is slimmer Blue zones: Competitor is slimmer
