  1. Sparse Event Detection in Wireless Sensor Networks using Compressive Sensing Jia Meng, Husheng Li, and Zhu Han the 43rd Annual Conference on Information Sciences and Systems (CISS), 2009

  2. Outline • Introduction • System Model • Compressive Sensing Algorithm • Simulation Results and Analysis • Conclusions

  3. Introduction • The dogma of signal processing maintains that a signal must be sampled at a Nyguist rate at least twice its bandwidth in order to be represented without error • In practice, we often compress the data soon after sensing, trading off signal representation complexity (bits) for some error(consider JPEG image compression in digital cameras, for example) • Clearly, this is wasteful of valuable sensing/sampling resources

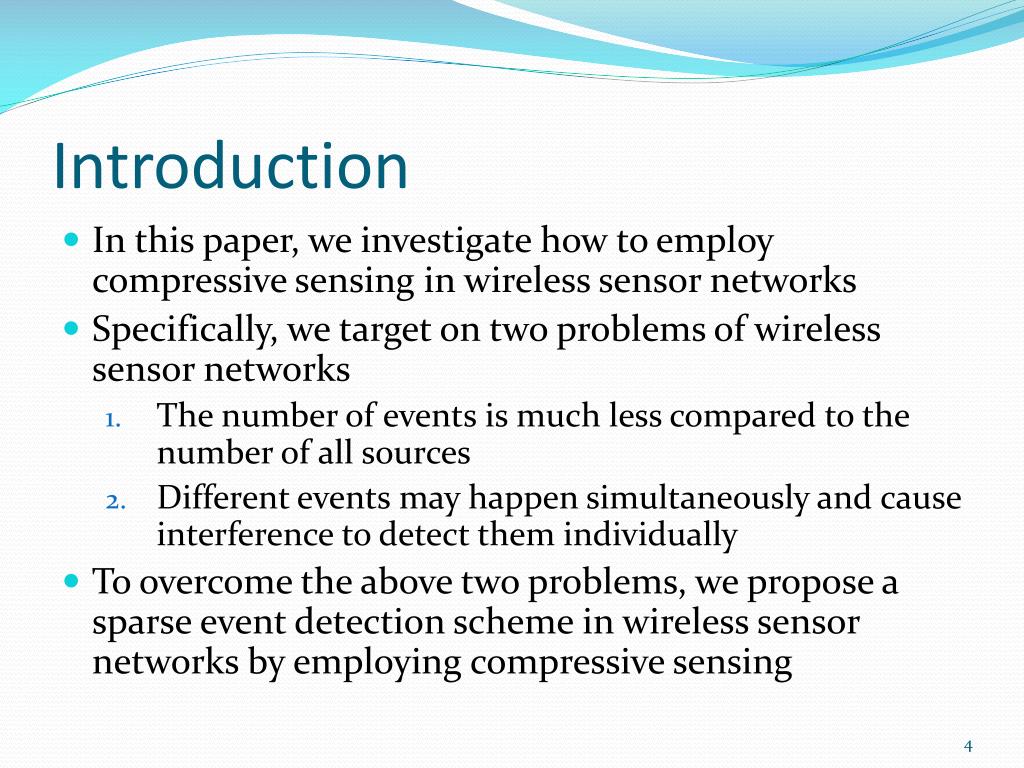

  4. Introduction • In this paper, we investigate how to employ compressive sensing in wireless sensor networks • Specifically, we target on two problems of wireless sensor networks • The number of events is much less compared to the number of all sources • Different events may happen simultaneously and cause interference to detect them individually • To overcome the above two problems, we propose a sparse event detection scheme in wireless sensor networks by employing compressive sensing

  5. System Model • There are a total of N sources randomly located in a field • Those source randomly generate the events to be measured • We denote K as the number of events that the sources generate • K is a random number, and is much smaller than N • We denote as the event vector, in which each component has a binary value, i.e., • Obviously X is a sparse vector since

  6. System Model • In the system, there are M active monitoring sensors trying to capture these events • There are two challenges for those monitoring sensors • All those events happen simultaneously • As a result, the received signals are interfering with each other • The received signal is deteriorated by propagation loss and thermal noise

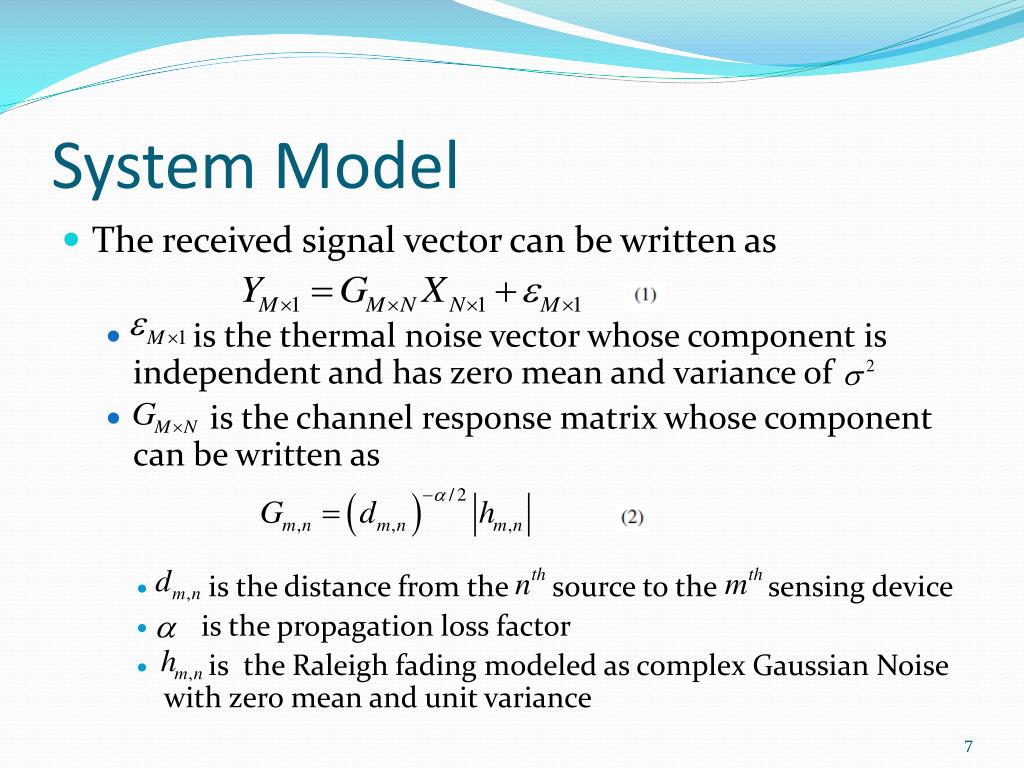

  7. System Model • The received signal vector can be written as • is the thermal noise vector whose component is independent and has zero mean and variance of • is the channel response matrix whose component can be written as • is the distance from the source to the sensing device • is the propagation loss factor • is the Raleigh fading modeled as complex Gaussian Noise with zero mean and unit variance

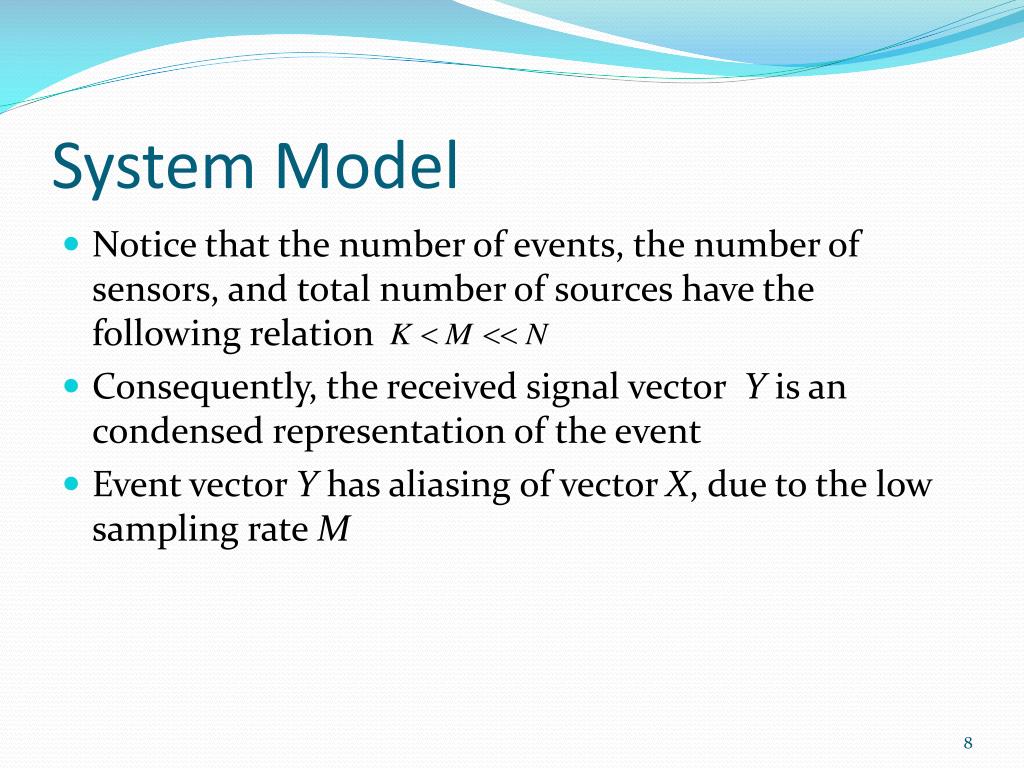

  8. System Model • Notice that the number of events, the number of sensors, and total number of sources have the following relation • Consequently, the received signal vector Y is an condensed representation of the event • Event vector Y has aliasing of vector X, due to the low sampling rate M

  9. Compressive Sensing Algorithm • Problem Formulation and Analysis • Bayesian Detection • Model Specification • Marginal Likelihood Maximization • Heuristic using Prior Information

  10. Problem Formulation and Analysis • Definition : Restricted Isometry Property (RIP)For any vector V sharing the same K nonzero entries as X, iffor some , , then the matrix G preserves the information of the K-sparse signal. • It has been proved that if G is an i.i.d. Gaussian matrix or random ±1 entry matrix, then the K-sparse signal is compressible with high probability if

  11. Problem Formulation and Analysis • Since M < N there are infinite number of satisfy • The problem is to find the sparse reconstructed signal • The above optimization is called the l1-magic in the literature • The complexity is

  12. Bayesian Detection • Considering the fact that the components of X are either 0 or 1 • we adopt the Bayesian compressive sensing [12–14], which is fully probabilistic and introducing a set of hyper-parameters [12] M. E. Tipping, “Sparse Bayesian learning and the relevance vector machine”, Journal of Machine Learning Research, vol. 1, p.p. 211-244, Sept. 2001. [13] M. E. Tipping and A. C. Faul, “Fast marginal likelihood maximisation for sparse Bayesian models”, in Proceedings of the Ninth International Workshop on Artificial Intelligence and Statistics, Key West, FL, Jan 3-6. [14] S. Ji, Y. Xue and L. Carin, “Bayesian compressive sensing”, IEEE Trans. Signal Processing, vol. 56, no. 6, June 2008.

  13. Maximum Likelihood Estimation (MLE) • 假設有五個袋子,各袋中都有無限量的餅乾(櫻桃口味或檸檬口味),已知五個袋子中兩種口味的比例分別是 • 櫻桃 100% • 櫻桃 75% + 檸檬 25% • 櫻桃 50% + 檸檬 50% • 櫻桃 25% + 檸檬 75% • 檸檬 100% • 從同一個袋子中連續拿到2個檸檬餅乾,那麼這個袋子最有可能是上述五個的哪一個? • Ans : 5 0 0.252 0.502 0.752 1

  14. Maximum a posteriori (MAP) • 假設有五個袋子,各袋中都有無限量的餅乾(櫻桃口味或檸檬口味),已知五個袋子中兩種口味的比例分別是 • 櫻桃 100% (拿到的機率0.1) • 櫻桃 75% + 檸檬 25% (拿到的機率0.2) • 櫻桃 50% + 檸檬 50% (拿到的機率0.4) • 櫻桃 25% + 檸檬 75% (拿到的機率0.2) • 檸檬 100% (拿到的機率0.1) • 從同一個袋子中連續拿到2個檸檬餅乾,那麼這個袋子最有可能是上述五個的哪一個? • Ans : 4 0.1 × 0=0 0.2 × 0.252 =0.0125 0.4 × 0.502=0.1 0.2 × 0.752=0.1125 0.1 × 1=0.1

  15. Model Specification • The noise in the system is composed of propagation loss with zero mean and variance • The probability density function can be approximated as Gaussian distribution as • Due to the assumption of independence of , he likelihood of the complete data set can be written as

  16. Model Specification • The real distribution of X is Bernoulli distribution • However, the close form solution in our problem is hard to be obtained • Instead, we assume a zero-mean Gaussian prior distribution over the signal X • where is a vector of N independent hyper-parameters

  17. Model Specification • Given , the posterior parameter distribution conditioned over the signal is given by combining the likelihood and prior with Bayes’ rule • which is a Gaussian distribution ith covariance and mean of

  18. Marginal Likelihood Maximization • The sparse Bayesian model is formulated as the local maximization with respect to of the marginal likelihood, or equivalently its logarithm • with

  19. Marginal Likelihood Maximization • A point estimate for the parameters is then obtained by evaluating (11) with , giving a posterior mean approximator • However, marginal likelihoods are generally difficult to compute, i.e., values of and which maximize cannot be obtained in closed form • For the updating of , differentiate (12), and then equate it to 0. After rearranging, we have

  20. Marginal Likelihood Maximization • where is the posterior mean signal from (11), and is defined aswith being the diagonal element of the posterior signal covariance from (10) computed with current and values • For the variance , differentiation leads to re-estimate

  21. Heuristic using Prior Information • After the reconstruction of , if the algorithm converges to wrong results, there are two possible situations • The algorithm can converge to either around 0 and 1, but with the wrong position for the sparse events • could not be easily distinguished • have values deviating from 0 or 1 • easy to find the error using threshold methods

  22. Heuristic using Prior Information

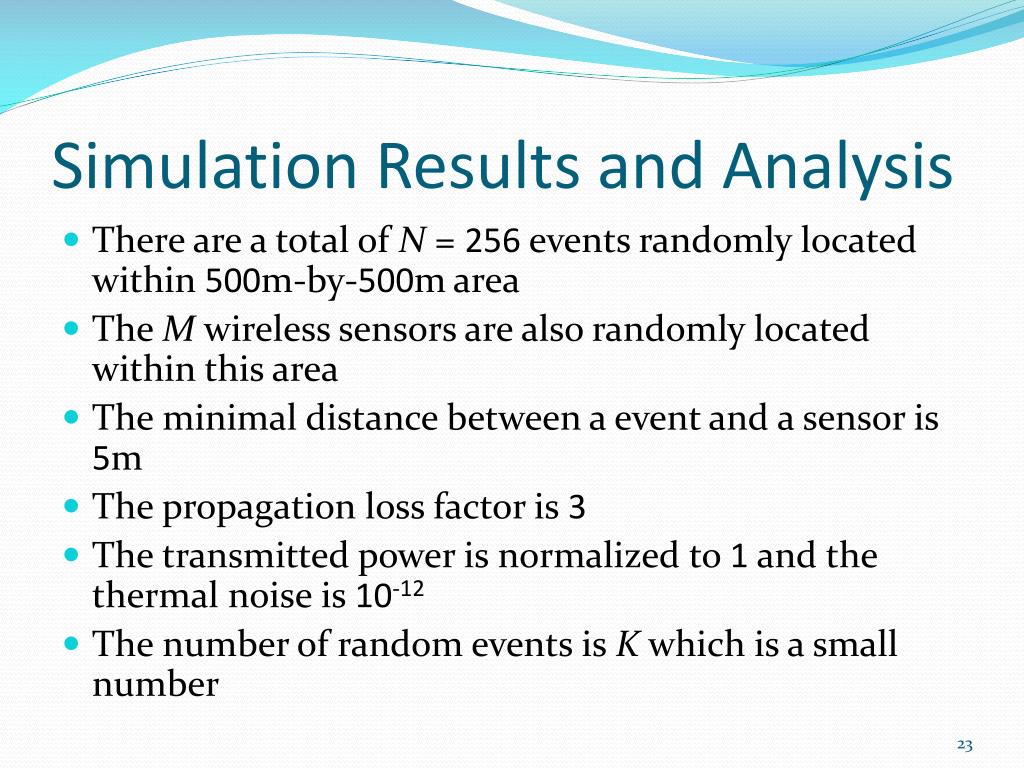

  23. Simulation Results and Analysis • There are a total of N = 256 events randomly located within 500m-by-500m area • The M wireless sensors are also randomly located within this area • The minimal distance between a event and a sensor is 5m • The propagation loss factor is 3 • The transmitted power is normalized to 1 and the thermal noise is 10-12 • The number of random events is K which is a small number

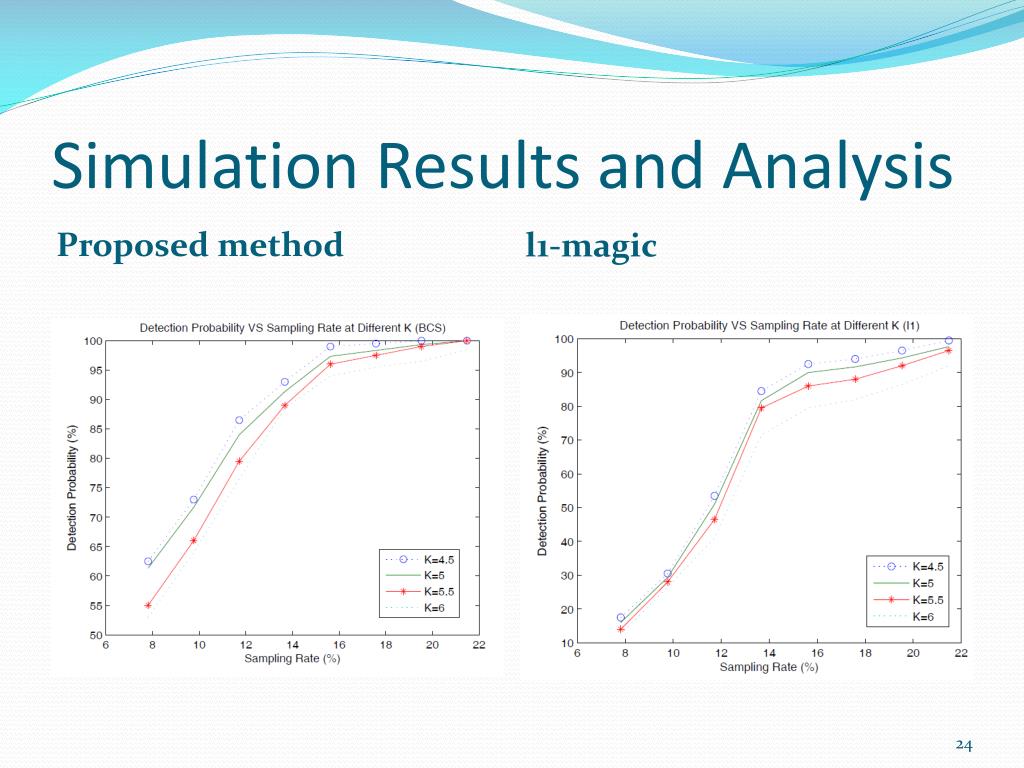

  24. Simulation Results and Analysis Proposed method l1-magic

  25. Simulation Results and Analysis Illustration of Correct Detection Illustration of Incorrect Detection

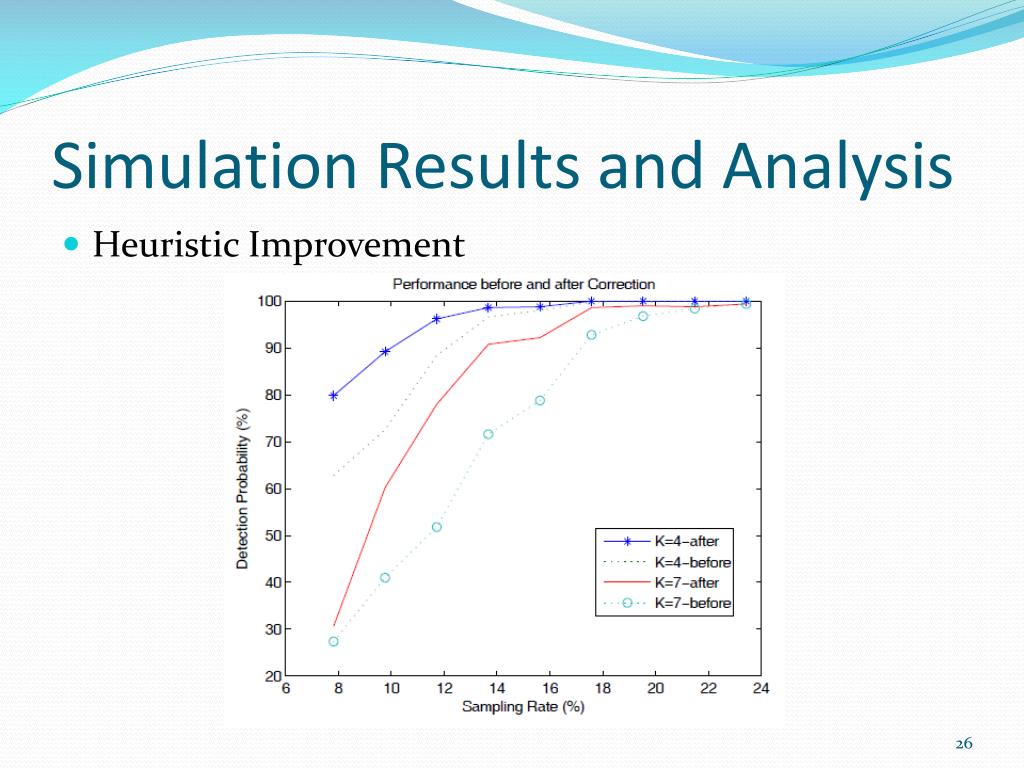

  26. Simulation Results and Analysis • Heuristic Improvement

  27. Simulation Results and Analysis • Noise Effect

  28. Conclusions • Propose a compressive sensing method for sparse event detection in wireless sensor networks • Formulate the problem and propose solutions • Introduced a fully probabilistic Bayesian framework which helps dramatically reduce the sampling rate
