  1. The Hope for Carbon Capture and Storage (CCS) Meri Riski, Christoph Töpfer Energy and Sustainable Development Prof. Dr. Schleicher

  2. Technique of CCS - Capture

  3. Technique of CCS - Transport • Pipeline • compressed • Ship • liquified • Importancebetweenlocationofsourcesandstoragesite • Experience with gas transport • Nonetwork in Europe so far

  4. Technique of CCS - Storage Source: Dürr (2009: 5) Source: IPCC (2005: 7, 199)

  5. Economics of CCS • Costsareusuallyexpressed in costsofenergyproduction ($/MWh) orcostsofavoided CO2 ($/t) • CCS costsoccur in capture, transport, storage • Costsdepend on technology, fuelpricetrends, emissioncaps (ETS), investmentandtheassumptionthat CCS isappliedcommercially • Abatementcostsneedtobecomparedtorenewables • If CCS is not commercial in 2020 renewablesmightprovidebettereconomic potential

  6. Capture PC=pulverized coal IGCC=integrated gasification combined cycle NGCC=natural gas combined cycle LCOE=levelised costs of electricity Source: IEA (2011: 38)

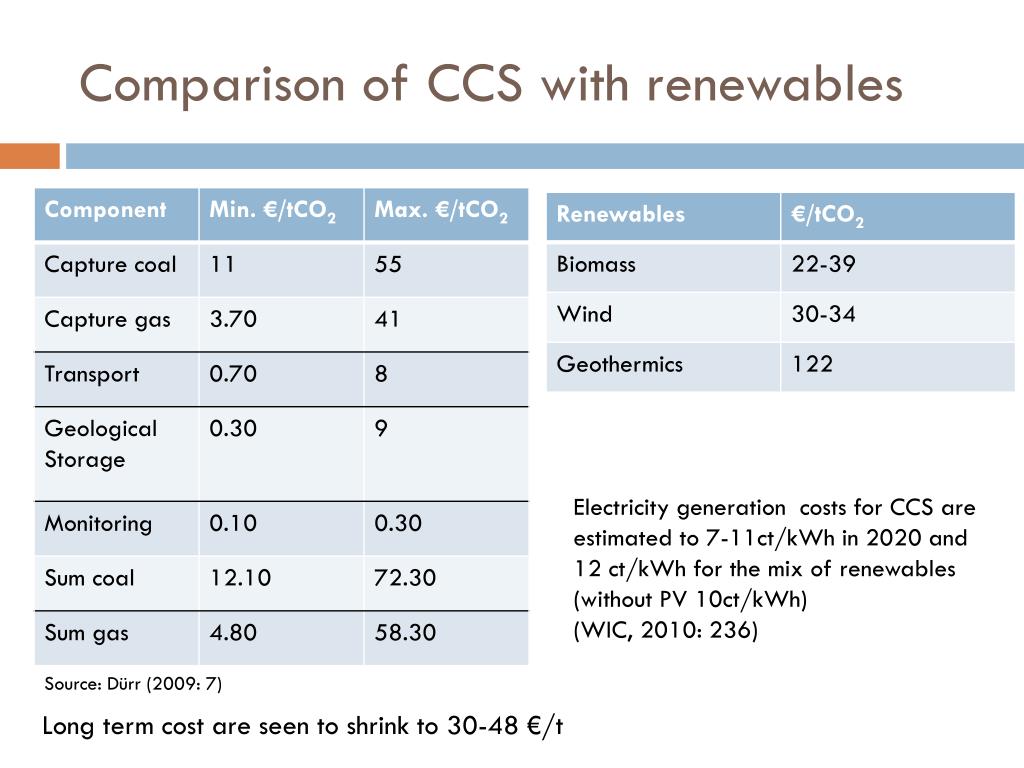

  7. Comparisonof CCS withrenewables Electricity generation costs for CCS are estimated to 7-11ct/kWh in 2020 and 12 ct/kWh for the mix of renewables (without PV 10ct/kWh) (WIC, 2010: 236) Source: Dürr (2009: 7) Long term cost are seen to shrink to 30-48 €/t

  8. Regulations and policies • timing • Where does the authority lie for different aspects of CCS? • development towards more comprehensive CCS regulatory framework around the world (Australia, EU, UK, USA,Korea & South Africa..) • geological stability, potential hazards and sub-surface property rights , criteria for site selection and use of a power plant can be defined

  9. European Union, the CCS Directive (2009) • CCS process is achievable and available in larger scale from 2020. • The directive defines guidelines for the geological storage • safety and environmental requirements for storage • guidelines for proper monitoring of the installations and closed sites • the directive requires storage permits and exploration permits under nation states sovereignty • operator has to report the results of the monitoring to the competent authority at least once a year

  10. References • Dürr, Dietmar. 2009. “Carbon Capture and Storage (CCS): Chancen und Risiken der Kohlendioxidabscheidung und –speicherung“. <http://www.energie-fakten.de/pdf/ccs-inagendo-v10.pdf> (29.03.2011). • International Energy Agency (IEA). 2008. “CO2 Capture and Storage”. OECD/IEA, Paris. • International Energy Agency (IEA). 2010a. “Energy Technology Perspectives”. OECD/IEA, Paris. • International Energy Agency (IEA). 2010b. “Carbon Capture and Storage: Legal and Regulatory Review”. <http://www.iea.org/ccs/legal/regulatory_review_edition1.pdf> (28.03.2011). • International Energy Agency (IEA). 2011. “Cost and Performance of Carbon Dioxide Capture from Power Generation. < http://www.iea.org/papers/2011/costperf_ccs_powergen.pdf> (01.05.2011). • Intergovernmental Panel on Climate Change (IPCC). 2005. IPCC Special Report onCarbon Dioxide Capture and Storage. New York et. al.: Camebridge University Press. • Wuppertal Institut for Climate, Environment and Energy (WIC). 2010. “Comparison of Renewable Energy Technologies with Carbon Dioxide Capture and Storage (CCS)”. <http://www.wupperinst.org/uploads/tx_wiprojekt/RECCSplus_final_report.pdf> (27.03.2011).
