  1. Power PMAC Tuning ToolOverview

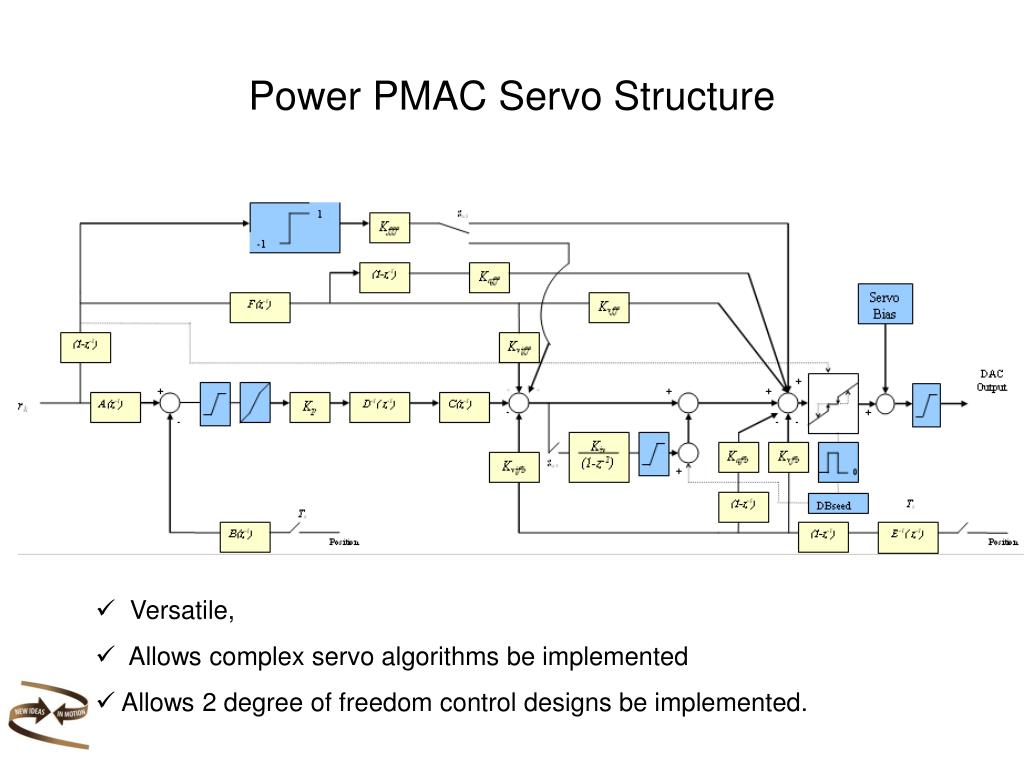

  2. Power PMAC Servo Structure • Versatile, • Allows complex servo algorithms be implemented • Allows 2 degree of freedom control designs be implemented.

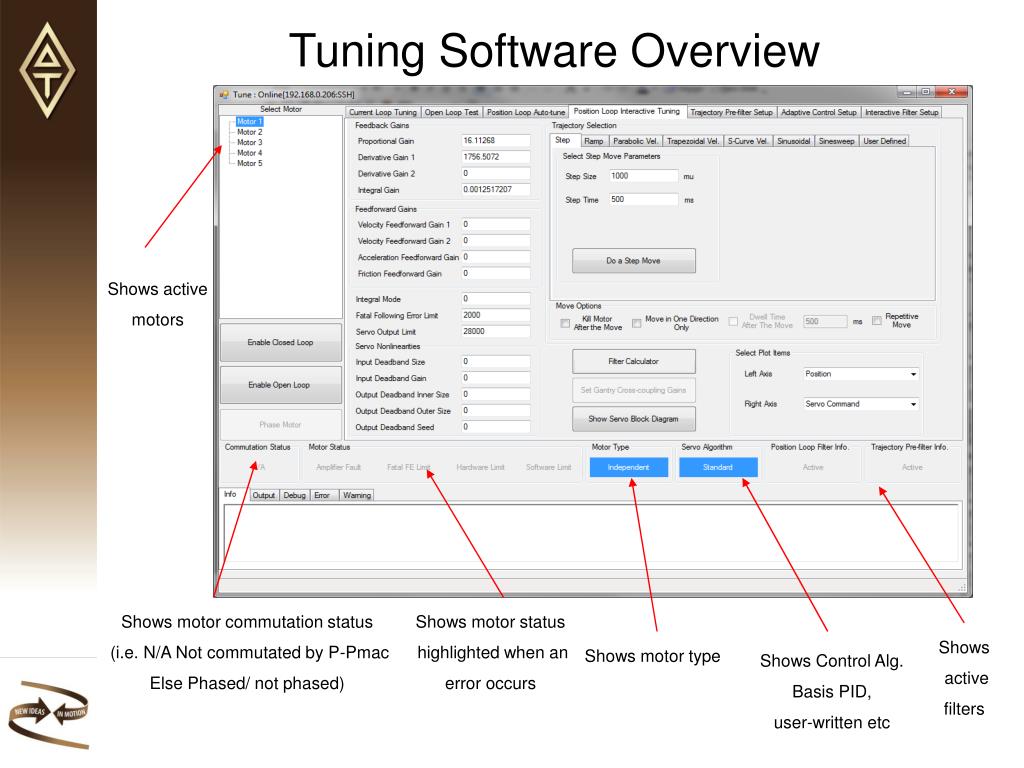

  3. Tuning Software Overview Shows active motors Shows motor commutation status (i.e. N/A Not commutated by P-Pmac Else Phased/ not phased) Shows motor status highlighted when an error occurs Shows active filters Shows motor type Shows Control Alg. Basis PID, user-written etc

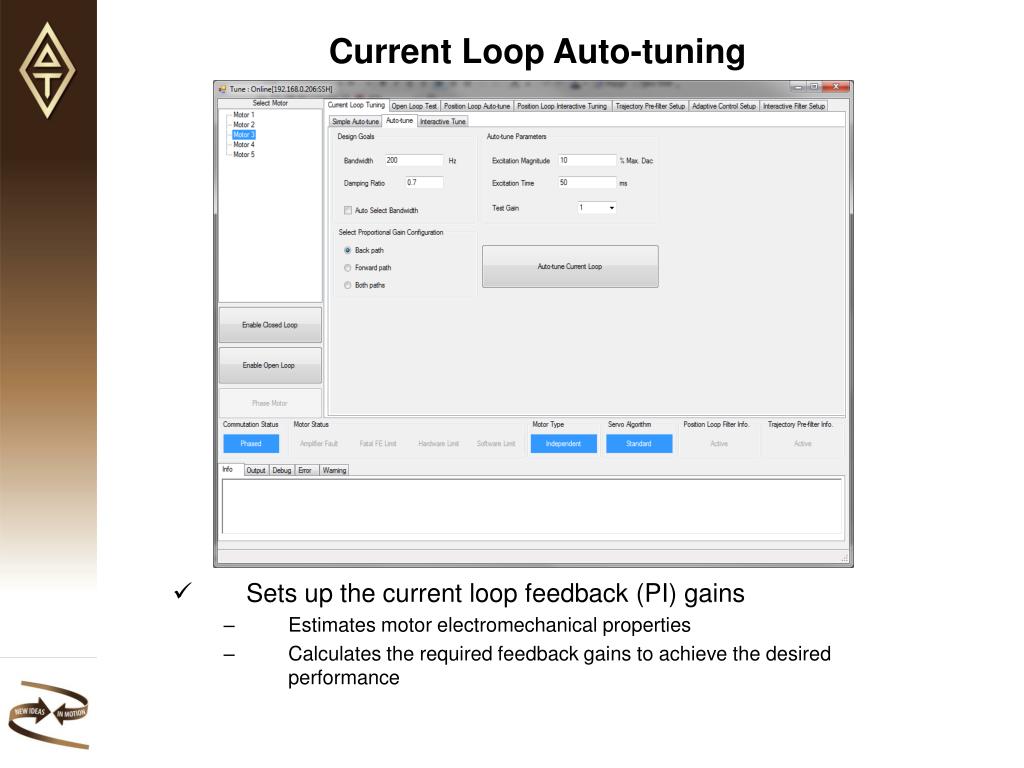

  4. Current Loop Auto-tuning • Sets up the current loop feedback (PI) gains • Estimates motor electromechanical properties • Calculates the required feedback gains to achieve the desired performance

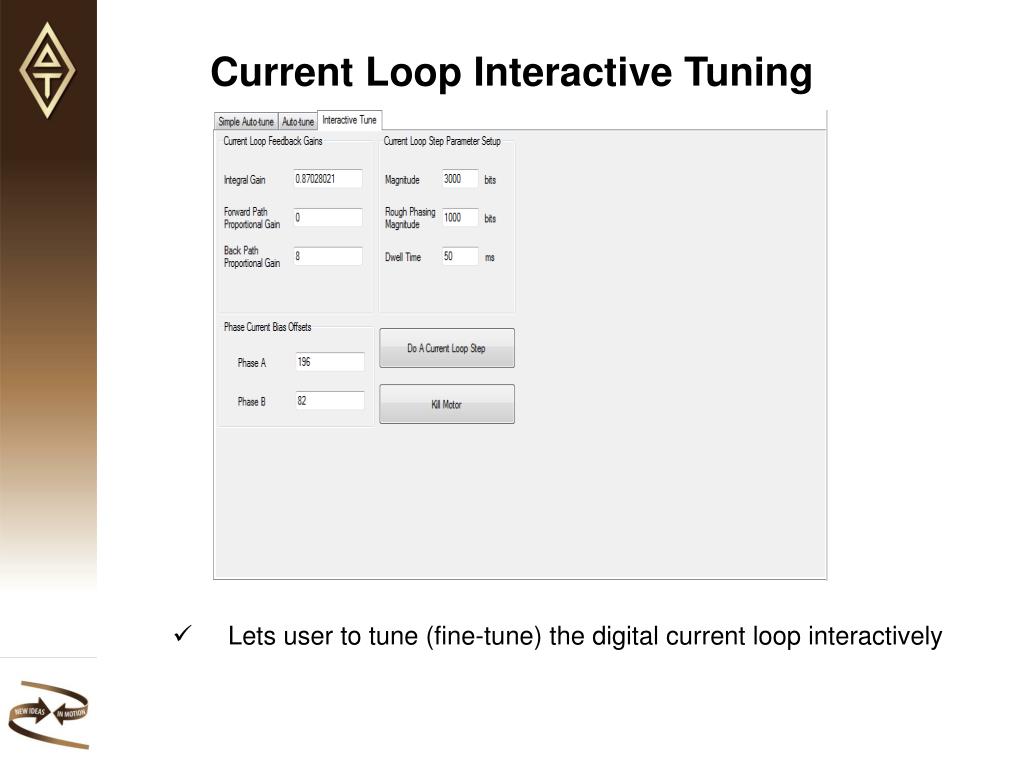

  5. Current Loop Interactive Tuning • Lets user to tune (fine-tune) the digital current loop interactively

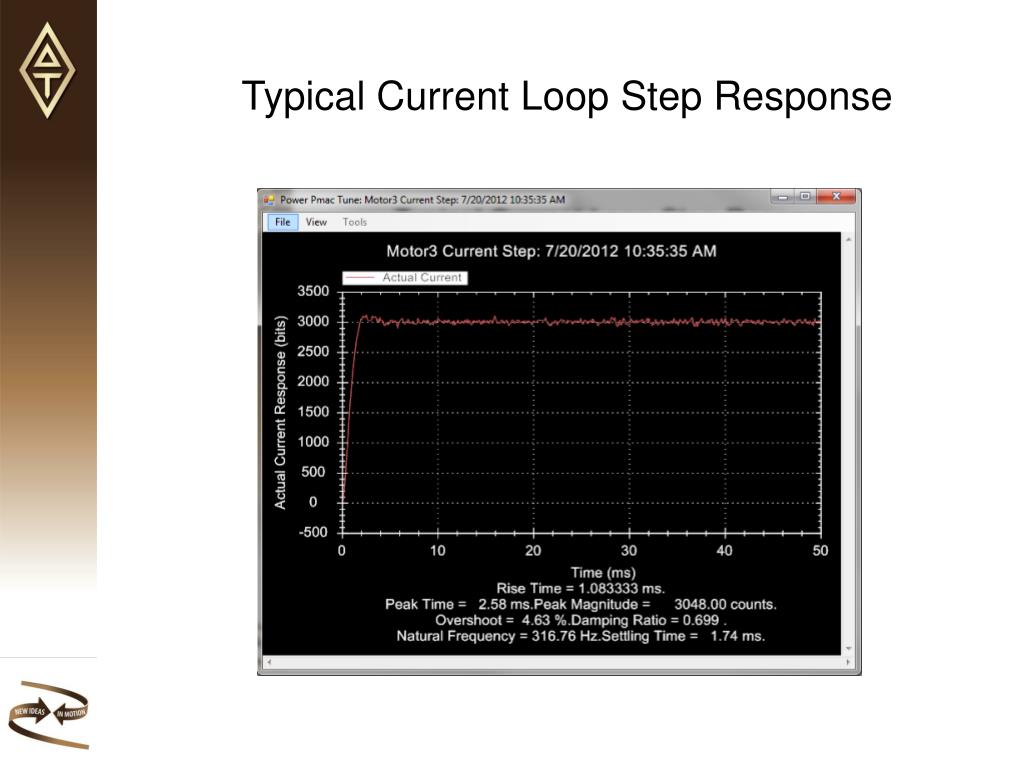

  6. Typical Current Loop Step Response

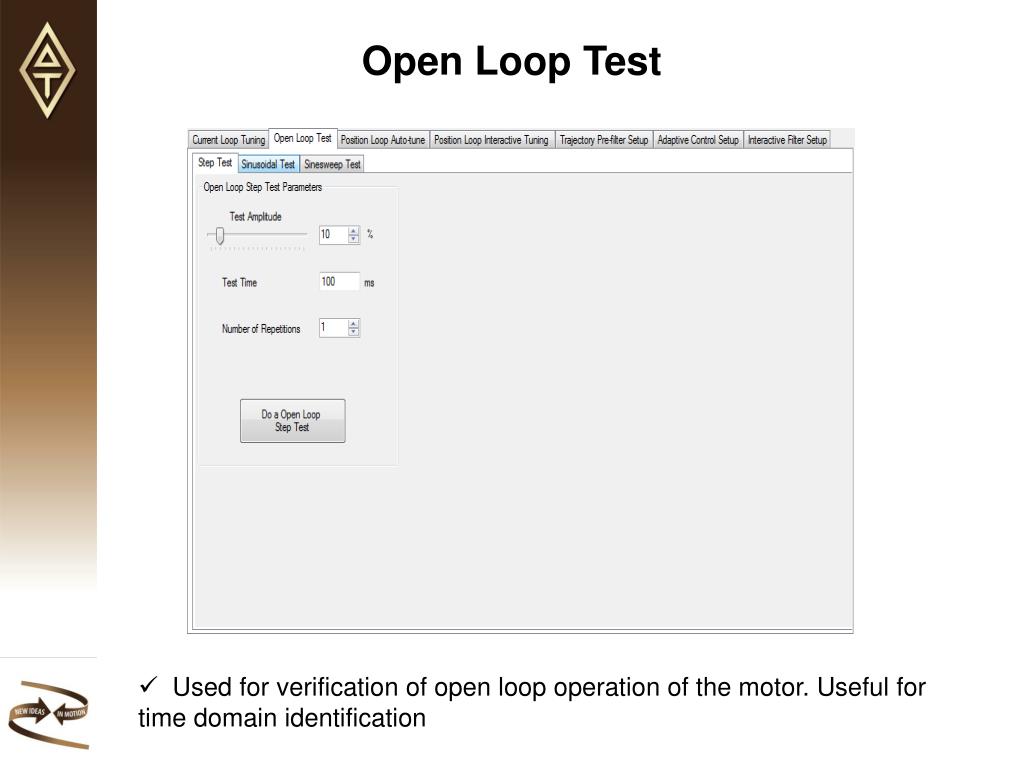

  7. Open Loop Test • Used for verification of open loop operation of the motor. Useful for time domain identification

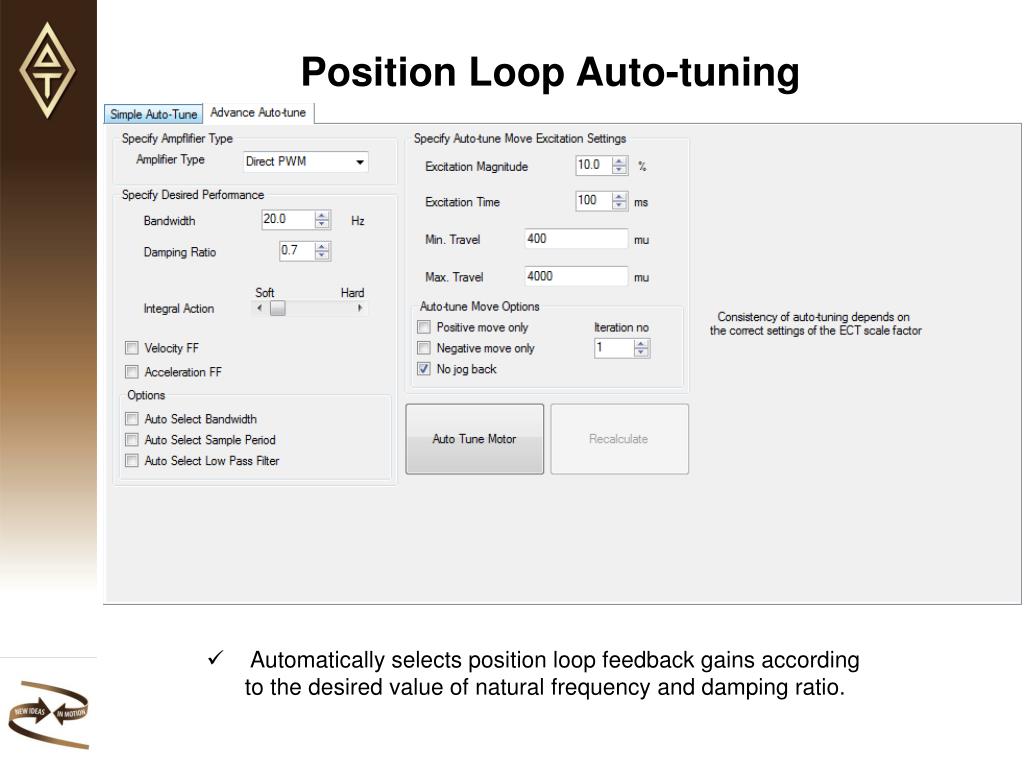

  8. Position Loop Auto-tuning • Automatically selects position loop feedback gains according to the desired value of natural frequency and damping ratio.

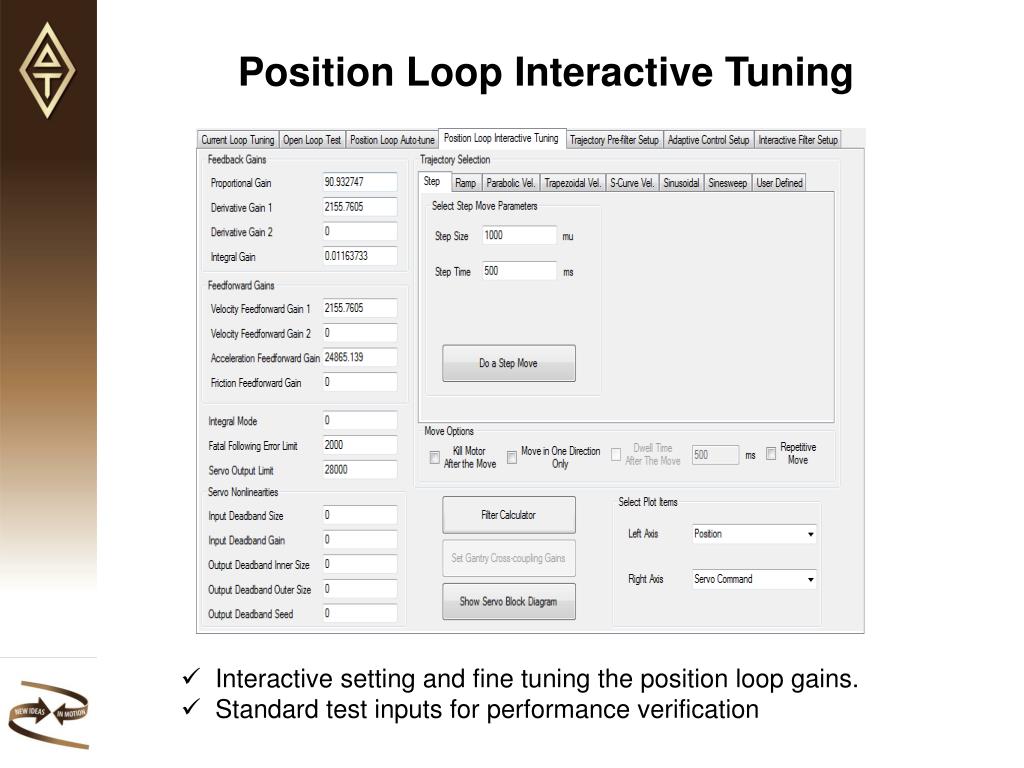

  9. Position Loop Interactive Tuning • Interactive setting and fine tuning the position loop gains. • Standard test inputs for performance verification

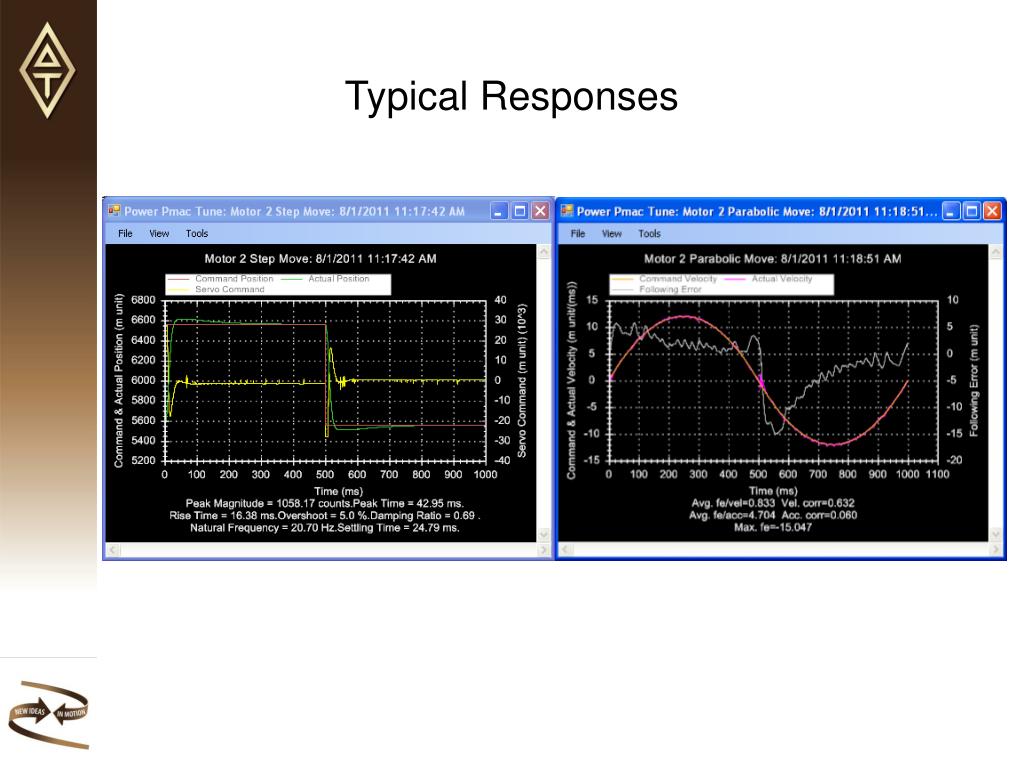

  10. Typical Responses

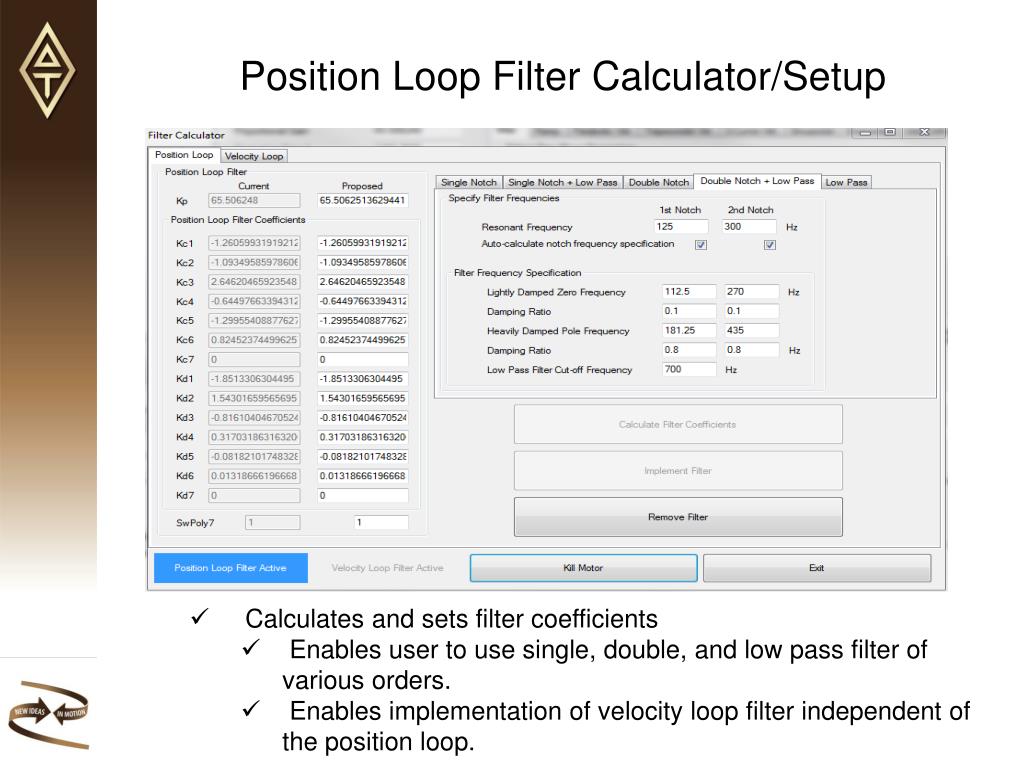

  11. Position Loop Filter Calculator/Setup • Calculates and sets filter coefficients • Enables user to use single, double, and low pass filter of various orders. • Enables implementation of velocity loop filter independent of the position loop.

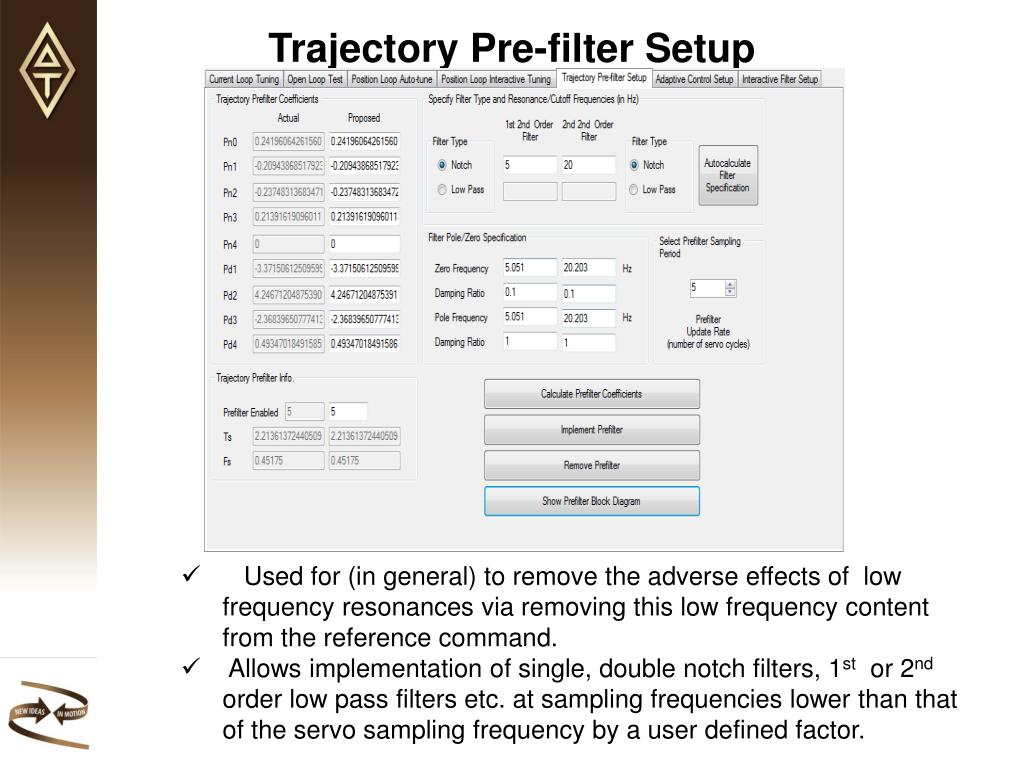

  12. Trajectory Pre-filter Setup • Used for (in general) to remove the adverse effects of low frequency resonances via removing this low frequency content from the reference command. • Allows implementation of single, double notch filters, 1st or 2nd order low pass filters etc. at sampling frequencies lower than that of the servo sampling frequency by a user defined factor.

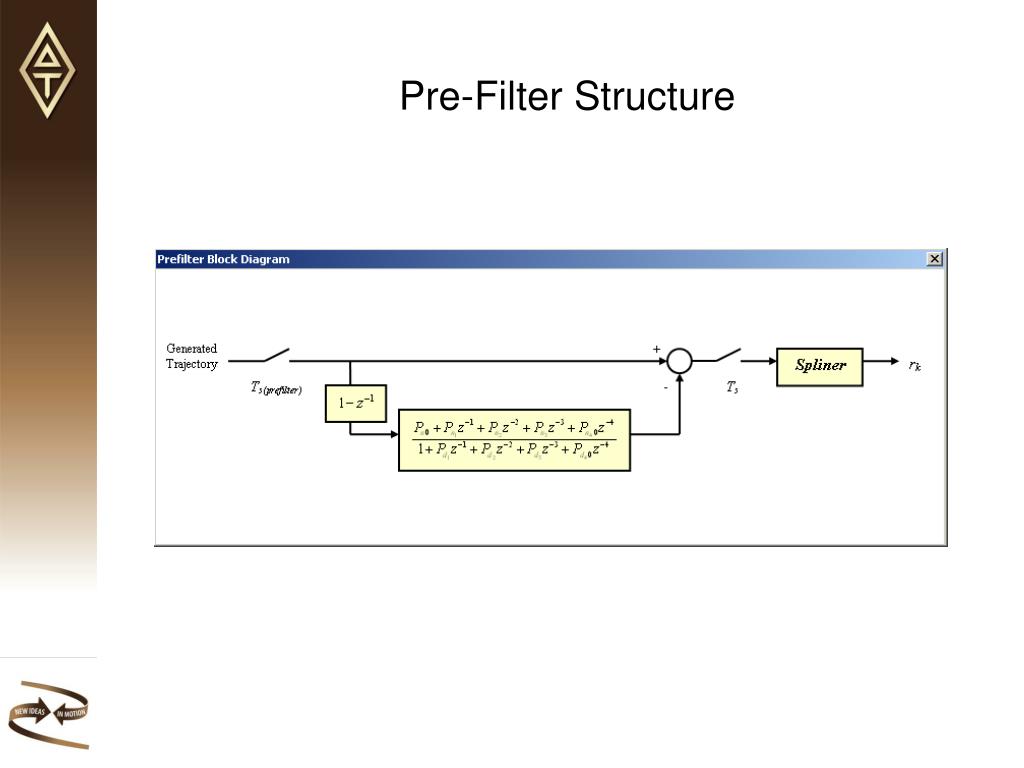

  13. Pre-Filter Structure

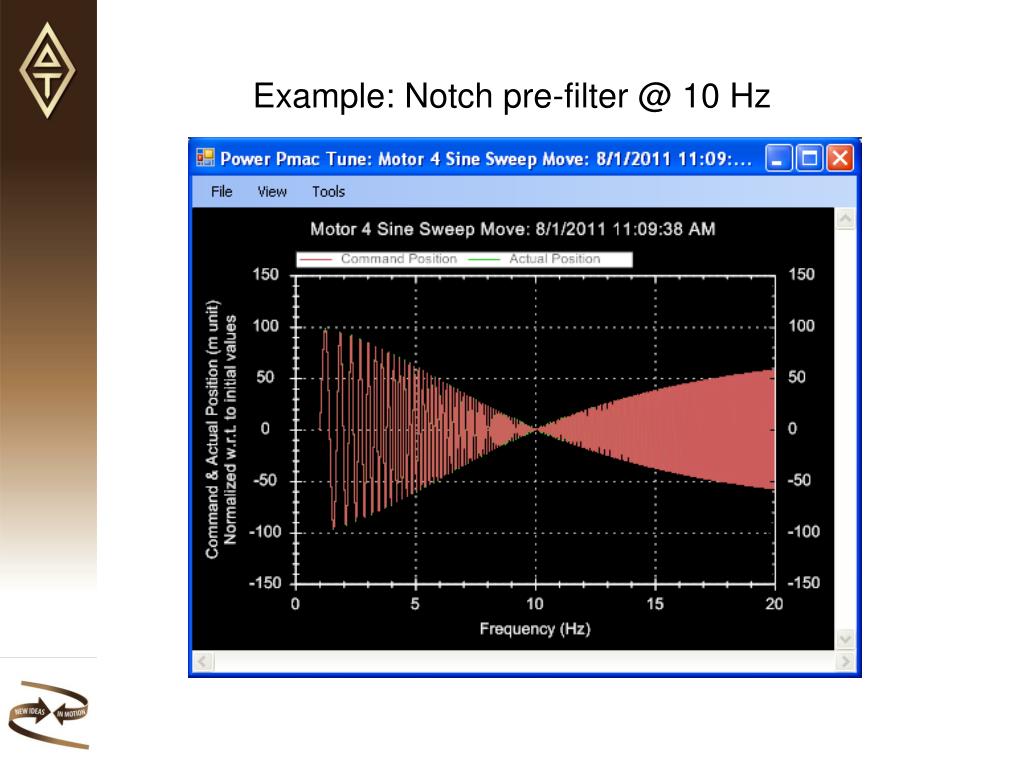

  14. Example: Notch pre-filter @ 10 Hz

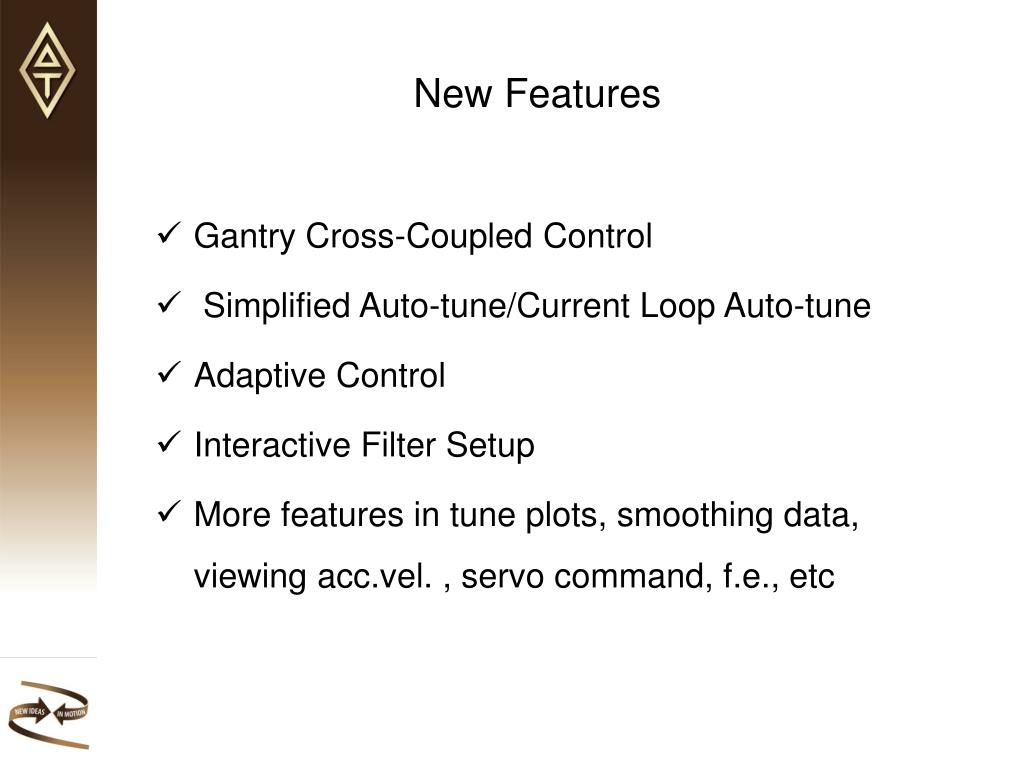

  15. New Features • Gantry Cross-Coupled Control • Simplified Auto-tune/Current Loop Auto-tune • Adaptive Control • Interactive Filter Setup • More features in tune plots, smoothing data, viewing acc.vel. , servo command, f.e., etc

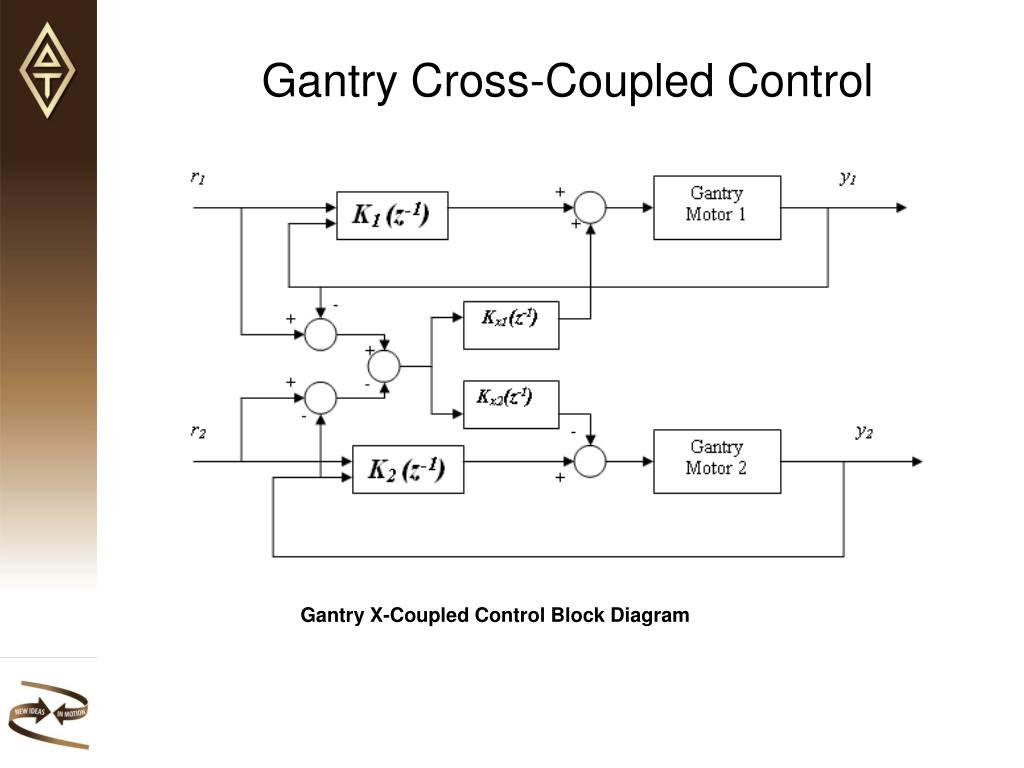

  16. Gantry Cross-Coupled Control Gantry X-Coupled Control Block Diagram

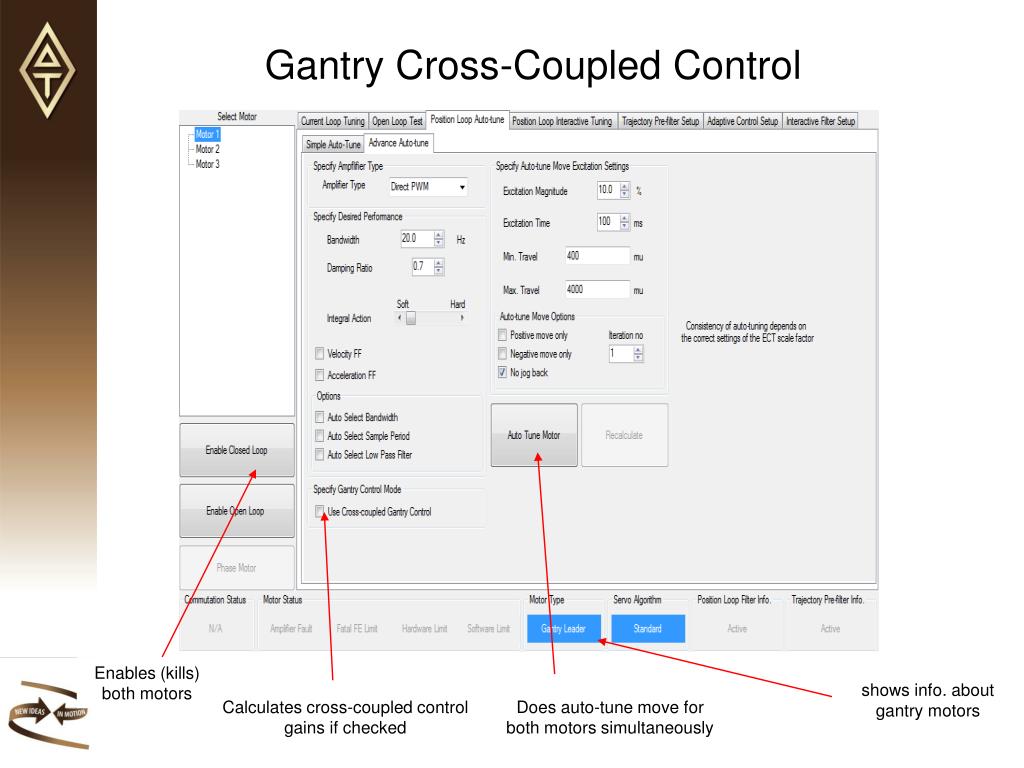

  17. Gantry Cross-Coupled Control Enables (kills) both motors shows info. about gantry motors Calculates cross-coupled control gains if checked Does auto-tune move for both motors simultaneously

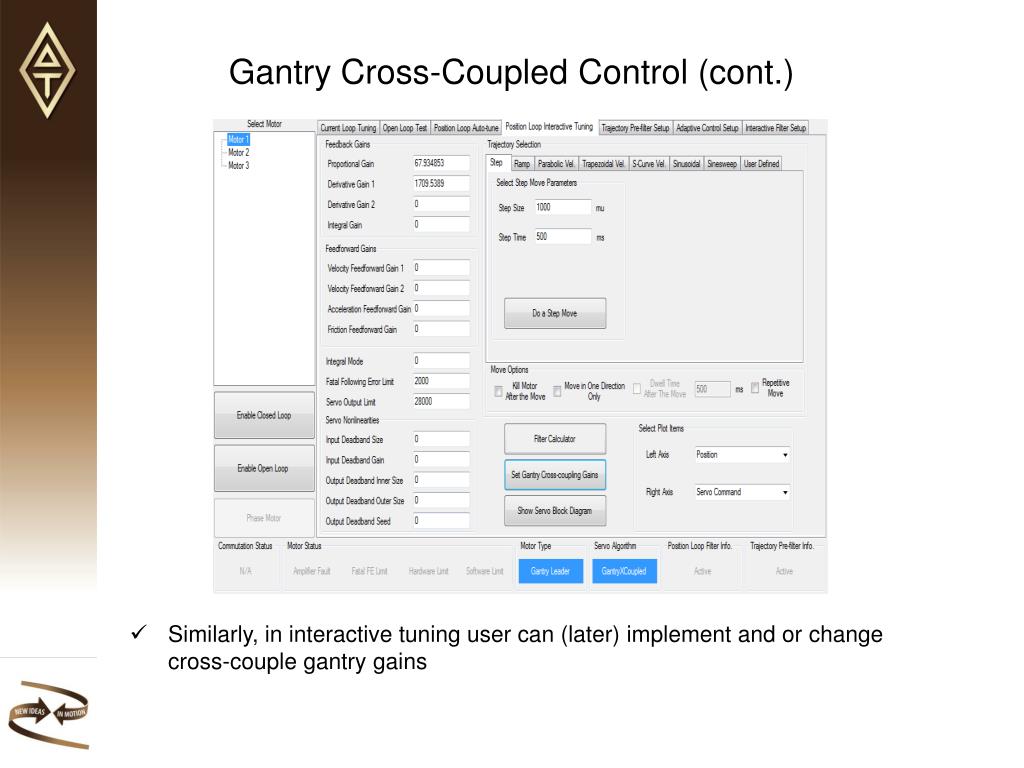

  18. Gantry Cross-Coupled Control (cont.) • Similarly, in interactive tuning user can (later) implement and or change cross-couple gantry gains

  19. Gantry Cross-Coupled Control (cont.)

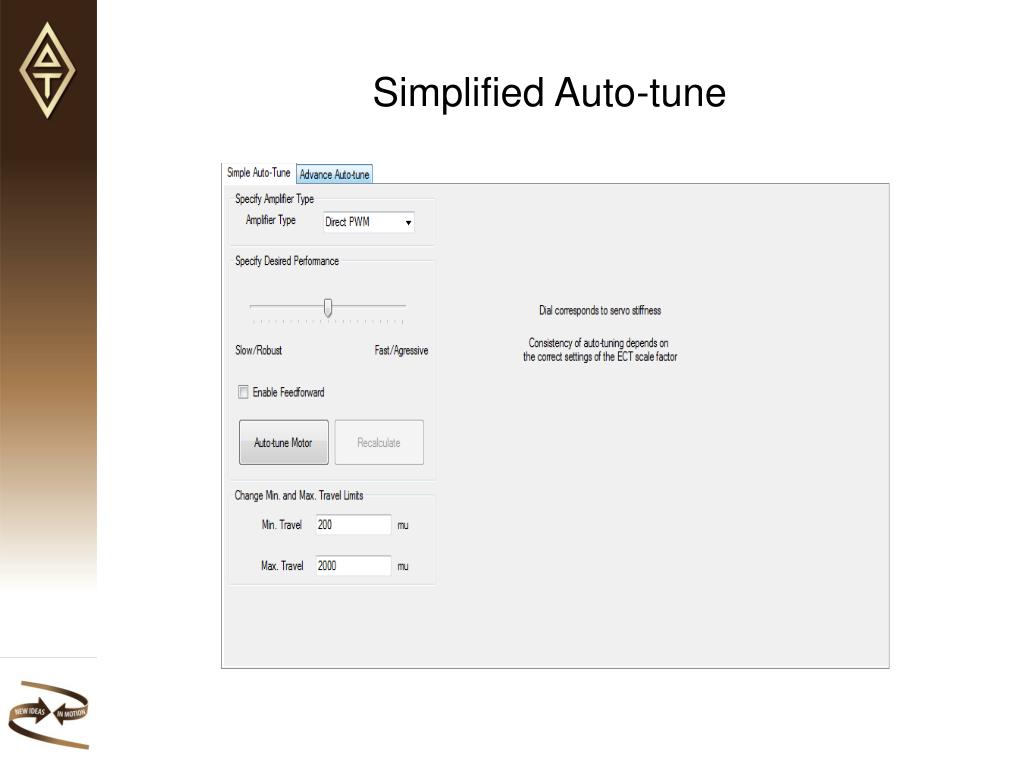

  20. Simplified Auto-tune

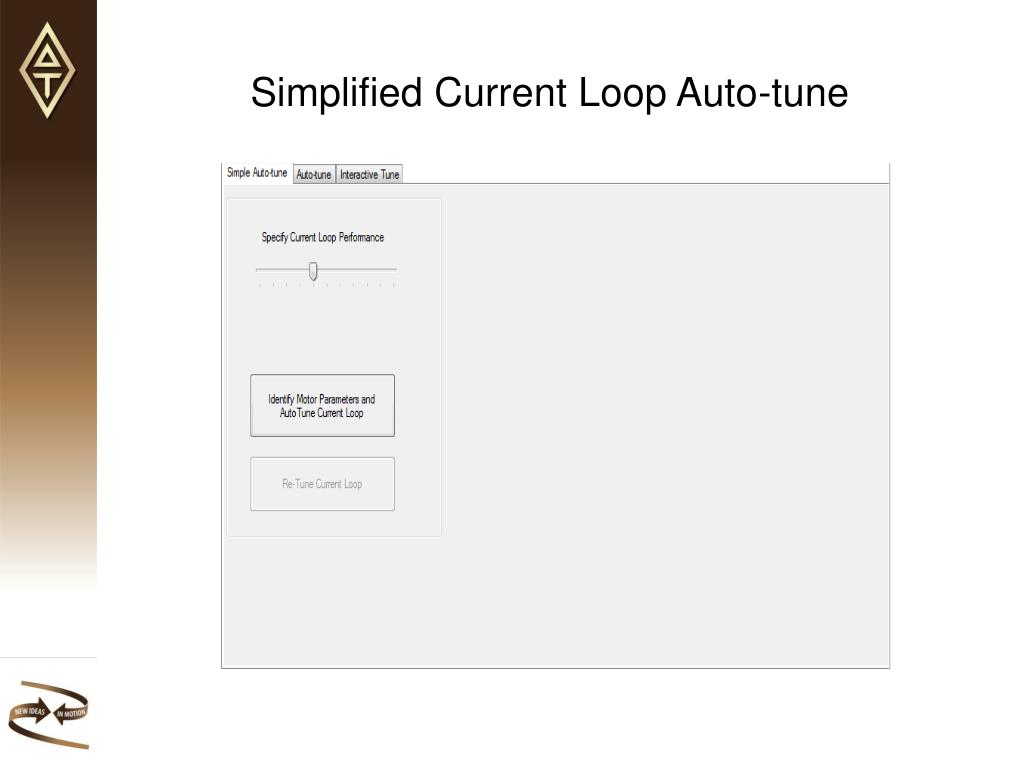

  21. Simplified Current Loop Auto-tune

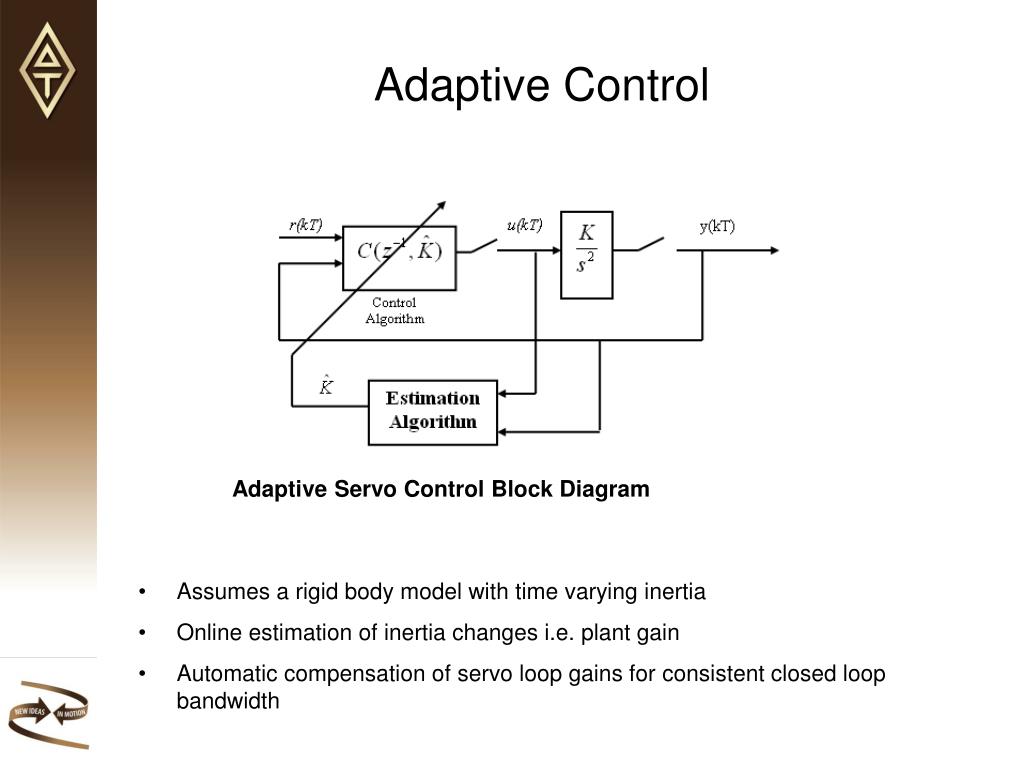

  22. Adaptive Control Adaptive Servo Control Block Diagram Assumes a rigid body model with time varying inertia Online estimation of inertia changes i.e. plant gain Automatic compensation of servo loop gains for consistent closed loop bandwidth

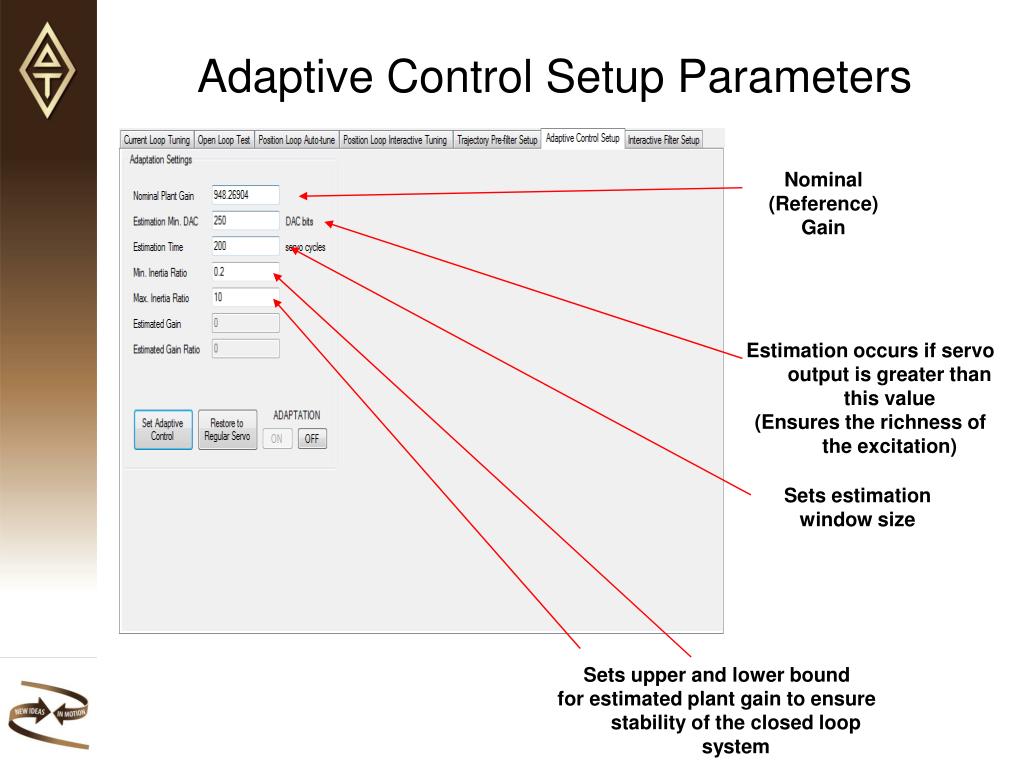

  23. Adaptive Control Setup Parameters Nominal (Reference) Gain Estimation occurs if servo output is greater than this value (Ensures the richness of the excitation) Sets estimation window size Sets upper and lower bound for estimated plant gain to ensure stability of the closed loop system

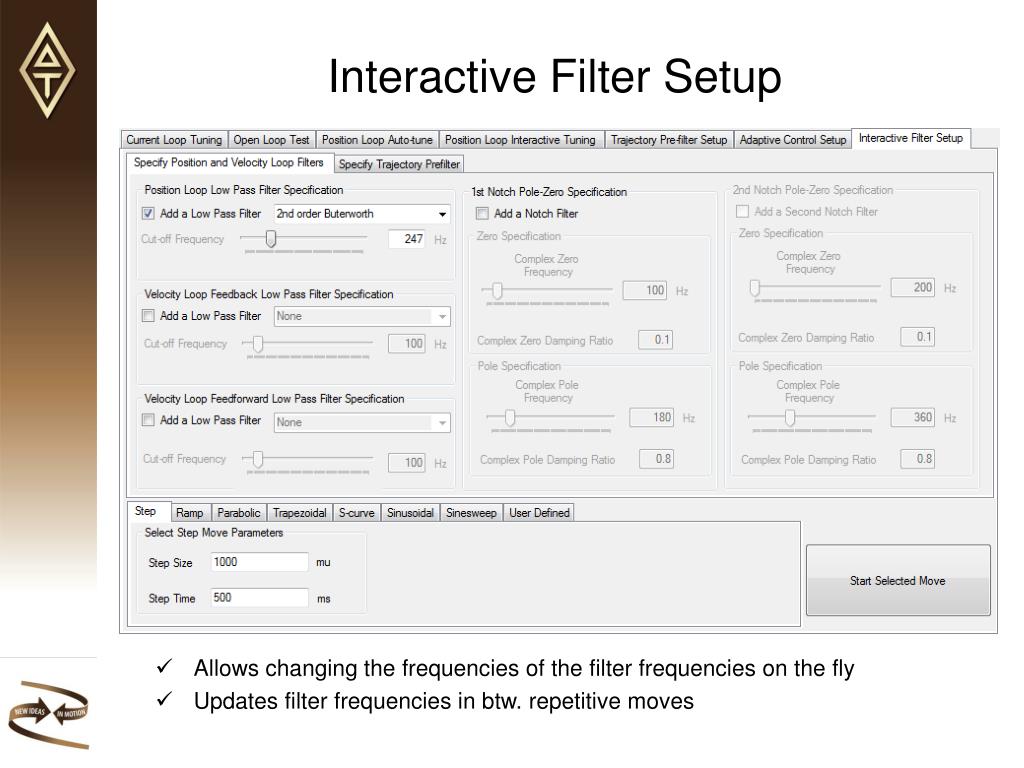

  24. Interactive Filter Setup • Allows changing the frequencies of the filter frequencies on the fly • Updates filter frequencies in btw. repetitive moves
