  1. E E2415 Lecture 17 Op Amp Filters Low Pass and High Pass

  2. 1st Order Low Pass Filter (1/5) Half-Power Frequency

  3. 1st Order Low Pass Filter (2/5)

  4. 1st Order Low Pass Filter (3/5) No Zeroes; 1 pole at wo Gain in decibels If Rf = 50 kW and Rg = 5 kW

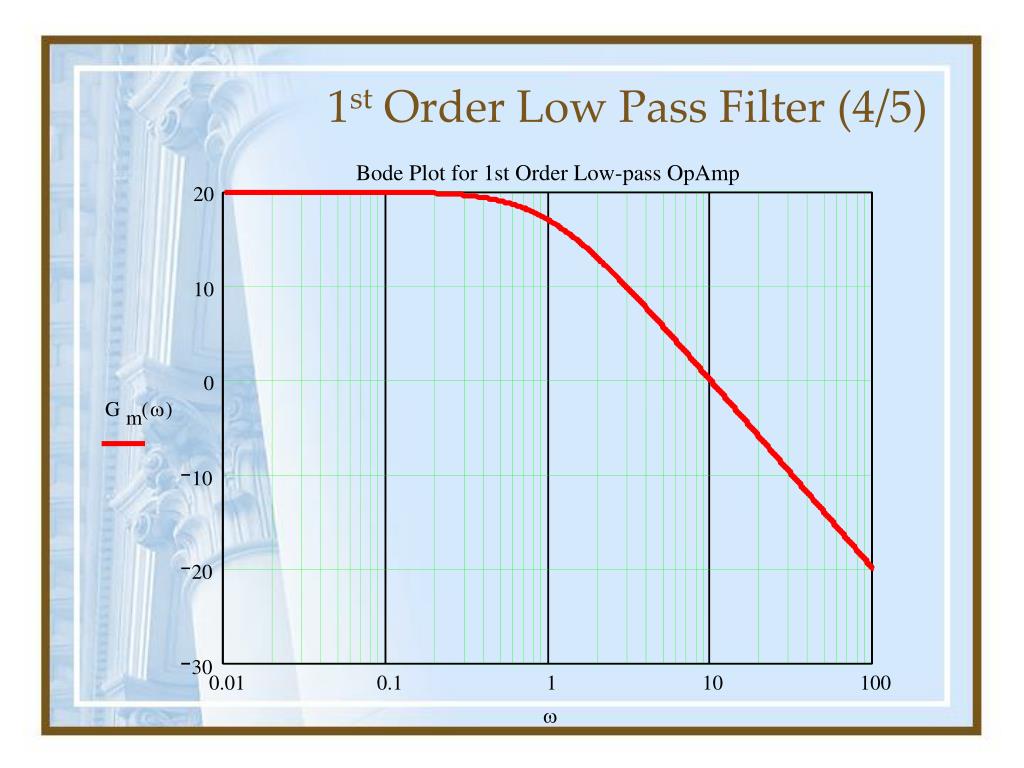

  5. 1st Order Low Pass Filter (4/5)

  6. 1st Order Low Pass Filter (5/5)

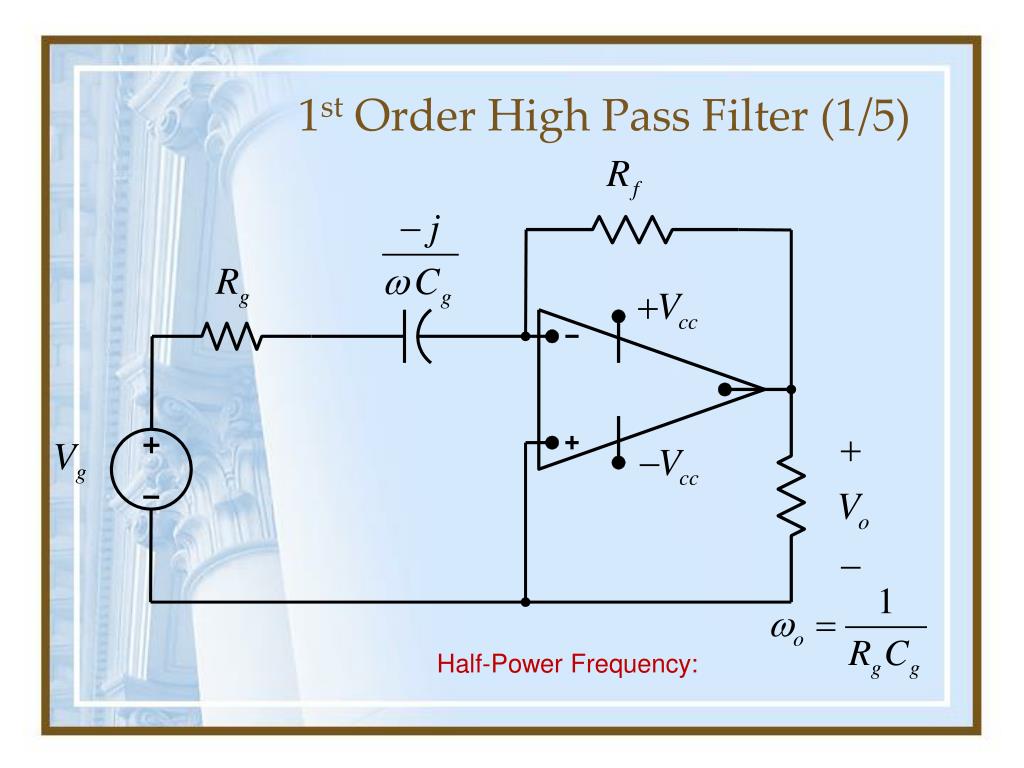

  7. 1st Order High Pass Filter (1/5) Half-Power Frequency:

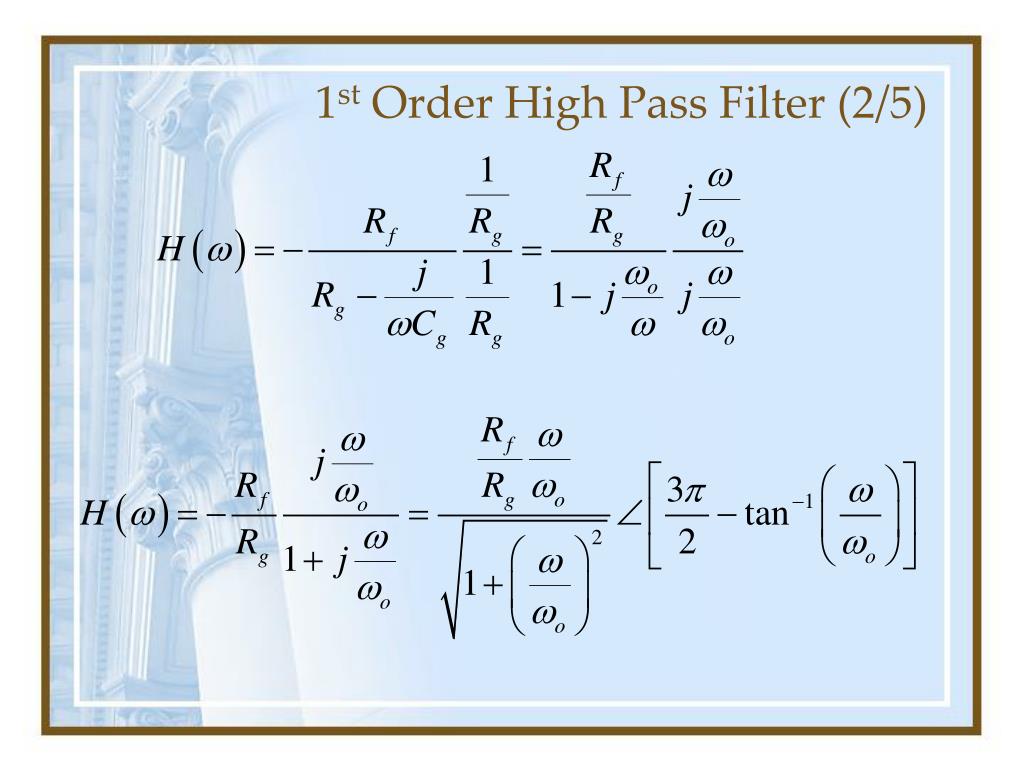

  8. 1st Order High Pass Filter (2/5)

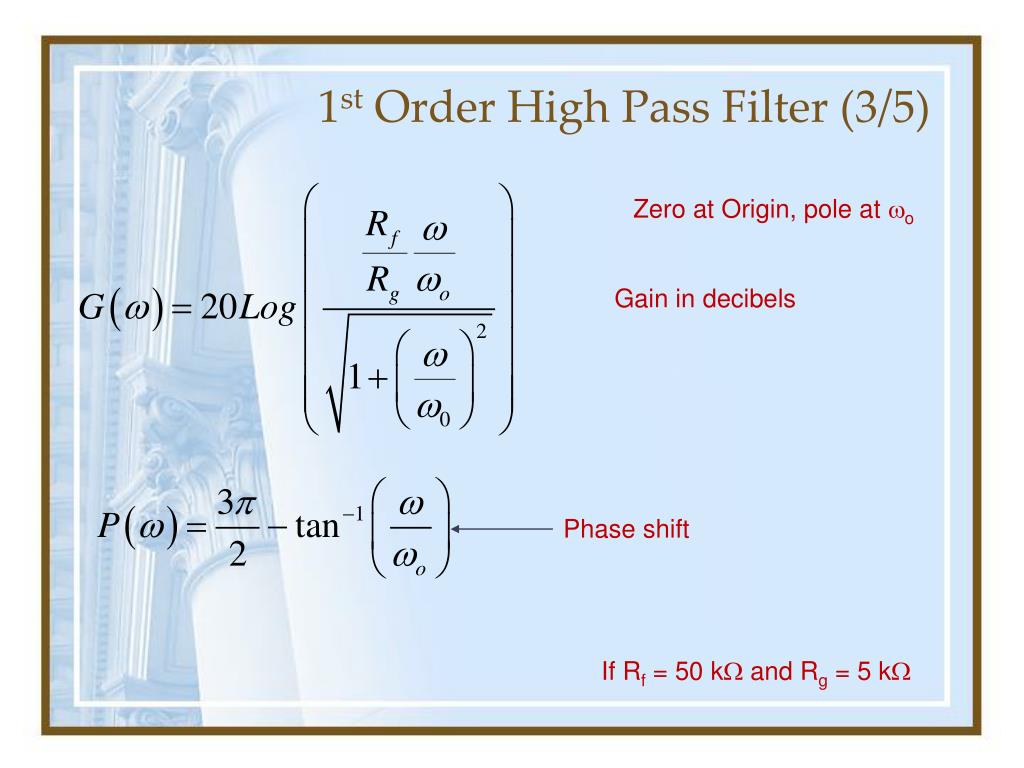

  9. 1st Order High Pass Filter (3/5) Zero at Origin, pole at wo Gain in decibels Phase shift If Rf = 50 kW and Rg = 5 kW

  10. 1st Order High Pass Filter (4/5)

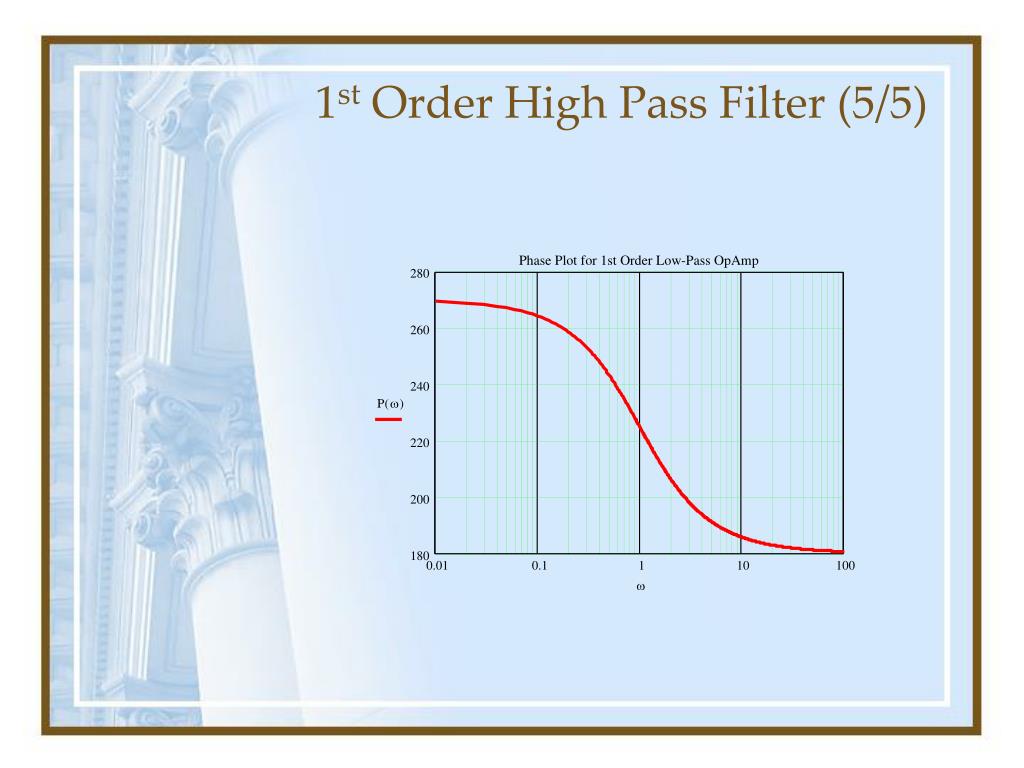

  11. 1st Order High Pass Filter (5/5)
