  1. EE 2415 Lecture 01 - Node Voltage Analysis

  2. Introduction to the Node Voltage Method • More direct than branch equations • Fewer equations to solve • Choose one node as reference • Express all variables in terms of node voltages • Solution is set of node voltages w.r.t. chosen reference node • Solution completely defines the circuit

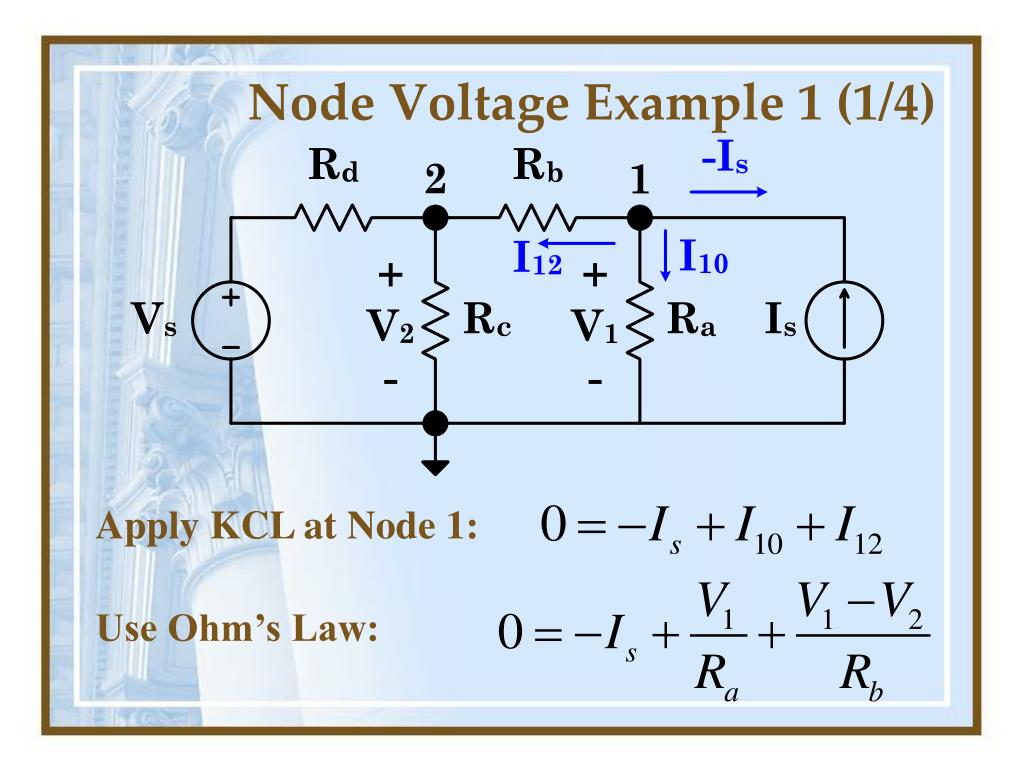

  3. Node Voltage Example 1 (1/4) Apply KCL at Node 1: Use Ohm’s Law:

  4. Node Voltage Example 1 (2/4) Apply KCL at Node 2: Use Ohm’s Law:

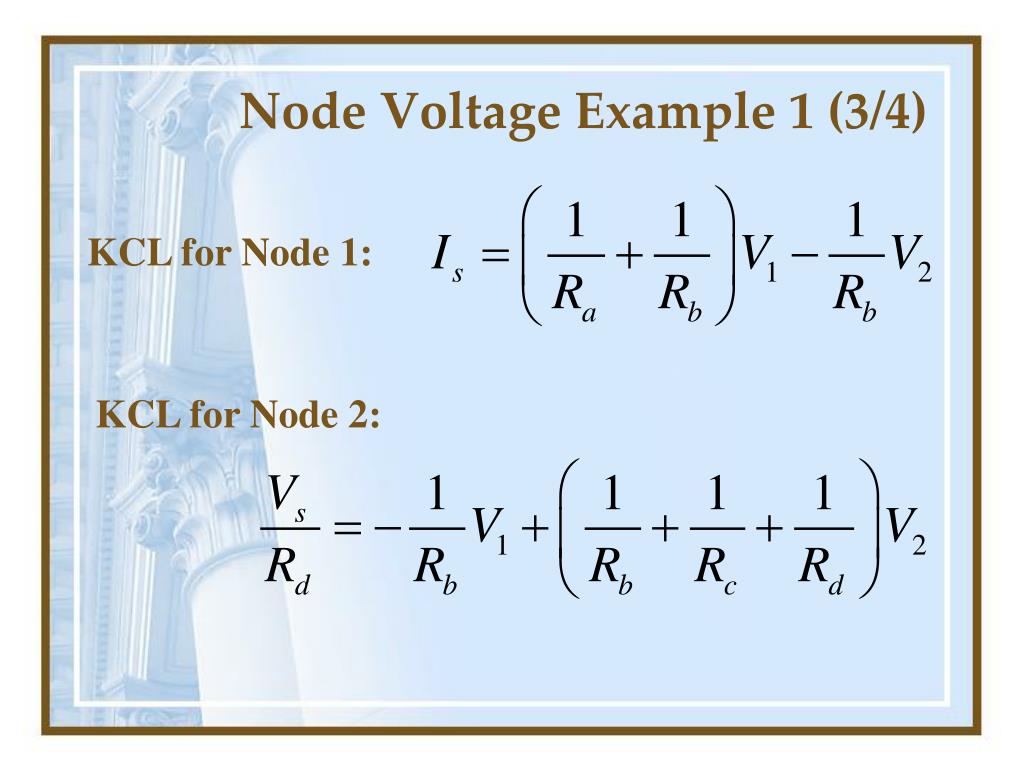

  5. Node Voltage Example 1 (3/4) KCL for Node 1: KCL for Node 2:

  6. Node Voltage Example 1 (4/4)

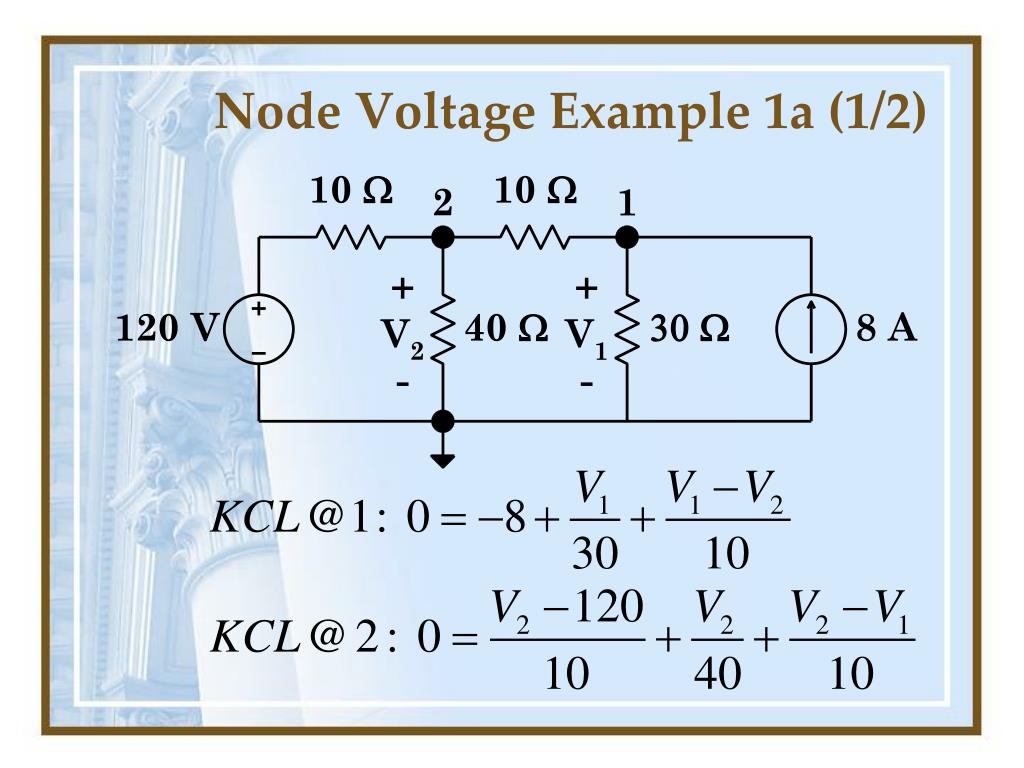

  7. Node Voltage Example 1a (1/2)

  8. Node Voltage Example 1a (2/2)

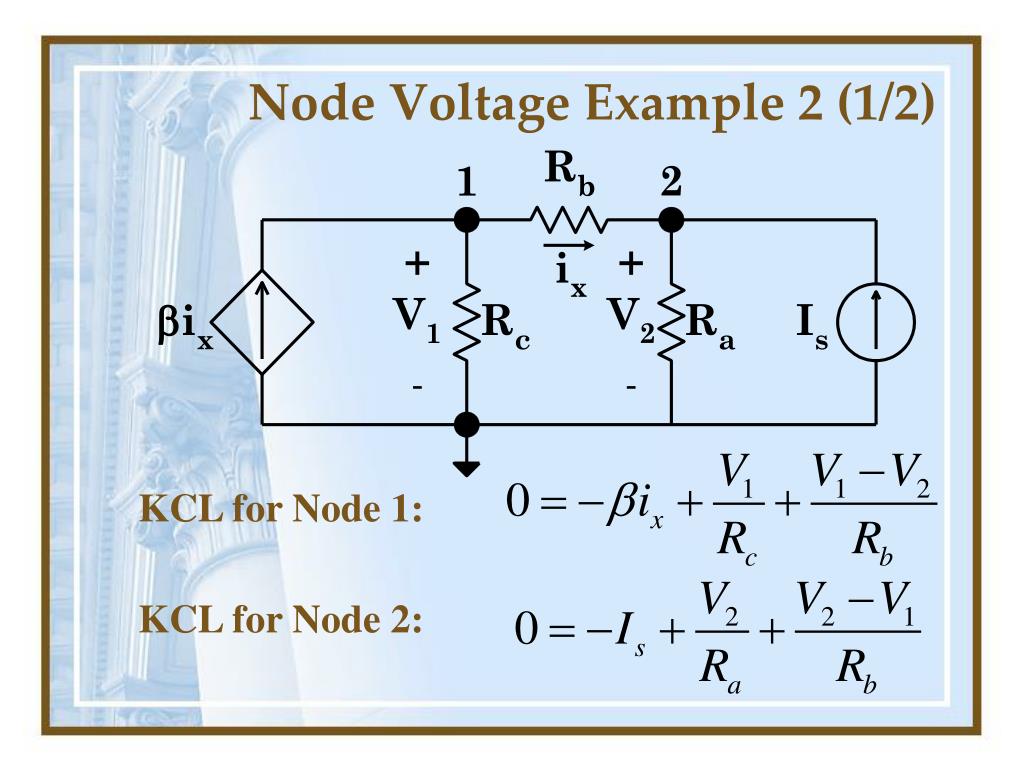

  9. Node Voltage Example 2 (1/2) KCL for Node 1: KCL for Node 2:

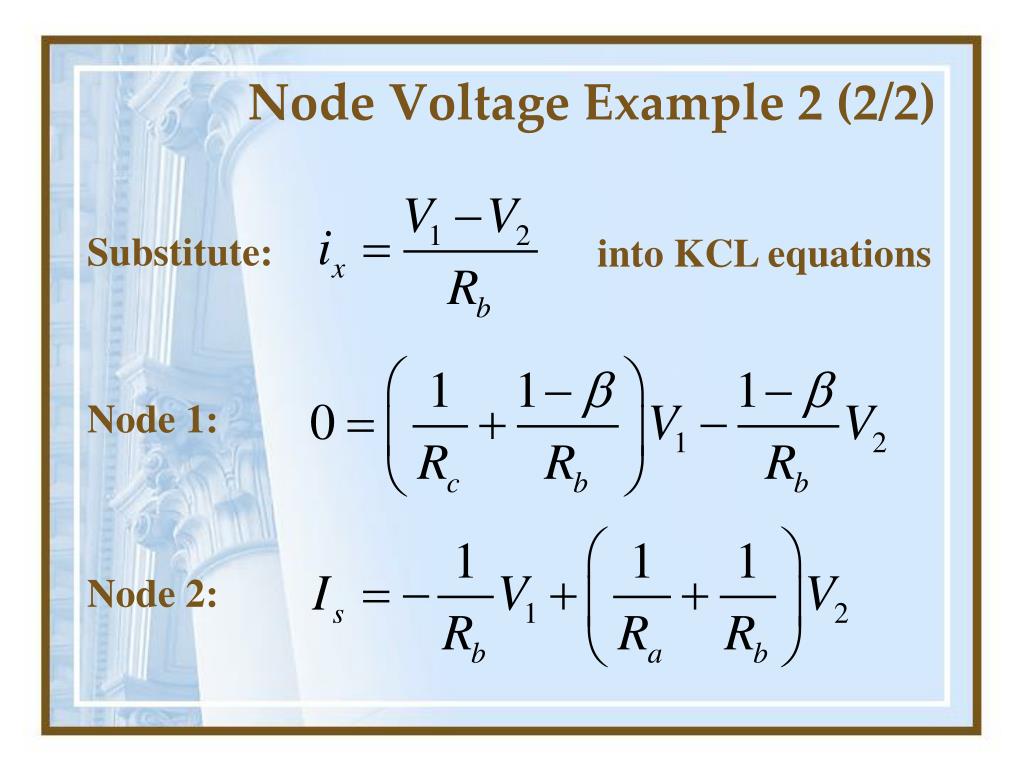

  10. Node Voltage Example 2 (2/2) Substitute: into KCL equations Node 1: Node 2:

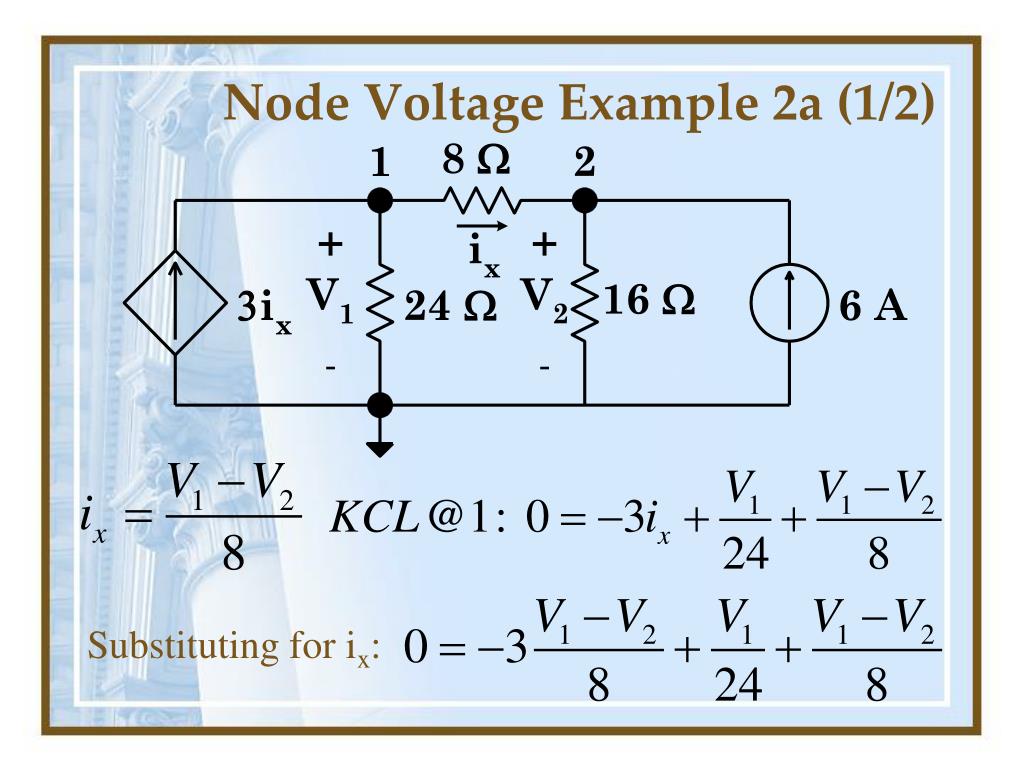

  11. Node Voltage Example 2a (1/2) Substituting for ix:

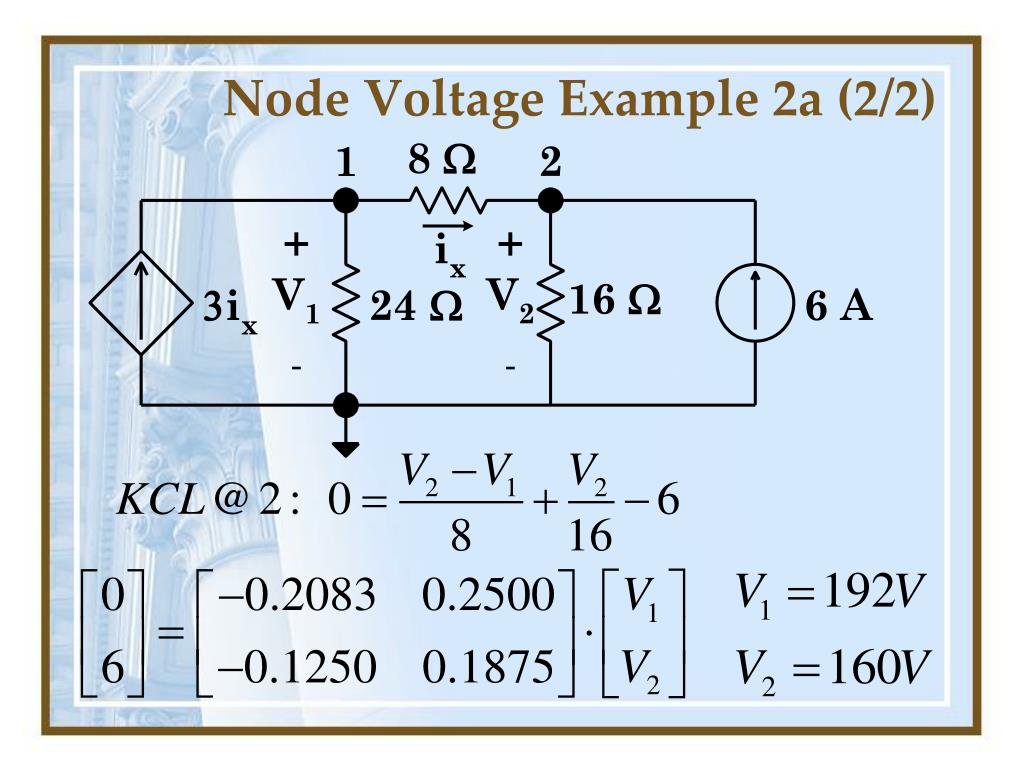

  12. Node Voltage Example 2a (2/2)

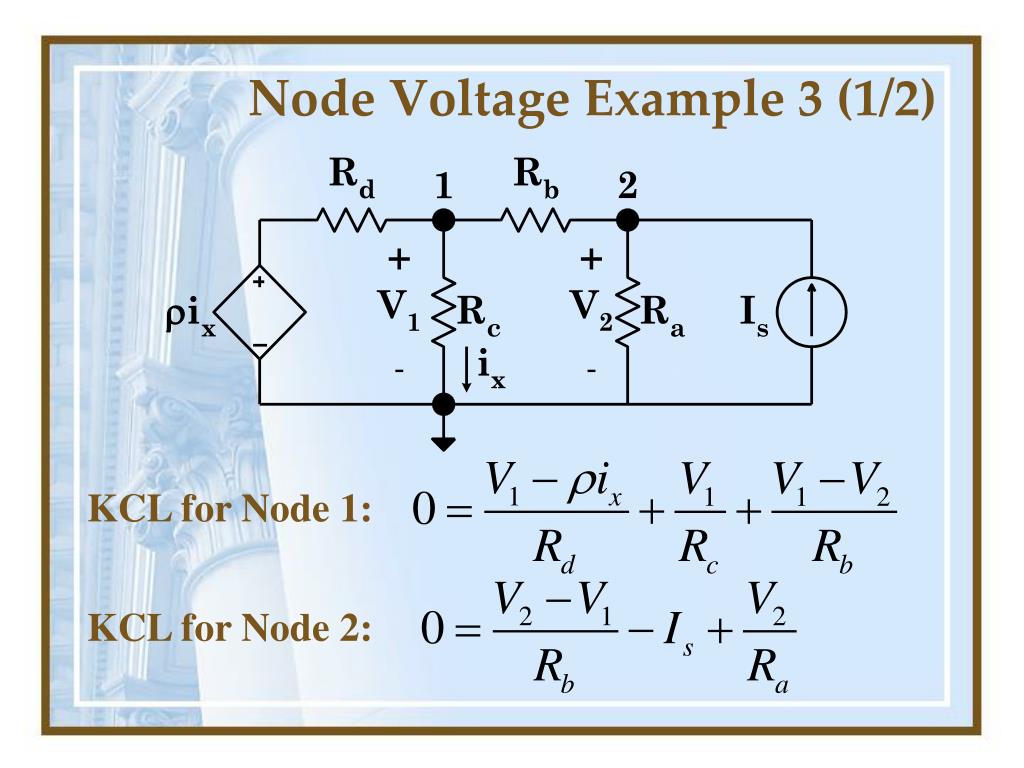

  13. Node Voltage Example 3 (1/2) KCL for Node 1: KCL for Node 2:

  14. Node Voltage Example 3 (2/2) Substitute: into KCL equations Node 1: Node 2:

  15. Node Voltage Example 3a (1/2) After Substitution:

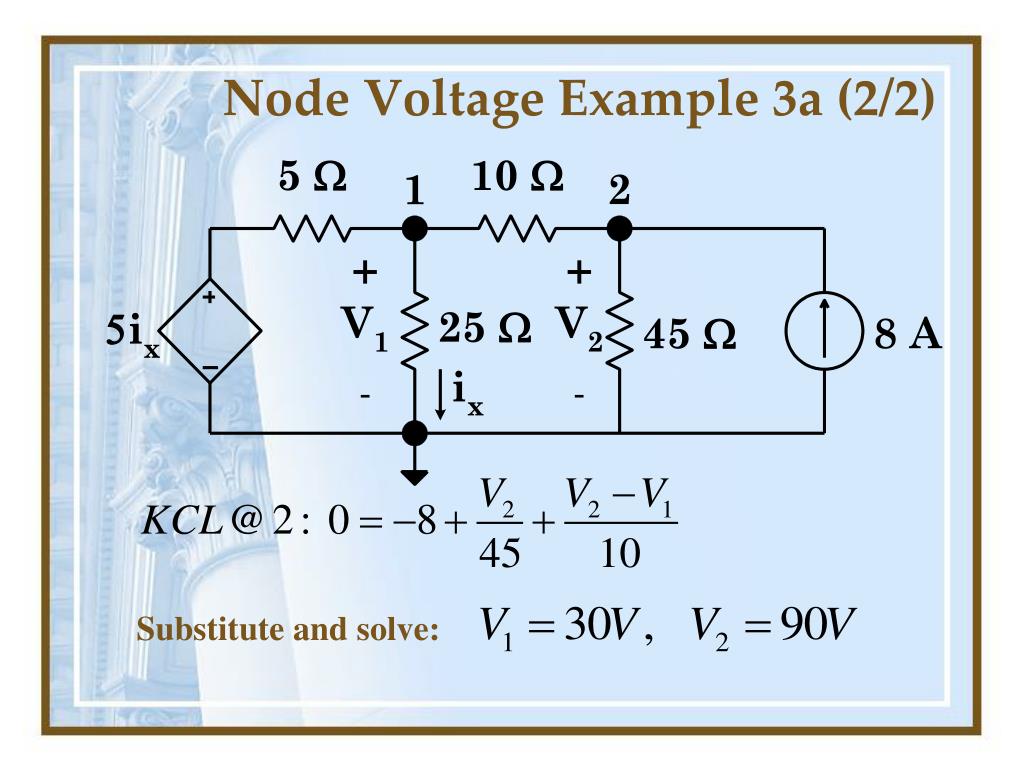

  16. Node Voltage Example 3a (2/2) Substitute and solve:

  17. Node Voltage Example 4 (1/3) No KCL equation possible at node 1 or at node 2. KCL can be applied at the supernode.

  18. Node Voltage Example 4 (2/3) KCL @ Supernode: Other relationships: and

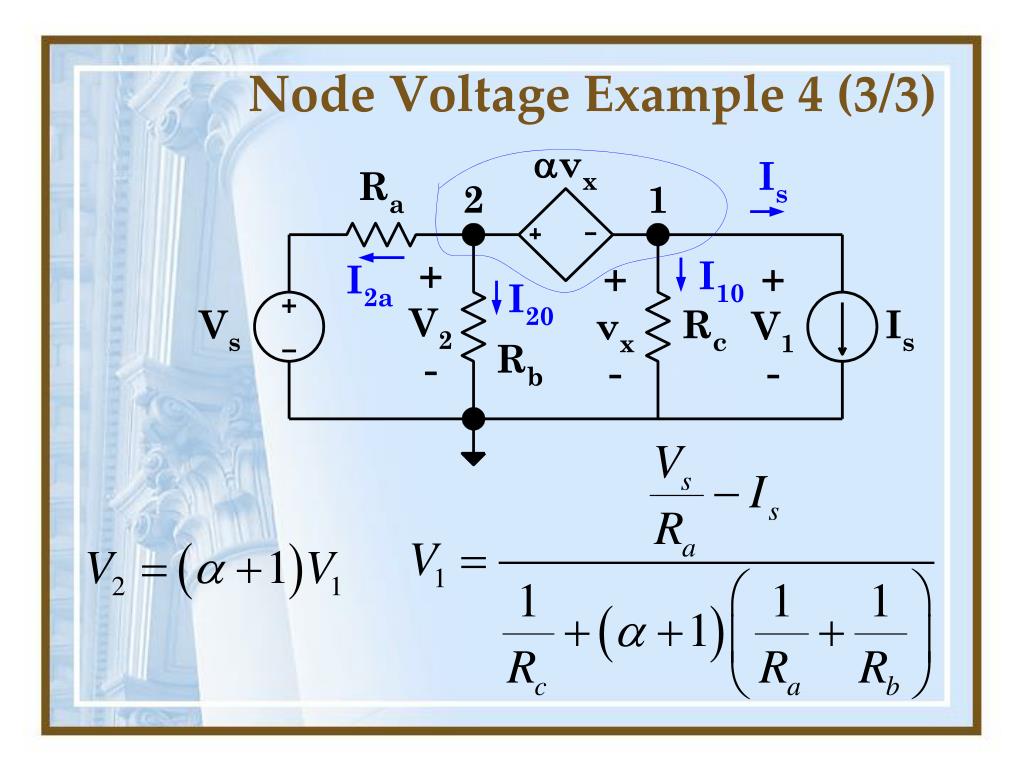

  19. Node Voltage Example 4 (3/3)

  20. Node Voltage Example 4a (1/2)

  21. Node Voltage Example 4a (2/2) Substitute and solve:

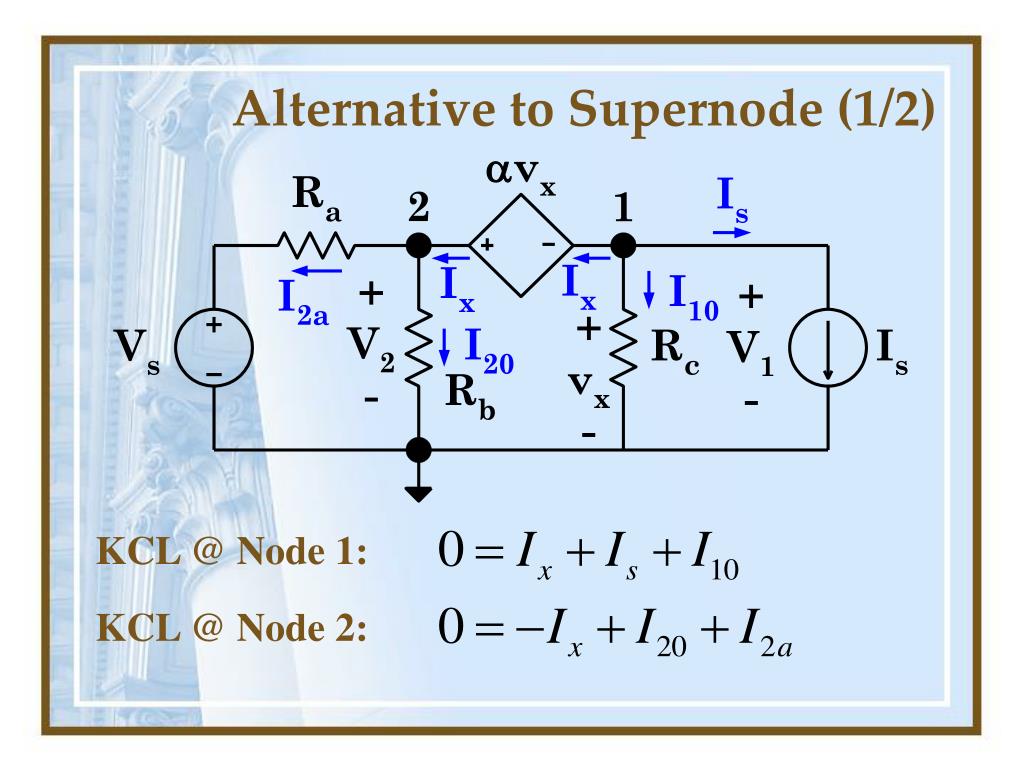

  22. Alternative to Supernode (1/2) KCL @ Node 1: KCL @ Node 2:

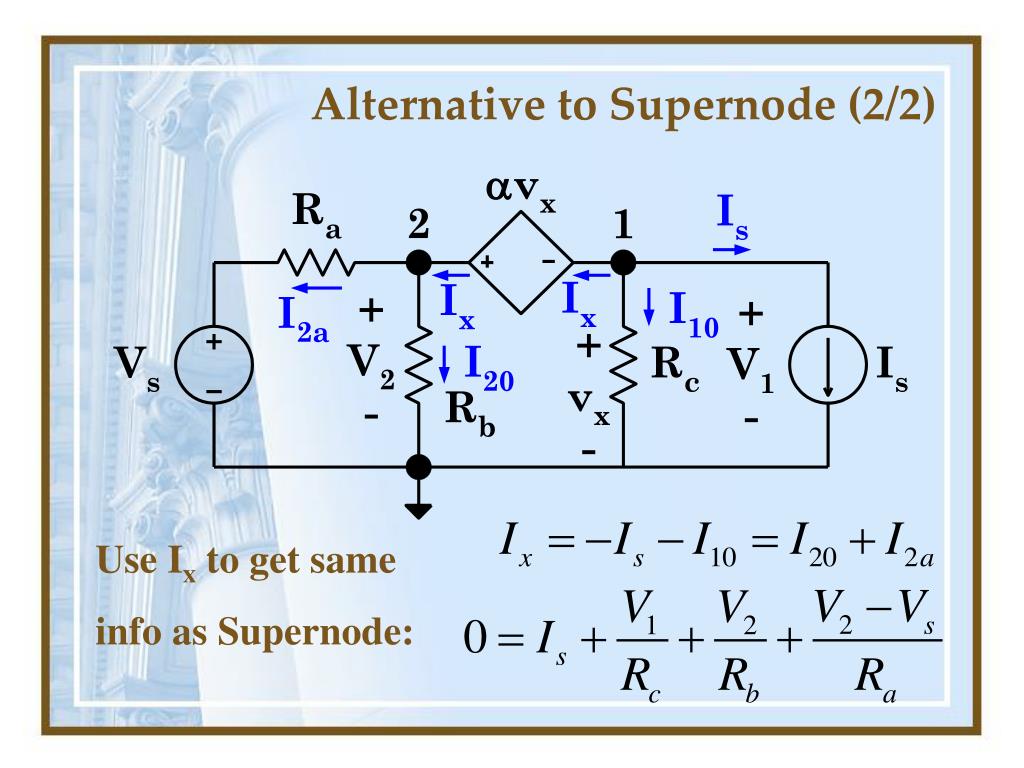

  23. Alternative to Supernode (2/2) Use Ix to get same info as Supernode:
