Functional design of Domain Tool

This document outlines the functional design of the Domain Tool for end-to-end (E2E) monitoring, discussed during a workshop on May 15, 2003. It covers the cooperation environment, functions, interfaces, and outstanding issues. Key elements include administration, data analysis, communication frameworks, and aggregation functionalities. The tool is intended for various stakeholders, including developers and domain administrators, emphasizing interoperability with other domain tools. Insights on performance monitoring, scheduling, and data management are pivotal for enhancing network management capabilities.

fulton-fernandez
Télécharger la présentation

Functional design of Domain Tool

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Functional design of Domain Tool UCL e2e monitoring workshop May 15th, 2003 Victor Reijs victor.reijs@heanet.ie

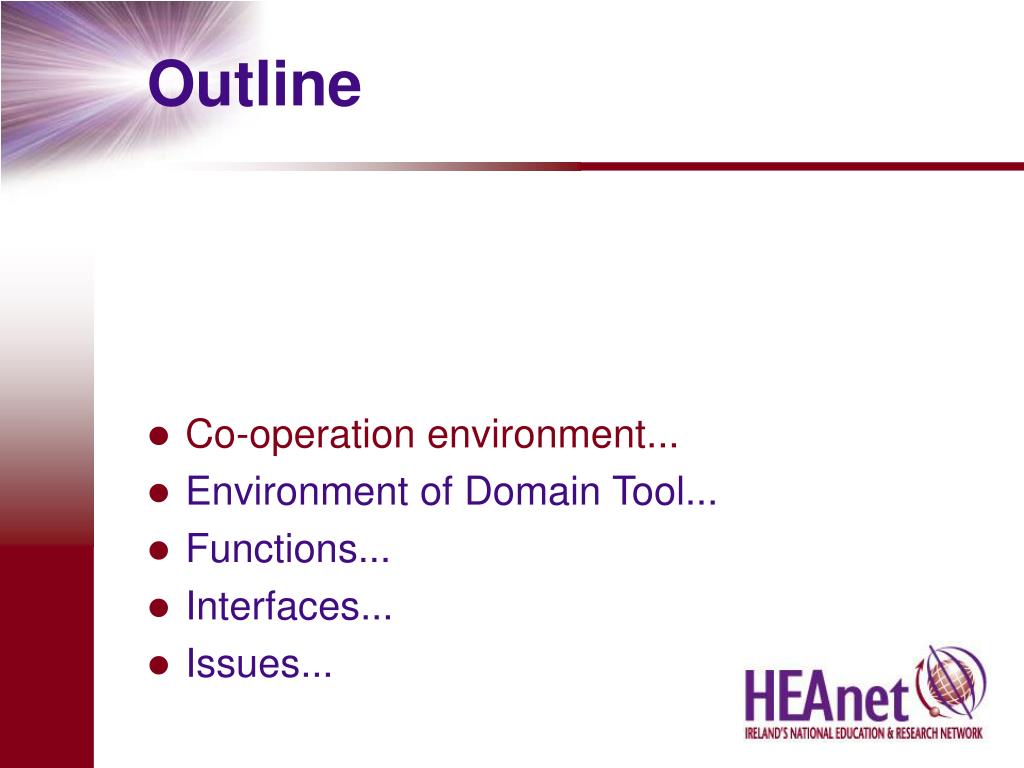

  2. Outline • Co-operation environment... • Environment of Domain Tool... • Functions... • Interfaces... • Issues...

  3. Co-operation environment • I2: 4 years ago talk on e2e problem: • NLM-HEAnet and VidiNet: Chariot • TF-NGN: • PERT • Performance infrastructure • NIMI • GGF/OGSA • E2E piPEs • Monalisa, others?

  4. Outline • Co-operation environment... • Environment of Domain Tool... • Functions... • Interfaces... • Issues...

  5. Environment of Domain Tool • man • machine • developer • administrator User representation Access interface Domain Tool... Inter-domain interface Other Domain Tools MP interface Un-Instrumented networks Instrumented networks MP

  6. Domain Tool block Access interface Inter-domain interface Domain specific block... API interface Analyses+ aggregation Driver interface MP driver MPspecific block Domain Tool MP interface

  7. Domain Specific block Access interface Inter-domain interface Communication AAA Scheduler Pathfinder Aggregation DBMS Administration Data analyses Domain specific API interface

  8. Outline • Co-operation environment... • Environment of Domain Tool... • Functions... • Interfaces... • Issues...

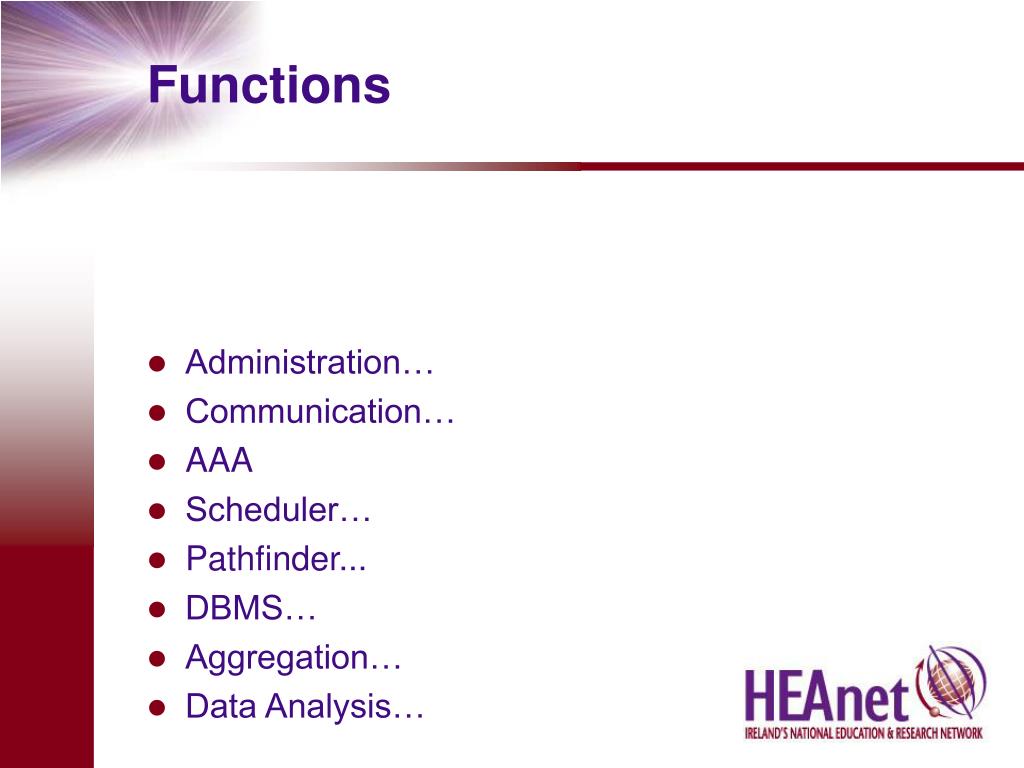

  9. Functions • Administration… • Communication… • AAA • Scheduler… • Pathfinder... • DBMS… • Aggregation… • Data Analysis…

  10. Administration • knows what Domain Tool can do • knows about the feature set of connected MP’s • keeps track of test functionalities available [NMWG] • keeps track of other Domain Tools (JINI?) • keeps track of users and AAA • keeps track of aggregation functions • keeps domain policies

  11. Communication • does communication to other Domain Tools • schedules communication paths inside Domain Tool • [NIMI]

  12. Scheduler • accepts information requests • asks for path (using Pathfinder) • does resource management of Domain Tool and MP’s • determines if test is needed (could be in Database) • uses AAA towards MP specific block • does test management (start, stop, abort, etc.) • provides database exceptions/error information • [E2E piPEs]

  13. Pathfinder • determines MP’s in the e2e path • determines the IP path • for own domain: finds MP’s on path • determines neighbor Domain Tool • un-instrumented domain exists

  14. DataBase Management System • has (distributed) Domain Database • knows if MP’s have Local Database(s) • uses AAA • determines if data is available [Test Arbiter] • [OGSA]

  15. Aggregation • has domain specific aggregation functions... • aggregates test results for domain • provides aggregated results • provides aggregated exceptions/error information

  16. Aggregation functions • Statistical functions: • mean, percentile, standard deviation, etc. [NMWG] • adding averages, concatenation, etc.

  17. Data Analyses • knows how to analyze the test results of MP’s • uses MP specific aggregation functions... • anonymizes data • provides MP results • provides MP exceptions/error information • [test engine, E2E piPEs]?

  18. Outline • Co-operation environment... • Environment of Domain Tool... • Functions... • Interfaces... • Issues...

  19. Interfaces • Access interface (XML, SOAP) • user (man or machine) • domain administrator • MP developer • Inter-domain interface (XML) • Driver interface • MP interface [PMP, E2EpiPEs?] (proprietary) • API interface (XML?) • data analyses • aggregation functions

  20. Outline • Co-operation environment... • Environment of Domain Tool... • Functions... • Interfaces... • Issues...

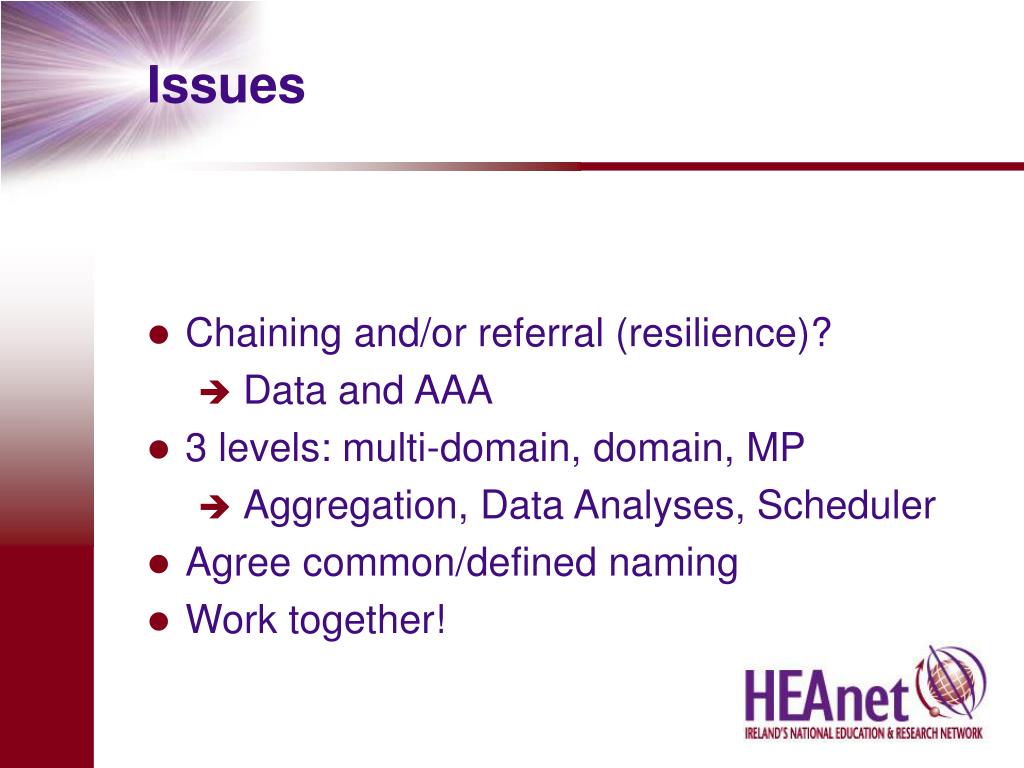

  21. Issues • Chaining and/or referral (resilience)? • Data and AAA • 3 levels: multi-domain, domain, MP • Aggregation, Data Analyses, Scheduler • Agree common/defined naming • Work together!

  22. Contact info • Part of TF-NGN (TERENA/DANTE) • Performance monitoring infrastucturehttp://www.dante.net/tf-ngn/perfmonit/Nicolas Simas: Nicolas.Simar@dante.org.uk • PERThttp://www.dante.net/tf-ngn/pert/Victor Reijs: victor.reijs@heanet.ie
