  1. Adaptive Fast Block-Matching Algorithm by Switching Search Patterns for Sequences With Wide-Range Motion Content 韋弘 2010-07-05

  2. Introduction reference frame current frame motion vector residual

  3. Introduction • remove the temporal redundancy • switch FBMA among the motion contents • A-TDB algorithm based on predicted profit list

  4. Outline • Basic Methods • Predicted Profit List • A-TDB Algorithm • Results • References

  5. Outline • Basic Methods • Predicted Profit List • A-TDB Algorithm • Results • References

  6. motion vector

  7. Full search

  8. Three-Step Search (TSS)

  9. Three-Step Search (TSS)

  10. Block-Base Gradient Descent Search(BBGDS)

  11. Block-Base Gradient Descent Search(BBGDS)

  12. Diamond Search (DS)

  13. Diamond Search (DS)

  14. Fast Block-Matching Algorithm • three-step search (TSS) • new three-step search (NTSS) • block-based gradient descent search (BBGDS) • diamond search (DS) • four-step search (FSS)

  15. Algorithm with minimum computation

  16. Search Pattern Utilized

  17. Outline • Basic Methods • Predicted Profit List • A-TDB Algorithm • Results • References

  18. Predicted Profit List • Initial：MSE(profit) at (0,0) • a sorted list of blocks in descending order of profit

  19. Characteristics(1/4) • the distribution of the profits is not uniform

  20. Characteristics(2/4) • the blocks usually include several various motion contents

  21. Characteristics(3/4) • the MVs of the neighboring blocks are strongly correlated

  22. Characteristics(4/4) • the MV is very likely to be zero near the end

  23. Outline • Basic Methods • Predicted Profit List • A-TDB Algorithm • Results • References

  24. A-TDB Algorithm

  25. Initialization Phase

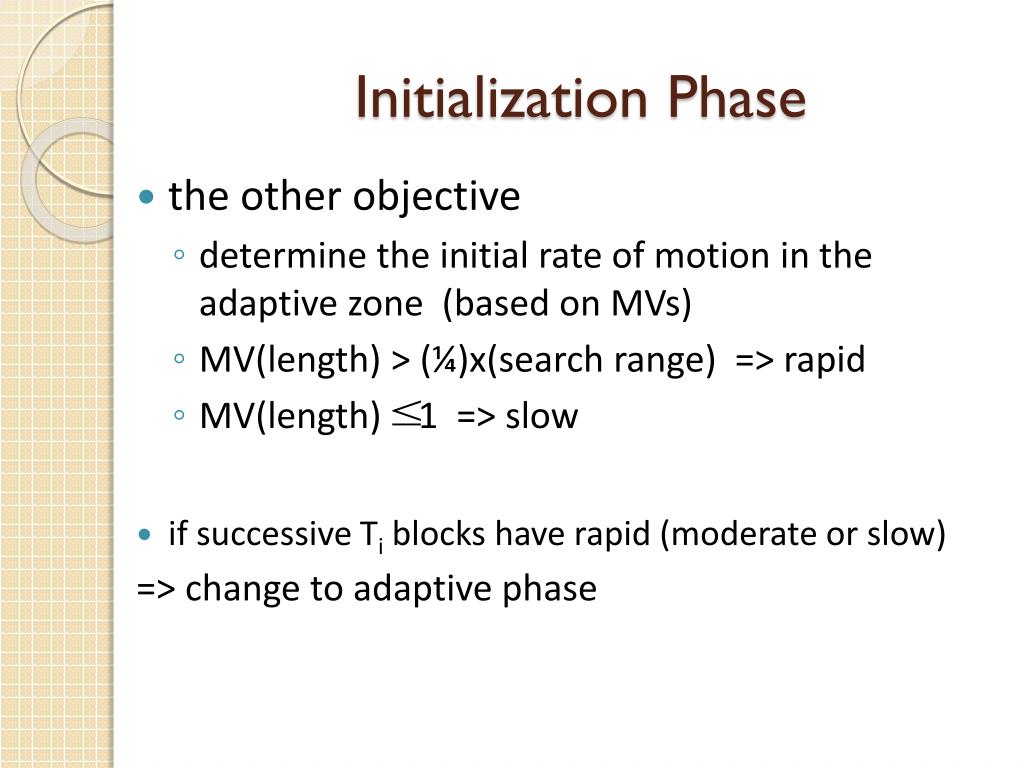

  26. Initialization Phase • the other objective • determine theinitial rate of motion in the adaptive zone (based on MVs) • MV(length) > (¼)x(search range) => rapid • MV(length) 1 => slow • if successive Tiblocks have rapid (moderate or slow) => change to adaptive phase

  27. Adaptive Phase

  28. Cleanup Phase • When does A-TDB change to the cleanup phase? • predicted profits of the blocks < threshold (predefined) • the MVs found are consecutive zero (Tc) • What does the cleanup phase do? • skip the remaining blocks in the profit list • A-TDB stops

  29. test sequences

  30. the effect of Ti

  31. the effect of Ti • the value of Ti is negligible

  32. the effect of Ta

  33. the effect of Ta • 2, 3, and 4 are good choices for Ta

  34. the effect of Tc(>6)

  35. Outline • Basic Methods • Predicted Profit List • A-TDB Algorithm • Results • References

  36. Result

  37. Result

  38. Result

  39. Outline • Basic Methods • Predicted Profit List • A-TDB Algorithm • Results • References

  40. References • [1]S.-Y. Huang, C.-Y. Cho, and J.-S. Wang, “Adaptive fast block-matching algorithm by switching search patterns for sequences with wide-range motion content”, IEEE Trans. Circuits and Systems for Video Technology , vol. 15, no. 11, p.p.1373-1384, Nov. 2005. • [2] L. K. Liu and E. Peig, “A block-based gradient descent search algorithm for block motion estimation in video coding,” IEEE Trans. Circuits Syst. Video Technol., vol. 6, no. 8, pp. 419–423, Aug. 1996. • [3] S. Zhu and K.-K. Ma, “A new diamond search algorithm for fast block matching motion estimation,” IEEE Trans. Image Process., vol. 9, no. 2, pp. 287–290, Feb. 2000. • [4] A. Andersson, T. Hagerup, S. Nilsson, and R. Raman, “Sorting in linear time,” J. Comput. Syst. Sci., vol. 57, pp. 74–93, 1998.
