  1. Cross Section and Profile Tidbits Dan Eskin, PE Bentley Systems

  2. Profiles • Create Profile • Evaluation > Profile > Create Profile

  3. Profiles • What can you display on a profile? • Multiple Surfaces • Surface Offsets • Vertical Alignments and Annotation • Projected and Crossing Features and Annotation • Projected Alignments • Projected Cogo Points • Drainage Structures and Annotation • Bulk Profile Annotation • Drafting Notes

  4. Profiles • Multiple Surfaces

  5. Profiles • Surface Offsets

  6. Profiles • Vertical Alignments and Annotation • Geometry > View Geometry > Vertical Annotation

  7. Profiles • Projected and Crossing Features • Evaluation > Profile > Update Profile

  8. Profiles • Projected and Crossing Features Annotation • Evaluation > Profile > Annotate Feature in Profile

  9. Profiles • Projected Alignments • Evaluation > Profile > Alignments to Profile

  10. Profiles • Projected Cogo Points • Evaluation > Profile > Points to Profile

  11. Profiles • Drainage Structures and Annotation

  12. Profiles • Bulk Profile Annotation • Evaluation > Profile > Annotate Profile

  13. Profiles • Drafting Notes • Drafting > Place Profile Note

  14. Profiles • Create Cross Section • Evaluation > Cross Section > Create Cross Section

  15. Profiles • What can you display on a cross section? • Components and Surfaces • Projected and Crossing Features and Annotation • Drainage Structures • Bulk Profile Annotation • Drafting Notes

  16. Cross Sections • Components and Surfaces

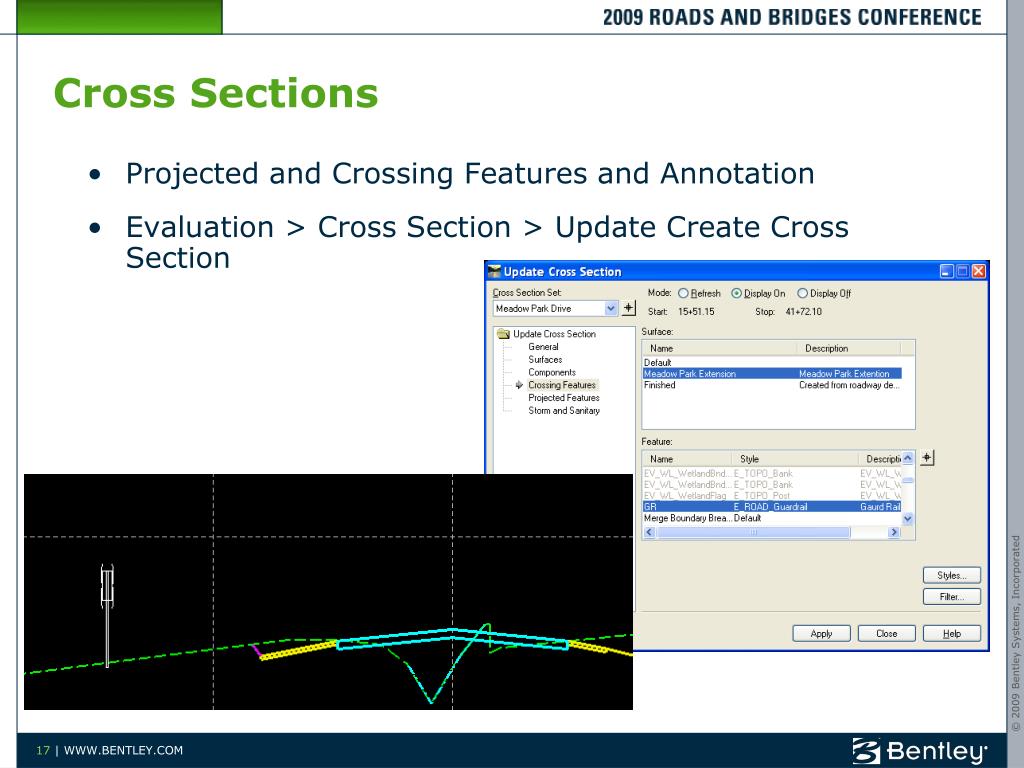

  17. Cross Sections • Projected and Crossing Features and Annotation • Evaluation > Cross Section > Update Create Cross Section

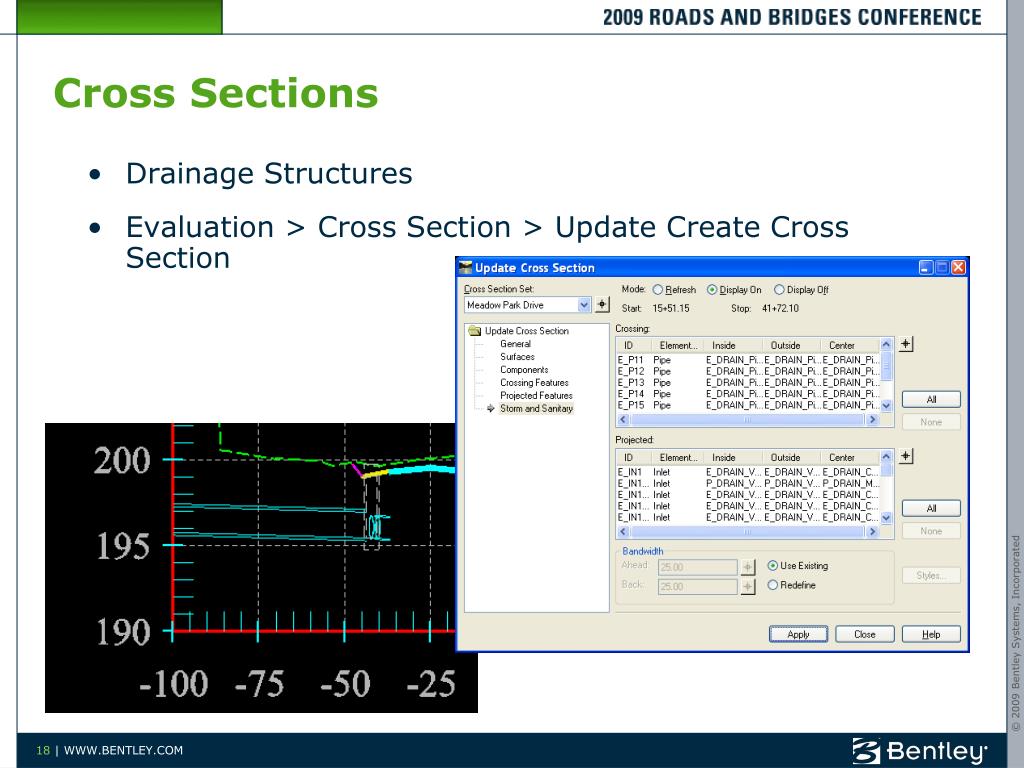

  18. Cross Sections • Drainage Structures • Evaluation > Cross Section > Update Create Cross Section

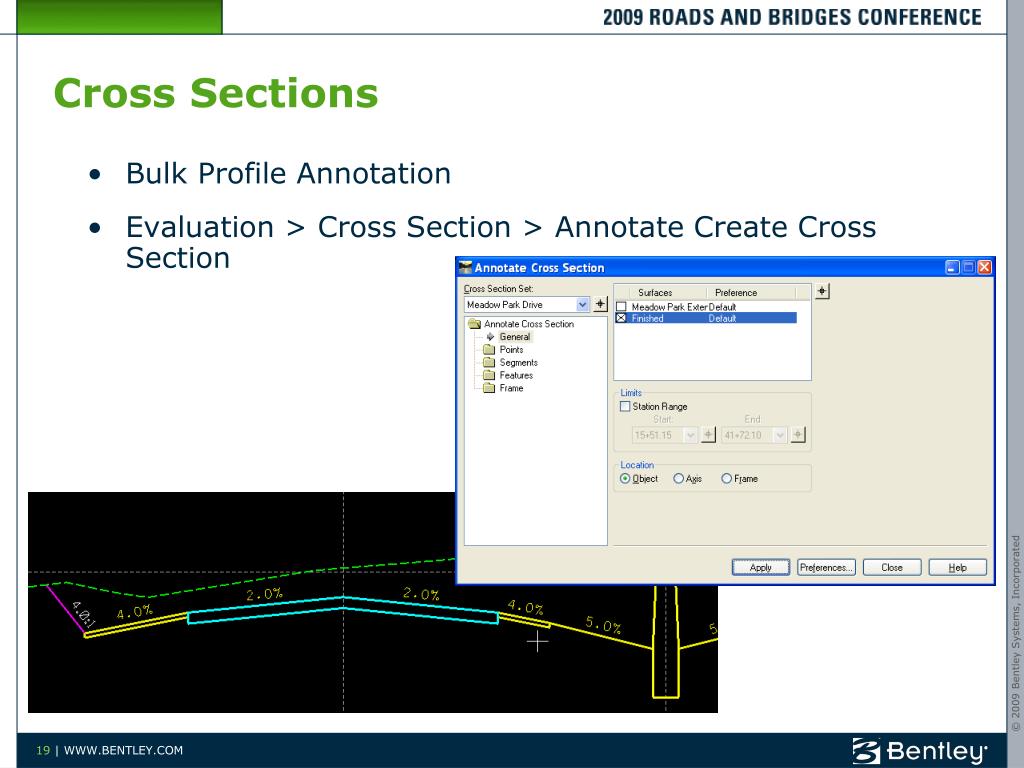

  19. Cross Sections • Bulk Profile Annotation • Evaluation > Cross Section > Annotate Create Cross Section

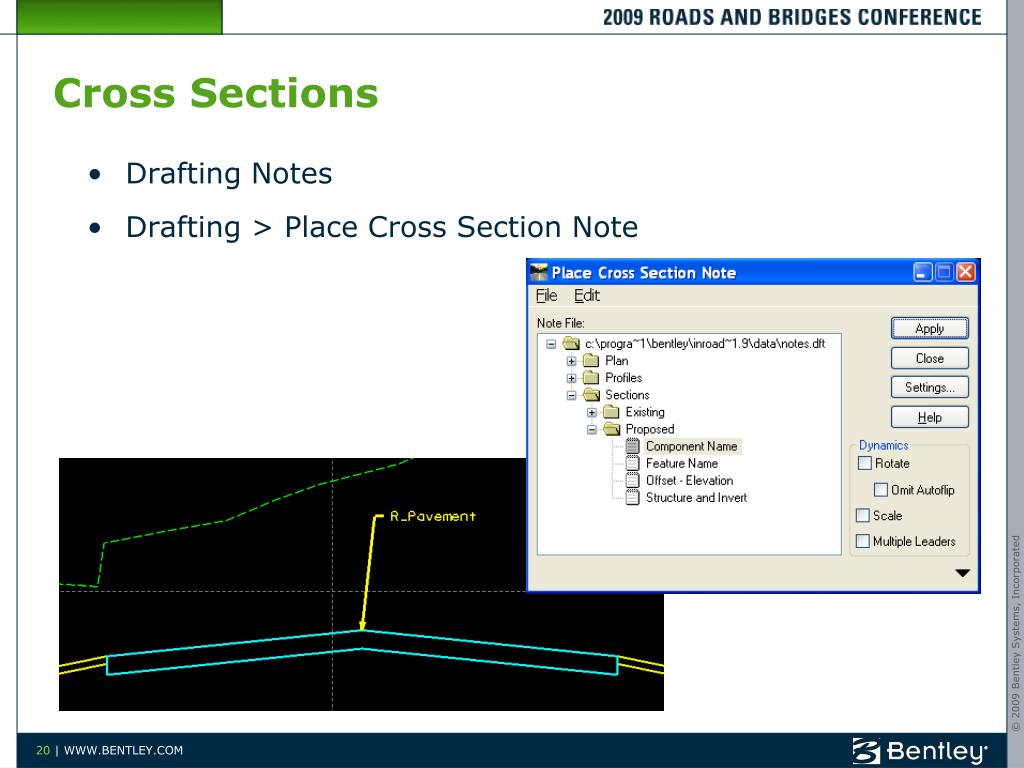

  20. Cross Sections • Drafting Notes • Drafting > Place Cross Section Note

  21. Questions?
