Type I Projectiles

Type I Projectiles. Objects that are given an initial horizontal velocity, then influenced by gravity (alone). A Shot vs. A Bullet Dropped. Two Bullets: * One fired horizontally * One dropped at the same instant, from the same height Which lands first?.

gabby
Télécharger la présentation

Type I Projectiles

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

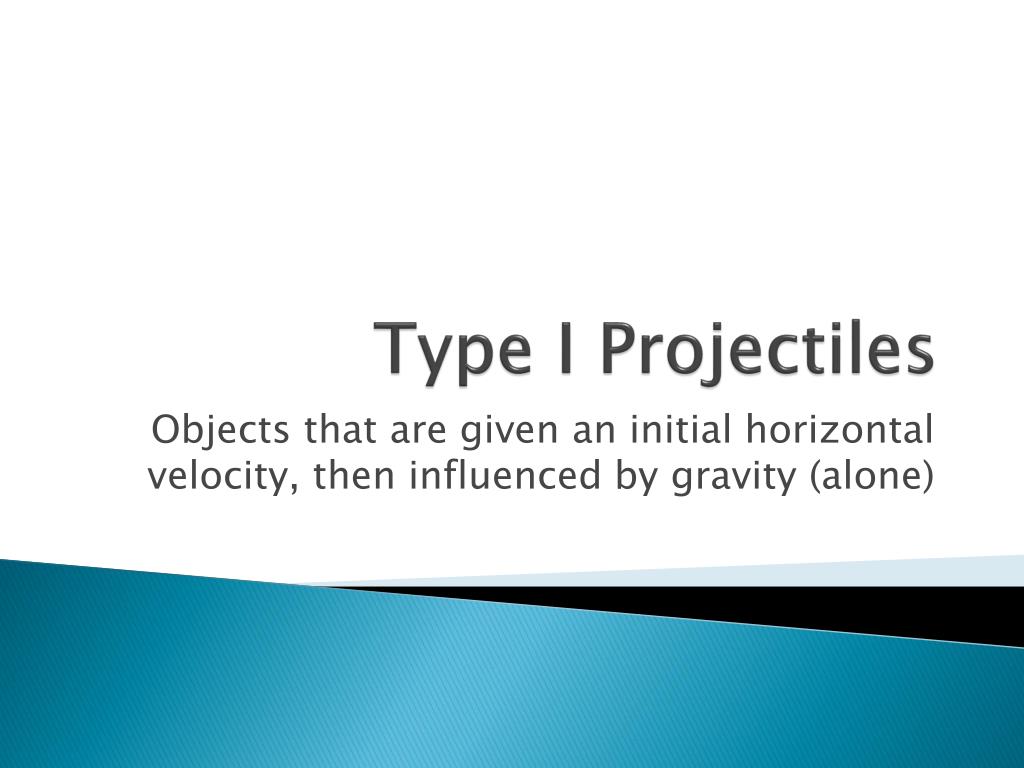

  1. Type I Projectiles Objects that are given an initial horizontal velocity, then influenced by gravity (alone)

  2. A Shot vs. A Bullet Dropped Two Bullets: * One fired horizontally * One dropped at the same instant, from the same height Which lands first?

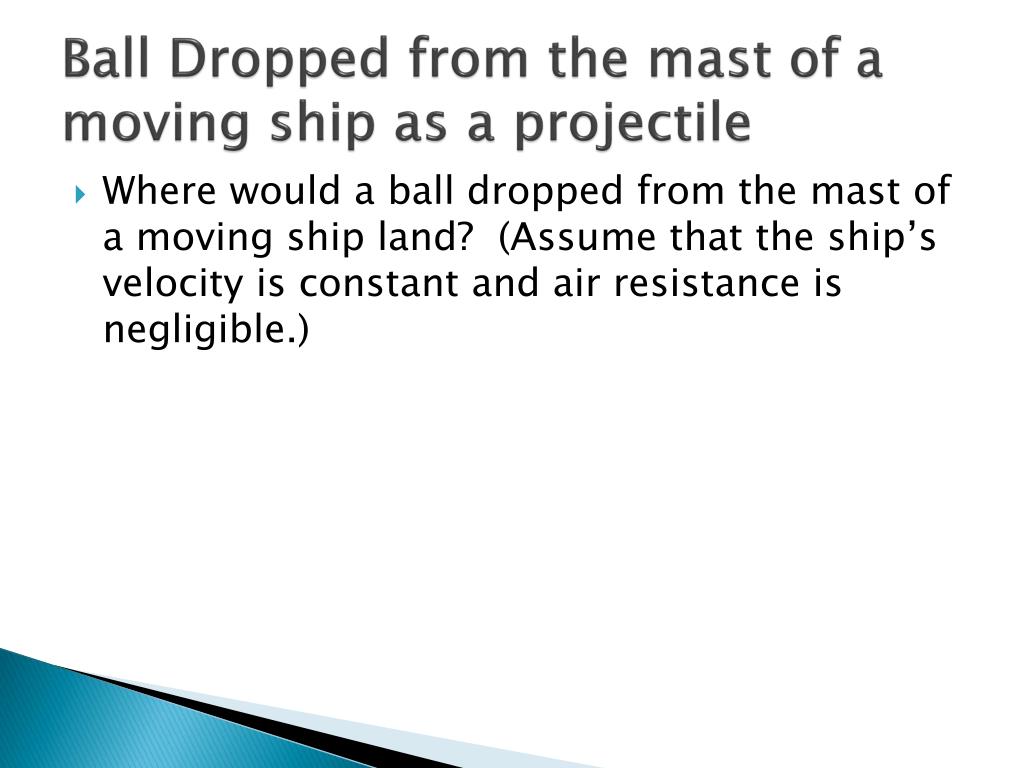

  3. Ball Dropped from the mast of a moving ship as a projectile • Where would a ball dropped from the mast of a moving ship land? (Assume that the ship’s velocity is constant and air resistance is negligible.)

  4. Air Drop as a Projectile • What would happen to a package dropped from a moving airplane, if air resistance was negligible? • http://www.physicsclassroom.com/mmedia/vectors/pap.cfm

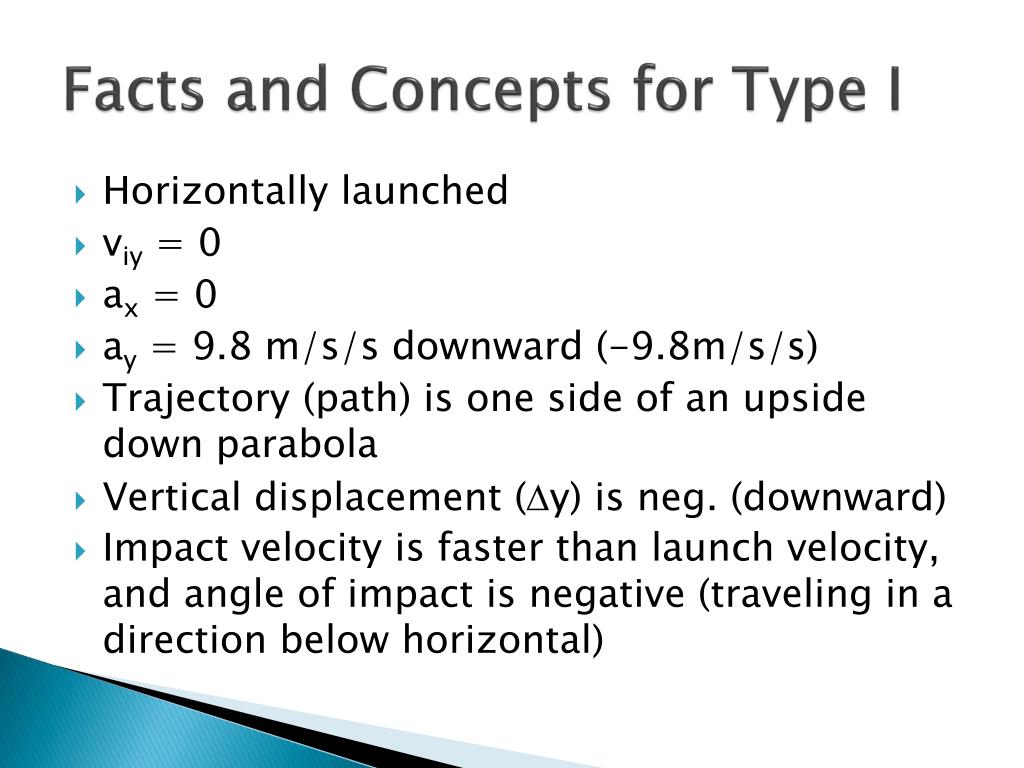

  5. Facts and Concepts for Type I • Horizontally launched • viy = 0 • ax = 0 • ay = 9.8 m/s/s downward (-9.8m/s/s) • Trajectory (path) is one side of an upside down parabola • Vertical displacement (Dy) is neg. (downward) • Impact velocity is faster than launch velocity, and angle of impact is negative (traveling in a direction below horizontal)

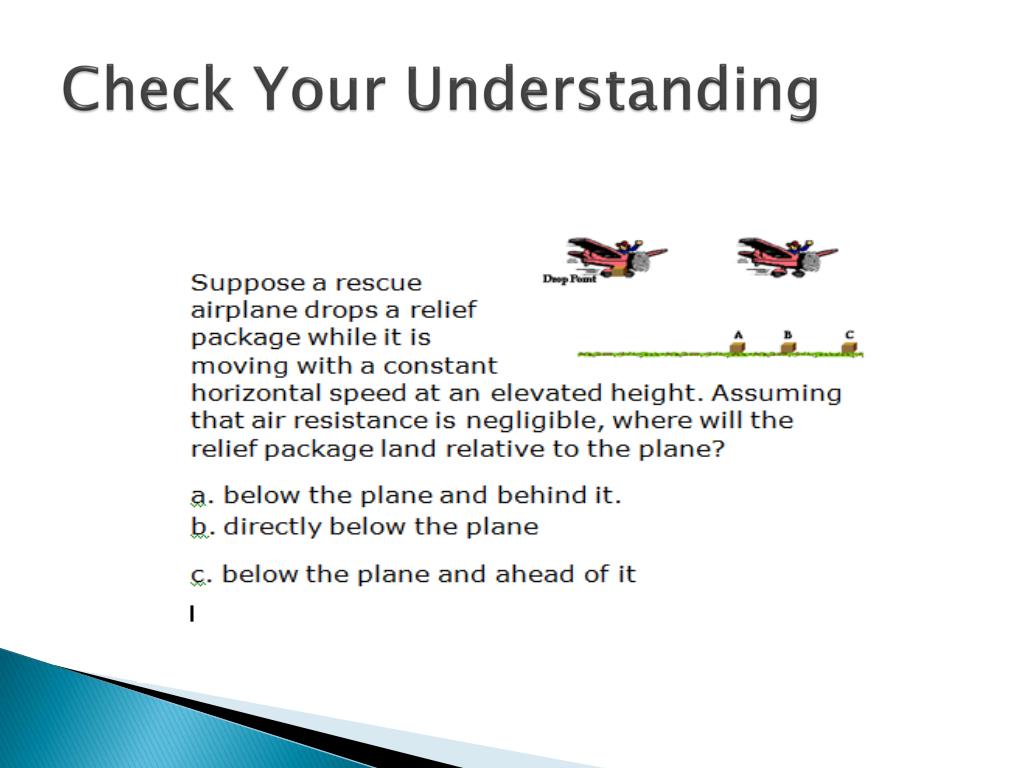

  6. Check Your Understanding

  7. Type I ex #1 • A water pistol held horizontally at a height of 1.20m ejects a stream of water that strikes the floor 5.00m from the shooter. • With what speed is the water launched? • With what speed does the water impact the floor?

  8. Type I ex#2 • The shooter from #1 stands on a step ladder so that he can hold the water pistol at a height of 4.8 m. Again he fires (assume same launch velocity as in #1). What is the range of the water?

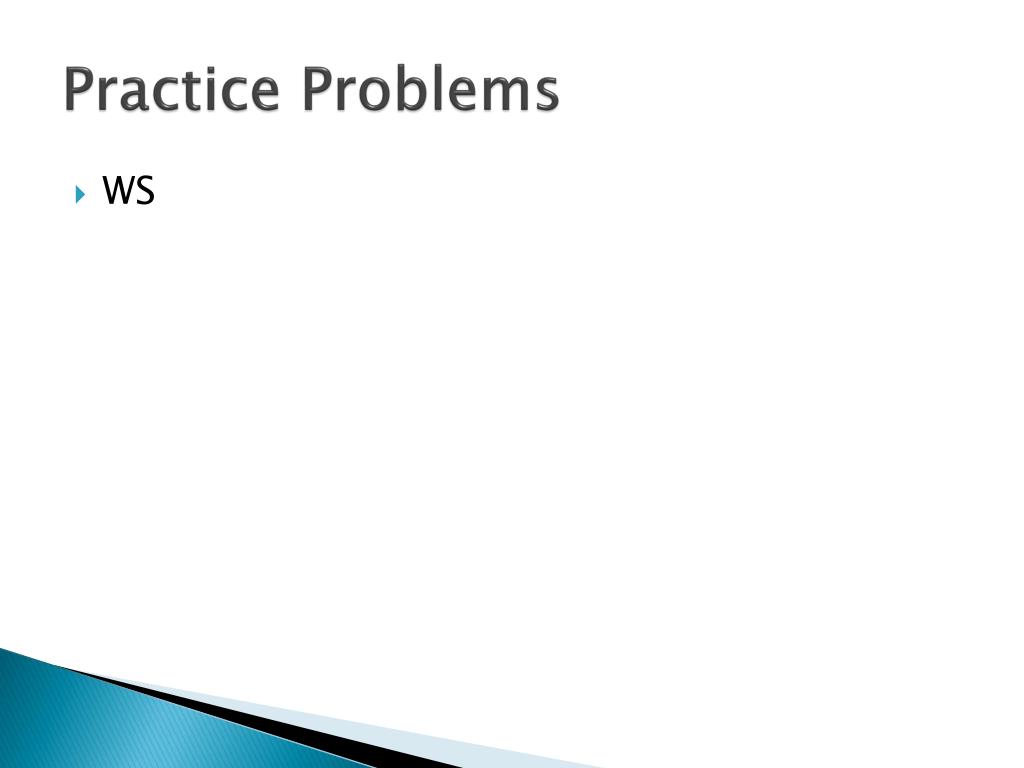

  9. Practice Problems • WS
