  1. Projectiles calculations Calculating the components of a vector using trigonometry and vertical and horizontal problems

  2. Projectiles – vector component calculation • Example: If a projectile is launched with an initial velocity of 50m/s at an angle of 60 degrees above the horizontal. What is the horizontal and vertical velocity?Vx = Vinit * cos 60 = 50m/s * cos 60 = 25m/sVy = Vinit * sin 60 = 50m/s * sin 60 = 43m/s • v = 50m/s Vy = 43m/s • 60° Vx = 25m/s

  3. Second Sample Problem • A water balloon is launched with a speed of 40m/s at an angle of 60° to the horizontal.Vx = 40m/s * cos 60° = 20m/sVy = 40m/s * sin 60° = 34.6m/s

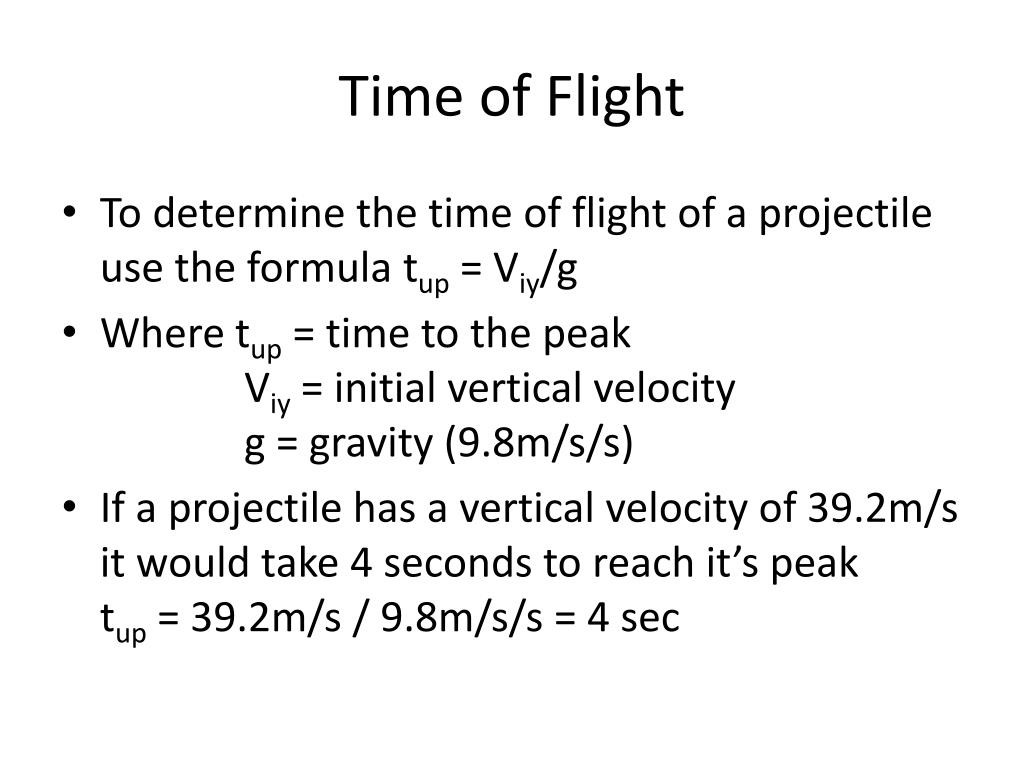

  4. Time of Flight • To determine the time of flight of a projectile use the formula tup = Viy/g • Where tup = time to the peak Viy = initial vertical velocity g = gravity (9.8m/s/s) • If a projectile has a vertical velocity of 39.2m/s it would take 4 seconds to reach it’s peaktup = 39.2m/s / 9.8m/s/s = 4 sec

  5. Equations for horizontal components of motion • x = vix * t + ½ * ax * t2 • Vfx = vix + ax * t • Vfx2 = vix2 + 2 * ax * x • Where x = horizontal displacement m ax = horizontal acceleration m/s/s t = time in s vix = initial horizontal velocity m/s vfx = final horizontal velocity m/s

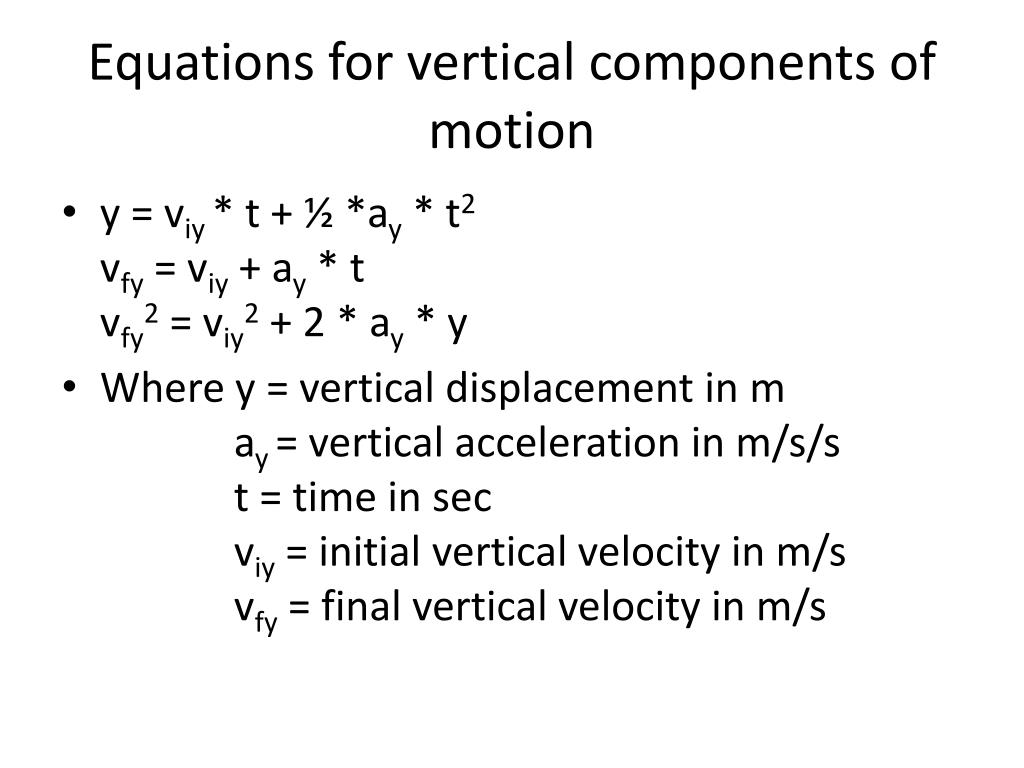

  6. Equations for vertical components of motion • y = viy * t + ½ *ay * t2vfy = viy + ay * tvfy2 = viy2 + 2 * ay * y • Where y = vertical displacement in m ay = vertical acceleration in m/s/s t = time in sec viy = initial vertical velocity in m/s vfy = final vertical velocity in m/s

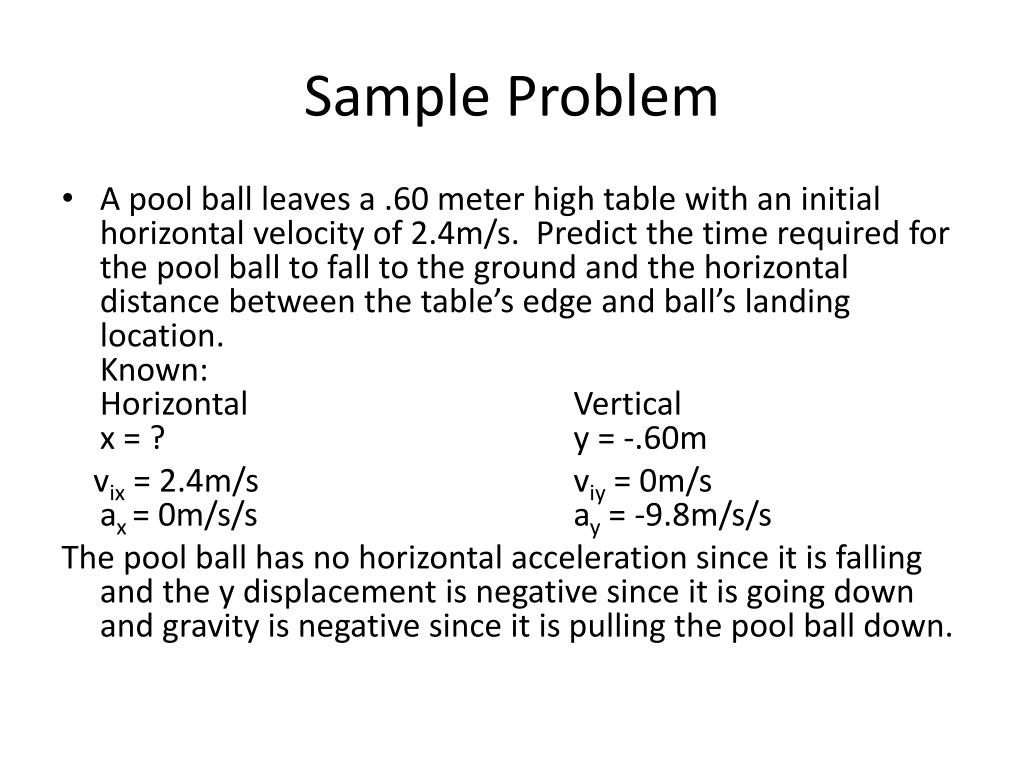

  7. Sample Problem • A pool ball leaves a .60 meter high table with an initial horizontal velocity of 2.4m/s. Predict the time required for the pool ball to fall to the ground and the horizontal distance between the table’s edge and ball’s landing location.Known: Horizontal Verticalx = ? y = -.60m vix = 2.4m/s viy = 0m/sax = 0m/s/s ay = -9.8m/s/s The pool ball has no horizontal acceleration since it is falling and the y displacement is negative since it is going down and gravity is negative since it is pulling the pool ball down.

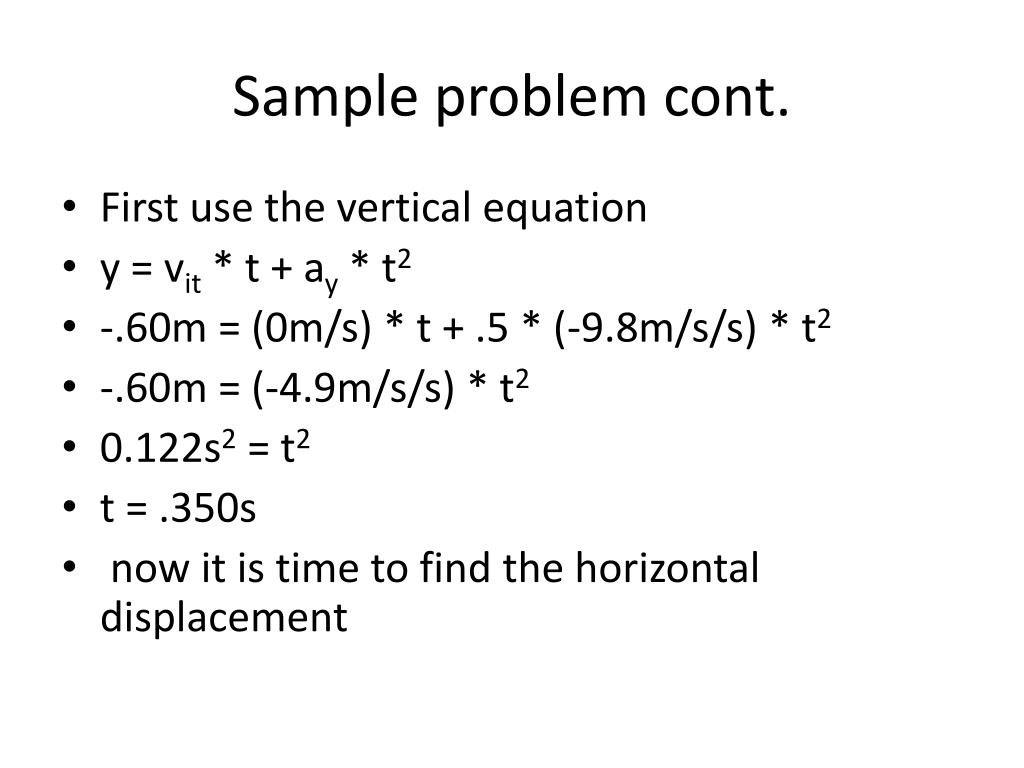

  8. Sample problem cont. • First use the vertical equation • y = vit * t + ay * t2 • -.60m = (0m/s) * t + .5 * (-9.8m/s/s) * t2 • -.60m = (-4.9m/s/s) * t2 • 0.122s2 = t2 • t = .350s • now it is time to find the horizontal displacement

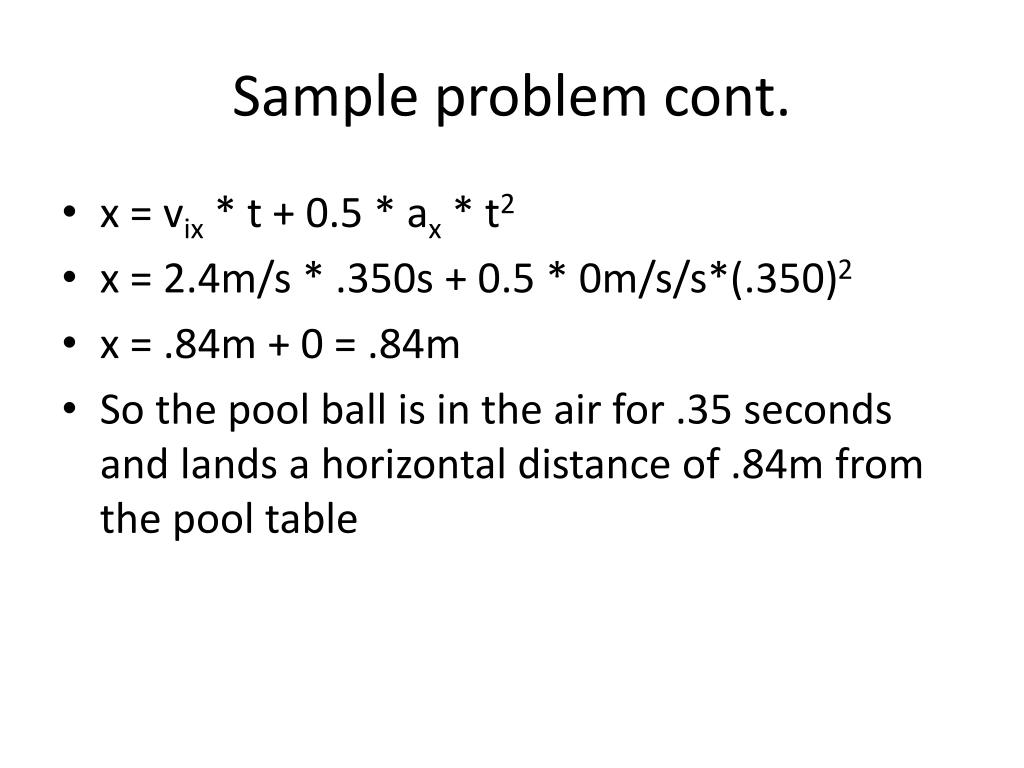

  9. Sample problem cont. • x = vix * t + 0.5 * ax * t2 • x = 2.4m/s * .350s + 0.5 * 0m/s/s*(.350)2 • x = .84m + 0 = .84m • So the pool ball is in the air for .35 seconds and lands a horizontal distance of .84m from the pool table
