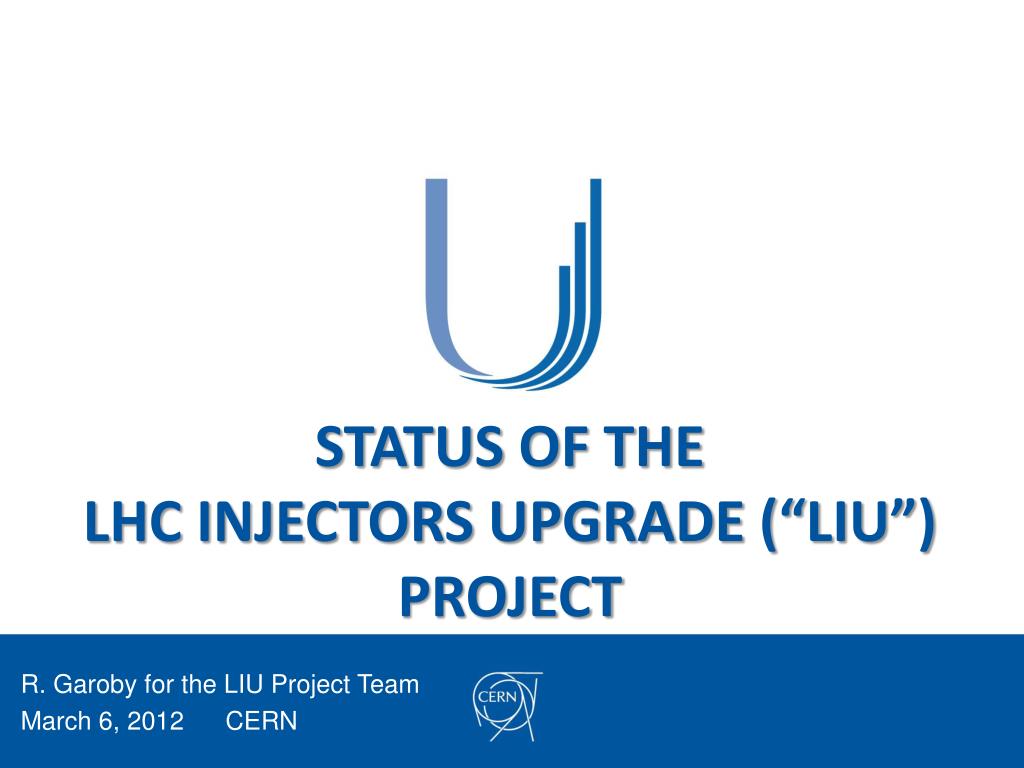

  1. STATUS OF THELHC INJECTORS UPGRADE (“LIU”) PROJECT R. Garoby for the LIU Project Team March 6, 2012 CERN

  2. Organization • Progress in 2011 • Plan for 2012 and 2013 • Plan beyond LS1 • Resources • Open issues

  3. Project Organization Breakdown Structure Director of Accelerators and technology - Steve Myers LIU Project team Roland Garoby (Project Leader) - Malika Meddahi (Deputy) - Brennan Goddard (LIU-SPS machine coordinator) - Simone Gilardoni (LIU-PS machine coordinator) - Klaus Hanke (LIU-PSB machine coordinator) - Maurizio Vretenar (Linac4 Project Leader)- Laurette Ponce (Project Safety Officer)-Django Manglunki (LIU-Ion chain coordinator) LIU- PS coordination team S.Gilardoni – Activity Leader H. Damerau– Deputy and Scientific secretary https://espace.cern.ch/liu-project/liu-ps/ LIU-SPS coordination team B.Goddard E.Shaposhnikova – Deputy G.Rumulo – Scientific secretary https://espace.cern.ch/liu-project/liu-sps/default.aspx LIU-Project Safety coordination L. Ponce Linac4 Project M.Vretenar http://linac4-project.web.cern.ch/linac4-project/ LIU-PSB coordination team K.Hanke – Activity leader B.Mikulec – Deputy V.Raginel – Scientific secretary https://espace.cern.ch/liu-project/liu-psb/ LIU Administrative Support: Cécile Noels. Project Support: Pierre Bonnal, Sylvain Weisz, TadeuszKurtyka - EVM coordinators: De Jonghe, Benoît Daudin

  4. Organization • Progress in 2011 • Plan for 2012 and 2013 • Plan beyond LS1 • Resources • Additional issues

  5. Achievements in 2011 • Formal organization of the LIU project: • Nomination of additional members of the project team (Project Safety Officer and responsible for ions) • Adjustment of project scope with transfer of activities from Linac4 (H- injection the PSB and all PSB-related tasks) and Consolidation • Definition of Work Breakdown Structure, most of Work Units, budget codes and budget needs. • Scientific/technical achievements: • Analysis of injectors’ potential using MDs and simulations • Refinement of the required actions on equipment (upgrades and replacement) with reviews (e-cloud, 160 MeV injection, beam instrumentation…) • Workshop with HL-LHC project in view of converging on beam characteristics.

  6. Organization • Progress in 2011 • Plan for 2012 and LS1 • Plan beyond LS1 • Resources • Additional issues

  7. Goals for 2012 and 2013 • Scientific/technical goals: • Analysis of injectors’ potential using MDs and simulations in view of stating the final project goals in agreement with HL-LHC at the end of 2012. • Specification of actions on equipment (upgrades and replacement) with reviews (e-cloud, …) • Publication of Design Report in 2013, • Preparation of future upgrades during LS1.5(?) and LS2. • Management goals: • EVM follow-up of the PSB upgrade. • Specification of cost to completion at the beginning of 2013. • Start of EVM follow-up of PS and SPS upgrades in 2013.

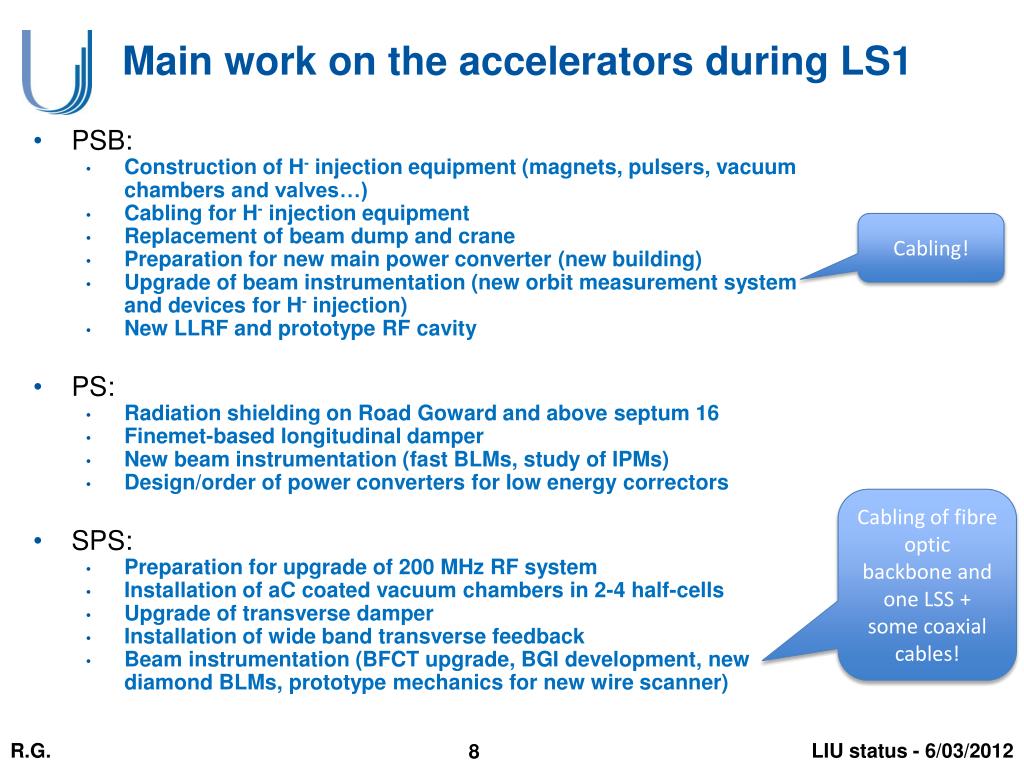

  8. Main work on the acceleratorsduring LS1 • PSB: • Construction of H- injection equipment(magnets, pulsers, vacuum chambers and valves…) • Cabling for H- injection equipment • Replacement of beam dump and crane • Preparation for new main power converter (new building) • Upgrade of beam instrumentation (new orbitmeasurement system and devices for H- injection) • New LLRF and prototype RF cavity • PS: • Radiation shielding on Road Goward and above septum 16 • Finemet-based longitudinal damper • New beam instrumentation (fastBLMs, study of IPMs) • Design/order of power converters for lowenergy correctors • SPS: • Preparation for upgrade of 200 MHz RF system • Installation of aCcoated vacuum chambers in 2-4 half-cells • Upgrade of transverse damper • Installation of wide band transverse feedback • Beaminstrumentation (BFCT upgrade, BGI development, new diamondBLMs, prototype mechanics for new wire scanner) Cabling! Cabling of fibre opticbackbone and one LSS + some coaxial cables!

  9. Organization • Progress in 2011 • Plan for 2012 and 2013 • Plan beyond LS1 • Resources • Additional issues

  10. Overall Plan

  11. Organization • Progress in 2011 • Plan for 2012 and 2013 • Plan beyond LS1 • Resources • Additional issues

  12. Material budget (kCHF) • Comment: planning after 2014 to be redone after the update of the LTP (dates of LS2)

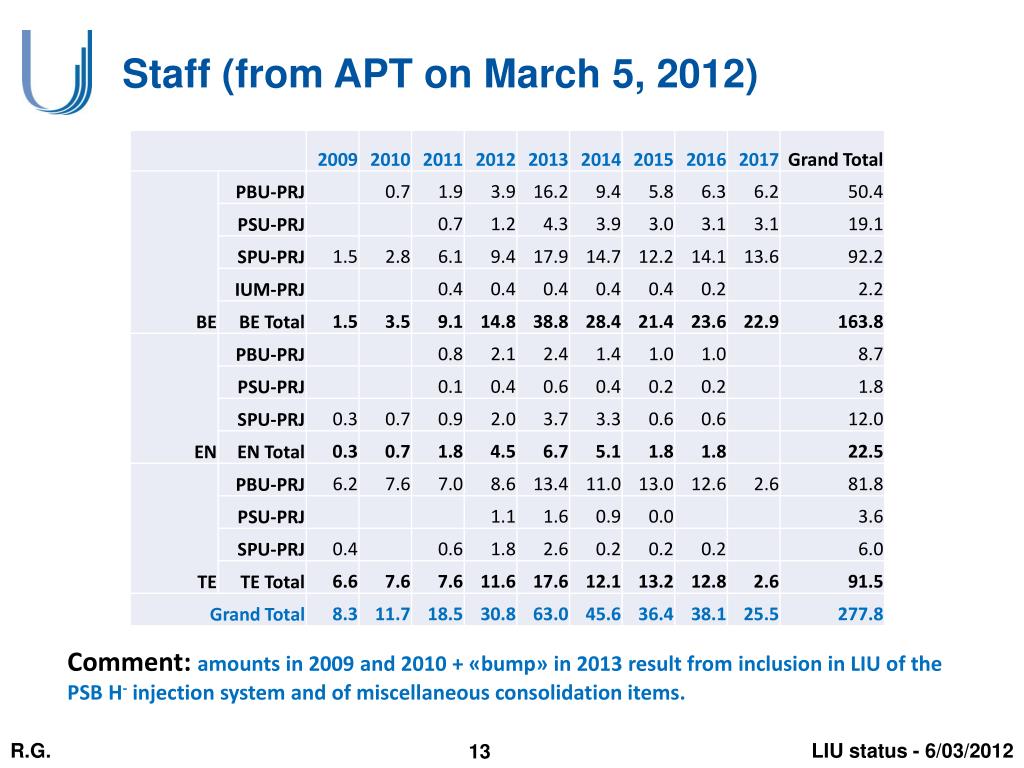

  13. Staff (from APT on March 5, 2012) • Comment: amounts in 2009 and 2010 + «bump» in 2013 result from inclusion in LIU of the PSB H- injection system and of miscellaneous consolidation items.

  14. Organization • Progress in 2011 • Plan for 2012 and 2013 • Plan beyond LS1 • Resources • Additionalissues

  15. Additional issues (1/2) • Will there be an LS1.5 at ~end of 2016? • Very useful for (1) making use of the investment in Linac4, (2) reducing risk (stop of Linac2) and (3) minimizing workload and time/risks for commissioning after LS2 (staging of the upgrades) • Necessitates resources for work on the PSB during LS1 and preparation of cabling with Linac4. • Need for planning LS2: at least 12 months for hardware installation + n months for hardware and beam commissioning. => no beam from the injectors during ~18 months.

  16. Additional issues (2/2) • Letter of support to the DOE for continuation of the development by US-LARP of a wideband transverse sytem in the SPS. • Organization of publications in the Accelerator Sector • Present situation is not satisfying (no easy means to identify the publications on LIU at least) • Little progress from my side (lack of time) except for a draft proposal prepared with Malika. • Suggestion to put someone in charge from the Project Support Office for refining a proposal, proposing it to the ATSMB and following its implementation
