HIC Assembly Procedure and Automation of Laser Soldering Techniques

DESCRIPTION

This document outlines the assembly procedure for High-Integration Chips (HIC), focusing on the steps involved in laser soldering, including chip placement on vacuum tables, flex placement, alignment, and the deposition of SnAg balls. It details a comprehensive workflow for module production, precise positioning checks, and incorporation of automation techniques using artificial vision systems to enhance accuracy and efficiency. The text also provides an assembly timing hypothesis, potential iron barrel and outer barrel configurations, and collaboration opportunities for further implementation.

1 / 7

Télécharger la présentation

HIC Assembly Procedure and Automation of Laser Soldering Techniques

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

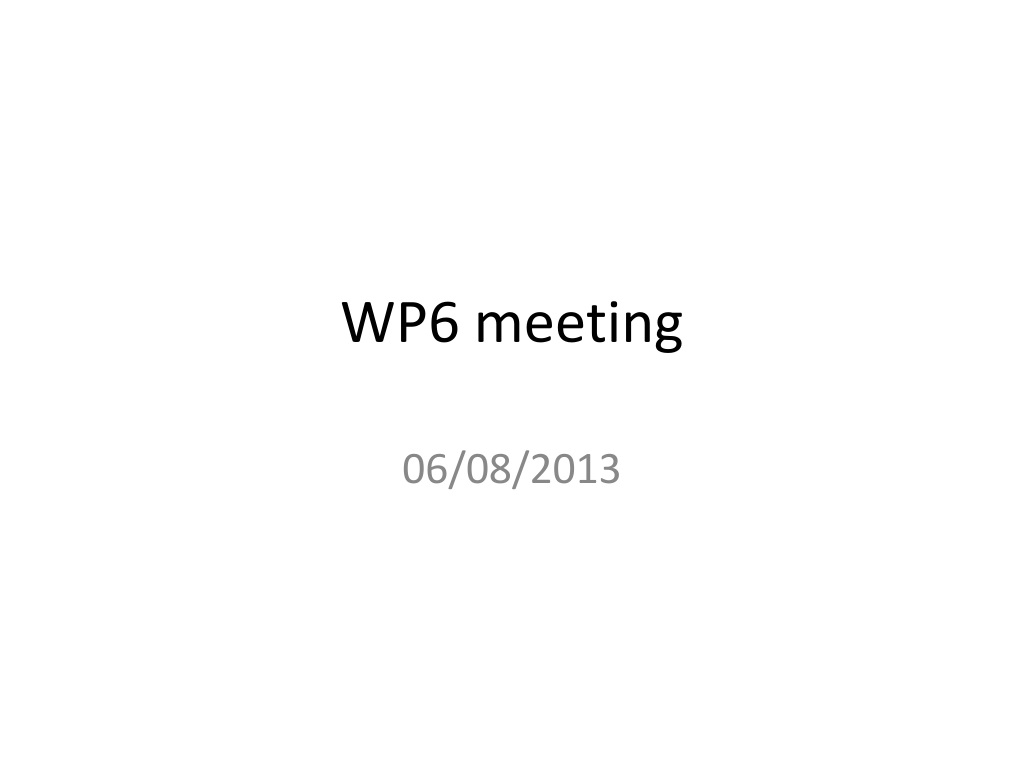

  1. WP6 meeting 06/08/2013

  2. HIC assembly procedure Laser soldering • Placement of chips on vacuum table and position check • Placement of flex on vacuum table • Placement of soldering grid on flex • Alignment • SnAg balls deposition and check • Soldering of one chip • Repeat steps 5 and 6 for all chips • Soldering check • Final check of chips position Chips embedding • Placement of chips on adhesive support and position check • PCB workshop sequence: pressing, coverlay, holes by etching, metallisation, lines by etching, coverlay, holes by etching metallisation, lines by etching, coverlay • Final check of chips position

  3. HIC assembly procedure General requirements • Placement of chips and position measurement with 5-10 mm resolution • Produce one module/day: automatize when possible repetitive tasks (not clear with embedding technique) • Laser soldering tasks which could be automatized using artificial vision based system: • Placement of chips on vacuum table and position check • Alignment of chips, flex, soldering grid • SnAg balls deposition and check (balls loading not clear yet) • Soldering of chips • Soldering check • Final check of chips position

  4. Planning of HICsassembly • Inner barrel • 48 staves x 2 + 10% ~ 110 staves • 990 chips, 49500 solderings • Outer barrel • 1602 modules +10% ~ 1800 modules • 25200 chips, 1260000 solderings

  5. Planning of HICsassembly Assembly timing hypothesis: • Placement of chips on vacuum table (auto): 9x10” ~ 90” (14 chips: 140”) • Placement of flex on vacuum table + grid on flex (man, pinholes): 300” • Alignment (auto): 300” (in parallel: manual loading of balls pick-up tool?) • SnAg balls deposition + soldering of one chip (auto): 300” + 50x 10”= 800” Total per IB module: 2h 11’ -> 30 d for full IB Total per OB module: 3h 19’ -> ~ 750 d for full OB Possible sharing scenario: • CERN -> 110 IB + 450 OB-layer 3, 4 -> 220 d • INFN+NIKHEF -> 1350 OB-layer 5, 6 -> 562 d (1 d = 8h)

  6. Stave assembly task sequence

  7. VEA • VEA is a company providing artificial vision based systems for quality checks, accurate positioning, etc…, with the required precision • A system with one robotic arm to pickup objects and an X-Y movement of the laser head could do the job • VEA is available for consultancy, they would sell us a voucher with a given no. of hours considered sufficient to study and finalize a system proposal
