  1. Calculations of 3D Weighting Field Profiles for 3D Detectors Zheng Li G. Carini, M. Li 3rd Workshop on Advanced Silicon Radiation Detectors (3D and P-type Technologies, Barcelona, Spain, April 14-16, 2004

  2. BNL 3D detector: 1 column design n+(column),0 p+, 0 p+ (implant),0 n+, the collecting electrode column, 1

  3. n+ n+ cut plane @ 1um cut plane @ 2um n+ n+ cut plane @ 4um cut plane @ 10um Weighting field highest near the surface

  4. n+ n+ cut plane @ 20um cut plane @ 30um n+ n+ cut plane @ 50um cut plane @ 70um Weighting field highest near the collecting n+ column, lowest under p+ electrodes, and is at ½ strength in the middle (non-zero)

  5. n+ n+ cut plane @ 150um cut plane @ 250um n+ cut plane @ 268um cut plane @ 271um

  6. Potential Cutline Cutline

  7. cut plane @ 280um cut plane @ 290um Some weighting field still exists near the unprocessed back side (non-zero) cut plane @ 300um

  8. BNL 3D detector: 2 columns design p+ n+(column) p+ (column) n+, the collecting electrode column, 1

  9. n+ n+ cut plane @ 0um cut plane @ 150um n+ n+ cut plane @ 268um cut plane @ 250um Weighting field highest near the collecting n+ column, lowest between p+ columns And non-collecting n+ column, and is at about ½ strength in the middle (non-zero)

  10. Cutline

  11. cut plane @ 271um cut plane @ 275um cut plane @ 278um cut plane @ 281um

  12. cut plane @ 285um cut plane @ 290um Some weighting field still exists near the unprocessed back side (non-zero) cut plane @ 300um

  13. 3D detector: BNM/ITC - IRST p+ n+(column) p+ (column) n+, the collecting electrode column

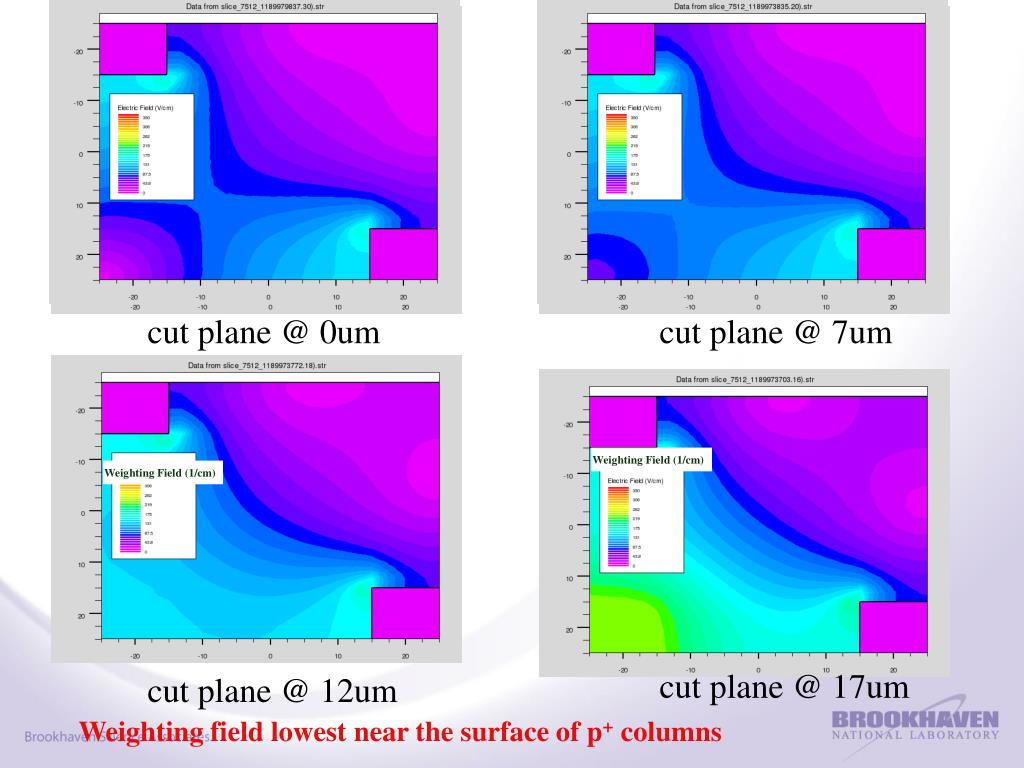

  14. cut plane @ 0um cut plane @ 7um cut plane @ 17um cut plane @ 12um Weighting field lowest near the surface of p+ columns

  15. cut plane @ 18um cut plane @ 20um cut plane @ 24um cut plane @ 28um

  16. n+ n+ cut plane @ 30um cut plane @ 50um n+ n+ cut plane @ 150um cut plane @ 250um Weighting field highest near the collecting n+ column, lowest between p+ columns And non-collecting n+ column, and is at about ½ strength in the middle (non-zero) (same)

  17. Cutline

  18. n+ n+ cut plane @ 269um cut plane @ 271um n+ n+ cut plane @ 280um cut plane @ 273um

  19. n+ n+ cut plane @ 285um cut plane @ 290um Weighting field at the surface of n+ columns is similar to that of the STC 3D detector n+ cut plane @ 300um

  20. Summary • Weighting field in 3D detectors is highly non-uniform • But it is distributed all throughout the detector (for pitch  50 µm) • In the middle of the cell (between 4 columns), the weighting field is about half of the maximum • So the main limiting factor for CEE in 3D detectors may be electric fields
