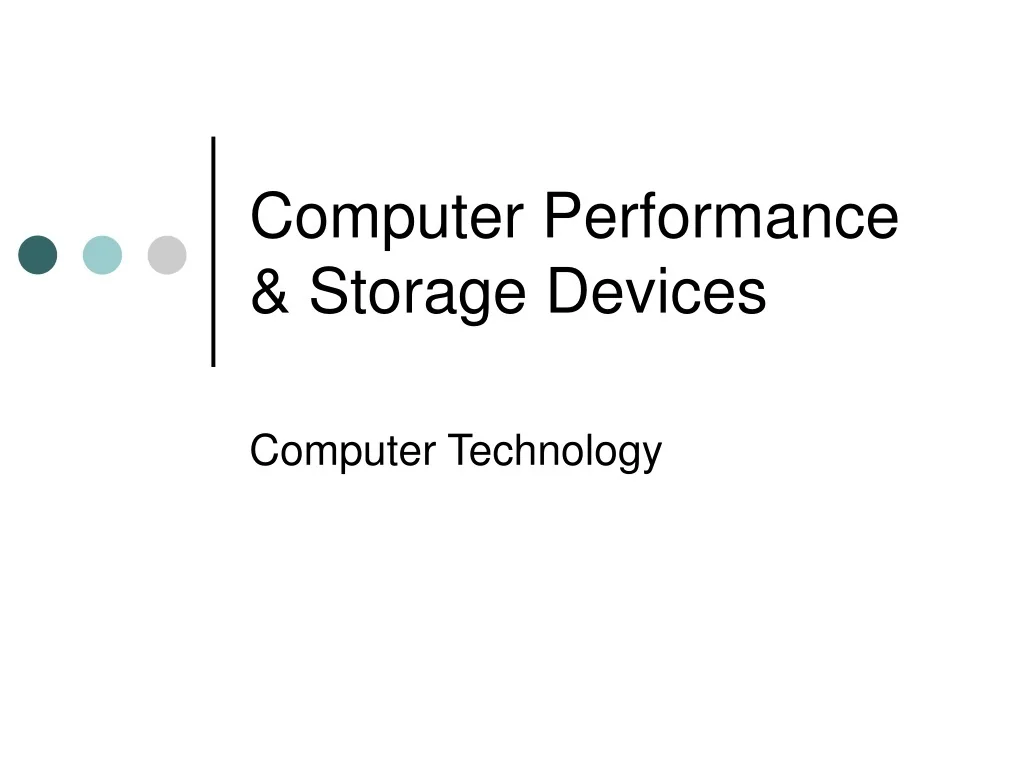

1. Computer Performance& Storage Devices Computer Technology

2. Computer Performance

3. Boot Process • Sequence of events that occurs between the time you turn on a computer and the time that it becomes ready to accept commands. • Purposes • Runs a diagnostic test to make sure everything is working. • Loading the operating system, so the computer can carry out basic operations.

4. 6 events of the boot process: • Power up • Start boot program • Power-on self-test • Identify peripheral devices • Load operation system • Check configuration and customization

5. Circuits • The path from one component of a computer to another that data uses to travel. • Circuits run between • RAM and the microprocessor • RAM and various storage devices

6. Silicon Chip • Silicon is melted sand. • What the circuits are embedded into to keep them together.

7. Megahertz (mHz) • A measurement used to describe the speed of the system clock. • A megahertz is equal to one million cycles (or pulses) per second. • 1.3 GHz means that the microprocessor’s clock operates at a speed of 1.3 BILLION cycles per second.

8. Pentium • Name of the CPU. • Pentium is the 5th generation of the Intel processor. • Other generations were called • 80-88 • 286 • 386 • 486

9. RAM “Random Access Memory” The ability of a storage device to go directly to a specific storage location without having to search sequentially from a beginning location. Very volatile Cannot hold data when the power is off. Looses all data when power is lost. ROM “Read only memory” Drives can read data from disks, but cannot store new data on them. One or more integrated circuits that contain permanent instructions that the computer uses during the boot process. RAM vs. ROM

10. Binary Number System • A method for representing letters or numbers using only two digits, 0 and 1. • Bit • Each 0 or 1 • Byte • 8 bits • Also referred to as Base 2 Binary Code.

11. Memory Measurements • Bit • Each 0 or 1 • Byte • 8 bits • Kilobyte • Approximately 1,000 bytes • Exactly 1,024 bytes • Megabyte • Approximately 1 million bytes • Exactly 1,048,576 bytes • Gigabyte • Approximately 1 billion bytes • Terabyte • Approximately 1 trillion bytes

12. Storage Devices • Used to keep data when the power to the computer is turned off. • Medium/media • Location where data is stored.

13. Hard Disk • Usually mounted inside the computer’s system unit. • Can store billions of characters of data. • Stated in forms of bytes: • Megabytes or Gigabytes

14. Magnetic Storage • Recording of data onto disks or tape by magnetizing particles of an oxide based surface coating. • A fairly permanent type of storage that can be modified.

15. Floppy Disk • Round piece of flexible Mylar plastic covered with a thin layer of magnetic oxide and sealed inside a protective covering. • May be referred to as a “floppy” • 3½ disk capacity is 1.44 MB or 1,440,000 bytes

16. Floppy Disk Options • Formatted • Preparing the disk for use by the computer. • Write-protected • Setting the disk so that it can not be written to by the computer.

17. Zip Disk • Floppy disk technology manufactured by Iomega. • Available in 100 MB and 250 MB versions

18. Digital Audio Tape • Method of storing large amounts of data on tape using helical scan technology to write data at high densities across the tape at an angle.

19. Optical Storage • Means of recording data as light and dark spots on CD or DVD. • Reading is done through a low-power laser light. • Pits • Dark spots • Lands • Lighter, non-spotted surface areas

20. CD-ROM • “CD – Read Only Memory” • Also called CD-R • CD-Read • Storage device that uses laser technology to read data that is permanently stored on compact disks, cannot be used to write data to a disk.

21. CD-RW • “CD-Read Write” • A storage device that reads data from CD’s and also can write data to CD’s. • Similar to a CD-ROM, but has the ability to write to CD.

22. DVD-ROM • “Digital Video Disks – Read Only Memory” • Reads data from CD’s (audio and data) and DVD’s (data or movie) • Cannot be used to write data to a disk.
