  1. CD MEDIA RECORDER Competency: Repairing of CD Player

  2. OBJECTIVE Understand and know the media recording a CD player Teknologi dan Rekayasa

  3. Compact Disc CD and DVD now everywhere. Use of a variety can be used to store music, data or software Teknologi dan Rekayasa

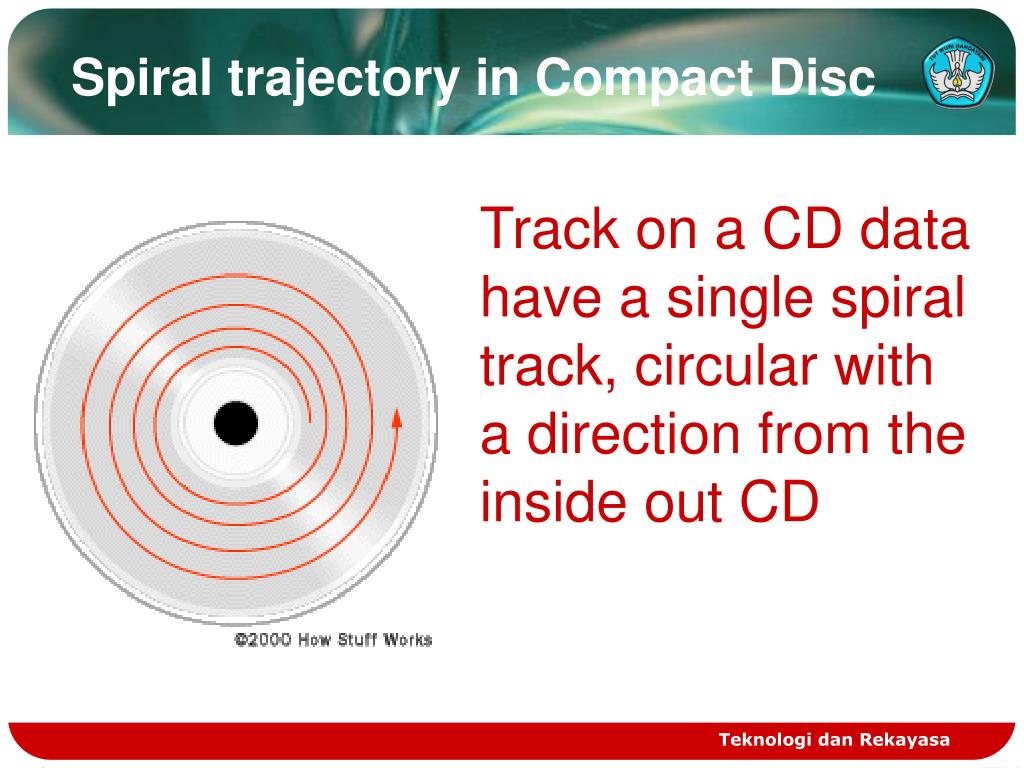

  4. Spiral trajectory in Compact Disc Track on a CD data have a single spiral track, circular with a direction from the inside out CD Teknologi dan Rekayasa

  5. CD Bump Bump is built to the width of each lane 0.5 micron, 0.83 micron minimum length and height of 125 namometer (one nano meter is like a million meters) Teknologi dan Rekayasa

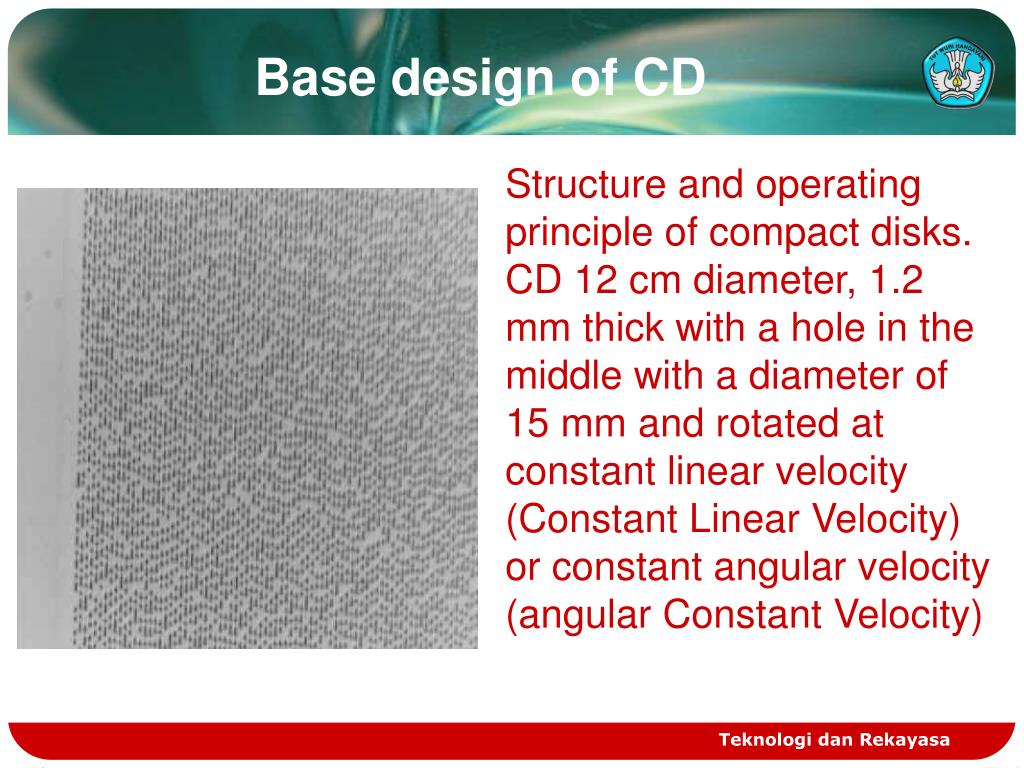

  6. Base design of CD Structure and operating principle of compact disks. CD 12 cm diameter, 1.2 mm thick with a hole in the middle with a diameter of 15 mm and rotated at constant linear velocity (Constant Linear Velocity) or constant angular velocity (angular Constant Velocity) Teknologi dan Rekayasa

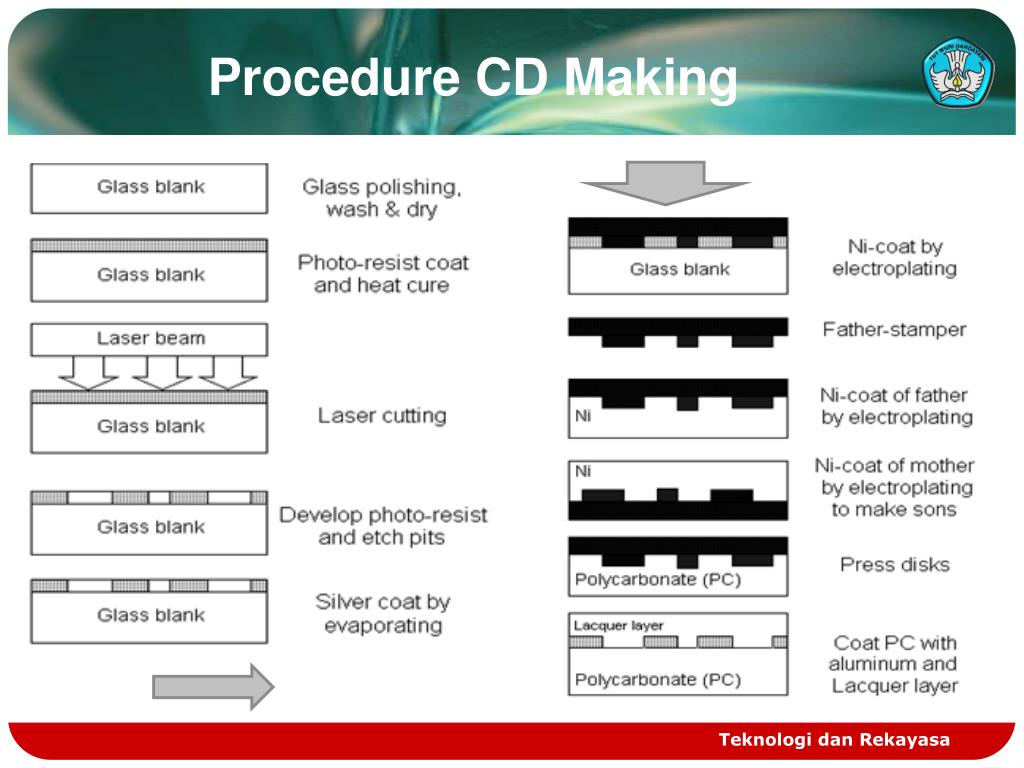

  7. Procedure CD Making Teknologi dan Rekayasa

  8. Base Design CD Drive Teknologi dan Rekayasa

  9. THE END By. SetyoHarmadi,ST SMK Muhammadiyah 3 Yogyakarta Teknologi dan Rekayasa
